Product Overview
Description
Product Description
4-Axis /5 Axis Wire Rotary Spring Machine
Model | US-540R |
Axis | 4/5 |
Wire Diameter | 0.8-4.0mm |
Wire Wheel Sets | 3sets |
Cam Axis | 4.5KW |
Wire Feeding Axis | 4.5KW |
Rotary Quill Axis | 0.4KW |
Rotary Wire Axis | 2.7KW |
Spinner Axis | 1KW |
Machine Axis | 1650*1700*1900mm3 |
Machine Weight | 2100kg |
1. Wire rotary machine adopts Taiwan computer control system and Japanese servomotor, which has the characteristics of easy operation, high speed and high precision.
2. The five axis are cam axis, wire feeding axis, rotary wire axis, rotary quill axis, and spinner axis(optional accessory). The five axis can be operated synchronously. The position of each axis, the length of the wire feed, the production speed, and the number of production can be displayed on the screen. It is very easy to edit and modify the program data online.
3. The cam part has eight sets of slides, crank arm and CAM rotating axis. The wire feeding system is installed horizontally behind the machine. The wire rotary axis can control the rotation of wire, making the speed of high-difficulty special-shaped spring adjustment easier and faster.The rotating quill axis can be rotated positively or negatively, and the spinner device is installed on the slide.

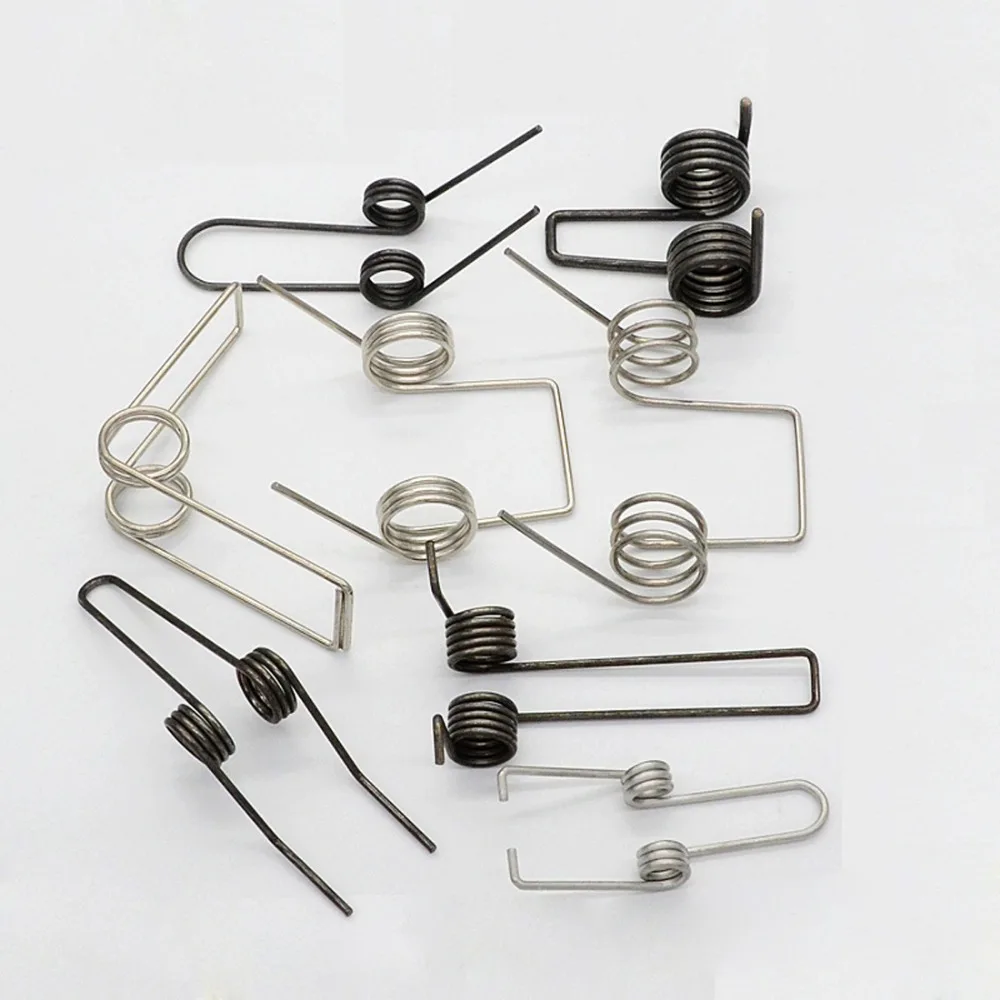

4, The wire rotary spring machine can be applied to the production of lighting, electronics, toys, home appliances, sports equipment, automobile and other industries need precision spring.
2. The five axis are cam axis, wire feeding axis, rotary wire axis, rotary quill axis, and spinner axis(optional accessory). The five axis can be operated synchronously. The position of each axis, the length of the wire feed, the production speed, and the number of production can be displayed on the screen. It is very easy to edit and modify the program data online.
3. The cam part has eight sets of slides, crank arm and CAM rotating axis. The wire feeding system is installed horizontally behind the machine. The wire rotary axis can control the rotation of wire, making the speed of high-difficulty special-shaped spring adjustment easier and faster.The rotating quill axis can be rotated positively or negatively, and the spinner device is installed on the slide.
4, The wire rotary spring machine can be applied to the production of lighting, electronics, toys, home appliances, sports equipment, automobile and other industries need precision spring.
Detailed Images

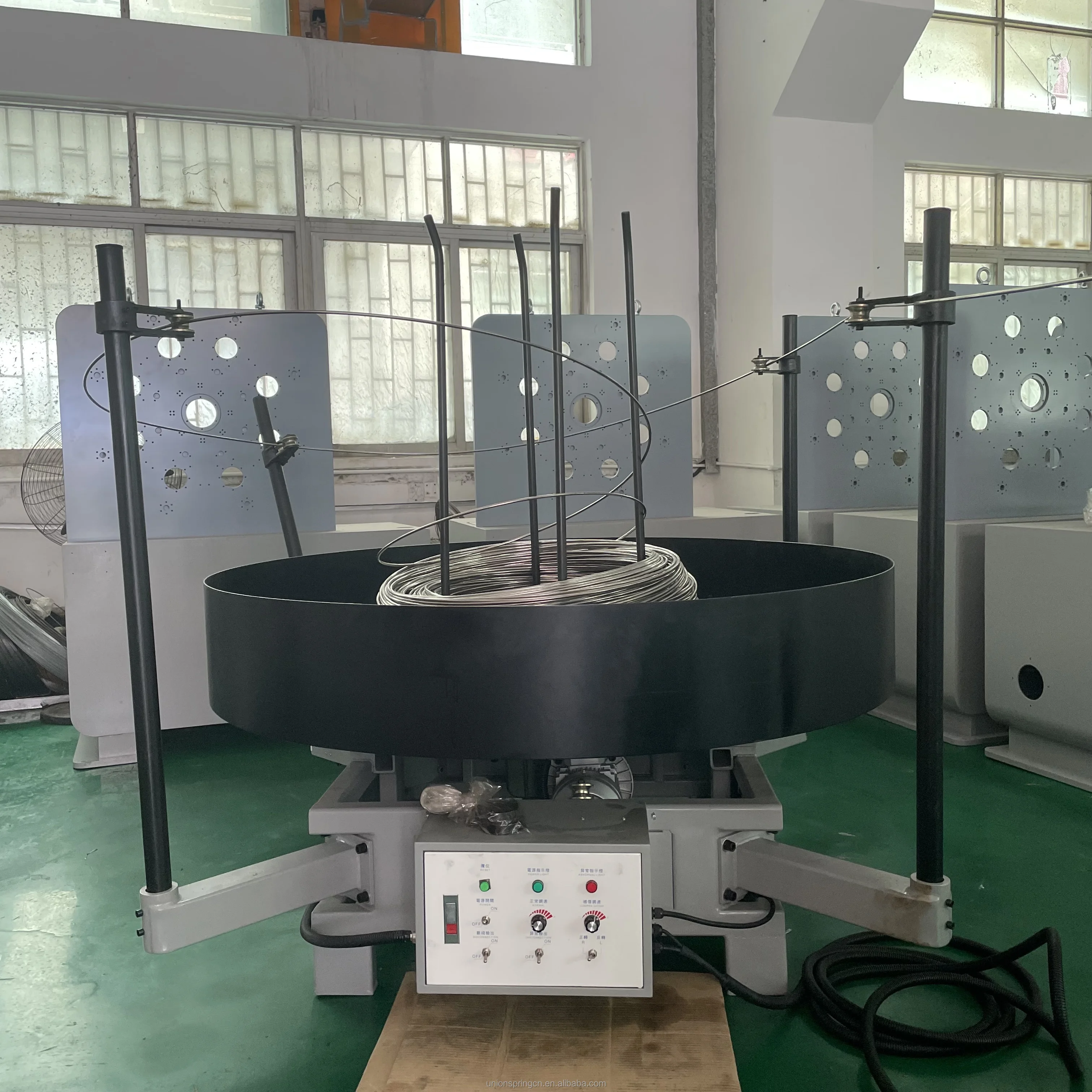

The automatic wire feeder can adjustment of wire feeding speed, automatic alarm shutdown, and novel appearance.
Transformer can be used for direct voltage conversion in different countries, the standard is 220V to 380V. Customized

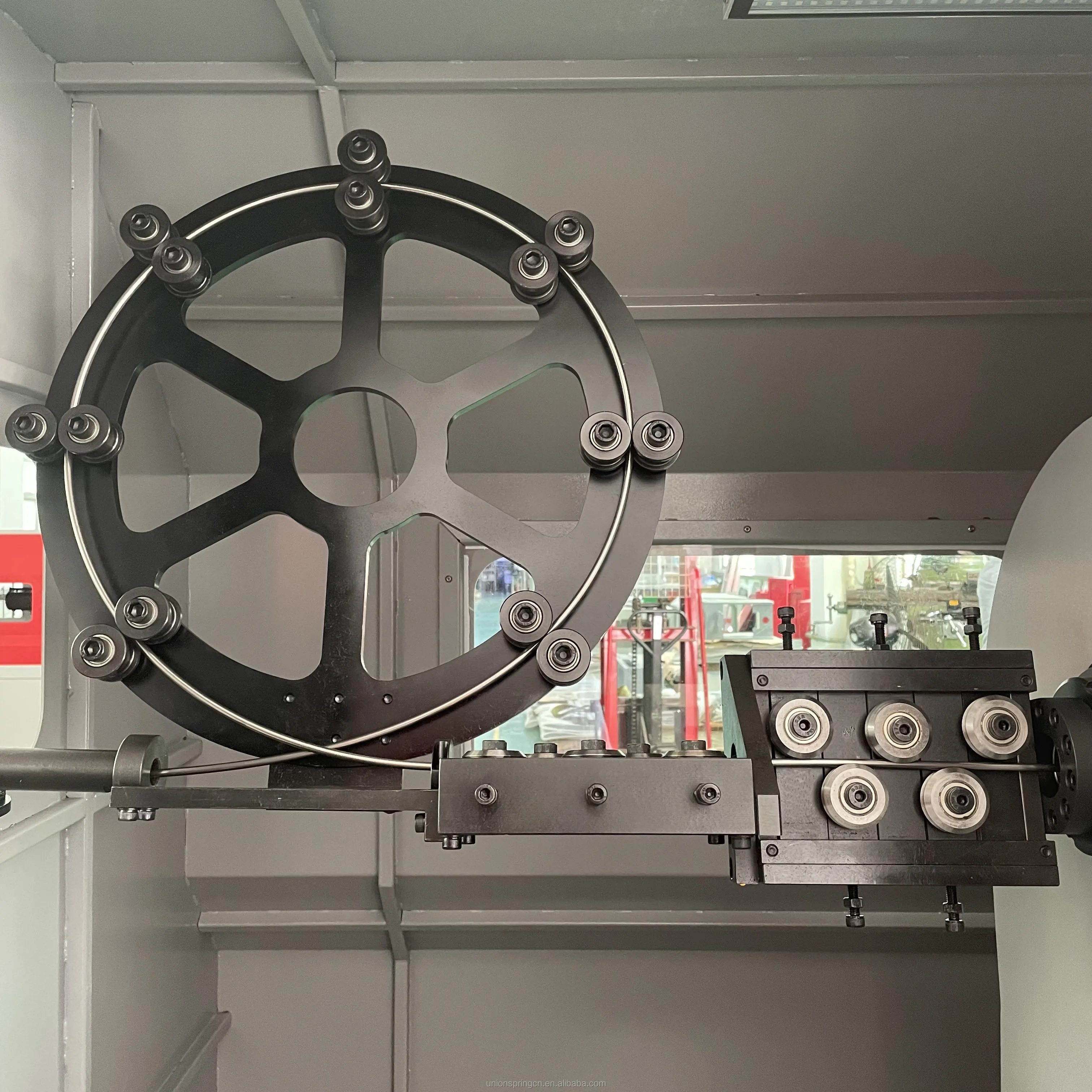

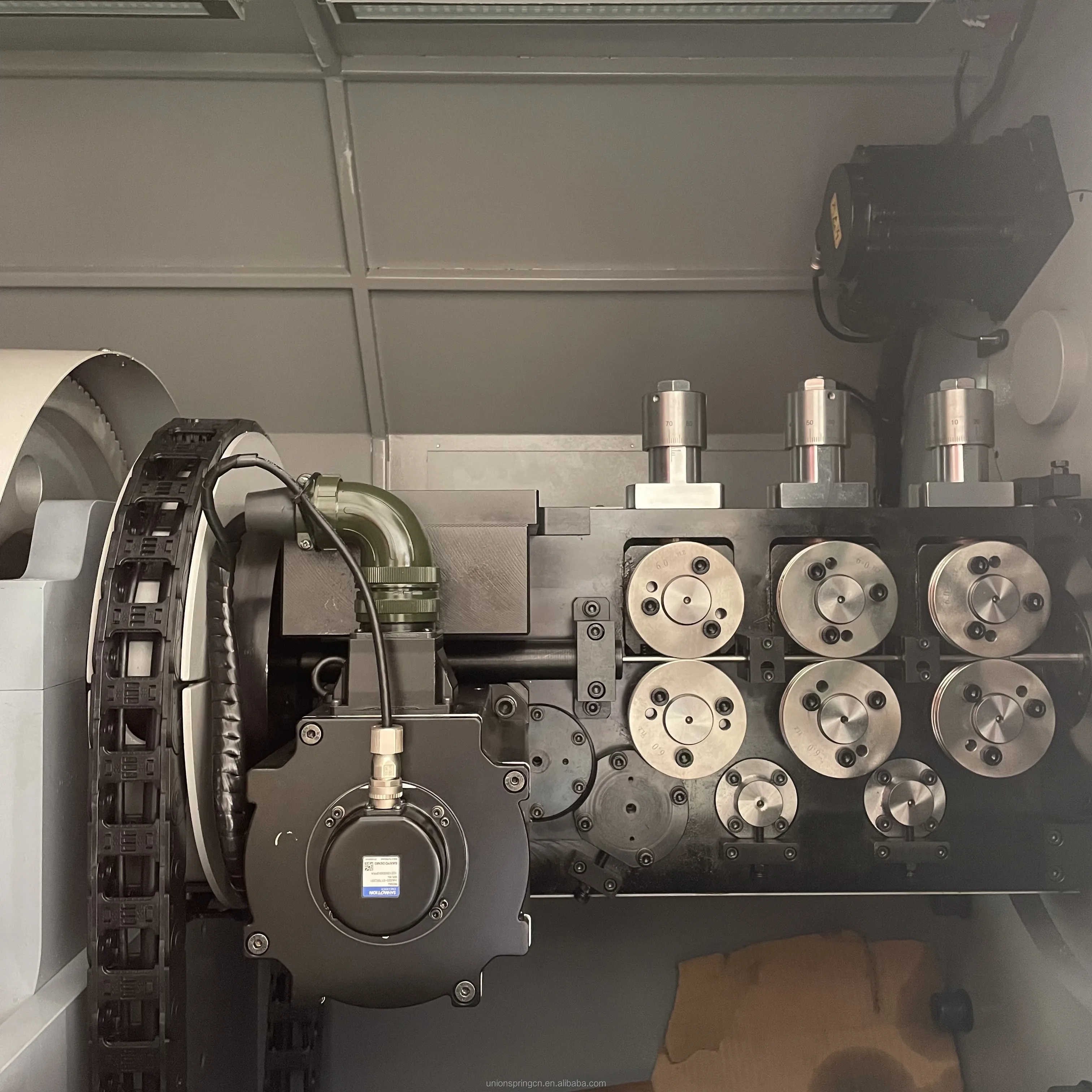

The wire feeding box adopts an integrated precision casting structure, and the wire feeding precision is high.
The eight slides work together, the assembly precision of the parts is high, and the machine runs for a long time.
Japan imported Sanyo Electric
Features: high precision motor, good stability, maintenance free, long use time
Features: high precision motor, good stability, maintenance free, long use time
Packing&Shipping
After Sales Service
"Professional, quality, service, innovation" is our purpose, the company is committed to improve efficiency for customers and create value.
* Engineers available to service machinery overseas.
Company Introduction
UNION SPRING is a high-tech enterprise specializing in R&D, design, manufacture and sales of CNC spring machine, has nearly 20 years spring machine manufacturing experience.
Our Services
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
Mainly engaged in 2D/3D wire bending machine, camless spring machine, wire rotary spring machine, spring forming machine, high speed coiling machine, screw machine, wire decoiler, tempering furnace etc., is widely used in compression spring, tension springs, torsion springs and wire forming products, can meet the production needs of many industries, including automobiles, kitchen utensils, sanitary ware, carts, supermarket shelves, sports equipment, crafts, lighting, electronics, toys, home appliances and other industries.
FAQ
Q: What information should customer provide to get machine offer from UnionSpring?
A: Please you usually share below info to check suitable machine.
*Specific drawing
*Wire material
*Additional function you need with the machine ,such as chamfering, threading, etc.
We will check best solution and offer for your requests after checking details.
Q: How can I know if UnionSpring machine can produce my product precision?
A: If you have high precision outputs requests, would you please send check gauge or parts which this outputs will fit, we will set parts for you to fit them. Or we can send samples for you to measure.
Q: Is the machine tested before shipment?
A: We will do the following tests: 1. Wire feeding accuracy test 2. 360 hours continuous running-in test 3. Machine adjustment test according to customer's products, etc.
Q: How can I get training if have no experience about machine?
A: We will send manual book with machine and also can send video to show you how to run machine if you have doubts.
Q: If computer can set customer own language to let their work to run the machine?
A: Surely, we can set two languages in the controller, we can set the language you asked, we just need your help about some key translate to load into controller.
Q: What's the purchase process?
A: Inquiry-----Ger to know request details -----Offer best solution-----Talk about setup sample process-----Order-----Set sample and send video for checking-----Ship machine .
Q: What is your payment term?
A: 30% payment in advance as a deposit, and 70% balance before shipment.
