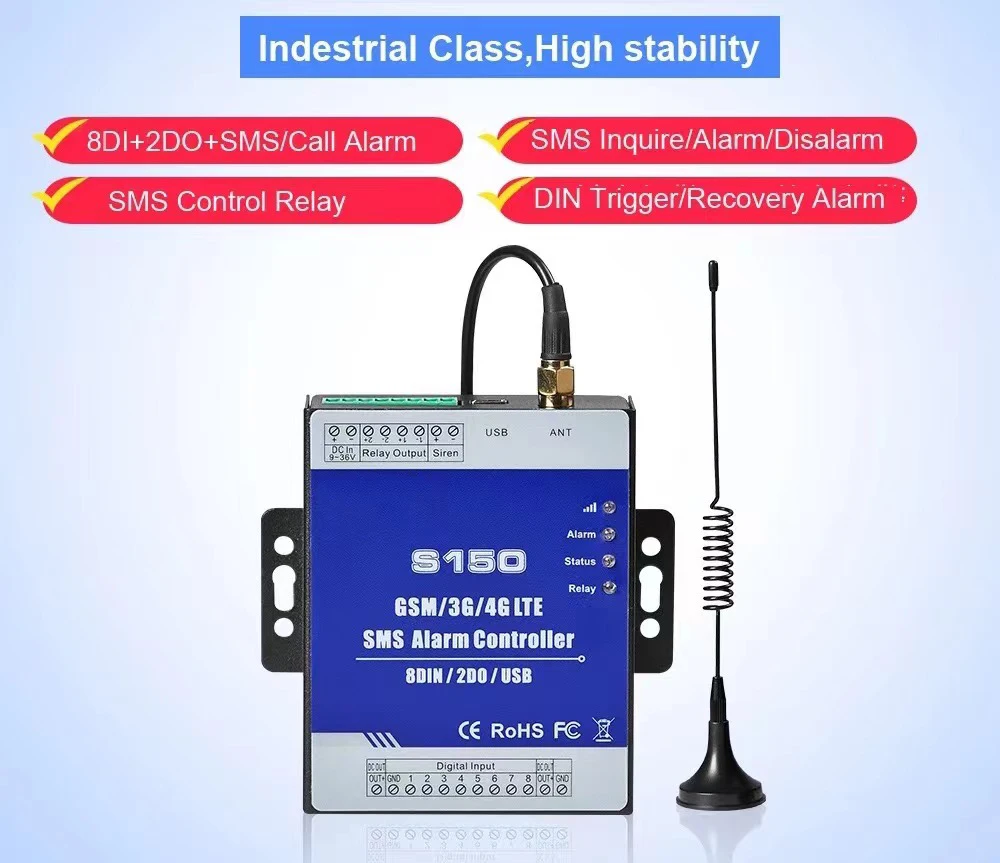

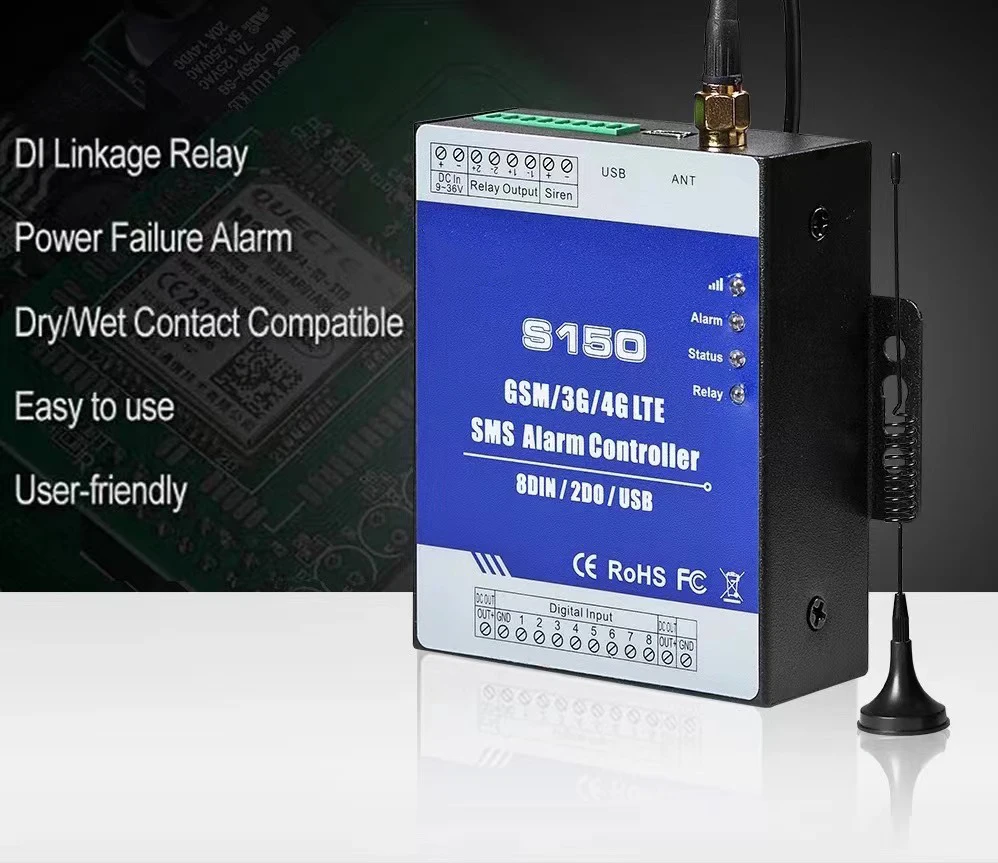

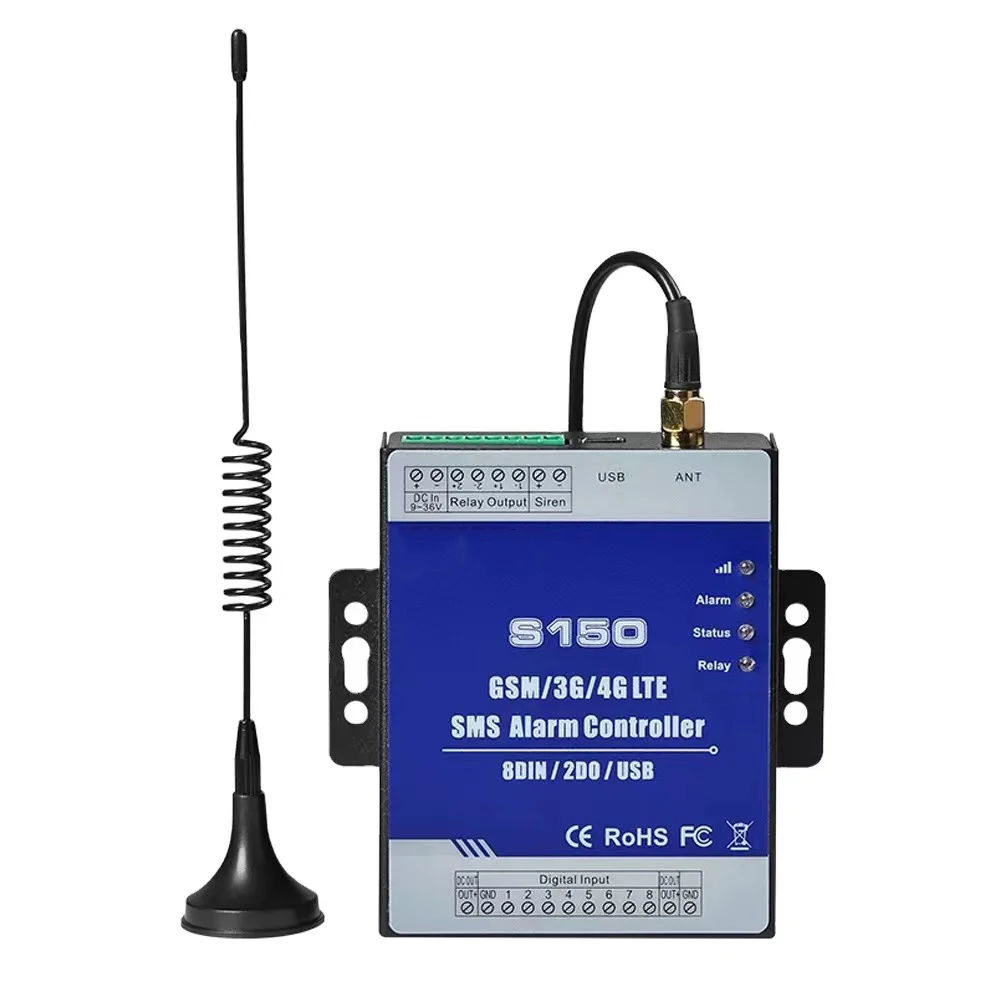

Pump Control on/off System S150 GSM SMS Alarm Controller

 Technical Specifications:

 The GSM 3G 4G Remote Controller Alarm is an industrial class,high reliability, high stability Remote Control and Alarm Unit.  It embedded 32-Bit High Performance Microprocessor MCU,inbuilt industrial Cellular module, provides 2 relay outputs, 8 digital inputs and USB Serial Port.

Mainly Features:
1.     Can be operated from anywhere, no distance limitation;
2.     Quad band 850/900/1800/1900Mhz GSM Module inside.
3.     3G/4G Modules are optional;
4.     Modular design, can easily upgrade the cellular module if network upgrade;
5.     Embedded 32 bit ARM9 MCU, reliable performance with in-built watchdog;
6.     Wide range power supply 9~36VDC with over voltage and phase-reversal protection;
7.     8 digital input, compatibles dry contact and wet contact , support EOL connection;
8.     2 relay output(240VAC@3A), 1 relay output (240VAC@3A) can be switched ON/OFF by sending a SMS text, the other one can be switch on 4minutes if any inputs triggered;
9.      Supports input status recovery, external power failure alert by SMS texts;
10.  Provides 1 channel 9~36VDC power source output for external device, saving wiring cost;
11.  Up to 3 user's phone number to receive alarm and daily report SMS and 5 user’s phone number to receive alarm Call;
12.  Provide free charge SMS APP for operations;
13.  Inbuilt large capacity rechargeable backup battery, external power monitoring alarm;
14.  Industrial class design suitable for long time work applications;
15.  Support configure parameters, load profiles and upgrade the firmware via USB port;
16.  Using metal shell, protection class IP30. Metal shell and system security isolation, especially suitable for industrial applications in the field;
17.  Small size, L70 * W88 * H30mm, compatible wall installation and DIN35mm industrial rail installation.

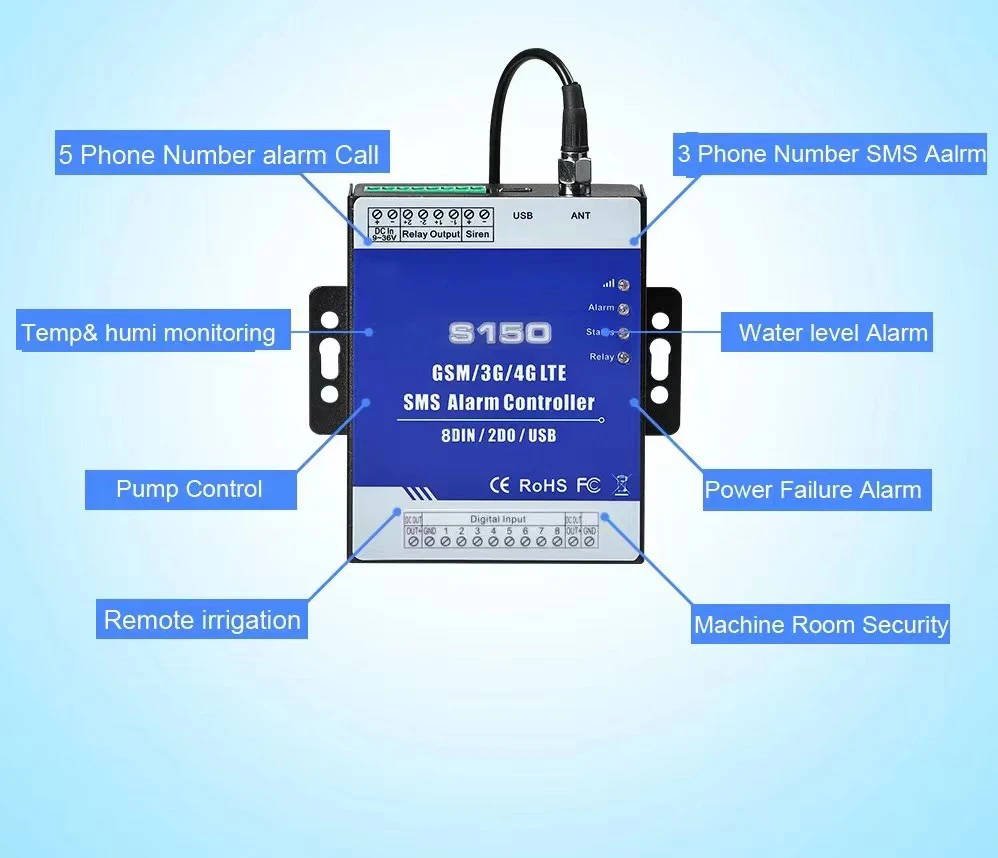

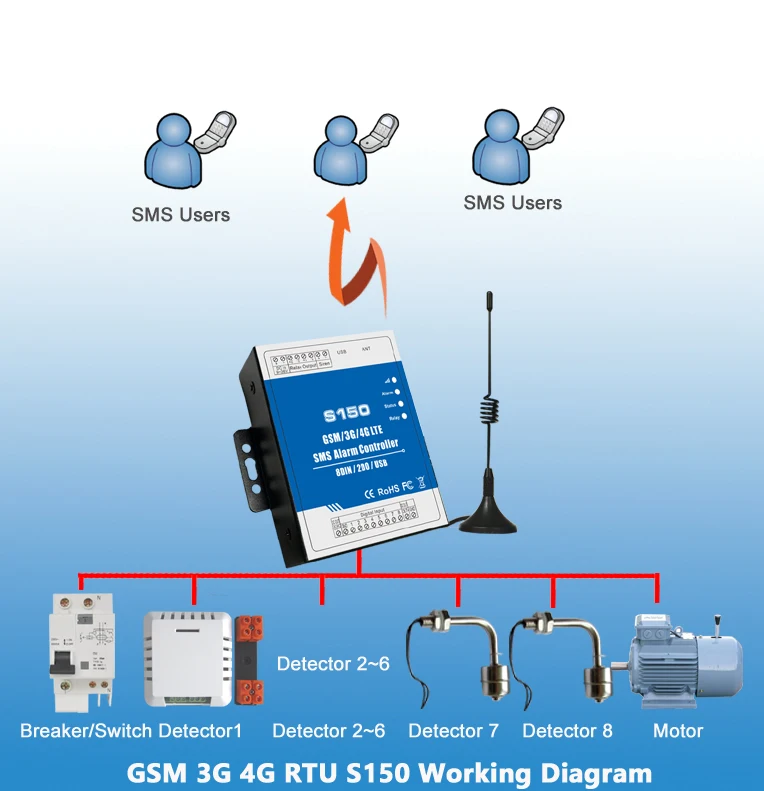

Typically applications:
1.    Security Alarm System applications;
2.    Supervision and monitoring alarm systems;
3.    Automatic monitoring system;
4.    Vending Machines security protection;
5.    Pumping Stations, Tanks, Oil or Water levels;
6.    Buildings and Real Estate;
7.    Weather Stations;
8.    River Monitoring and Flood Control;
9.    Oil and gas pipelines;
10. Corrosion protection
11. Temperatures, water leakage applications;
12. Wellheads, boat, vehicle;
13. Energy saving, street lights control system;
14. Valve controls;
15. Transformer stations;
16. Unmanned machine rooms;
17. Control room application;
18. Automation System, M2M;
19. GSM Access Control System, GSM Gate Opener, etc.

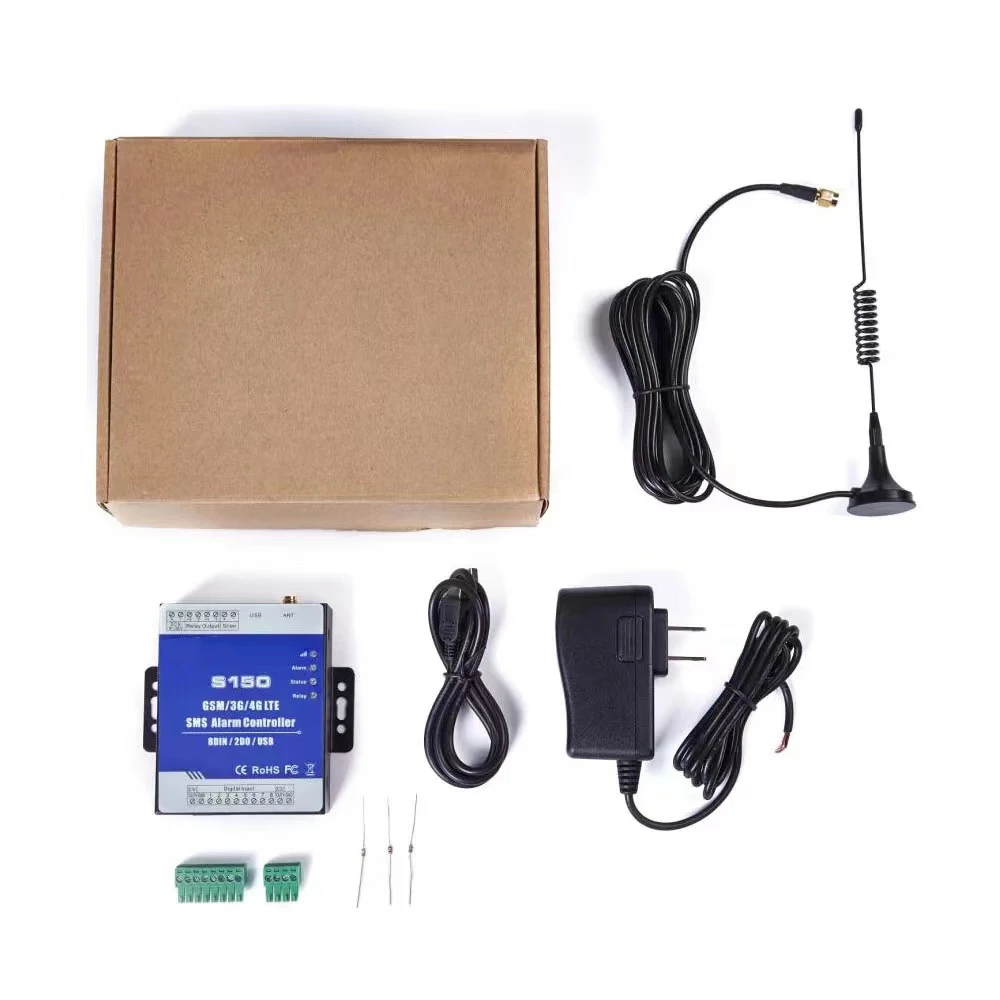

Standard Package:
RTU  X1
AC/DC AdaptorX1
GSM/3G/4G Antenna X1
User Manual X1
