Customized Omnivision RXS2719 sensor 2MP 1080P Dual Lens Color & IR images USB2.0 face recognition Camera Module
- Category: >>>
- Supplier: Dongguan Hampo Electronic Technology Co. Ltd.
Share on (1600539125634):
Product Overview
Description
Customized Omnivision RXS2719 sensor 2MP 1080P Dual Lens Color & IR images USB2.0 face recognition Camera Module
Product Description

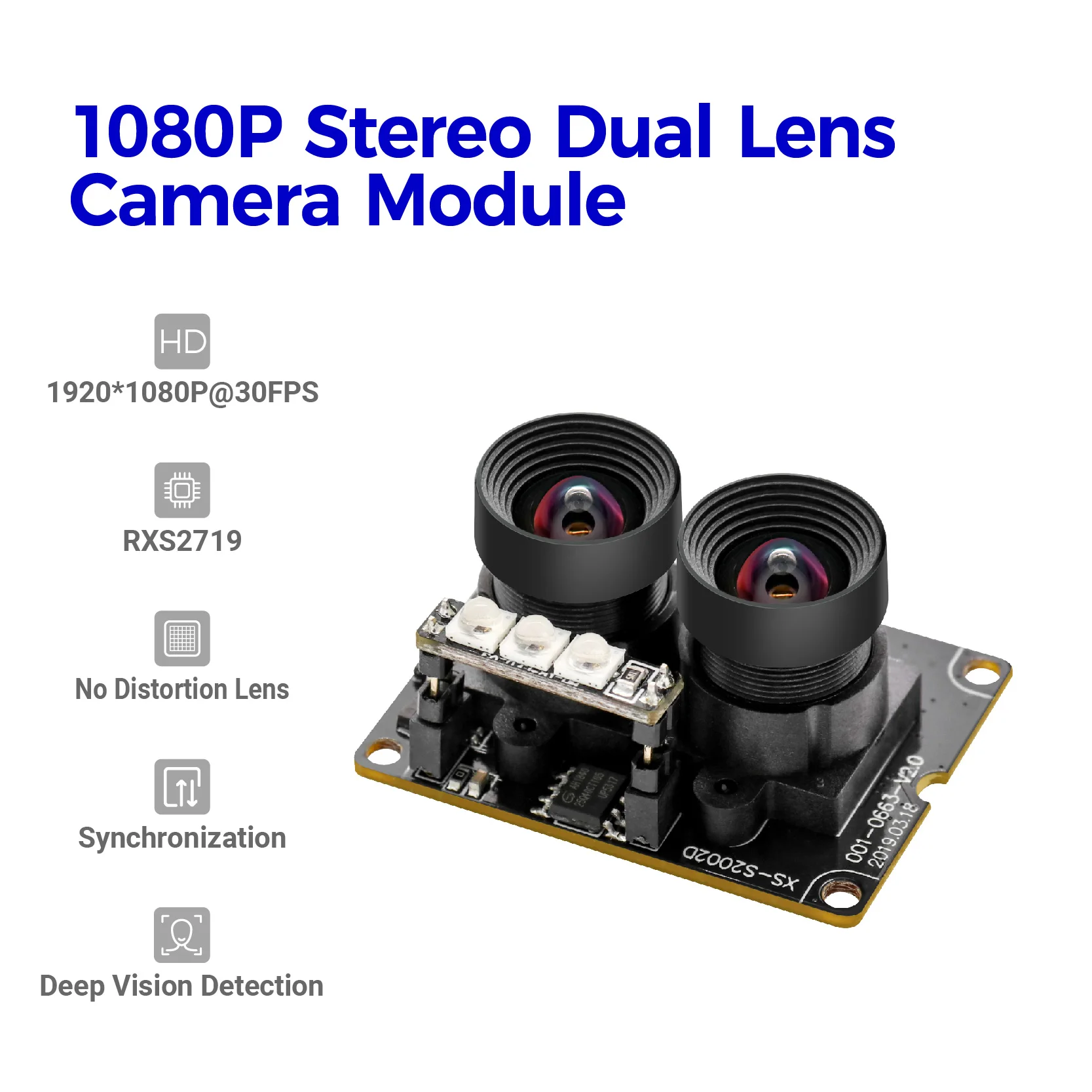

Hampo 003-0663 is a a synchronized dual lens USB camera module, with two pieces 1/2,7" CMOS RXS2719 image sensor, the max resolution is 1920*1080P @30fps for each camera.
The outstanding feature for this module is the two camera’s video frame is synchronous, just like human's eyes. Dual-Lens Camera Module, equipped with high-performance AI intelligent vision processor, has powerful AI computing performance, supports various AI frameworks and human detection with high recognition accuracy，widely used for binocular stereo vision secondary development which directly simulates the manner of human eyes observing one scene from two different viewpoints.
Like Robot vision, Virtual reality, Augmented Reality, biometric Retina analyze, 3D measurement, People Counting & Tracking etc application. Customer could develop their own software and device,integrated with this dual lens camera to capture or view dual image picture or video.The dual lens camera module compatible with Android, Linux and Windows system with UVC and recognized as 2 pcs cameras.
Key Features
Synchronized dual lens camera module: 2MP camera module utilizing the disparity between the two lenses through algorithms, allow MACHINE to see the world as we do. Passive stereo vision designed for environment versatility and featuring long-range capabilities and high-resolution depth perception.
Full HD 1080P Resolution: The camera module adopt 2PCS 1/2.7” RXS2719 sensor.The max frame rate 1920*1080@ 30fps for each.
Best Universal Compatibility: Dual lens camera module support USB 2.0 OTG,plug&play.USB camera is versatile for Skype, OBS, Zoom, Go To Meeting, Facebook LIVE, and YouTube Live streaming services etc. Widely works with Win XP/Vista/Windows 7/8,Windows 10 Linux.
Wide Application: The dual lens camera module is widely used for deep vision detection scenarios, such as face recognition, access control system,robot vision,Virtual reality(VR),biometric Retina analyze,3D measurement,Intelligent transportation system,People Counting & Tracking etc.

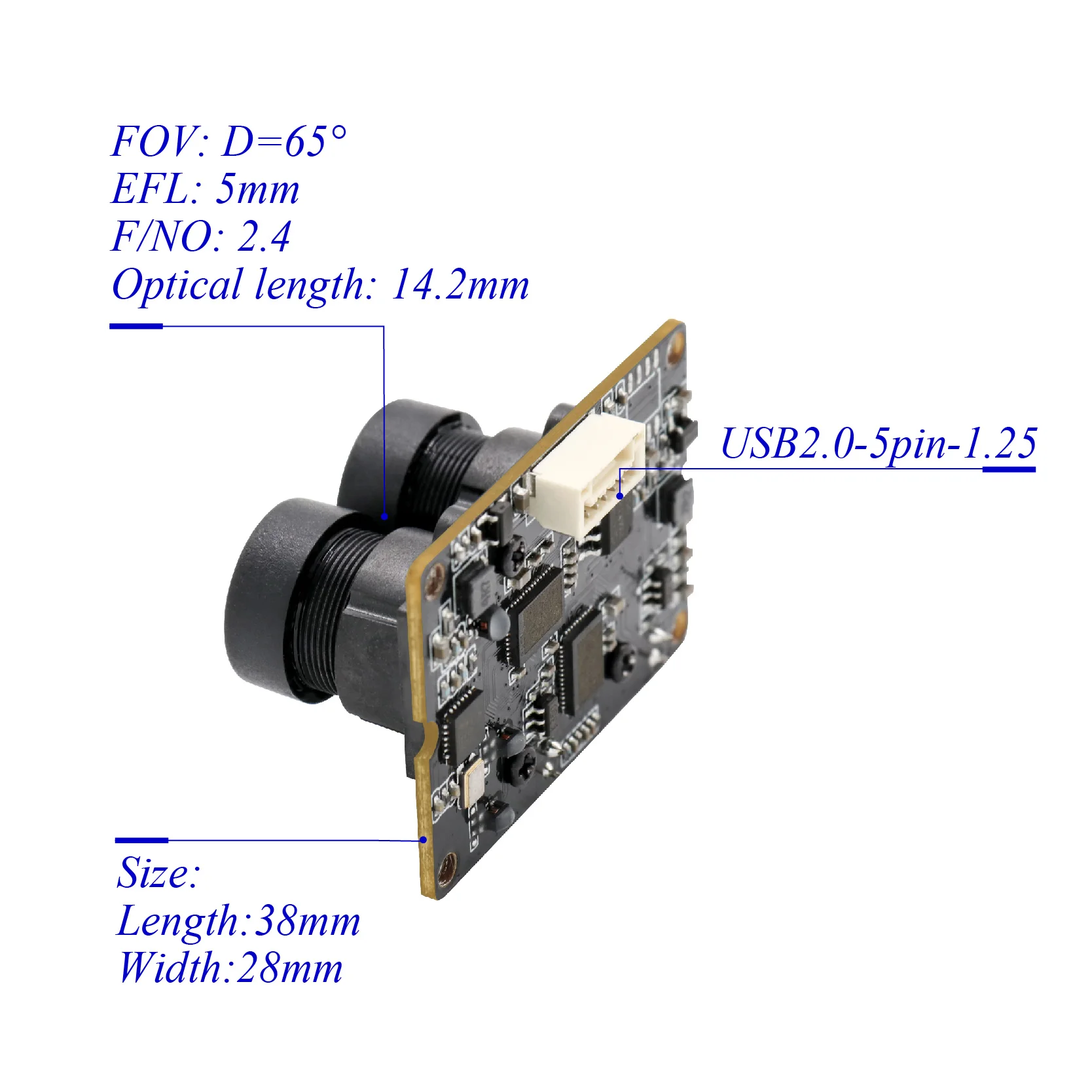

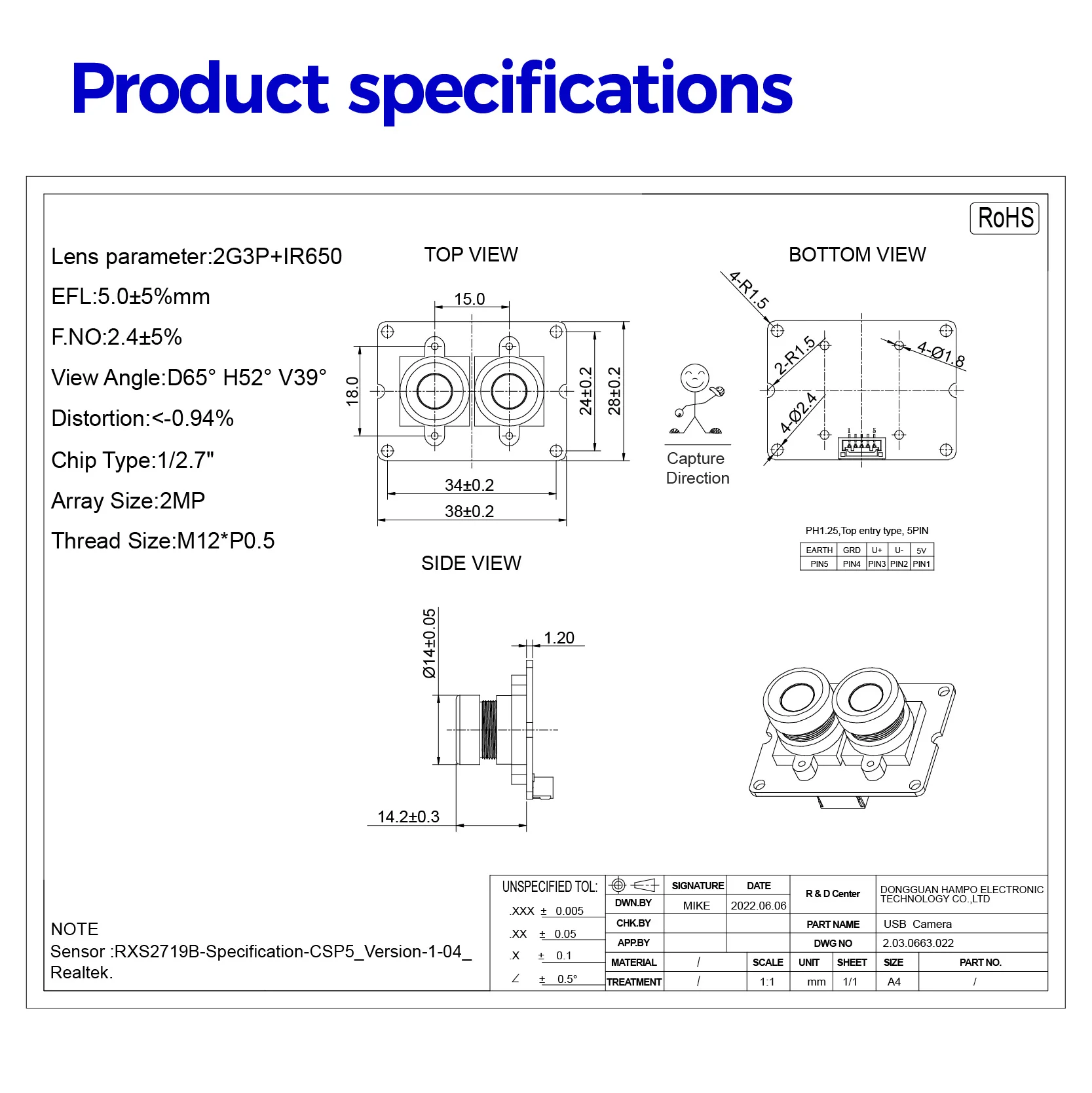

Specification
Camera | RGB Camera | IR Camera | ||
Max Resolution | 1920*1080P | 1920*1080P | ||
Sensor | 1/2.7" RXS2719 | 1/2.7" RXS2719 | ||
Frame Rate | MJPG 1920X1080@30FPS; | MJPG 1920X1080@30FPS; | ||
Pixel Size | 3.0μm*3.0μm | 3.0μm*3.0μm | ||
Output Format | YUY2/MJPG | YUY2/MJPG | ||
Filter | 650nm | 850nm | ||
Dynamic Range | 76dB | 76dB | ||
Lens | ||||
Focus | Fixed focus | Fixed focus | ||
FOV | D=65° H=52° | D=65° H=52° | ||
Lens Mount | M12 * P0.5mm | M12 * P0.5mm | ||
Power | ||||
Working Current | MAX 200mA | MAX 200mA | ||
Voltage | DC 5V | DC 5V | ||
Physical | ||||
Interface | USB2.0 | USB2.0 | ||
Storage Temperature | -20ºC to +70ºC | -20ºC to +70ºC | ||
Operating Temp | 0°C~+60°C | 0°C~+60°C | ||
PCB Size | 80*16*20(mm) | 80*16*20(mm) | ||
Cable Length | 3.3ft (1M) | 3.3ft (1M) | ||
TTL | 14.2MM | 14.2MM | ||
Functionality and Compatibility | ||||
Adjustable parameter | Brightness/Contrast/Color saturation/Hue/Definition/Gamma/White balance/Exposure | Brightness/Contrast/Color saturation/Hue/Definition/Gamma/White balance/Exposure | ||
System Compatibility | Windows XP(SP2,SP3),Vista ,7,8,10,Linux or OS with UVC driver | Windows XP(SP2,SP3),Vista ,7,8,10,Linux or OS with UVC driver | ||
Applications
AI vision like depth vision and stereo vision
Robot vision
Virtual reality(VR)
Augmented Reality(AR)
biometric Retina analyze 3D
measurement Intelligent transportation system People Counting & Tracking
measurement Intelligent transportation system People Counting & Tracking
Astrophotography
selfservice terminal
ATM
face recognition
access control system
teaching equipment
Somatosensory games
gesture recognition
Related Product
Company Profile

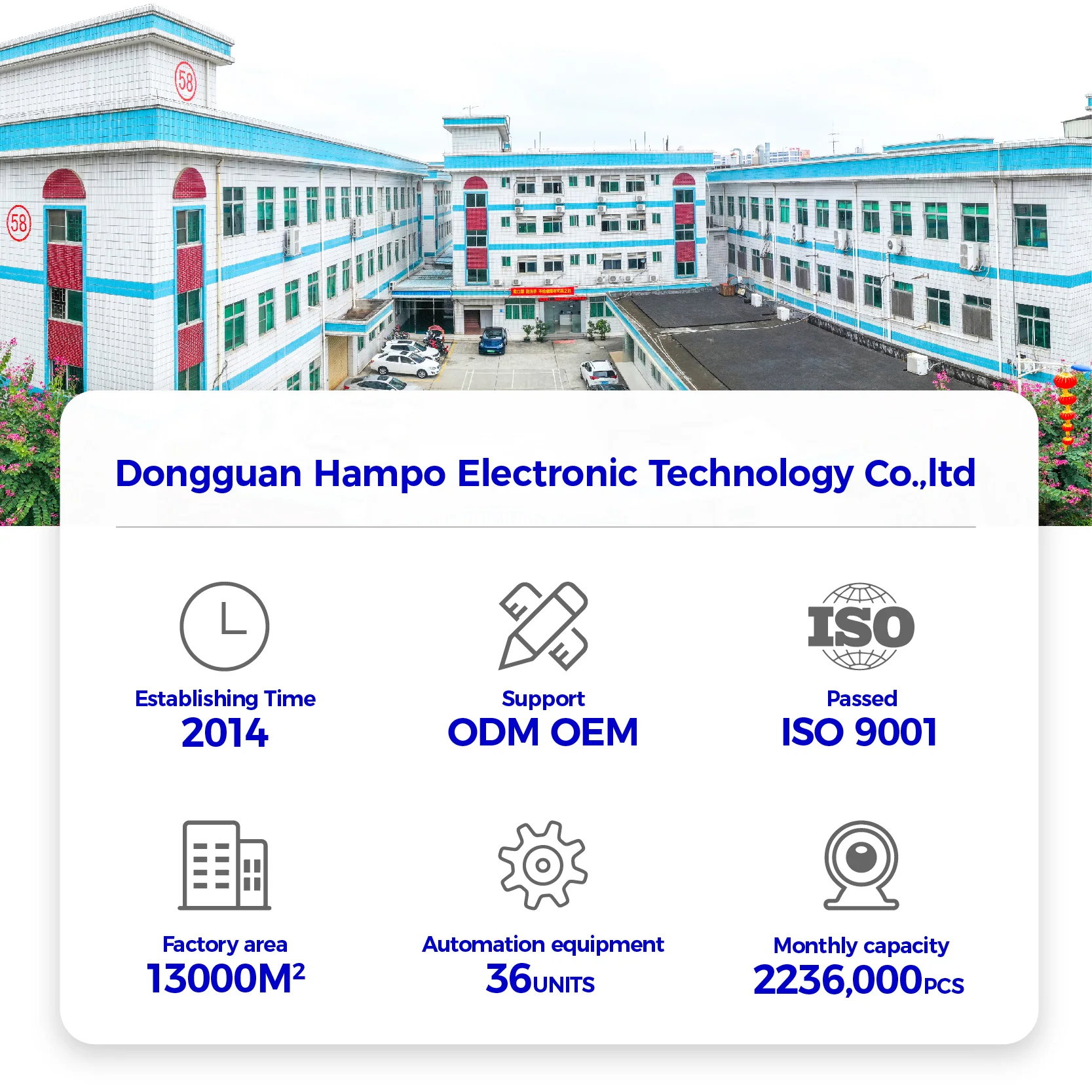

Dongguan Hampo Electronic Technology Co., Ltd, located in Tangxia Town, Dongguan City and founded in 2014, is a manufacturer specialized in design, R&D and manufacture of audio and video electronic products.

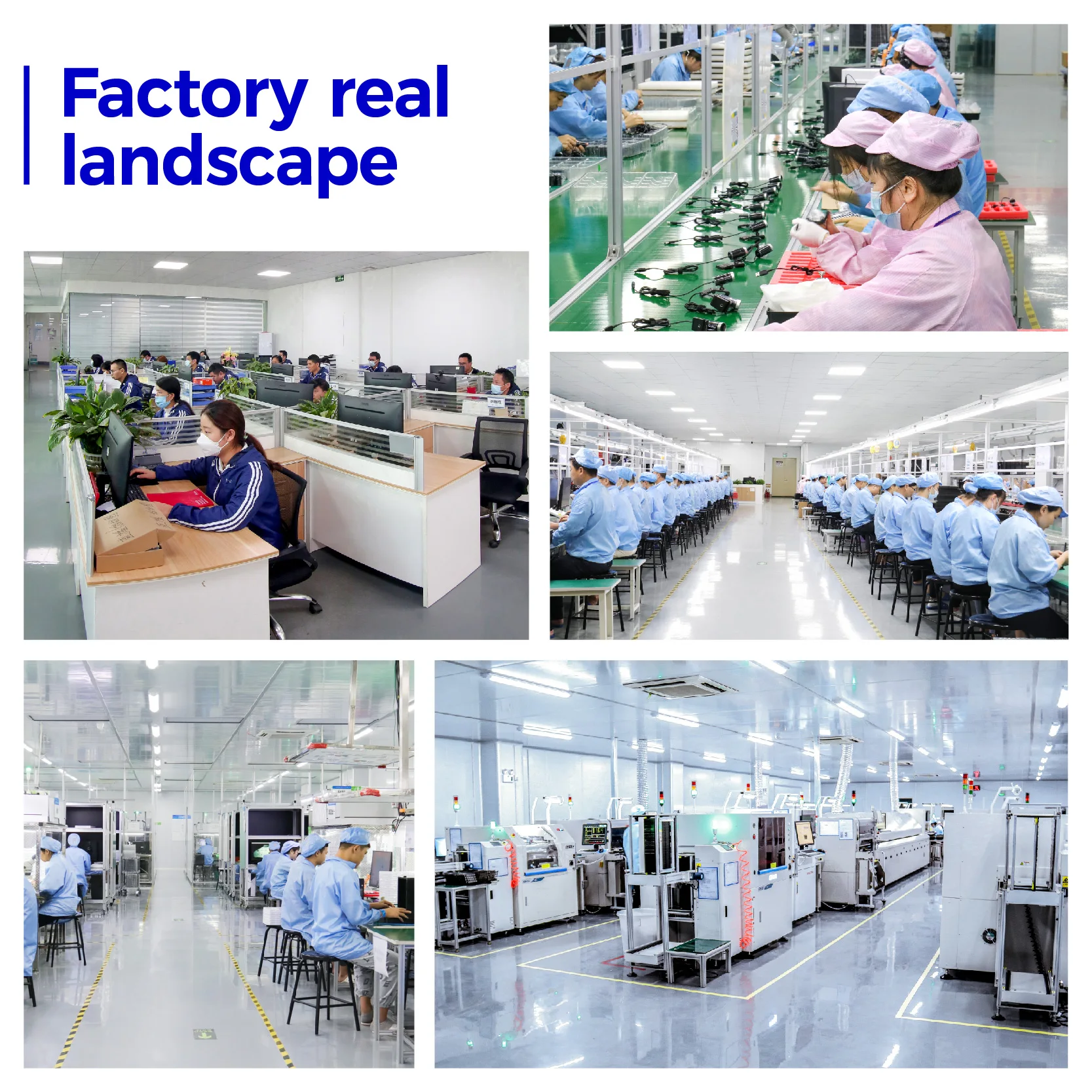

Hampo owned two buildings(Building58 and building 26) as production bases covering total 13,000 square meters. For the time being, Hampo has around 300 employees, and provides a full range of production services such as SMT, module assembly, packaging and so on.
Camera module series includes all kinds of video camera modules, MIPI video camera modules and DVP video camera modules etc. PC Cameras for different applications such as video conference, online classes and facing recognitions etc. OID devices for preschool education purposes, such as talking pen, smart pen and children’s puzzle electronic products.
As member of Hampo Family, we will adhering to the concept of “Market- Lead and Customer First”; keep providing our best services to customers. Also we will always be open to new technology and strive to have a bright future for audio and video industry.
FAQ
1. Why choose dual lens camera module?
Binocular dual lens camera can obtain depth range data without identifying the target, but the single lens camera must
identifying the target. Smaller error, and more accurate
2. Why the image/video is not clear enough on my access control system?
Usually the effect of HDR will cause the quality of image good or not on that case. The value of HDR is higher, then the quality of image will be better. The high dynamic range is up to 96dB on this camera module.
3. Does the camera support OTG?
Most of our usb cameras support OTG function.
Most of our usb cameras support OTG function.
4. What certificate your products have?
All our USB Camera Module have CE, FCC certificates, partial have RoHS and UL
All our USB Camera Module have CE, FCC certificates, partial have RoHS and UL
5. How long is your delivery time?
It depends on the quantity and the difficulty of products. Usually our turnover time is 15-25 days.
