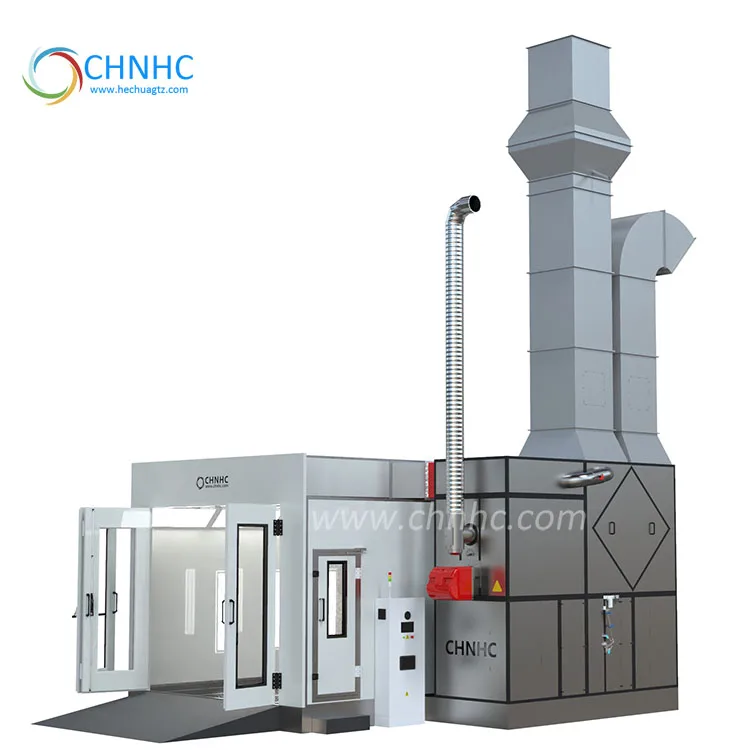

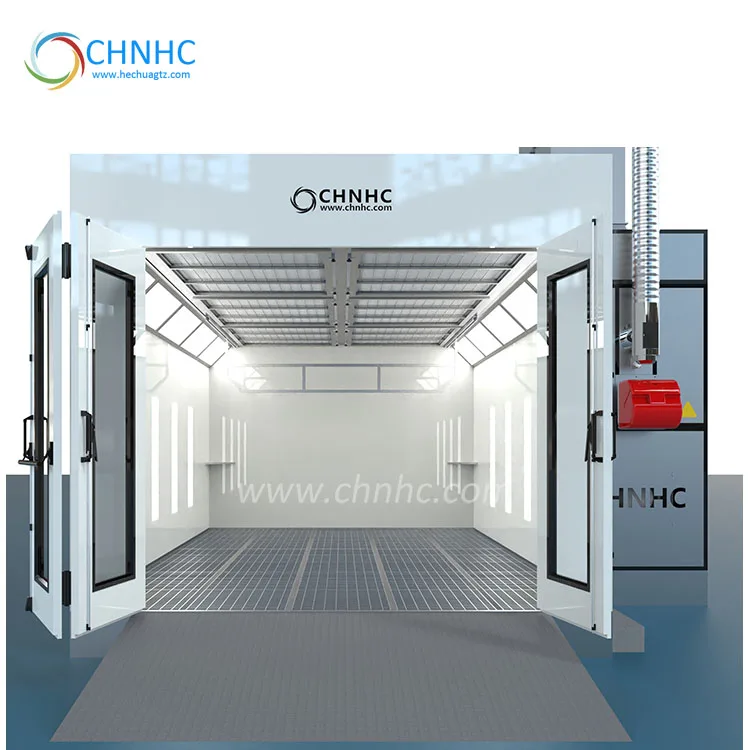

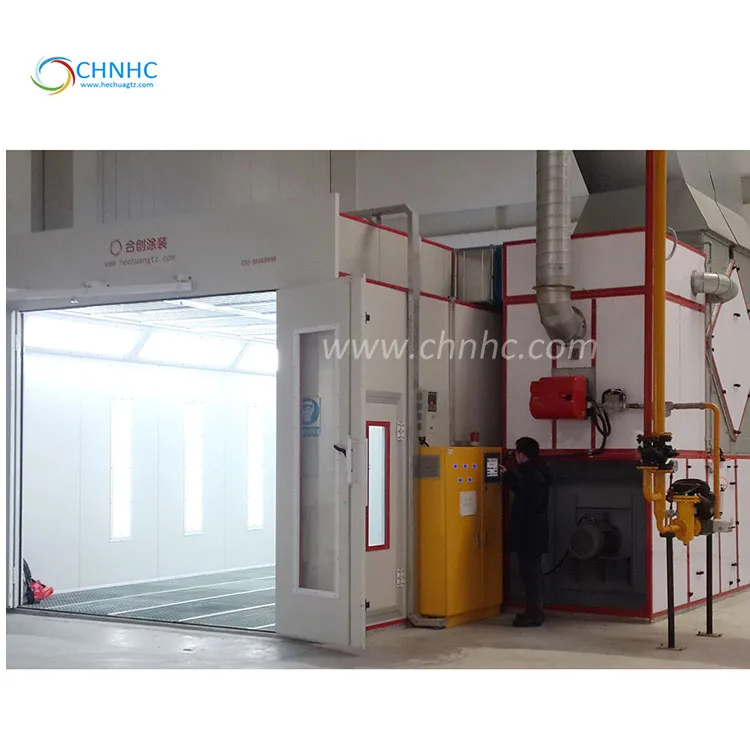

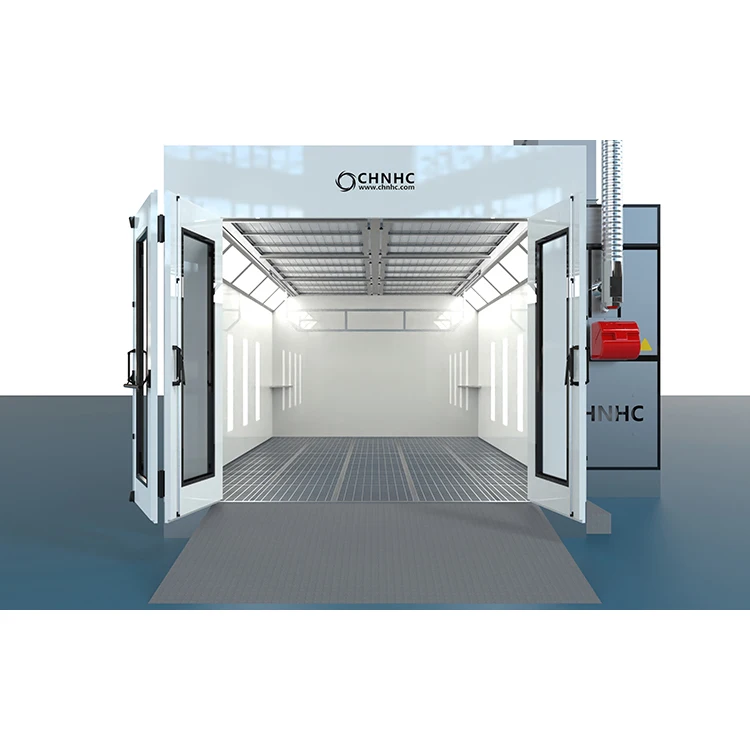

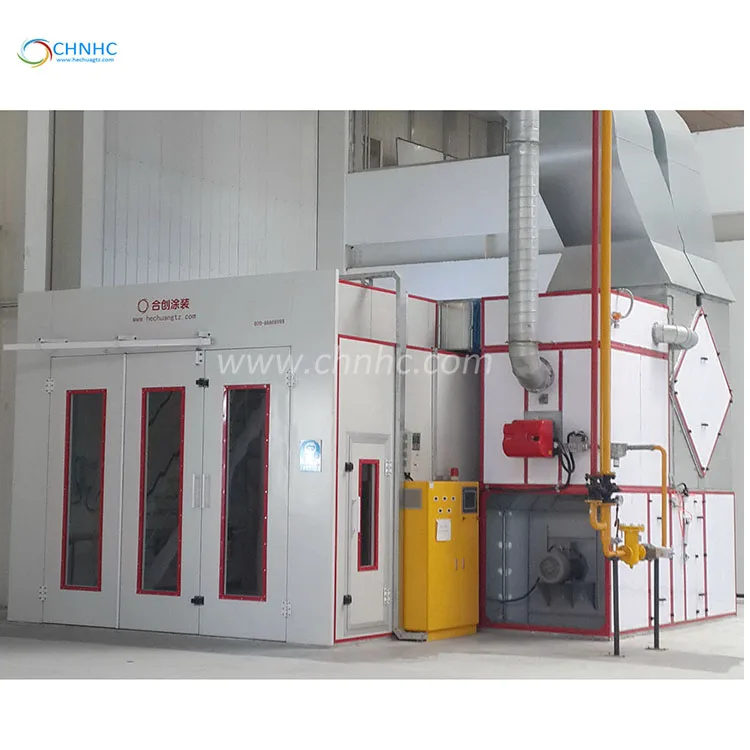

spray bake paint booth Automotive Spray Booth/Car Paint Spray Room CE approve

6900 x 4000 x 2800mm

7010 x 5570 x 3810mm

Full metal foundation, full grids, grids’ capacity: 700KG/wheel

350mm height, the ventilation effect is better than traditional spray booth

3 units, each size: 2000x1000mm, diamond plate construction

Adopt high quality double construction fireproof insulation rock wool panel, thickness: 50mm

Adopt high quality double construction fireproof insulation rock wool panel, thickness: 50mm

Door with steel frame, 1 set, size: 3100 x 2700mm (W x H), tempering glass observation window

1 set, size: 800 x 2000mm (W x H),tempering glass observation window，
with automatic door closers

Ceiling with hanging system, it can hang the spray gun or object, hanging system with wheel, can move 3 meters

10 units, each 4 x 16w, adopt LED energy saving light, tempering glass

8 units, each 2 x 16w, adopt LED energy saving light, tempering glass

≥1100 LUX

EU3 grade pocket filter, filter effect is much better

Adopt high efficient adhesive filter, which can capture the dust who is more than 4μm, its filtering rate reaches 98%

Fibreglass paint-stop filter

Fibreglass paint-stop filter and active carbon filter

Adopt big impeller turbo fan 1 x 11KW, SIEMENS motor, Three-phase, 6 pole motor, 380V, 970RPM, 50HZ

Adopt big impeller turbo fan 1 x 11KW, SIEMENS motor, Three-phase, 6 pole motor, 380V, 970RPM, 50HZ

33,000m³/h

0.25-0.45m/s in loaded booth

Solenoid valve+ pressure adjustment control cylinder driven damper exchange

Inverter to adjust the air flow

Straight pipe: 7.3 meters, bending pipe: 2 units, reducing pipe: 3 units, soft connection: 1 unit, rain hat: 1 unit, flange
connection

With stainless steel pipe

Generator system with leaking pipe, this pipe with electric air damper, while baking, it will dilute the combustible gas
concentration of booth

Adopt high efficient heat-resistant (SUS304) stainless steel as cycling heat exchanger

Adopt 1 set RIELLO diesel burner RG5S, each heating capacity 260.000kcal/h
(gas burner or infrared light heater as option)

3－5 minutes (from 20 to 60ºС) under baking status, max baking temperature is 80°C

With large aluminum foil heat recovery system on air inlet and air exhaust which can suck the heat during exhaust and preheat the
cold air from the air inlet pipe (suitable for the cold area)

Standard control system

With pressure control system, inspect the pressure of booth, with filters change reminder, inspect the working condition (clogged
or not) of filters at any time

Adopt SIEMENS PLC control

Adopt SIEMENS touch screen control

With inverter control

Painting, warm painting, baking, lighting, emergency stop switch, inverter, baking time setting, temperature setting,
over-temperature alarm indication, baking delay stop protection, temperature limiter , burner error alarm, motor error alarm

24KW

Three-phase 208/220/240/380/400/415/440/480V, 50/60Hz
