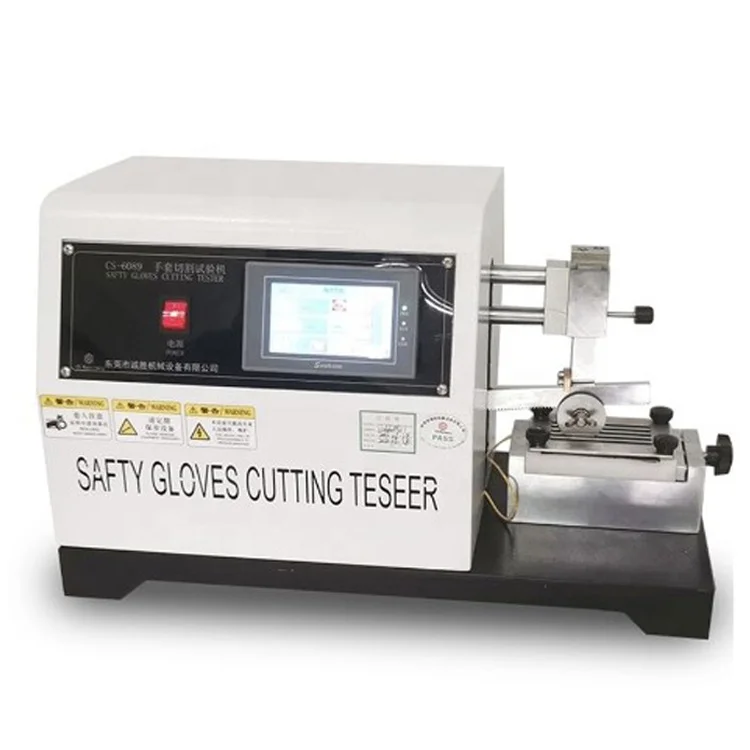

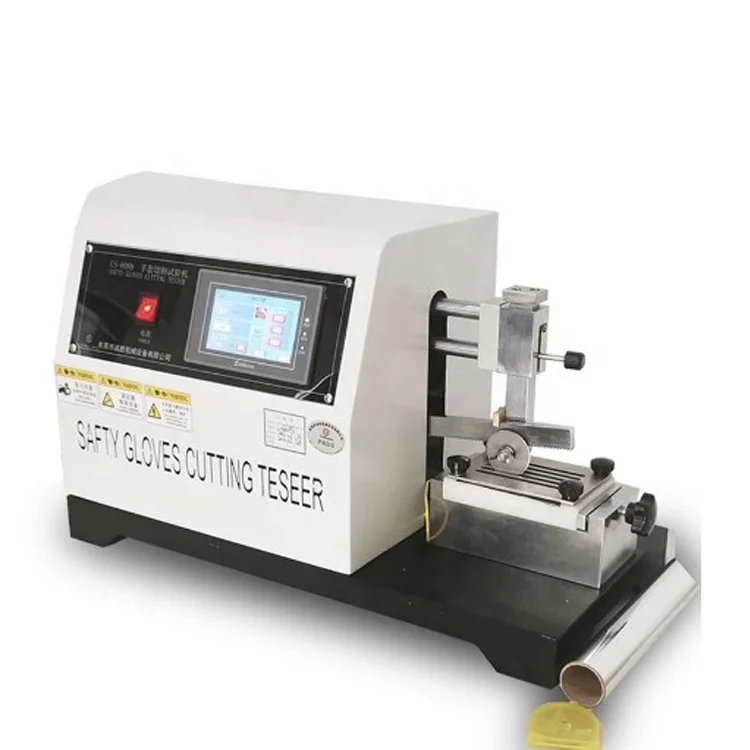

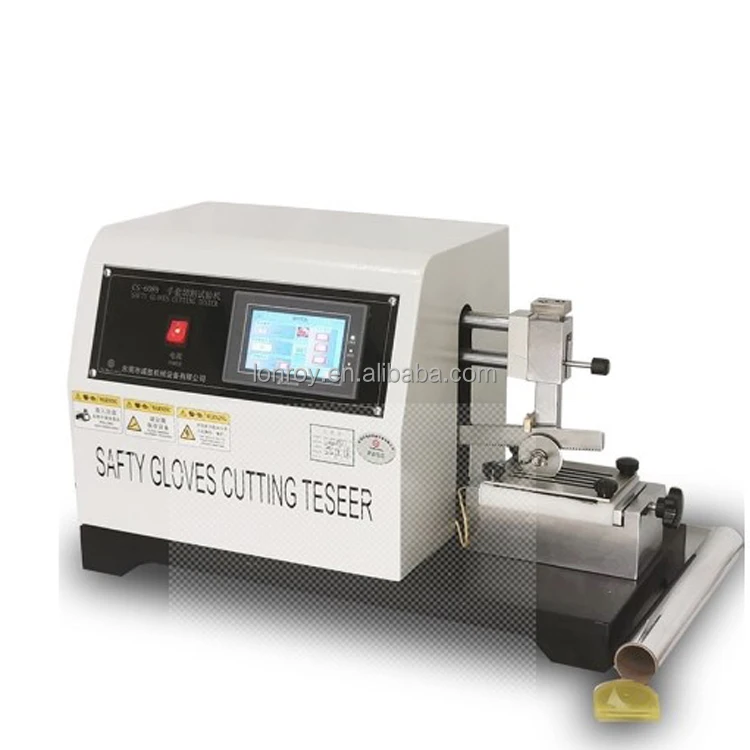

EN388 ISO20344 Protective gloves cutting testing machine SAFTY GLOVES CUTTING TESTER

Product Overview

Description

EN388 ISO20344  Protective gloves cutting testing machine SAFTY GLOVES CUTTING TESTER

Product features:



En388-2016 Protective gloves cutting testing machine Test the linear cutting resistance of gloves, protective clothing fabric, upper fabric and protective materials;



Reference criteria:



En388-2016, GB/T20991-2007, ISO20344-2004 and other standards:



EN388 ISO20344  Protective gloves cutting testing machine SAFTY GLOVES CUTTING TESTER

Product features:



Color PLC integrated display control box, menu operation mode;

There is no oscillation in radial direction, no runout and vibration in operation.

Precision high-grade motor drive, smooth operation, low noise;

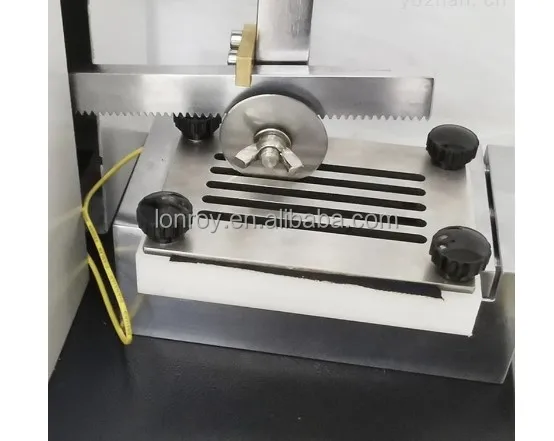

Adjustable point, automatic reset tool holder;

Special tungsten steel hardness blade, standard friction head weight;

Replaceable, sample table, multi-stage position test;

Induction probe control, cutting through the instrument automatically stop;



EN388 ISO20344  Protective gloves cutting testing machine SAFTY GLOVES CUTTING TESTER

Technical specifications:



Load added to the blade :(5±0.5) N.

Motion stroke: 50mm.

Cutting speed: the maximum sinusoidal cutting speed is 8±2cm/s.

Blade requirements: Round blade diameter (45±0.5) mm, thick (0.3±0.03) mm

Total cutting Angle 30-35 degrees: The blade shall be tungsten steel with (700-720) HV hardness.

Test piece size: 100×60mm

Count range: 0-999999

Volume: 580×160×430mm.

Weight: 60kg.

Power supply: AC220V, 10A.
