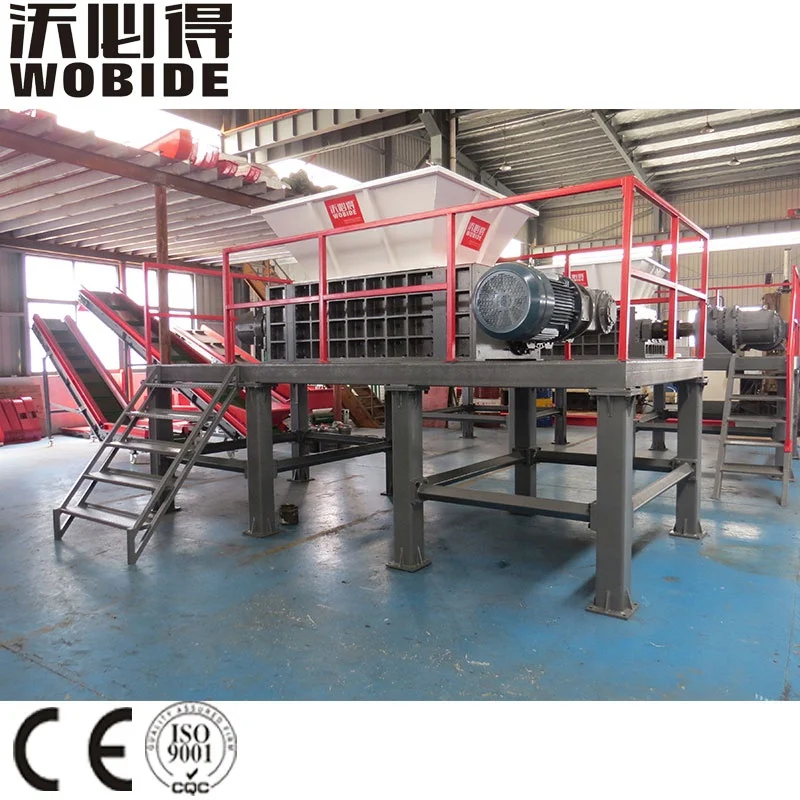

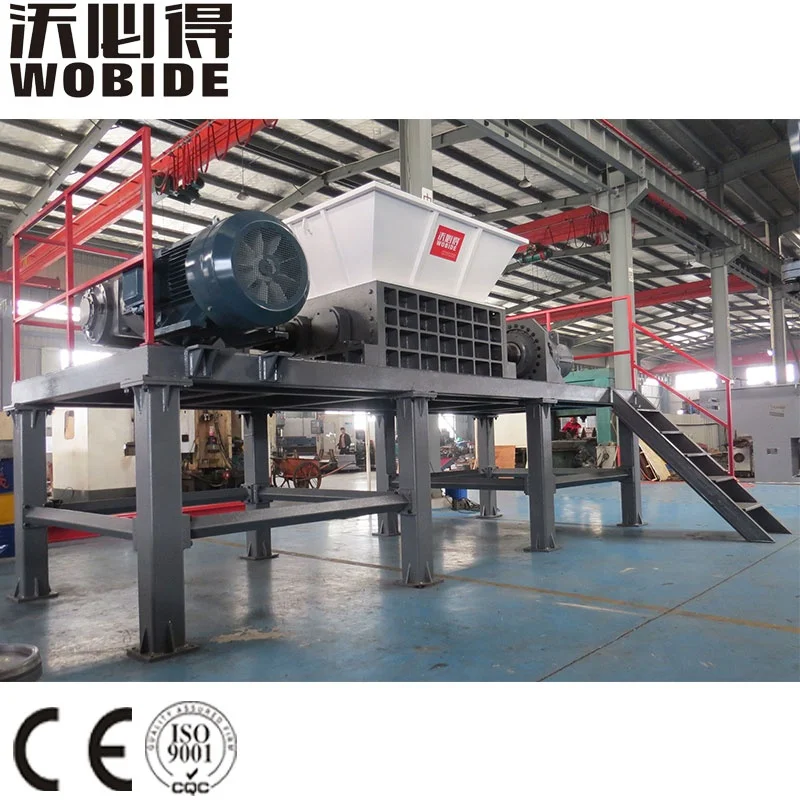

Plastic Bag Scrap Iron Dual Axis Waste Plastic PVC Pipe Waste Plastic Double Shaft Shredder
- Category: >>>
- Supplier: Wobide Machinery (zhejiang) Co. Ltd.
Share on (1600539211290):
Product Overview
Description
Products Description
Feed inlet can be customized according to demand

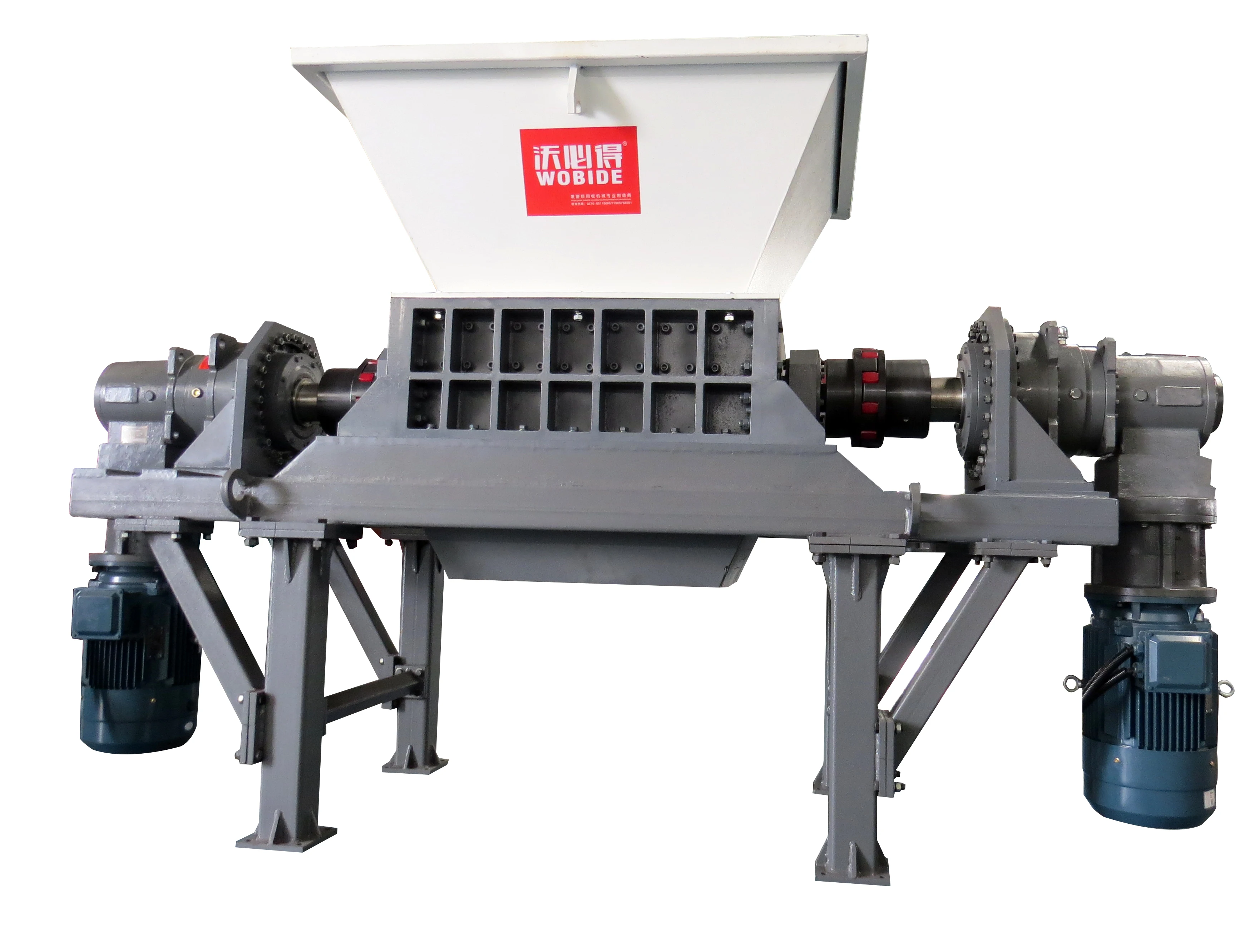

WT series dual shaft shredder can meet the waste recycling requirements of various industries, including automobile tires, wood, wire, plastic, metal etc. The shredded material can be directly recycled or further crushed according to demand.It adopts the principle of two shaft shearing, and realizes the fine decomposition of materials through the shearing, tearing and squeezing actions of the blades.

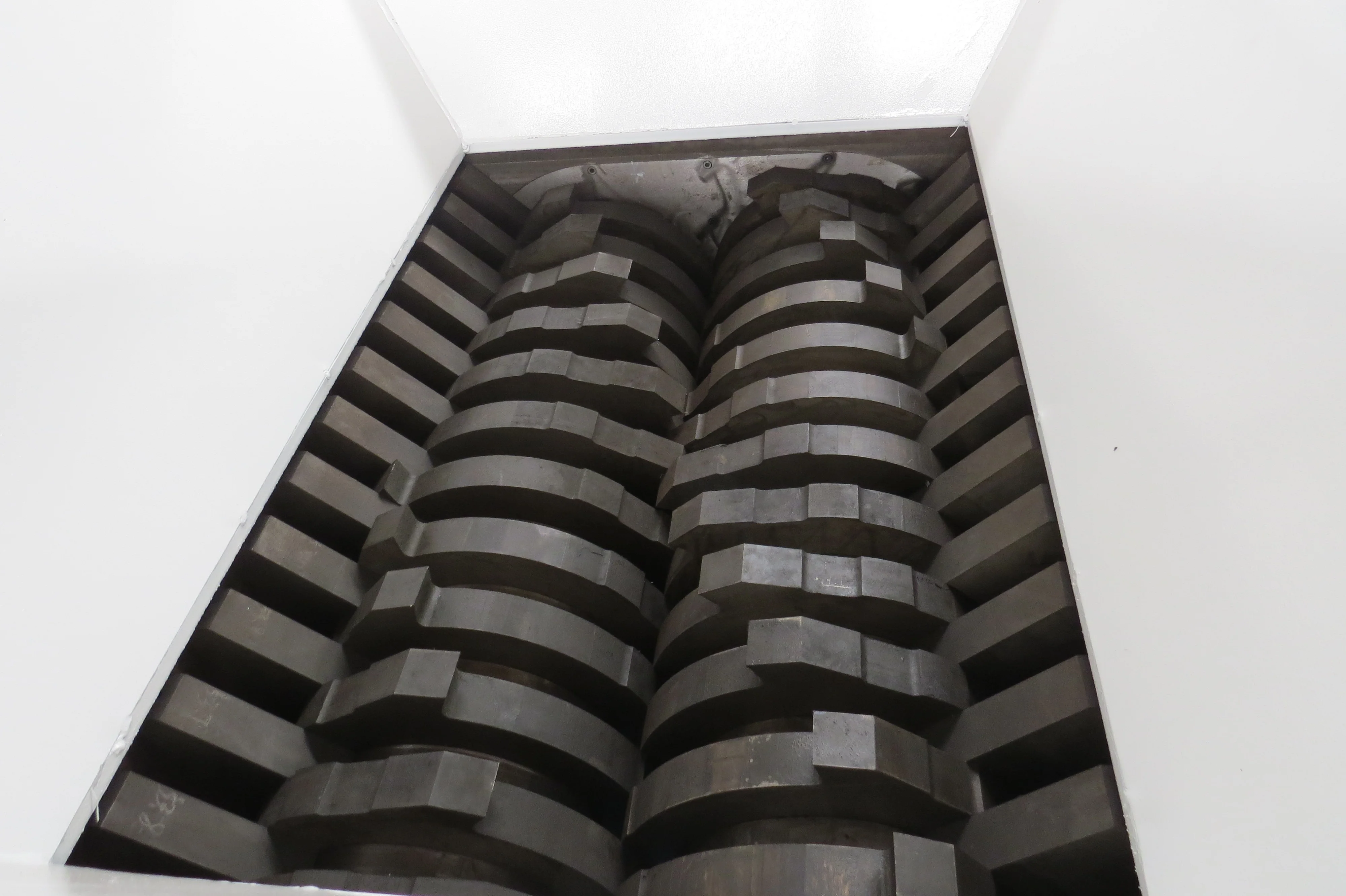

The shredder blades can be customized depending on the material need to be processed. Two counter rotating shafts with special design blades and spacer combs placed between blades and attached to shredding chamber walls cut material into pieces with great force.
Model | WT600 | WT800 | WT1000 | WT1200 | WT1400 | WT1600 |
Main Shaft Length(mm) | 600 | 800 | 1000 | 1200 | 1400 | 1600 |
Speed(rpm) | 16-25 | 10-15 | 10-15 | 10-15 | 10-15 | 10-15 |
Blades (pcs) | 30 | 20 | 24 | 24 | 28 | 32 |
Blades Dia (mm) | 245 | 420 | 440 | 440 | 520 | 520 |
Blades thickness (mm) | 18.5 | 40 | 40 | 50 | 50 | 50 |
Motor Power(kw) | 2*7.5 | 2*22 | 2*30 | 2*30 | 2*37 | 2*45 |
Cutting Chamber Diamension (mm) | 480*600 | 820*800 | 1020*800 | 1220*800 | 1420*950 | 1620*950 |
Overall Dimension (mm) | 2000*1100*1700 | 3000*1250*2150 | 4200*1600*2150 | 4800*2000*2150 | 5200*2200*2300 | 6000*2400*2650 |
Weight(kg) | 1700 | 5000 | 6200 | 7500 | 9000 | 11000 |

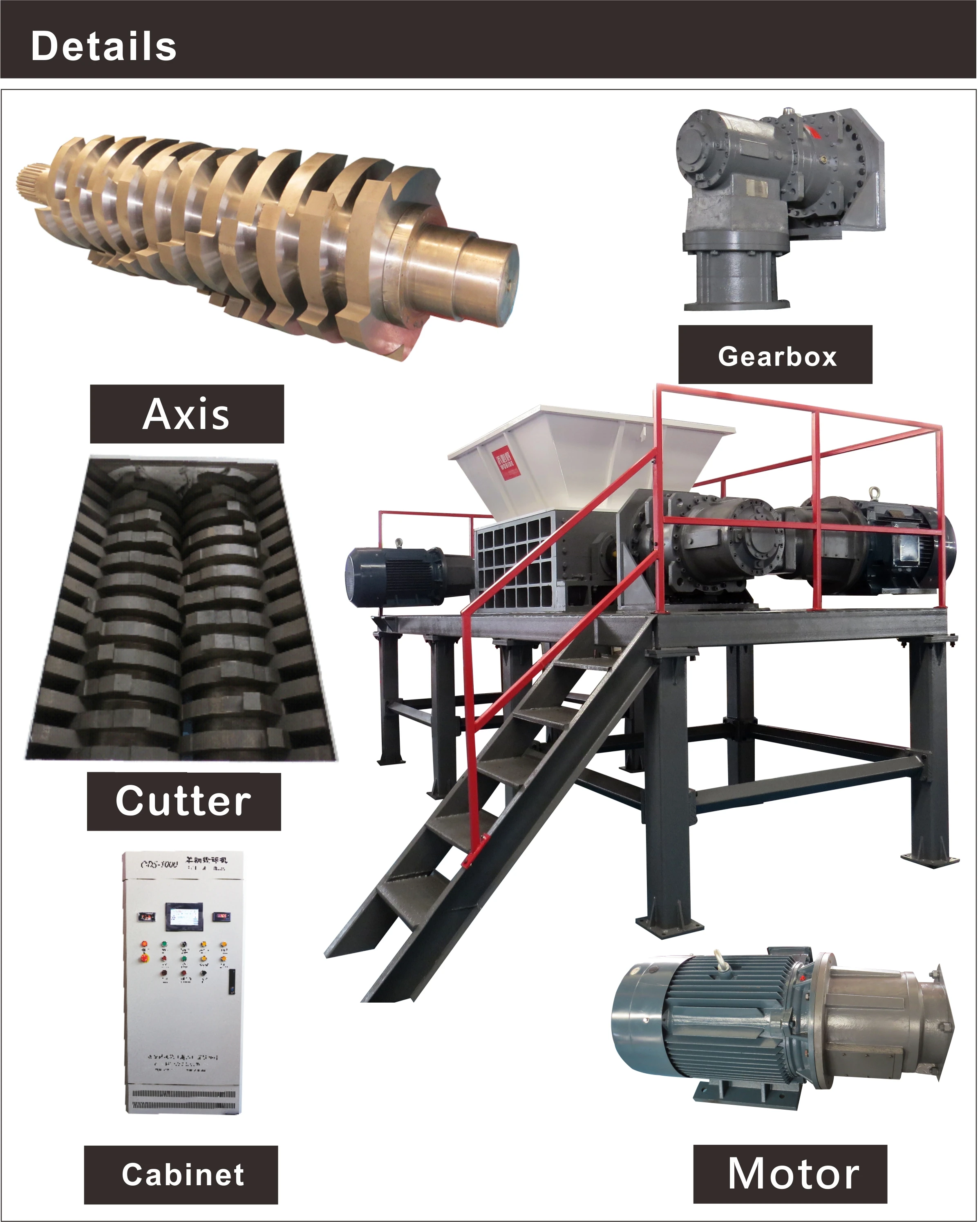

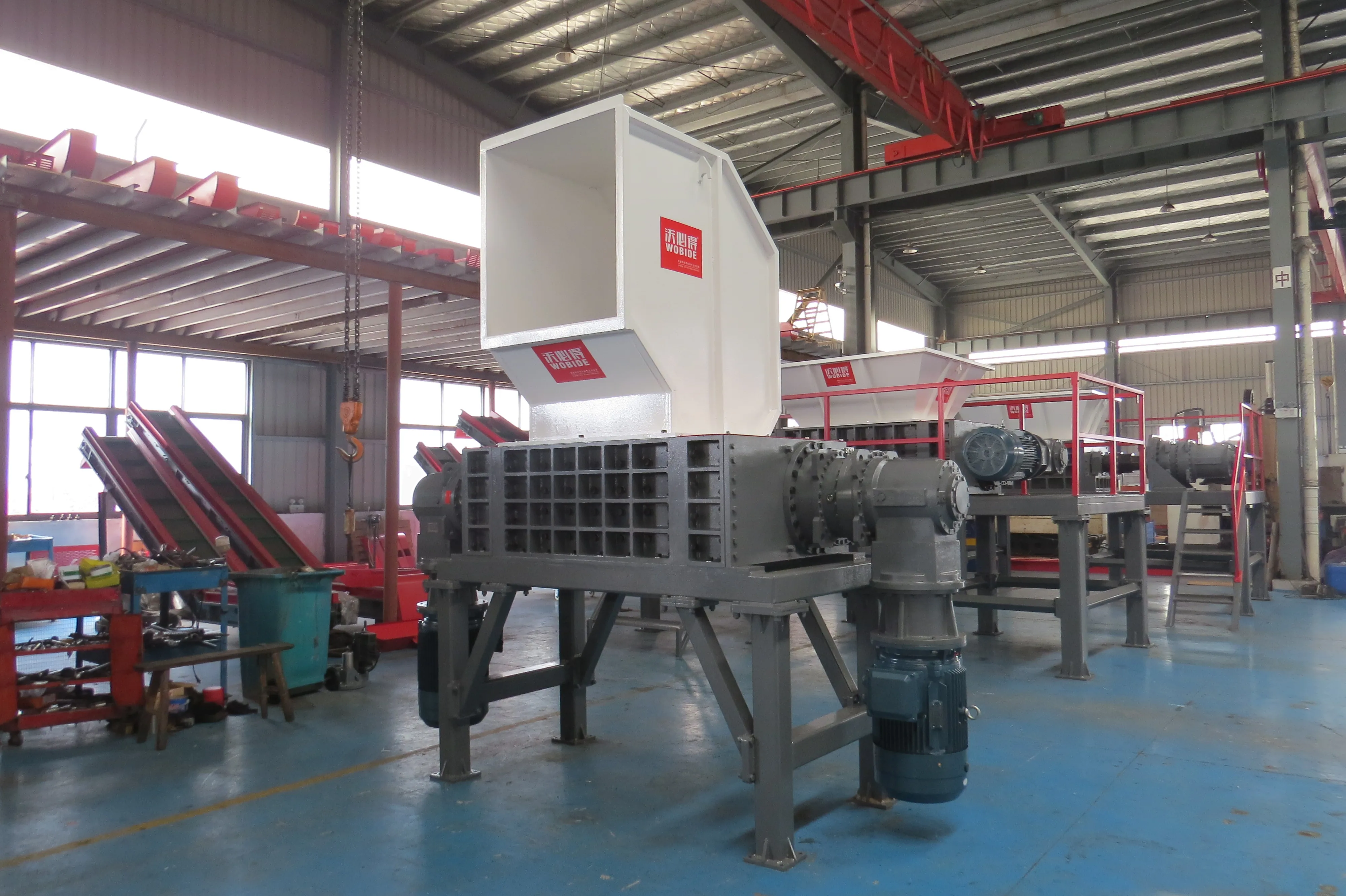

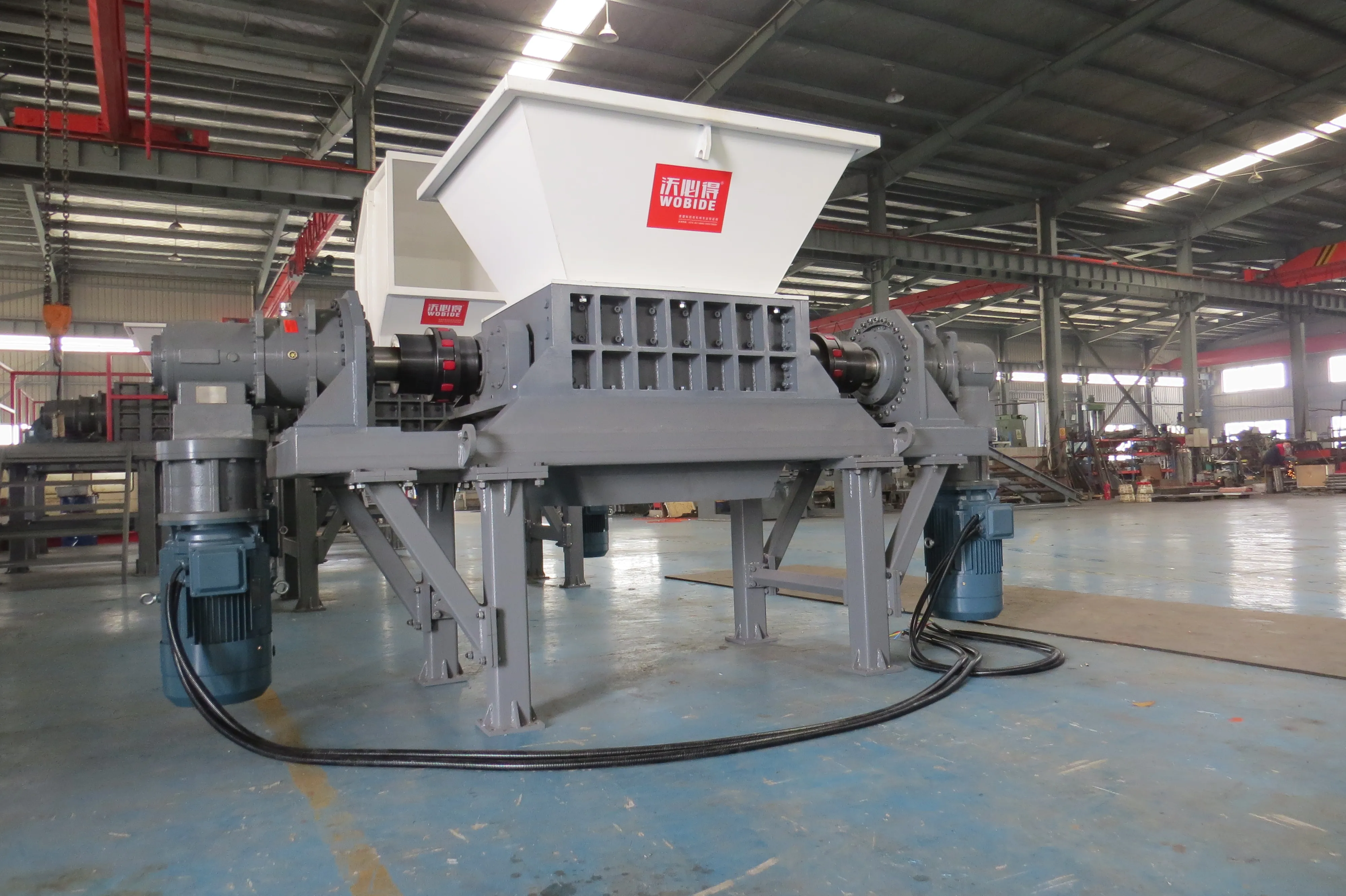

Details Images
Advantages:

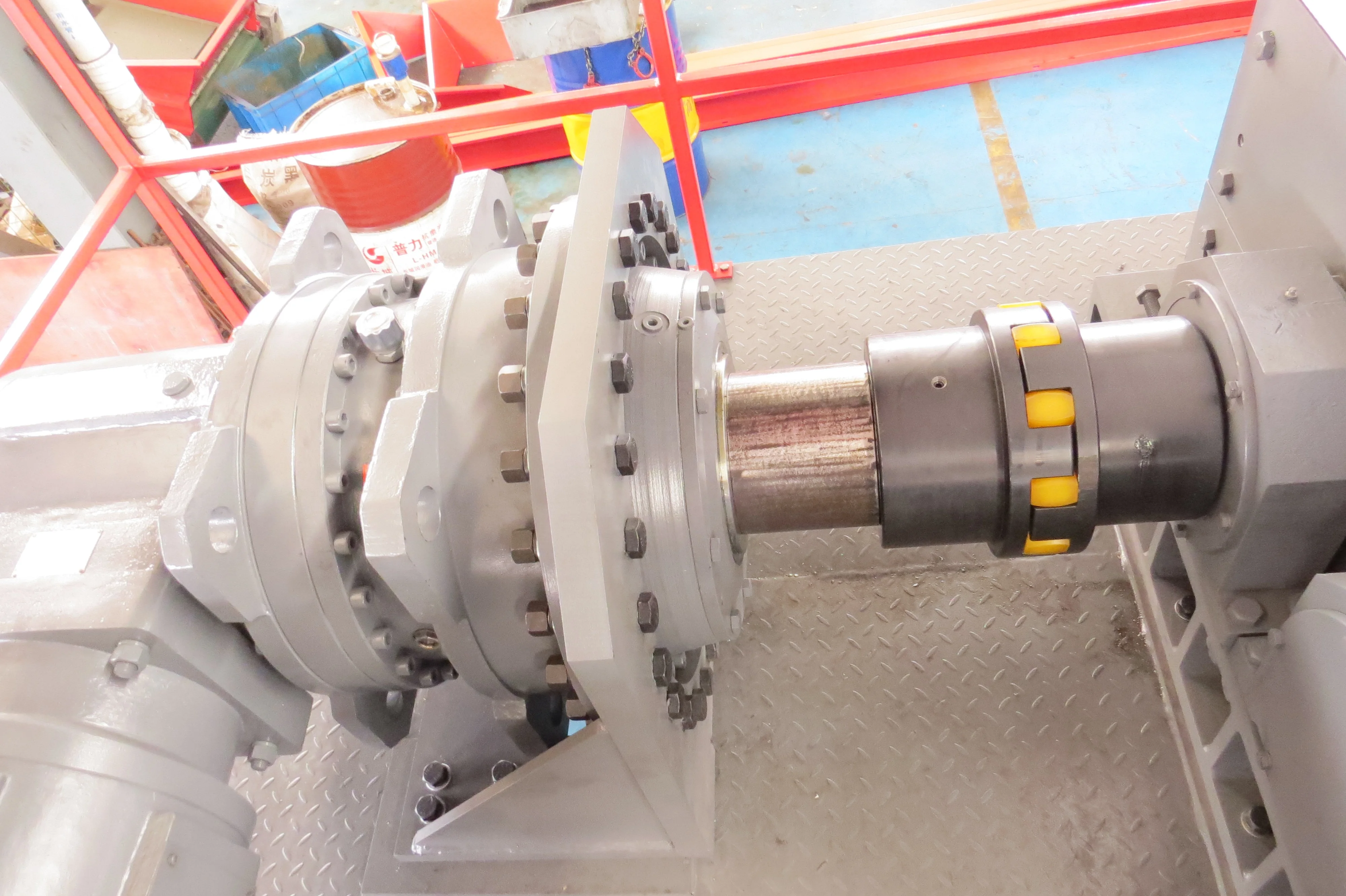

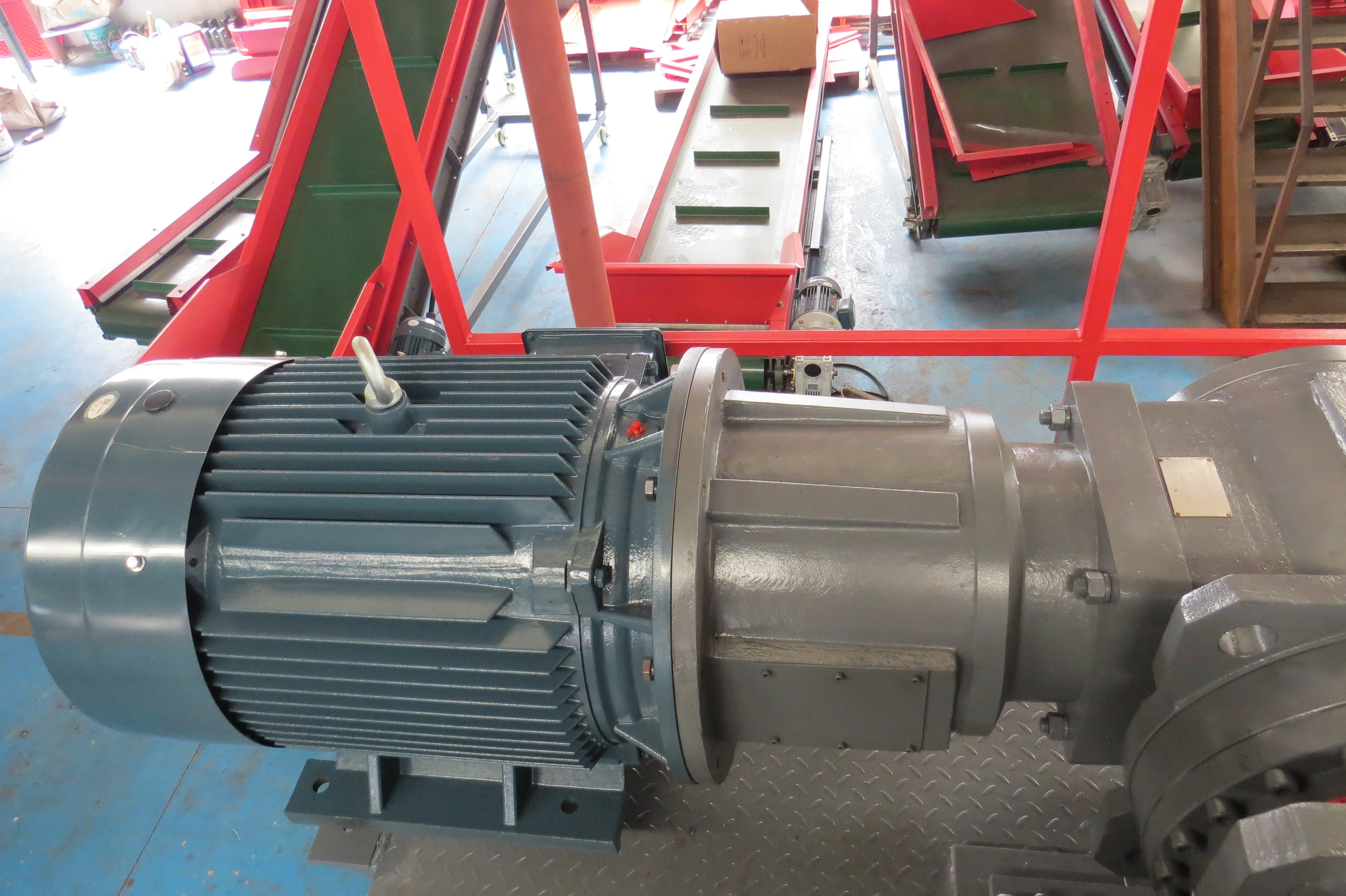

1. The discharge port is designed without screen, which greatly improves the shredding efficiency. Each rotor is driven by independent motor and planetary gear reducer with large torque, stable performance.
2. The hydraulic feeding device can be customized, micro PLC for auto control of start and stop, co-rotation and reversal rotation of rotors while overload.
3. Blade could be customized according to different application. The blade material includes 60Si2Mn, H13, D2, and the structure has split type and integral type for option. Single claw or multiple claw blades are optional according to different materials and requirements for high efficiency.
1. The discharge port is designed without screen, which greatly improves the shredding efficiency. Each rotor is driven by independent motor and planetary gear reducer with large torque, stable performance.
2. The hydraulic feeding device can be customized, micro PLC for auto control of start and stop, co-rotation and reversal rotation of rotors while overload.
3. Blade could be customized according to different application. The blade material includes 60Si2Mn, H13, D2, and the structure has split type and integral type for option. Single claw or multiple claw blades are optional according to different materials and requirements for high efficiency.
Application Of Double Shaft Shredder Machine:
⇨Metal Waste
⇨Metal Waste
⇨E-waste
⇨Tire
⇨Large Tubular products
⇨Pallet
⇨Vehicle Cabinet
⇨Waste household appliance
⇨Barrel
Don't leave here,we are the most reliable supplier!!!
We can do:
Plastic crusher/shredder/granulator/recycling washing line
Plastic crusher/shredder/granulator/recycling washing line
We can offer:
customization+high quality+certificate+service
customization+high quality+certificate+service
We have:
25+years experiences
Alibaba Verified Gold Certification Supplier
25+years experiences
Alibaba Verified Gold Certification Supplier
Please tell us:
Type of raw material
Required output per hour
Your budget
Type of raw material
Required output per hour
Your budget
More Products
Company Profile
FAQ
1.What information shall I provide when I request for quotation?
Information should be including parameters or technical requirements, such as: processing materials, output size, capacity, etc.
2. Are you trading company or manufacturer?
We are ISO9001 certified manufacturer focus on fabricating solide waste recycling machine since 1995, address: No.3 Geely Avenue, Toumengang New Street, Linhai, Taizhou 317000, Zhejiang China.
3. What kind of products do you offer?
We have four main categories of products, shredder, plastic crusher, plastic recycling and washing line, plastic granulator andauxiliary equipment.
4.What are the applications of these products?
Our products are wildly used in shredding and crushing of plastic woven bags, plastic film, PA/PC plastic block, household appliance shells and inner tanks, plastic pipes, plastic containers, wastepaper, straw, wood, urban household garbage, medical waste, electronic waste and waste metal, etc. And waste plastic recycling and washing and plastic granulation.
5. Do you support product customization?
Yes, not only we provide customized service but also provide solutions to our customer.
Information should be including parameters or technical requirements, such as: processing materials, output size, capacity, etc.
2. Are you trading company or manufacturer?
We are ISO9001 certified manufacturer focus on fabricating solide waste recycling machine since 1995, address: No.3 Geely Avenue, Toumengang New Street, Linhai, Taizhou 317000, Zhejiang China.
3. What kind of products do you offer?
We have four main categories of products, shredder, plastic crusher, plastic recycling and washing line, plastic granulator andauxiliary equipment.
4.What are the applications of these products?
Our products are wildly used in shredding and crushing of plastic woven bags, plastic film, PA/PC plastic block, household appliance shells and inner tanks, plastic pipes, plastic containers, wastepaper, straw, wood, urban household garbage, medical waste, electronic waste and waste metal, etc. And waste plastic recycling and washing and plastic granulation.
5. Do you support product customization?
Yes, not only we provide customized service but also provide solutions to our customer.
