Best Price Oem Manufacturing Ftth Modem 2 Lan Ports Rf Wifi Xpon Gpon Onu Ont Catv
- Category: >>>
- Supplier: Shenzhen Baitong Putian Technology Co. Ltd.
Share on (1600539248728):
Product Overview
Description
Products Description
Our company offer OEM OR ODM service, any details please kindly send us inquiries,thanks.
Best Price Oem Manufacturing Ftth Modem 2 Lan Ports Rf Wifi Xpon Gpon Onu Ont Catv
BT-213XR model ONU is a user terminal device independently developed by BTPT in line with such industrial background.The device has built-in two-layer switching function and three-layer routing function. With compact structure and small appearance, it is a kind of FTTH optical network unit with high performance and low power consumption, which is very suitable for the application requirements of various data services in FTTH networking scenarios of various operators.BT-213XR is an XPON product that can be adapted to EPON and GPON networks without replacing equipment and firmware.
Company Introduction

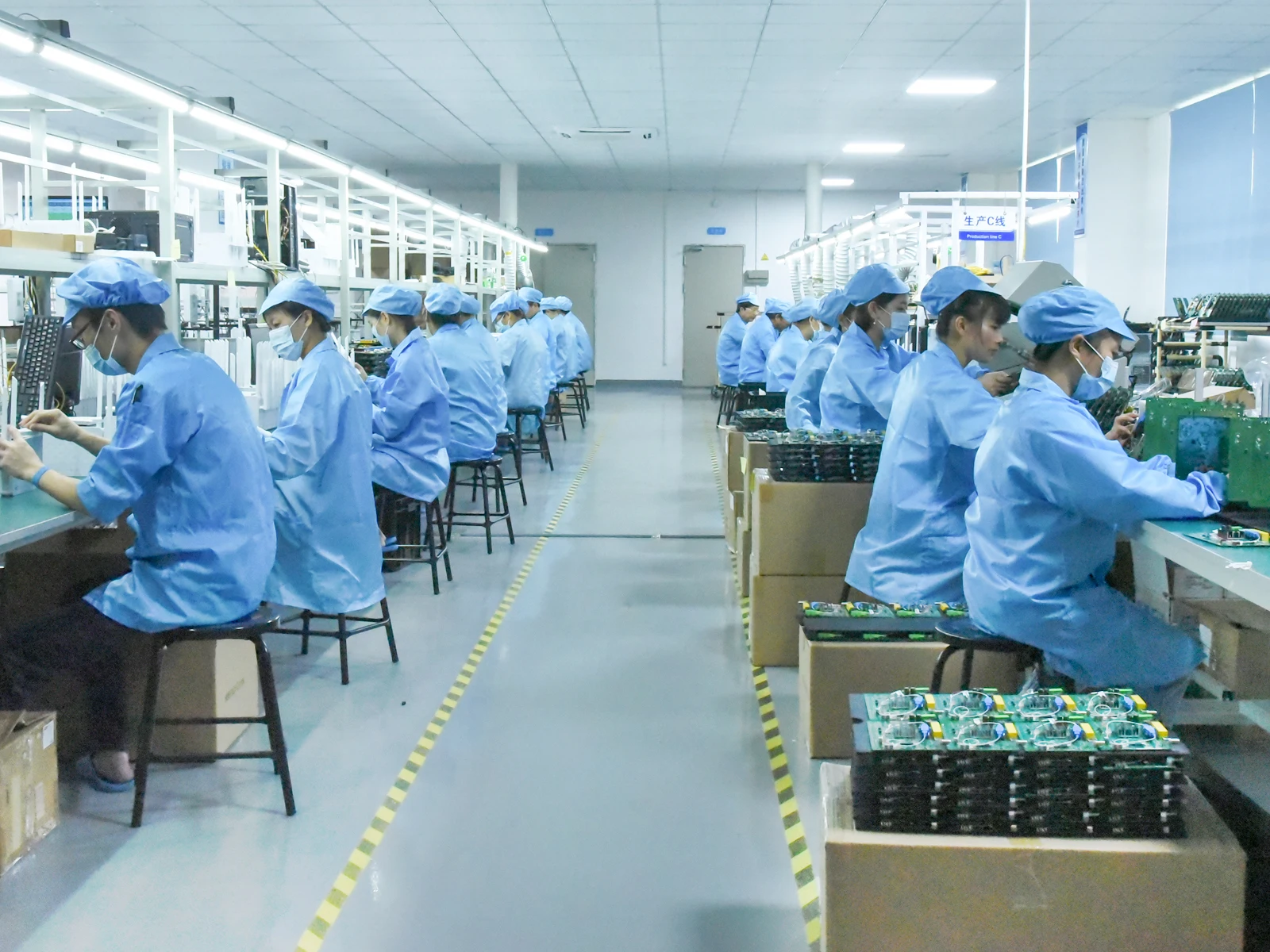

BT-PON has more than 10 years experience in fiber optical equipment industry since 2008. We're specializing in research and development of FTTX solution, especially in ONU and OLT technology. OEM & ODM are available.Our products cover G/EPON ONU/OLT,EOC, POE switch and other FTTX project equipment so on. Products have exported to more than 20 countries and regions around the world.
Specification
Hardware Specifications | ||

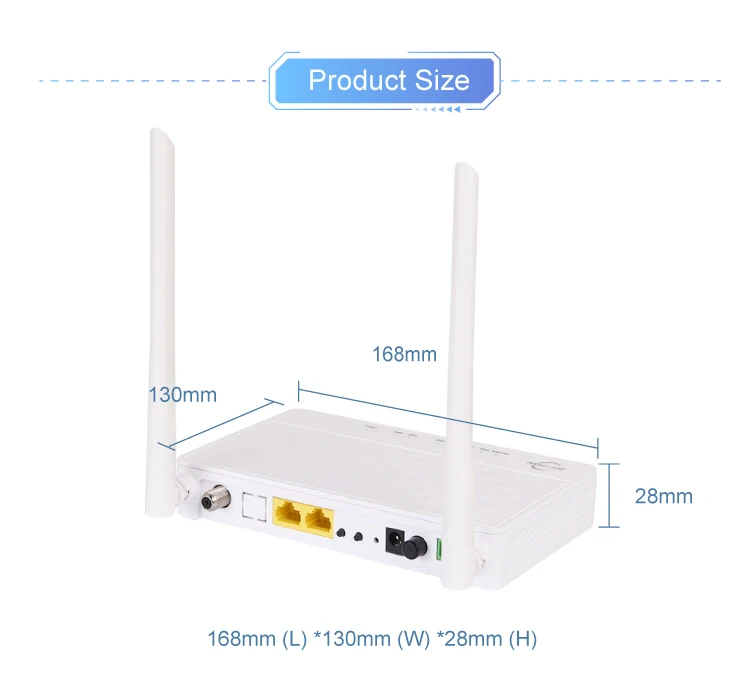

Size（L*W*H） | 168mm (L) *130mm (W) *28mm (H) | |
Optical signal access | 1*GPON/EPON | |

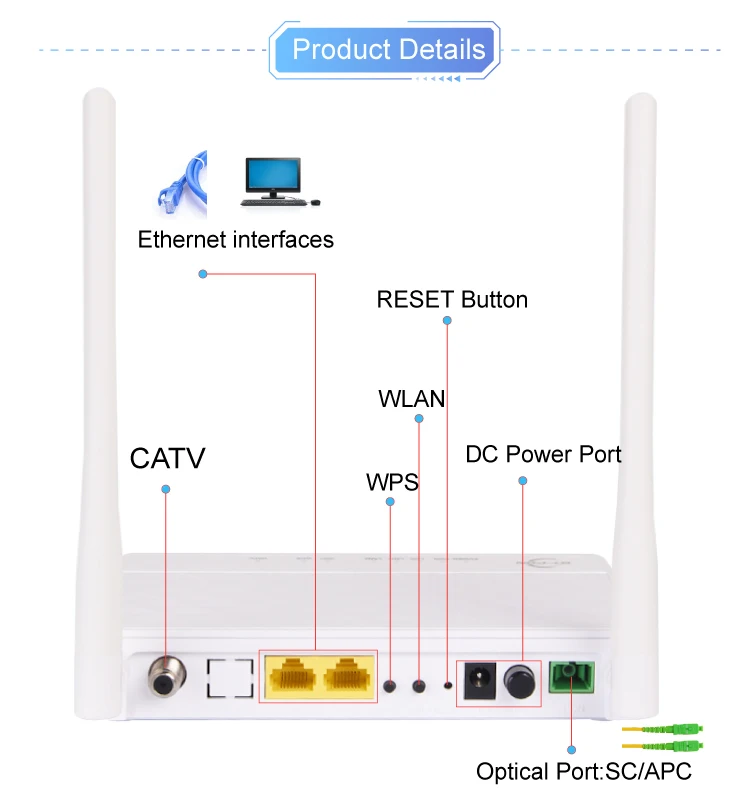

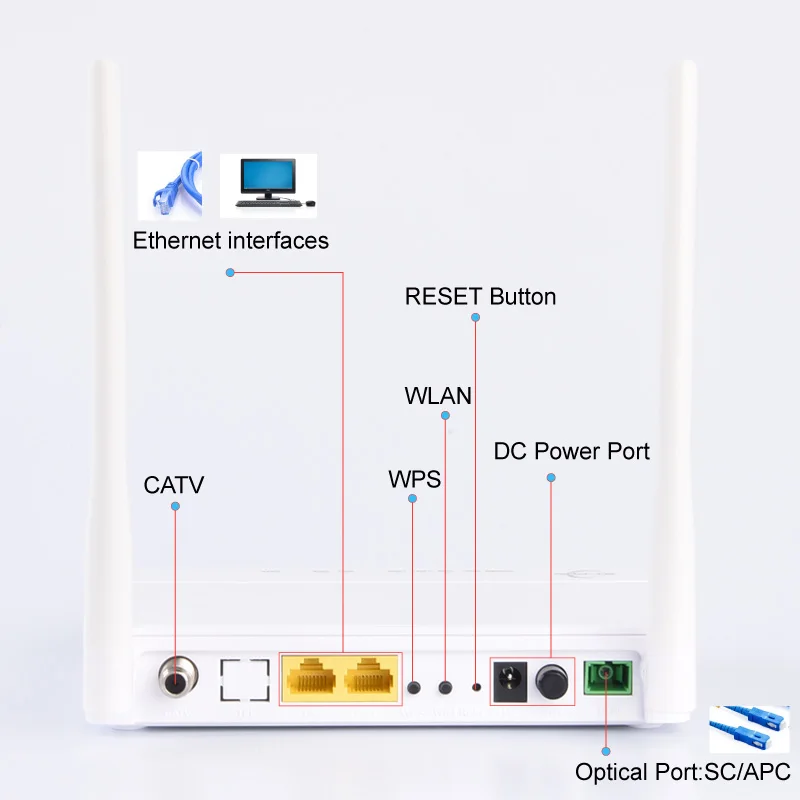

User interface | 1GE+1FE+2.4G WLAN +CATV | |
Indicator light | POWER、PON、LOS、LAN1、LAN2、、WIFI、WPS 、CATV | |
Button | Power switch Button, Reset Button, WLAN Button, WPS Button | |
Weight | 230g | |

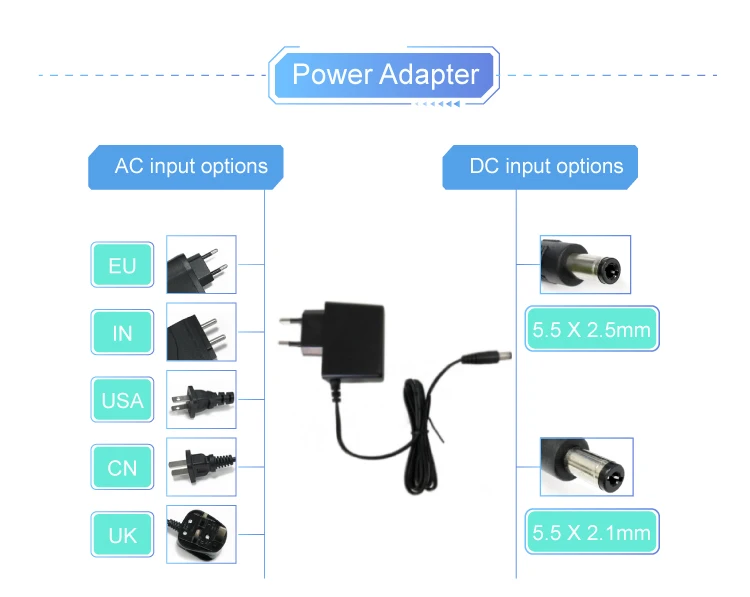

Power adapter input | 100V～240V AC，50Hz～60Hz | |
PowerSupply requirement | 12V DC，1.5A | |
Power consumption | <10w | |
Working temperature | -10°C ~ +45°C | |
Environment humidity | 5% ~ 95% (Non-condensing) | |
PON Interface | ||
Module type | Class B+ SC/APC | |
Working wavelength | up 1310nm，down 1490nm | |
TX Optical power value | 0.5～4dbm | |
RX Optical power sensitivity | -28dBm | |
Transmission distance | 0～20km | |
Transmission rate | GPON:Up 1.244Gbps；down 2.488Gbps EPON:Up 1.244Gbps；down 1.244Gbps | |
Ethernet interface | ||
Interface type | 2* RJ45 | |
Interface parameters | 1*10/100/1000Mbps and 1*10/100Mbps | |
Wireless | ||
Working mode | IEEE 802.11 b/g/n | |
Antenna pattern | External 2T2R External antenna | |
Antenna gain | 5dBi | |
Wireless bandwidth | Support 20MHz/40MHz | |
Interface rate | Maximum rate 300Mbps | |
SSID | Up to 4 SSID broadcasts are supported | |
CATV Interface | ||
Optical receiving wavelength | 1550±10nm | |
Optical reflection loss | ≥45dBm | |
RF, WDM, optical power | +2~-15dBm | |
RF frequency range | 47~1000MHz, RF output impedance: 75Ω | |
RF output level | 78dBuV | |
AGC range | 0~-12dBm | |
MER | ≥32dB@-15dBm | |
Features：
* Support EPON/GPON mode and switch mode automatically
* GPON:Compliance with IEEE 802.3ah & itu-t g.984.x standardGPON:8 T-CONTs,32 GEM Ports Integrate
* OMCI(GPON)/OAM(EPON) and TR-069 remote configuration and maintenance
* Layer 3 Home Gateway/CPE features with Hardware NAT, support Multiple WAN, Route/Bridge mode, etc
* Layer 2 Switching, support 802.1Q VLAN, 802.1P QOS, Bandwidth Control, Spanning Tree, etc
* Support PPPoE/ Static IP/ DHCP
* Support IPv4, IPv6 and IPv4/IPv6
* Support firewall level Settings, support based on URL/MAC/ IP/ address frame filtering
* Support multicast IGMP v2 proxy/ snooping, support MLD proxy/ snooping
* Qos supports PQ, WRR, and CAR queue scheduling
* Provide 300Mbps 2.4GHz Wireless interface,2T2R external antenna, support multiple SSID Settings,
* Support DDSN, ALG, DMZ and UPNP
* Support CATV interface for Video Service
* Layer 3 Home Gateway/CPE features with Hardware NAT, support Multiple WAN, Route/Bridge mode, etc
* Layer 2 Switching, support 802.1Q VLAN, 802.1P QOS, Bandwidth Control, Spanning Tree, etc
* Support PPPoE/ Static IP/ DHCP
* Support IPv4, IPv6 and IPv4/IPv6
* Support firewall level Settings, support based on URL/MAC/ IP/ address frame filtering
* Support multicast IGMP v2 proxy/ snooping, support MLD proxy/ snooping
* Qos supports PQ, WRR, and CAR queue scheduling
* Provide 300Mbps 2.4GHz Wireless interface,2T2R external antenna, support multiple SSID Settings,
* Support DDSN, ALG, DMZ and UPNP
* Support CATV interface for Video Service
Contact Us
Packing&Delivery

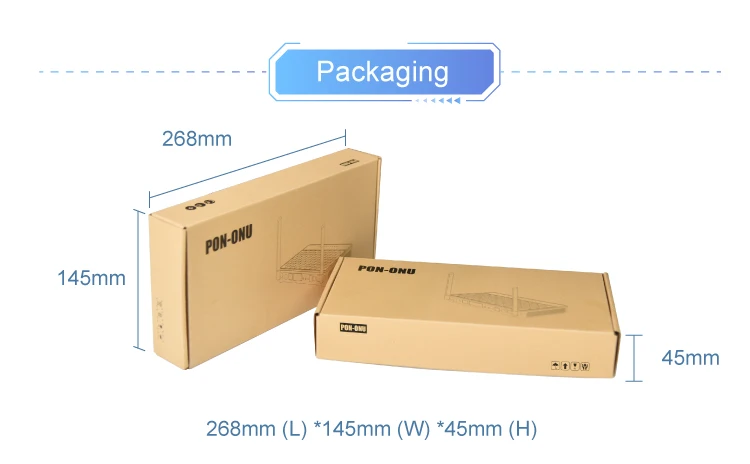

PACKING:
Original factory packing or customizedo,Or packed by standard export carton.
Shipping way:
By air, by sea or express(UPS,DHL,Fedex,TNT,EMS...)We will make a perfect delivery plan for you.
Delivery time:
1-7 days after order confirmed, exact delivery date should be decided according to production season and order quantity.
Original factory packing or customizedo,Or packed by standard export carton.
Shipping way:
By air, by sea or express(UPS,DHL,Fedex,TNT,EMS...)We will make a perfect delivery plan for you.
Delivery time:
1-7 days after order confirmed, exact delivery date should be decided according to production season and order quantity.
FAQ
1.Can I get a sample free?
Yes,you need place sample order to us, and we will reduce from next order .
2.How do I know your products are original and brand new ?
We guarantee products from our company are original and brand new.
You will get competitive price and professional technical supports.
3.Could you do design for us?
Yes, we can do artwork including printing, logo etc. for you, if you provide us the content and tell us where to put.
4.How can we place order?
Comfirm PI — Got the deposit — Arrange production/deliveryAfter we made agreement on the product's parameters, we will make proforma invoice for your confirmation. When we got your advance payment (deposit) we will arrange the production and delivery.
If you have your own ship forwarder, we will use your ship forwarder to delivery goods. if not, then when the goods arrived at Destination port, you must find a ship forwarder help you clear the custom.
5.How about the shipping?
For small orders, we will send the goods by International Express like HK Fedex, DHL, TNT or UPS. Usually it takes about 7 workdays to arrive.If big quantity we will ship by Ocean transportation, it takes one month to arrive. if urgnet, you can select shipping by Air, but freight charge will be more expensive.
6.What's your products' advantages ?
A. Good quality and competetive prices.
B. Strictly quality control when producing.
C. Professional team work, from design, development, producing, assemble, packing and shipping.
D. Good after-sale service. Professional online technical support can be provided. Moreover, if any problem of the goods, we will help to solve the problem or provide replacement of the goods.
Yes,you need place sample order to us, and we will reduce from next order .
2.How do I know your products are original and brand new ?
We guarantee products from our company are original and brand new.
You will get competitive price and professional technical supports.
3.Could you do design for us?
Yes, we can do artwork including printing, logo etc. for you, if you provide us the content and tell us where to put.
4.How can we place order?
Comfirm PI — Got the deposit — Arrange production/deliveryAfter we made agreement on the product's parameters, we will make proforma invoice for your confirmation. When we got your advance payment (deposit) we will arrange the production and delivery.
If you have your own ship forwarder, we will use your ship forwarder to delivery goods. if not, then when the goods arrived at Destination port, you must find a ship forwarder help you clear the custom.
5.How about the shipping?
For small orders, we will send the goods by International Express like HK Fedex, DHL, TNT or UPS. Usually it takes about 7 workdays to arrive.If big quantity we will ship by Ocean transportation, it takes one month to arrive. if urgnet, you can select shipping by Air, but freight charge will be more expensive.
6.What's your products' advantages ?
A. Good quality and competetive prices.
B. Strictly quality control when producing.
C. Professional team work, from design, development, producing, assemble, packing and shipping.
D. Good after-sale service. Professional online technical support can be provided. Moreover, if any problem of the goods, we will help to solve the problem or provide replacement of the goods.
