Lifepo4 IFR18650 Lithium Ion Phosphate Battery 3.2V 1100mah 1500mah 1600mah 1800mah Bateria De Litio 18650
- Category: >>>
- Supplier: Shenzhen Flyxure Technology Co. Ltd.
Share on (1600539259464):
Product Overview
Description
Product Description

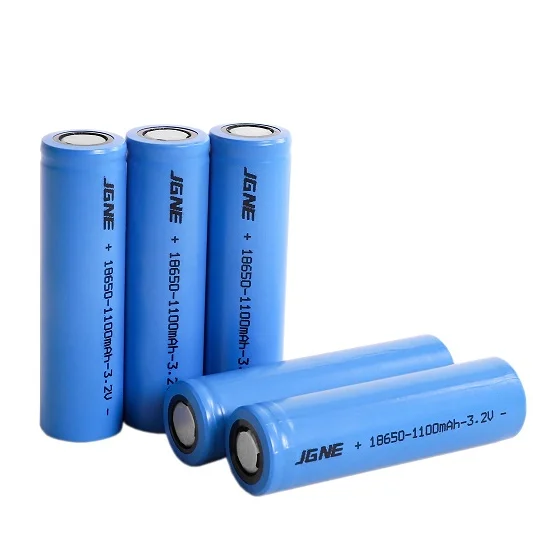

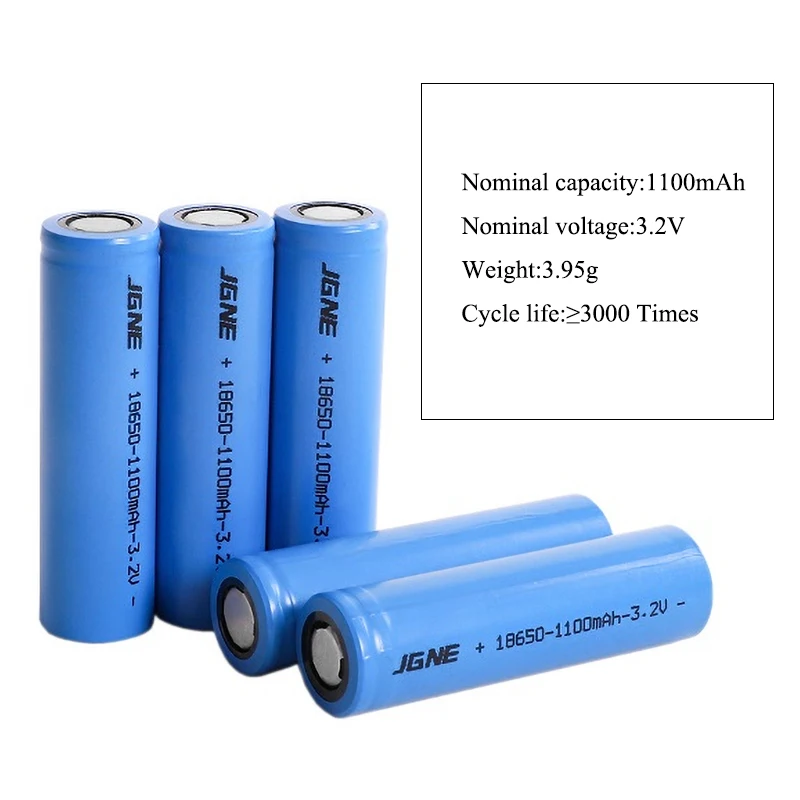

Model: | JGPFR18650-1100mAh-3.2V | Standard discharge current: | 5.5A |
Nominal capacity: | 1100mAh | Disharge cut-off voltage: | 2.5V |
Minimum capacity: | 1050mAh | Fast discharge current: | 11A |
Nominal voltage: | 3.2V | Max. continuous discharge Current: | 33A |
Internal resistance: | ≤18mΩ | Pulse discharge current: | 40A,10s |
Charge cut-off voltage: | 3.65V | Cycle life: | 500 times（100%DOD） 1000 times（80%DOD） 3000 times（50%DOD） |
Standard charge current: | 0.55A | Working Temperature: | -20℃～60℃ |
Charge cut-off current: | 11mAh | Storage Temperature: | -20℃～55℃ |
Max. charging current: | 5.5A | Cell Weight: | 3.95g |

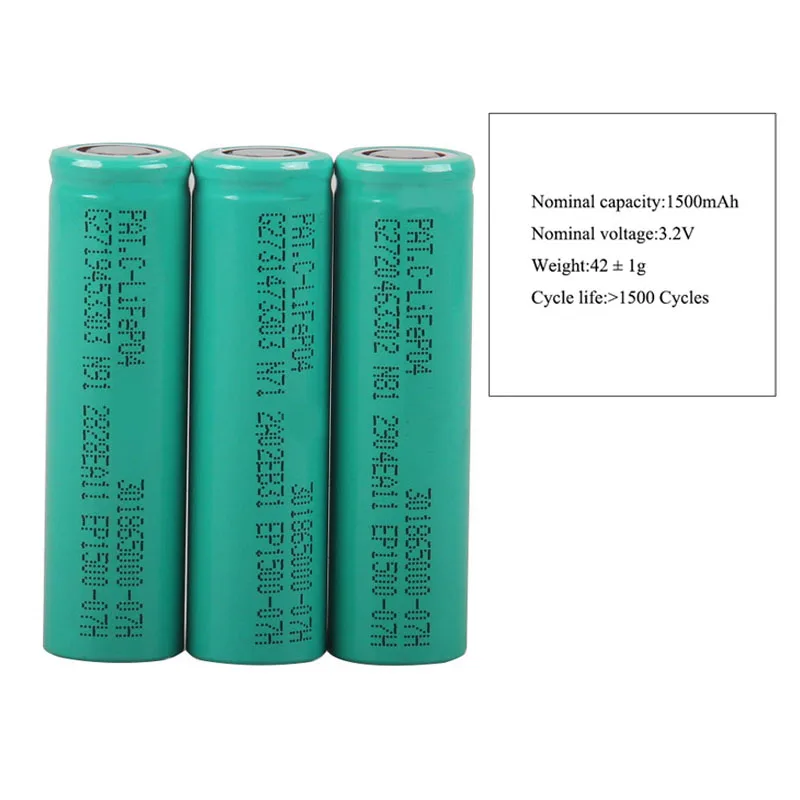

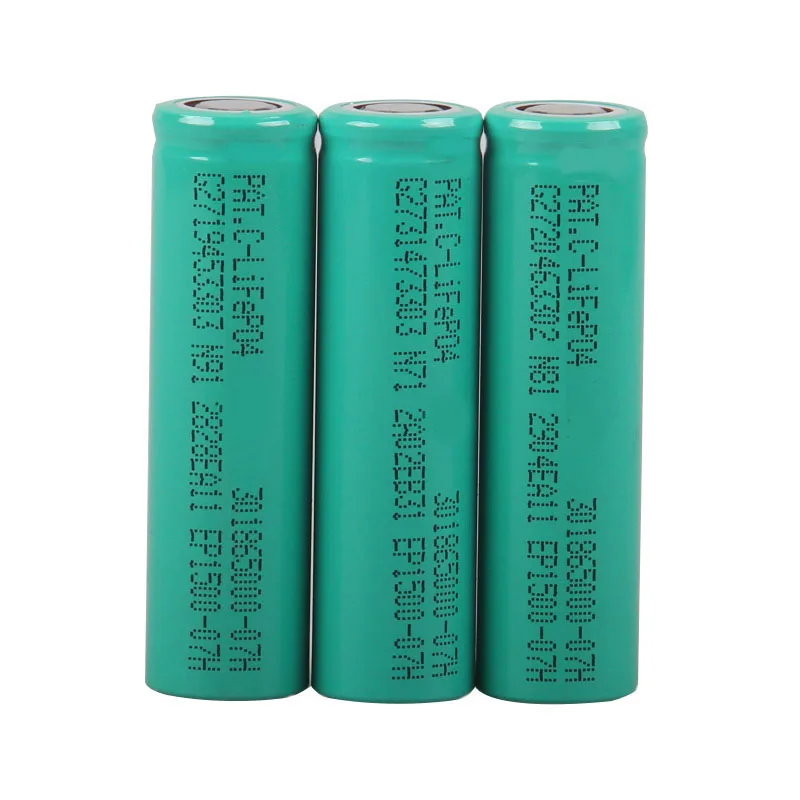

Model: | EP1500 | Discharge Cut-off Voltage: | 2.5V |
Nominal capacity: | 1500mAh | Cycle Life: | >1500 Cycles |
Standard Charge Voltage: | 3.65 V | Operating Temperature: | -20℃~60℃ |
Nominal Operating Voltage: | 3.20V | Storage Temperature: | 40℃~70℃ |
Typical Rated Capacity (C/5): | 1450 mAh | Humidity: | 5%～85% RH |
Maximum Continuous Discharge: | 1.5A(1C） | Cell Weight: | 42±1g |
Max Pulse Discharge (10 sec): | 20A(13 C) | Cell Dimensions: | L: 65.0 ±0.3 mm D: 18.1 ±0.2 mm |

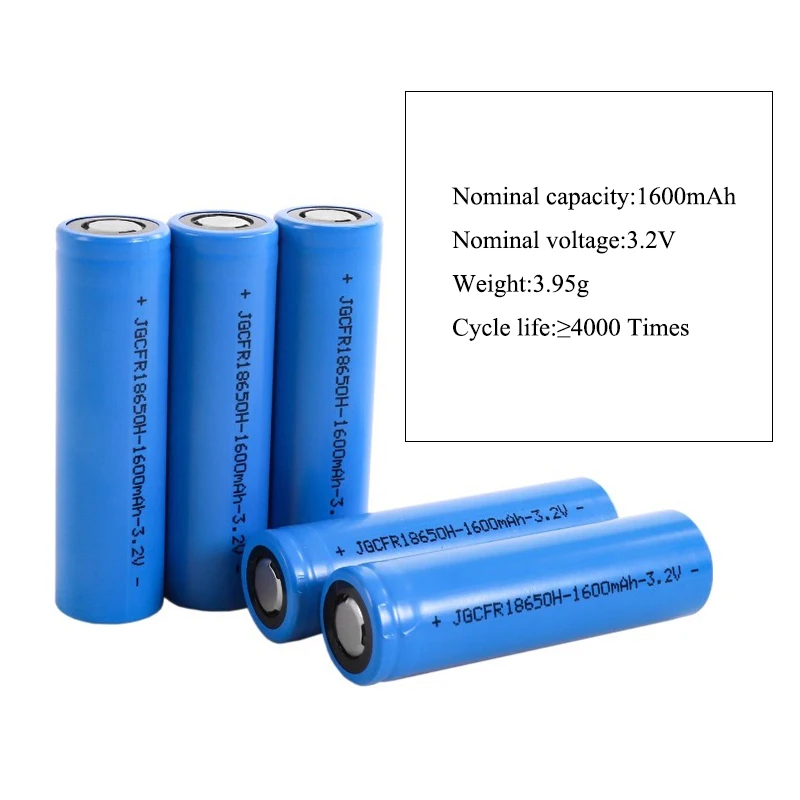

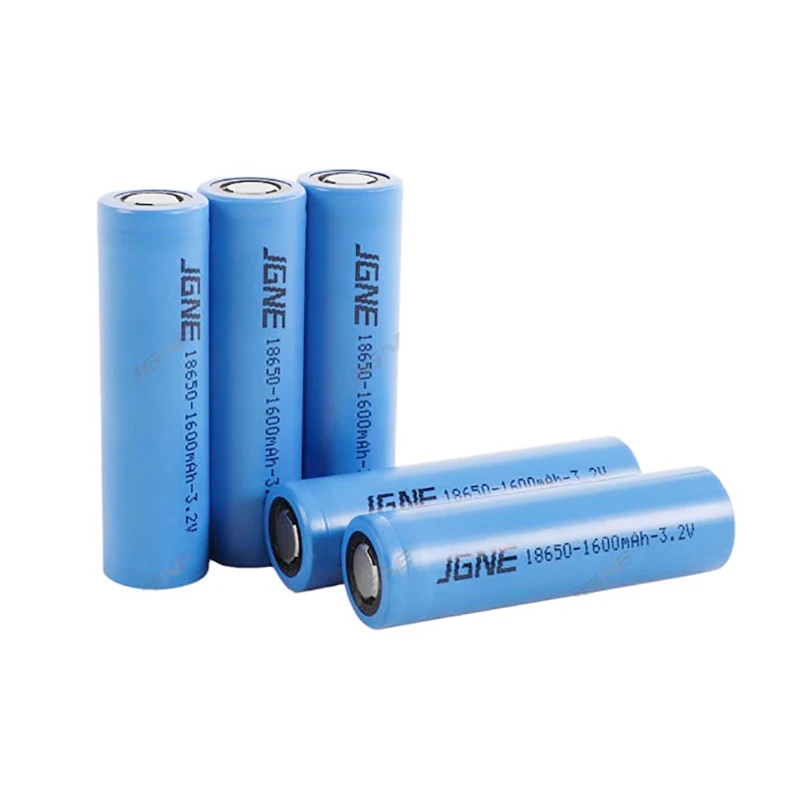

Model: | JGCFR18650-1600mAh-3.2V | Standard discharge current: | 0.8A |
Nominal capacity: | 1600mAh | Disharge cut-off voltage: | 2.5V |
Minimum capacity: | 1550mAh | Fast discharge current: | 1.6A |
Nominal voltage: | 3.2V | Max. continuous discharge Current: | 4.8A |
Internal resistance: | ≤25mΩ | Pulse discharge current: | 10A,5s |
Charge cut-off voltage: | 3.65V | Cycle life: | 2000 times（100%DOD） 4000 times（80%DOD） 7000 times（50%DOD） |
Standard charge current: | 0.8A | Working Temperature: | -20℃～60℃ |
Charge cut-off current: | 16mAh | Storage Temperature: | -20℃～55℃ |
Max. charging current: | 1.6A | Cell Weight: | 3.95g |

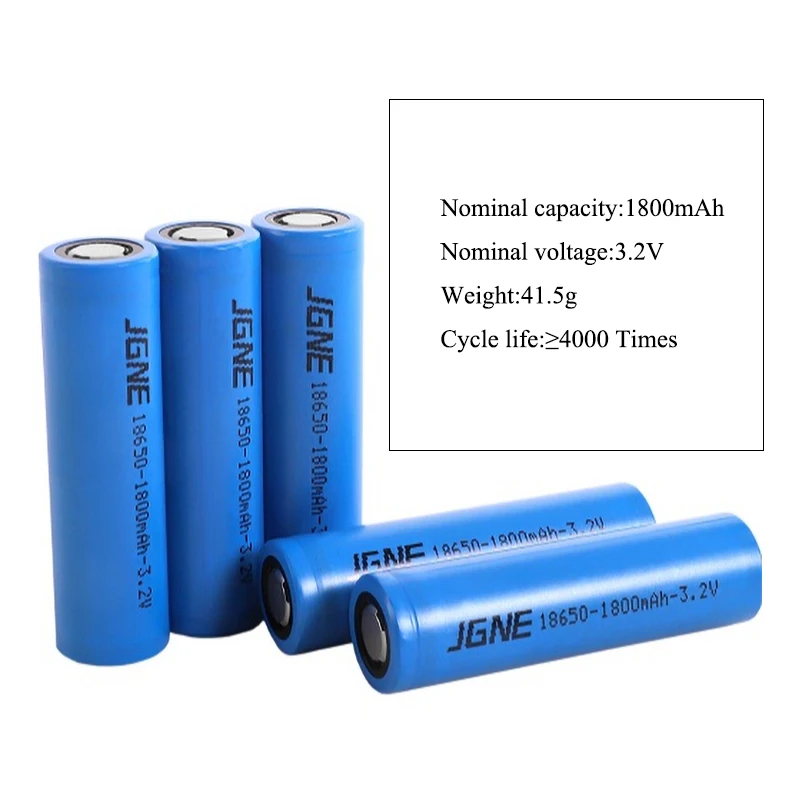

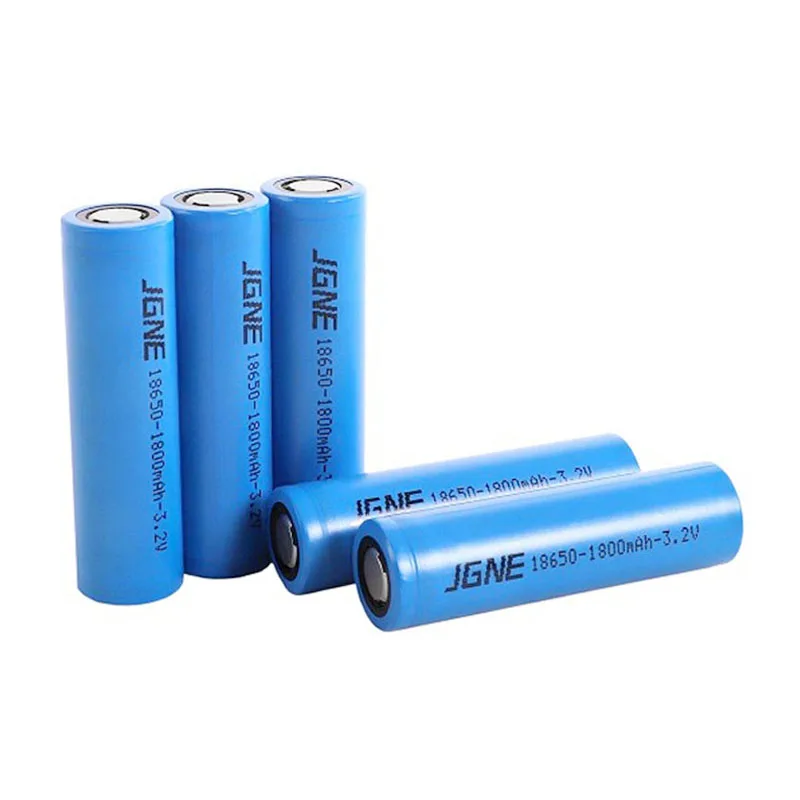

Model: | JGCFR18650-1800mAh-3.2V | Standard discharge current: | 0.9A |
Nominal capacity: | 1800mAh | Disharge cut-off voltage: | 2.5V |
Minimum capacity: | 1750mAh | Fast discharge current: | 1.8A |
Nominal voltage: | 3.2V | Max. continuous discharge Current: | 5.4A |
Internal resistance: | ≤25mΩ | Pulse discharge current: | 10A,5s |
Charge cut-off voltage: | 3.65V | Cycle life: | 2000 times（100%DOD） 4000 times（80%DOD） 7000 times（50%DOD） |
Standard charge current: | 0.9A | Working Temperature: | -20℃～60℃ |
Charge cut-off current: | 18mAh | Storage Temperature: | -20℃～55℃ |
Max. charging current: | 1.8A | Cell Weight: | 41.5g |
Applications
Lithium batteries are widely used in many power fields:
1. Electric vehicles, e-scooters, ebikes, Rickshaws, Motorcycles,Racing cars, Tricycles.
2. Electric cars, Electric boats, Marines, Electric forklifts, Go karts, Golf karts.
3. Solar street lights, Solar or wind energy storage, Home energy storage, RV, UPS, Motorhome.
4. Power tools, electric vacuum sweeper, beauty or medical equipment.
1. Electric vehicles, e-scooters, ebikes, Rickshaws, Motorcycles,Racing cars, Tricycles.
2. Electric cars, Electric boats, Marines, Electric forklifts, Go karts, Golf karts.
3. Solar street lights, Solar or wind energy storage, Home energy storage, RV, UPS, Motorhome.
4. Power tools, electric vacuum sweeper, beauty or medical equipment.
Packing&Shipping
PACKING
Custom 5-layers hard export standard carton boxes or the best quality UN box with plastic plates,wooden box packing(if
required).
Each package<25kg.
Custom 5-layers hard export standard carton boxes or the best quality UN box with plastic plates,wooden box packing(if
required).
Each package<25kg.
SHIPPING
1.To USA/Canada/Australia: sea+ups/fedex combined (DDP & Tax free)
Unavailable: Military and PO box address,Puerto Rico,Virgin Islands,Guam
Addtional freight is needed and customs duties is not included for Hawaii.
ETD: 4~6 days
ETA: 30-45 days since Vessel voyage begins
2. To EU: railway + ups/dpd combined (DDP & Tax free)
ETD: 4~6 days
ETA: 30-45 days since train begins
For remote areas or islands: shipping availability is unsure, contact us before your buying.
3. To Taiwan,Vietnam,Thailand,Cambodia, Singapore, Malaysia, Philippines,
Indonesia : special line
ETD: 4~6 days
ETA: 10-20 days since dispatch begins
Note:
The tracking status can be updated after customs clearance finished and picked up by
local express, please wait patiently or contact us for help.
Other countries which is not stated above, please check shipping fee with us before order.
1.To USA/Canada/Australia: sea+ups/fedex combined (DDP & Tax free)
Unavailable: Military and PO box address,Puerto Rico,Virgin Islands,Guam
Addtional freight is needed and customs duties is not included for Hawaii.
ETD: 4~6 days
ETA: 30-45 days since Vessel voyage begins
2. To EU: railway + ups/dpd combined (DDP & Tax free)
ETD: 4~6 days
ETA: 30-45 days since train begins
For remote areas or islands: shipping availability is unsure, contact us before your buying.
3. To Taiwan,Vietnam,Thailand,Cambodia, Singapore, Malaysia, Philippines,
Indonesia : special line
ETD: 4~6 days
ETA: 10-20 days since dispatch begins
Note:
The tracking status can be updated after customs clearance finished and picked up by
local express, please wait patiently or contact us for help.
Other countries which is not stated above, please check shipping fee with us before order.
FAQ
1. Q: What about your batteries?
A: All batteries are brand new grade A, Factory direct sales.
2.Q: How about the warranty?
A: 1~5 years from date of purchase.
Any physical damage like crashes or improper handling is excluded.
3. Q: If price can be negotiated?
A: Yes, we have a pricing range for different quantities.
4. Q: What is the lead time?
A: In 3~10 days, depending on purchasing quantities.
5. Q: Does the items have certificates?
A: Most of them have original specification and was certified with CE/FCC/CB/UN38.3
/MSDS,etc.
6. Q: Do you have catalogue and quotation sheet?
A: Yes.
7. Q: How can i place the order?
A: Online transaction by Alibaba trade assurance: please place your order and pay directly
for RTS(Ready To Ship) products if there is clear shipping cost or free shipping, or contact
our sales to creat a online order.
8. Q: What you’ll do before shipment?
A: Test all cells and get it balanced, well packaging offered.
9. Q: How can i make good comments?
A: Find out your order list and specifically make your good reviews on the items you
received, sincerely appreciated.
A: All batteries are brand new grade A, Factory direct sales.
2.Q: How about the warranty?
A: 1~5 years from date of purchase.
Any physical damage like crashes or improper handling is excluded.
3. Q: If price can be negotiated?
A: Yes, we have a pricing range for different quantities.
4. Q: What is the lead time?
A: In 3~10 days, depending on purchasing quantities.
5. Q: Does the items have certificates?
A: Most of them have original specification and was certified with CE/FCC/CB/UN38.3
/MSDS,etc.
6. Q: Do you have catalogue and quotation sheet?
A: Yes.
7. Q: How can i place the order?
A: Online transaction by Alibaba trade assurance: please place your order and pay directly
for RTS(Ready To Ship) products if there is clear shipping cost or free shipping, or contact
our sales to creat a online order.
8. Q: What you’ll do before shipment?
A: Test all cells and get it balanced, well packaging offered.
9. Q: How can i make good comments?
A: Find out your order list and specifically make your good reviews on the items you
received, sincerely appreciated.
