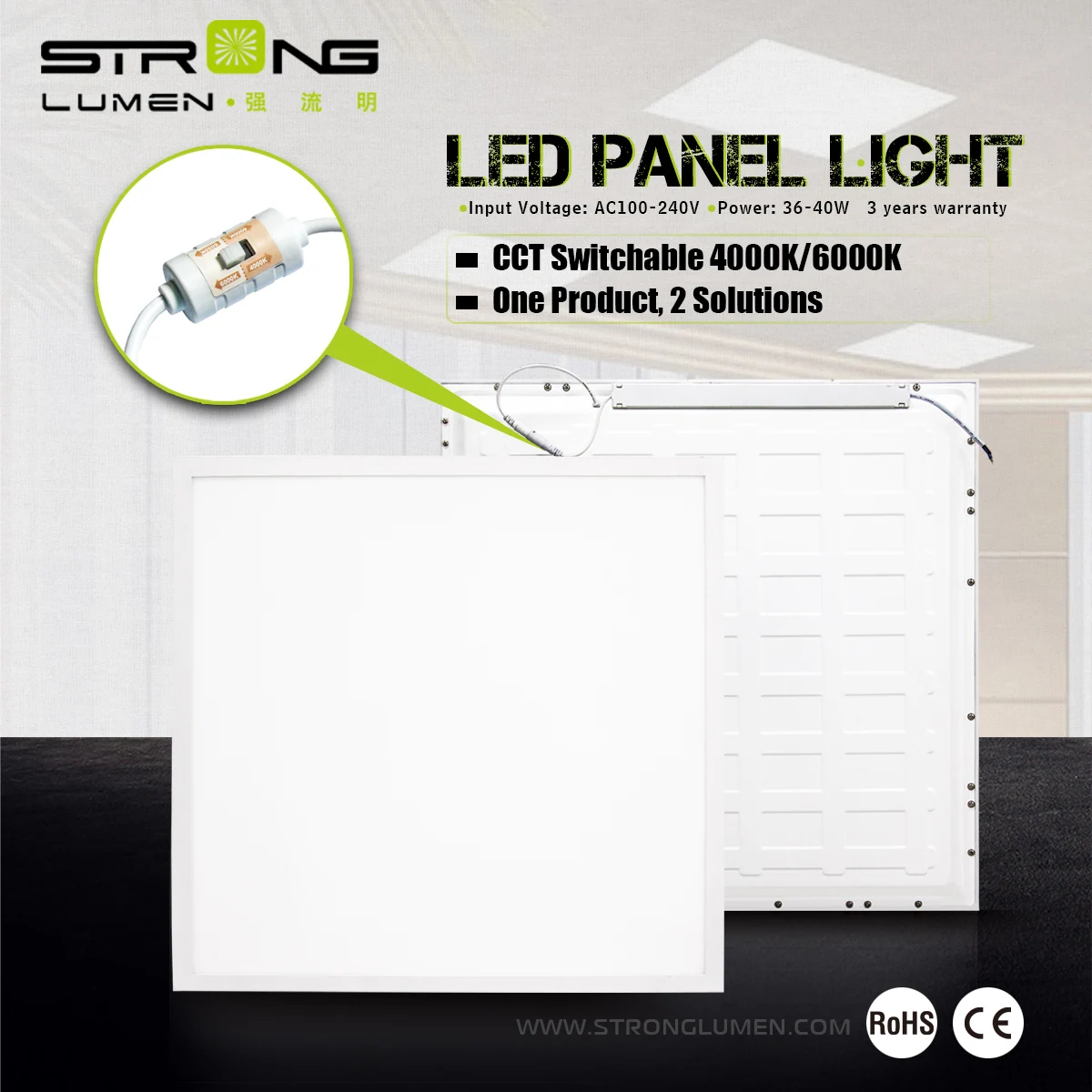

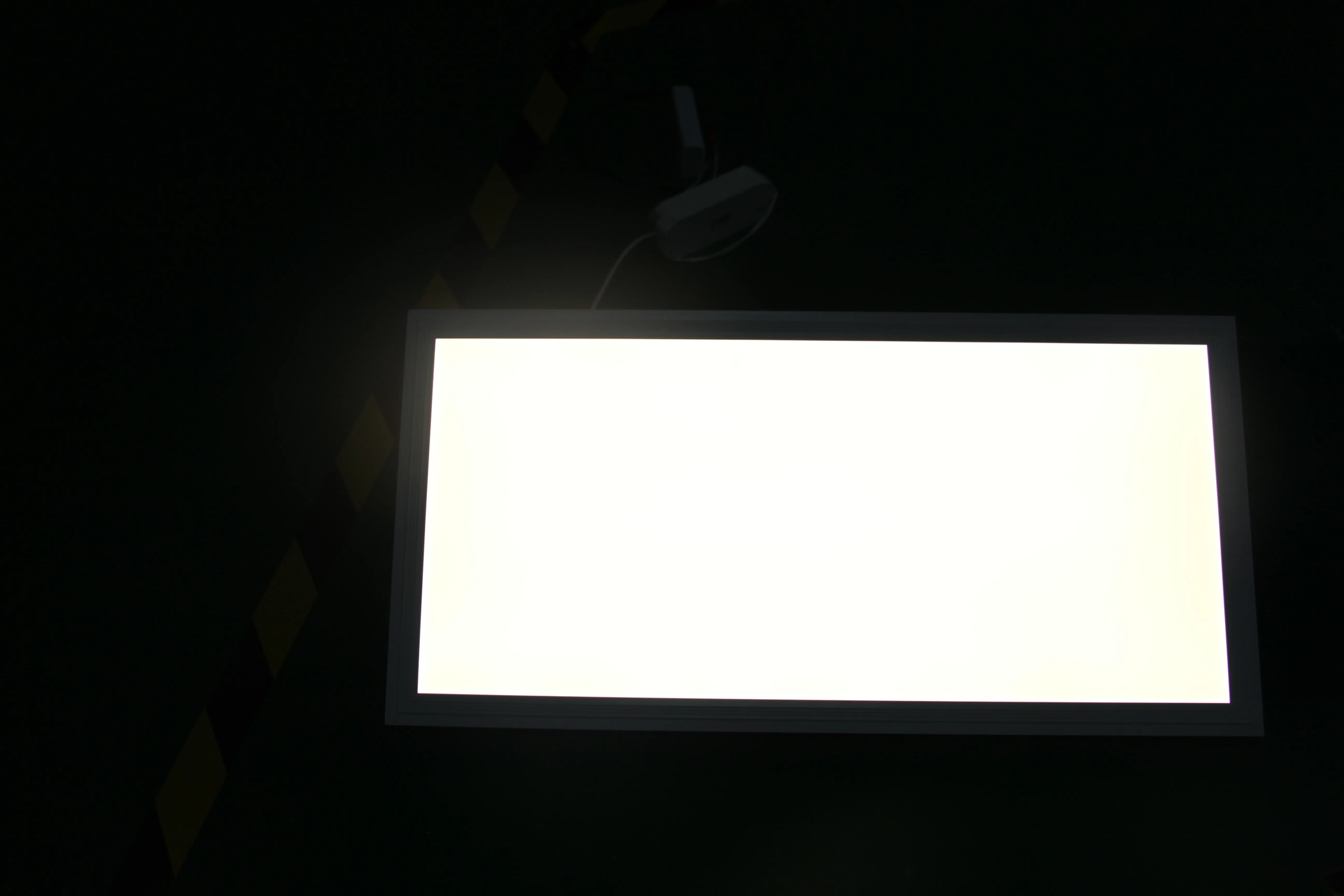

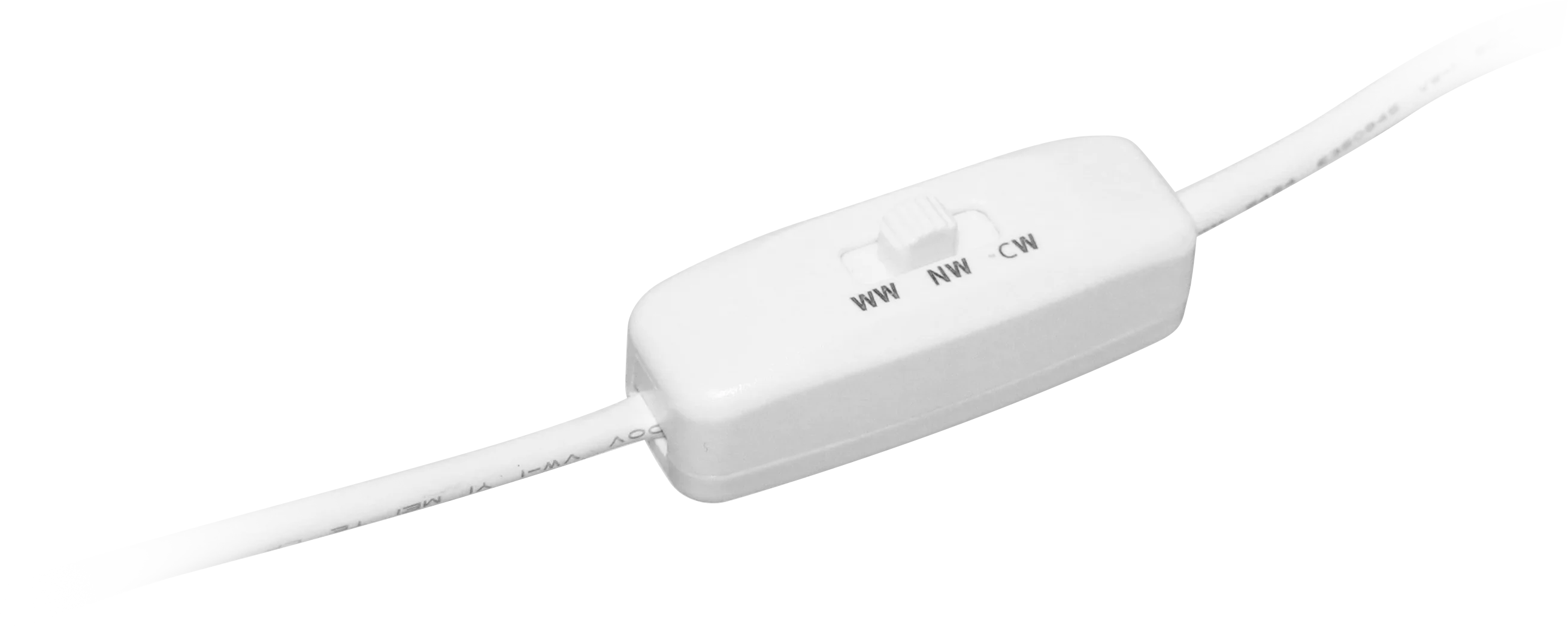

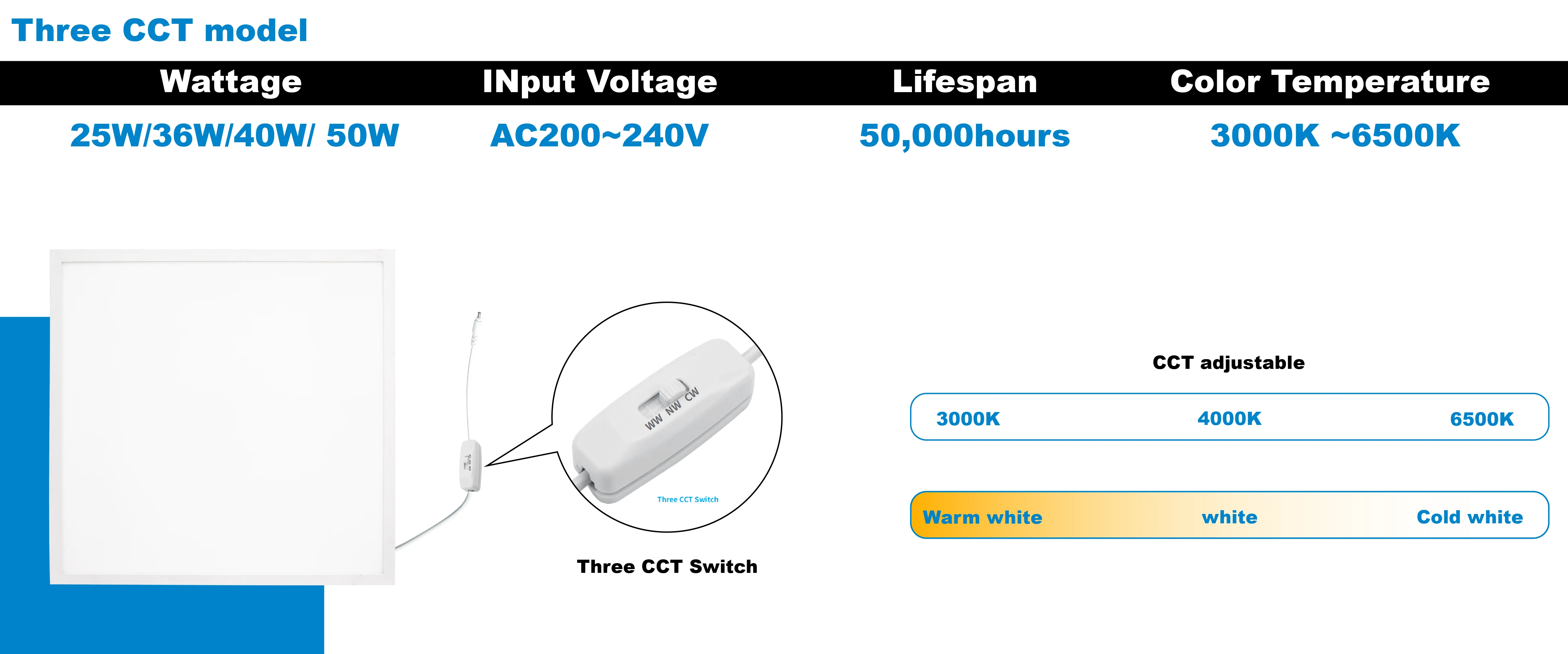

3 CCT changing LED Flat Panel Light with Switchable Driver Classic Style Color Changing for Different Occasion new erp led panel
- Category: >>>
- Supplier: Strong Lumen Opto Co. Ltd.
Share on (1600539259627):
Product Overview
Description
Product Description
1. Using high quality and high efficiency SMD LED as light source;
2. UGR<22, UGR<19(available)
3. No Mercury, no UV or IR radiation, EMI free, completely green and environmentally friendly;
4. Instant start, gentle light, no shadow, no flickering, eye-protective;
5. High light efficiency, low power consumption, effectively saving energy cost;
6. Energy efficient, 50% energy saving compared with traditional CFL grille light;
7. Long life span, more than 54,000 hours, greatly reduce the cost of light source replacement and maintenance;
8. Good adaptability, easy installation, can replace traditional grille lights completely;
3. No Mercury, no UV or IR radiation, EMI free, completely green and environmentally friendly;
4. Instant start, gentle light, no shadow, no flickering, eye-protective;
5. High light efficiency, low power consumption, effectively saving energy cost;
6. Energy efficient, 50% energy saving compared with traditional CFL grille light;
7. Long life span, more than 54,000 hours, greatly reduce the cost of light source replacement and maintenance;
8. Good adaptability, easy installation, can replace traditional grille lights completely;

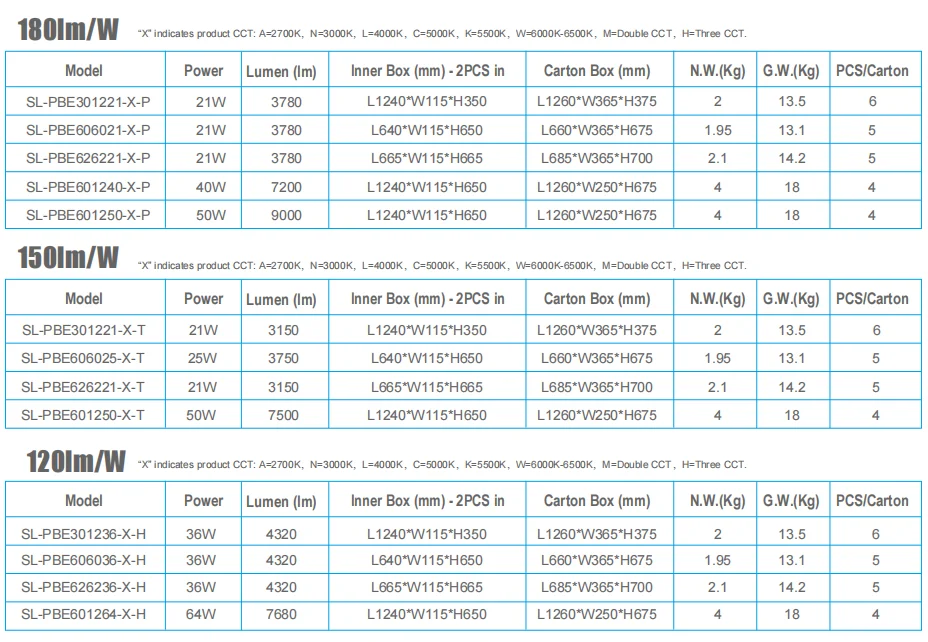

Super high efficiency up to 180lm/w, advantages:
1. Less watt replaces big watt of traditional light, helping you to save great energy and electricity bills.
2. While the cost for Less watt light is much lower than big watt light.
2. While the cost for Less watt light is much lower than big watt light.
Model | LED Panel Light |
Lumen Efficiency | 120lm/w |
Voltage | AC100-240V |
LED Chip | San’an |
CCT | 3000K/4000K/5000K/5500k/ 6000K/6500K |
SDCM | ＜6, <3(available) |
UGR | ＜22 (UGR＜19 Available) |
CRI | Ra＞80 |
PF | ＞0.9 |
Driver | Philips/Boke(Flicker Free) |
Warranty | 5 years |
Lifespan | 54000hours |

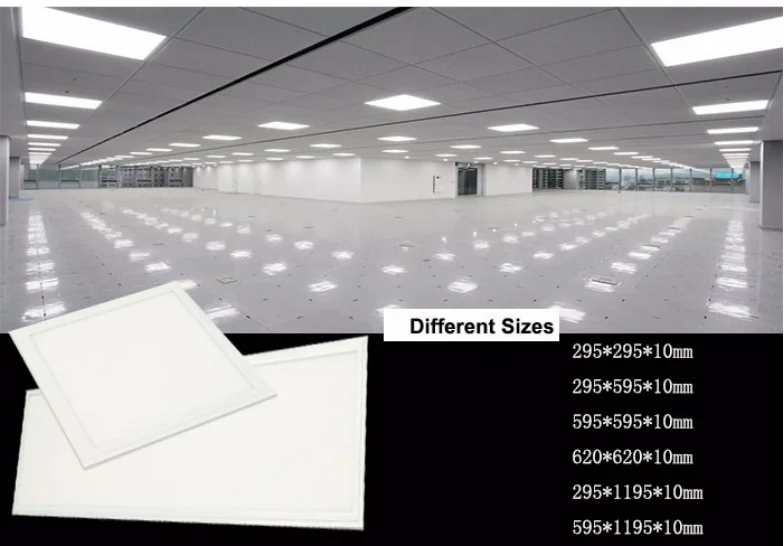

Size | 295*295mm/295*595mm/295*1195mm/595*595mm/595*1195mm |
Wattage | 12W/18W/25W/45W |
Operating Temperature | -10°-40° |
Beam Angle | 120° |
Certification | TUV CE, RoHS, SAA,CB |

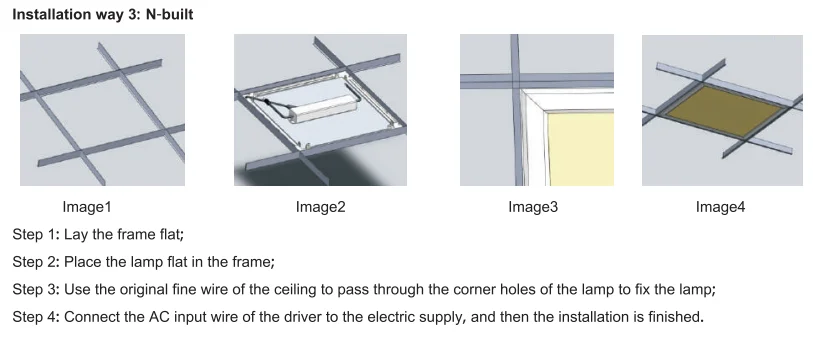

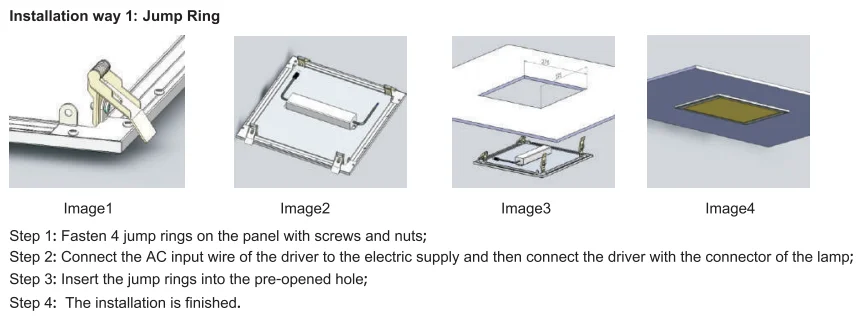

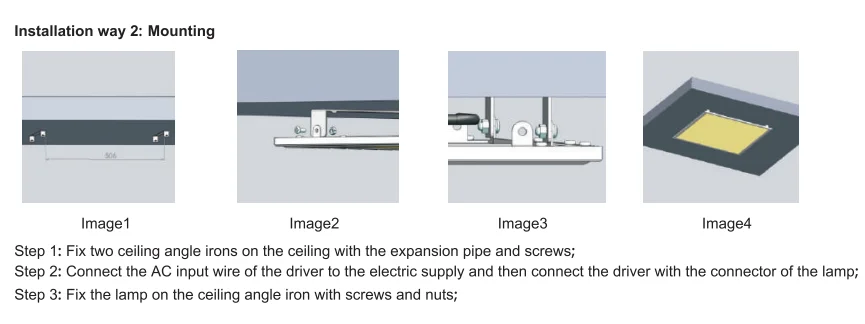

Installation | Jump ring, Mounting, N-built, Suspending, Reverse buckling |
Product features and application environment
1. The panel light has high luminous efficiency. The light emitted by the led light source is directly irradiated by the high-transmittance lens and diffuser, which reduces the transmission link of the light source in other media and reduces the light loss of the lamp in the structural design. The light efficiency of the whole lamp is relatively high.
3. Simple structure, simpler production process, high production efficiency and good product quality.
4. The product is cost-effective. The light output method can make a small amount of lamp beads achieve the effect of uniform light output, has a high cost performance.
5. Several installation methods for easy and low-cost installation.
3. Simple structure, simpler production process, high production efficiency and good product quality.
4. The product is cost-effective. The light output method can make a small amount of lamp beads achieve the effect of uniform light output, has a high cost performance.
5. Several installation methods for easy and low-cost installation.
6. Dimmable function, smart functions, UGR<19, IP65 available. CCT switchable.
UGR<19
IP65 waterproof
Smart Induction
Product Presentation

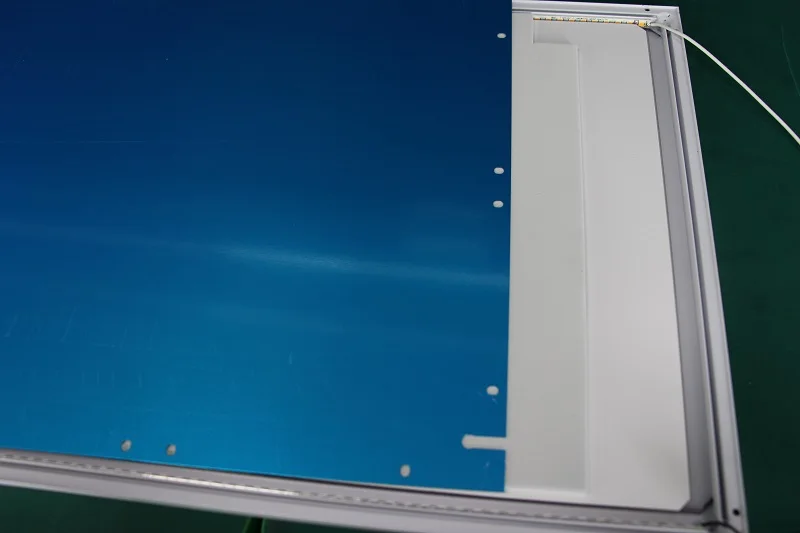

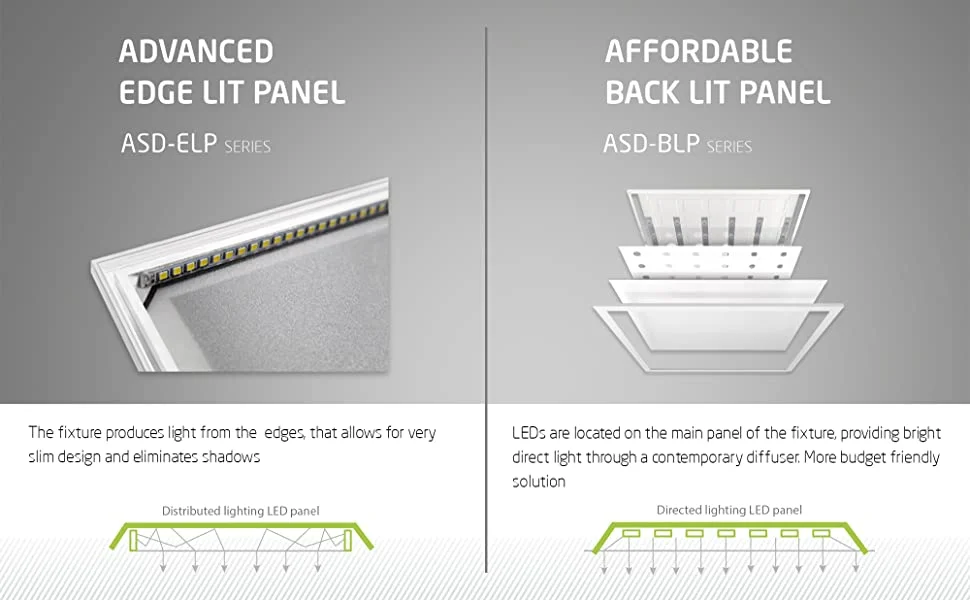

Egde-lit Panel Light
This type of LED Panel has LEDs that are placed on the edge of the frame. Light emits sideways, and is dispersed by a light guide panel.
Key Features:
1. Light Guide Panel – Super Bright LEDs lens is designed to diffuse light evenly across the whole surface, producing a perfectly smooth area of light.
2. Thin Profile – The depth of these panels can measure as small as half an inch. Combined with neutral, clean finished frames, these slim panels have a sleek look.
3. Versatile Mounting –Edge-Lit Panels can be installed in standard grid ceilings, but their distinctly ultra-thin frame allows for other installation options, including surface mounting to ceilings or walls and suspension from ceilings using junction box or cable mounting kits.
1. Light Guide Panel – Super Bright LEDs lens is designed to diffuse light evenly across the whole surface, producing a perfectly smooth area of light.
2. Thin Profile – The depth of these panels can measure as small as half an inch. Combined with neutral, clean finished frames, these slim panels have a sleek look.
3. Versatile Mounting –Edge-Lit Panels can be installed in standard grid ceilings, but their distinctly ultra-thin frame allows for other installation options, including surface mounting to ceilings or walls and suspension from ceilings using junction box or cable mounting kits.
Back-lit Panel light
Back-Lit Panels have LEDs on, yes, the back of the frame. The LEDs are pointing directly out, shining light straight through the diffuser.
Key Features:
1. No Light Guide Panel – Because light shines directly forward, there is no need for a light guide panel. Instead, this type of panel has a diffuser that still ensures smooth light without hotspots or glare. Cheaper light guide panels can be prone to yellowing, so Back-Lit Panels eliminate this risk.
2. Deeper Profile – Back-Lit Panels require a deeper housing to evenly illuminate the diffuser. They are about twice a thick as the Edge-Lit Panels and can only be installed grid (drop) ceilings.
3. Lightweight – The durable yet minimal design of these panels are lightweight. This makes installing overhead in drop ceilings easier to manage.
1. No Light Guide Panel – Because light shines directly forward, there is no need for a light guide panel. Instead, this type of panel has a diffuser that still ensures smooth light without hotspots or glare. Cheaper light guide panels can be prone to yellowing, so Back-Lit Panels eliminate this risk.
2. Deeper Profile – Back-Lit Panels require a deeper housing to evenly illuminate the diffuser. They are about twice a thick as the Edge-Lit Panels and can only be installed grid (drop) ceilings.
3. Lightweight – The durable yet minimal design of these panels are lightweight. This makes installing overhead in drop ceilings easier to manage.
Egde-lit Panel Light
Back-lit Panel light

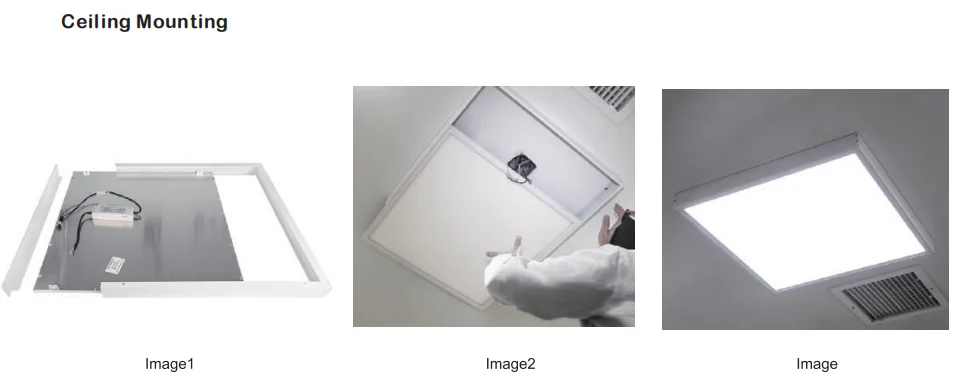

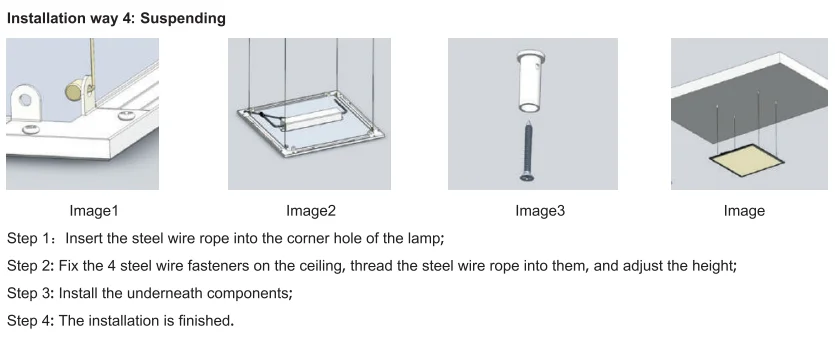

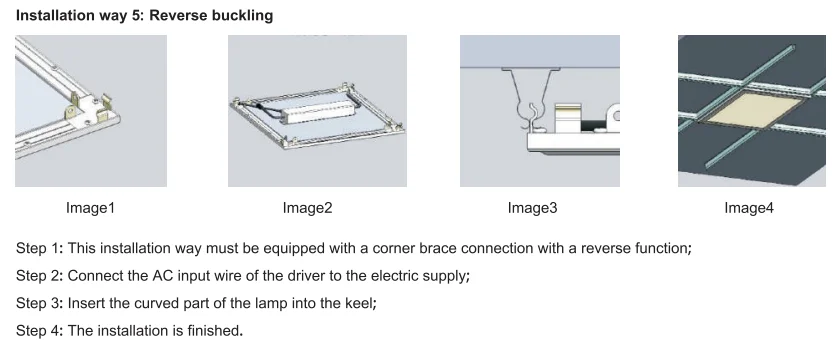

Installation
Package

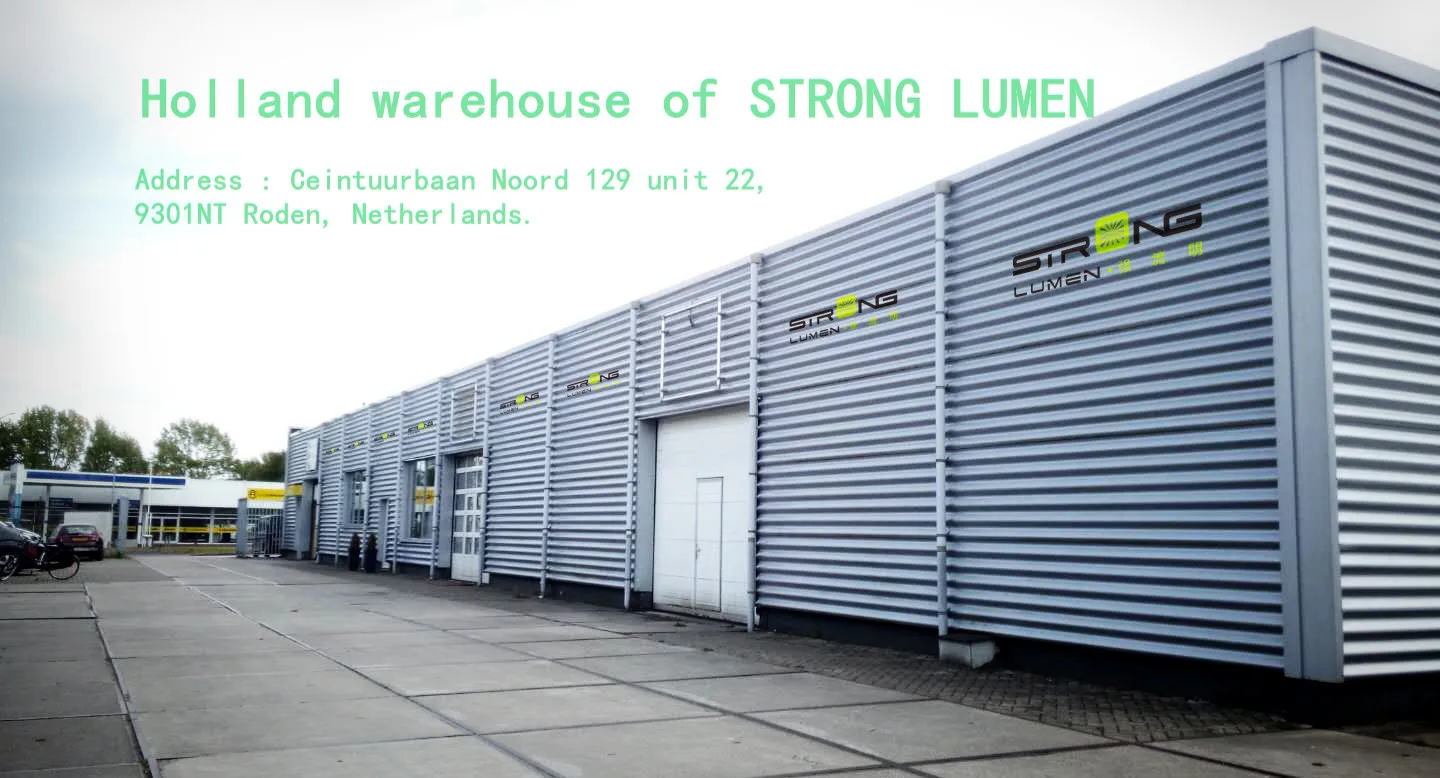

EU Warehouse
We have a warehouse in Netherlands
UFO Highbay, T5&T8 tube light, panel light
Fast and low cost freight.
Fast and low cost freight.
MOQ 1pcs, shipping within 24hrs
CE ROHS
CE ROHS
5 years warranty
Related Products
Company Introduction
Strong Lumen Opto Co.,Ltd, was established in 2008 in Shenzhen, specializing in high lumen output LED tube Light, LED panel Light, UFO LED Highbay light, which in compliance with standards of VDE, TUV, CE, SAA, UL, ETL, DLC, ROHS and are mainly exported to European and American markets more than 14 years.
Monthly capability:500,000PCs LED tubes, 30,000PCs UFO LED highbay lights, 50,000PCs LED panel lights.
ISO 9001:2014;
China National Hightech Enterprise;
China Enterprise Credit Grade AAA;
Shenzhen Top50 Innovative Enterprises
Shenzhen Top50 Innovative Enterprises
FAQ
Q: Can we use our own logo?
A: Yes, we can print your private logo according to your request.
Q: What’s your MOQ?
A: If you are in Europe, it will be no MOQ, becuase we have a warehouse in Netherlands and stock the panel light there. For
customized product, the MOQ is 200pcs, and will ship from China’s factory.
Q: How long is your delivery time?
A: Yes, we can print your private logo according to your request.
Q: What’s your MOQ?
A: If you are in Europe, it will be no MOQ, becuase we have a warehouse in Netherlands and stock the panel light there. For
customized product, the MOQ is 200pcs, and will ship from China’s factory.
Q: How long is your delivery time?
A: If you order from EU warehouse, it takes 3-5days. If your order from China’s factory, the general delivery time is 25-30days after receiving your order confirmation.
Q: Are you trading company or manufacturer?
Q: Are you trading company or manufacturer?
A: We are a professional manufacturer specialized in high efficiency led light products. And we trade our products with our clients directly.
Q: Which certificate do you have?
A: TUV CE, VDE,SAA,,CB,ENEC etc.
Q: How to deal with the defective?
A: All of our product are produced in strict quality control system, the defective rate is less than 0.2% according to our
shipment records. We offer 5 years warranty for this product, if there is any defective during the warranty, please provide the picture or video for the working situation of the defective lights, we will ship the new lights to you within a few days or send it together with your next order.
A: All of our product are produced in strict quality control system, the defective rate is less than 0.2% according to our
shipment records. We offer 5 years warranty for this product, if there is any defective during the warranty, please provide the picture or video for the working situation of the defective lights, we will ship the new lights to you within a few days or send it together with your next order.
