China silica sand filter RO water treatment Machine Price of Water Station,pure water machine
- Category: >>>
- Supplier: Zhangjiagang Jiede Machinery Co. Ltd.
Share on (1600539271908):
Product Overview
Description
Company Profile
Company Customer
Product Description

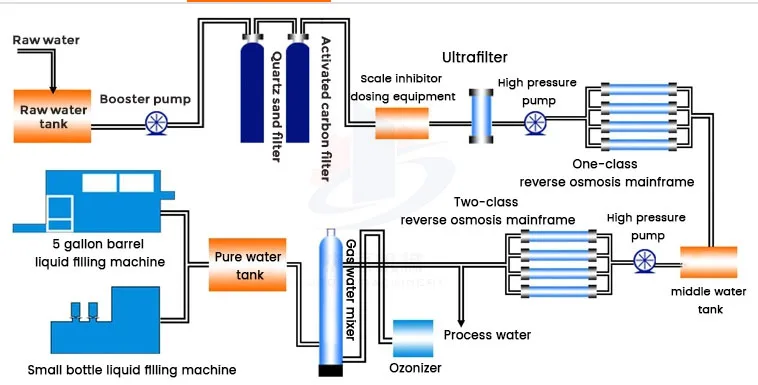

Flow chart for 1000L/Hour RO water plant, RO water treatment Machine Price of Water Station,pure water machine
Working process of water ro system:
1. Raw water pump-- provide the pressure to quartz sand filter/active carbon filter.
2. Multi-medium filter-- get rid of turbidity, suspended matter, organic matter, colloid, ect
3. Active Carbon filter--Remove the color, free chloride, organic matter, harmful matter, ect.
4. Softener--exchange "ions" of calcium and magnesium with the most common and easiest method.
5. Micron filter--prevent large particles, bacteria, viruses into RO membrane, accuracy is 5um,
6. High pressure pump-- Provide the high pressure to RO membrane ro.
7.RO system-- main part of the plant. The RO membrane's desalting rate can reach 99%, removing over 99% ions.
2. Multi-medium filter-- get rid of turbidity, suspended matter, organic matter, colloid, ect
3. Active Carbon filter--Remove the color, free chloride, organic matter, harmful matter, ect.
4. Softener--exchange "ions" of calcium and magnesium with the most common and easiest method.
5. Micron filter--prevent large particles, bacteria, viruses into RO membrane, accuracy is 5um,
6. High pressure pump-- Provide the high pressure to RO membrane ro.
7.RO system-- main part of the plant. The RO membrane's desalting rate can reach 99%, removing over 99% ions.

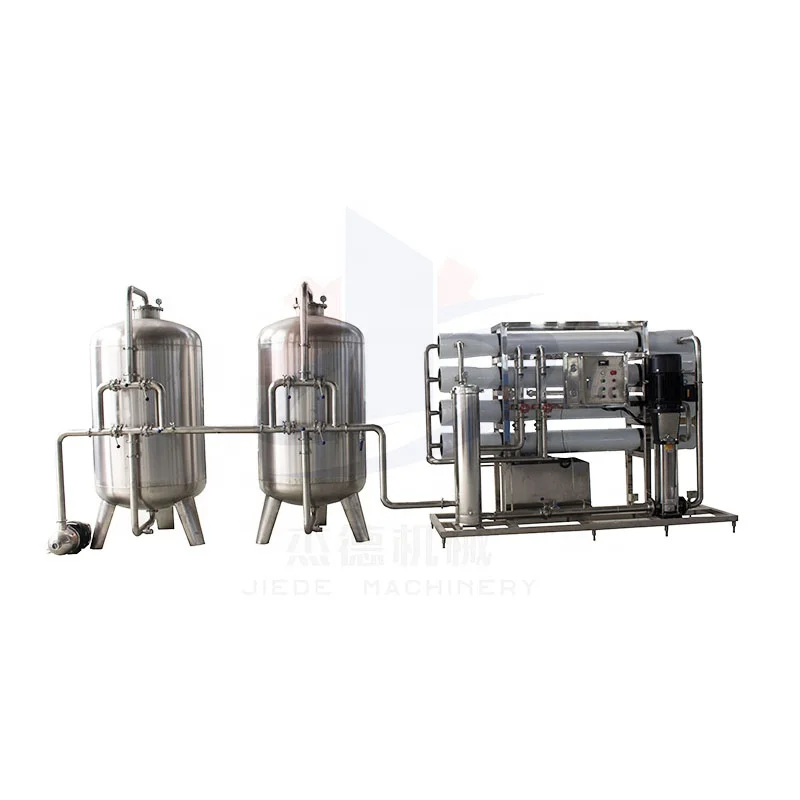

★The different models choice for monoblock RO unit based on different capacity
(Please kindly choose which model of the RO do you need?)
Model | Capacity (Liters/hour) | General Power(KW) | Membrane(Pic) | Size (L*W*H)(mm) | Weight(Kg) |
RO-250 | 250 | 1.65 | 4040*1 | 1400*600*1600 | 150 |
RO-500 | 500 | 1.65 | 4040*2 | 1400*600*1600 | 250 |
RO-1000 | 1000 | 2.05 | 4040*4 | 1600*800*1800 | 500 |
RO-1500 | 1500 | 4.4 | 4040*6 | 2700*800*1600 | 600 |
RO-2000 | 2000 | 4.4 | 4040*8 | 2700*800*1600 | 700 |
RO-2500 | 2500 | 4.5 | 4040*10 | 2500*600*1600 | 800 |
★The monoblock RO unit is suitable for different water source(Undergroud water, Lake water, River water, Tap water, etc.)
Packing & Delivery
After-sales Service
FAQ
Q1: What is your company’s main products?
A:Filling Machine, Canned Food Production Line, Palletizers, Sterilizers, Labeling Machine ,Capping Machine,Case Packer,Conveyor
etc.If this is not the machine you want, please visit our other machines.
Q2:Are you manufacturer or trading company?
A:We are manufacturers and we have our excellent service team all over the world.We offer excellent after-sales service.
Q3:Where are you located? Is it convenient to visit you?
A:We are located in Shanghai. Traffic is very convenient.
Q4:How can you guarantee quality?
1.We are Alibaba Gold Enterprise.We have completed working system and procedures and we follow them very strictly.
2.Our different worker is responsible for different working process, their work is confirmed,and will always operate this process,
so very experienced.
3.The electrical pneumatic components are from the world famous companies,such as Germany's Siemens, Japanese Panasonic etc.
4.We will do strict test running after the machine is finished.
5.Our machines are certified by CE etc.
Q5: Can you design the machine according to our requirements?
A:Yes. We not only can customize the machine according to your technical drawing, but also can
make new machine according to your requirements.
Q6: Can you offer overseas technical support?
A:Yes. We can send engineer to your company to set the machine and train your worker if needed.
Q7: Why our customers trust and choose us?
1.Manufacturer
2.We have stocks
3.Delivery fast
4.Senior engineer
5.Competitive price
6.High quality
7.Strict Quality Control
8.Over 10 years experience
9.Provide Test
10.Varity of goods
11.Excellent after-sales services
12.Advanced machinery and equipment
Q8:If you will send a inquiry, what we should know:
1. what's your product?
2. what's your product size? like diameter and height?
3. how many pcs do you want to process each hour?
4. what's the sterilization time and temperature?
5. what's the cooling temperature you need?
A:Filling Machine, Canned Food Production Line, Palletizers, Sterilizers, Labeling Machine ,Capping Machine,Case Packer,Conveyor
etc.If this is not the machine you want, please visit our other machines.
Q2:Are you manufacturer or trading company?
A:We are manufacturers and we have our excellent service team all over the world.We offer excellent after-sales service.
Q3:Where are you located? Is it convenient to visit you?
A:We are located in Shanghai. Traffic is very convenient.
Q4:How can you guarantee quality?
1.We are Alibaba Gold Enterprise.We have completed working system and procedures and we follow them very strictly.
2.Our different worker is responsible for different working process, their work is confirmed,and will always operate this process,
so very experienced.
3.The electrical pneumatic components are from the world famous companies,such as Germany's Siemens, Japanese Panasonic etc.
4.We will do strict test running after the machine is finished.
5.Our machines are certified by CE etc.
Q5: Can you design the machine according to our requirements?
A:Yes. We not only can customize the machine according to your technical drawing, but also can
make new machine according to your requirements.
Q6: Can you offer overseas technical support?
A:Yes. We can send engineer to your company to set the machine and train your worker if needed.
Q7: Why our customers trust and choose us?
1.Manufacturer
2.We have stocks
3.Delivery fast
4.Senior engineer
5.Competitive price
6.High quality
7.Strict Quality Control
8.Over 10 years experience
9.Provide Test
10.Varity of goods
11.Excellent after-sales services
12.Advanced machinery and equipment
Q8:If you will send a inquiry, what we should know:
1. what's your product?
2. what's your product size? like diameter and height?
3. how many pcs do you want to process each hour?
4. what's the sterilization time and temperature?
5. what's the cooling temperature you need?
