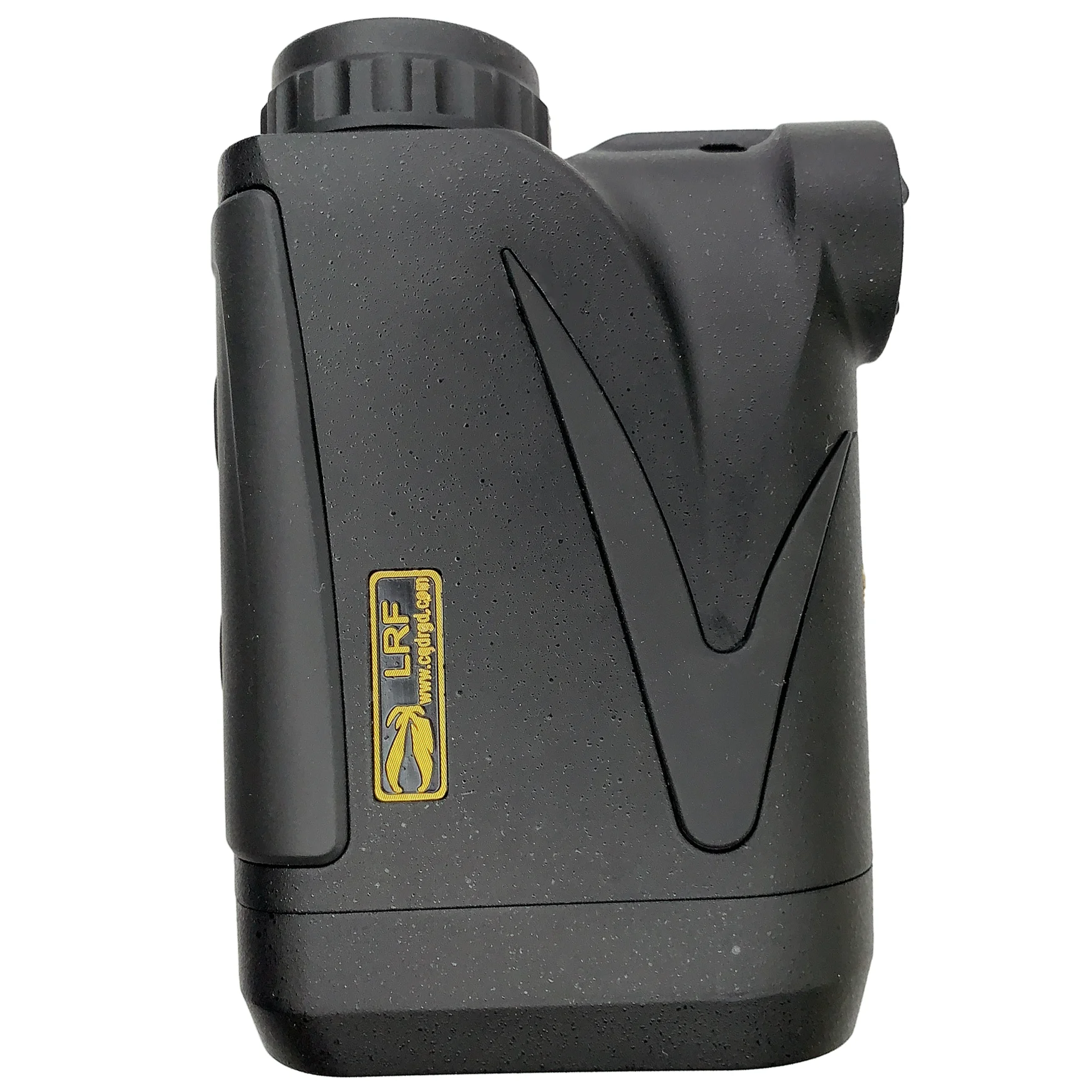

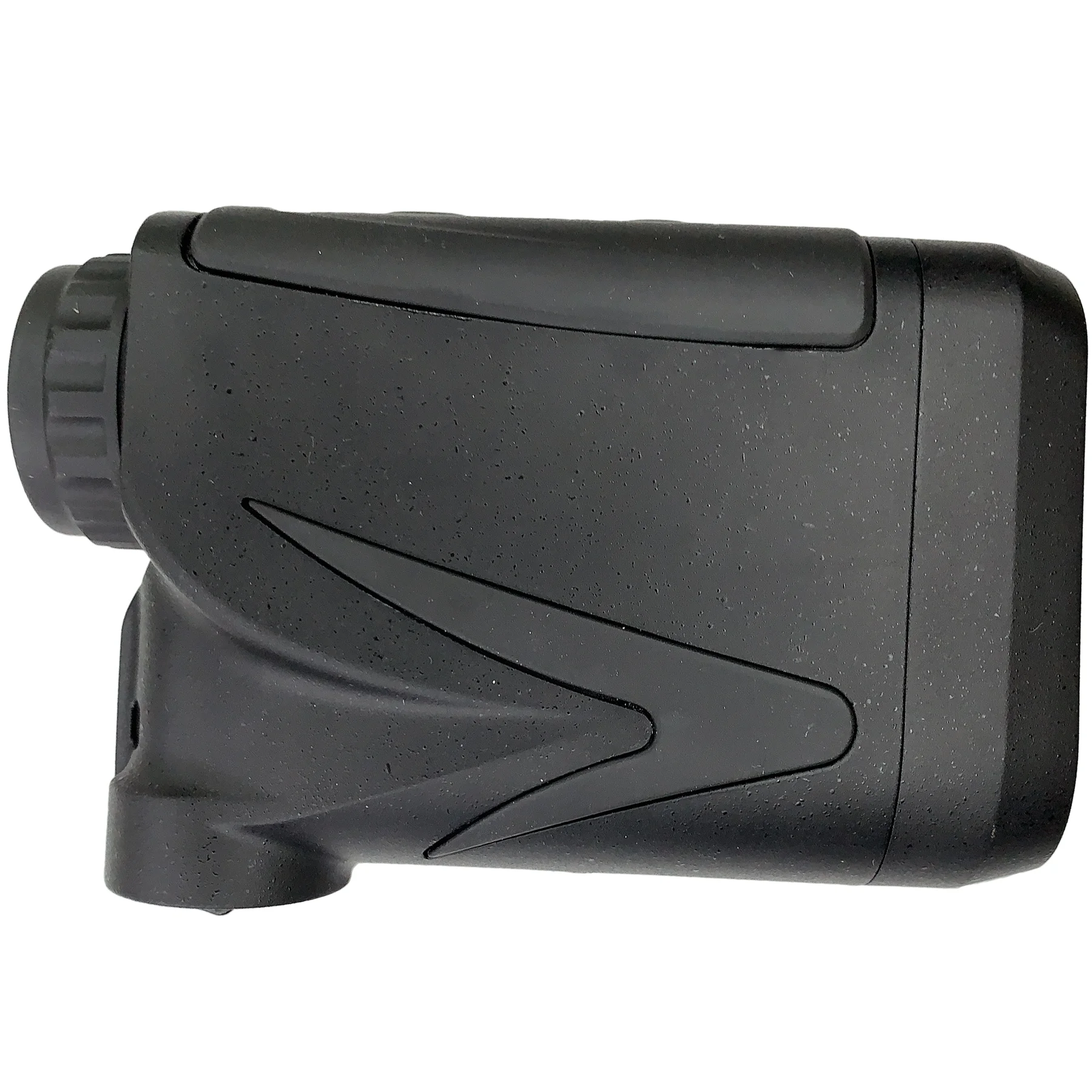

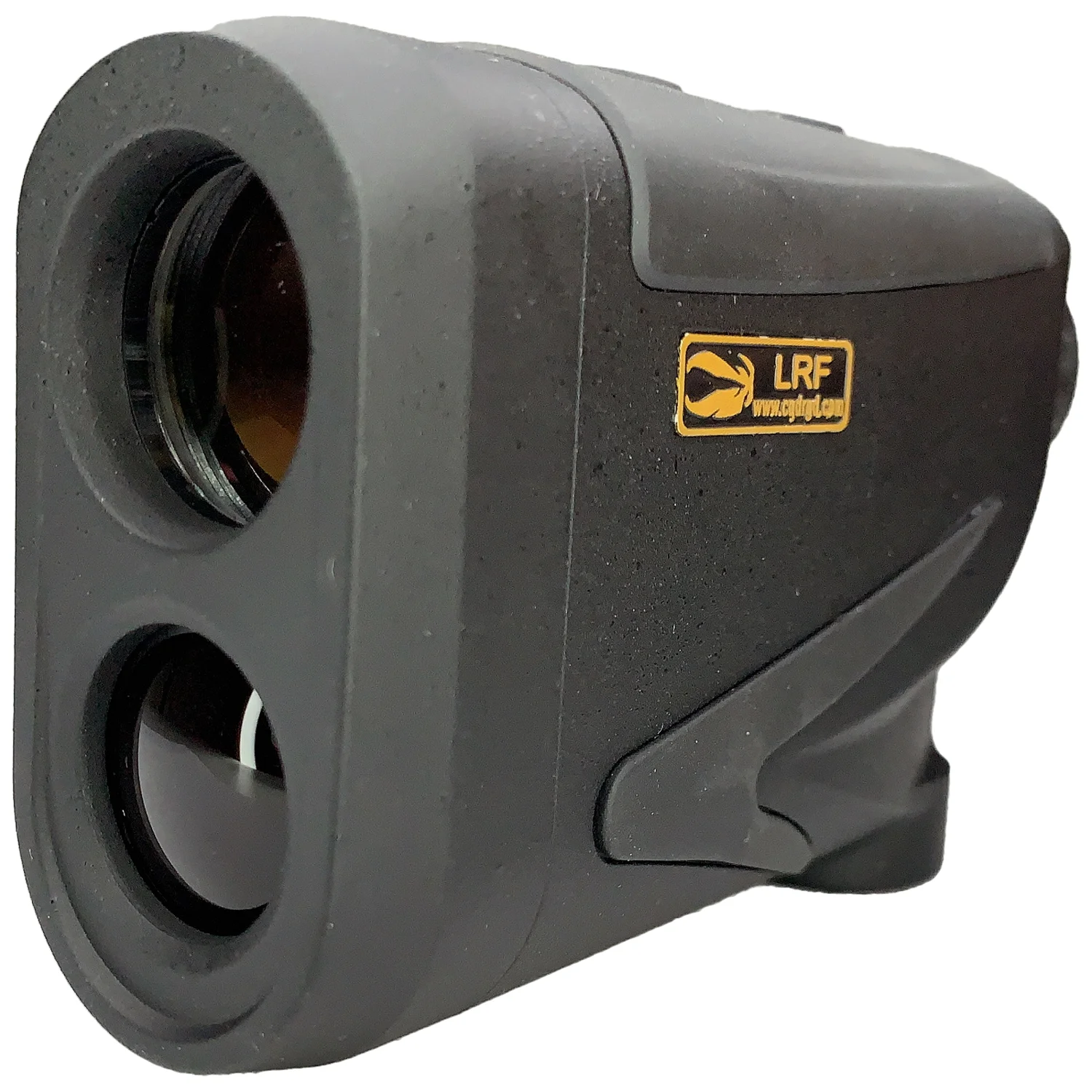

Products Appearance

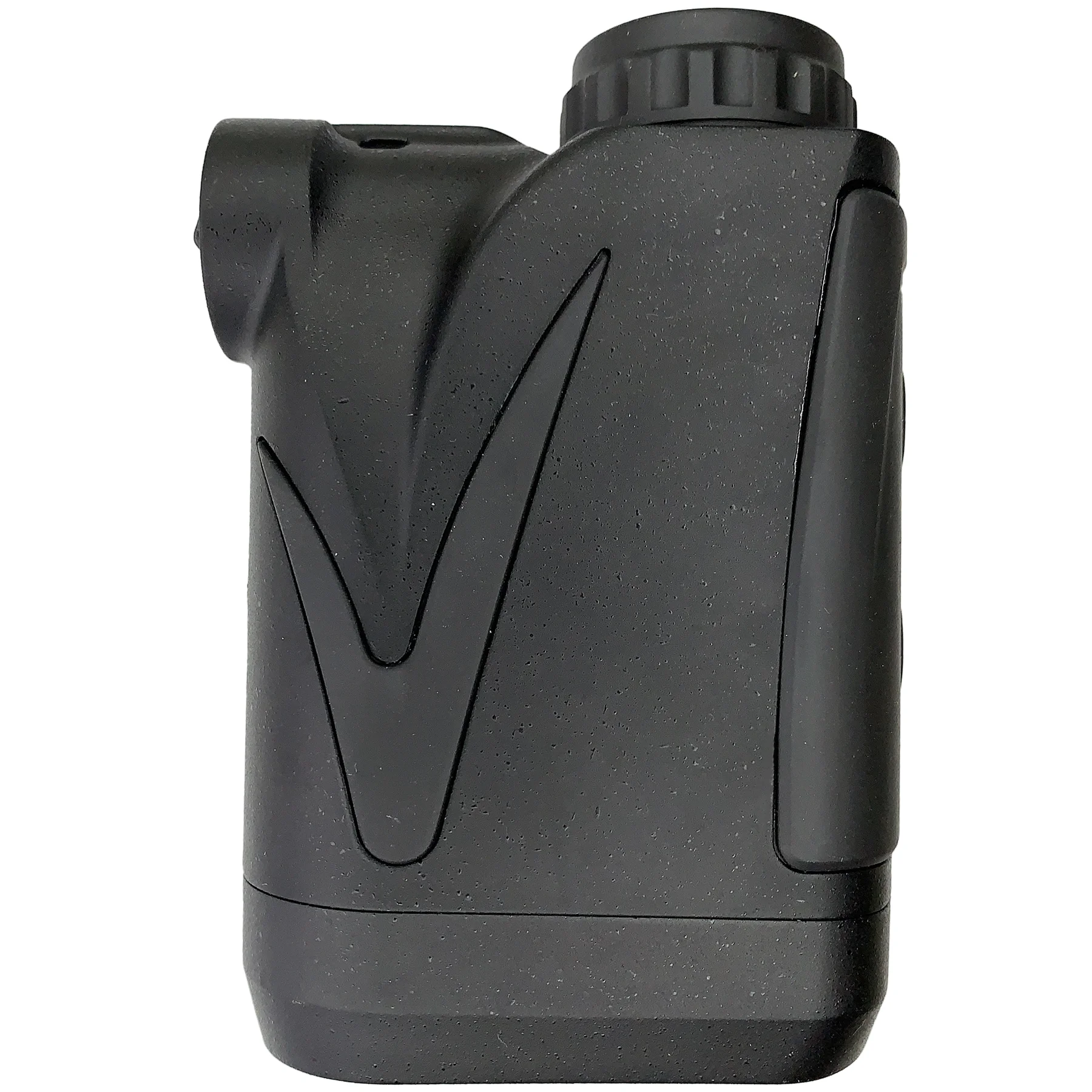

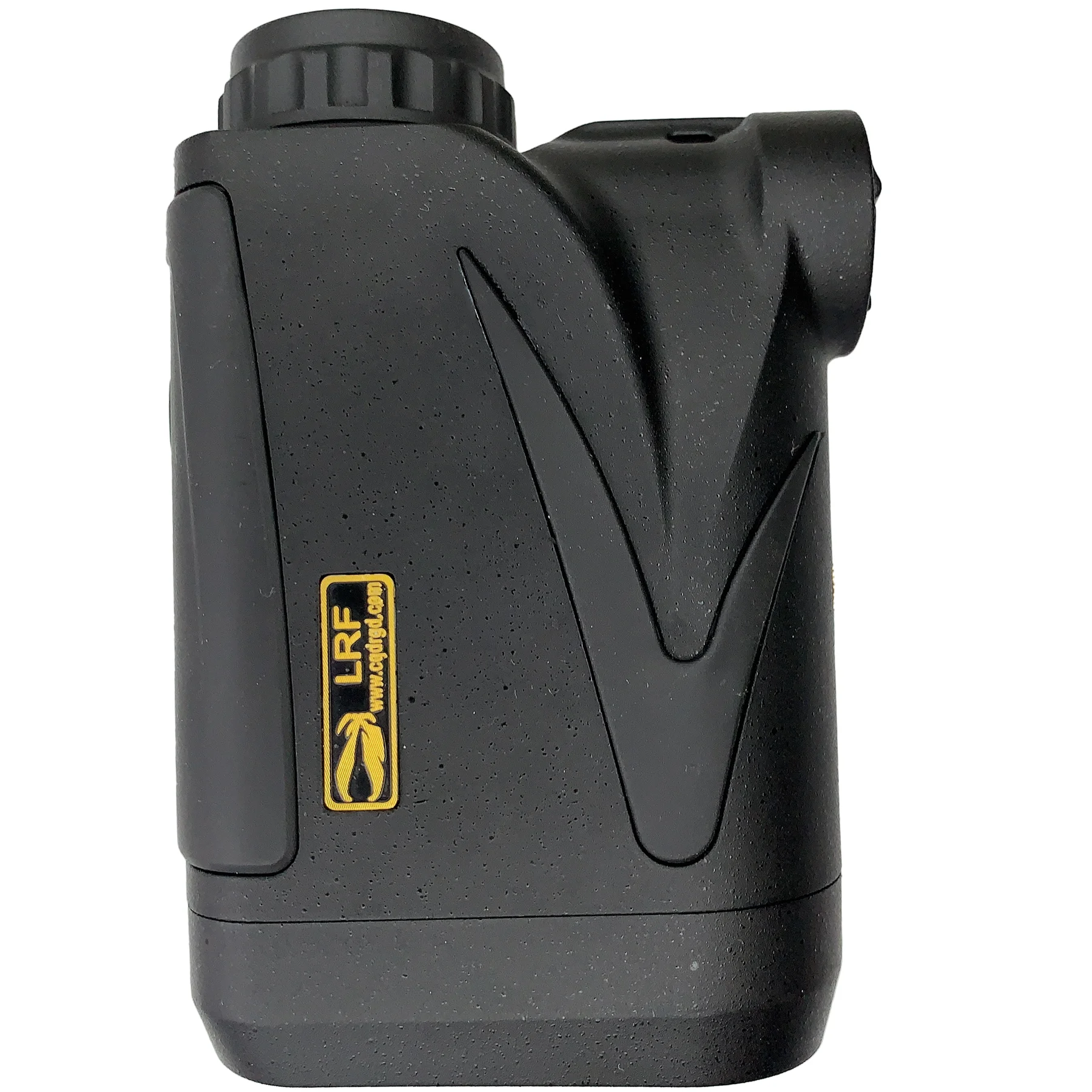

| Front | Back |
![]() | ![]() |

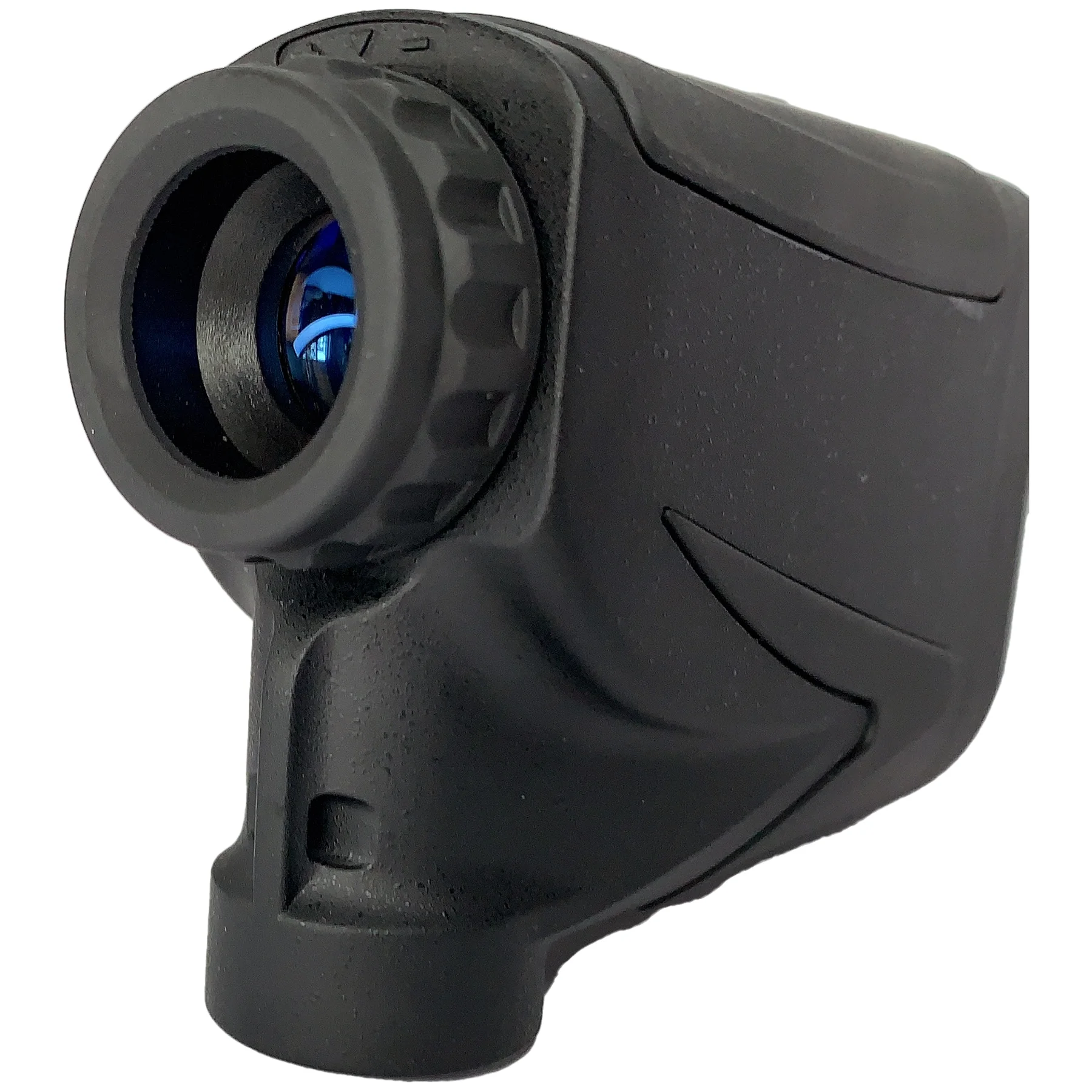

| Objective Lens | Eyepiece |
![]() | ![]() |
Technical Parameters
| The main technical index: | Details: |
| Wavelength: | 905nm |
| Max Ranging Distance: | 5 - 600m, 800m, 1000m(options) |
| Ranging method | Semiconductor laser ranging (no harm to the human eye) |
| Ranging Error | ±0.3m±0.1%, resolution 0.1m |

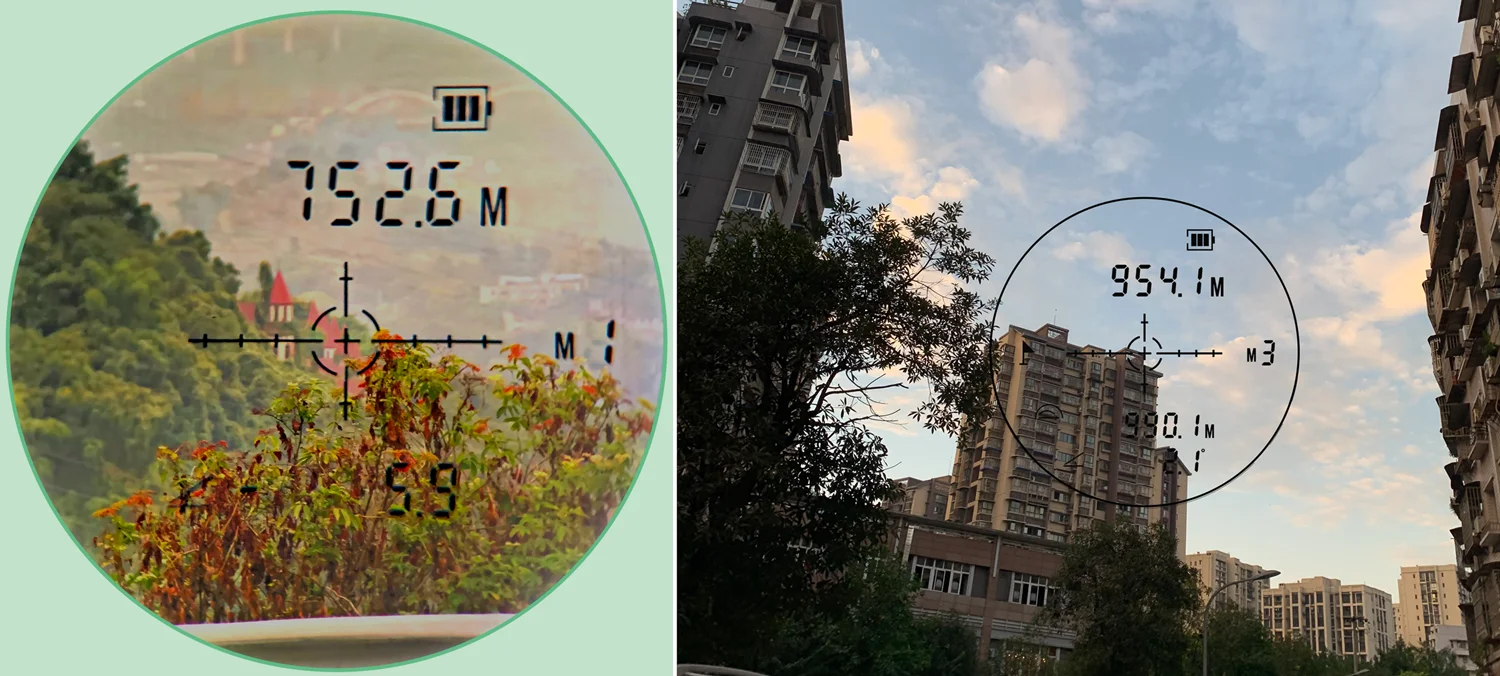

| Ranging display mode | The LCD display in the field of view/Eyepiece |
| effective objective lens diameter | 20mm |
| Magnification | 5.8 (6.8) x |
| Field of view | 5.6 (4.95) x |
| Focus way | Eyepiece focus manually |
| Measuring height and Angle | ±90 ° |
| Objective diameter | 25mm |
| Outlet diameter | 3.8mm (4.1) |
| exit distance | 12mm |
| Dioptric adjustment range | ±2.5 |
| Ranging from vision | 122m/1000m |
| Lens coating | Multi-layer coating |
| Ranging mode | RAIN; RELF; >150; no display is the standard mode. |
| Min Ranging from Distance | 1m |
| Distance Resolution | 1m |
| Waterproof | IP67 |
| Power supply | 3V |
| Working Temperature: | -10°C~+50°C |
| Dimensions | 38X74X104mm |
| Weight | 130g (not including battery) |
| Function | 7 Mode: Ranging, Speed, Angle, Parabola, Horizontal, Vertical, Continuous Measure. |
Products Features
1.0 Design
![]() |

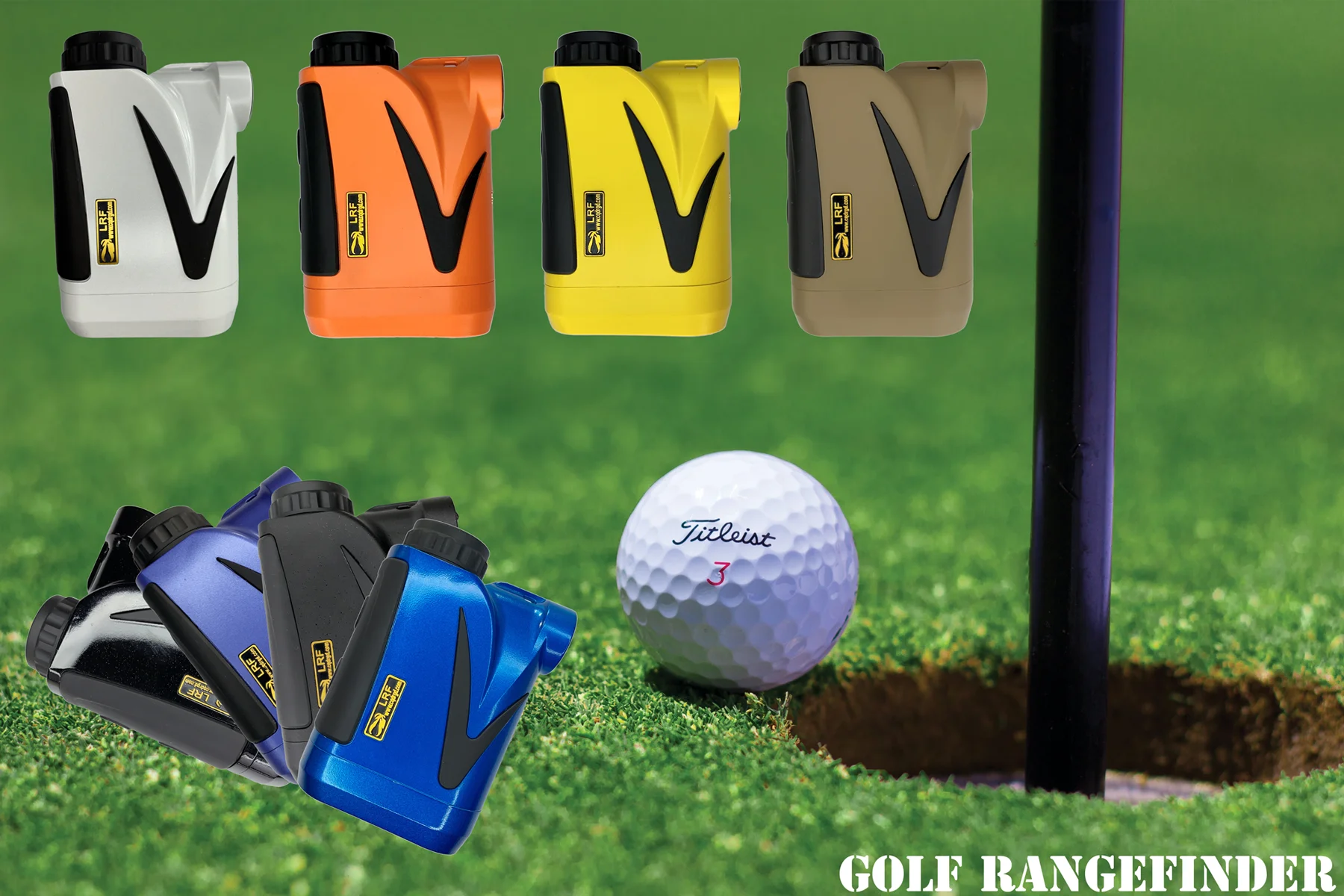

| 1. High Accuracy: ±0.3m accuracy, 0.1m resolution for measurement. 2. High Resolution: 6X Zoom Eyepiece with high resolution, easy to adjust the focal length of the eyepiece, get a clearer field of view. 3. Logo Customized is available. 4. Elastic Painting, smooth appearance and to avoid scratching the product. 5. Color Customized: Camouflage, Green, White, Black, Red, Yellow, Brown, Grey, Color as your requirement. 6. Battery: 1pc 3V CR2, convenient to replace and take out, 20s auto shutdown when not in use, Low power consumption, and long service life. 7. MODE: 7 MODE easy to switch, measuring distance, speed, angle, etc. |
2.0 Range & Accuracy
![]() | 1. Range: 2. Applications: Hunting, Golf, Shooting, Speed measure, Terrain, Geophysics, Mining, Oil field, Ports, Railway stations, Airports, City buildings, Roads, Water conservancy project, Transmission line survey, Tracking moving targets, Vehicle automatic control, Automobile safety alarm, Industrial control. 3. Accuracy: Accuracy: ±0.3m, Resolution: ±0.1m Unit: Meter and Yard switches |
3.0 Seven Modes Exchange
7 Modes: Single Measurement 1- 4 Mode 1: Measuring Distance & Angle Distance & Horizontal & Vertical | Continuous Measurement: 1Hz Mode 5 -7 |
Products Application

Products Customized

Company Introduce
Chongqing Diaoran Photoelectric S & T(Science and Technology) Co., Ltd. Established in 2008. specializing in professional various laser range finder (Military Grade and Commerical grade) development and research. Dedicated to the research and application of optical, mechanical, electronic, laser technology precision photoelectric instruments.
Main Products: 1064nm solid-state laser rangefinder, OPO eye-safe laser rangefinder, 905nm semiconductor laser rangefinder, special and pump laser range finder, semiconductor lasers, Laser Distance Meter, variety of high precision various lasers, photoelectric detection equipment, high and middle-level optical parts processing, and mechanical parts processing, etc.
Our products have been applied to the terrain, geophysics, mining, oil field, ports, railway stations, airports, city buildings, roads, water conservancy projects, transmission line survey, shooting, hunting and observation, golf, outdoor, search and rescue, tracking moving targets, speed-measuring, vehicle automatic control, automobile safety alarm, industrial control&application; Also used in military target measurement, laser guidance, laser pointer, laser fire control system and so on.

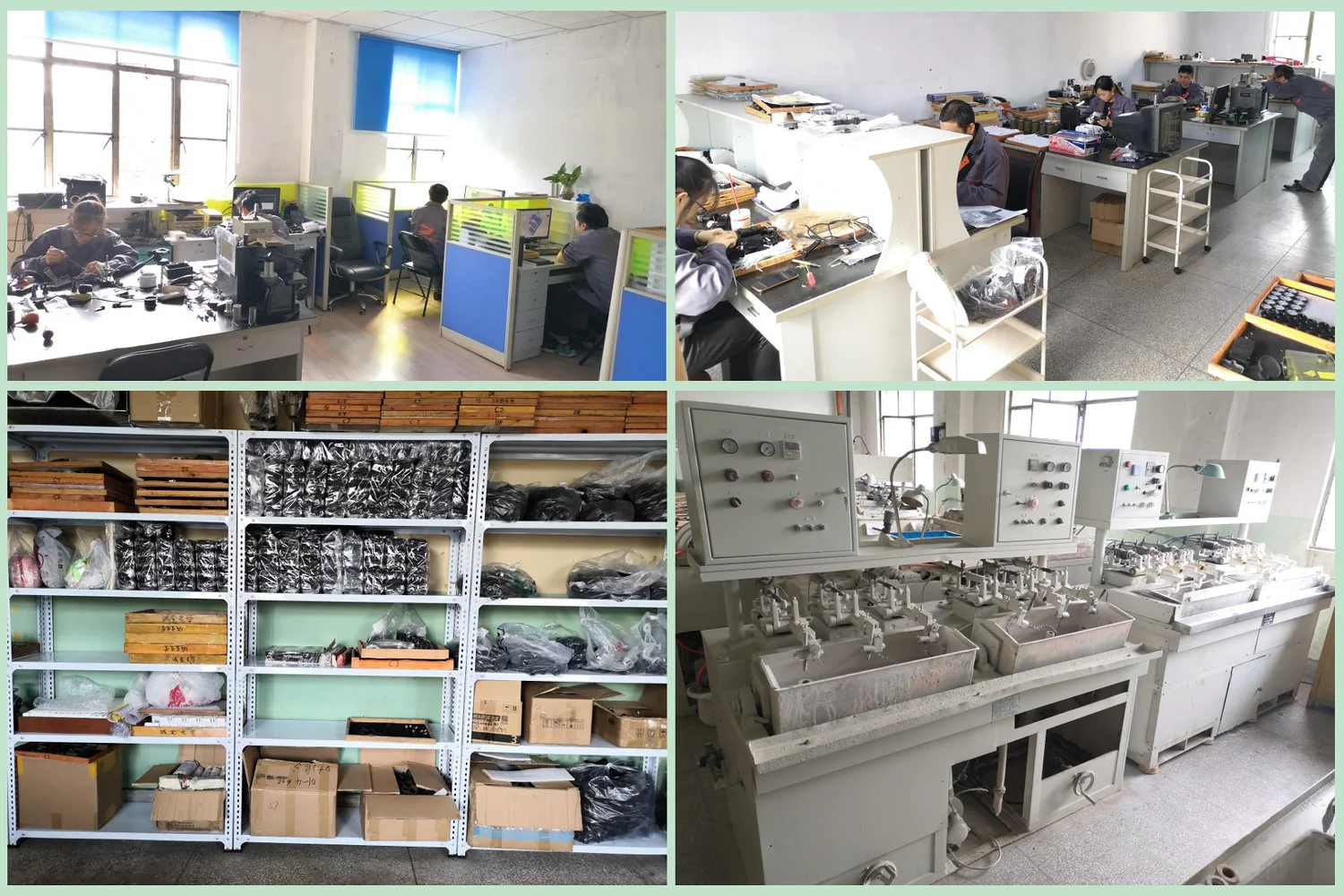

Our Company has a strong research&development team, professional engineering, technical personnel, complete optical and mechanical processing equipment, company and products certification, and a quality management system. And we have good cooperation relationship with and domestic large and medium-sized military enterprises, military research institutes, military colleges, local colleges and universities, Europe, and the United States. and have been exported to Europe, the Middle East, the US, Israel, Russia, South Korea, and other countries.
Our Company adheres to the "integrity, efficiency excellence, and innovation" to win the trust of customers, We are continuing to provide high-quality products and services to win the trust of customers, looking forward to having good cooperation in the near future with you.
