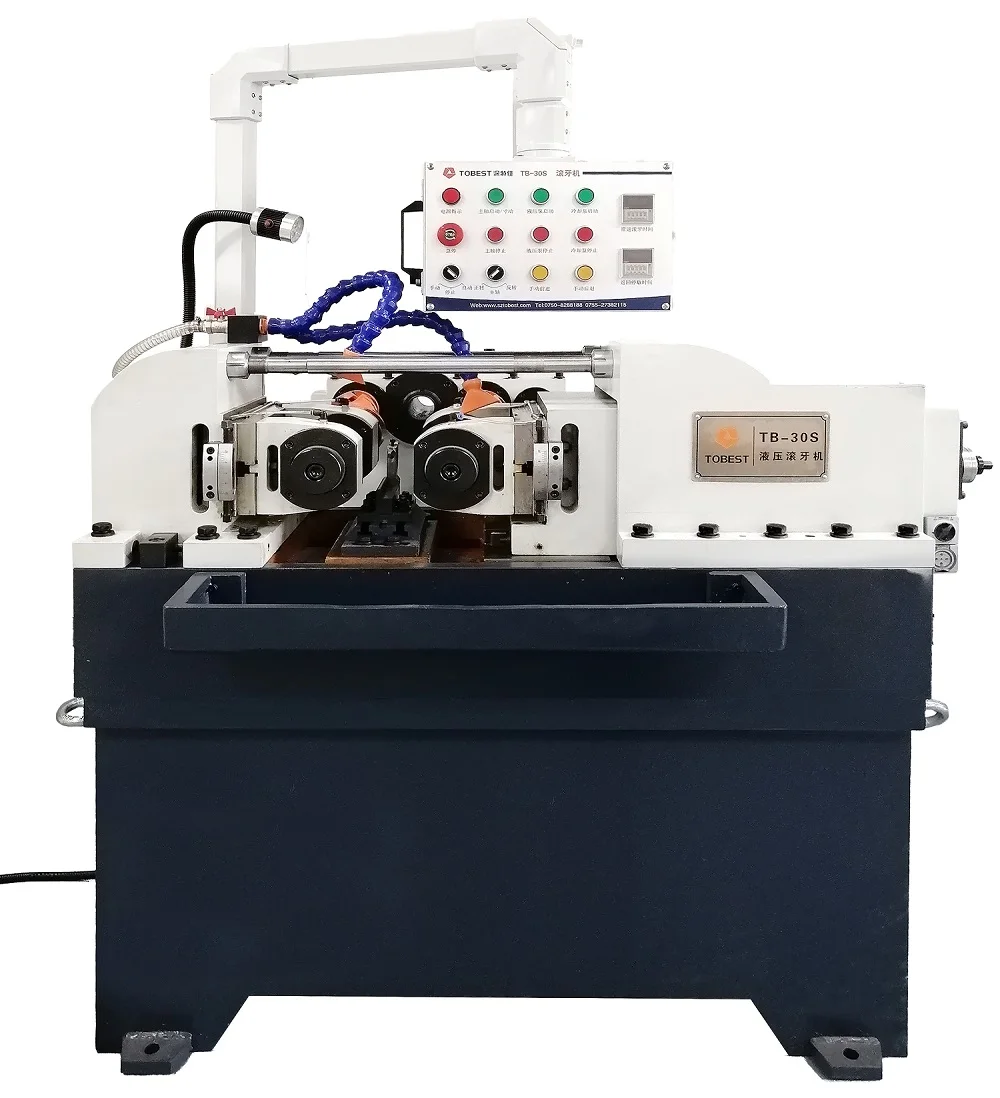

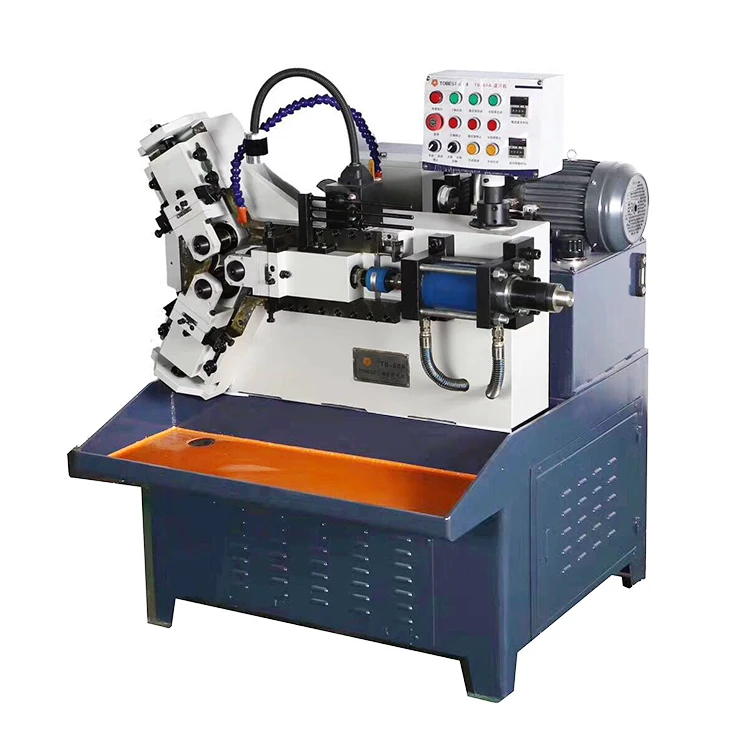

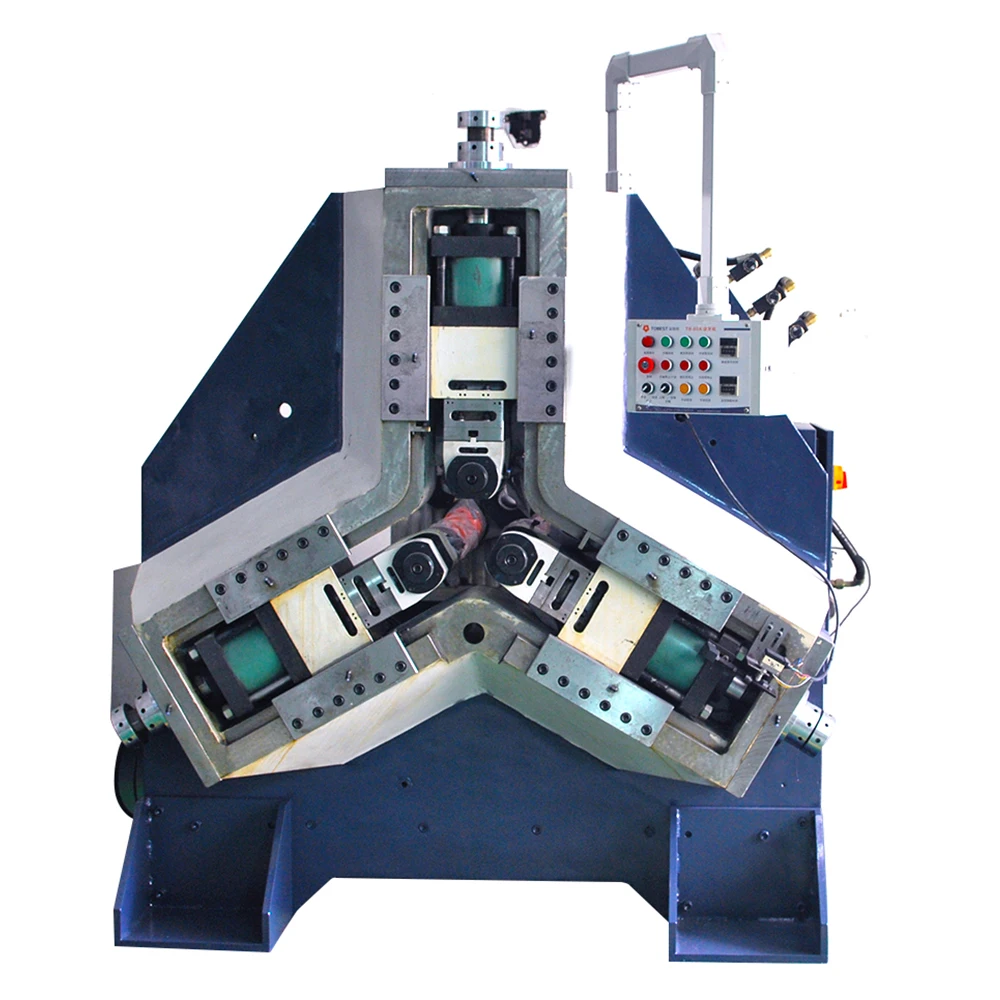

high precision 8mm 50mm machine for making nut bolts screw making machine spoke threading machine
- Category: >>>
- Supplier: Shenzhen Tobest Industry Co. Ltd.
Share on (1600539300929):
Product Overview
Description
Product Overview
Advantages
1. Spindle with double row needle roller bearings and cylindrical roller bearings combined to ensure the accuracy and stiffness requirements spindle

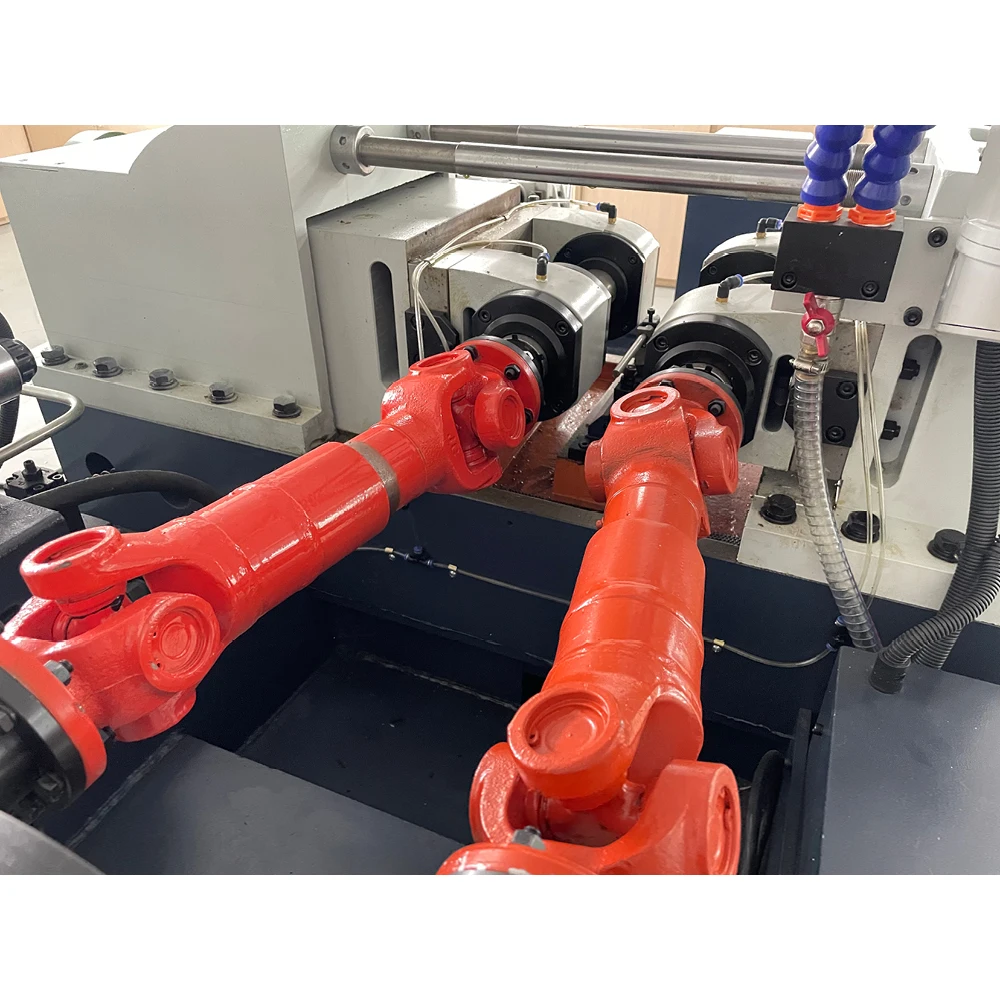

2.Transmission system using multi-polar spindle gear box, to achieve smooth transmission, shifting easily
2.Transmission system using multi-polar spindle gear box, to achieve smooth transmission, shifting easily

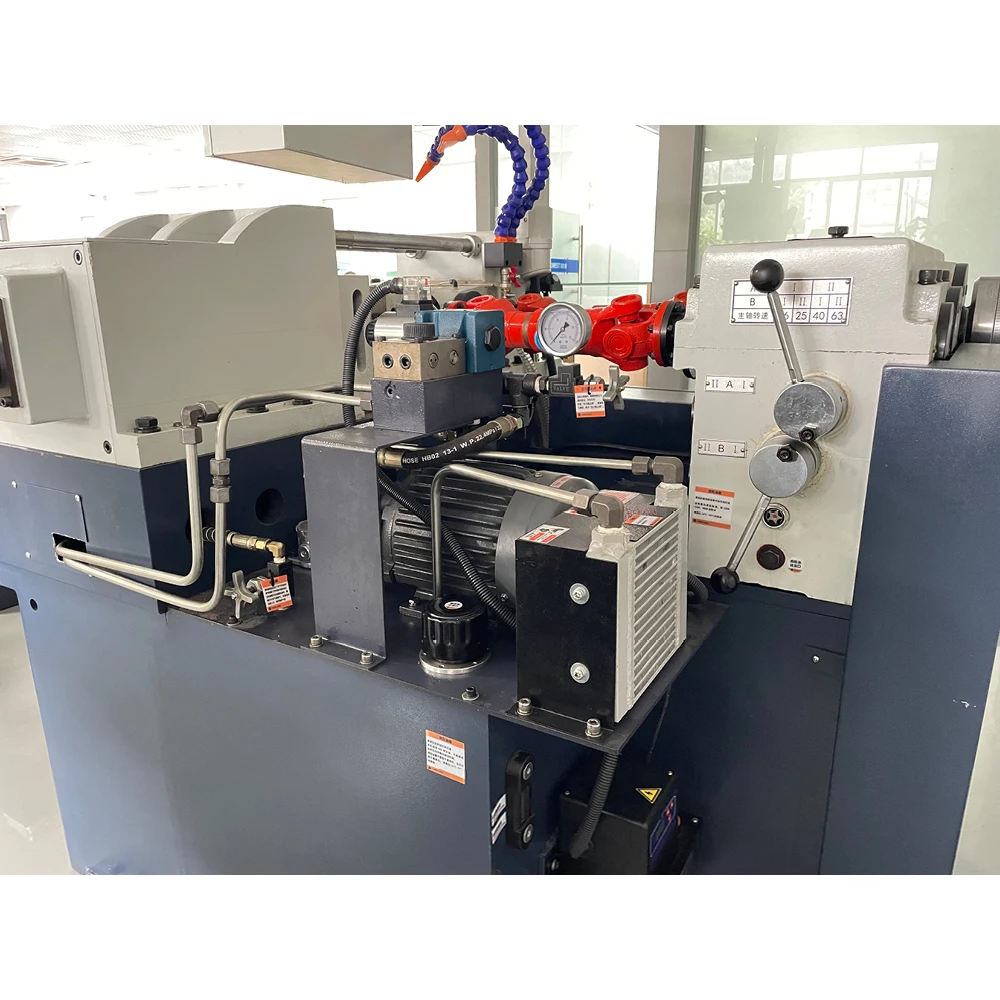

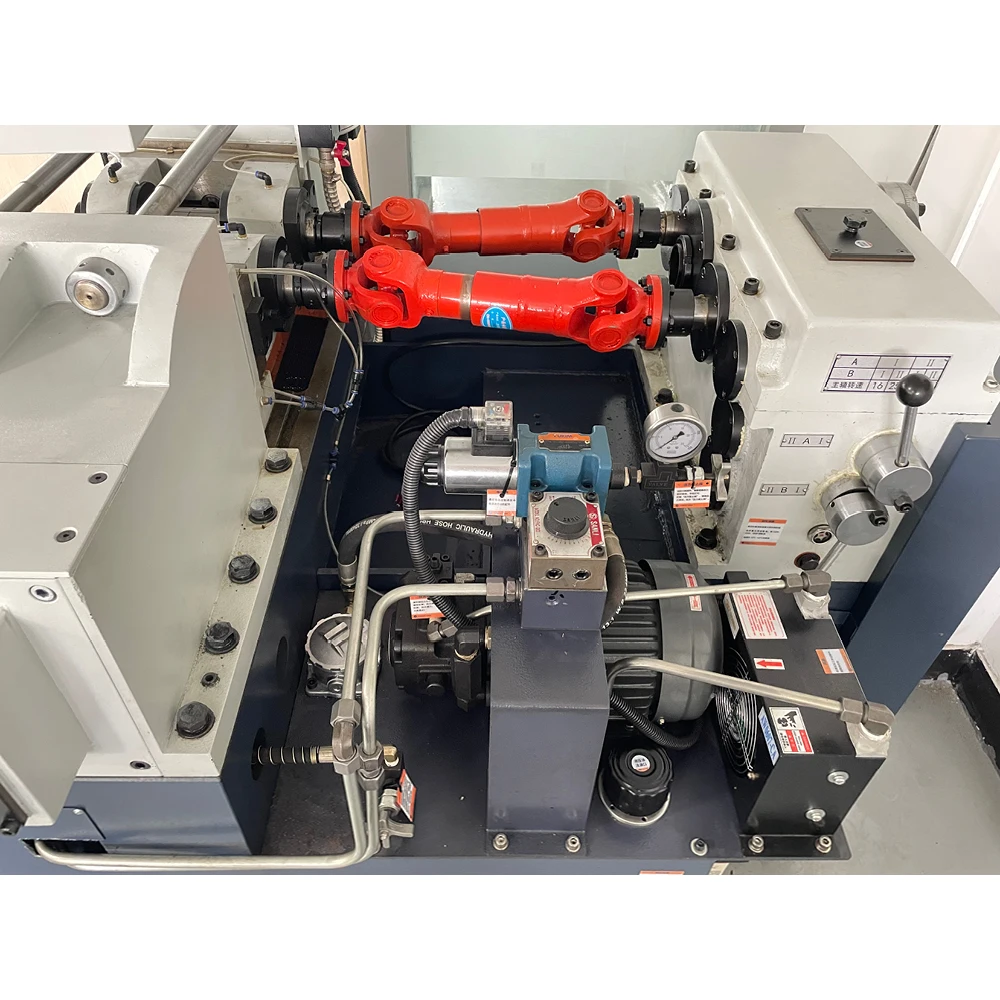

3.Hydraulic system uses modular valves, small footprint, beautiful appearance, stable performance, ease of use and maintenance
4.Machine control system can easily choose manual, semi-automatic, automatic three ways to adjust working hours, using new digital dial code directly controlled roller system time and pause time
FEATURES AT A GLANCE
HIGH PRECISION
HIGH STABILITY
SIMPLE CONTROL
EASY MAINTENANCE
HIGH STABILITY
SIMPLE CONTROL
EASY MAINTENANCE

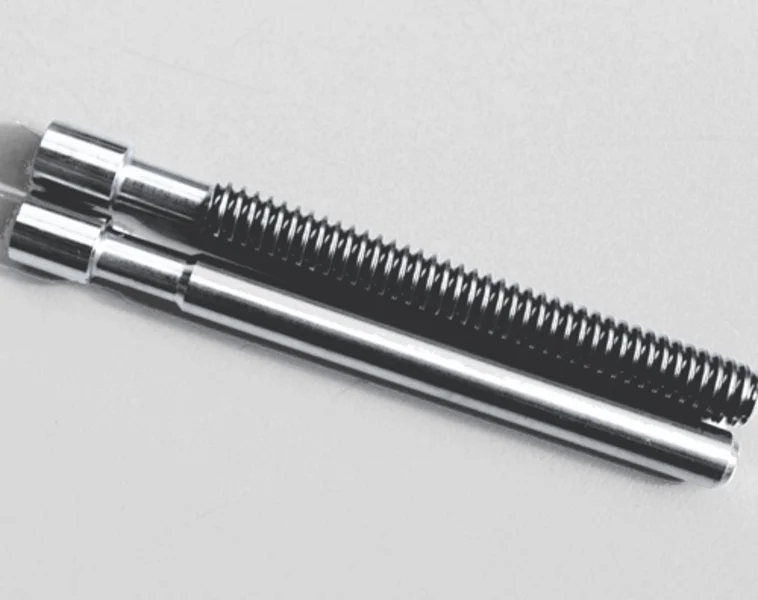

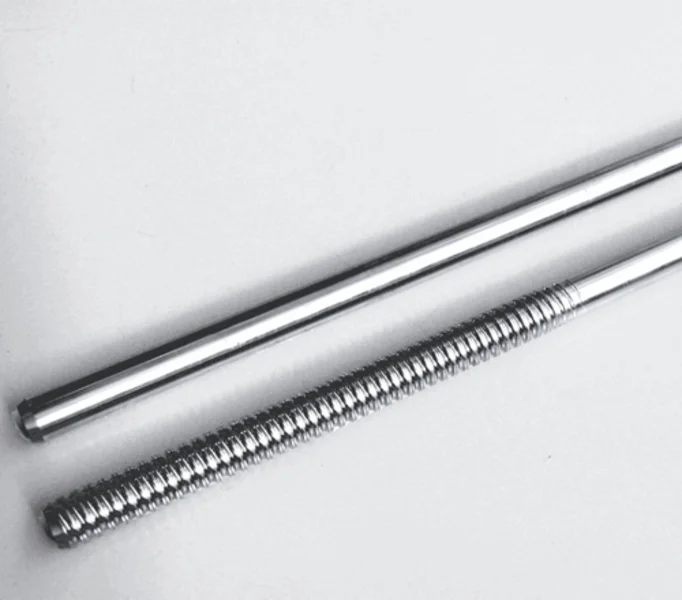

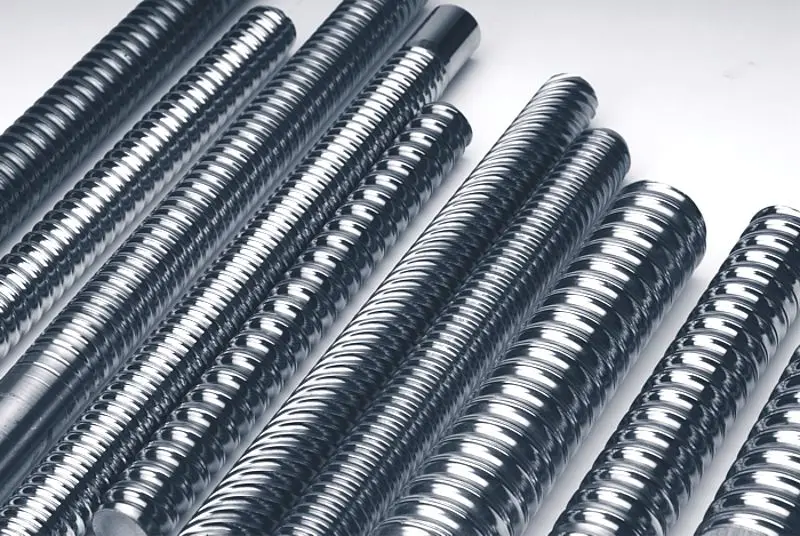

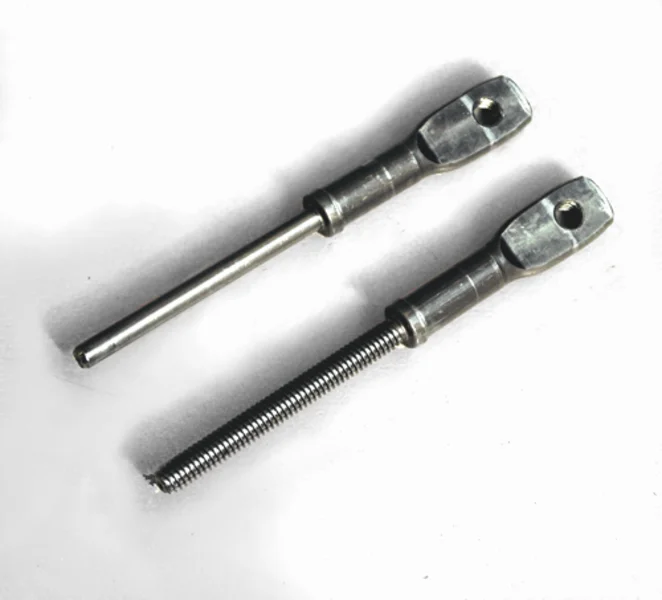

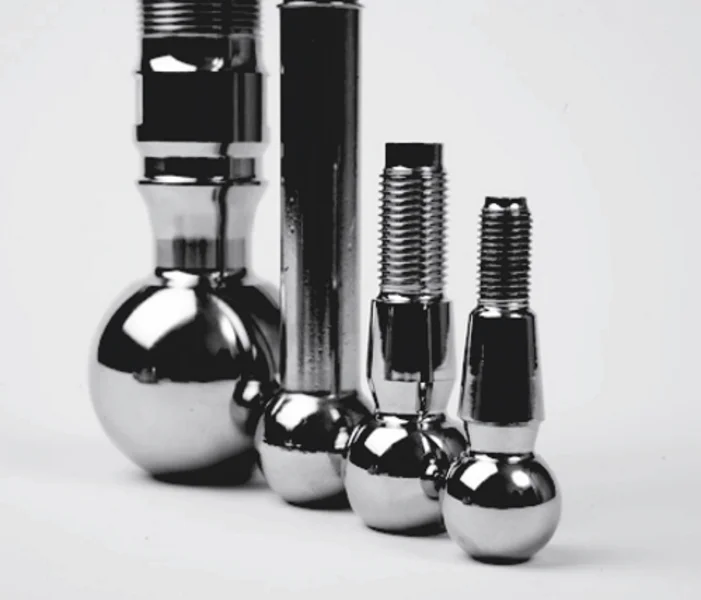

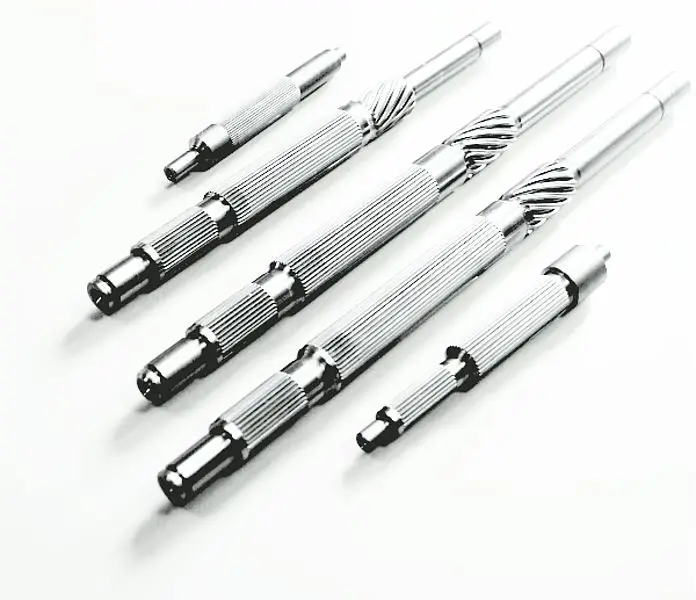

Application
PRODUCT SPECIFICATIONS
Diameter rang | 8-50mm | Outside diameter of rolling dies | 115-175mm |
Pitch rang | 1.0-4.0p | Inside diameter of rolling dies | 54mm |
Max length of the threads | 120mm | Max thickness of rolling die | 120mm |
Rotation speed | 16/25/40/63 r/min | Output | 4-20pcs/min |
Machine motor | 3.75kw | Hydraulic motor | 1.5kw |
Max rolling pressure | 12.5T | Machine weight | 2100kg |
Gross weight | 2200kg | Packing size | 1470*1600*1400 |
Max center distance between die spindles | 230mm | Min center distance between die spindles | 110mm |

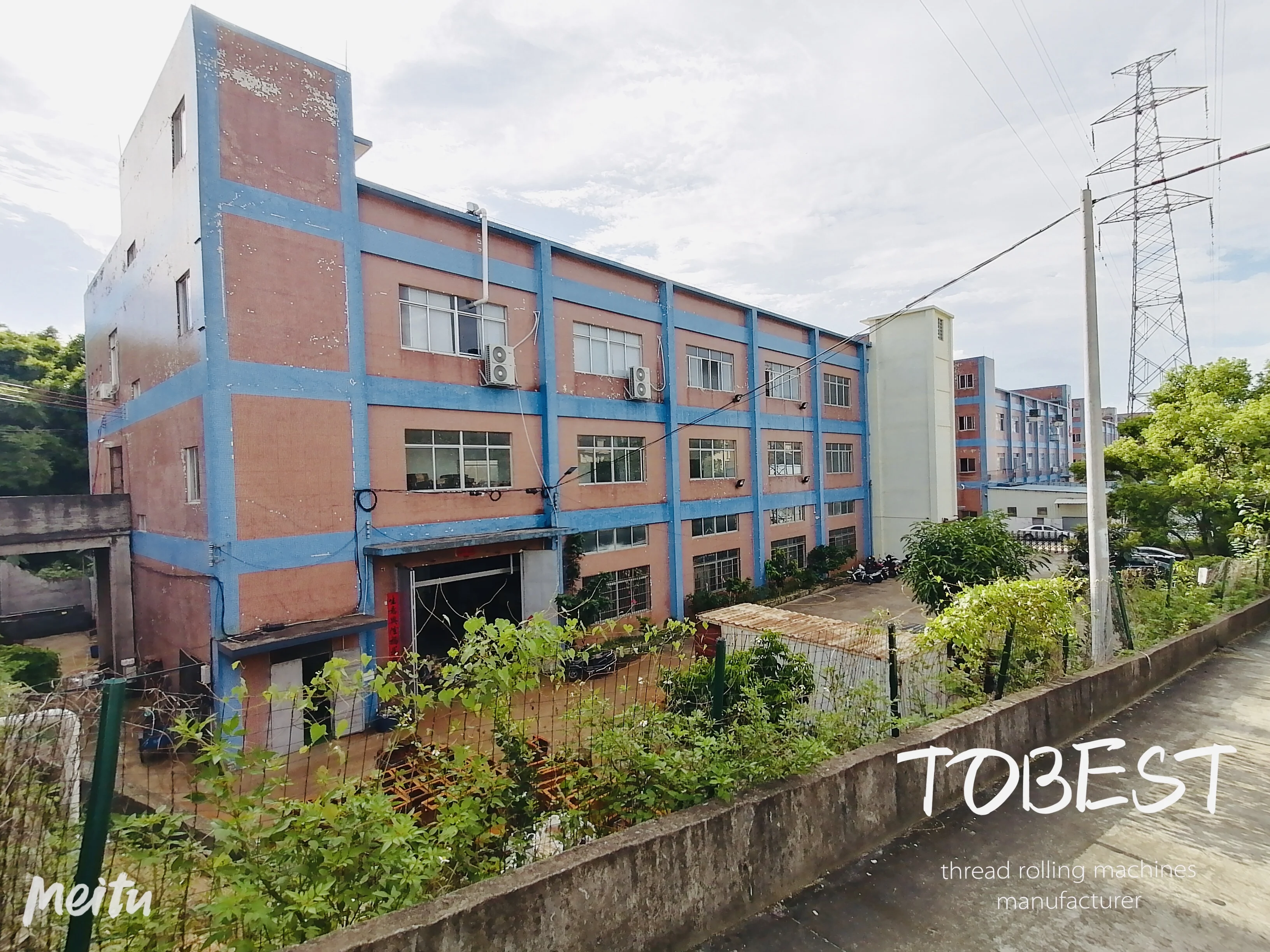

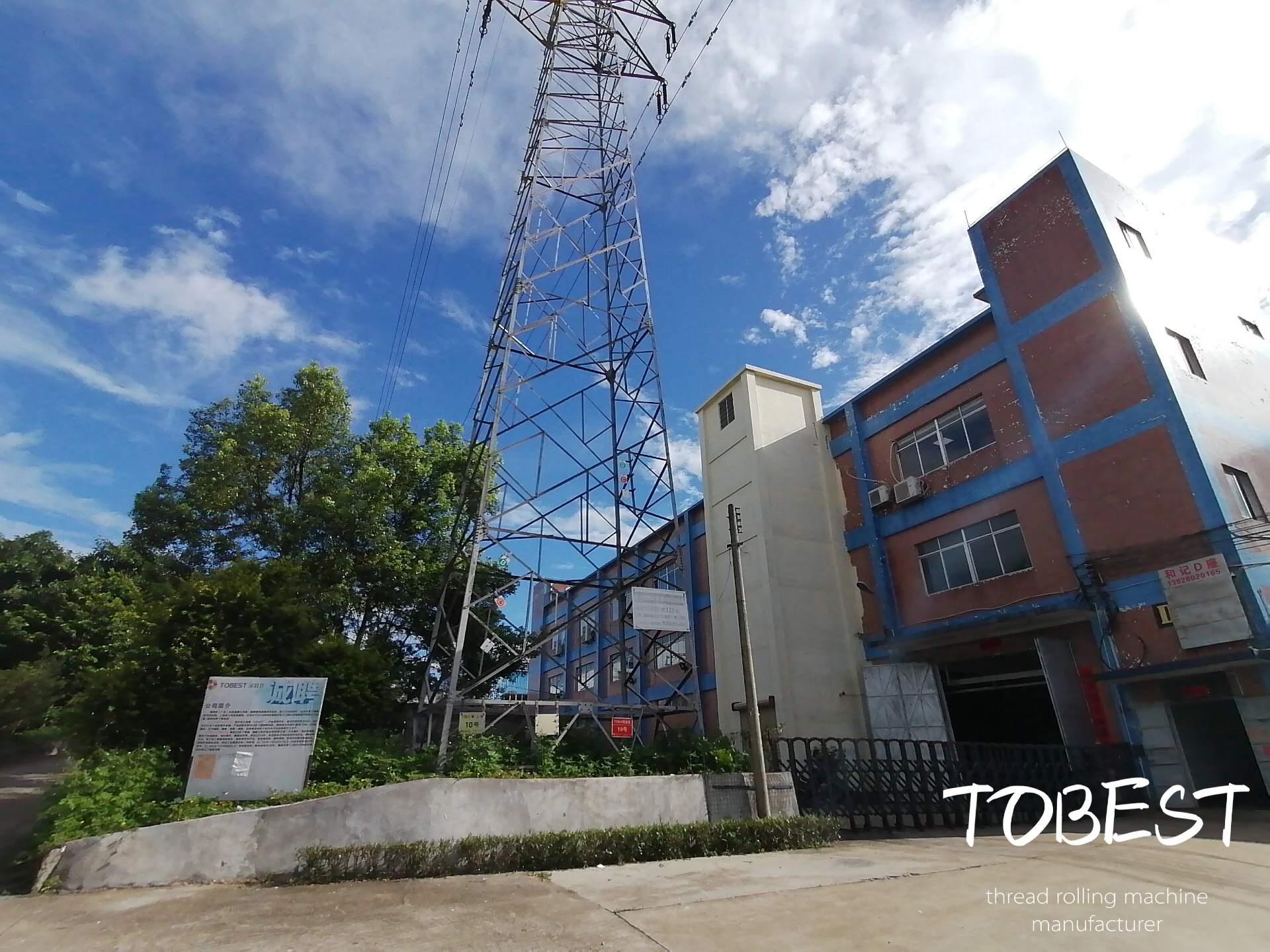

Company Profile
