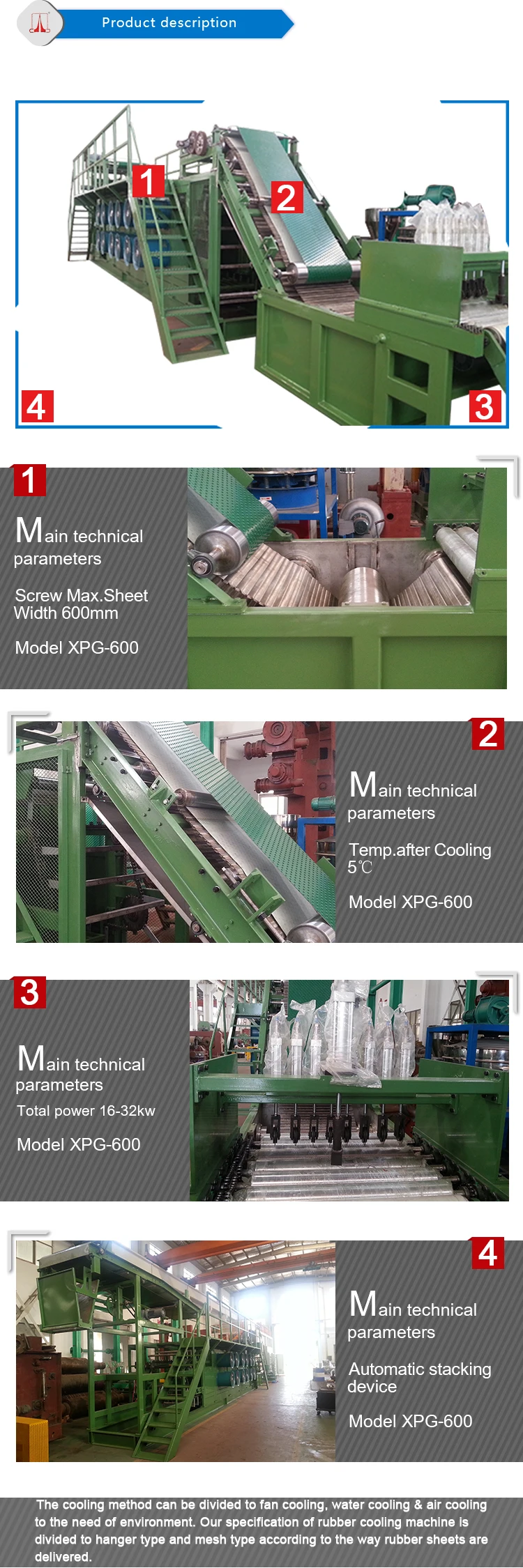

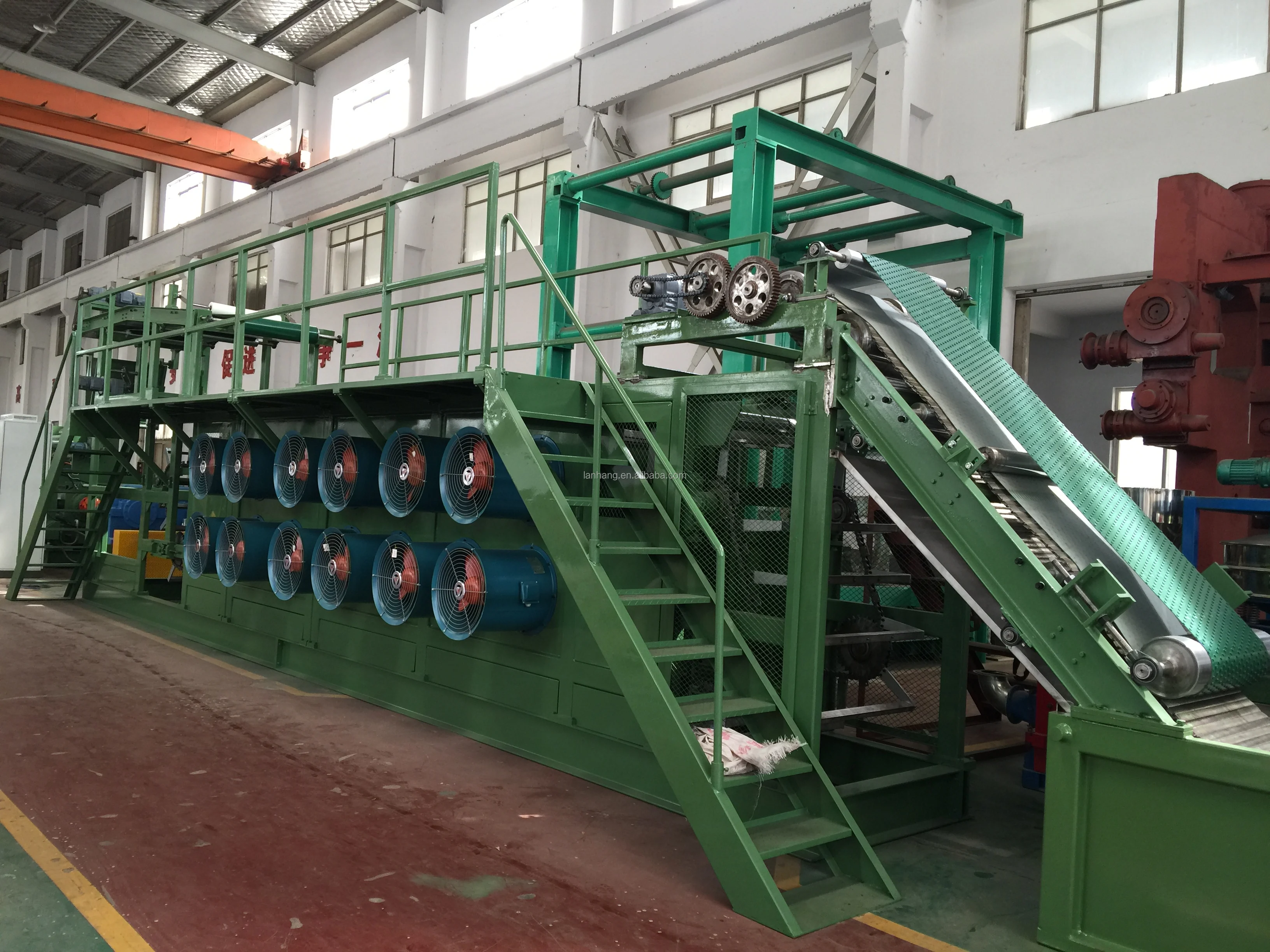

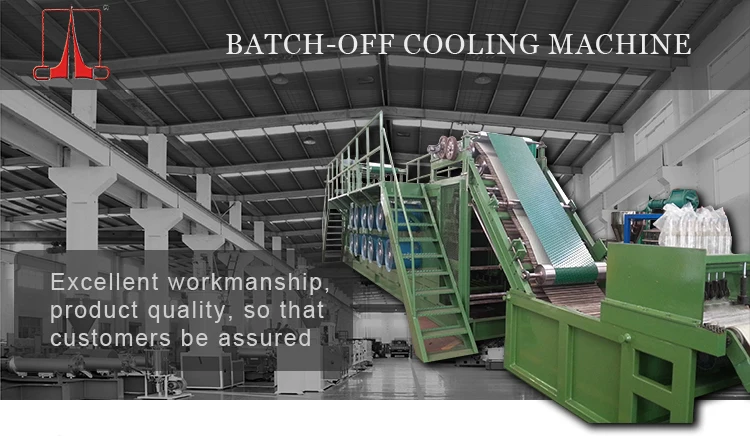

XPG 600 Batch off cooling line rubber machine

Product Overview

Description

Hot Sale factory price Beautiful design Batch-off cooling line rubber machine

Model			XPG-600	XPG-800	XPG-900
Max. rubber sheet width		mm	600	800	900
The thickness of the rubber sheet		mm	4-10	4-10	6-12
Rubber sheeting temperature  over room temperature after cooling		°C	10	15	5
Linear speed of taking-in conveyer		m/min	3-24	3-35	4-40
Linear speed of sheet hanging bar		m/min	1-1.3	1-1.3	1-1.3
Hanging height of the sheet hanging bar		m	1000-1500	1000-1500	1400

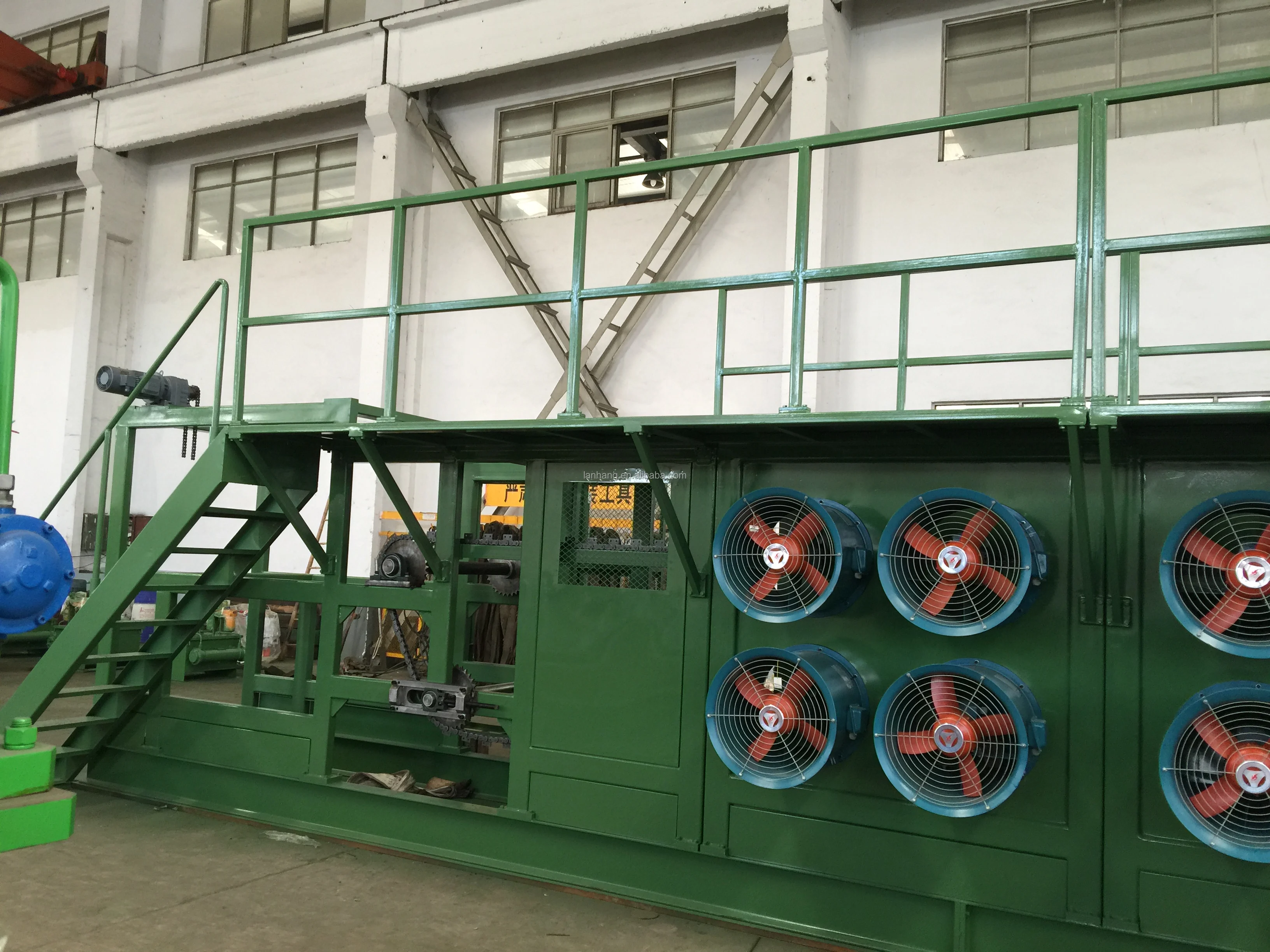

Number of cooling fans		Set	12	20-32	32-34
Total power		kW	16	25-34	34-50
Dimensions	L	mm	14250	16800	26630-35000
	W	mm	3300	3400	3500
	H	mm	3405	3520	5630
Gross weight		t	~11	~22	~34

Main function of the unit is to cool rubber strip coming either from two-roll mill or from roller-die calender and stacking of cooled rubber sheet on palette.

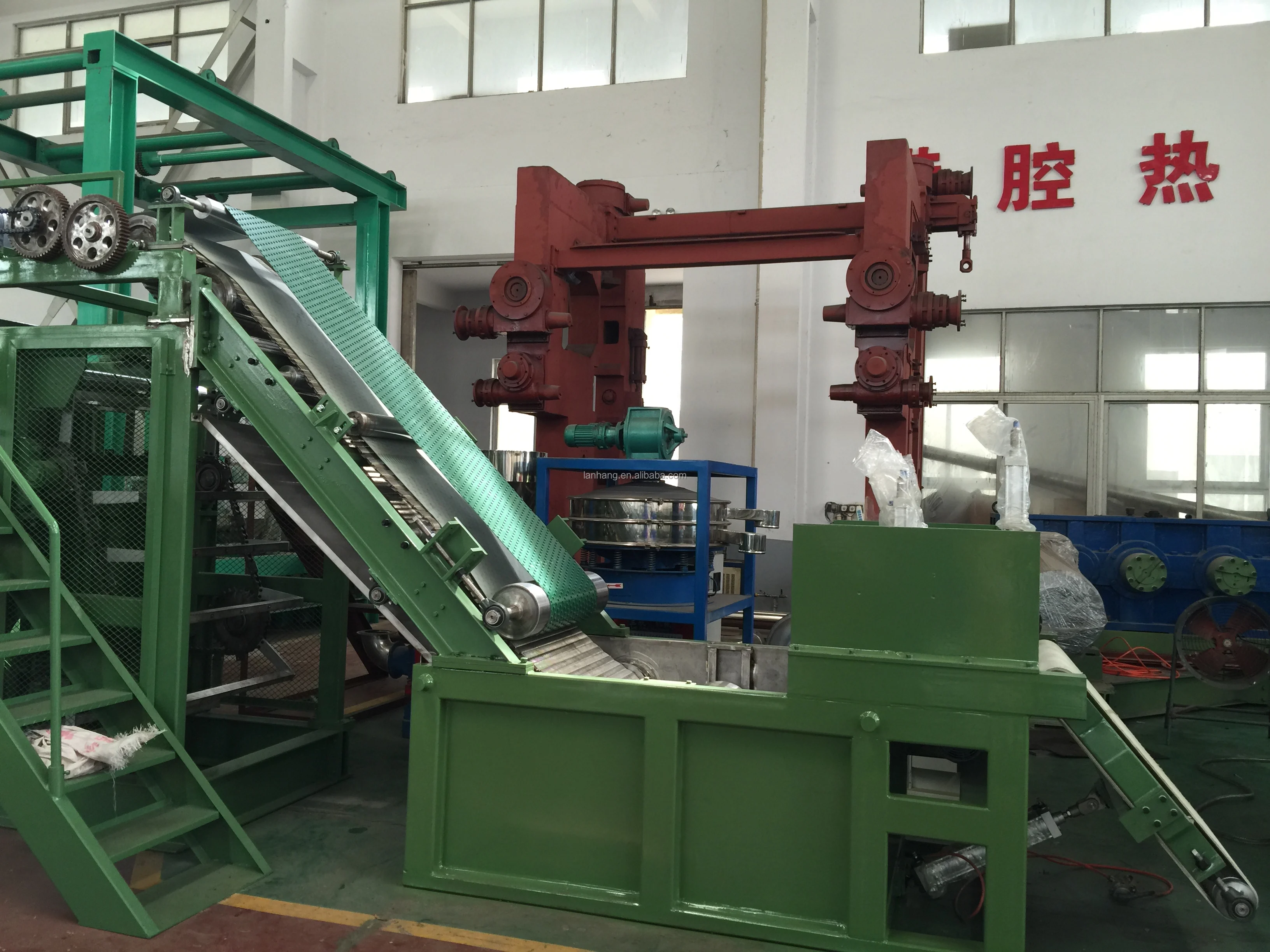

Rubber sheet comes into the batch-off unit entry (dip tank/soaking bath), where separation solution is applied, then is cooled in cooling tunell, captured by gripping equipment and pulled on the feeding conveyor. Feeding conveyor moves cooled rubber sheet through cutting equipment onto stacking equipment. Cooled rubber sheet is put on palette in wig-wag stacking or by plates. When given weight or height of stacked rubber sheet is achieved, full palette is replaced by empty one.
