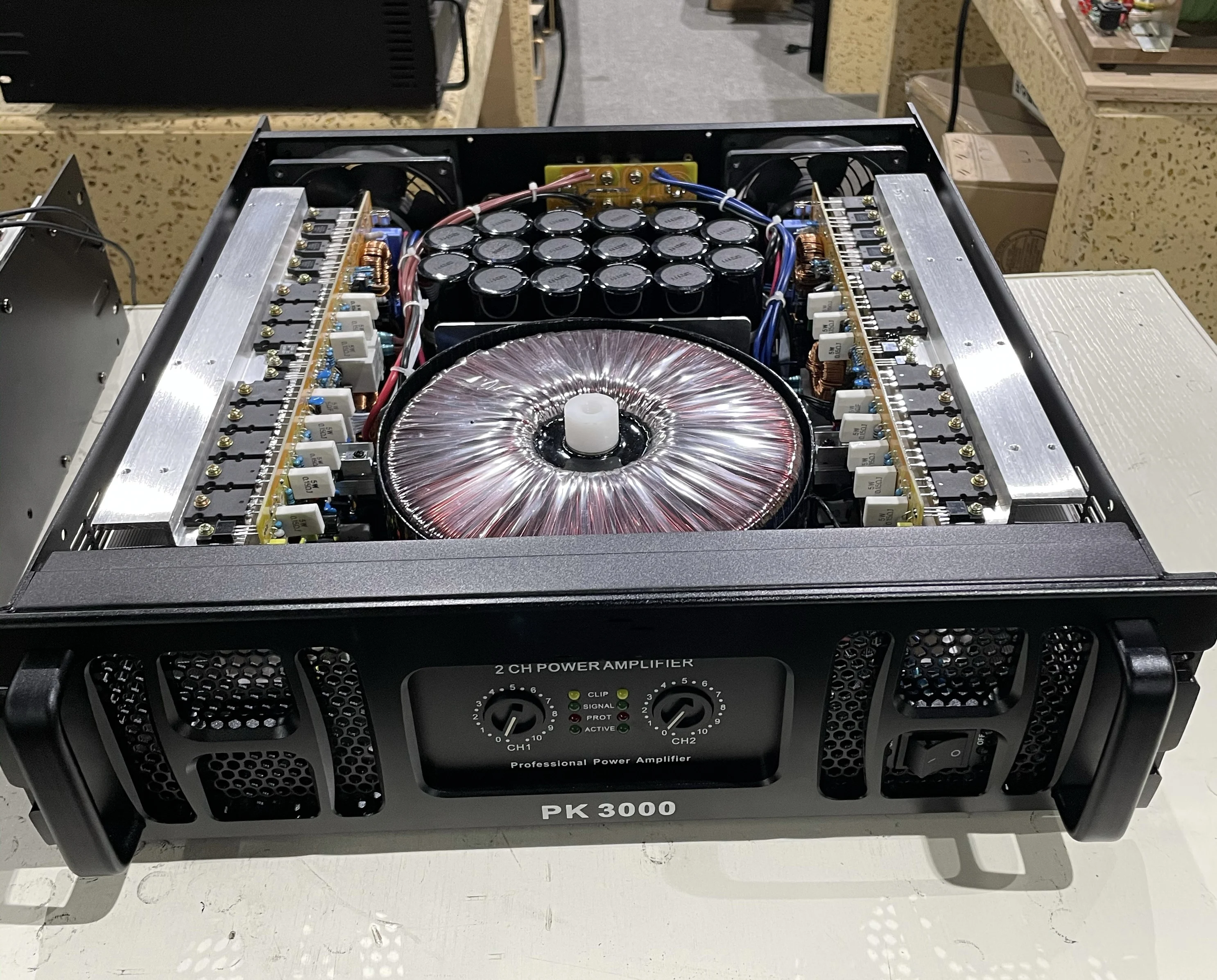

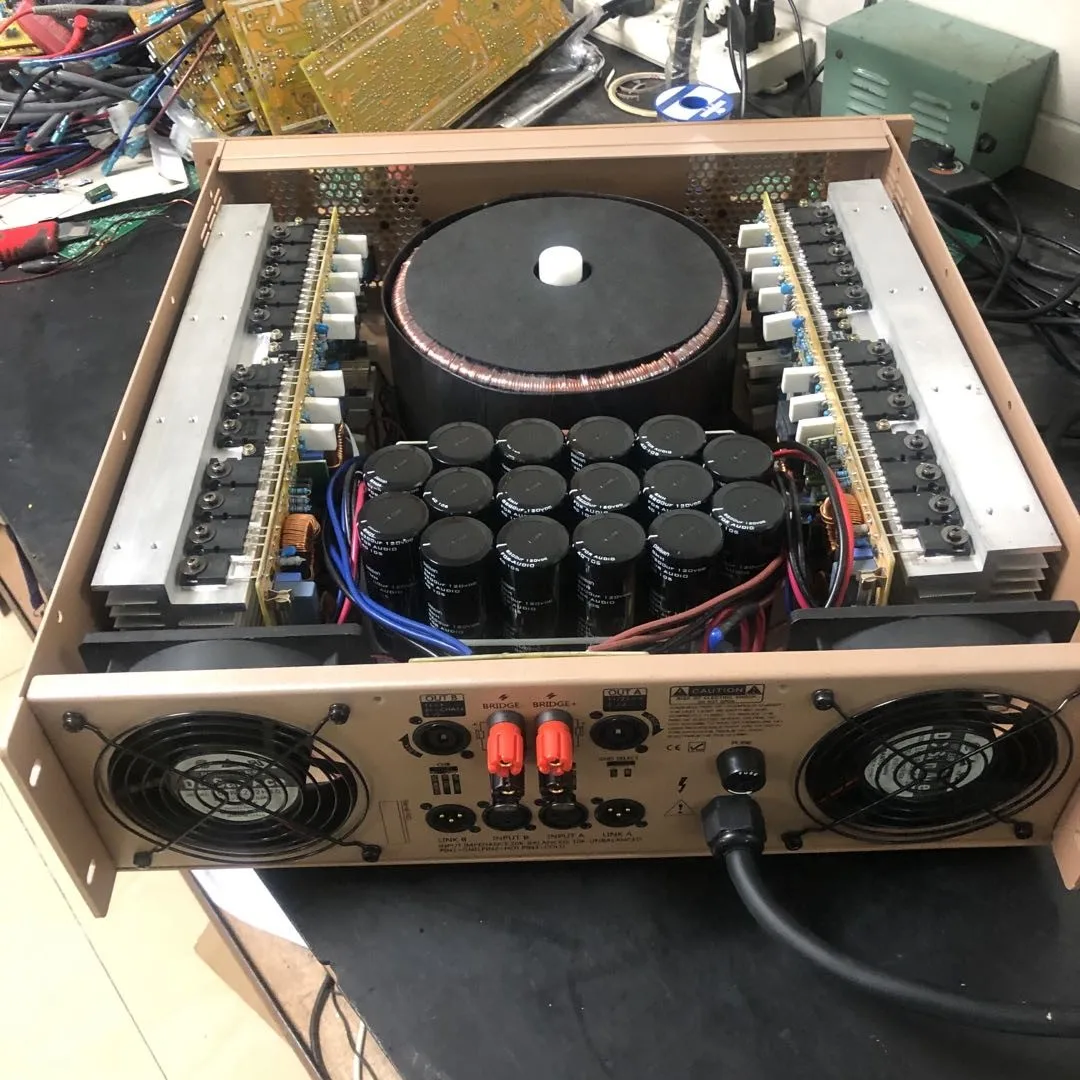

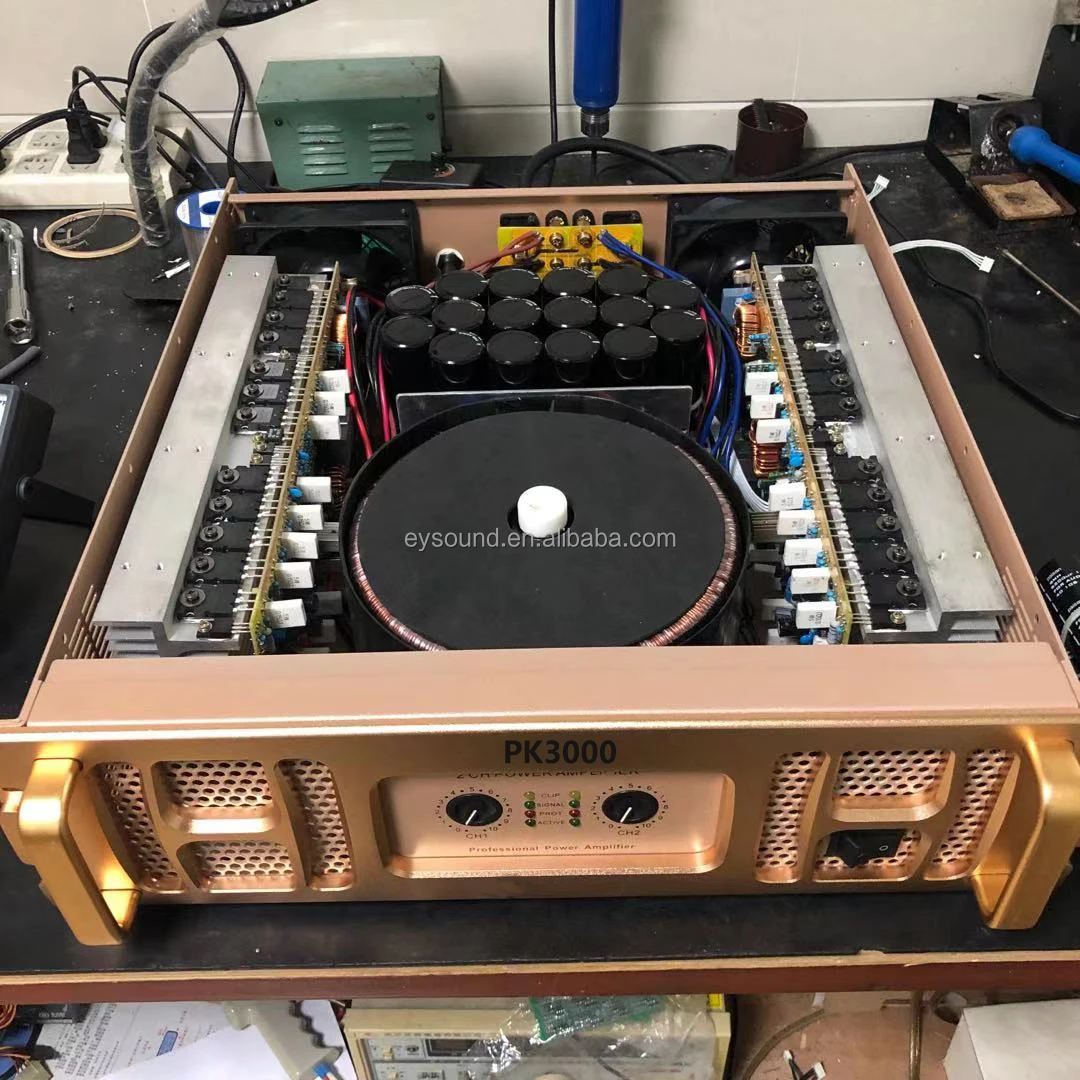

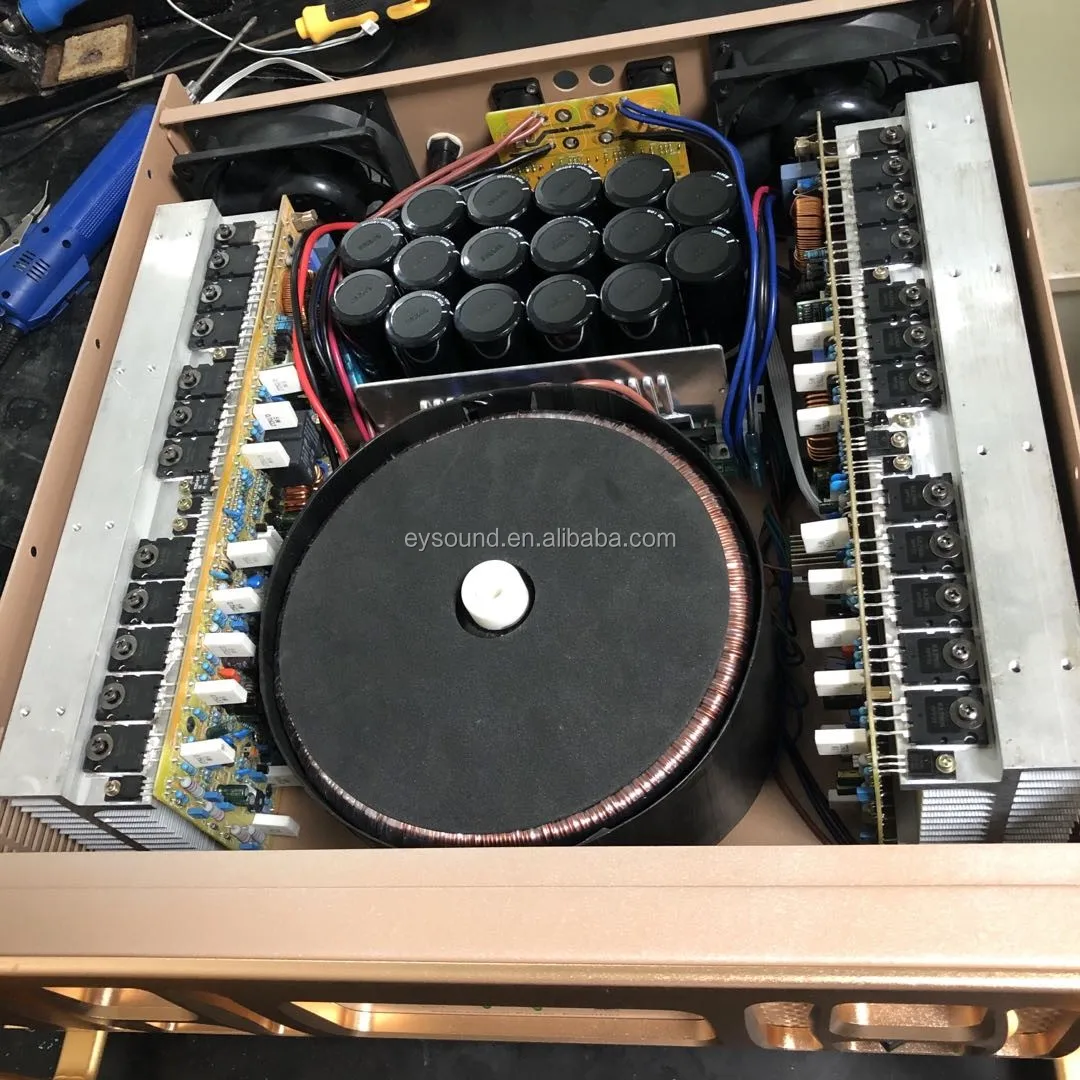

Class TD power amplifier 4500W @2ohm PK3000
- Category: >>>
- Supplier: Guangzhou Baiyun Yiwei Stage Audio Equipment Factory
Share on (1600539323535):
Product Overview
Description
Model No.: PK3000
1. PK3000 is with compact structure, fast in heat dissipation, high in power density, stable and reliable.
2. with Class TD circuit , each channel has independent crossover , which is more convenient to use.
3.large area heatsink and separate temperature-controlled fans ensure that the temperature rise does not exceed 55 degrees when load at 2ohms for long time work.
4.IC : TOSHIBA 2SC5200/2SA1943 +MOS IXTQ82N/25
Product Description
| MODEL NUMBER | PK3000 |
| 2 Ω stereo Power | 2x4500W |
| 4 Ω stereo Power | 2x3500W |
| 8 Ω stereo Power | 2x2200W |
| 4 Ω bridge | 8800W |
| 8Ω bridge | 6600W |
| Frequency Response(1W 8ohm stereo) | 20 Hz - 20 kHz, ±0.5 dB |
| Sensitivity (8ohm stereo & 1KHZ) | 0.775v |
| Mode | Stereo / brigde / parallel |
| S/Noise ratio | 110dB |
| THD | <0.5% STEREO 8ohm |
| IMD | <0.1% STEREO 8ohm |
| Damping coefficient | >1200 |
| Slew rate | 100V/μS |
| Input Impedance balanced | 20k balanced |
| Input Impedance unbalanced | 10k unbalanced |
| Protection | Soft start,up,short circuit,DC fault,over heat ,over load ,limiter |
| Dimensions | 482*537*152(mm) |
| Net Weight | 42kgs |
| Gross Weight | 45kgs |
Detailed Images
Company Information

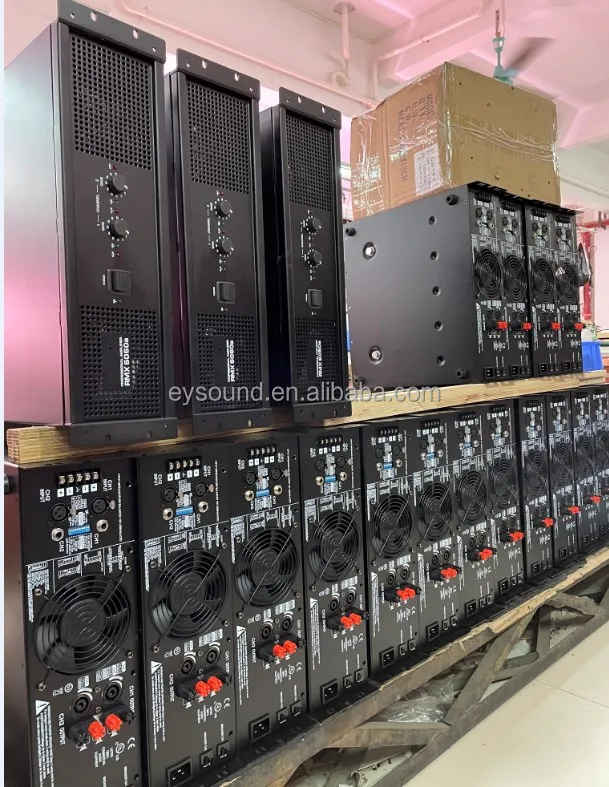

Workshop:
