48000BTU 80000 BTU Constant Temperature Room Direct Expansion Air Conditioner Cabinet Air Handling Unit
- Category: >>>
- Supplier: Shenzhen Monchrui Industrial Development Co. Ltd.
Share on (1600539332867):
Product Overview
Description
Product Overview
Direct Expansion Air Conditioning Unit
The direct-expansion combined air handling unit has various models, various cooling capacity and functional section options. The unit has the advantages of flexible design, convenient installation, and modular combination to reduce initial investment.
It is widely used in medical, biopharmaceutical, electronic industry, precision instruments, food processing, and cosmetic industries where strict requirements on temperature, humidity and cleanliness are required.
It is widely used in medical, biopharmaceutical, electronic industry, precision instruments, food processing, and cosmetic industries where strict requirements on temperature, humidity and cleanliness are required.
Application place
1 Clean Operating Room 2 Inspection and Quarantine 3 Biopharmaceuticals 4 Laboratory 5 Electronics Industry
6 Precision Instruments 7 Food Industry 8 Cosmetics Industry
6 Precision Instruments 7 Food Industry 8 Cosmetics Industry
Products Description

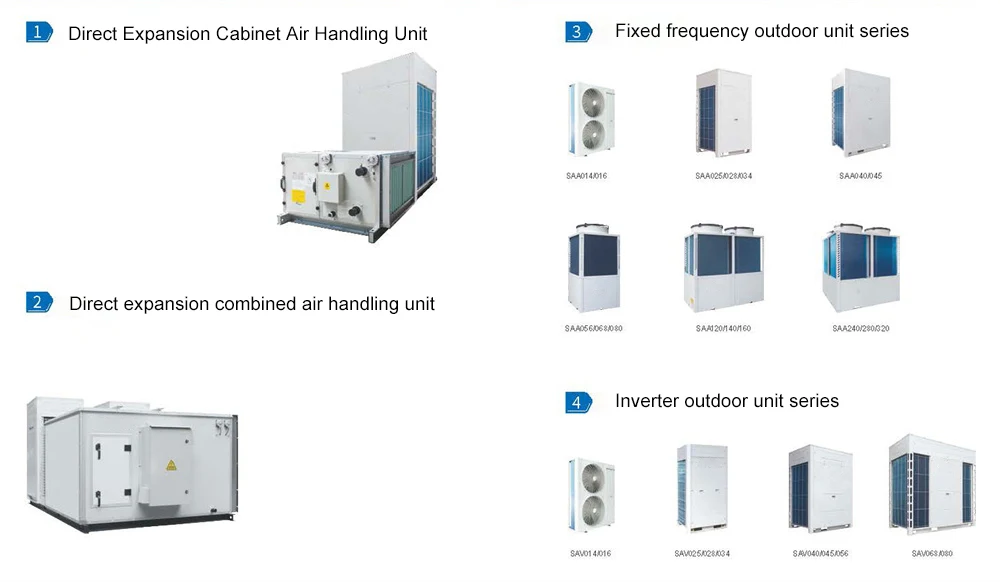

Direct Expansion Air Conditioner series

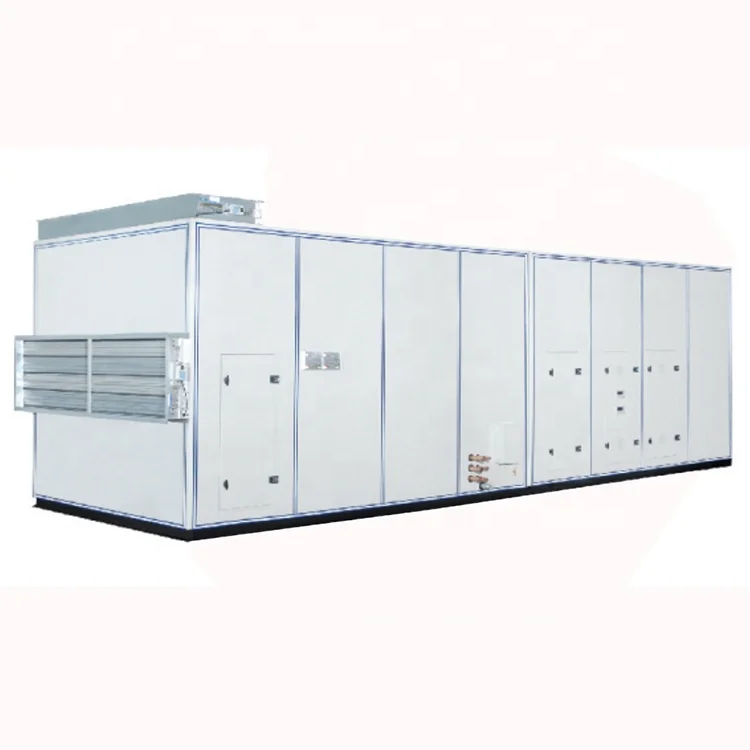

1. Direct Expansion Cabinet Air Handling Unit
The unit can choose mixing section, primary filter section, direct expansion coil section, fan section, and jet section. Compact structure, convenient installation and high cost performance, can achieve temperature, cleanliness, fresh air Degree adjustment function, suitable for fresh air pretreatment in central air conditioning system, comfort in large space Appropriate place application.
The unit can choose mixing section, primary filter section, direct expansion coil section, fan section, and jet section. Compact structure, convenient installation and high cost performance, can achieve temperature, cleanliness, fresh air Degree adjustment function, suitable for fresh air pretreatment in central air conditioning system, comfort in large space Appropriate place application.
2 Direct expansion combined air handling unit
Each combined function segment is flexible and optional, which can realize the adjustment functions of cleanliness, temperature, humidity, noise value, and fresh air volume. It is suitable for places with strict requirements on temperature, humidity and cleanliness, such as pharmaceutical, medical, biological engineering, food and beverage, precision machinery, electronic industry, etc. Compared with the design of the water system, the unit adopts the direct expansion evaporative coil, which has a variety of models and optional cooling capacity, which makes it have the advantages of rich functions, simple system design, and convenient and fast installation.
Each combined function segment is flexible and optional, which can realize the adjustment functions of cleanliness, temperature, humidity, noise value, and fresh air volume. It is suitable for places with strict requirements on temperature, humidity and cleanliness, such as pharmaceutical, medical, biological engineering, food and beverage, precision machinery, electronic industry, etc. Compared with the design of the water system, the unit adopts the direct expansion evaporative coil, which has a variety of models and optional cooling capacity, which makes it have the advantages of rich functions, simple system design, and convenient and fast installation.
3 Fixed frequency outdoor unit series
4 Inverter outdoor unit series
Flexible application
1 Rich function segment configuration, 2 Professional selection software, 3 Flexible structure and various types
Adopts high-quality components, stable and reliable

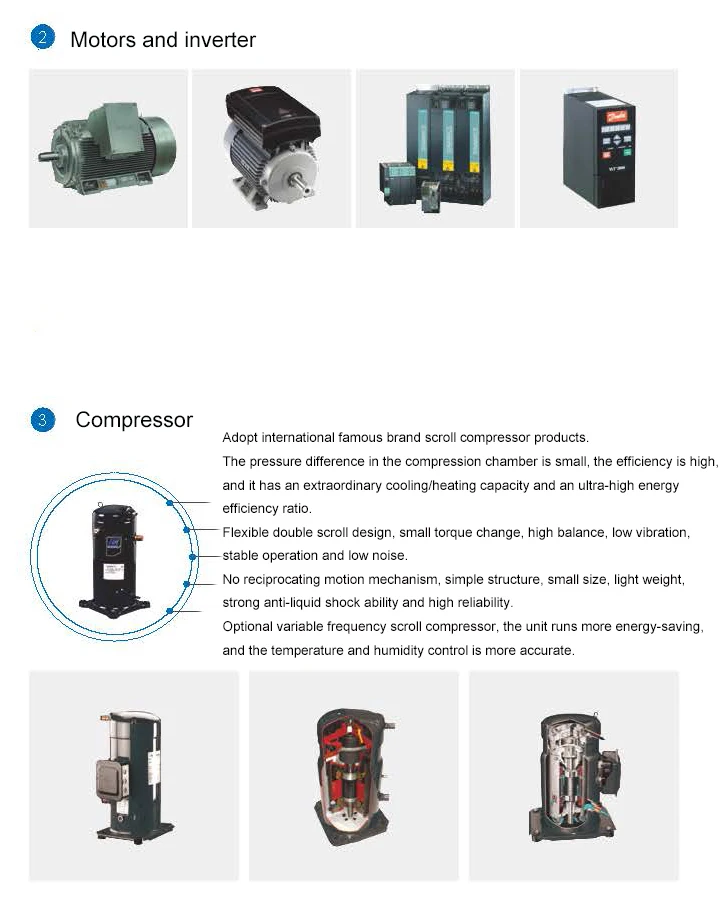

Motors and inverter
1 Adopt international well-known brand motor and inverter, high efficiency, low vibration, good heat dissipation, stable and reliable performance.
2 There is a volute fan with a belt drive motor, and a tensioned slide rail to adjust the belt, which is convenient for adjusting the air volume.
3 The volute-less fan is equipped with a direct-connected motor, without belt drive, with high efficiency, low noise, and no belt chip pollution.
4 The inverter can be installed separately in the unit box, which is convenient for daily operation
1 Adopt international well-known brand motor and inverter, high efficiency, low vibration, good heat dissipation, stable and reliable performance.
2 There is a volute fan with a belt drive motor, and a tensioned slide rail to adjust the belt, which is convenient for adjusting the air volume.
3 The volute-less fan is equipped with a direct-connected motor, without belt drive, with high efficiency, low noise, and no belt chip pollution.
4 The inverter can be installed separately in the unit box, which is convenient for daily operation
Compressor
1 Adopt international famous brand scroll compressor products.
The pressure difference in the compression chamber is small, the efficiency is high, and it has an extraordinary cooling/heating capacity and an ultra-high energy efficiency ratio.
2 Flexible double scroll design, small torque change, high balance, low vibration, stable operation and low noise.
No reciprocating motion mechanism, simple structure, small size, light weight, strong anti-liquid shock ability and high reliability.
3 Optional variable frequency scroll compressor, the unit runs more energy-saving, and the temperature and humidity control is more accurate.
4 The new type of thin high-toothed and cross-toothed internal threaded pipe is used for efficient heat transfer copper pipe, and the heat exchange efficiency is high.
5 Adopt hydrophilic aluminum fins, high efficiency and low resistance, effectively reduce the accumulation of dust and water, and ensure that the heat exchanger maintains a stable heat exchange capacity for a long time.
1 Adopt international famous brand scroll compressor products.
The pressure difference in the compression chamber is small, the efficiency is high, and it has an extraordinary cooling/heating capacity and an ultra-high energy efficiency ratio.
2 Flexible double scroll design, small torque change, high balance, low vibration, stable operation and low noise.
No reciprocating motion mechanism, simple structure, small size, light weight, strong anti-liquid shock ability and high reliability.
3 Optional variable frequency scroll compressor, the unit runs more energy-saving, and the temperature and humidity control is more accurate.
4 The new type of thin high-toothed and cross-toothed internal threaded pipe is used for efficient heat transfer copper pipe, and the heat exchange efficiency is high.
5 Adopt hydrophilic aluminum fins, high efficiency and low resistance, effectively reduce the accumulation of dust and water, and ensure that the heat exchanger maintains a stable heat exchange capacity for a long time.
Hydrophilic aluminum foil

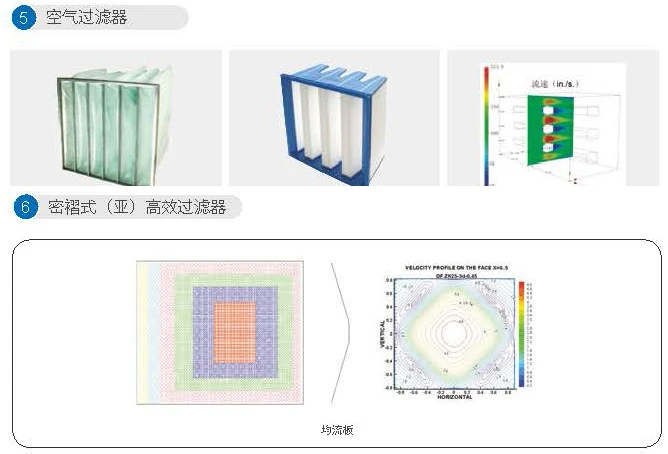

5 Air filter
⨈Adopt air filtration products of well-known brands at home and abroad.
⨈Adopt CFD simulation technology to optimize the installation structure of the filter to ensure the optimal filtering effect.
⨈Plate type primary filter: The filter material is synthetic fiber filter material woven from imported polyamide monofilament fibers, multi-pleated design, with optional G3~G4 filtration efficiency, light structure, economical price, low maintenance cost ; It is suitable for one-time disposal and meets the environmental protection requirements of clean operating room construction specifications.
⨈Bag-type medium-efficiency filter: It adopts new composite non-woven fabric or imported synthetic fiber filter material, and the filtration efficiency can be selected from F5~F9; the filter area is large, the head wind speed is low, and the dust holding capacity is large; the ultrasonic welding technology is used, which has good It has high air tightness and stable performance; it is equipped with various metal frames such as galvanized sheet and aluminum alloy, which has high structural strength and long service life.
⨈Adopt air filtration products of well-known brands at home and abroad.
⨈Adopt CFD simulation technology to optimize the installation structure of the filter to ensure the optimal filtering effect.
⨈Plate type primary filter: The filter material is synthetic fiber filter material woven from imported polyamide monofilament fibers, multi-pleated design, with optional G3~G4 filtration efficiency, light structure, economical price, low maintenance cost ; It is suitable for one-time disposal and meets the environmental protection requirements of clean operating room construction specifications.
⨈Bag-type medium-efficiency filter: It adopts new composite non-woven fabric or imported synthetic fiber filter material, and the filtration efficiency can be selected from F5~F9; the filter area is large, the head wind speed is low, and the dust holding capacity is large; the ultrasonic welding technology is used, which has good It has high air tightness and stable performance; it is equipped with various metal frames such as galvanized sheet and aluminum alloy, which has high structural strength and long service life.
6 Dense pleated (sub) high efficiency filter
⨈The filter material is glass fiber filter paper or ultra-fine polypropylene filter paper, the filter efficiency can be H10-H14, the filter area is large, and the resistance is small.
⨈ The outer frame is made of high-strength and environment-friendly plastic, sealed with a new type of polyurethane sealant; the overall environmental protection can be incinerated, non-toxic and tasteless, easy to be disposed of, and meets the environmental protection requirements of clean operating room construction specifications.
⨈The filter material is glass fiber filter paper or ultra-fine polypropylene filter paper, the filter efficiency can be H10-H14, the filter area is large, and the resistance is small.
⨈ The outer frame is made of high-strength and environment-friendly plastic, sealed with a new type of polyurethane sealant; the overall environmental protection can be incinerated, non-toxic and tasteless, easy to be disposed of, and meets the environmental protection requirements of clean operating room construction specifications.

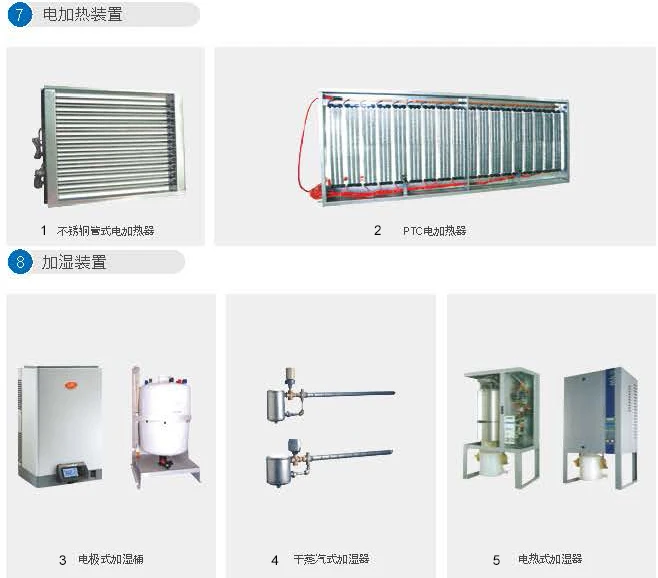

7 Electric heating device
Various types of electric heaters such as fin type, light tube type and PTC can be selected. PTC electric heater has the characteristics of high withstand voltage, small residual current, low power consumption, complete flame retardant and long service life.
⨈The heater has a reasonable design, small wind resistance, uniform heating, no high and low temperature dead ends, and high thermal efficiency.
⨈The heater has a reasonable design, small wind resistance, uniform heating, no high and low temperature dead ends, and high thermal efficiency.
8 Humidifier
The humidification products of well-known brands at home and abroad are adopted.
⨈According to different applications, electrode type, dry steam type, electric heating type and other humidification methods can be selected.
The humidification products of well-known brands at home and abroad are adopted.
⨈According to different applications, electrode type, dry steam type, electric heating type and other humidification methods can be selected.

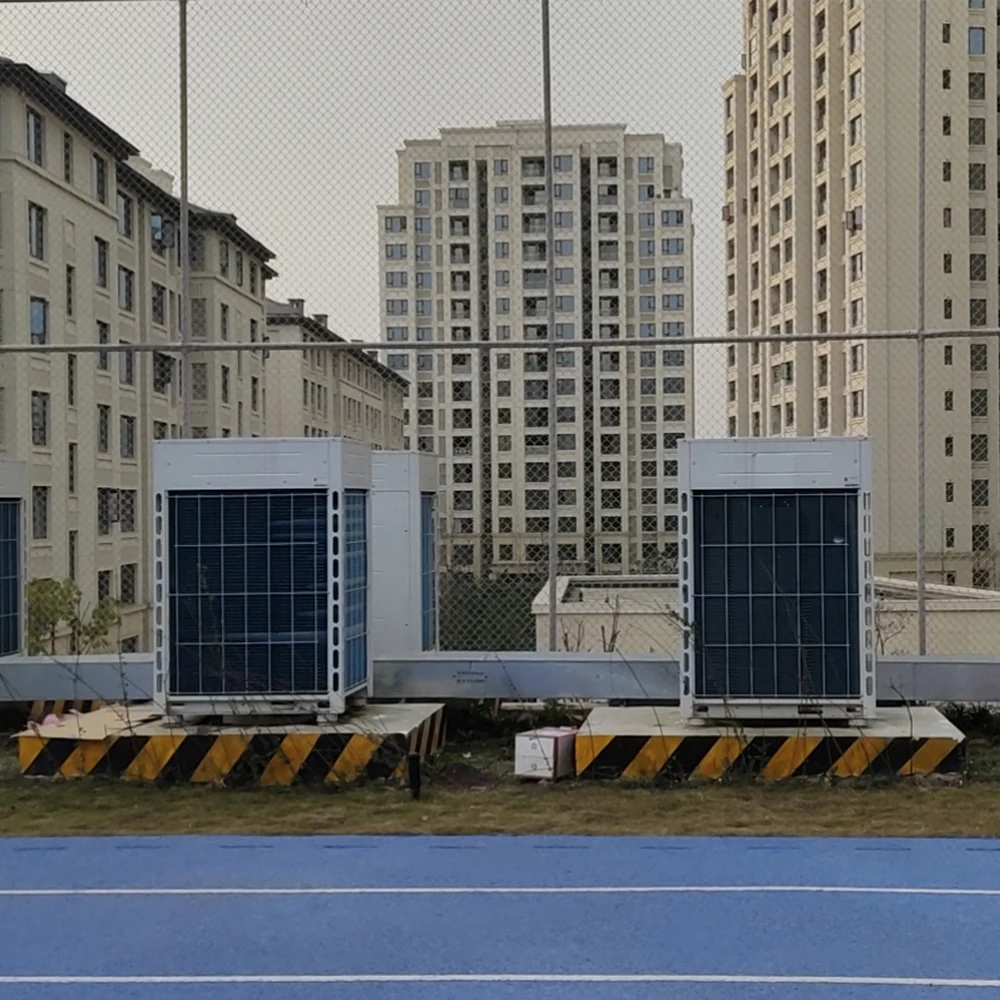

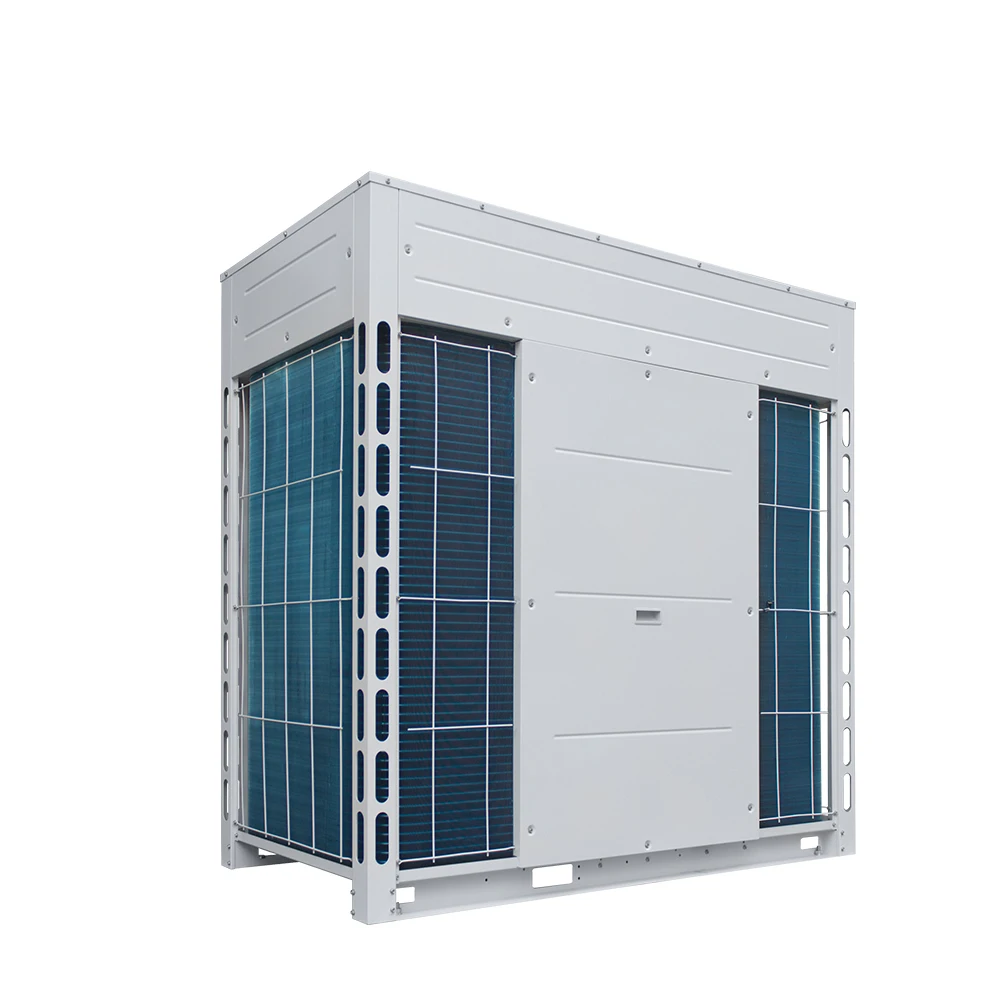

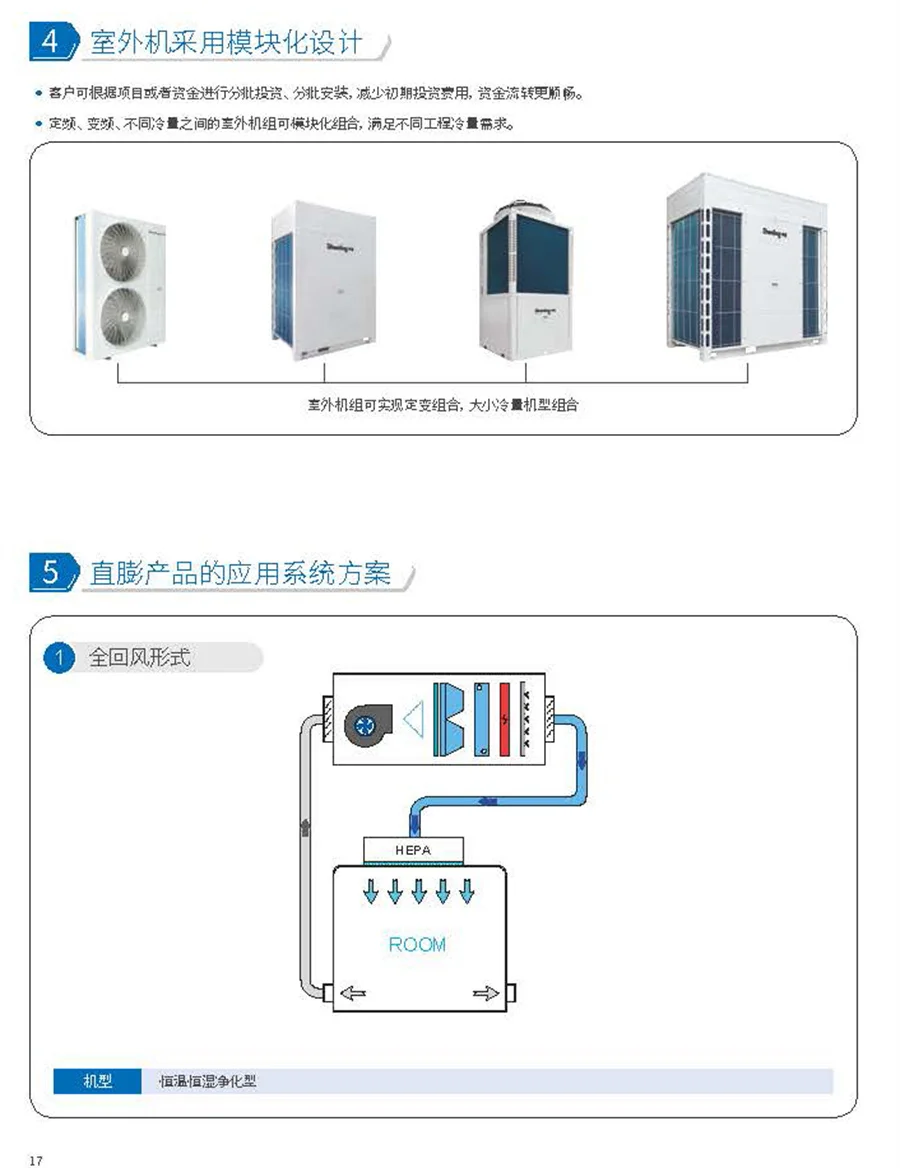

The outdoor unit, Adopts a modular design
⨈Customers can invest and install in batches according to projects or funds, reducing initial investment costs and making funds flow more smoothly.
⨈The outdoor units with fixed frequency, variable frequency and different cooling capacity can be combined modularly to meet the cooling capacity requirements of different projects.
⨈The outdoor units with fixed frequency, variable frequency and different cooling capacity can be combined modularly to meet the cooling capacity requirements of different projects.
The outdoor unit can realize the combination of fixed and variable, and the combination of large and small cooling capacity models
Application system scheme of direct expansion products
Full return air models
Constant temperature and humidity purification type

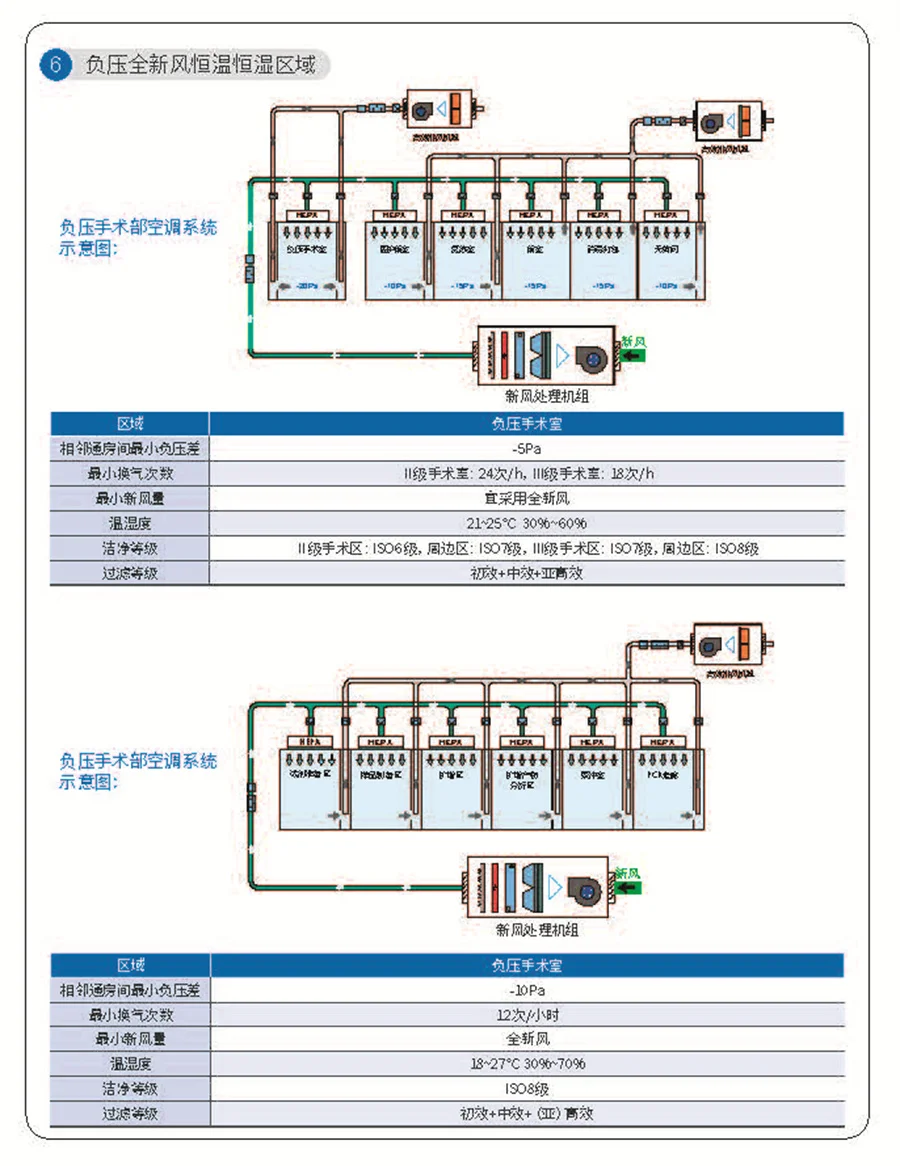

Negative pressure fresh air constant temperature and humidity area

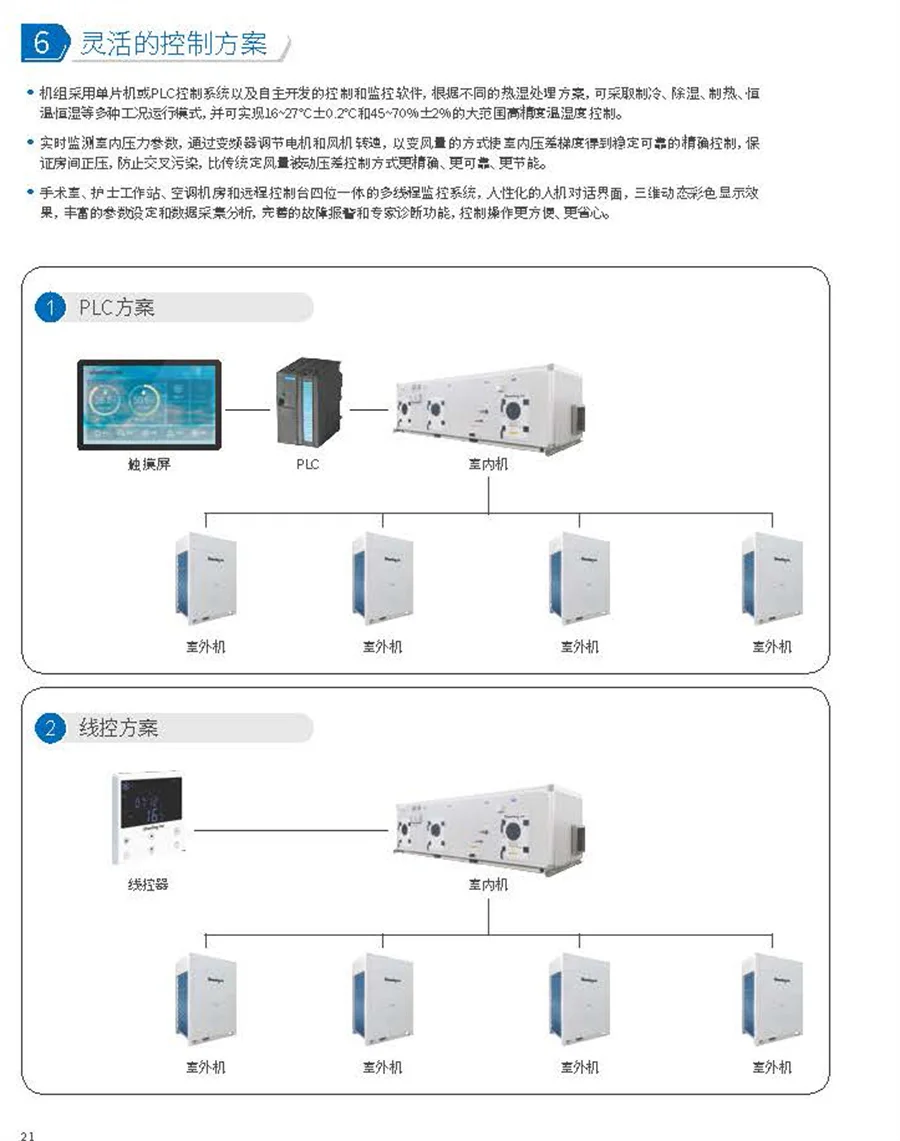

Flexible control scheme
⨈The unit adopts single chip or PLC control system and self-developed control and monitoring software. According to different heat and humidity treatment schemes, it can adopt various operating modes such as refrigeration, dehumidification, heating, constant temperature and humidity, and can achieve 16~ 27℃±0.2℃ and 45~70%±2% wide-range high-precision temperature and humidity control.
⨈ Real-time monitoring of indoor pressure parameters, adjusting the speed of the motor and fan through the frequency converter, stable and reliable and accurate control of the indoor pressure differential gradient by means of variable air volume, ensuring positive room pressure, preventing cross-contamination, and passive pressure differential control compared to traditional constant air volume The way is more precise, more reliable and more energy efficient.
⨈ Four-in-one multi-thread monitoring system of operating room, nurse workstation, air-conditioning room and remote console, humanized man-machine dialogue interface, three-dimensional dynamic color display effect, rich parameter setting and data collection and analysis, perfect fault alarm And expert diagnosis function, the control operation is more convenient and worry-free
Flexible control scheme
⨈The unit adopts single chip or PLC control system and self-developed control and monitoring software. According to different heat and humidity treatment schemes, it can adopt various operating modes such as refrigeration, dehumidification, heating, constant temperature and humidity, and can achieve 16~ 27℃±0.2℃ and 45~70%±2% wide-range high-precision temperature and humidity control.
⨈ Real-time monitoring of indoor pressure parameters, adjusting the speed of the motor and fan through the frequency converter, stable and reliable and accurate control of the indoor pressure differential gradient by means of variable air volume, ensuring positive room pressure, preventing cross-contamination, and passive pressure differential control compared to traditional constant air volume The way is more precise, more reliable and more energy efficient.
⨈ Four-in-one multi-thread monitoring system of operating room, nurse workstation, air-conditioning room and remote console, humanized man-machine dialogue interface, three-dimensional dynamic color display effect, rich parameter setting and data collection and analysis, perfect fault alarm And expert diagnosis function, the control operation is more convenient and worry-free

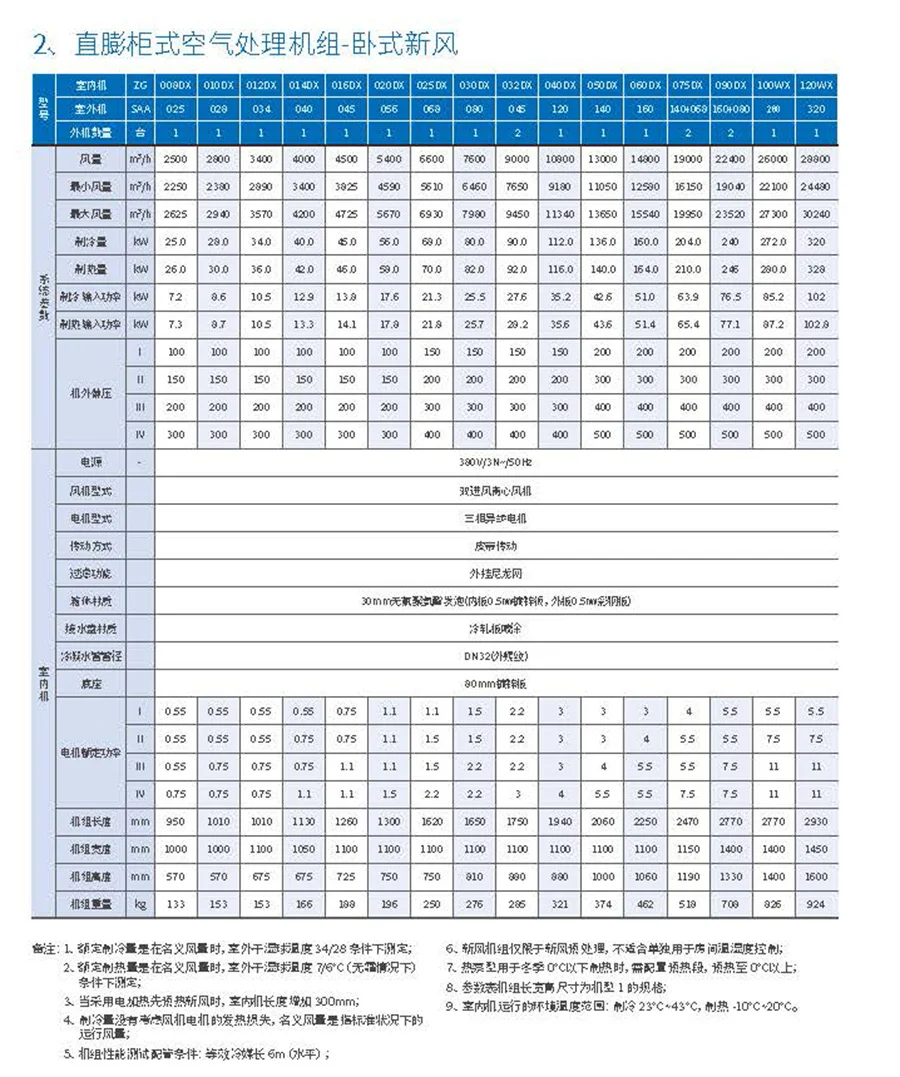

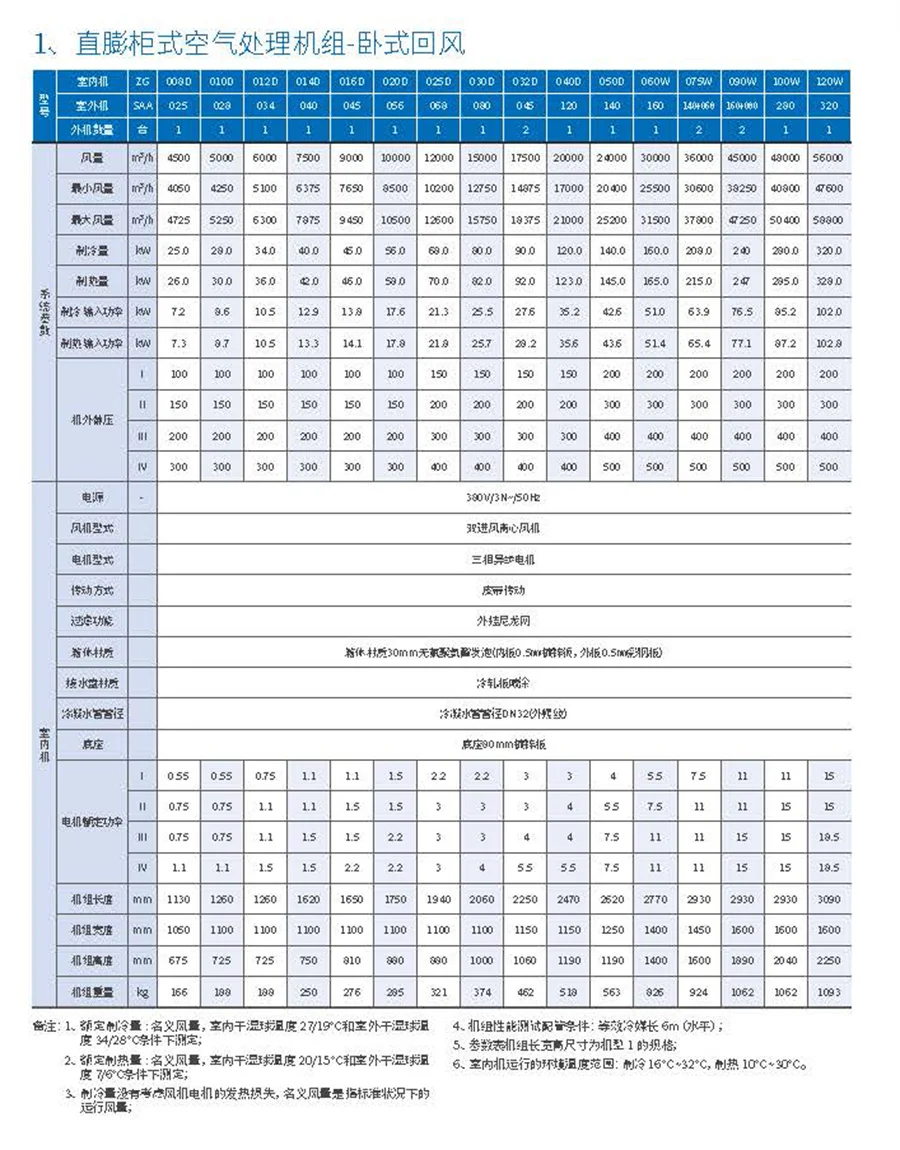

Product Paramenters
