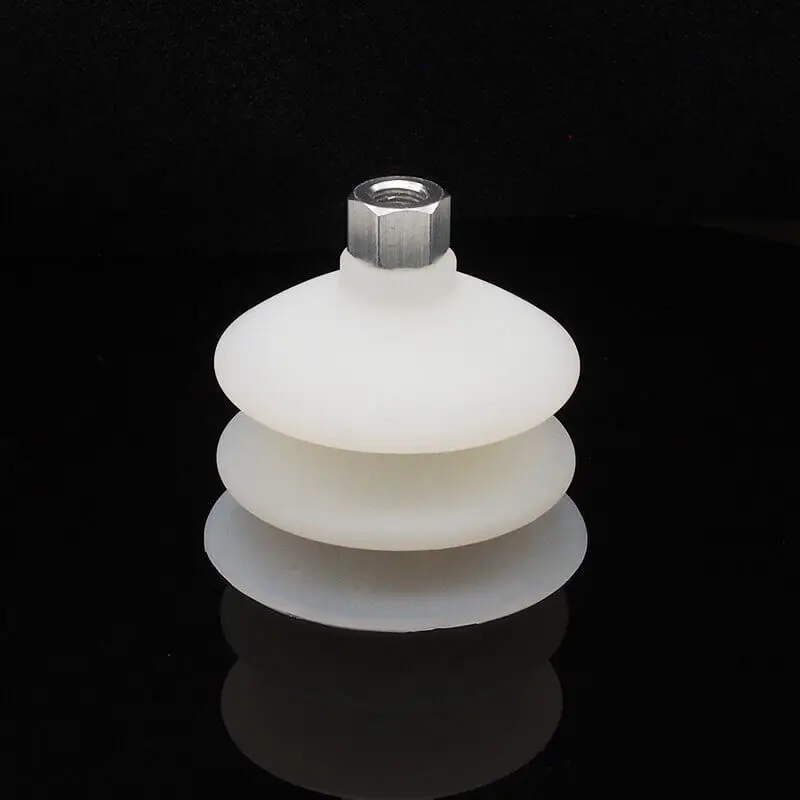

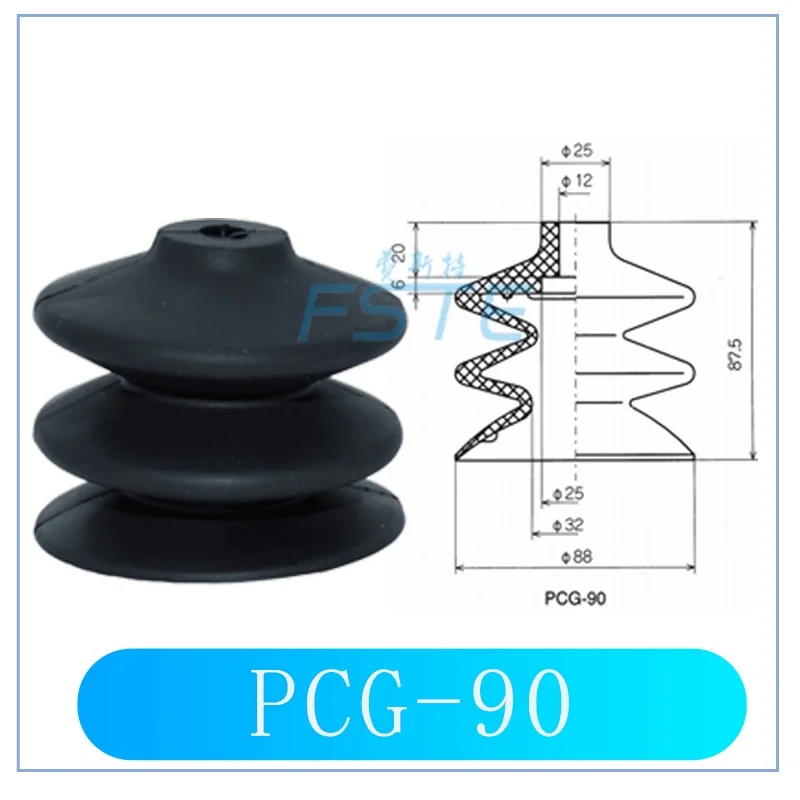

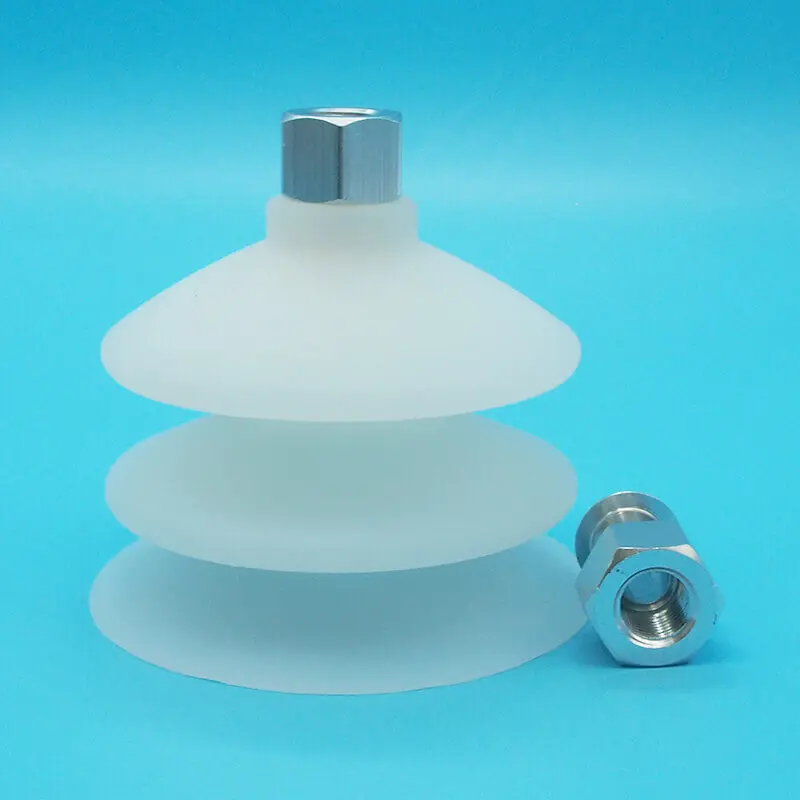

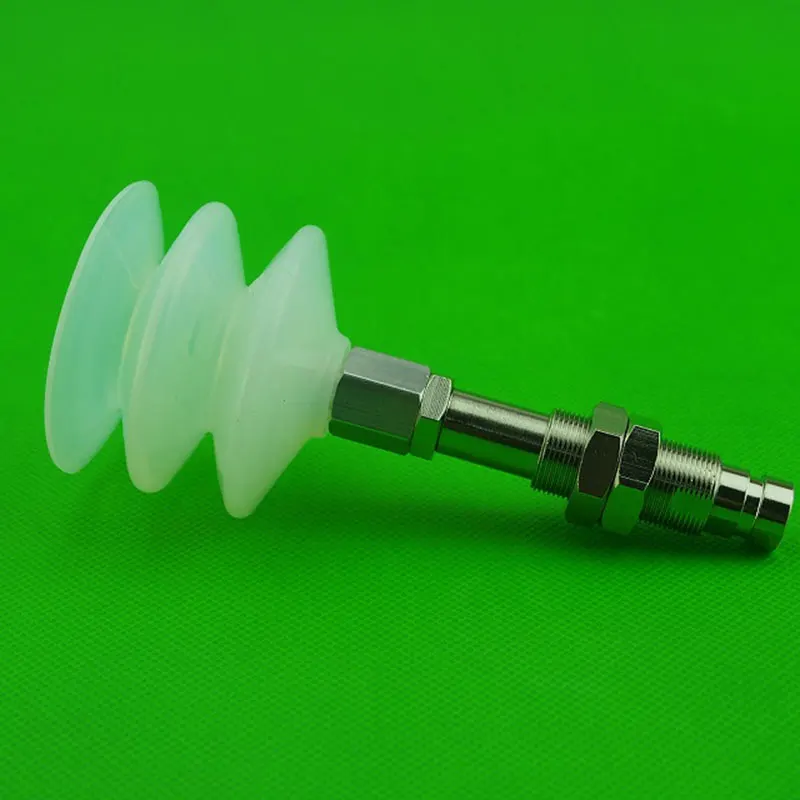

PCG 90 9cm 3 layer 2.5bellow pneumatic vacuum rubber suction cup VMQ air cupping

Product Overview

Description

PCG-90 9cm 3 layer 2.5bellow pneumatic vacuum rubber suction cup VMQ air cupping



The PCG series of bellows cups are used in applications that require lift separation such as cardboard handling, paper sheet and steel plate transfer.
Due to the multiple bellows design these cups are able to deform to the product being handled, such as food packaging or other concave or convex surfaces or part surfaces which are approached at an angle.

Features
1. Soft Touch (Silicone harness from 20 SH-A to 60 SH-A )
2. Extra Level Compensation
3. Flexible Sealing Lip for Irregular Curved Surfaces

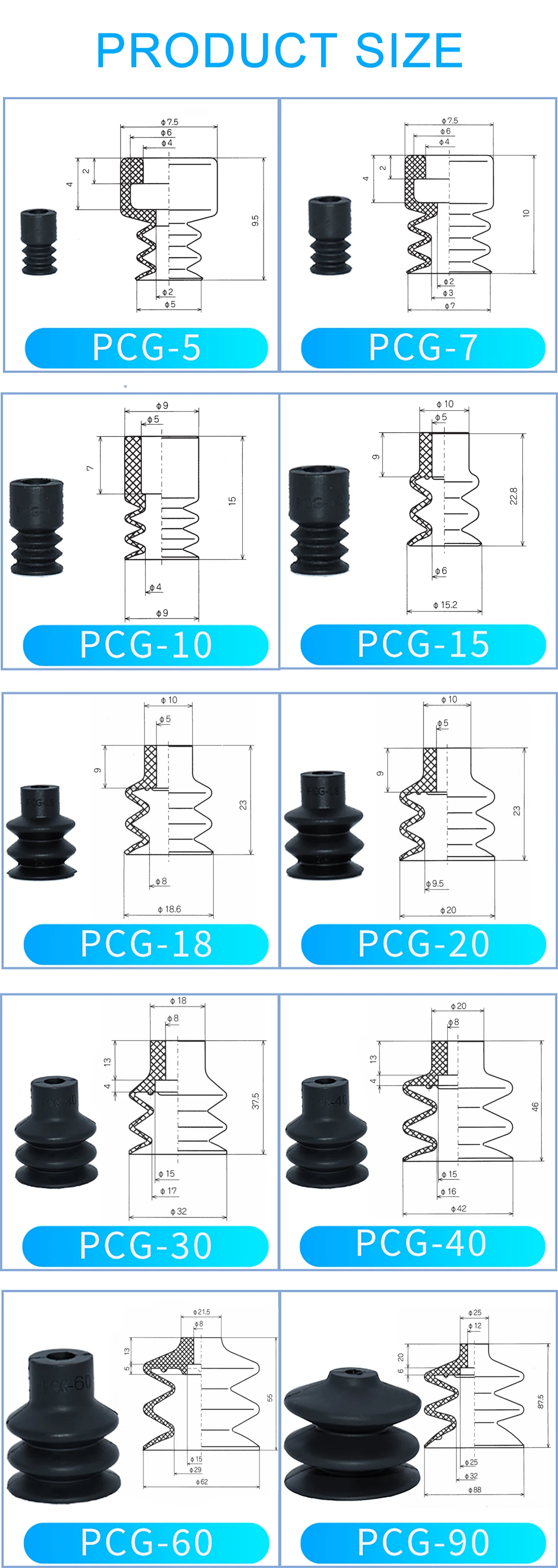

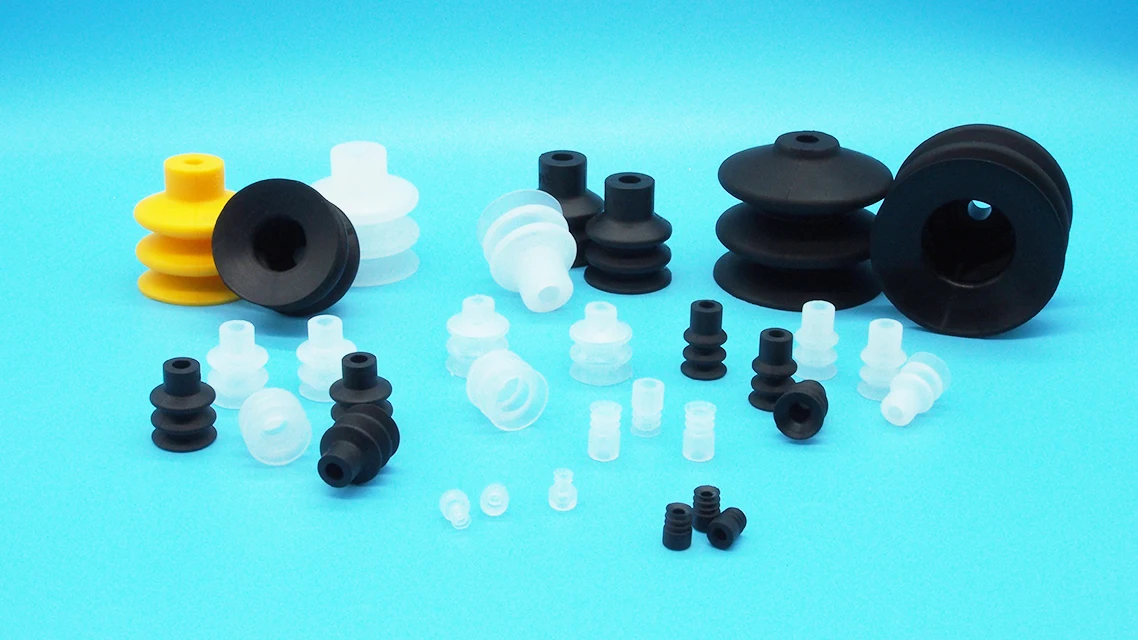

4. the products size 5 mm to 90 mm in Diameter
5. comply with ROHS REACH CP65 and Food grade
6. OEM for specified color and free charge Logo Added

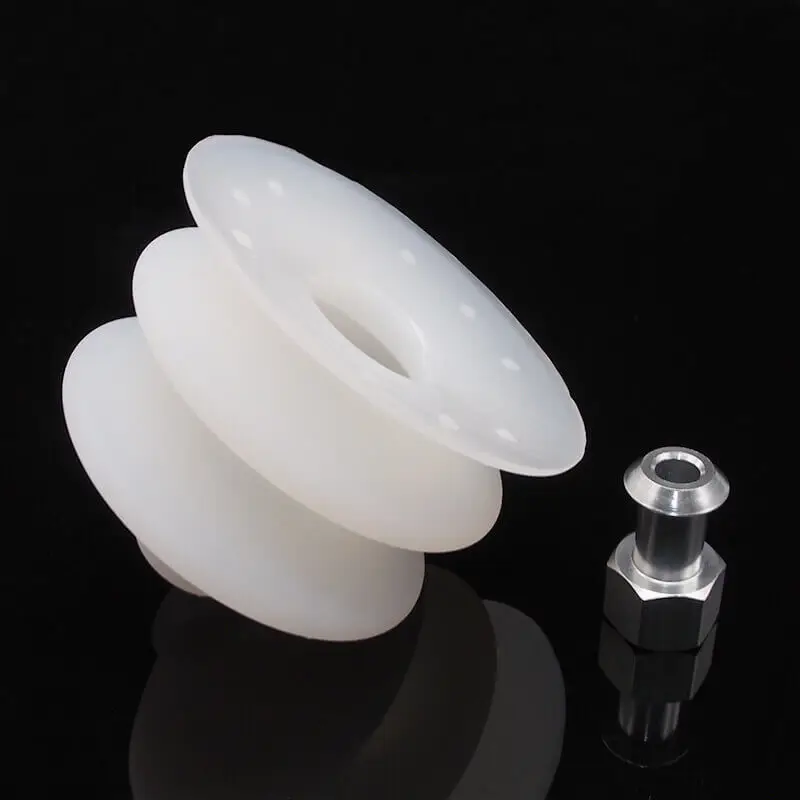

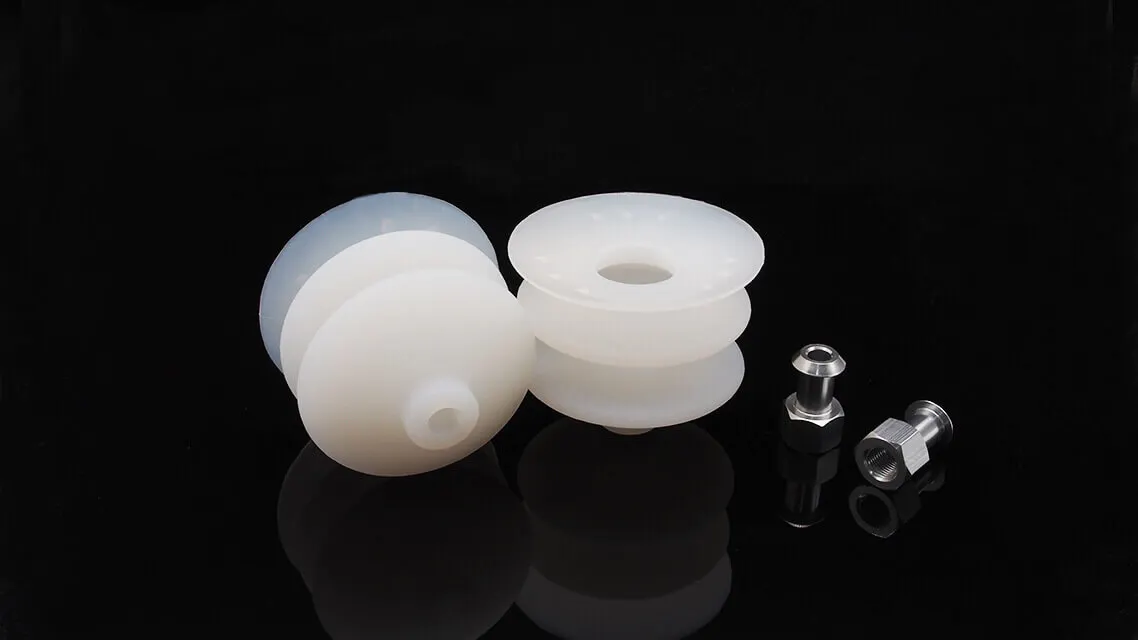

7. Fitting:Male &Female Thread Connector in Aluminium & Nickel plated brass

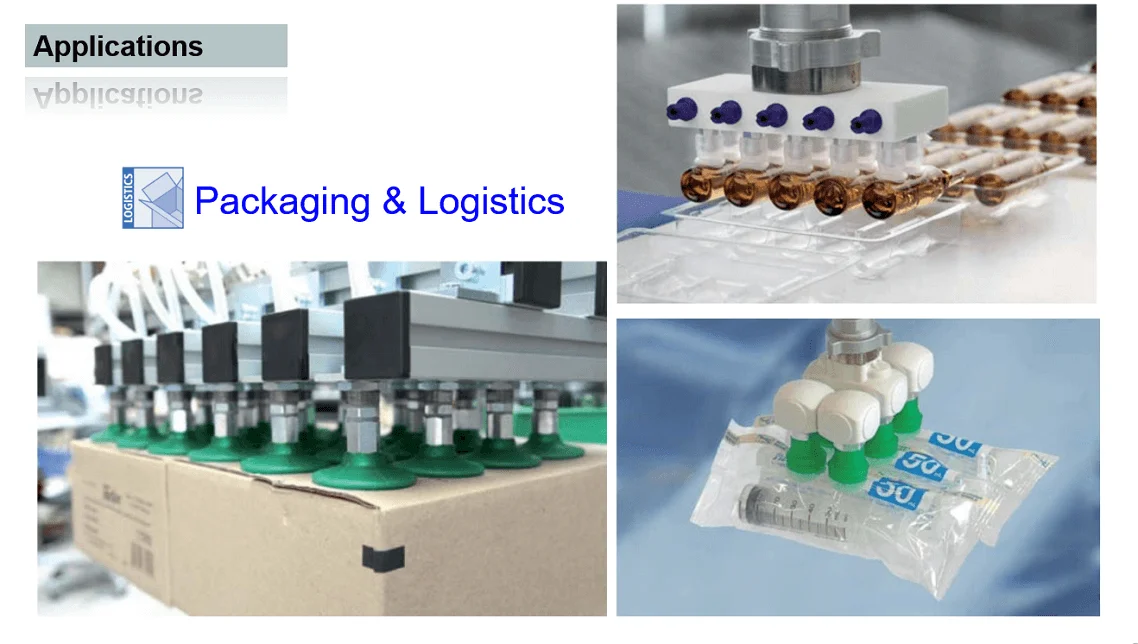

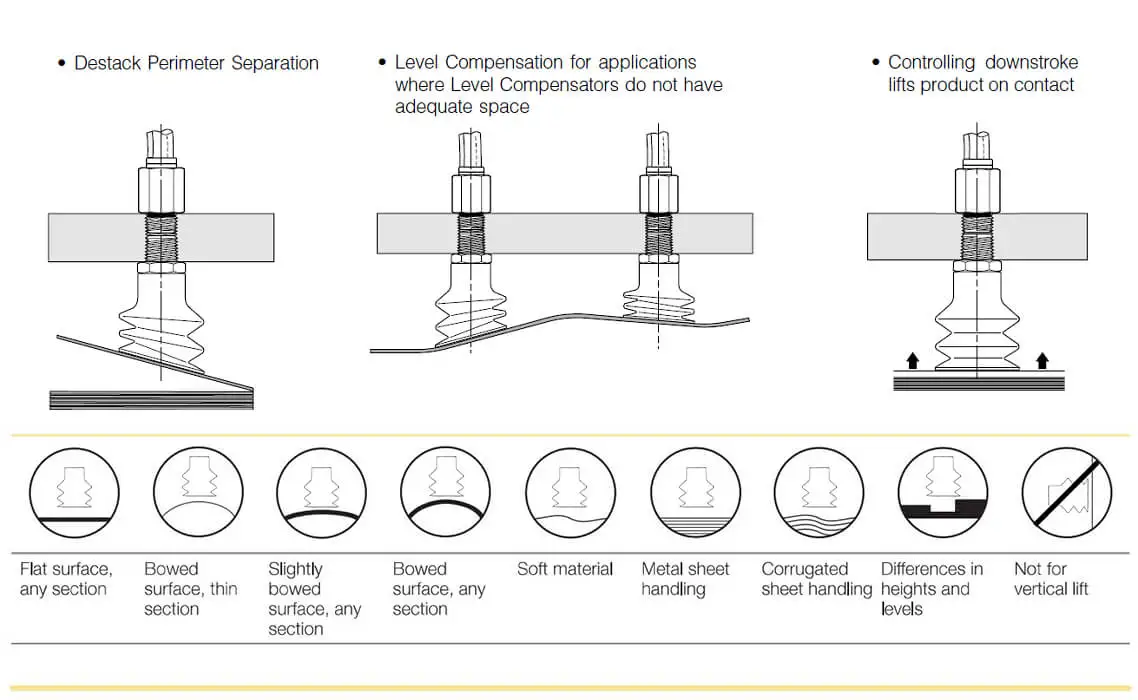

Applications

These multiple bellow cups are designed for applications that require additional level compensation, more flexibility, or minimum back pressure for a “soft touch”. The multiple bellow has a soft sealing edge good for a variety of sensitive applications; such as food packaging, CD / DVD, medical packaging, and highly irregular curved surfaces. Cups can also be used to assist with sheet separation in destack operations.



Operating information
Cup material	Nitrile	Nitrile ESD*	Silicone	Silicone ESD*	Urethane
Material Code	NBR	NE	S	SE	U
Work Temp.	­30℃ to 120℃ (­22℉ to 248℉)	­20℃ to 100℃ (-4℉ to 212℉)	­60℃ to 250℃ (­76℉ to 482℉)	­30℃ to 220℃ (­22℉ to 428℉)	­20℃ to 75℃ (­4℉ to 167℉)
Color	Black	Black with Yellow Dot	Translucent	Black / Red Dot	Blue
Hardness, shore A (°Sh)	50±5	50±5	50±5	50±5	60±5
Electrical resistance(Ωm)	——	800 to 1000	——	5 to 15	——
*ESD:Electric Static Dissipative Materical
