Superior quality coaxial cable RG58 RG8X RG213 RG223 RG214 RG316 RG402
- Category: >>>
- Supplier: Shenzhen Tianjukeli Communication Cable Co. Ltd.
Share on (1600539339546):
Product Overview
Description
Product Paramenters

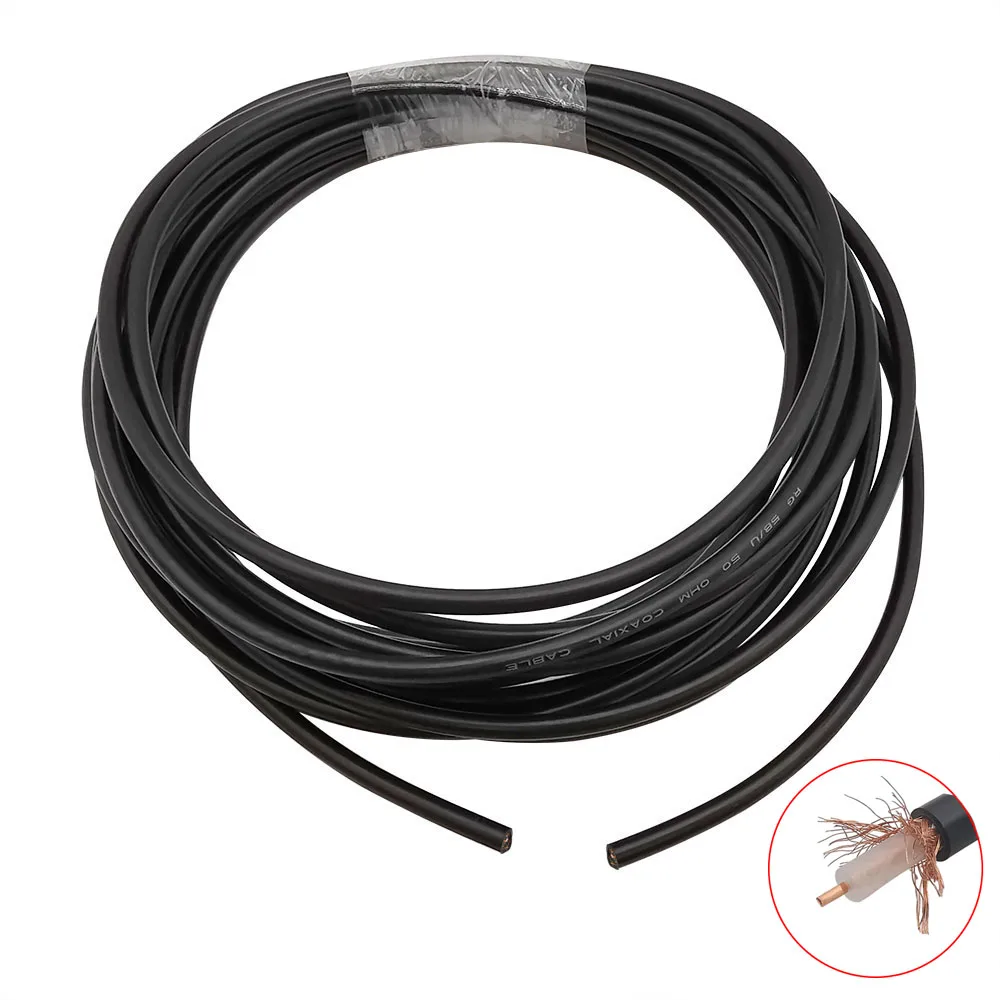

High quality low loss RG58 coaxial cable 1m-300m | ||||

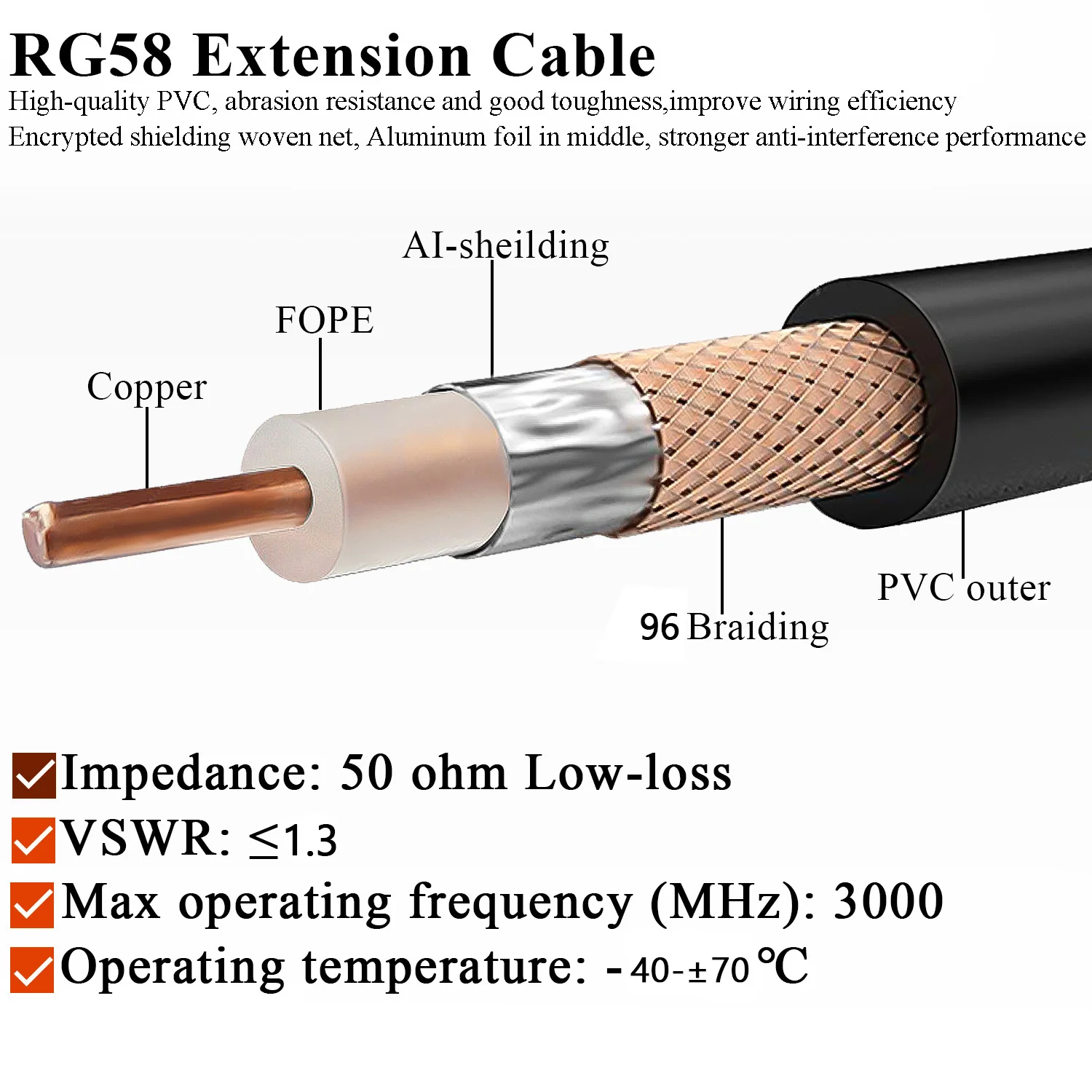

Mechanical Characteristics and Electrical Performance Parameters | ||||

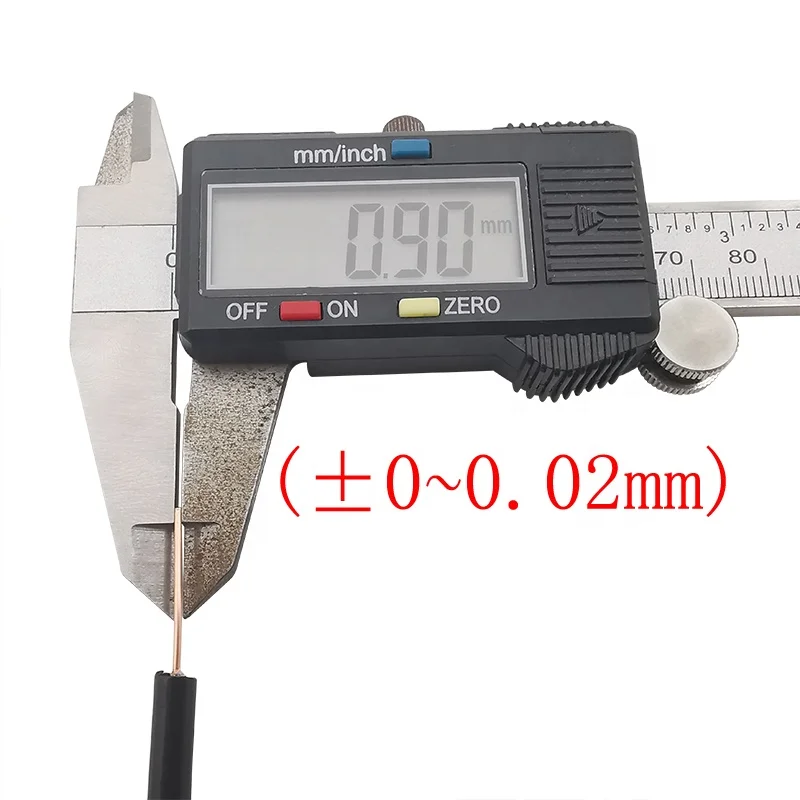

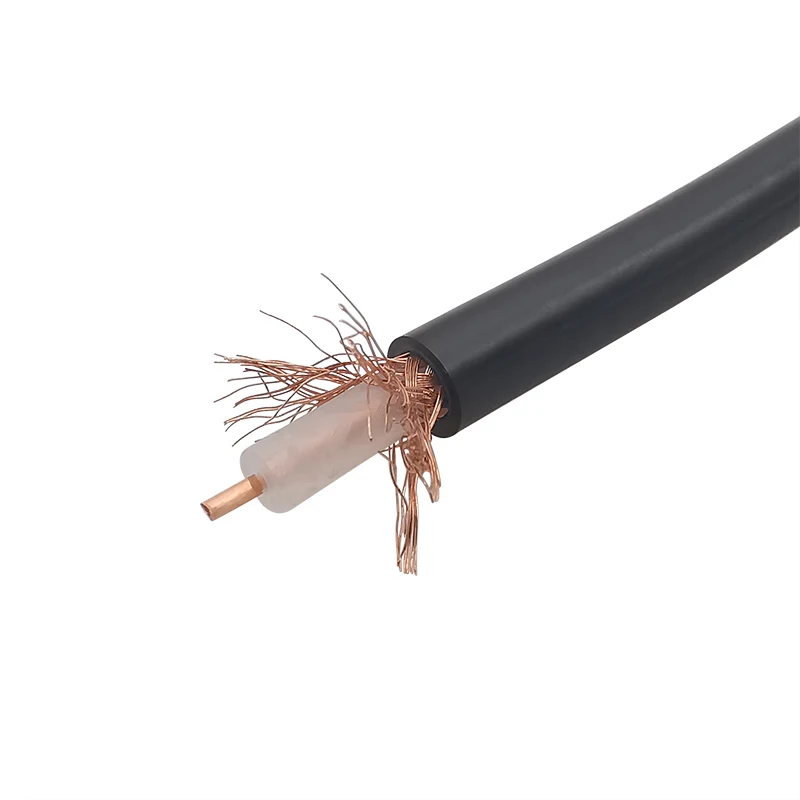

1、 Inner Conductor | Bare Copper Ф0.9±0.009mm | |||
2、Dielectric | PE(Foam PE ) Ф2.95±0.05mm | |||
3、Outer Conductor | single-sided aluminum tape（13*0.035）Ф3.05±0.1mm | |||
4、Braid | Bare Copper （16*6*0.10）Ф3.5±0.1mm | |||
5、Jacket | Polyvinyl chloride（PVC） Ф5.0±0.1mm | |||
Mechanical Characteristics | ||||
1、Impedance | 50±2Ω（Ohms） | |||
2、Capacitance | 96±2PF/M | |||
3、Velocity | 66% | |||
4、Peak Power | 1.8KW | |||
5、V.RMS | 3000V | |||
6、Inner Conductor Dc resistance | ≯27.11ohms/1000m | |||
7、OuterConductor Dc resistance | ≯25ohms/1000m | |||
8、(GHz)cutoff Frequency | 15G | |||
9、OperatingTemperature ºC | -20～70ºC | |||
10、Min Bend Radius | 50mm | |||
11、Pull strength of the insulation | 3～6lb/in | |||
12、Sheath of the drawing force | 3～8lb/in | |||
12、The surfac quality sheath | The sheath surface is smooth, bright, no network and other visual defects | |||
13、jacket-Marking | RG58 meters | |||

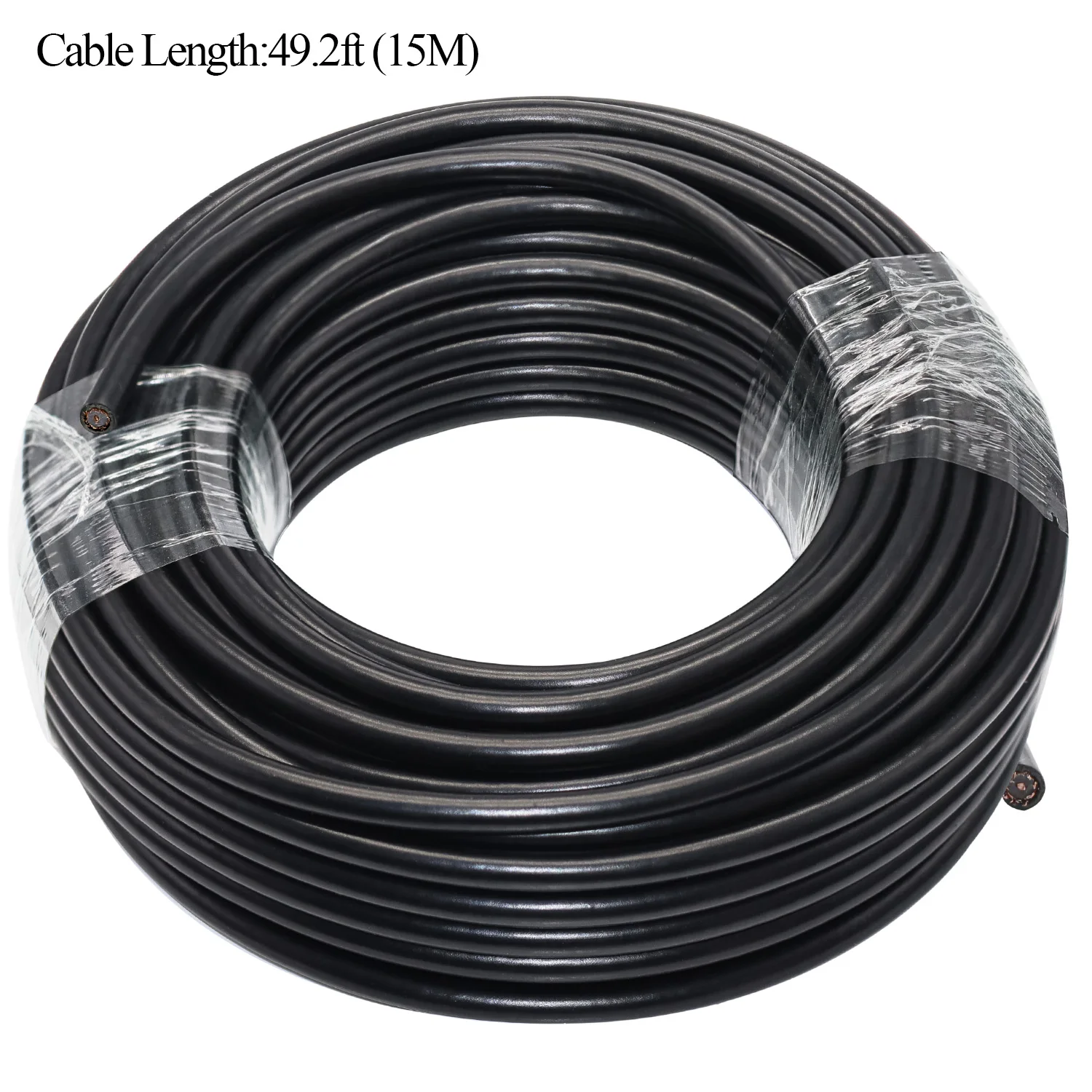

14、Reel Length | 1M、2M、5M、10M、15M、20M……200M | |||
15、(>dB)(Screening attenuation) | 90 | |||
16、VSWR | 5～3000MHZ | <1.20 | ||

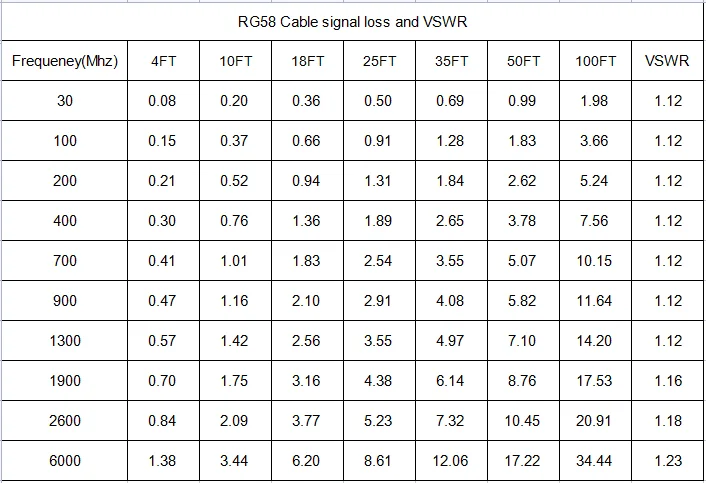

Typical attenuation of sea level at 20°C | ||||
frequency | Attenuation dB/100m | note | ||
100 | 7.66 | |||
400 | 21.2 | |||
900 | 43.2 | |||
1500 | 69.6 | |||
1800 | 76.6 | |||
2500 | 93.2 | |||
3000 | 105.2 | |||
Products Description
Processing and customization service
Welcome to custom machining

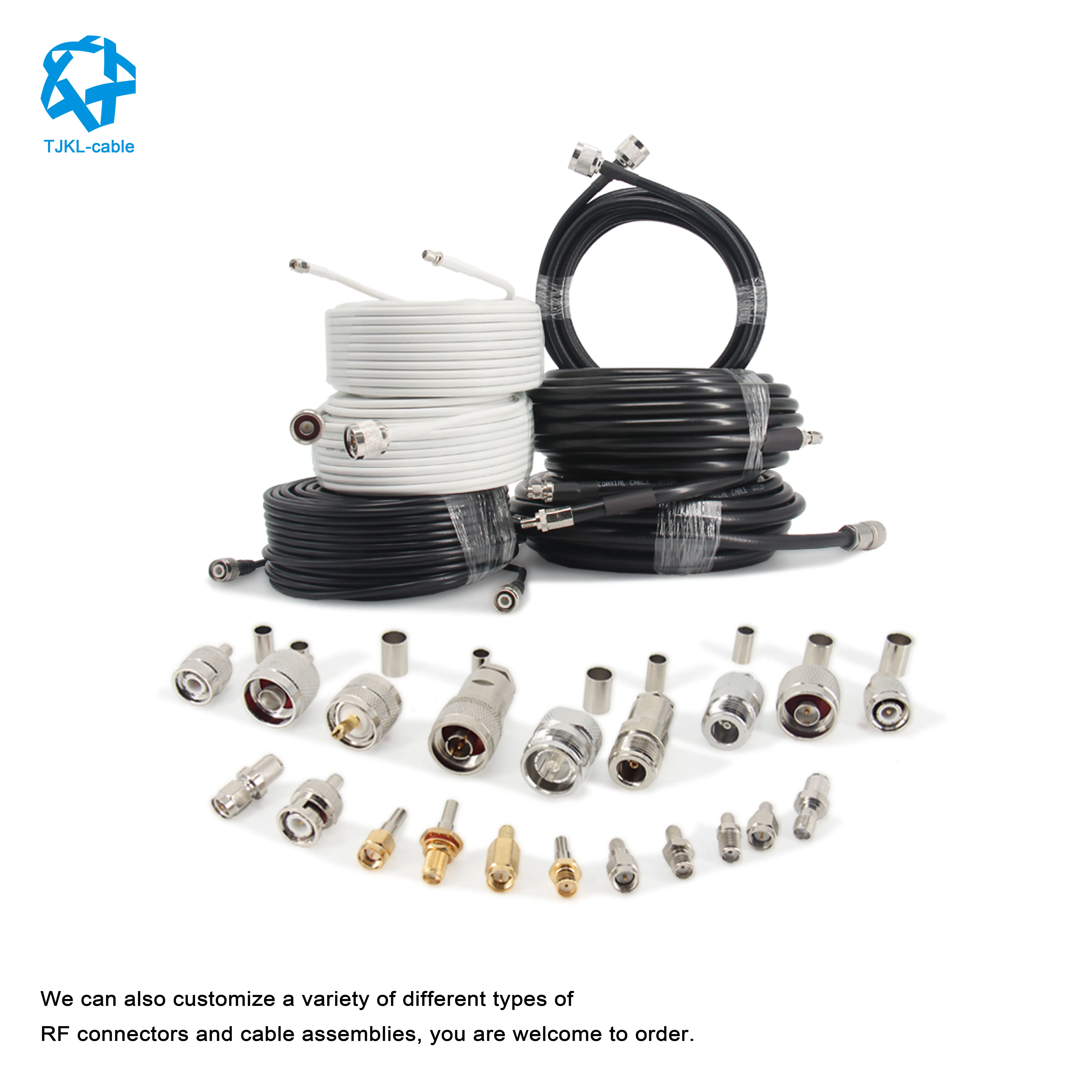

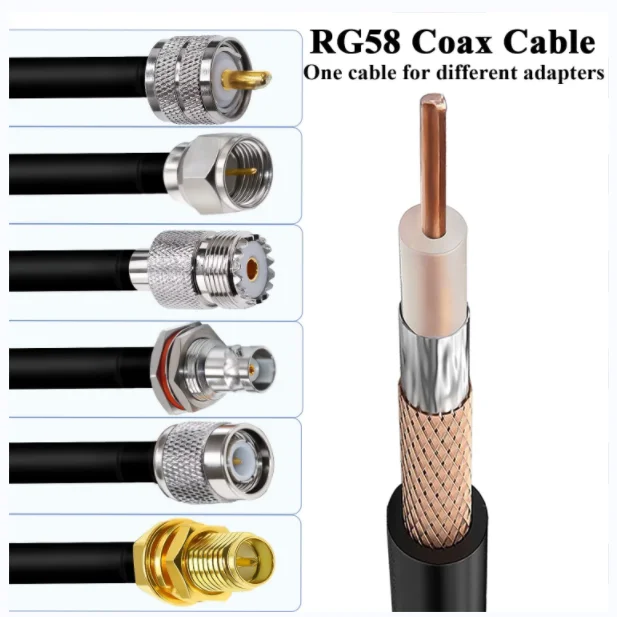

We can also provide a variety of different types of RF connector cable components, connector, cable material can be customized.

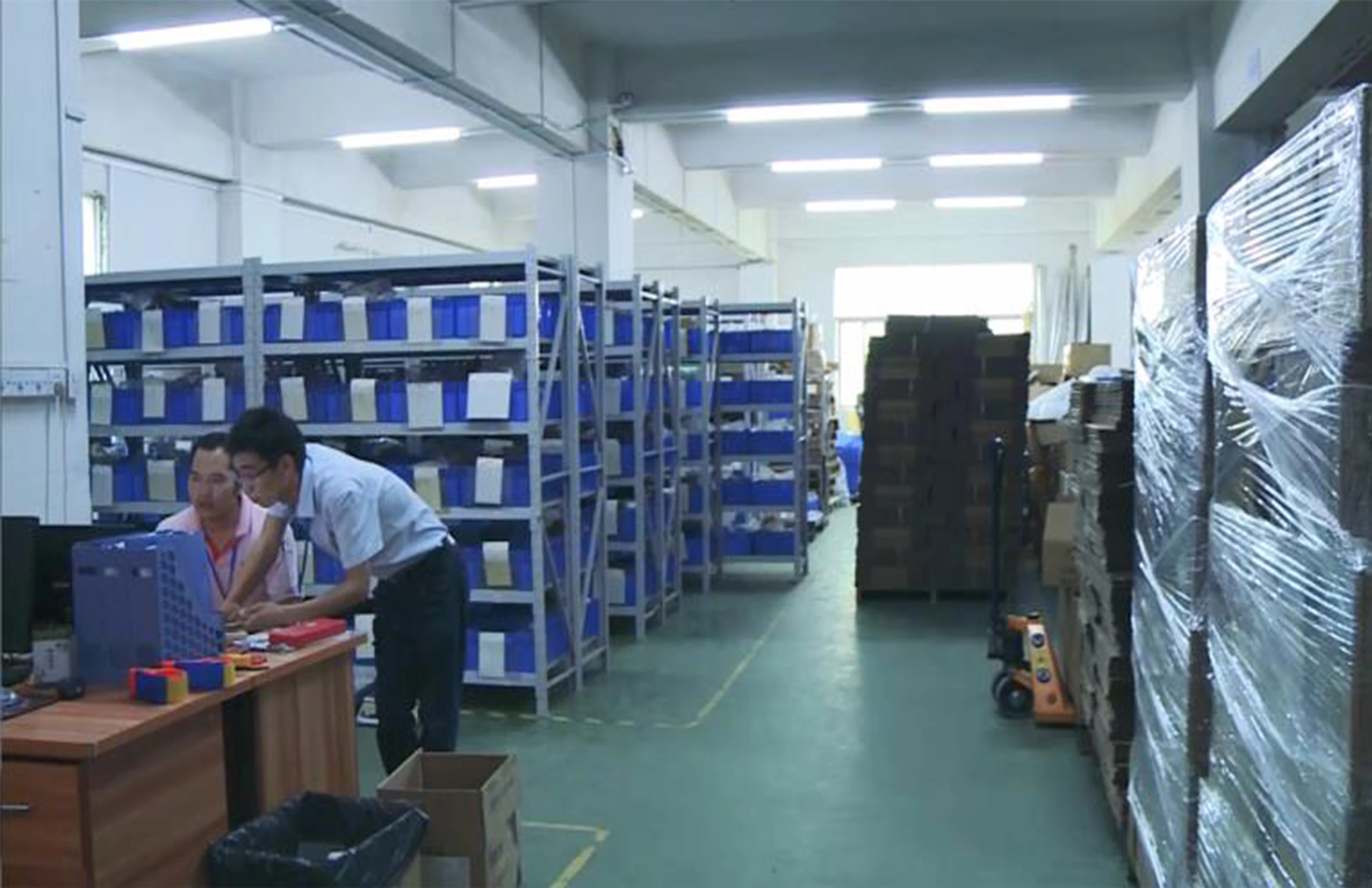

Product packaging and transportation
Product packaging and transportation
PackingWe have 10 years of experience packing and shipping abroad. We would make sure the goods arrive safely.Shipping
We would help you choose the shipping option that makes the most sense for you. Provide the destination of your shipment, sort
your results by time or cost to find the most cost-effective shipping service.
Our Advantages
Shenzhen tianjukeli communication cable co., LTD. Is mainly engaged in production, development and sales of mid to high-end RF
coaxial cable and RF cable components enterprises, specializing in production high-quality communications cable and professional
connector components solutions, Our products are widely used in broadcasting and television, mobile communication, microwave
communication, tunnel communication, military electronics, communication terminals, aerospace and other fields.
coaxial cable and RF cable components enterprises, specializing in production high-quality communications cable and professional
connector components solutions, Our products are widely used in broadcasting and television, mobile communication, microwave
communication, tunnel communication, military electronics, communication terminals, aerospace and other fields.

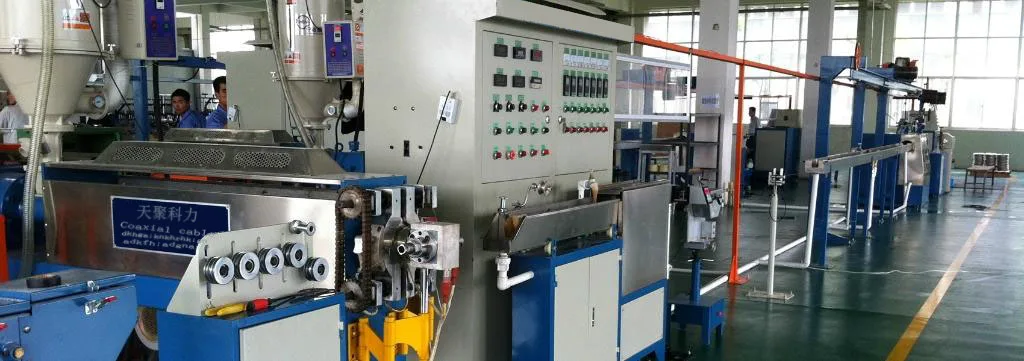

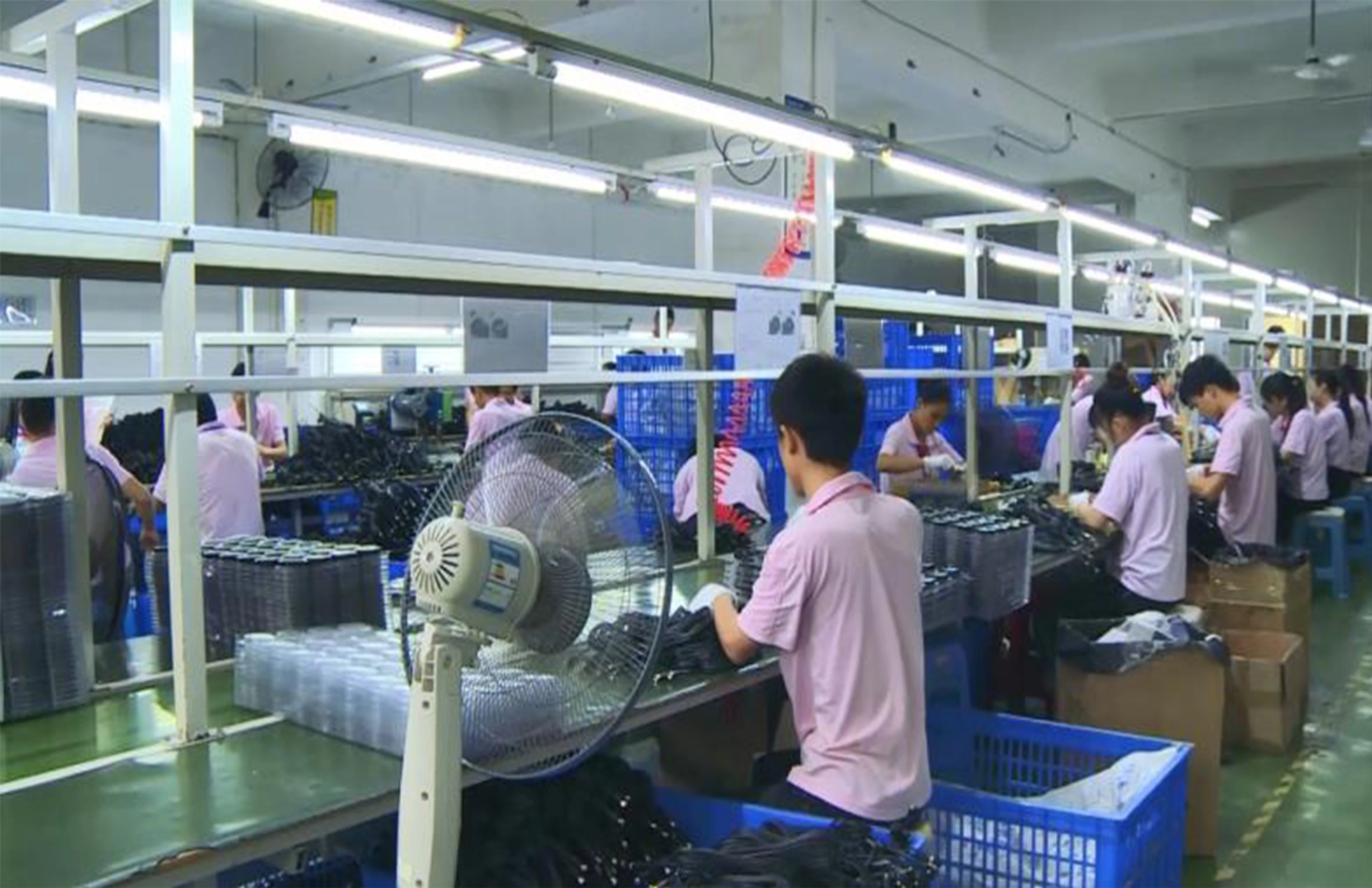

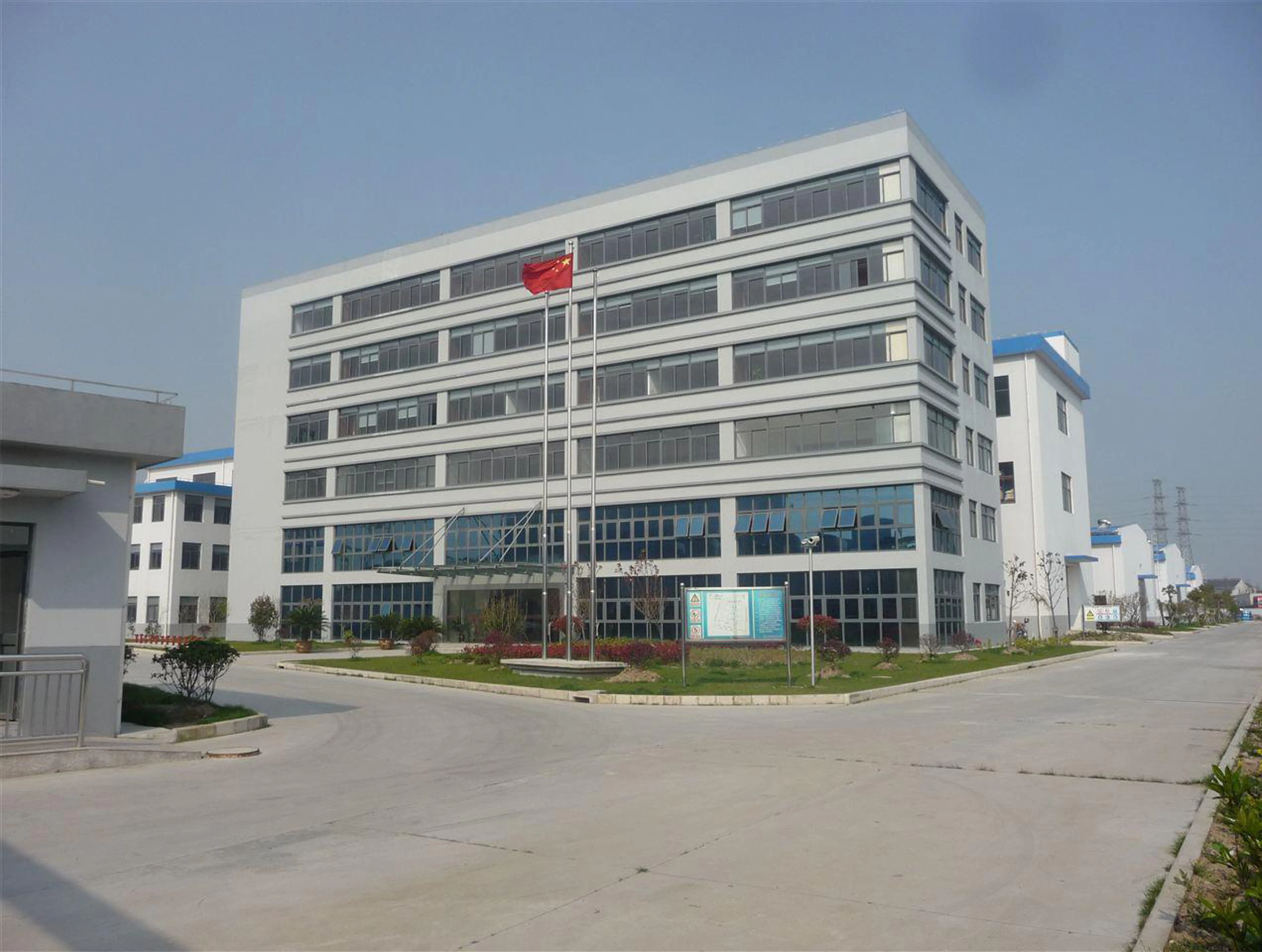

We have a 5,000 square meter factory, 60 employees and a complete supply chain. In order to ensure the quality of our products, we
have introduced high-end production technology and testing equipment, and about 12% of our sales revenue is used for research and
development every year. To prove to our customers that we have stable technical support and continuous innovation.
have introduced high-end production technology and testing equipment, and about 12% of our sales revenue is used for research and
development every year. To prove to our customers that we have stable technical support and continuous innovation.
We have a strong sales team and are willing to help you. We will help you from product selection to shipping.
Certifications and Licenses
Contact Us
FAQ
Frequently Asked Questions
Q: What is your product?
The company's main products are divided into two parts: cables and antennas. Cable products include: TLMR low-loss cables and components, RG series American cables and components, D-FB series cables and components, SYV series cables and components, etc. Antenna products include: ESC antenna, TD smart antenna, integrated beautification antenna, base station/relay antenna, 2.4g/3g/4g/3.5g/5.8g antenna, sector antenna, panel/wall/panel, fiberglass antenna, Yagi antenna, The frequency and log periodic antennas of products such as ceiling antennas cover 88MHz to 5.8G.
Q: How long is the production time?
Sample 5 days. 10-14 days for less than 1000 pieces, negotiation for more than 10,000 pieces
Q: How is the quality of your products?
A: All our products have strict quality control procedures and are 100% tested before shipment. Our cable engineers have over 10 years of experience.
Q: Can you customize coaxial cables?
A: Of course! We have a professional R&D team. Cables can be customized to meet different lengths and uses. OEM and ODM
Q: Can you provide free samples for testing?
A: We can provide some lower samples for free. Usually, for new customers, you pay the sample fee first, but when you place an order, we will refund the sample fee to you.
Q: When can you ship?
A: It depends on the quantity of the order and whether we have stock. Delivery time is usually 2-12 days.
Q: What are your payment terms?
A: We accept Trade Assurance, T/T, Western Union, Paypal, etc.
30% deposit after order confirmation, 70% balance before shipment.
Q: What are your working hours? How can I contact in an emergency?
Our working hours are from 8:00 am to 18:00 pm. We can be contacted by email, QQ, WeChat, or telephone.
Q: What is your product?
The company's main products are divided into two parts: cables and antennas. Cable products include: TLMR low-loss cables and components, RG series American cables and components, D-FB series cables and components, SYV series cables and components, etc. Antenna products include: ESC antenna, TD smart antenna, integrated beautification antenna, base station/relay antenna, 2.4g/3g/4g/3.5g/5.8g antenna, sector antenna, panel/wall/panel, fiberglass antenna, Yagi antenna, The frequency and log periodic antennas of products such as ceiling antennas cover 88MHz to 5.8G.
Q: How long is the production time?
Sample 5 days. 10-14 days for less than 1000 pieces, negotiation for more than 10,000 pieces
Q: How is the quality of your products?
A: All our products have strict quality control procedures and are 100% tested before shipment. Our cable engineers have over 10 years of experience.
Q: Can you customize coaxial cables?
A: Of course! We have a professional R&D team. Cables can be customized to meet different lengths and uses. OEM and ODM
Q: Can you provide free samples for testing?
A: We can provide some lower samples for free. Usually, for new customers, you pay the sample fee first, but when you place an order, we will refund the sample fee to you.
Q: When can you ship?
A: It depends on the quantity of the order and whether we have stock. Delivery time is usually 2-12 days.
Q: What are your payment terms?
A: We accept Trade Assurance, T/T, Western Union, Paypal, etc.
30% deposit after order confirmation, 70% balance before shipment.
Q: What are your working hours? How can I contact in an emergency?
Our working hours are from 8:00 am to 18:00 pm. We can be contacted by email, QQ, WeChat, or telephone.
