Waste metal baler, aluminum cans scrap metal press baler machine

Product Overview

Description

                        Waste metal baler, aluminum cans scrap metal press baler machine

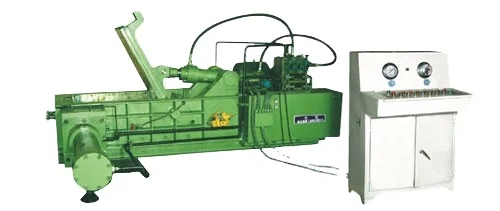

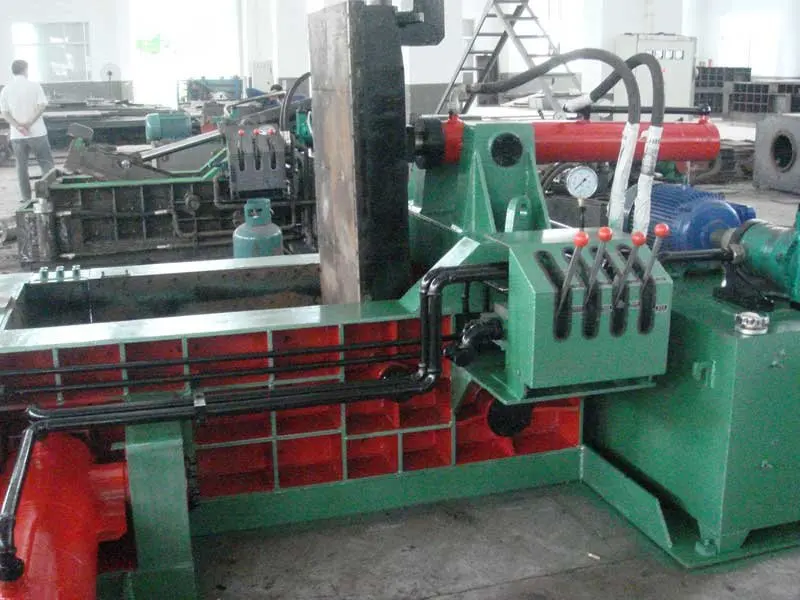

Y81 series Horizontal hydraulic metal scrap compression baler is mainly used in compressing tile scattered plastic ferrous metal and non-ferrous metal plates and wire rod to certain form block under cold state. it is very convenient to the transportation and smelting.



The Horizontal hydraulic metal scrap compression baler adopts the electro hydraulic drive. It includes manual and automatic control the operation is convenient,performance is reliable.The baled block call be pushed out from side, the baled block can be transported directly.





Item	Unit	Y81-160	Y81-160A	Y81-200	Y81-250	Y81-315	Y81-400	Y81-600
Pressure of main cylinder	KN	1600	1600	2000	2500	3150	4000	6000
ID of main cylinder	MM	280	280	320	340	400	450	550
Baling champer	MM	1200X700 X550	1600X800 X800	1600X1200 X800	2000X1200 X800	2000X1400 X1200	2500X1600 X1200	2800X200 X1200
Final bale size	MM	300X300	350X350	350X400	450X450	450X500	500X600	600X700
Baled block density	KG/M3	≥1800	≥1800	≥1800	≥1800	≥1800	≥1800	≥1800
Productiveity	TON/SHIFT	12-16	16-20	24	30	30-36	36-50	80
Power	KW	18.5/22	18.5/22	30	30	37	44	90
Baler discharging		turn out	turn out	push out turn out	push out turn out	push out turn out	push out turn out	side out
Machine weight	TON	8	12	20	28	32	40	90

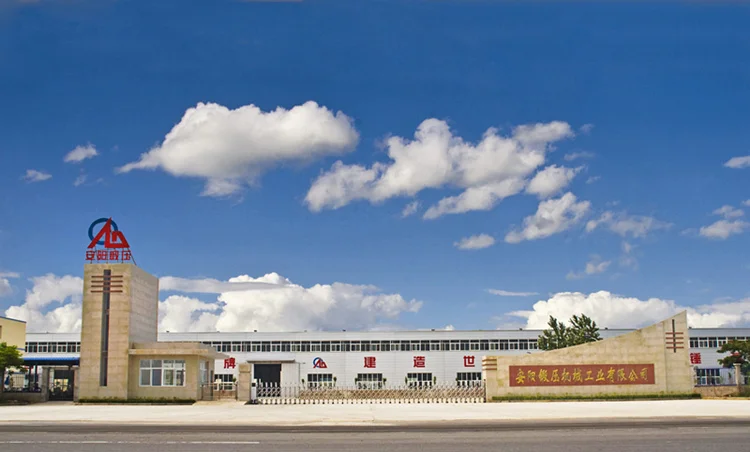

Introduction of Anyang Forging Press Machinery Industry Co., Ltd



Anyang Forging Press (Group) Machinery Industry Co., Ltd is the biggest forging hammer manufacturer in China, Our company has 60 years history in Producing forging hammer. Our company has been identified as the national high-tech company. We drafted the national standard for CNC fully hydraulic die forging hammer, Electric hydraulic forging hammer, Pneumatic forging hammer. Our company is one of the high-tech and high-growth enterprise in Henan Province. We are the executive director of China Forging Association and the Vice President of Henan Forging Association.



Our company has passed ISO9001: 2008 quality certificate and our hammer have passed CE certification. Two products have been given the original certificate to protect the best quality machines.



Our company covers about 60 acres with four branch factories. Our company has the provincial level products designed research center and has sales center, after-sales center, quality control and management center, machining center and large heat treatment and product assembly center, which can provide the compete set of forging equipment.



Our products have been exported to USA, Germany, UK, France, Austrialia, India, Vietnam, Pakistan etc 60 countries and gain high reputation all over the world.



Our company follows the principle to service for the forging industry development for forging customers and pursuit the satisfaction of customer. We will offer the high-quality products and service to contribute our effort for the development of world forging industry.
