Gobel BYD 302Ah 300Ah 310Ah 320Ah LiFePO4 Cells 3.2V Lithium Ion Phosphate Batteries 320ah LiFePO4 for 12V 24V 48V 300Ah
- Category: >>>
- Supplier: Shenzhen Good Leader Technology Co. Ltd.
Share on (1600539368072):
Product Overview
Description
* Compared with traditional AGM/lead acid batteries, LiFePO4 battery/ Lithium iron phosphate batteries are:
* Higher safety and stability：non-toxic, non-polluting, no rare earth metals, no explosion, no fire.
* Long service life：10 times lifespan extended to 2000-4500 cycles.* 1/4 lighter than lead-acid batteries.
* The LFP battery can work in a wide temperature range from -20 to +75°C
* No memory effect. Can be charged on demand without loss of capacity.
* Suitable for RV, ship, home storage, telecommunication (base station battery)
* High energy density up to 1C-280A discharge
Manufacture | Gobel |
Distributor | Gobel |
Distributor | China |
Model Name | BYD 302 |
Typical Voltage | 3.2V |
Typical Capacity | 300Ah~320Ah |
Cycle Life | 3500 |
AC Impedance Resistance | ≤0.5mΩ |
Standard Charge Current/ | 0.5C |
Discharge Current | 0.5C |
Standard Charge Cut-off Voltage | 3.65V |
Standard Discharge Cut-off Voltage | 2.5V |
Continuous ChargeCurrent | 1C |
Continuous Discharge Current | 1C |
Pulse Charge Current（60s） | 2C |
Pulse Discharge Current（60s） | 2C |
Recommended SOC Window | 10%~90% |
Charging Working Temperature | 0°c~60°c |
Discharging Working Temperature | -30°c~60°c |
Short Term Storage Temperature (≤ 1 Month) | -20°c~45°c |
Long Term Storage Temperature (≤ 1 Year) | 0°c~35°c |
Storage Moisture | <95% |
Self Discharging Rate | ≤3% per Month |
Screw Size | M6 |
Copper Bar Size | 86 * 15 *2mm |

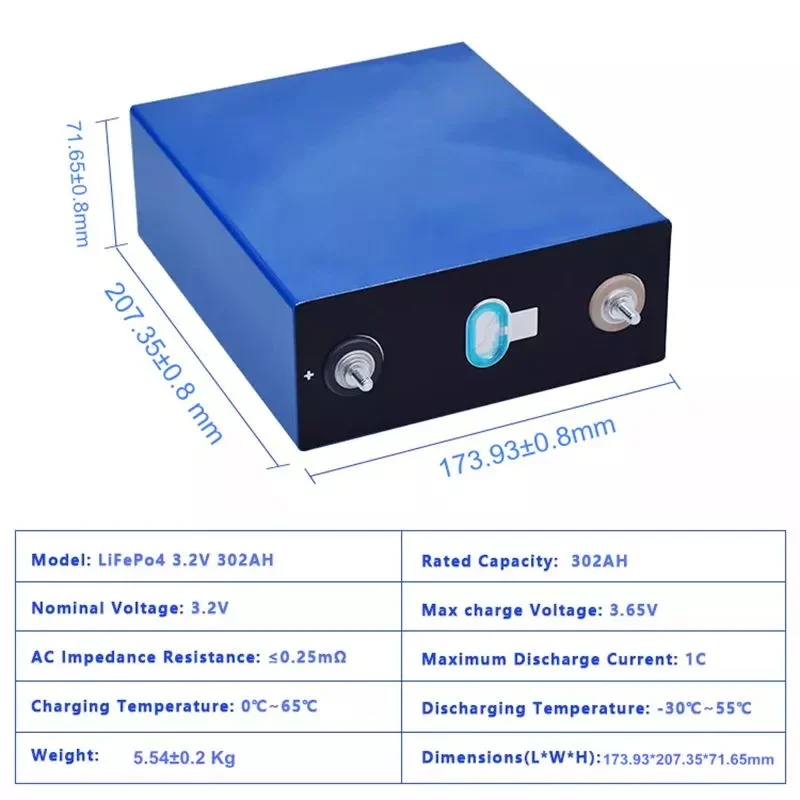

Cell Dimension | 207 * 71.5 *173.6mm |
Cell Weight | 5.6kg |
Certification | MSDS， UN38.3， CE |
