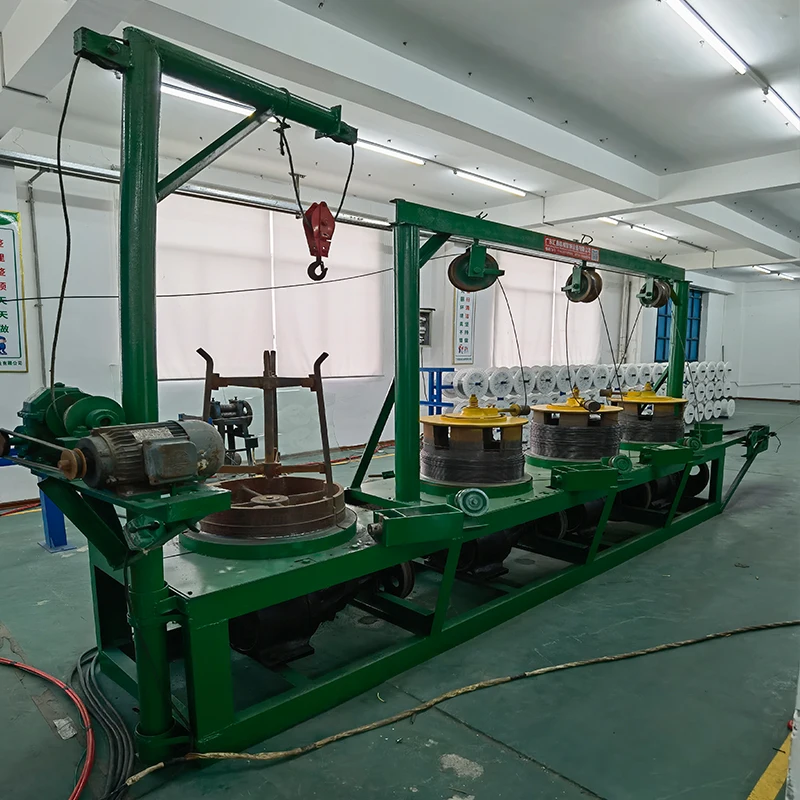

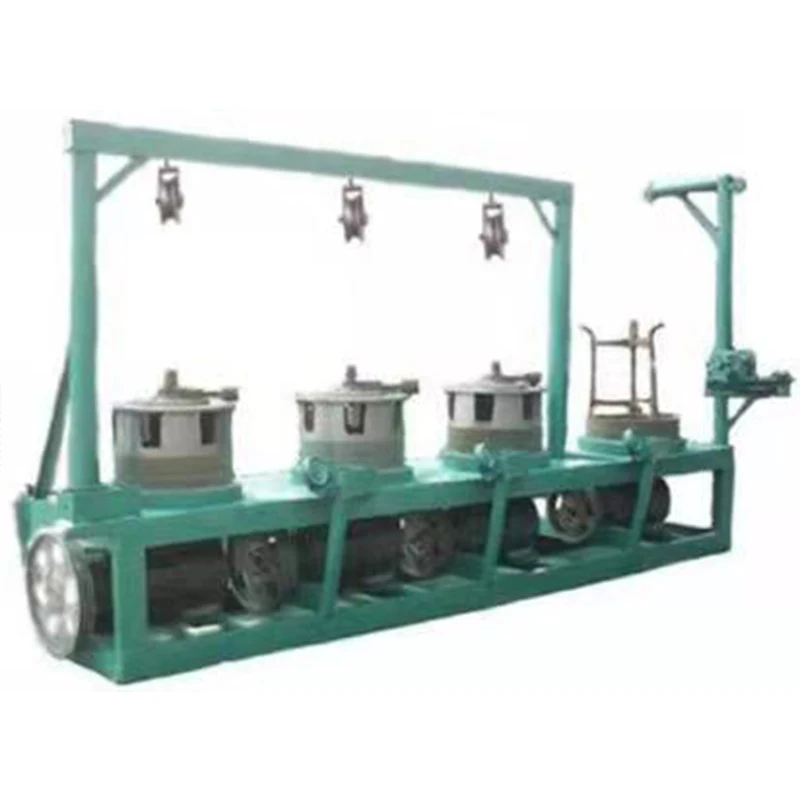

Noise pulley type wire drawing machine cheap and efficient linear wire drawing machine manufacturers
- Category: >>>
- Supplier: Guangdong Huixin Machinery Intelligent Equipment Co. Ltd.
Share on (1600539370162):
Product Overview
Description

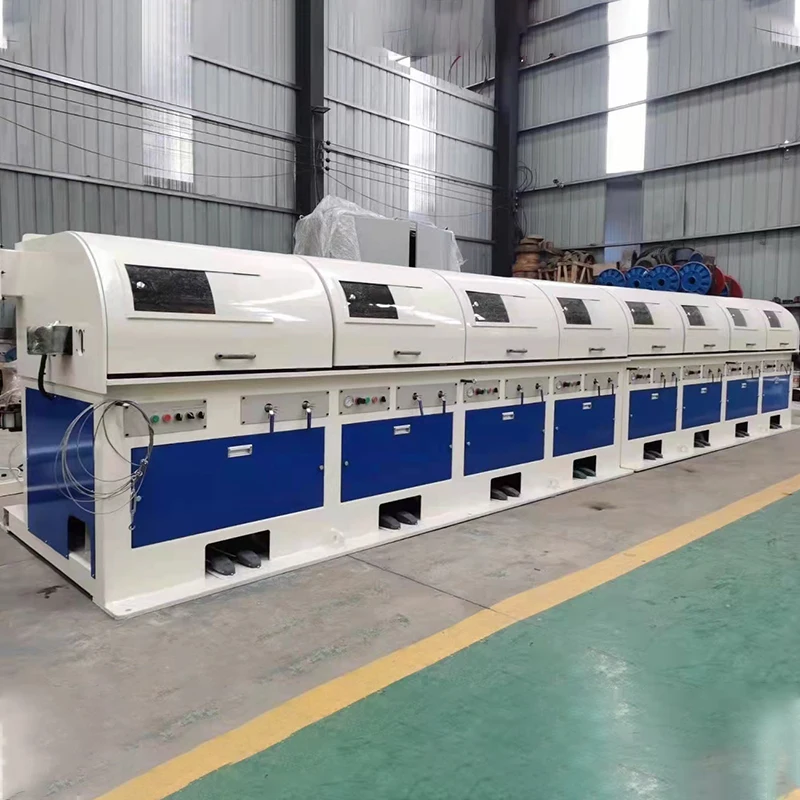

With the introduction, assimilation and absorption of the foreign advanced technology and its essence, the straight line type wire
drawing machine developed & produced by our factory is a kind of wire drawing equipment suitable for drawing the steel wire with
higher tensile strength & performance. This kind of machine fits the production of tyre cords, bead wires, wire for steel ropes,
stainless steel wires and carbon dioxide gas shield welding wires, etc.
drawing machine developed & produced by our factory is a kind of wire drawing equipment suitable for drawing the steel wire with
higher tensile strength & performance. This kind of machine fits the production of tyre cords, bead wires, wire for steel ropes,
stainless steel wires and carbon dioxide gas shield welding wires, etc.
● Easy in installation and maintenance.
●Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
●Running in a high automatization and intellectualization,no pollution
●As the use of the frequency technology, changes in the larger context of parts of the compression ratio to meet the wide range of
technology and high speed drawing.
●Good cooling system, final wire quality is very good.
●Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
●Running in a high automatization and intellectualization,no pollution
●As the use of the frequency technology, changes in the larger context of parts of the compression ratio to meet the wide range of
technology and high speed drawing.
●Good cooling system, final wire quality is very good.
Specification
Model | LZ400 | LZ560 | LZ600 | LZ800 |
Capstan diameter | 400mm | 560mm | 600mm | 800mm |
Drawing dies | 9 | 9 | 9 | 9 |
Inlet wire diameter | Φ2.5-4.5 mm | Φ5.5-6.5 mm | Φ6.5-8.0 mm | Φ8.0-10.0 mm |
Outlet wire diameter | Φ0.8-1.4 mm | Φ1.6-2.0 mm | Φ2.0-3.0 mm | Φ2.8-3.5 mm |
Drawing speed | 10-16 m/s | 8-12 m/s | 6-12 m/s | 6-10 m/s |
Total reduction rate | 90.32% | 90.53% | 90.53% | 90.53% |
Motor power | 11-15 kw | 30-37 kw | 30-37 kw | 37-75 kw |
Size | 12 m*1.5 m*1.8 m | 12 m*1.5 m*1.8 m | 12 m*1.5 m*1.8 m | 12 m*1.5 m*1.8 m |
FAQ
Q: What's the packing of the machine?
A:In wooden pallet, In plastic film, the spare parts and cabinet packed by wooden box.
Q: What's the payment term?
A:Usually by T/T ( 30% in advance, the balance against the copy of B/L),or L/C at sight.
Q: Can I change the motor as my local voltage?
A:We can change the voltage as your requirement, and there's no extra charge.
Q: How do your control quality?
A:We have an inspection team to check the products at all stages of the manufacturing process.
Q:What parameter is necessary?
A:The wire diameter, mesh size, mesh width ect are mainly needed, detailed information would be appreciated, special requirement can be discussed.
A:In wooden pallet, In plastic film, the spare parts and cabinet packed by wooden box.
Q: What's the payment term?
A:Usually by T/T ( 30% in advance, the balance against the copy of B/L),or L/C at sight.
Q: Can I change the motor as my local voltage?
A:We can change the voltage as your requirement, and there's no extra charge.
Q: How do your control quality?
A:We have an inspection team to check the products at all stages of the manufacturing process.
Q:What parameter is necessary?
A:The wire diameter, mesh size, mesh width ect are mainly needed, detailed information would be appreciated, special requirement can be discussed.
