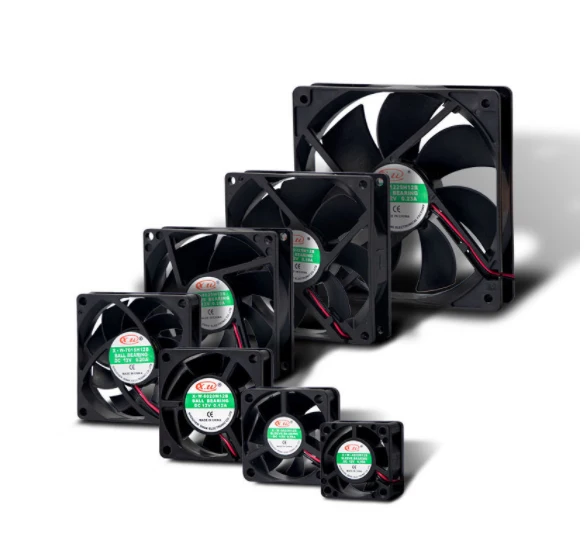

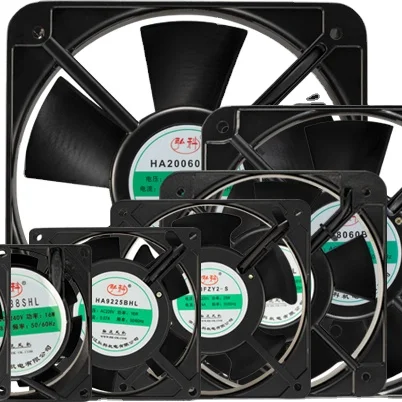

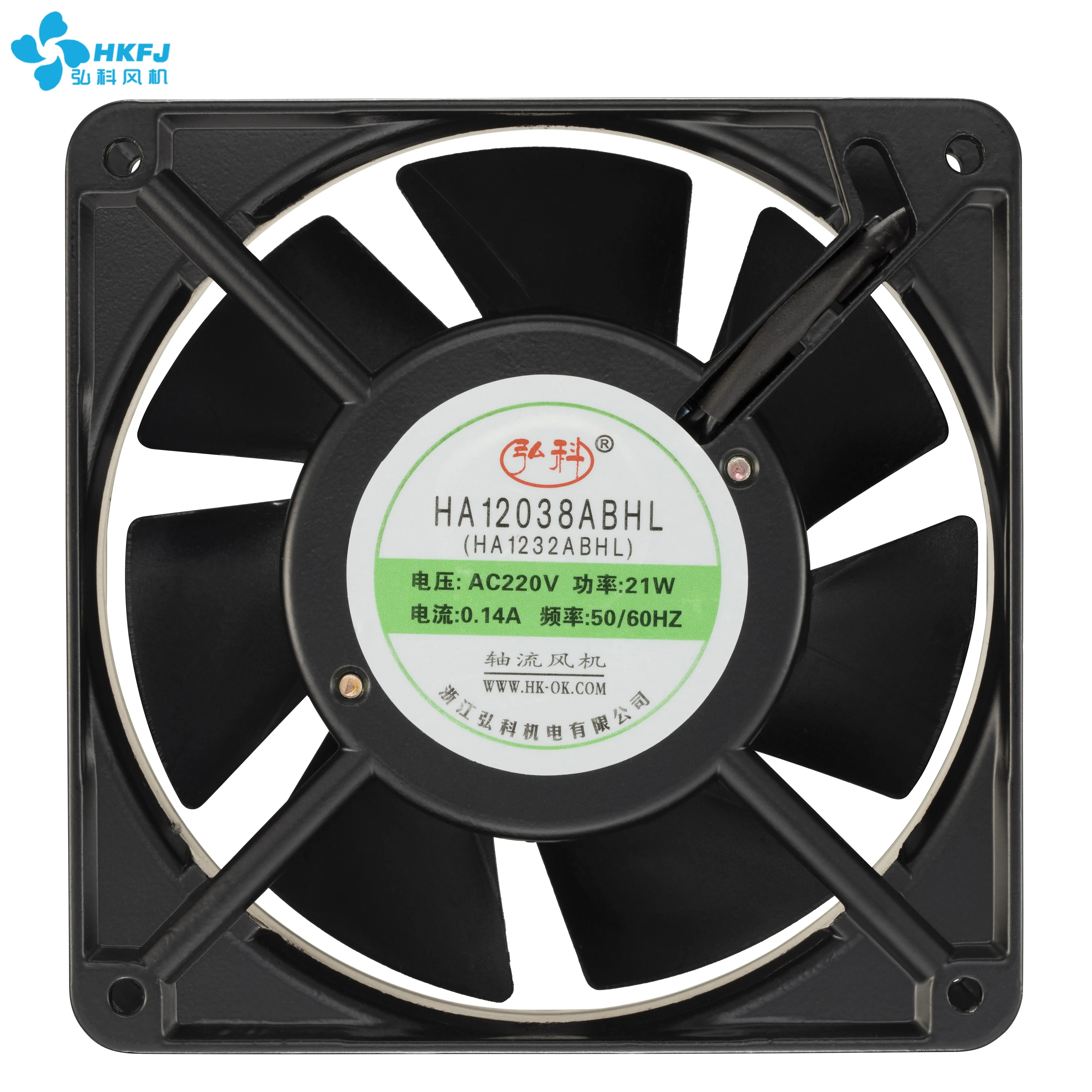

Hongke small axial fan 12038 series cooling fan extractor fan
- Category: >>>
- Supplier: Zhejiang Hongke Electromechanical Co. Ltd.
Share on (1600539371398):
Product Overview
Description
Hongke small axial fan is a high quality product of all copper core motor with small volume and long service life, which can realize the cold and hot airflow exchange of various equipment. The product has the advantages of low noise and high efficiency.Our fans are especially suitable for ventilation, heat dissipation, air conditioning, refrigeration and other industries.
Color | Black |
Material | Copper coil motor Aluminium alloy housing |
Shape | square |
characteristic | Mute |
defects liability period | 1 year |
Voltage | 220V,380V |
Brand Name | hongke |
small cooling fan
Turbine Air low noise max airflow rate

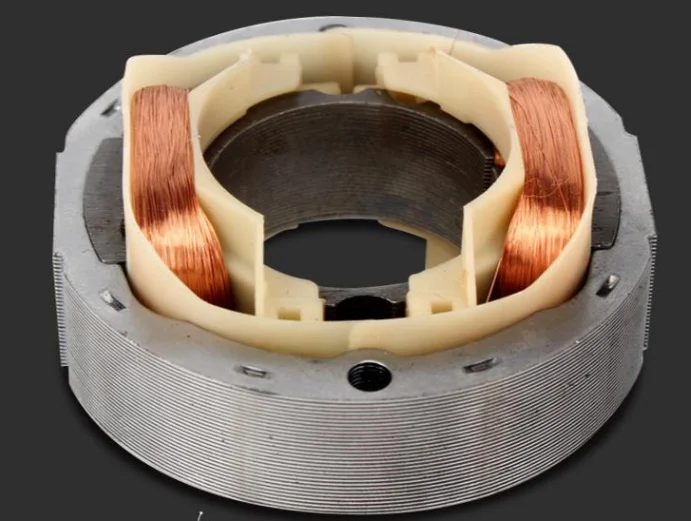

copper motor
Copper core coil, double ball bearing ,fast speed,less heat,small vibration, low noise, long service life
COPPER CORE COIL.DOUBLE BALL BEARING. FAST SPEED.LESS HEAT,LOW VIBRATION.LOW NOISE. LONG SERVICE LIFE

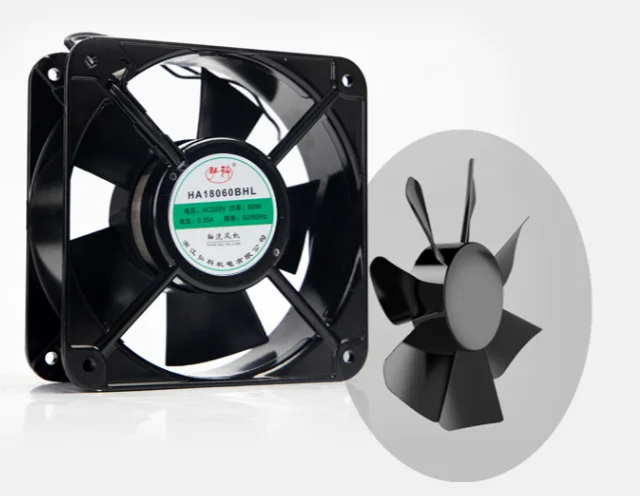

Safety Guarantee of flame retardant fan blade
ABS flame retardant fan blade,grinding technology treatment, no sticky dust,safe service life longer
ABS FLAME-RETARDANT FAN BLADE ,GRINDING TECHNOLOGY TREATMENT, NO STICKY DUST ,SAFE SERVICE LIFE LONGER

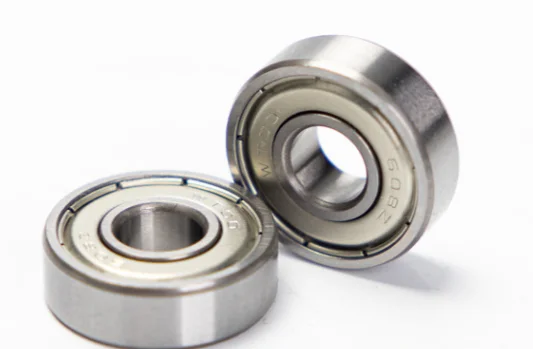

Boutique Grade Double ball
bearing durable for 50,000 hours
Greater centrifugal force, more smooth rolling ball, small bearing friction, low fever, fast heat dissipation
Grounder bearing is durable for 50,000 hours, porous bearing is durable for 30,000 hours\\LARGER CENTRIFUGAL FORCE,SMOOTHER BALL ROLLING.LOW SEARING FRICTION.LOW HEAT GENERATION
AND FAST HEAT DISSIPATION BALL BEARINGS ARE DURABLE FOR 50.000 HOURS AND OIL-IMPREGNATED BEARINGS ARE DURABLE FOR 30.000 HOURS

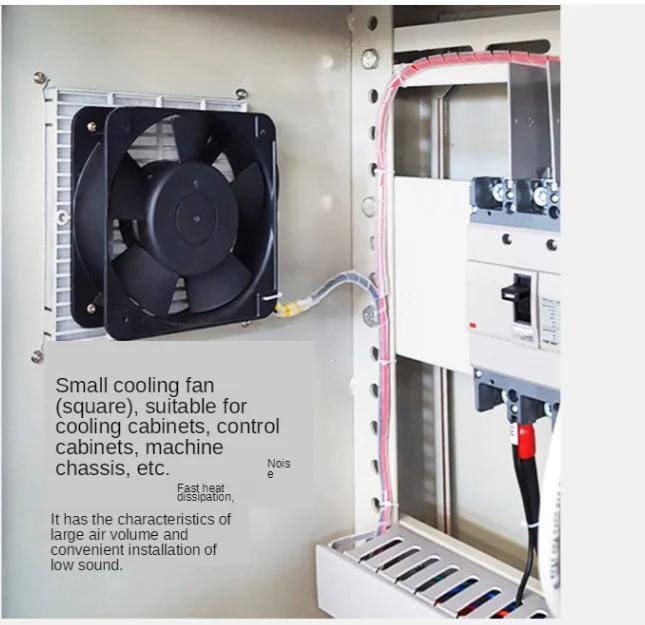

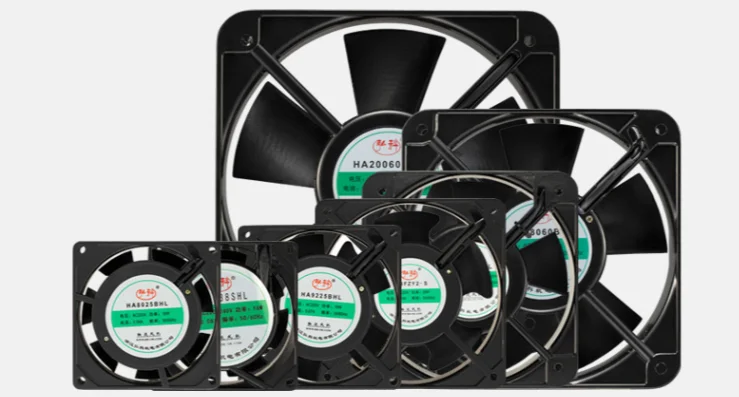

Usage scenarios
Small cooling fan small size, lightweight installation, wide application range

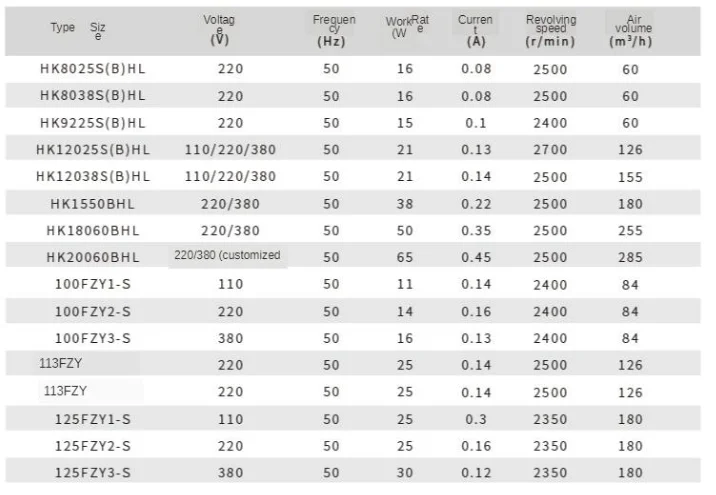

Technical installation parameters
Two options for the same model,BHL(B)represents a ball bearing
SHL(S)represents porous bearing
TWO OPTIONS FOR THE SAME MODEL BHL(B) STANDS FOR BALL BEARING SHL(S) STANDS FOR OIL BEARING
Product Name | Small cooling fan |
Model Product | HK8025S(B)HL |
Operating Voltage | AC220V |
Working Current | 0.08A |
Working Frequency | 50/60Hz |
Product Power | 16w |
Fan speed | 2500r/min |
Product Air volume | 60m³/h |
Product Name | Small cooling fan |
Model Product | HK8038S(B)HL |
Operating Voltage | AC 220V |
Working Current | 0.08A |
Working Frequency | 50/60Hz |
Product Power | 16W |
Fan speed | 2500r/min |
Product Air volume | 60m³/h |
Product Name | Small cooling fan |
Model Product | HK9225S(B)HL |
Operating Voltage | AC220V |
Working Current | 0.1A |
Working Frequency | 50/60Hz |
Product Power | 15w |
Fan speed | 2400r/min |
Product Air volume | 60m³/h |
Product Name | Small cooling fan |
Model Product | HK12025S(B)HL |
Operating Voltage | AC 110V/220V/380V |
Working Current | 0.13A |
Working Frequency | 50/60Hz |
Product Power | 21w |
Fan speed | 2700r/min |
Product Air volume | 126m³/h |
Product Name | Small cooling fan |

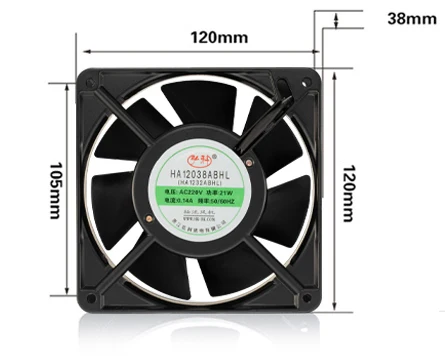

Model Product | HK12038S(B)HL |
Operating Voltage | AC 110V/220V/380V |
Working Current | 0.14A |
Working Frequency | 50/60Hz |
Product Power | 21w |
Fan speed | 2500r/min |
Product Air volume | 155m³/h |
Product Name | Small cooling fan |
Model Product | HK1550BHL |
Operating Voltage | AC220V/380V |
Working Current | 0.22A |
Working Frequency | 50/60Hz |
Product Power | 38w |
Fan speed | 2500r/min |
Product Air volume | 180m³/h |
Product Name | Small cooling fan |
Model Product | HK18060BHL |
Operating Voltage | AC220V/380V |
Working Current | 0.35A |
Working Frequency | 50/60Hz |
Product Power | 50W |
Fan speed | 2500r/min |
Product Air volume | 255m³/h |
Product Name | Small cooling fan |
Model Product | HK20060BHL |
Operating Voltage | AC220V/380V(定做） |
Working Current | 0.45A |
Working Frequency | 50/60Hz |
Product Power | 65W |
Fan speed | 2500r/min |
Product Air volume | 285m³/h |

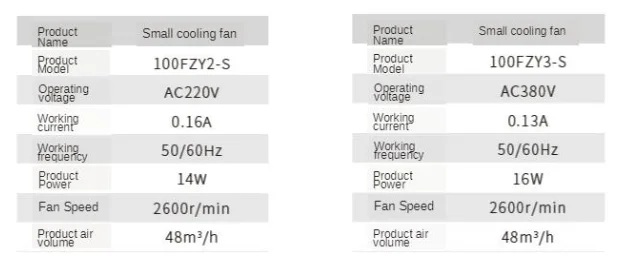

Product Name | Small cooling fan |
Model Product | 100FZY1-S |
Operating Voltage | AC110V |
Working Current | 0.14A |
Working Frequency | 50/60Hz |
Product Power | 11W |
Fan speed | 2600r/min |
Product Air volume | 48m³/h |
Product Name | Small cooling fan |
Model Product | 113FZY 2-S(ball/oil-containing) |
Operating Voltage | AC220V |
Working Current | 0.14A |
Working Frequency | 50/60Hz |
Product Power | 25W |
Fan speed | 2500r/min |
Product Air volume | 126m³/h |
Product Name | Small cooling fan |
Model Product | 125FZY 1-S |
Operating Voltage | AC110V |
Working Current | 0.3A |
Working Frequency | 50/60Hz |
Product Power | 25W |
Fan speed | 2700r/min |
Product Air volume | 92m³/h |
About us
Zhejiang Hongke Electric, founded in 2010, is a professional manufacturer of fans and supporting products. Committed to providing small and medium-sized enterprises with plant ventilation and equipment cooling solutions, we have enabled closed factories and equipment to “breathe” the natural outdoor air freely. With 10 years of development, we currently have a production workshop of 4,000 square meters, a warehouse center of 2,000 square meters, and 50 pieces of production and inspection equipment, and we employ over 100 professional production workers. Our presence has been expanded across China, serving over 300,000 clients.
Our products include axial flow fans, centrifugal fans, explosion-proof fans, external rotor axial flow fans, VF motor cooling fans, dry-type transformer fans, small blowers, cabinet cooling fans, boiler induced-draft fans, and high-pressure centrifugal fans. Factory ventilation and equipment cooling solutions are our two main product categories, and we also provide supporting services such as dedusting, boiler air inducing, and material transportation.
Quality is the cornerstone of Hongke. We are well aware that high quality is essential to solve clients’ problems and also the reason why our clients choose us. We will continue to improve our pre-sales and after-sales service systems and integrate the demand and expectations of clients into our value chain to improve product quality, develop and upgrade our products and services. In this way, our clients can be provided with more efficient solutions.
Hongke Fans unleash the full potential of wind!
Our products include axial flow fans, centrifugal fans, explosion-proof fans, external rotor axial flow fans, VF motor cooling fans, dry-type transformer fans, small blowers, cabinet cooling fans, boiler induced-draft fans, and high-pressure centrifugal fans. Factory ventilation and equipment cooling solutions are our two main product categories, and we also provide supporting services such as dedusting, boiler air inducing, and material transportation.
Quality is the cornerstone of Hongke. We are well aware that high quality is essential to solve clients’ problems and also the reason why our clients choose us. We will continue to improve our pre-sales and after-sales service systems and integrate the demand and expectations of clients into our value chain to improve product quality, develop and upgrade our products and services. In this way, our clients can be provided with more efficient solutions.
Hongke Fans unleash the full potential of wind!
FAQ
Q1: Wonder if you accept small orders?
A1: Do not worry. Feel free to contact us .in order to get more orders and give our clients more convener ,we accept small order.
Q2: Can you send products to my country?
A1: Do not worry. Feel free to contact us .in order to get more orders and give our clients more convener ,we accept small order.
Q2: Can you send products to my country?
A2: Sure, we can. If you do not have your own ship forwarder, we can help you.
Q3: Can you do OEM for me?
A3: We accept all OEM orders,just contact us and give me your design.we will offer you a reasonable price and make samples for you
ASAP.
Q4: What's your payment terms ?
A4: By T/T,LC AT SIGHT,30% deposit in advance, balance 70% before shipment.
Q5: How can I place the order?
A5: First sign the PI,pay deposit,then we will arrange the production.After finished production need you pay balance. Finally we
will ship the Goods.
Q7: When can I get the quotation ?
A7: We usually quote you within 24 hours after we get your inquiry. If you are very urgent to get the quotation.Please call us or
tell us in your mail, so that we could regard your inquiry priority.
Q3: Can you do OEM for me?
A3: We accept all OEM orders,just contact us and give me your design.we will offer you a reasonable price and make samples for you
ASAP.
Q4: What's your payment terms ?
A4: By T/T,LC AT SIGHT,30% deposit in advance, balance 70% before shipment.
Q5: How can I place the order?
A5: First sign the PI,pay deposit,then we will arrange the production.After finished production need you pay balance. Finally we
will ship the Goods.
Q7: When can I get the quotation ?
A7: We usually quote you within 24 hours after we get your inquiry. If you are very urgent to get the quotation.Please call us or
tell us in your mail, so that we could regard your inquiry priority.
