Product Overview
Description
Product Description

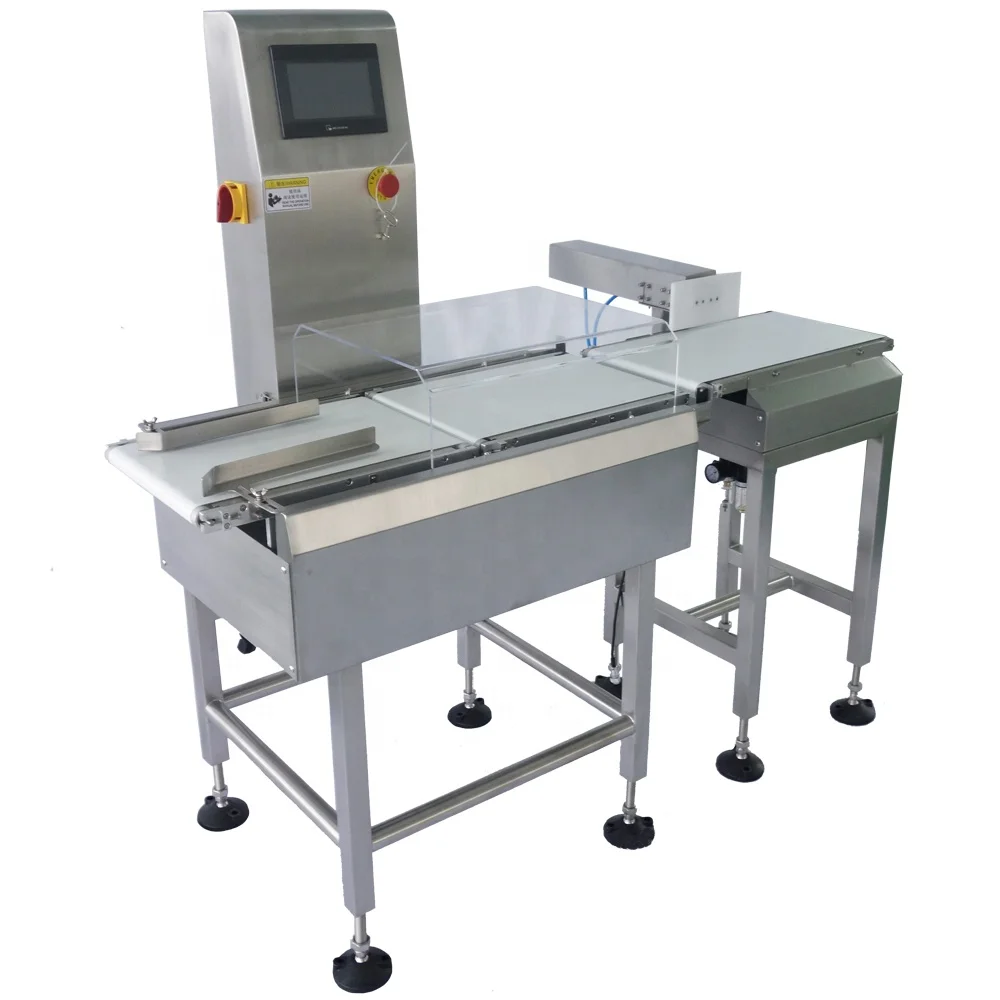

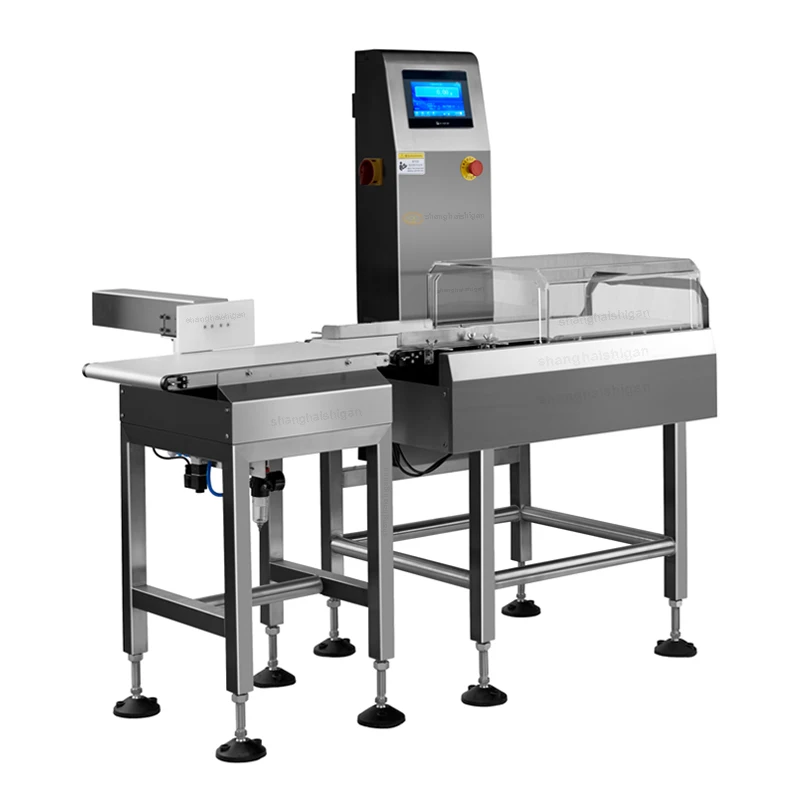

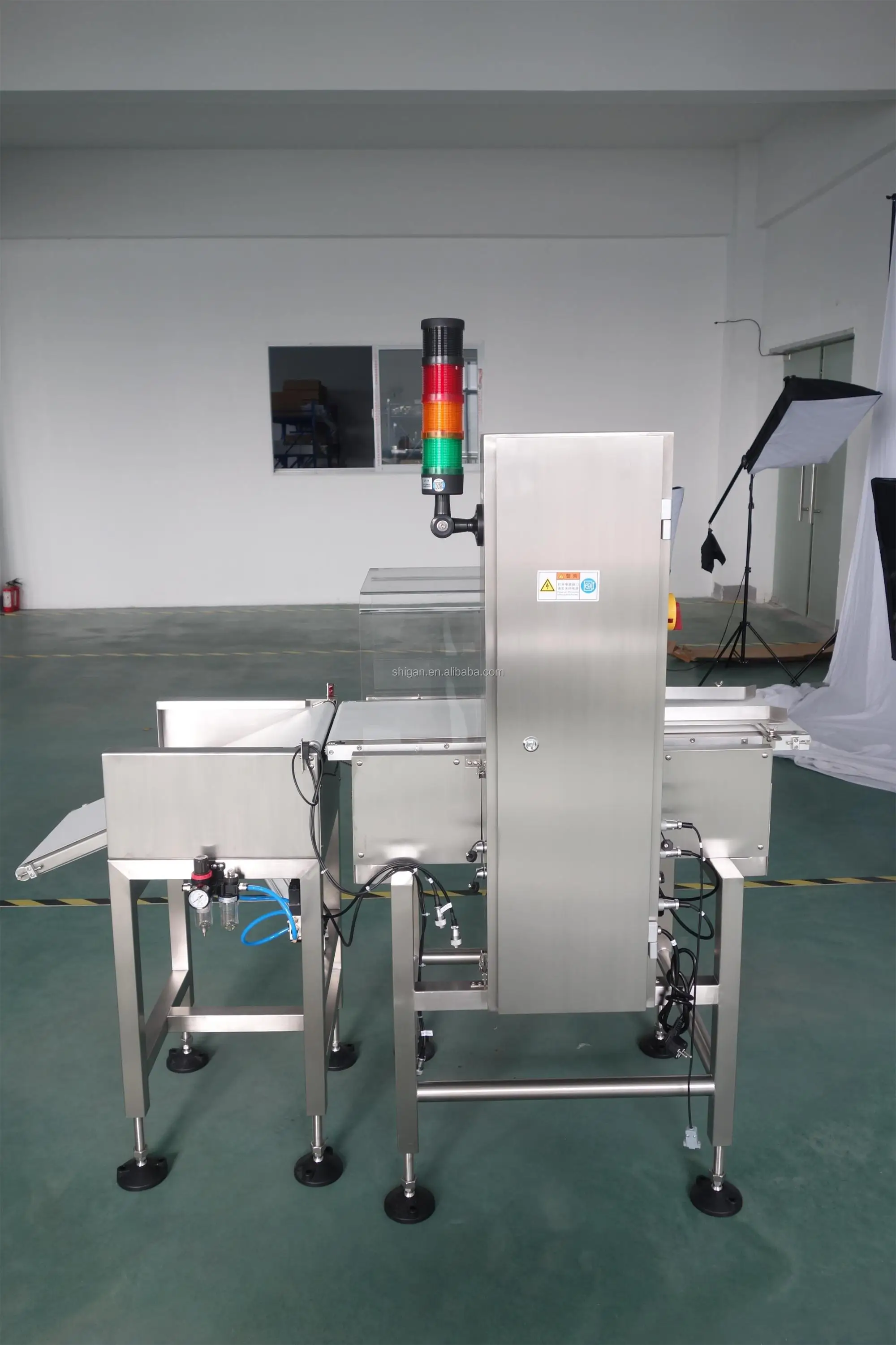

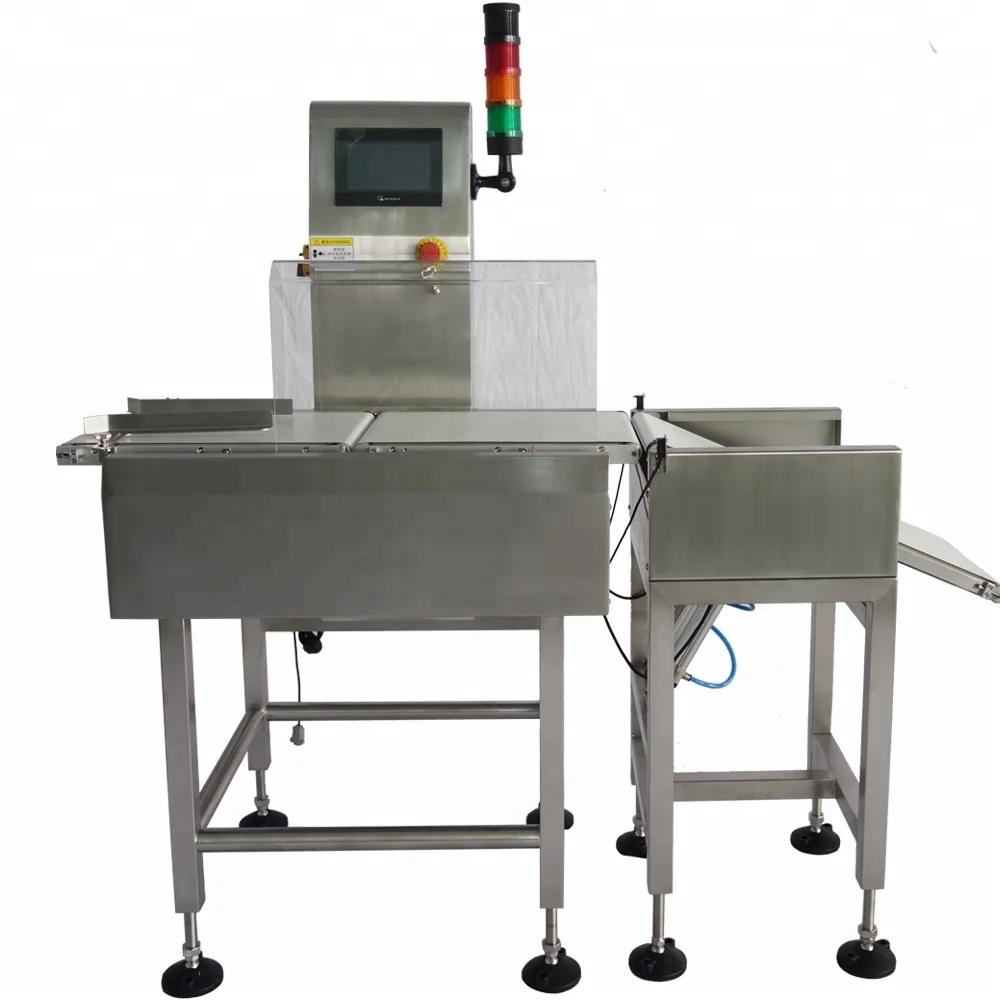

Checkweigher Instrument high-precision checkweigher check weigher reject electronic scale
Checkweigher as know as check weigher, check weight machine, weight sorting machine,weight checker,weighing scale and ect,.
Checkweigher Instrument can be embedded in various production/transportation lines, conveyor systems, and in-line weight sorters to weigh each product separately and then sort products of different weights into preset weight classes. The high-precision checkweigher is divided into three sections, the feeding and speed matching section, the weighing section, and the grading/sorting section. The sorting range and related parameters of the automatic checkweigher can be set. The user only needs to simply set the upper and lower limits, and the rest is automatically completed by the sorting scale. It is characterized by low cost, judgment, and strong versatility
Any OEM and customer design orders are welcome! If you are interested in our products, please feel free to contact us.
Specification parameter | |||||
Model | SG-300 | ||||

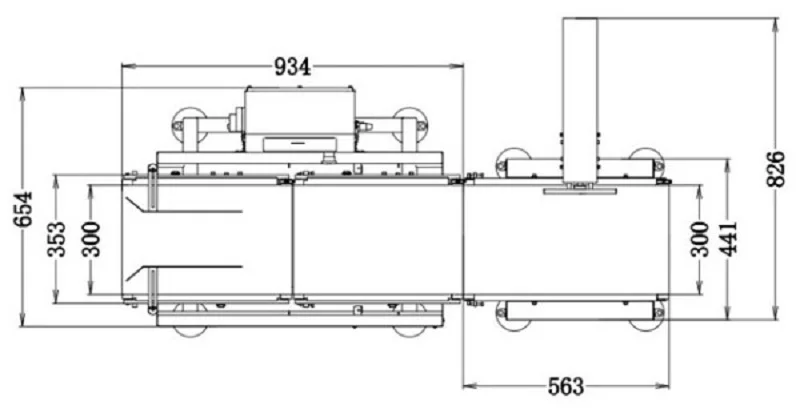

Products Size | L: 350 W:300 H: 3mm | ||||
Rated Load | 5-3000g/5000g | ||||
Weighing accuracy | ±0.1g | ||||
Belt speed | 0-60 m/min | ||||
Highest speed | 80 pcs/min | ||||
Belt width | 300mm | ||||
Gross weight | 60kg+44kg | ||||
Power supply | AC 110/220 V ±10% 50 HZ | ||||
Main material | SU304 stainless steel | ||||
Note
1. The size is for reference only and can be customized according to requirements
2. Sorting ability and accuracy. It varies according to the actual product being tested and the selection department.
2. The size of the testable product varies according to the specific specifications of the selection department. Please choose a inline check weigher machine according to the size of the product.
2. Sorting ability and accuracy. It varies according to the actual product being tested and the selection department.
2. The size of the testable product varies according to the specific specifications of the selection department. Please choose a inline check weigher machine according to the size of the product.
Main Features
1. Easy to integrate: adjustable height, modular design
2. Strong and durable construction: stainless steel 304
3.Easy to use: Touch screen operating system is easy to use with user password protection
4. EASY TO CLEAN: The removable strap is easy to remove for cleaning and setting.
5. Variable speed: The speed can be configured according to the application
6. High Speed and Accuracy: Equipped with advanced sensors and load cells, with ultra-fast processor, with excellent accuracy and speed
7. Zero tracking: manual and automatic calibration to improve accuracy
8. Report and data export: Built-in - real-time report, exportable as Excel file, can store 1 year of production data in USB stick
9. Connectivity: Standard port for data export and connection to PC
10. Self-learning: No calibration required, the system will find the best settings for the product. Configurable up to 2000 product settings
11. Different detection modes: default mode, static mode, power saving mode
12. Fault report: The system can detect and report the faulty part of the system, which is convenient for diagnosing problems
13. Output ports: RS-485 and RS-232, can connect printers and labelers
Product Application
This checkweigher machine is suitable for testing whether the weight of a small single piece is qualified. Automatically check whether the weight range of packaged finished products is qualified, and reject unqualified products through sorting.
Mainly used for all kinds of automatic packaging online detection:
E.g,
1. All cartons and liquid/bag/bottled/health care products, livestock and poultry food, aquatic products, frozen food, etc.
2. Packaging of various catharsis, cakes, paper bags, plastic molding, plastic bottles, beer, beverages, cosmetics, light industry, boxes and other packaging or fixed items.
3. Online high-speed packaging testing applications such as printing, electronic light industry, hardware, and auto parts.
Machine Parts

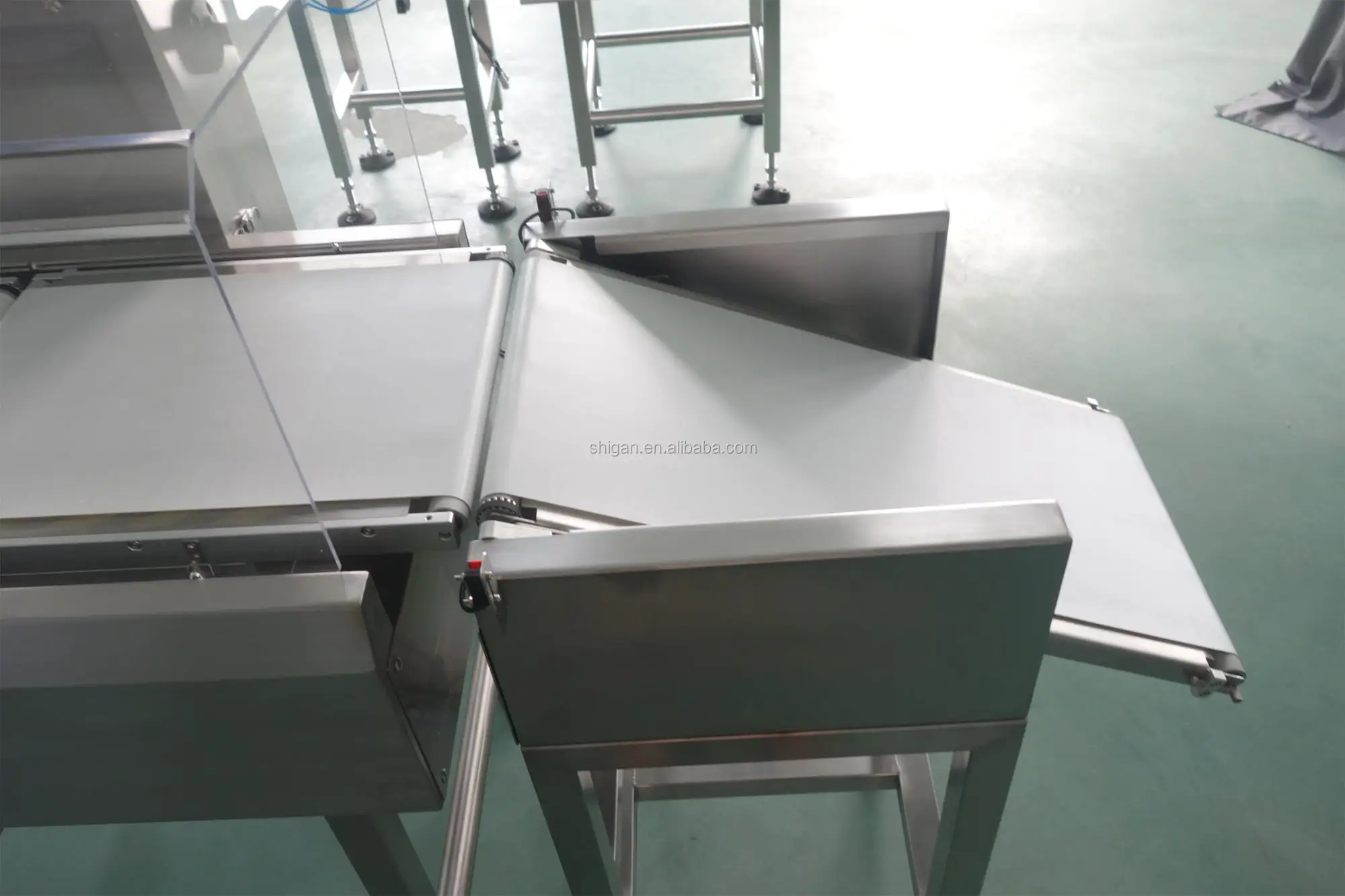

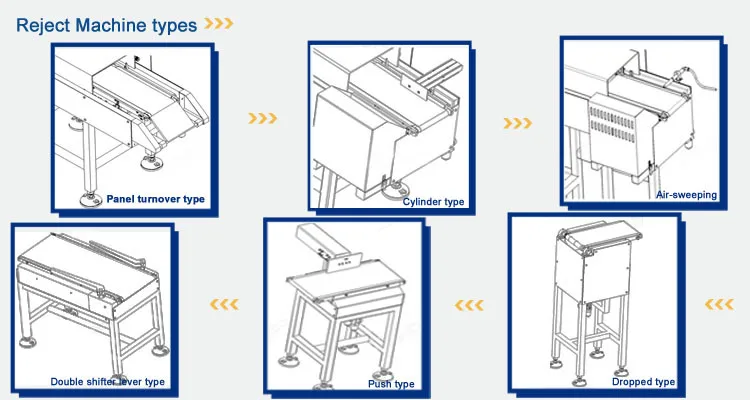

Name: Air blow rejection
Brand: SHIGAN
Remove rejects and use air blow
Main Features
Name:Weighing
Brand:SHIGAN
Put product on top for weighing
Machine Parts
Name: Aviation aluminum
Brand:SHIGAN
Thick thickness, good waterproof effect
Main Features
Name: foot
Brand: SHIGAN
Can withstand heavy weight, good stability
On-site Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packing & Delivery
Packaging | ||
Size | 100 (L) * 200 (W) * 250(D) | |
Weight | 1.2 T | |
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
Packaging | ||
Size | 100 (L) * 200 (W) * 250 (D) | |
Weight | 1.2 T | |
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |

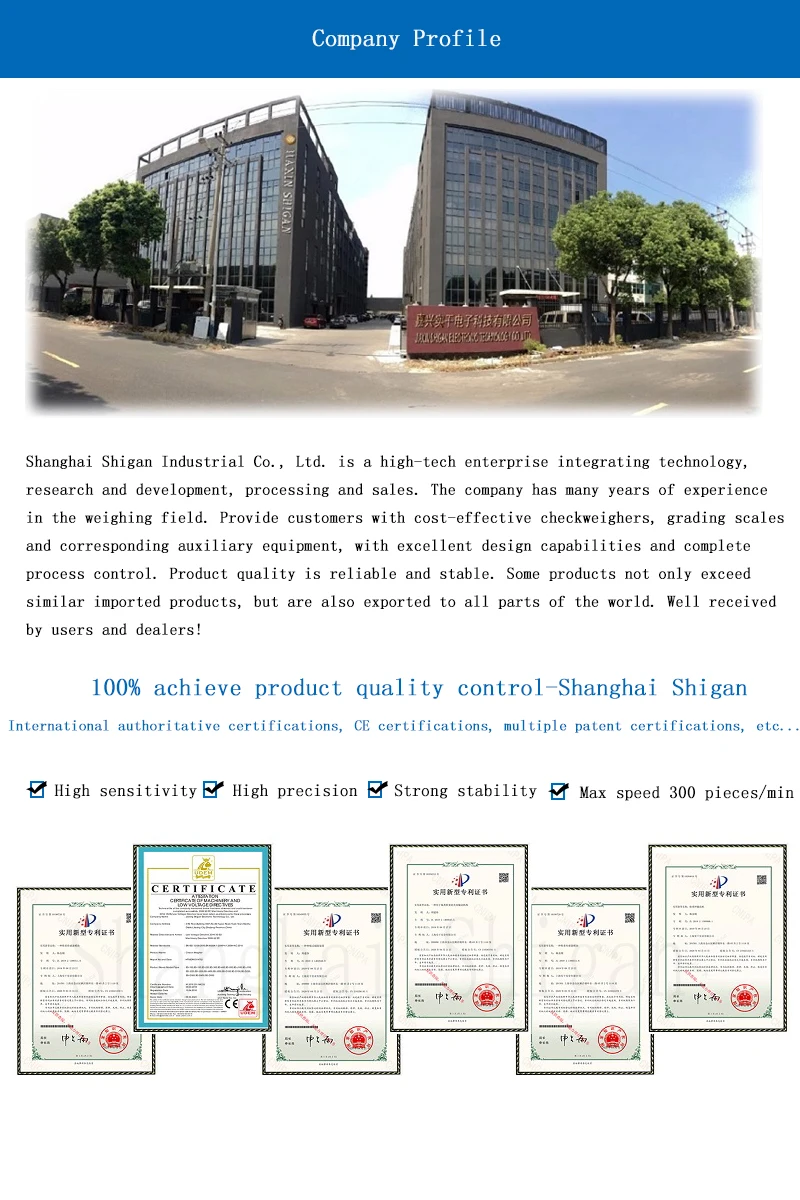

Company

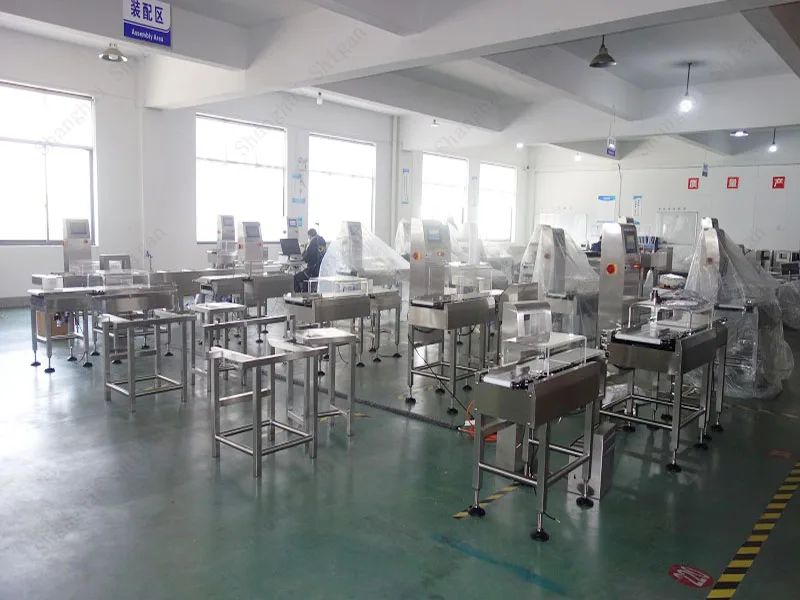

We have our own R&D personnel and manufacturing plants, one-to-one customized services, and are committed to providing perfect inline checkweigher machine solutions. Welcome to visit our factory！
Related Products
FAQ
Q1: Are you manufacturer or trader? Where are your factory located?
A: We are manufacturer and we are located in Shanghai,China.
Q2: What's your main product and what is your main foreign market?And do you have your own design team?
A: Our main products are check weight machines,floor scales, mulitihead weigher and truck scales, linear weigher, vertiacl packing machine and our main foreign market are Asia, North America, Europe, Africa.And we have our own design team for products design.
Q3: what are the advantages of your machines?And how can i believe the quality of your product?

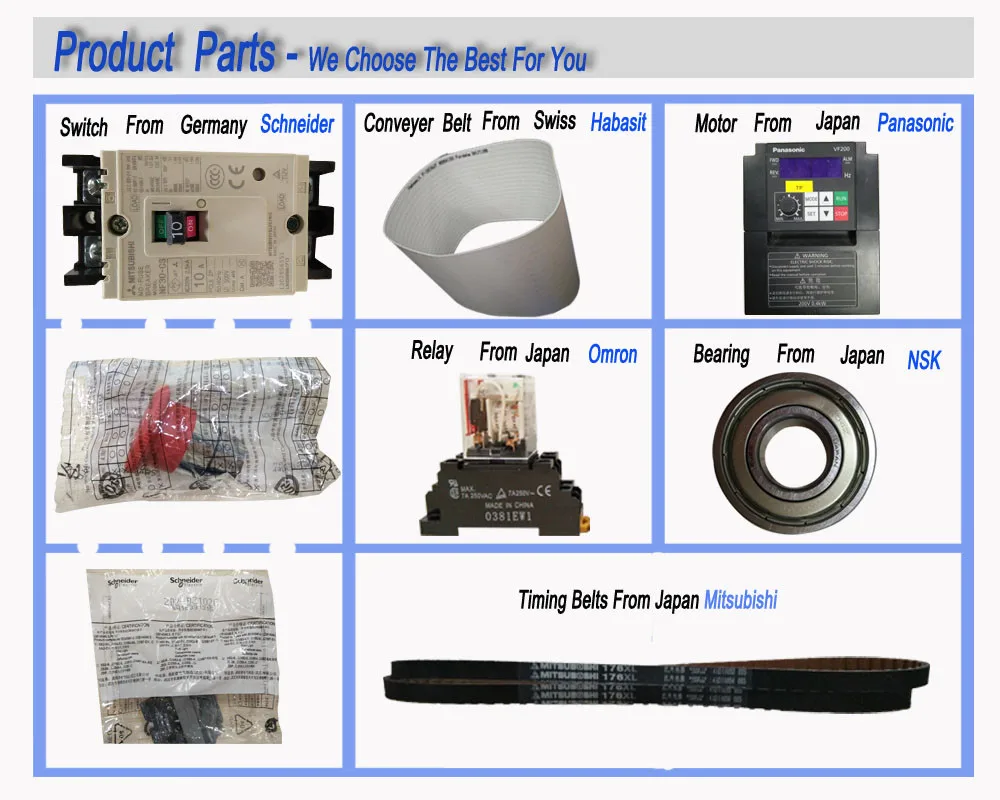

A: Highest precision (a margin of error) of our products can achieve±0.05g and the highest speed can achieve 300pcs/min.Our electronic parts of equipment all adopt international famous brand.For example,the switch is Germanic Schneider, Conveyor Belt is Swiss HABASIT,The relay is
Japanese OMRON.Once tested as qualifed .our machine would be sent out.So The quality of our product is stable and reliable.Q4: What are your company requests of payment terms?
A: TT,L/C,Western Union,Money Gram,Paypal,International Credit Card.
Q5: 5.What kind of Transportation could you provide?And are you able to update the production process Information in time after placing our order?
A: Sea shipping, air Shipping, and international express. And after confirming your order ,we would keep you updated of production details of emails and photos.
Q6: Are you provide product metal parts and provide us technical guidance?
Wearing parts,for example, motor belt,Disassembly tool(free) are what we could provide.And we can give you technical guidance.
Q7: How long is your warranty?
A: 12 months free warranty, life-long maintenance.
Q8: What kinds of overseas service can you offer?
A: Our technical staff can go abroad to provide you with technical guidance.
We accept kinds of customized and logo of all of our products for customers .
