HRLS Integrated series gas mass flowmeter sensor indicator air oxygen thermal gas mass flow meter
- Category: >>>
- Supplier: KAIFENG LIZOBOR INSTRUMENT CO. LTD
Share on (1600539428028):
Product Overview
Description
Product Description

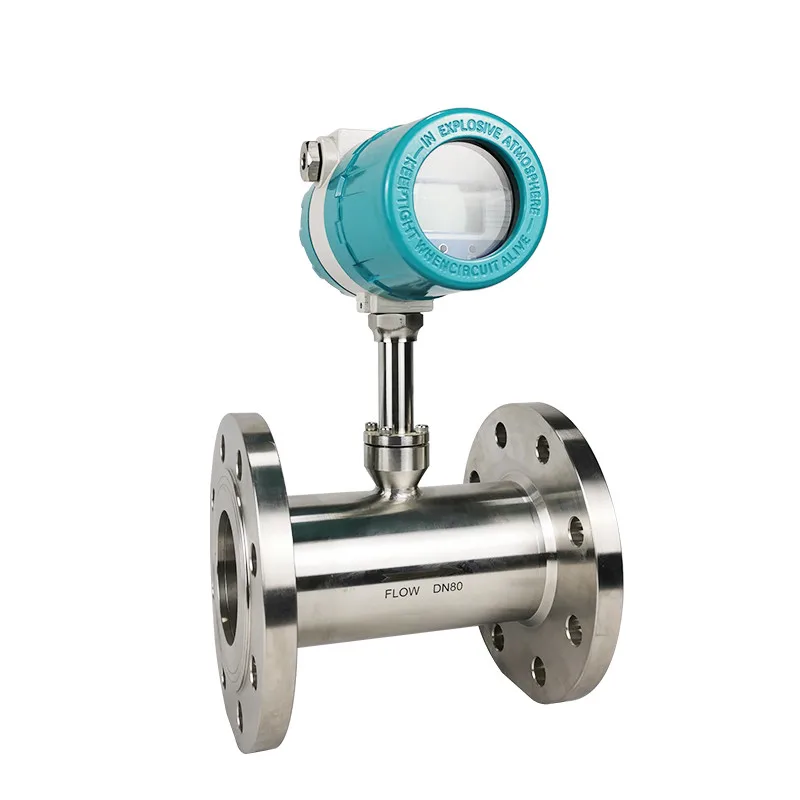

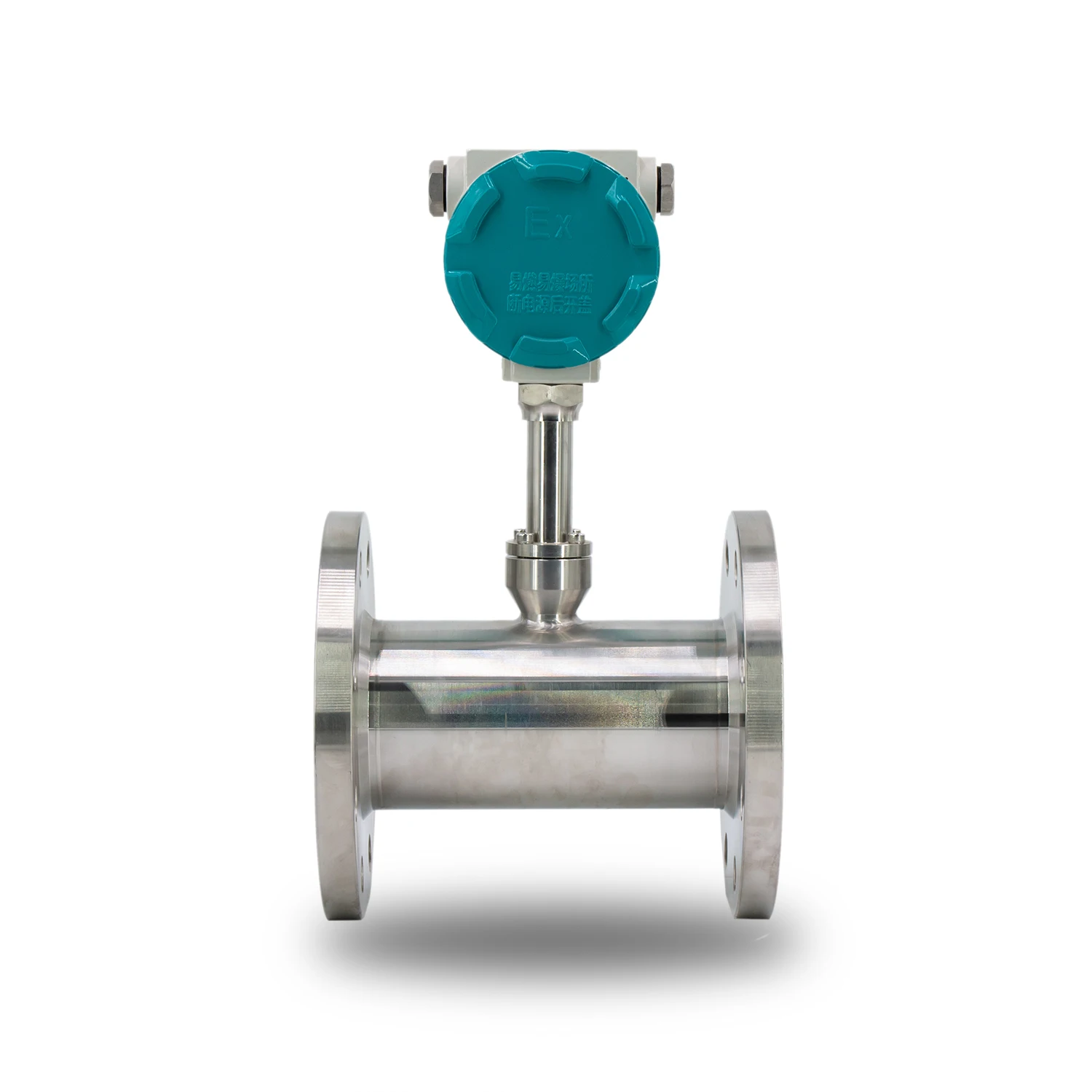

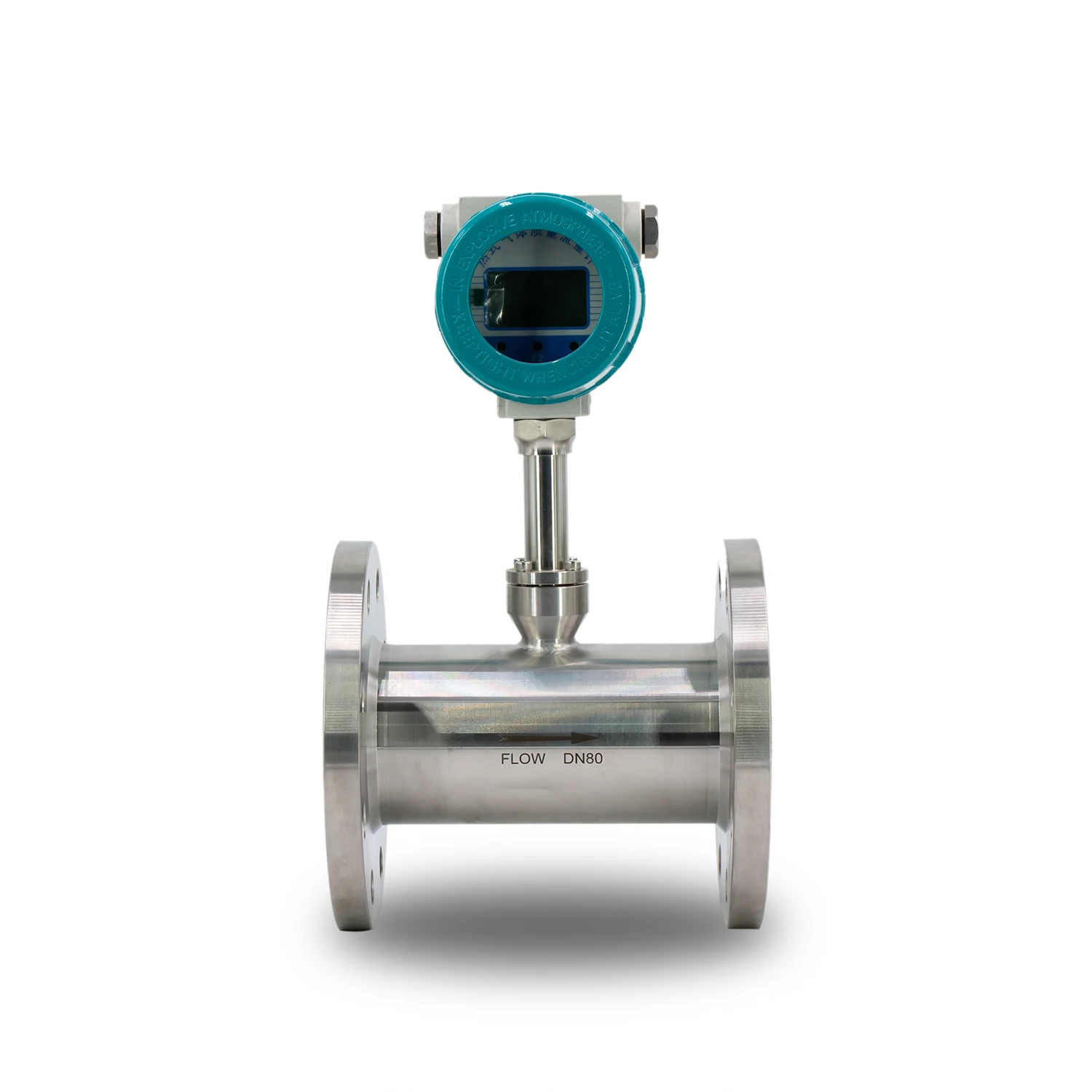

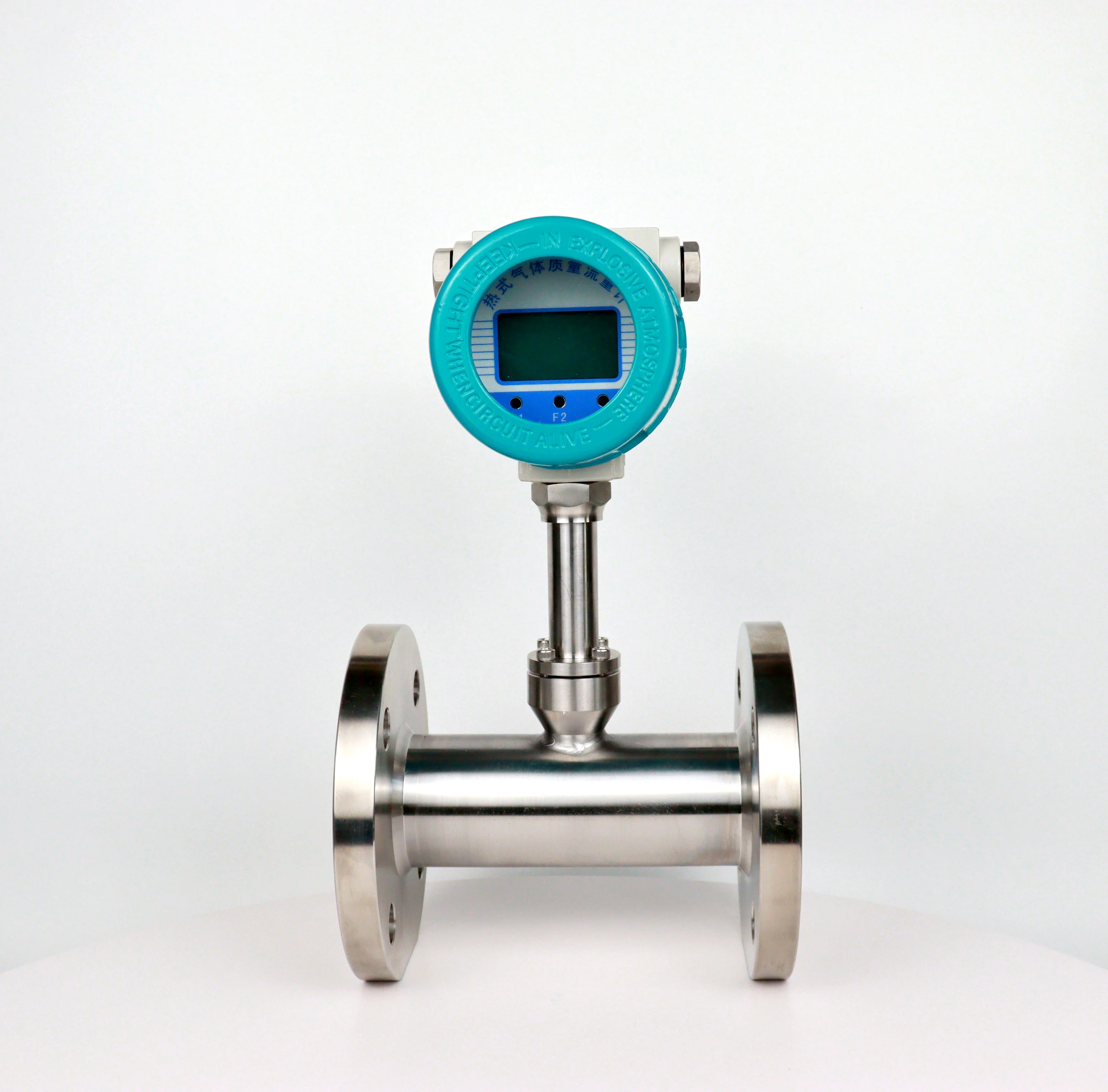

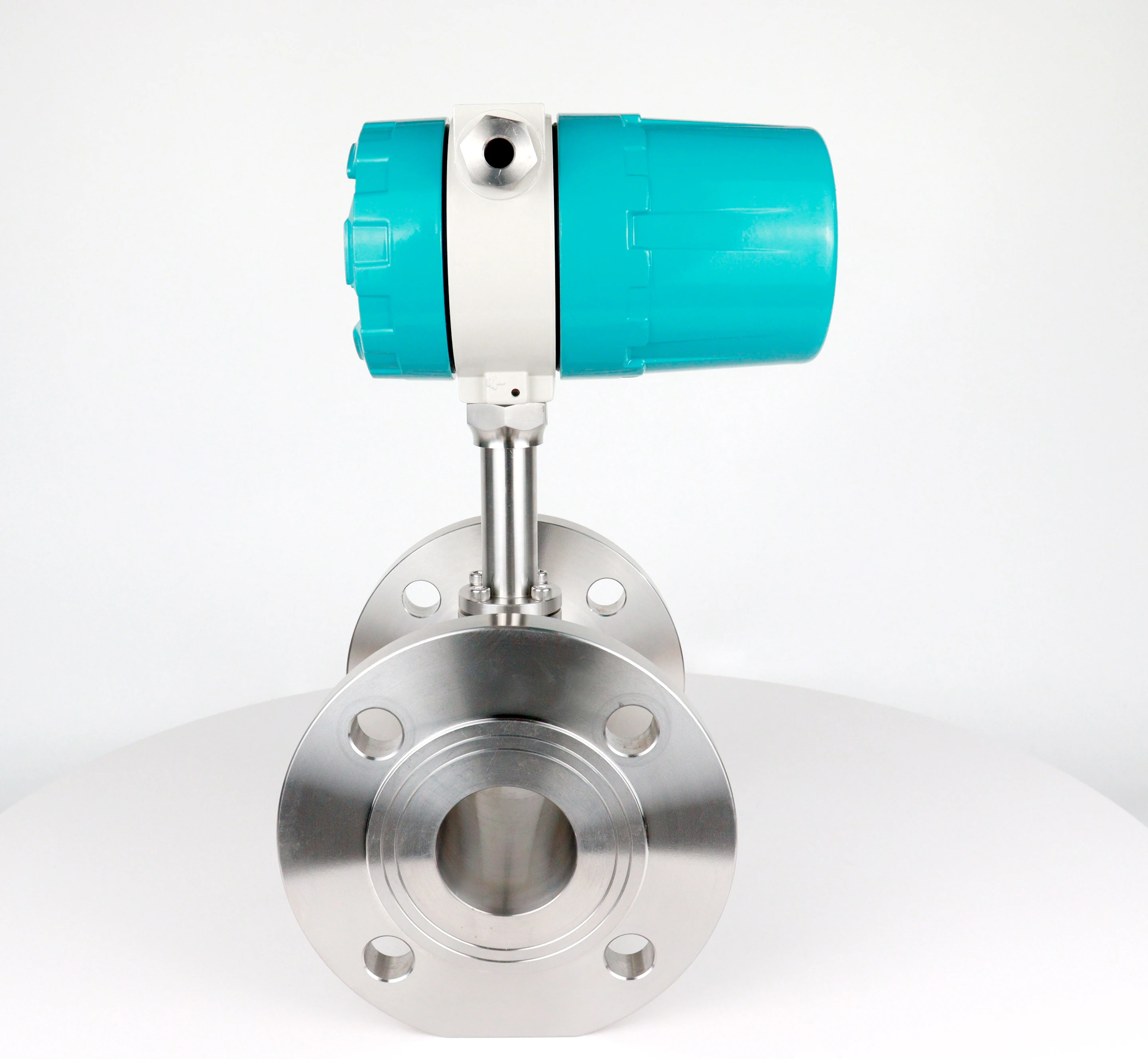

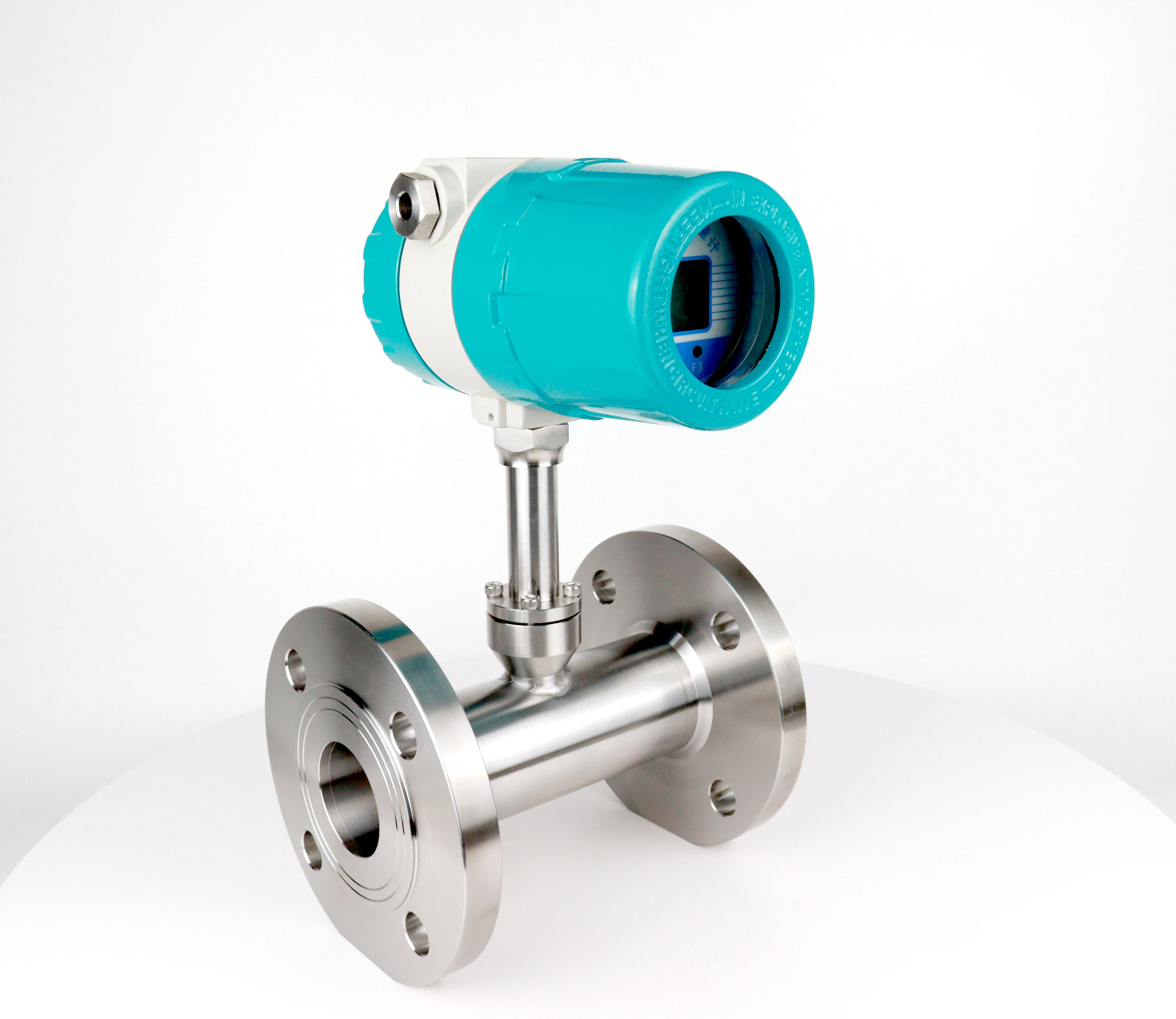

HRLS Integrated series gas mass flowmeter sensor indicator air oxygen thermal gas mass flow meter
Working principle:HRLS series thermal gas mass flowmeters are constant power thermal gas mass flowmeters. Based on the principle of heat conduction technology, Newton's laws of thermodynamics are used to achieve the measurement of gas mass flow.
Low price RS485 Digital Gas Air Oxygen Thermal Mass Flow Meter features: | ||||||||
1. | Easy installation and maintenance. | |||||||
2. | With Bluetooth transmission function, can be operated through the mobile phone APP. | |||||||
3. | With Modbus communication, remote monitoring. | |||||||
4. | Large range ratio, wide measurement flow rate range. | |||||||
5. | No Moving parts,no pressure loss. | |||||||
6. | Measuring gas mass flow without temperature and pressure compensation. | |||||||
7. | Fully isolated electrical structure thoroughly filters out external interference. | |||||||
Related Details
Medical Application DN80 Oxygen Thermal Gas Mass Flow Meter for Nitrogen Variable Area Air & Gas Flowmeters cheap flow meter
Specification
Accuracy class: | ±(1.5%RD+0.5%FS) |
Repeatability: | ±0.5% |
Responding speed: | 1s |
Diameter: | DN10-200 (Flange type) DN100-1600 (Insert type) |
Velocity range: | 0.3-30Nm/s ; 0.6-60Nm/s ; 0.9-90Nm/s ;1.2-120Nm/s |
Installation method: | Integrated or split |
Connection method: | Card sleeve connection |
Measuring medium: | Compressed air, oxygen, nitrogen, etc. |
Ambient temperature : | -40～60℃ |
Operating temperature: | -40～150℃(medium temperature, plug-in type) |
Operating pressure: | 1.6Mpa |
Signal interface: | ModBus@RS485/Bluetooth function ModBus@RS485&4～20mA/Bluetooth function |
Power supply: | 13.5~42VDC/85~265VAC |
Scope of Application
1 | Oxygen, nitrogen, hydrogen, chlorine and multi-component gas measurement. |
2 | Measurement of blast furnace gas and coke oven gas. |
3 | Flue gas measurement. |
4 | Compressed air measurement. |
5 | Aeration and chlorine measurement in biogas and water treatment. |
6 | Flow measurement of natural gas, liquefied gas, flare gas, etc. |
7 | Primary air and secondary air flow measurement of power plant blast furnace |
8 | Flow measurement of underground ventilation or exhaust system |
9 | Air flow measurement during gas process |
10 | Measurement of flue gas flow rate (velocity) discharged from the chimney (CEMS) |
11 | Calciner flue gas flow measurement |
12 | Gas flow measurement in the production process of cement, cigarette and glass factories |
13 | Gas flow measurement in solvent recovery system |
14 | Gas flow measurement during semiconductor chip manufacturing |
15 | Measurement of carbon dioxide gas flow during beer production |
16 | Gas flow (speed) measurement in heating, ventilation and air conditioning systems |
17 | Measurement of combustion gas flow in coal-fired boilers |
18 | Real-time detection of flow rate (speed) in underground ventilation or exhaust system |
After Sales Service
Packing & Delivery
Company Profile
FAQ
Q:Could I get samples?
A:Yes,we have materials in stock to help you to get the samples as soon as we can.
Q:How is the price?
A:As we believe the quality is the most important,we will provide the best quality pressure sensor we can with reasonable price.
Q:Could you provide me the shortest lead time?
A:We have materials in our stock,if you really need,you can tell us and we will try our best to satisfy you.
Q:Could I visit your factory?
A: Sincerely invite you to visit our factory
Q:Can I have my own logo of the products?
A:Of course.We provide OEM services.The products’ material,dimansions,color,etc. will according to your requirement.
Q: How about the Warranty time ?
A:Our warranty time is 12 months after you get our goods . All lifelong technology service and support .
A:Yes,we have materials in stock to help you to get the samples as soon as we can.
Q:How is the price?
A:As we believe the quality is the most important,we will provide the best quality pressure sensor we can with reasonable price.
Q:Could you provide me the shortest lead time?
A:We have materials in our stock,if you really need,you can tell us and we will try our best to satisfy you.
Q:Could I visit your factory?
A: Sincerely invite you to visit our factory
Q:Can I have my own logo of the products?
A:Of course.We provide OEM services.The products’ material,dimansions,color,etc. will according to your requirement.
Q: How about the Warranty time ?
A:Our warranty time is 12 months after you get our goods . All lifelong technology service and support .
