Good price MT185WHM N20 BOE 18.5 inch active matrix tft color lcd security screen for kiosk lcd monitor
- Category: >>>
- Supplier: Shenzhen Xianheng Technology Co. Ltd.
Share on (1600539495263):
Product Overview
Description
Product Description

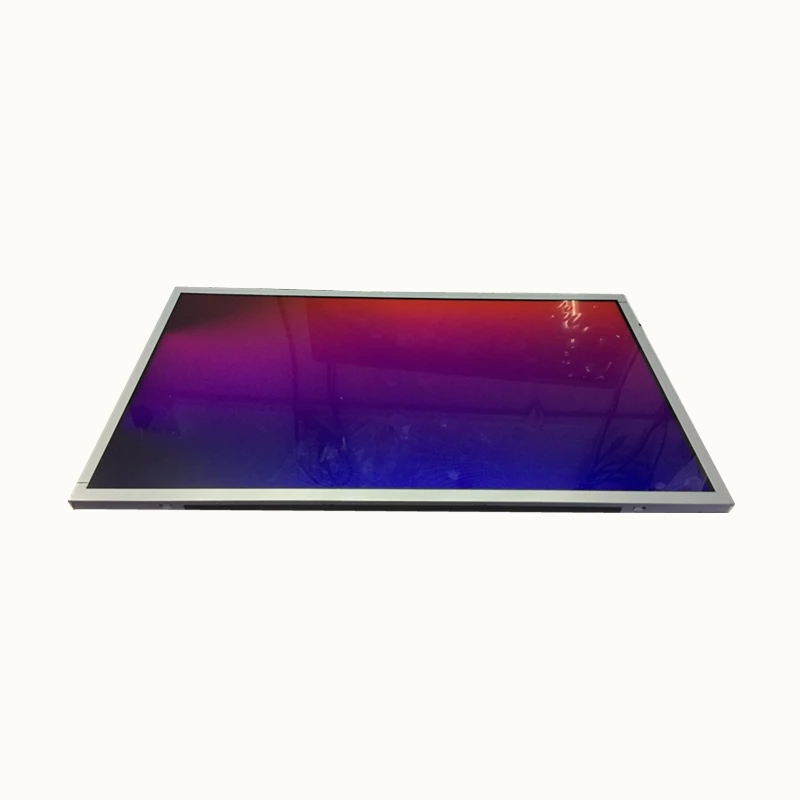

Good price MT185WHM-N20 boe 18.5 inch active matrix tft color lcd security screen for kiosk lcd monitor
MT185WHM-N20 is a color active matrix TFT LCD module using amorphous silicon TFT's (Thin Film Transistors) as an active switching devices. This module has a 18.5 inch diagonally measured active area with WXGA resolutions (1366 horizontal by 768 vertical pixel array). Each pixel is divided into RED, GREEN, BLUE dots which are arranged in vertical stripe and this module can display 16.7M colors. The TFT-LCD panel used for this module is adapted for a low reflection and higher color type.
Features
LVDS Interface with pixel/cloc
High-speed response
Low power consumption
6-bit (Hi-FRC) color depth, display 16. 7M colors
Incorporated edge type back-light (One Light Bar)
High luminance and contrast ratio, low reflection and normal viewing angle
DE (Data Enable) only
RoHS
ES 6.0 compliant
Gamma correction
| Active area | 409.8(H) *230.4(V) |
| Number of Pixel | 1366(H)*768(V) |
| pitch pixels | 0.3(H) *0.3(V) |
| Pixel arrangement | RGB Vertical stripe |
| Display colors | 16.7M |
| Display mode | Normally White |
| Dimensional outline | 430.4(H) *254.6(V)*10.9(D) typ. |
| Weight | 1303(typ.) |
| Bezel width (L/R/U/D) | 8.5/8.5/10.3/10.3 |
| Surface Treatment | Haze 25%, 3H |
| Back-light | right edge side, 1- LED Light bar |
Certifications
Hotsale recommand
Packaging & Shipping
PACKAGE:
Standard export carton packing.
DELIVERY TIME:
3-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
About XIANHENG
About us
SZ Xianheng Technology Co., Ltd.
is a high-tech enterprise professional in R & D and LCD electronic display production, sales and service as a whole, is the series of indoor and outdoor LCD screen manufacturer. We mainly agent LCD screen distribution AUO, MITSUBISHI, BOE, INNOLUX and other brands and so on. According to customer needs to provide a variety of LCD products including supporting LCD, LCD driver board, resistance and capacitance touch screen, LCD dedicated wire, the production of small and medium-size industrial monitors, touch screen, etc.
Why choose us
WHY CHOOSE US
Efficient collaboration, fast service and customer first.
Provide professional customized solutions.
Quality certification,
long life.
Located in industrial parks that gather many industrial factories.
If the quantity of order is not very big,we could send them to you by express delivery,such as TNT,DHL,UPS OR EMS etc.
If order is big ,we will advise you use Air Shipping or Sea Shipping through your nominated forwarder agent.Our long-term cooperated agent also available.
