TCP/IP HTTP RTSP RTMP Protocal RS232 RS485 Remote Control With Audio input Autofocus USB Camera PTZ Video Conference
- Category: >>>
- Supplier: Shenzhen Panda Cloud Industry Co. Ltd.
Share on (1600539651963):
Product Overview
Description
Product Description

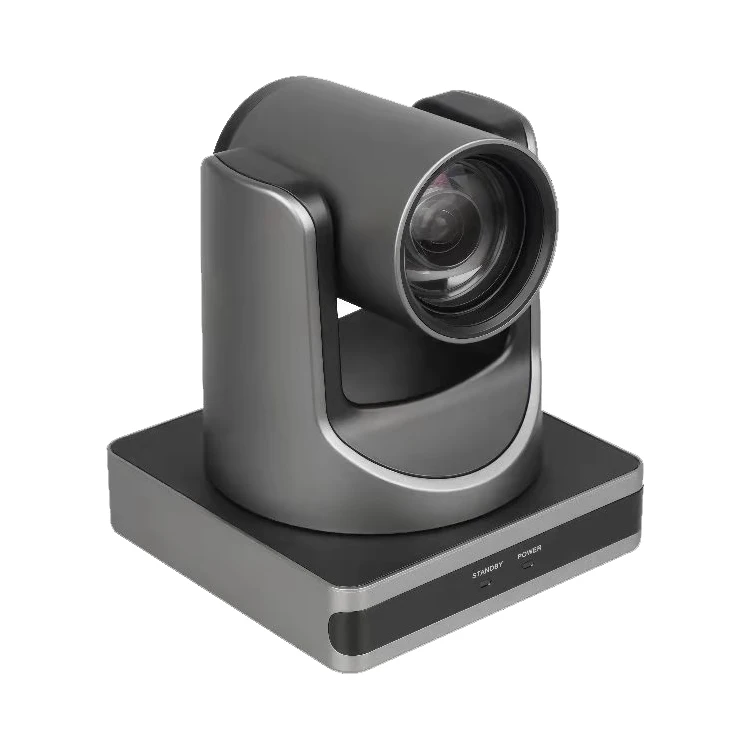

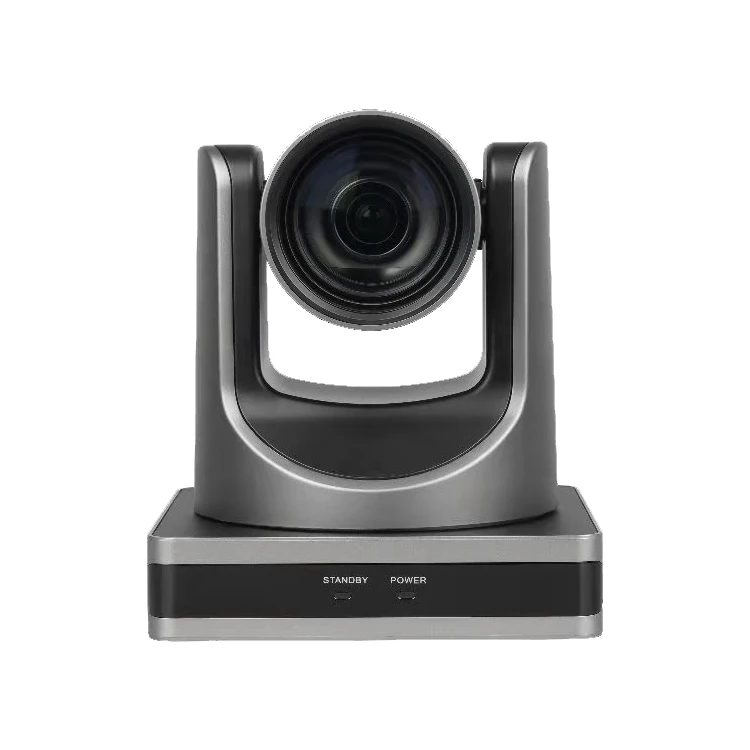

New Amazing Full HD 1080p 12X Optical Zoom USB3.0 Type C HM IP POE Video Conference Camera
Model: UVC12XU3
UVC12XU3 Selling Points:
1. Wide View Angle: 72.5 degree, 12X Optical Zoom, 16X Digital Zoom.
2. Multiple Video Output Interfaces: USB3.0 (Type C), HM, LAN.
3. Low Light Performance. The video image is same good at night and day.
4. Output Audio and Video at the same time by USB3.0, HM, LAN.
5. Superb High-definition Image: 2.8 inch high quality CMOS sensor.
6. Support POE Power Supply.
Details Images

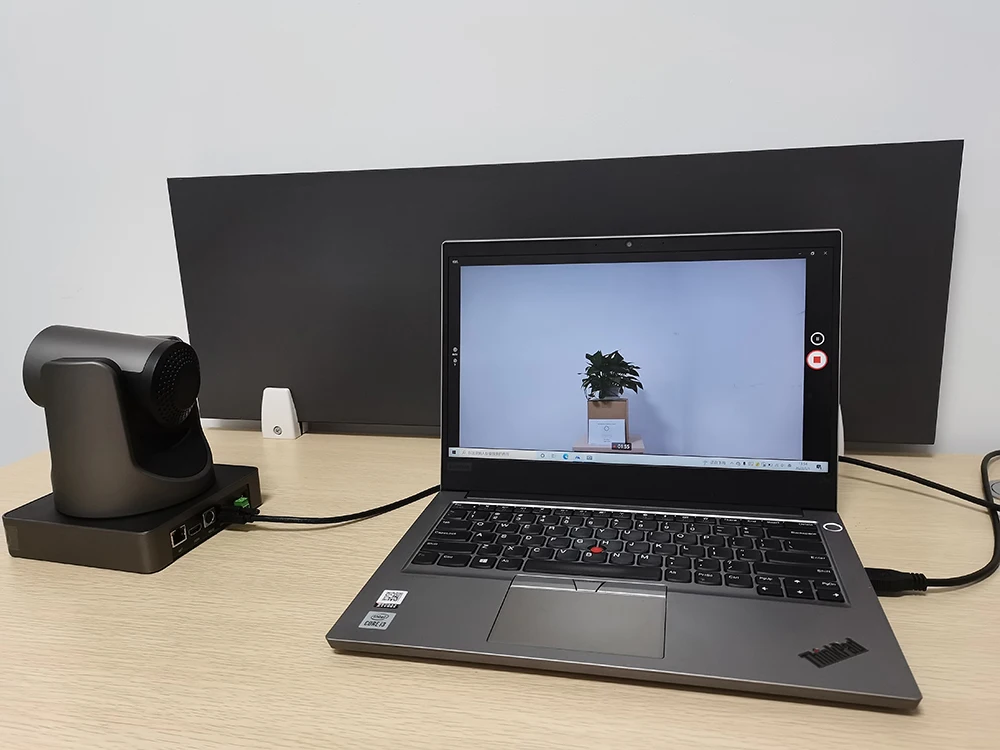

USB Plug and Play for ZOOM TEAMS Cloud Conference

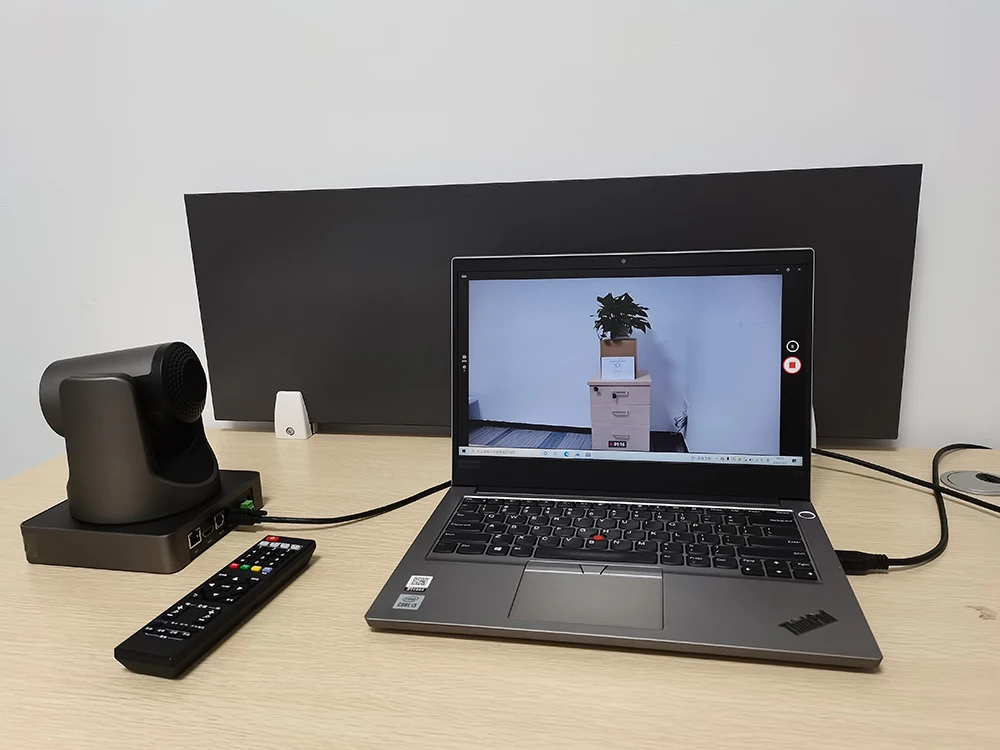

USB3.0 Type C, Poe power supply. Camera works with PC, Laptop and Desktop directly.

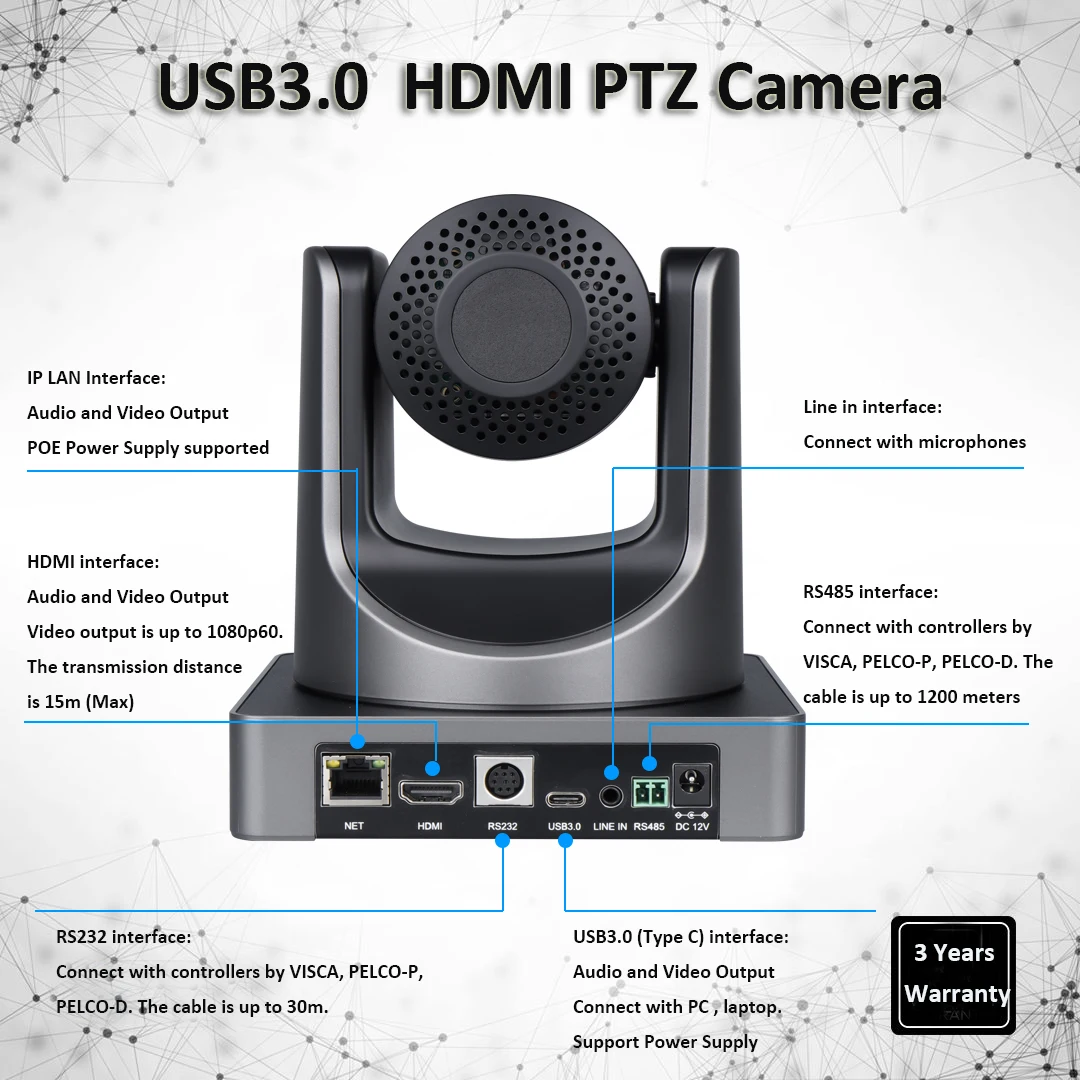

Full Ports (Interfaces) meet your all requirements.
Output video and audio at the same time by USB3.0, HM, IP LAN Port. (Most cameras from other suppliers only support video output.
Seldom supplier can do Low Light Performance, which provide you excellent image video experience even at night.

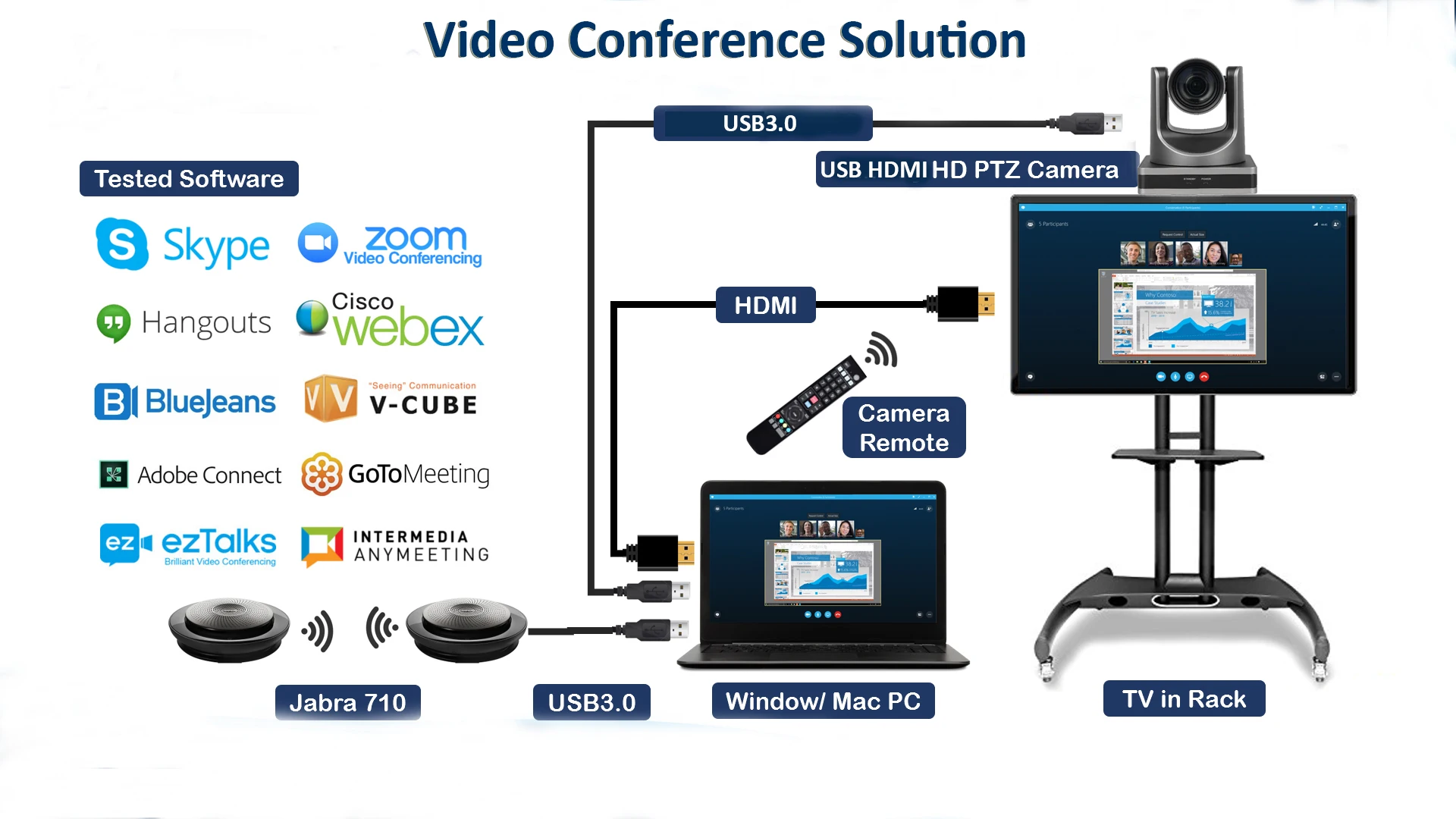

Complete Video Conference System - Easy to use and Cost Effective
PC like a hub, connect with camera by USB port, connect with monitor by HDMI, connect with Microphone or Speaker with USB.

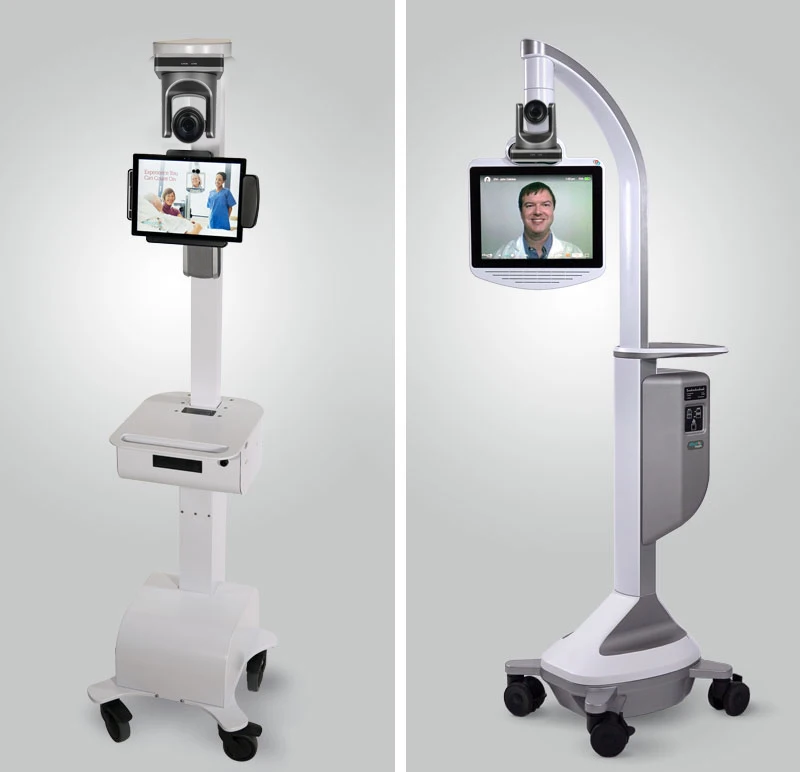

Telemedicine System - Camera with Cart for Hospitals and Clinics

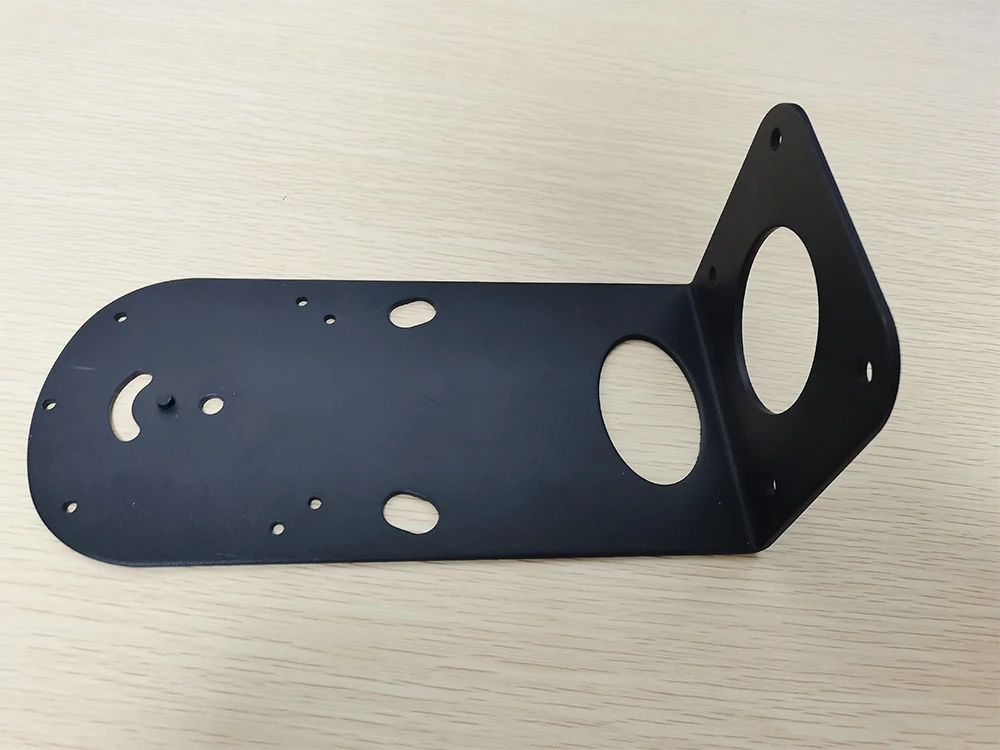

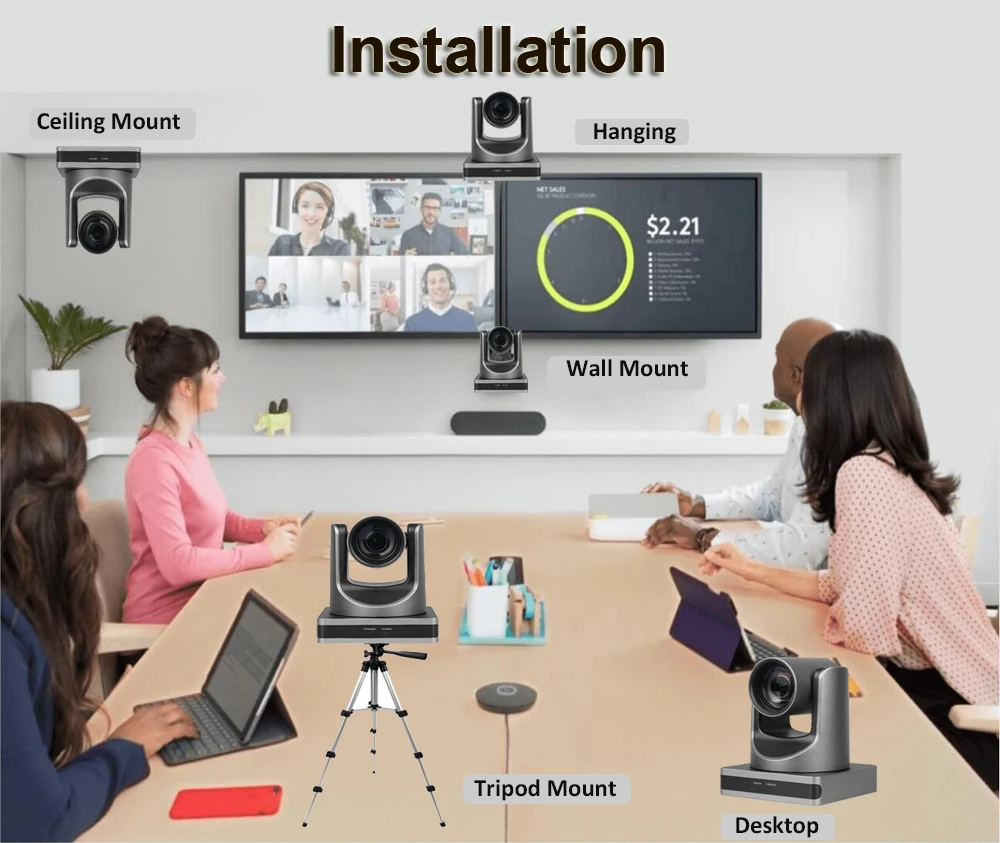

Wall mount bracket and ceiling mount bracket will be sent for free.

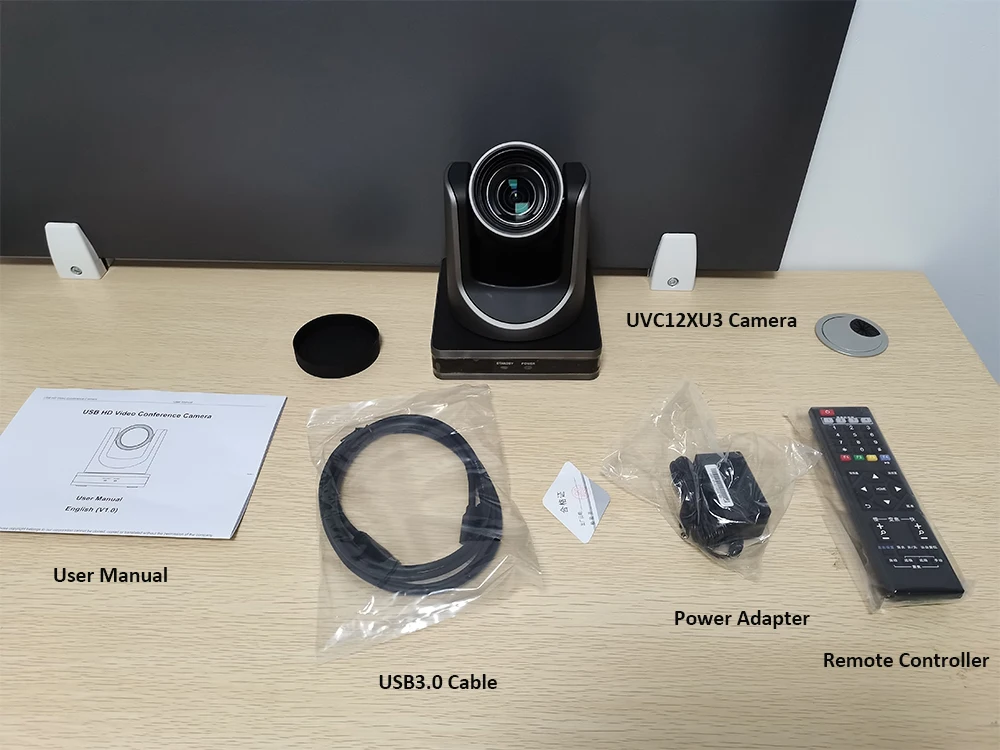

What's in the Box?
Specification
Model | UVC12XU3 | |
Product Name | USB Full HD PTZ Camera | |
Camera | ||
Effective Pixels | 2.07MP | |
Video Output | 1920x1080, 1280x720, 1024x576, 960x540, 640x480, 640x360 1080P60, 1080P50, 1080P30, 1080P35, 720P60, 720P50 | |
Video Format | YUY2 (Isochronous mode): maximum 1080P@60fps H.264 AVC: maximum 1080P@60fps H.264 SVC: maximum 1080P@60fps MJPEG: maximum 1080P@60fps | |
Lens | 12x Optical Zoom | |
View Angle | 72.5° | |
WDR | OFF/ Dynamic level adjustment | |
Digital Zoom | 16X | |
Minimal Illumination | 0.5Lux(F1.8, AGC ON) | |
White Balance | Auto / Manual/ One push | |
Digital Noise | 2D, 3D digital noise reduction | |
SNR | ≥55dB | |
Pan Rotation | -170°+170° | |
Tilt Rotation | -30° +90° | |
Preset Number | 255 presets (10 presets by remote controller) | |
Interfaces and Key Features | ||
Video Interface | USB3.0 (Type C), HM, IP LAN (POE) | |
Network interface | RJ45：10M / 100M adaptive Ethernet port | |
Audio interface | Line In, 3.5mm audio interface | |
Communication interface | RS232 In: maximum distance 30m, VISCA/Pelco-D/Pelco-P protocol RS485 In:maximum distance 1200m，VISCA/Pelco-D/Pelco-P protocol | |
USB Audio | Support | |
USB video communication protocol | UVC 1.1~1.5 | |
Video coding standard | H.264/MJEPG | |
Control Protocol | VISCA/Pelco-D/Pelco-P; Baud Rate:115200/9600/4800/2400bps | |
Network Protocol | RTMPS, RTSP, RTMP, GB/T28181, Network VISCA Control Protocol | |
Audio Compression Format | AAC/MP3/PCM Audio compression | |
Others | ||
Dimension | 144mm x 144mm x 167.9mm | |
Weight | 1.5kg | |
MTBF | 30000h | |

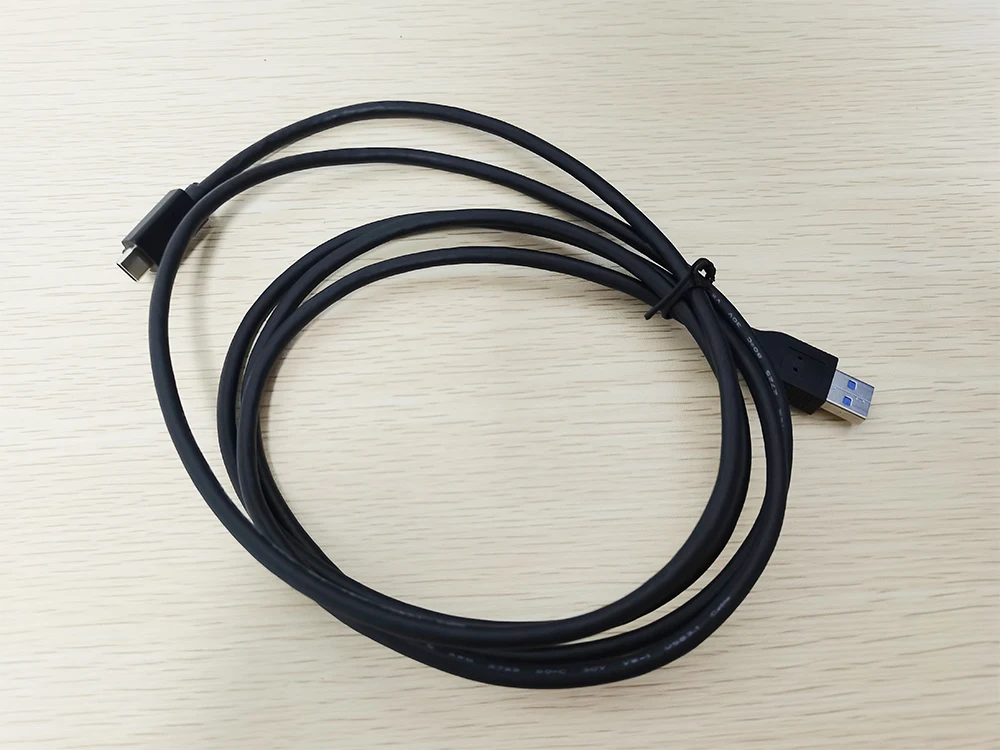

Accessory | USB3.0 Cable, Power supply, Remote controller, User manual | |
Warranty | 3 years | |
Certification | CE, FCC, ROHS, UL | |
Application | Video Conference, Broadcast, Education, Tele-medicine | |
Compatible with various video conference software

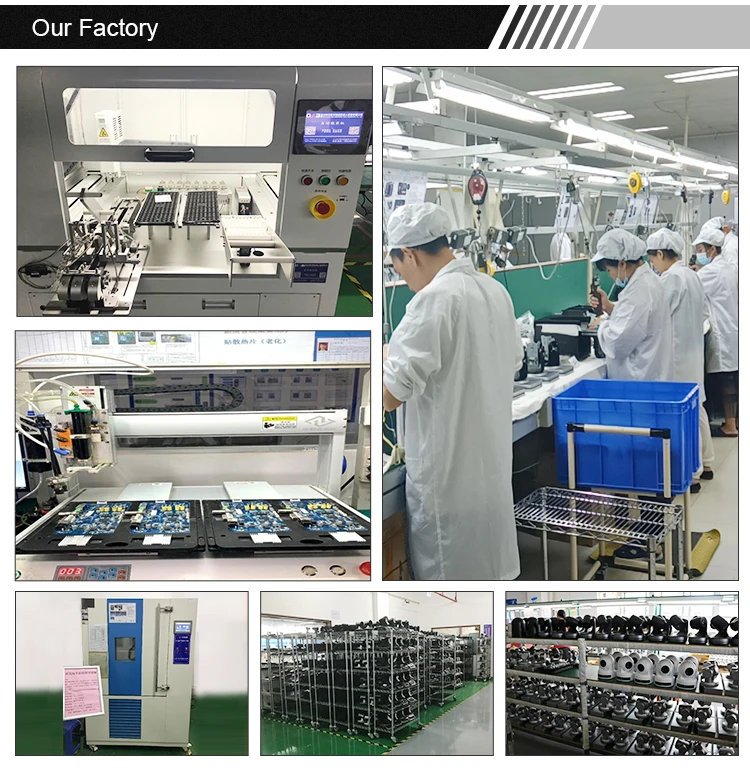

Shenzhen Panda Cloud Industry Co.,Ltd is leading manufacturer for video conferencing products in China. We have strong R&D and production team to provide high technical and high quality products. We are specialized in USB camera, NDI camera, AI tracking camera and speakerphone for video conferencing, live streaming, tele-medicine and distance learning.
