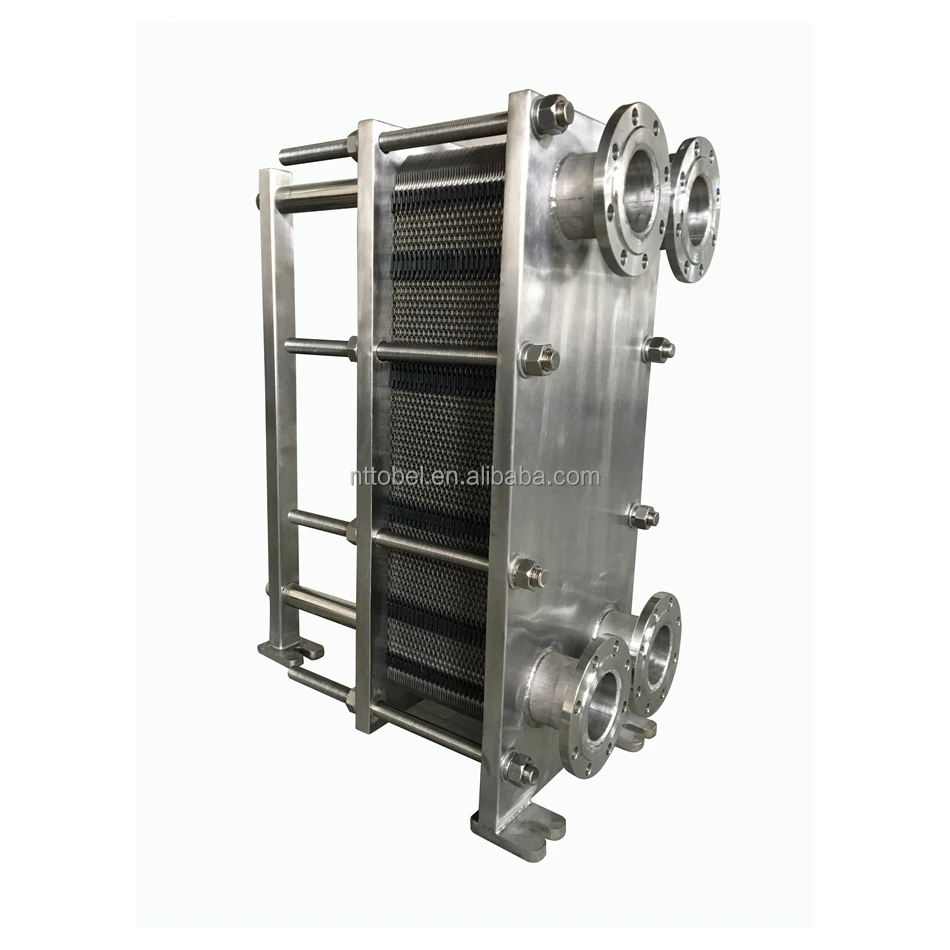

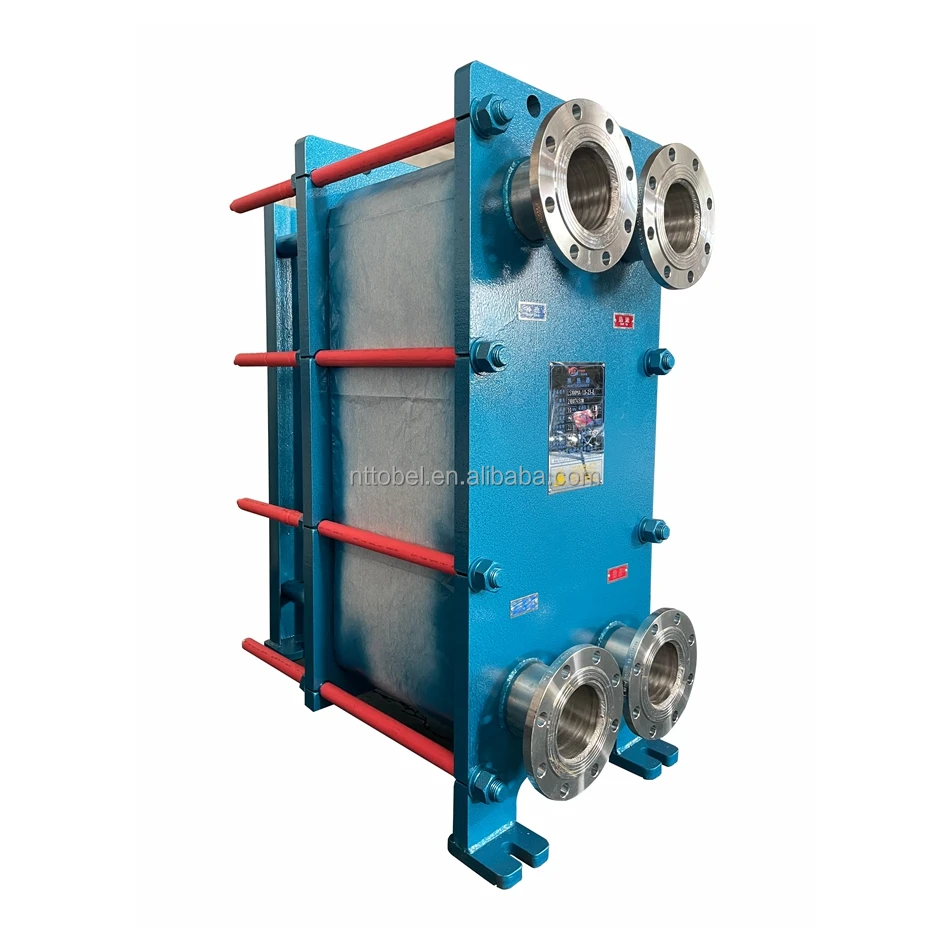

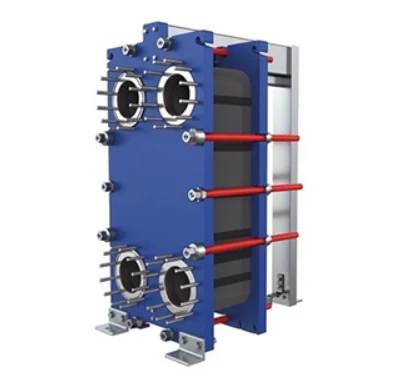

SS304 316 Gasket plate heat exchanger PHE with CE certificate

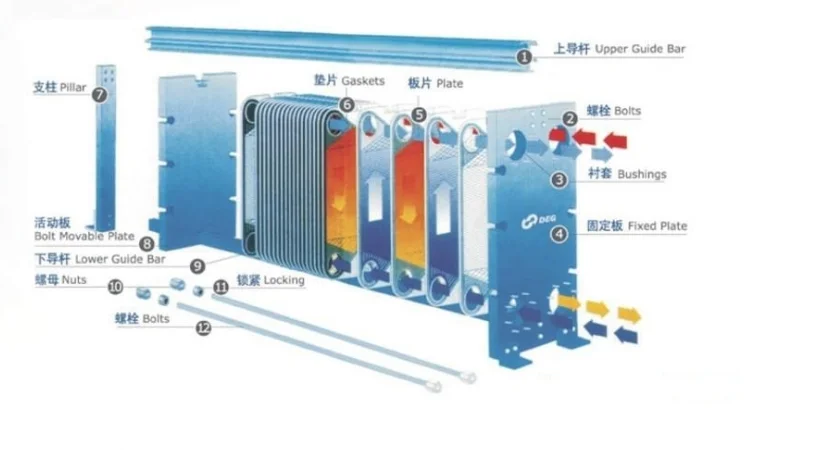

 Features and advantages of the plate heat exchanger

1.High heat transfer coefficient

The special ripple design on the plate can make the fluid produce strong turbulence at very low velocity,and the self purification effect of the turblence can prevent the formation of dirt.The heat transfer coefficient of the plate heat exchanger is 3-5times that of the shell type heat exchanger.

2.Economic type

under the same heat exchange condition,compared with the shell and tube type,the investment is low,the operation cost is low,and the maintenance cost is low.

3.Adjustability

Only increase or decrease can meet the needs of changing process.

4.Compact structure

under the same heat exchange condition,the occupancy space is only shell and tube 1/2-1/3.

Sheet material of plate heat exchanger

Stainless steel SUS304 SUS316L is suitable for river water,food oil,and Mineral oil.

commercia;ly pure titanium and titanium palladium alloys are suitable for seawater,brine and salinization products.

Harris alloy is suitable for concentrated sulfuric acid,hydrochloric acid and phosphoric acid

Nickel is suitable for high temperature and high concentration caustic soda

Gasket material of plate heat exchanger

NBR is suitable for water,seawater,mineral oil and brine -15-110C

High temperature rubber HNBR  is suitable for high temperature mineral oil and high temperature water -15-140C

EPDM is suitable for hot water,steam,acid and alkali -15-150C.

Silicone rubber is suitable for high temperature and corrosive medium -65-200C.

Technical Specification of plate heat exchanger

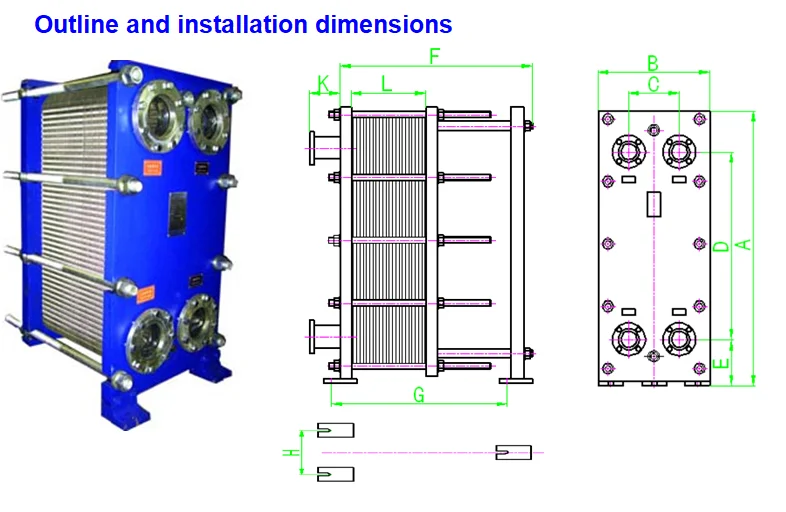

Equipment dimensions of plate heat exchanger

Dimensions Table of plate heat exchanger

 plywood packing

 engineer service avalibale oversea.

 we are manufacturer of industrial cooling machine.

 please tell us the capability of heat ecxhanger and the square meter for heat exchange.
