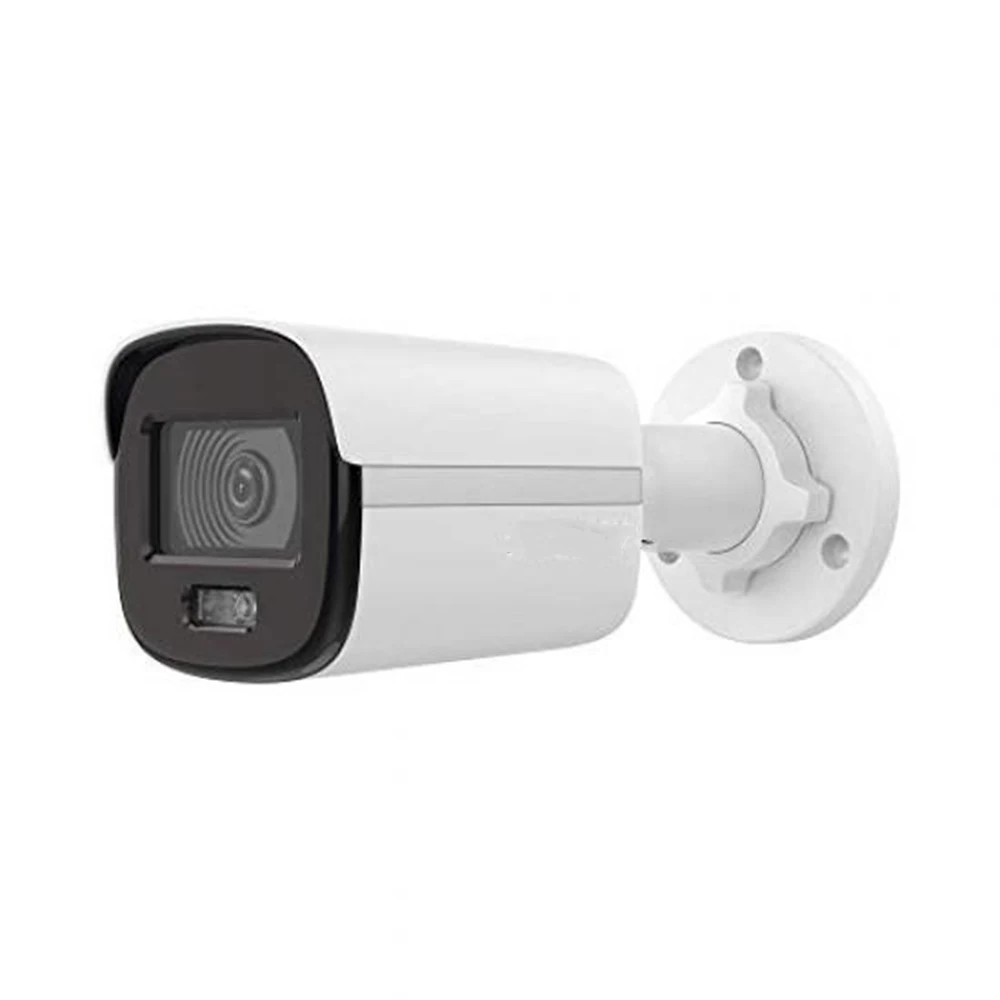

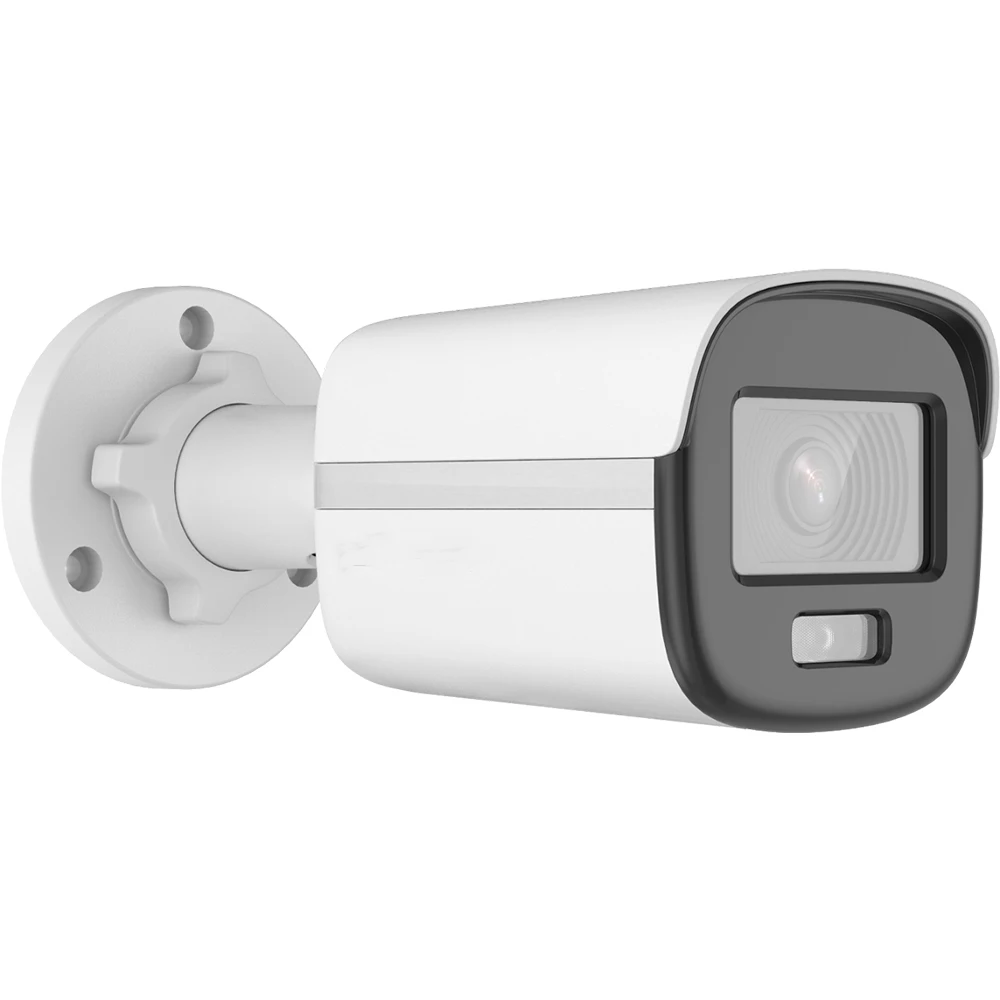

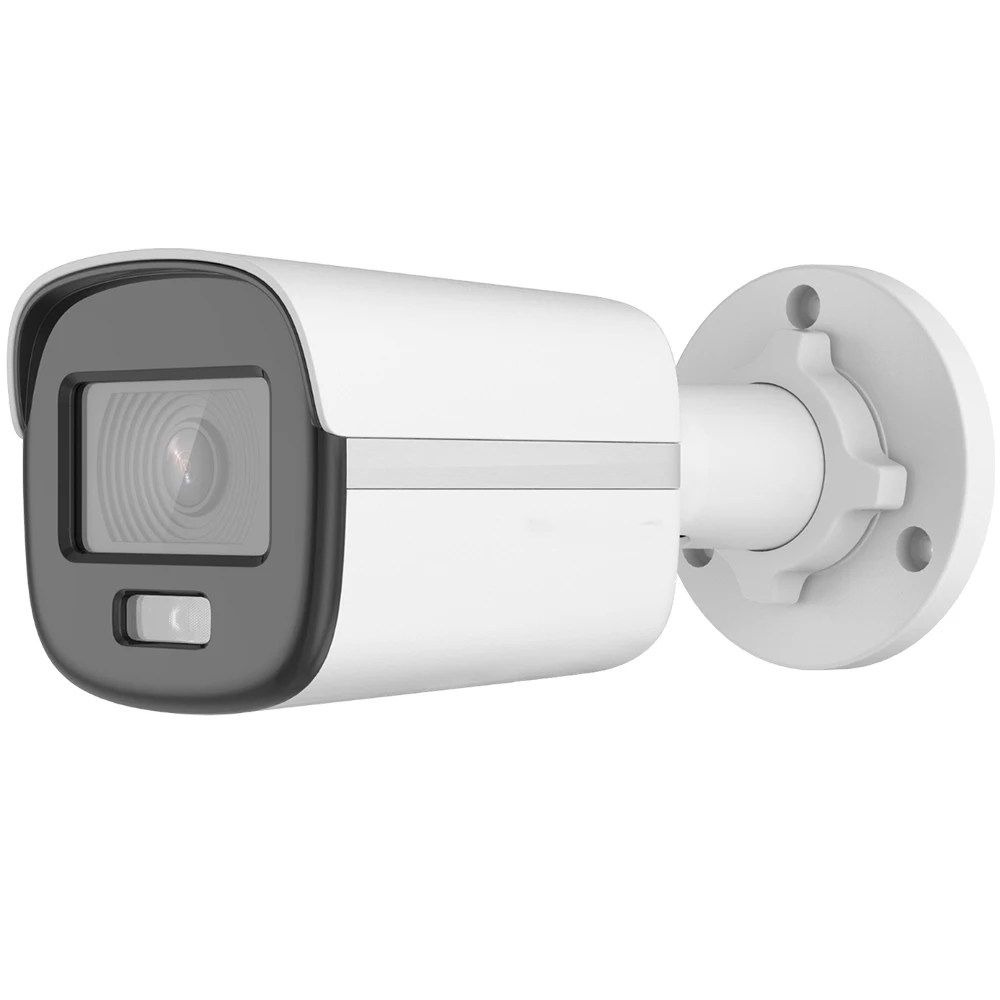

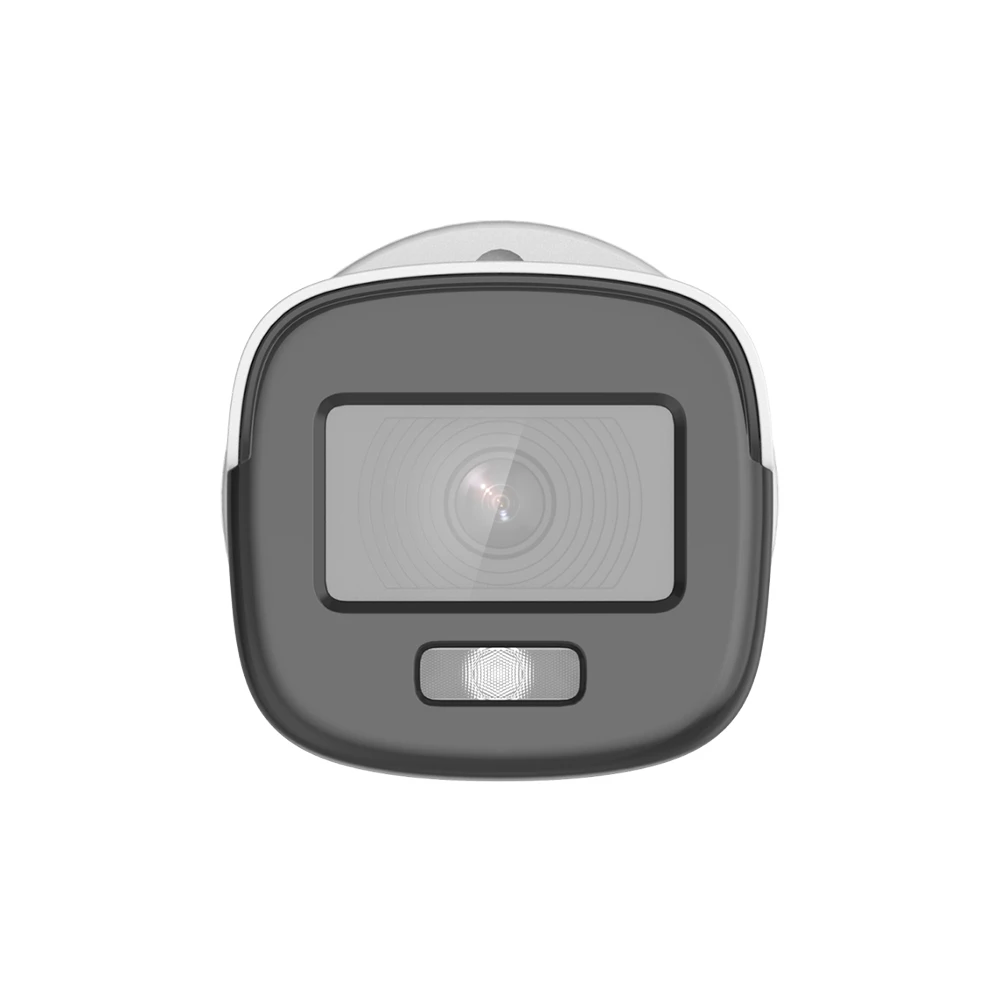

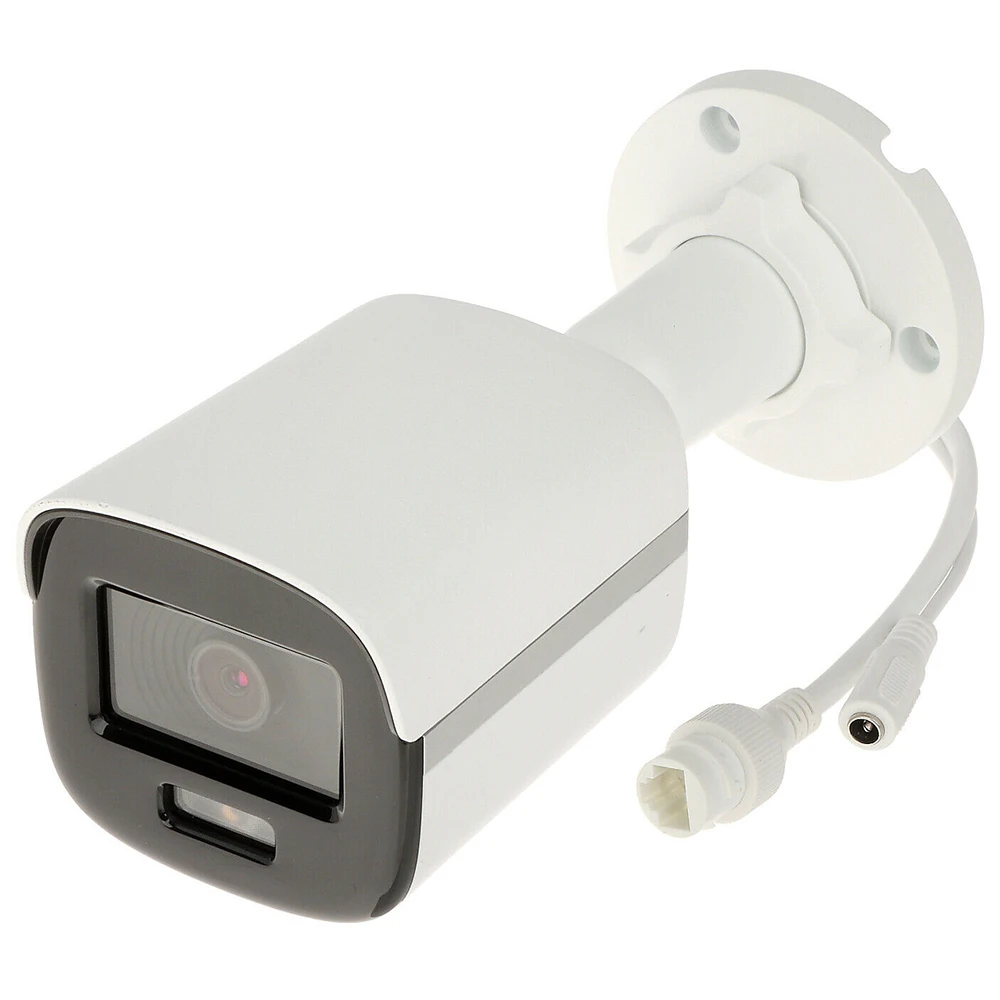

DS 2CD0127G0 L 2 MP ColorVu Fixed Bullet Network Camera English Version Fast Delivery 2022 Fast Delivery

2 MP ColorVu Fixed Bullet Network Camera

• High quality imaging with 2 MP resolution


• Excellent low-light performance


• Efficient H.265+ compression technology


• Water and dust resistant (IP67)


• 24/7 colorful imaging

• Camera


• Image Sensor1/2.8" Progressive Scan CMOS


• Max. Resolution1920 × 1080


• Min. IlluminationColor: 0.001 Lux @ (F1.0, AGC ON)


• Shutter Time1/3 s to 1/100,000 s


• Angle AdjustmentPan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°

• Lens


• Focal Length & FOV


  2.8mm, horizontal FOV 107°, vertical FOV 56°, diagonal FOV 127°




  4mm, horizontal FOV 84°, vertical FOV 45°, diagonal FOV 99°





• Lens Type & FOV


  2.8 mm, horizontal FOV 107, vertical FOV 56, diagonal FOV 127




  4 mm, horizontal FOV 84, vertical FOV 45, diagonal FOV 99





• Lens MountM12


• Iris TypeFixed


• ApertureF1.0


• Depth Of Field


  2.8 mm: 1.7 m to ∞




  4 mm: 2.1 m to ∞





• Lens TypeFixed focal lens, 2.8 and 4 mm optional

• Illuminator


• Supplement Light TypeWhite Light


• Supplement Light RangeUp to 30 m


• Smart Supplement LightYes

• Video


• Main Stream


  50 Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720)




  60 Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)





• Sub-Stream


  50 Hz: 25fps (640 × 480, 640 × 360, 320 × 240)




  60 Hz: 30fps (640 × 480, 640 × 360, 320 × 240)





• Video Compression


  Main stream: H.265+/H.265/H.264+/H.264




  Sub-stream: H.265/H.264/MJPEG





• Video Bit Rate32 Kbps to 8 Mbps


• H.264 TypeBaseLine Profile/Main Profile/High Profile


• H.265 TypeMain Profile


• Region Of Interest (ROI)1 fixed region for main stream

• Network


• ProtocolsTCP/IP, ICMP, HTTP, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, QoS, IPv6, UDP, Bonjour, SSL/TLS


• Simultaneous Live ViewUp to 6 channels


• APIONVIF (PROFILE S, PROFILE G), ISAPI, SDK


• User/HostUp to 32 users. 3 user levels: administrator, operator and user


• SecurityPassword protection, complicated password, HTTPS encryption, IP address filter, security audit log, basic and digest authentication for HTTP/HTTPS, TLS 1.2, WSSE and digest authentication for ONVIF


• ClientiVMS-4200, Hik-Connect, Hik-Central


• Web Browser


  Plug-in required live view: IE8, IE9, IE10, IE11




  Local service: Chrome 57.0+, Firefox 52.0+




• Image


• Image SettingsRotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser


• Day/Night SwitchDay, Night, Auto, Schedule


• Wide Dynamic Range (WDR)Digital WDR


• Image EnhancementBLC, HLC, 3D DNR

• Interface


• Ethernet Interface1 RJ45 10M/100M self-adaptive Ethernet port

• Event


• Basic EventMotion detection, exception (illegal login)


• Linkage


  Upload to FTP, notify surveillance center, send email, trigger recording, trigger capture




  *Note: External device is required.




• General


• Power


  12 VDC ± 25%, 0.30 A, max. 3.6 W, Ø5.5 mm coaxial power plug, reverse polarity protection




  PoE: 802.3af, Type 1 Class 3, 36 V to 57 V, 0.20 A to 0.10 A, max. 4.5W





• Dimension68.4 × 65.2 × 161.1 mm (2.7" × 2.6" × 6.3")


• Package Dimension172 × 104 × 80 mm (6.8" × 4.1" × 3.1")


• Approx. 420 g (0.9 lb.)


• With Package WeightApprox. 510g (1.1 lb.)


• Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)


• Startup And Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)


• LanguageEnglish


• General FunctionAnti-flicker, heartbeat, mirror, privacy masks, flash log, password reset via e-mail, pixel counter

• Approval


• EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)


• SafetyUL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015)


• EnvironmentCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)


• ProtectionIngression protection: IP67 (IEC 60529-2013)

1. What are the main products of your factory?
The main products of our factory are security products, including Ip Camera, NVR, speed dome, baby monitor, smart fingerprint lock, security accessories, etc.
2. Can we visit your factory?
Of course, we welcome customers to visit our factory at any time.
3. Do you provide test samples?
Yes, we provide test samples at the buyer's expense. In addition, we believe we believe that seeing is believing, and we welcome sampling.
4. How is the quality?
We have the best professional and experienced engineers and strict quality assurance and quality control system. The strict quality control department will inspect and test the products again before shipment.
5. Can you accept OEM&ODM service?
Yes, we provide OEM&ODM services according to customer requirements, and the minimum order quantity is 500-1000 pieces. Custom LOGO and packaging.
6. What are the advantages of your factory?
We are a direct factory with advanced SMT assembly machines, stable quality and competitive prices
7. What is your purpose?
Our goal: quality, continuous innovation, and quality service are our tenet, and win-win cooperation is our development philosophy.
