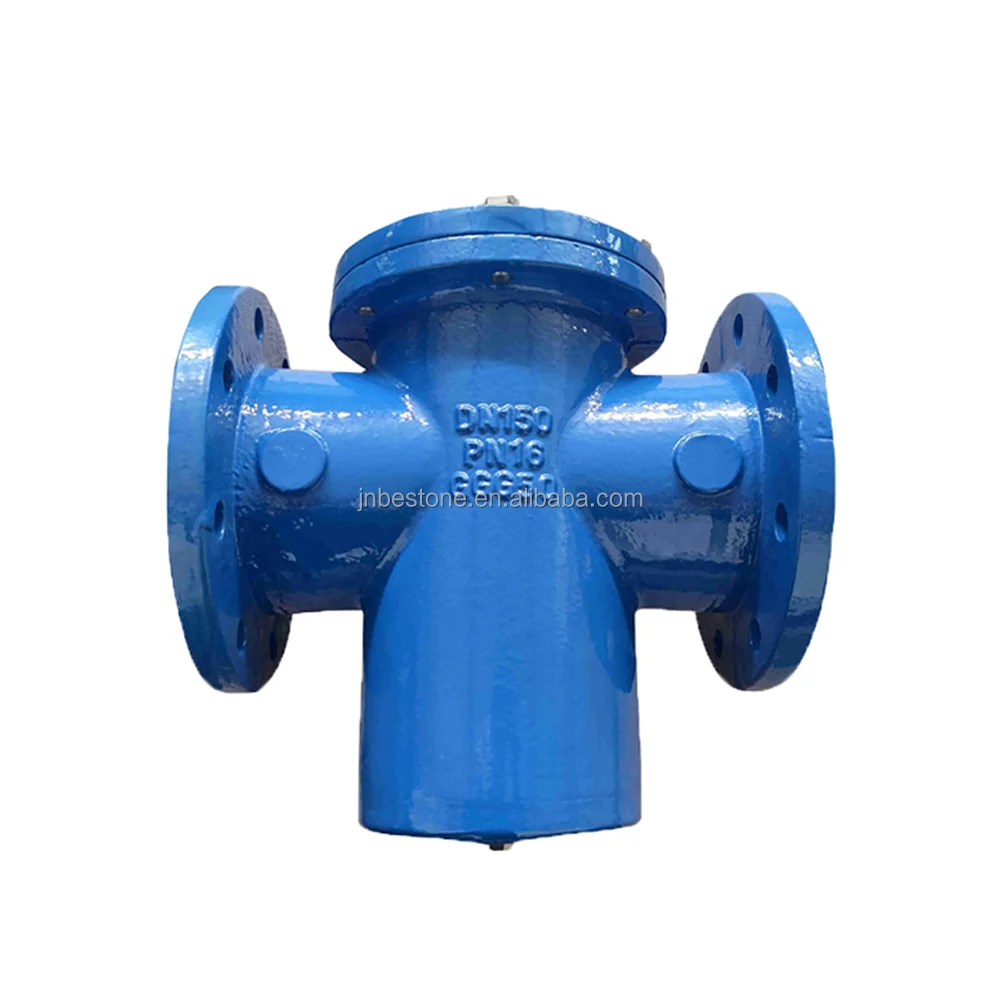

FEP lined Basket type Strainers Fluorine lining Basket type Filter

Product Overview

Description

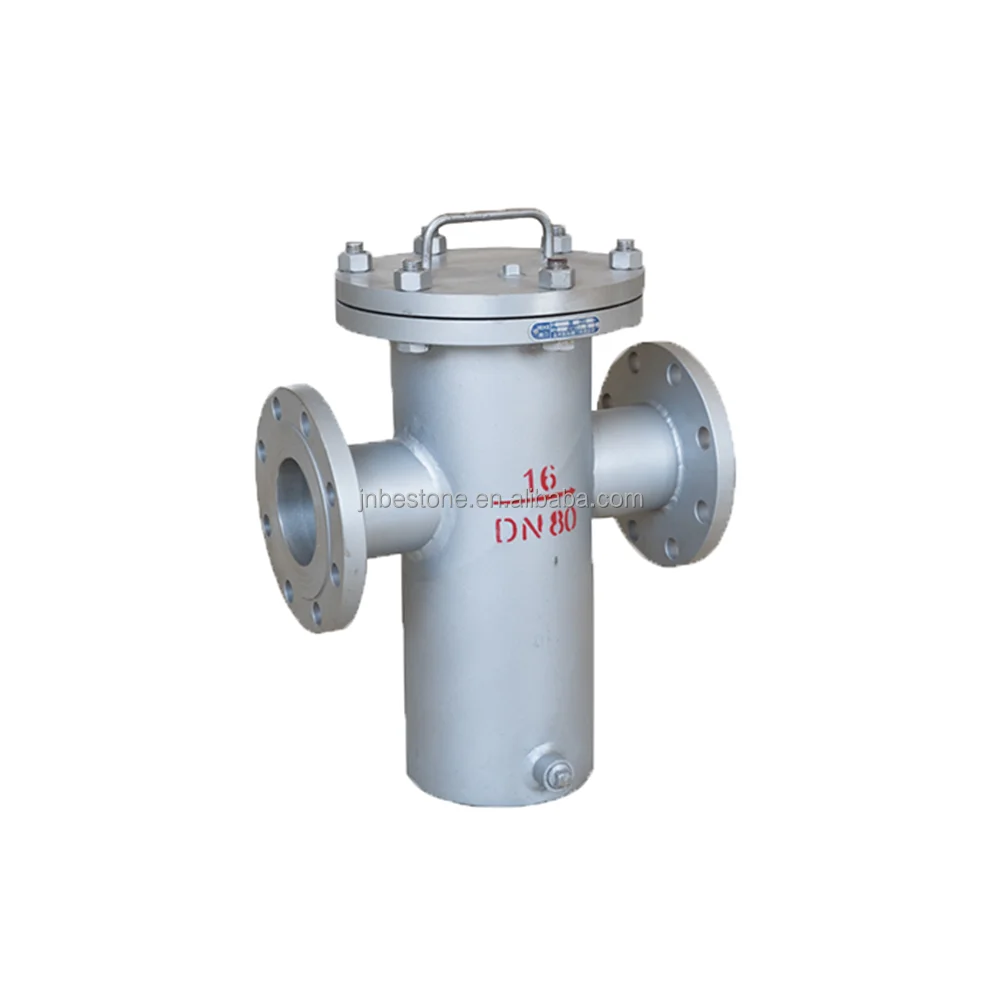

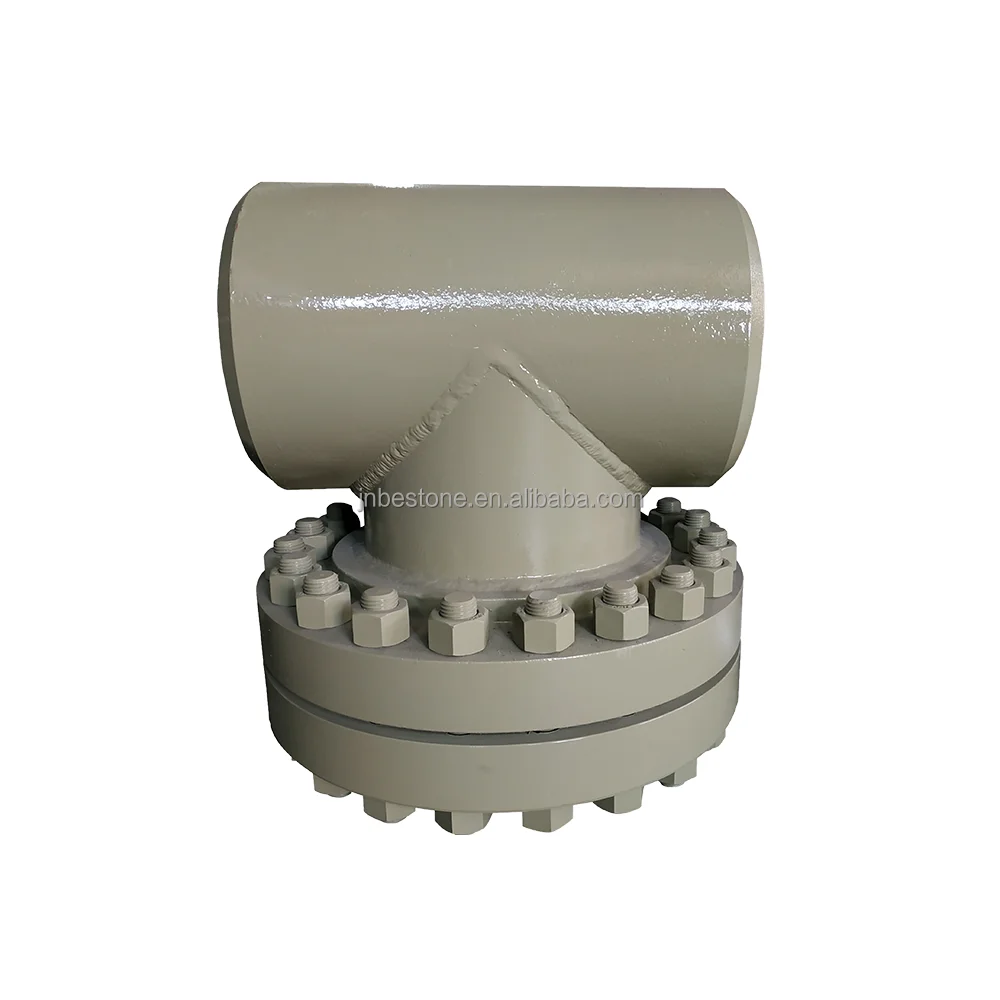

FEP lined Basket type Strainers Fluorine lining Basket type Filter



Fluorine basket type filter is the factory on the basis of a new type of filter products requirements of customers according to development advantages of filter and the fluorine plastic lined valves. This product is suitable for: various concentrations of hydrochloric acid, sulfuric acid, hydrofluoric acid, nitric acid, aquaregia, all kinds of organic acid, alkali, strong oxidizing agents or Dense dilute acid alternating, various organic solvents and removal of molten alkali metal elements, fluorine and aromatic hydrocarbons other strong corrosive medium(Note: suitable media of different lining materials different). This product shell material with carbon steel lining fluorine plastic, filter material for F46, F4 and other materials. This product has the advantages of strong corrosion resistance, high filtration efficiency, convenient maintenance etc...



Body material	cast steel, stainless steel
Screen material	PTFE, FEP, PFA, PO, FRPP
Filter precision	10-500mesh
Lined material	PTFE, FEP, PFA, PO, FRPP
Pressure	PN10, PN16, 150LB, 10K
Temperature	≤180℃
Medium	water, oil, acid, corrosion medium, etc
Function	Filter impurities
Feature	Protect the pipeline system machine
