1. Technical Data | ||||||||||
Model | Custom Battery | |||||||||

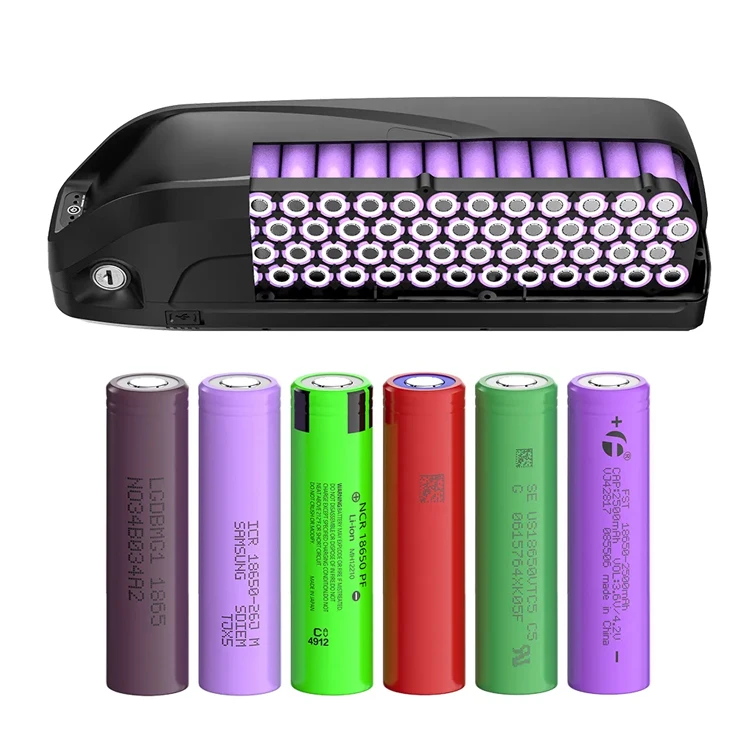

Battery Marerial | 18650/21700/32700/Polymer | |||||||||
Nominal Voltage | 36V/custom | |||||||||
Nominal Capacity | 15Ah | 17.4Ah | 19.2Ah | 20.4Ah | 21Ah | |||||
Combination | 10S 6P | 10S 6P | 10S 6P | 10S 6P | 10S 6P | |||||
BMS | 20A | 20A | 20A | 20A | 20A | |||||
Discharge Cut-off Voltage | 28V | 28V | 28V | 28V | 28V | |||||
Charge Cut-off Voltage | 42V | 42V | 42V | 42V | 42V | |||||
Standard Charge Current | 2A | 2A | 2A | 2A | 3A | |||||
Max Charge Current | 3A | 3A | 3A | 3A | 3A | |||||
2. Basic Data | ||||||||||
Dimension | 365*90*110mm | |||||||||
Battery Weight | 4.1kg | |||||||||
Cycle Life | about 800 times>80% | |||||||||
Warranty | 1~2 years | |||||||||
Charging Temprature | 0~45 Celsius | |||||||||
Discharging Temprature | -20~60 Celsius | |||||||||
Application | E-bike, Tricycle, MTB,custom | |||||||||
3. Packing List | ||||||||||
battery&key : 1pc | ||||||||||
battery mount base : 1pc | ||||||||||
Charger : 1pc | ||||||||||
