SICOMA APM 1500 / 2000 / 3000 Vertical shaft Planetary Mixer
- Category: >>>
- Supplier: Better International Co. Ltd.Better Ltd.
Share on (1600539763042):
Product Overview
Description
Product Description
SICOMA APM 1500 / 2000 / 3000 Vertical shaft Planetary Mixer
Unique outlook structure is suitable for a variety of manufacturing industries
Adopted a fully sealed design for whole mixer,which can meet the requirements of dust-free,leak-free,and pollution-free
The upper cover consists of four equal parts can be interchanged which is flexible configuration and easy installation
Unique integrated gearbox design,fully lubricated inside,maintenance-free
Equipped various configuration for mixing system,can be flexibly selected,without dead area for well-distributed mixing
Unique spraying method,fully cover internal mixer for effective cleaning
Dual modes of discharge door opening:hydraulic operated/manual operated multi adjustable stopping positions
The discharge door can be opened up to four,which can be selected according to the direction
Optional skip hoist,weighing system and microwave moisture monitoring system

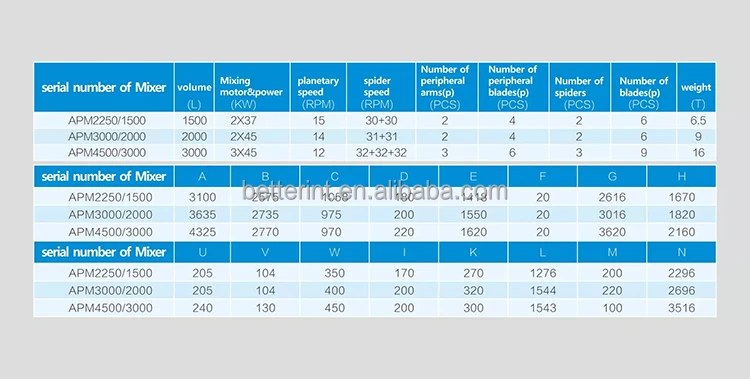

Specification
Model | APM2250/1500 | APM3000/2000 | APM4500/3000 |
Volume | 1500L | 2000L | 3000L |
Mixing motor power | 2*37KW | 2*45KW | 3*45KW |
Planetary speed | 15rpm | 14rpm | 12rpm |
Spider speed rpm | 30+30 | 31+31 | 32+32+32 |
Qty of peripheral arms | 2pcs | 2pcs | 3pcs |
Qty of peripheral blades | 4pcs | 4pcs | 6pcs |
Qty of spiders | 2pcs | 2pcs | 3pcs |
Qty of blades | 6pcs | 6pcs | 9pcs |
Weight | 6.5T | 9T | 16T |
