Surveying RTK a-GEO NetBOX1 Esuvey SOUTH CHC

Share on:

Price in USD:Details


Product Overview


Packaging & Shipping

Packaging Detials:Single item ,1pc/carton



Product Description

 Channels 866 channels
 Dimensions 100mm*100mm*61mm
 Weight 0.65kg
 Radio modem
 Transmit power 1/2w switchable,working range >4m
Frequency band 410MHz-470MHz
 WebUI  support WebUI configuration
Battery 9600mAh ,working more than 9 hours


Product Description

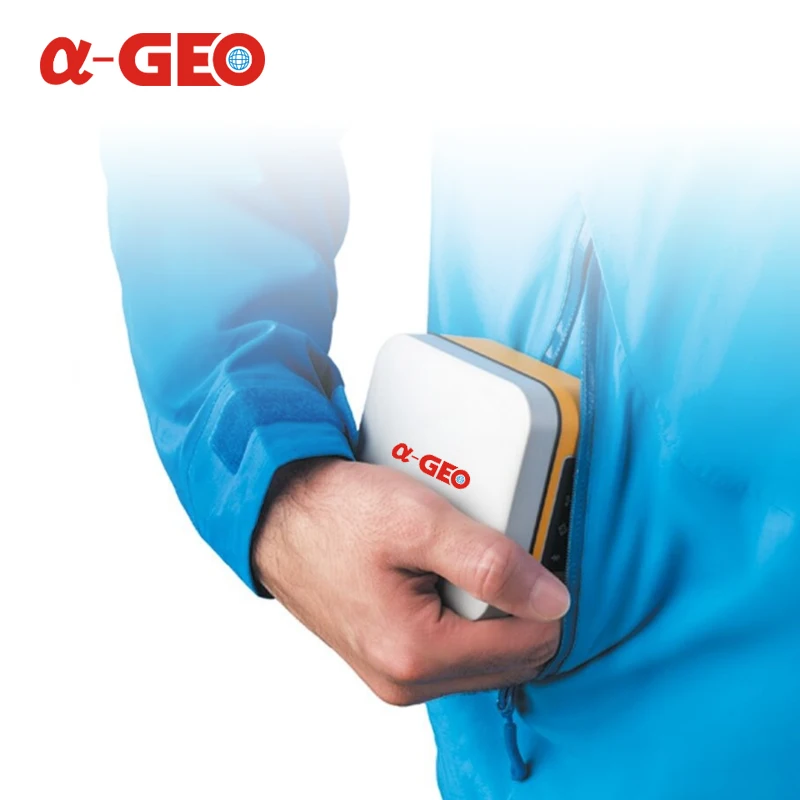

NetBox1 is a mini portable multi-functional GNSS receiver, with a new generation of algorithm engine, Linux system, tilt survey, built-in 4G all Netcom and Bluetooth/Wi-Fi. It adopts a new appearance design, the magnesium alloy structure, and highly integrated module design. It is a perfectly multifunctional compact GNSS receiver.



a fast efficient wat to monitor and control hardware devices. Also offers access to the most commonly used features via the existing web browser on your device of choice, so there is no need to download or install anything


the a-GEO NetBox1 has a IP67 this standard allows the netbox1 receiver to be used comforaby in a variety of weather conditions, and the design of the thermometer sensor inside the receiver can make receiver automatically shuts down for minimal damage when tempratures is over 80 °C . so that will not defect the electronic device. by using this standard and OHO technology, the operation of the Netbox1 receiver is guarenteed in all weather conditions

Linux Intelligent System

Linux+Qua lcomm MDM9628 Cortex-A7 intelligent system platform brings users efficient computing and unlimited expansion of product functions.

All Constellation and All Frequency GNSS Receiver

The host integrates high-precision positioning module, and supports BDS B1 / B2 / B3, GPS L1 / L2 / L5, GLONASS L1 / L2, Galileo E1 / E5A / e5b, SBAS L1, QZSS L1 / L2 / L5, and all frequency point signal reception and calculation of the whole system.

Tilt Survey

Built in intelligent high-precision inertial navigation module, real-time tilt compensation, let RTK measurement say goodbye to “flying point”.


The 4G full netcom solution based on Linux platform fully supports all telecommunications which has stronge signal and more stable connection.

Combination Antenna

The new four in one antenna, which integrates GNSS, WiFi, Bluetooth and 4G, has smaller volume and better signal.

Super Long Endurance

The built-in large capacity lithium battery ensures the continuous working time of more than 9 hours under normal operation.
