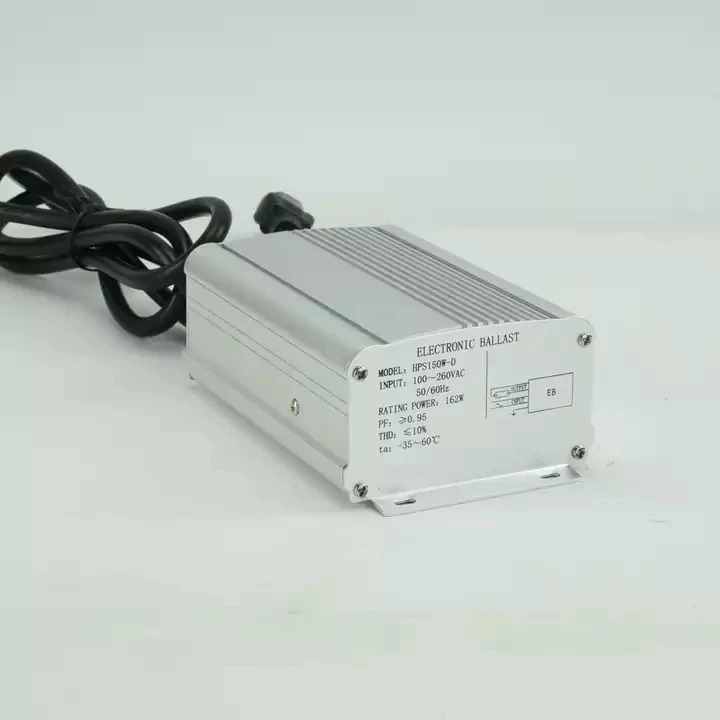

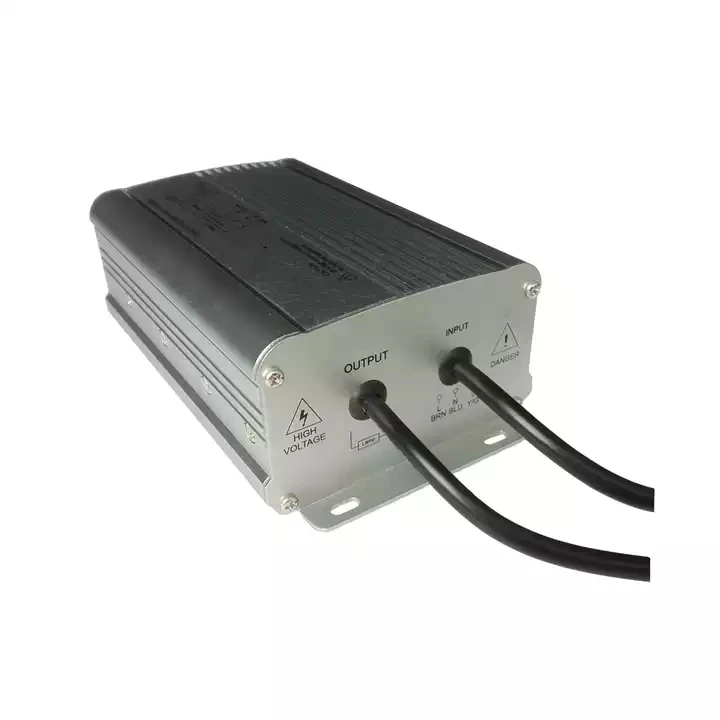

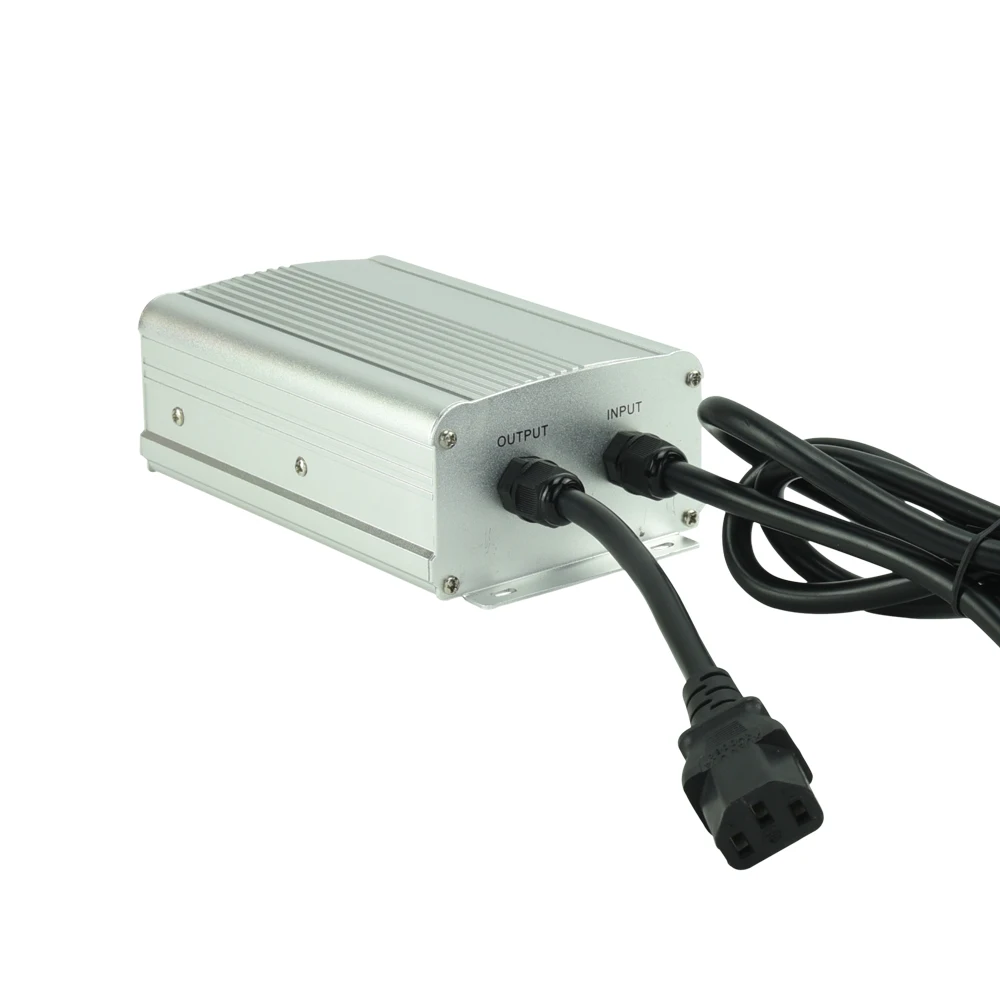

150w digital ballast for HPS lamp with dimming control function Available

Product Overview

Description

150w electronic ballast for HPS Lamp 150W

Key Features of 150W Digital Ballast

• 208V/220V/230V/240V sensing input, 50/60Hz


• Easy installation, low profile, saving the space


• High standard components made by Japanese and Germany. E.g.: Nippon Chemi-con capacitors, high capability Infineon,IXYS(Germany)/Fairchild(USA) MOSFETS to bear large amperes, produce less heat, and offer reliability and performance


• Soft start and Random Start



• Microchip Inside for precise control


• Constantly output power when the voltage is fluctuating



• High Frequency Sine Wave, fully compatible with SE 150W HPS/MH lamps


• Multi-protections: Open/Short circuit protection, High/Low voltage protection, Thermal protection, Hot-start protection


• Prolong lifetime of lamp at least 10%


• Energy saving up to 30%-50% compared with MAGNETIC BALLASTS


• Running 10%-15% than other digital electronic ballasts in the market


• Lower EMI/IF compared with other electronic ballasts



• 0.99 Power Factor, and less than 10% Total Harmonic Distortion


• 3 years factory warranty


• UL, cUL, CE certificates


• 6FT input power cord



• Remote Control by 0-10V controller Optional



Performance Description
Model		HLB-150SS-240V
Rated Power		150W
Input	Voltage Range	180Vac-265Vac
	Rated Voltage	208/220/230/240Vac
	Current	0.675A@240V
	Frequency	50~60Hz
	Power	162W±5%
	Power Factor	≥0.99
	THD	<10%
Output	Frequency Type	Low Frequency Square Wave
	Frequency	100 Hz
	Power	150W±5%
	Current Crest Factor	<1.5
	Open Circuit Voltage	<300V
	Ignition Voltage	3.5~5kV
	Dimming Function	0-10V/RS485 optional
	Required Lamp Voltage	90-130V
	Efficiency(@240Vac)	>93%
Protection	Short Circuit	Yes
	Open Circuit	Yes
	Ignition Failure	Yes
	End of Lamp Life(EOL)	Yes
	Overheated	Yes
	Soft-start	Yes
	Over Voltage	Yes
Lamp	Lamp Type	SE 150W HPS/MH lamps
	Lamp Power	150W
	Lamp Voltage	90~130V
	Distance to Ballast	<15m(50FT)
Physical Description
Dimension(L*W*H) mm		100x70x50
Net Weight		1.0kg(cord included)
Ventilation		No
Waterproof Grade		IP30
Working Humidity		10%~90%
Operating Temperature Range		-30℃~+50℃
Max Case Temperature		<90℃
Internal Temperature Rise		<30℃
Certificate and Standard
Certificate		CE, UL, cUL
Safety Regulation		IEC 61347
Quality Standard		ISO9001
Environmental Standard		ISO14001



a: Gift Box b: Master Carton:Standard Export Cartonc: OEM packing is available
