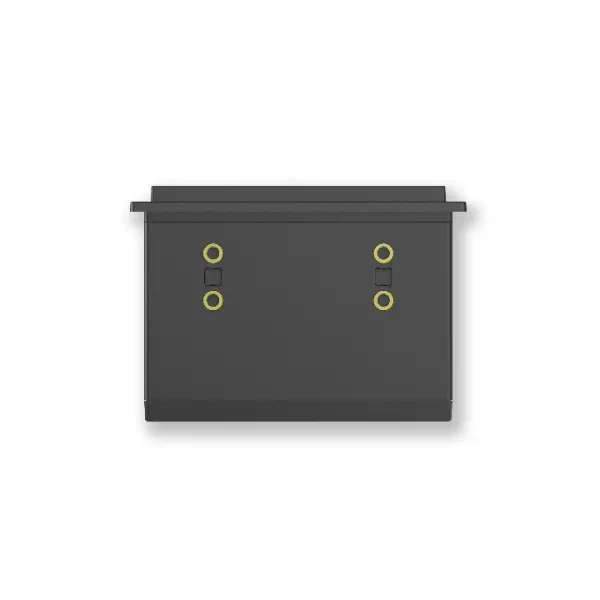

Newland NLS-FM30 NLS-FM3080 Fixed Mount Barcode Scanner Scanner Engine Module
- Category: Scanners >>>
- Supplier: Suzhou,Qiji,Electric,Co.,Ltd.
Share on:
Product Overview
Description
Product Description
• Higher Resolution CMOS
Compared with its predecessor, the NLS-FM3080 is able to capture higher resolution images with a 800x800 pixel CMOS sensor, promising to boost the scanning performance to a new level.
• IP65-rated Sealing
An IP65-rated seal renders the scanner impervious to dust, water and other contaminant.
• IR/Light Triggers
The combination of IR sensor and light sensor exhibits an improved sensitivity in activating the scanner to scan barcodes as they are presented, to achieve higher throughput and productivity.
• Multiple Color Options for Good Read LED
The NLS-FM3080 offers up to 4 color options to users to program its Good Read LED indicator to match the décor of the workplace.
• Snappy On-screen Barcode Capture
Armed with Newland’s sixth-generation of UIMG® technology, this CPU-based scanner excels at reading on-screen barcodes containing large amounts of data.
NLS-FM3080 | ||
| Performance | ||
| image Sensor | 800*800 CMOS | |
| illumination | White LED | |
| Symbologies | 2D | PDF4I7, Data Matrix, QR Code, Micro QR Code, Aztec, etc. |
| ID | EAN-8, EAN-13, UPC-A, UPC-E, ISSN, ISBN. Codabar, Standard 2 of 5, Code 128. Code93, ITF-6, ITF-14, GSI Data bar, MSI-Plessey, Code 39, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, Code II, Plessey, etc. | |
| Resolution* | ≥4mil | |
| Scan Window | 50mm x 50mm | |
| Scan Modes | Sense mode. Continuous mode | |
| Min. Symbol Contrast* | 25% | |
| Scan Angle** | Roll: 360°, Pitch: ±40., Skew: ±40. | |
| Field of View | Horizontal 74°. Vertical 74° | |
| Physical | ||
| Interface | RS-232, USB | |
| Operating Voltage | 5VDC±5% | |
| Rated Power Consumption | 869mW (typical) | |
| Currenl<a)5VDC | Operating | 185mA (typical), 193mA (max.) |
| Dimensions | 78.7(W)x67.7(d) x47.5(H)mm (max.) | |
| Weight | I32g | |
| Notification | Beep, LED indicator | |
| Environmental | ||
| Operating Temperature | -20°C to 60°C (~4°F to 140°F) | |
| Storage Temperature | -40°C to 70°C (-40°F to I58°F) | |
| Humidity | 5%~95% (non-condensing) | |
| ESD | *15 KV (air discharge); ±8 KV (direct discharge) | |
| Sealing | IP65 | |
| Certificates | ||
| Certificates & Protection | FCC Parti5 Class B, CE EMC Class B, RoHS | |
| Accessories | ||
| cable | USB | Used to connect the scanner to a host device. |
| RS-232 | Used to connect the scanner to a host device. | |
| Power Adapter | DC5V power adapter to provide power for the scanner with RS-232 cable. | |
Company Information
FAQ
| 1.Can I get a sample order first to test the quality and compatibility? | |
| Yes, usually we have samples in stock, customers can easily buy them for testing purpose. | |
| 2.What about delivery time? | |
| For sample, usually 3 days. For bulk order,usually 7 to 15 days,depends on order quantity. | |
| 3.How about Payment terms? | |
| For sample, Paypal, Western Union. For bulk order, T/T prepaid. | |
| 4.How about shipping methods? | |
| DHL, UPS, FedEx,China Post, etc are all ok, we will choose the economical and fast way. | |
| 5.How about the warranty? | |
| All items have 1 year guarantee. | |
| 6.How will you control the printer's quality? | |
| We fully tested every product before shipping out, and also we have QC persons. | |
| 7.Can you make OEM or ODM for products? | |
| Yes, OEM and ODM products are available. |
