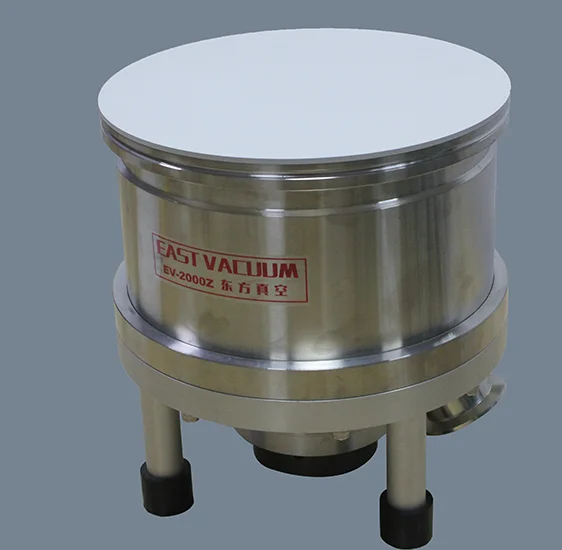

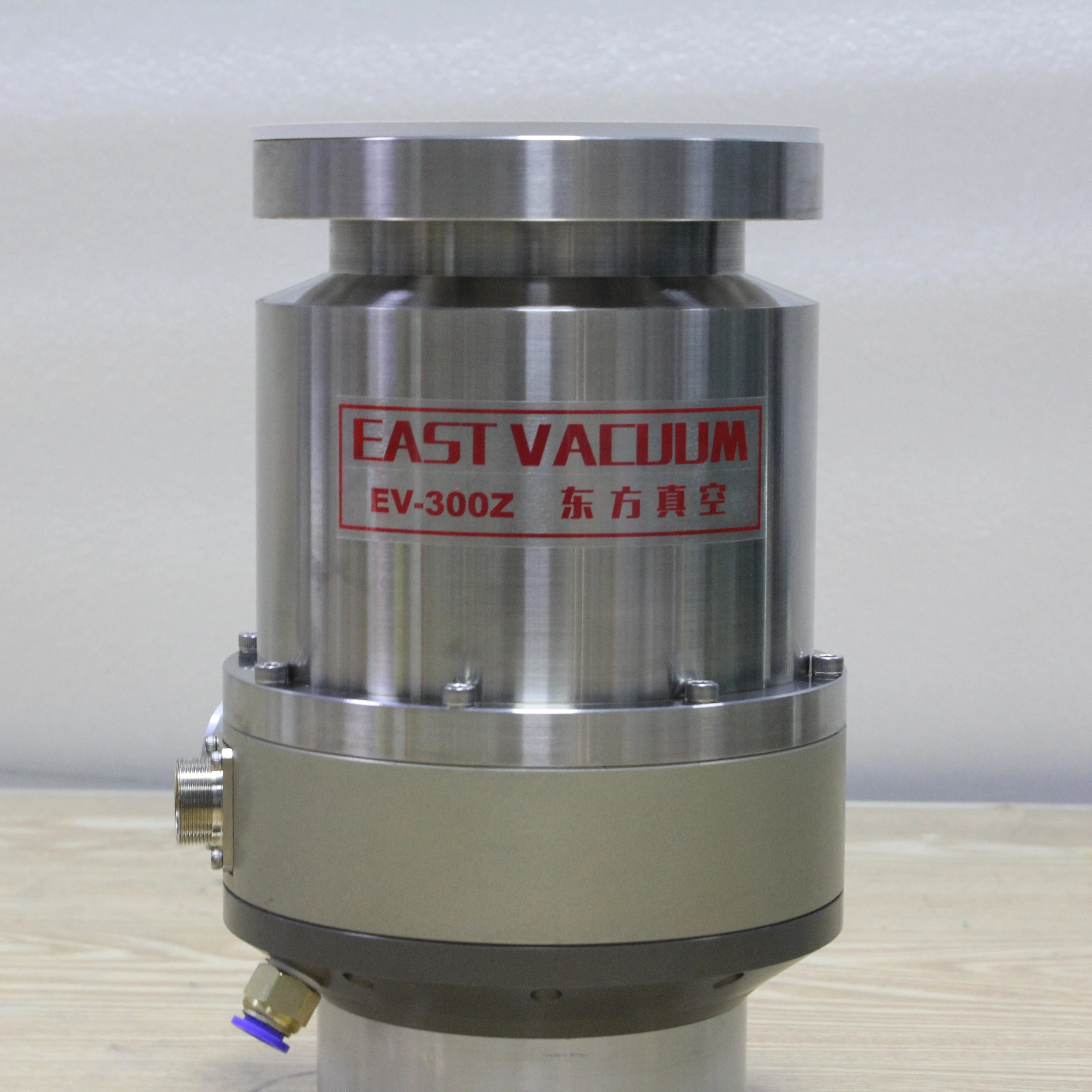

Turbo molecular vacuum pump High vacuum pressure lab use air cooling greased lubricated turbo molecular vacuum pump
- Category: >>>
- Supplier: Beijing Super Q Technology Co. Ltd.
Share on (1600540265210):
Product Overview
Description
Products Description
Model: EV-3600
Brand: East Vacuum
Material: SS304/SS316
Pack Qty: 10pcs
Min. qty: 1pcs
Model | EV-600 EV-600F | EV-1200 EV-1200F | EV-1600 EV-1600F | ||||||
Inlet Flange(mm) | 150CF | 150 ISO-K | 200 CF | 200 ISO-K | 250CF | 250 ISO-K | |||
Outlet Flange(mm) | 40 KF | 40KF | 50KF | ||||||
Pumping speed(L/S) | 600 | 1200 | 1600 | ||||||
Compression Ratio | >109 | >109 | >109 | ||||||
>8X103 | >1X104 | >1X104 | |||||||
Ultimate Vacuum(Pa) | <8X10-8 | <5X10-7 | <8X10-8 | <5X10-7 | <8X10-8 | <5X10-7 | |||
Rotation Speed(rpm) | 24000 | 24000 | 24000 | ||||||
Vibration | ≤0.1μm | ≤0.1μm | ≤0.15μm | ||||||
Run-up time(min) | <4.5 | <5 | <6 | ||||||
Backing pump | 4-8 L/S | 8-15 L/S | 15 L/S | ||||||
Cooling Method | Water(Air) Cooling | Water Cooling | Water(Air) Cooling | Water(Air) Cooling | |||||
Cooling water tem (℃） | ≤20 | ≤20 | ≤20 | ||||||
Ambient Temperature (℃) | ≤35 | ≤35 | ≤35 | ||||||
Cooling Water flow quantity | 1-2 L/min | 1-2 L/min | 1-2 L/min | ||||||
Bake-our Tem(℃） | <120 | <120 | <120 | ||||||
Heater Power(w) | <250 | <250 | <250 | ||||||
Heater input vlotage(v) | AC220 | AC220 | AC220 | ||||||
Mounting | Vertical ±5° | Vertical ±5° | Vertical ±5° | ||||||
Weight(kg) | ≈25 | ≈29 | ≈31 | ||||||
Recommend Products

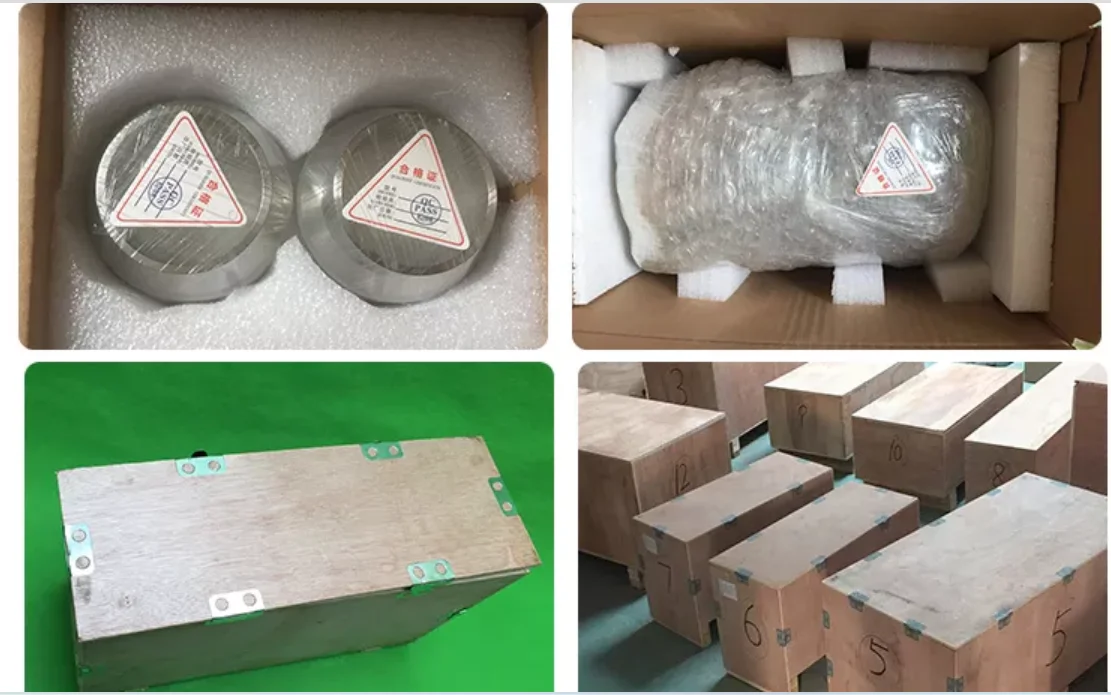

Product packaging

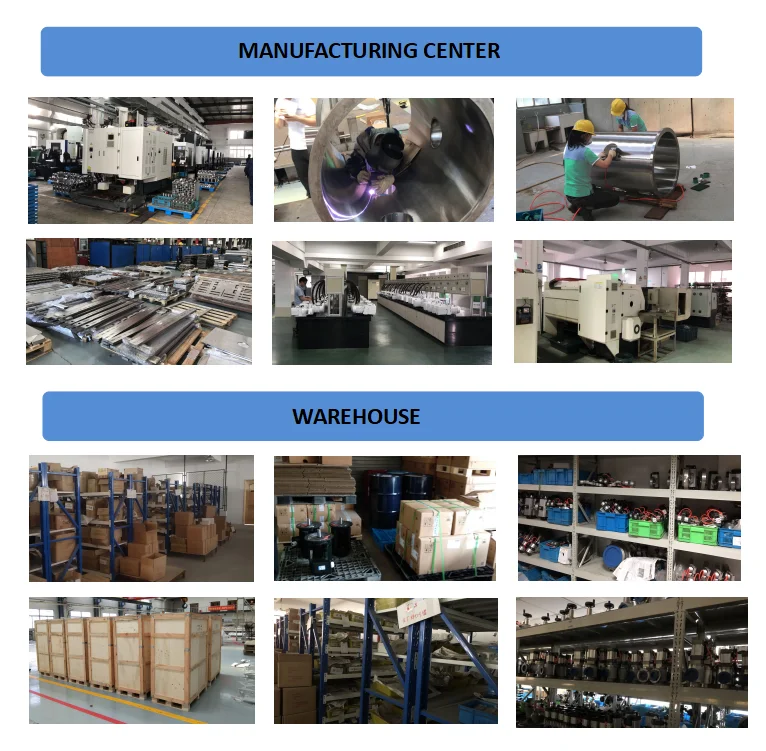

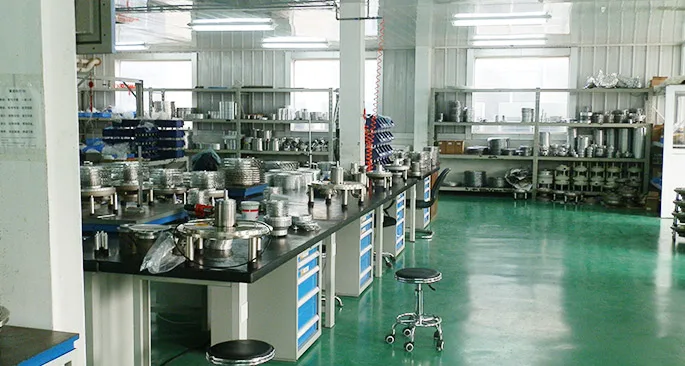

Company Profile
Beijing Super Q Technology Co., Ltd
Super Q Technology Co., Ltd. is a national high-tech enterprise.
Has R&D department, manufacturing department and sales department.
Super Q Technology is committed to providing a range of products from low vacuum to super high vacuum.
Not only a provider of vacuum products, but also solving problems related to vacuum product applications .
Our production cope are vacuum pumps, various series of vacuum valves, vacuum bellows, flange connectors, vacuum chamber manufacturing and processing and other vacuum related products.
Vacuum products are widely used in new energy, new materials, aerospace, semiconductor and other fields,
and provide various vacuum solutions for the application of new vacuum technology in scientific research institutions.
2020, we independently developed and produced a variety of advanced new vacuum technology materials,
2020, we independently developed and produced a variety of advanced new vacuum technology materials,
mainly including vacuum insulation board, vacuum insulation decorative integrated board, vacuum glass, vacuum energy-saving doors and windows and other products,
Provided consulting, design, construction, operation and maintenance of Passive house or carbon neutrality buildings
Why Choose Us
Quality Advantage
1. Our products are tested helium mass spectrometer leak detector.
2. realizing a new energy-saving and low-carbon future through advanced vacuum technology for more than 20 years and R&D experience.
3. Cost effective. We have ore than 100 vacuum fittings, custom made accepted.
Brand Advantage
1. professional engaged in the research, development, sale and service of vacuum valve, vacuum pumps, vacuum bellows, vacuum fittings etc.
2. My factory unified product use of "Supper Q" a registered trademark.
Service Advantage
1. Responding to customers’ needs within 6 hours
2. Ensured delivery within agreed time
2. realizing a new energy-saving and low-carbon future through advanced vacuum technology for more than 20 years and R&D experience.
3. Cost effective. We have ore than 100 vacuum fittings, custom made accepted.
Brand Advantage
1. professional engaged in the research, development, sale and service of vacuum valve, vacuum pumps, vacuum bellows, vacuum fittings etc.
2. My factory unified product use of "Supper Q" a registered trademark.
Service Advantage
1. Responding to customers’ needs within 6 hours
2. Ensured delivery within agreed time
Customer Photos
FAQ
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 4-8 weeks if no stock or need to be customized. It is according to purchase quantities.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000$, 100% deposit. Payment>=1000$, 30% deposit ,balance before shipment.
A: Generally it is 5-10 days if the goods are in stock. or it is 4-8 weeks if no stock or need to be customized. It is according to purchase quantities.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000$, 100% deposit. Payment>=1000$, 30% deposit ,balance before shipment.
