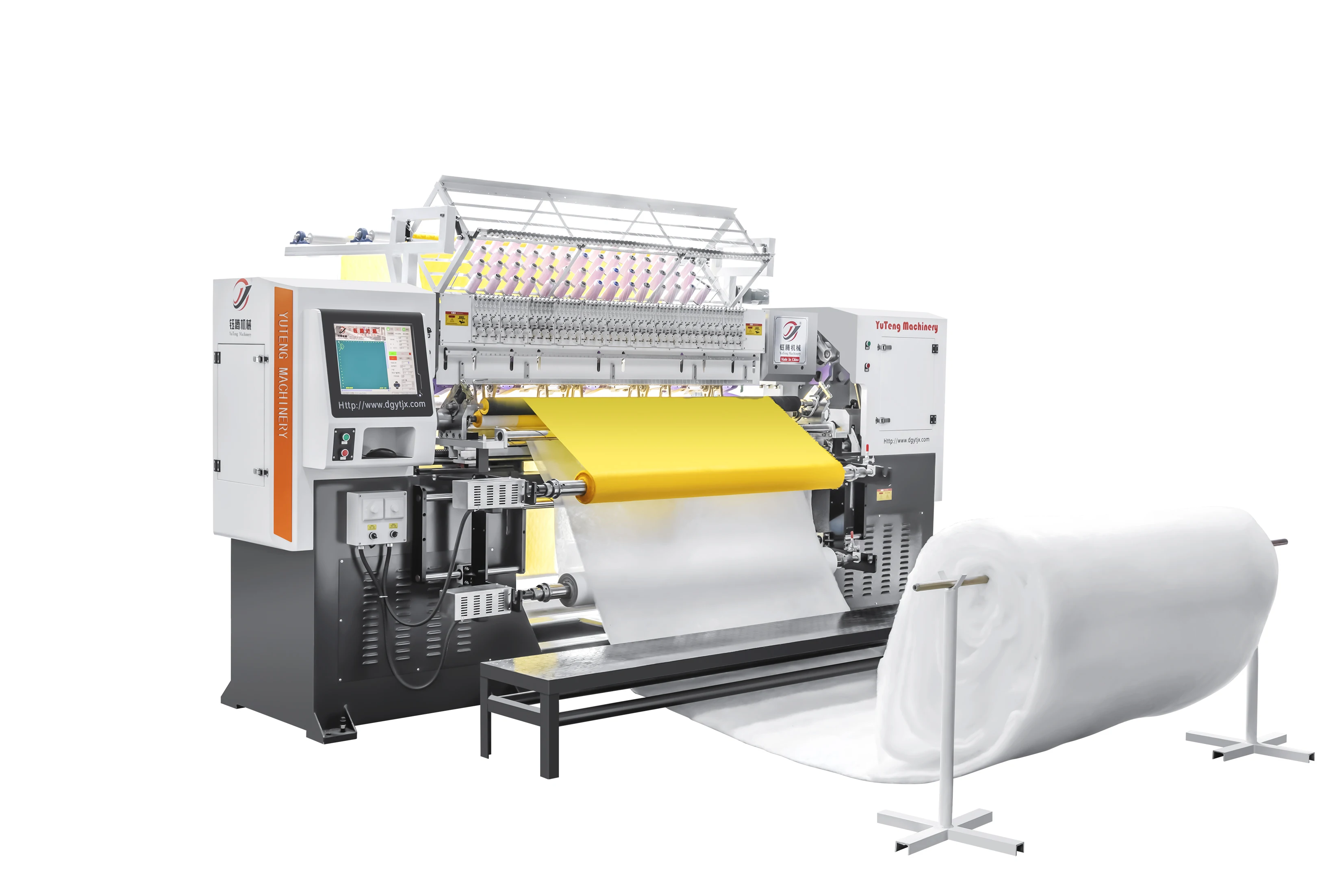

High speed Computerized Shutttle Multi needle Quilting Machine
- Category: Quilting Machines >>>
- Supplier: Dongguan Yuteng Machinery Technology Co. Ltd.
Share on (1600540266853):
Product Overview
Description
Products Description
Double row rotary shuttlr design
Aluminum alloy needle and pressure rod holder.
Comfortable shuttle changing space
Product Paramenters
Model | X64 | X96 |
Dimension(L×W×H)(mm) | 4100*1400*2350 | 4900*1400*2350 |
Quilting width | 1651mm | 2387.6mm |
Needle rows | 2 | 2 |
Space between needle rows | 3" | 3" |
Space between needle | 50.8mm | 50.8mm |
X-axis movement displacement | 200mm | 280mm |
Stitch length | 1-12.7mm | 1-12.7mm |
Model of needle | 9#、16# | 9#、16# |
Quilting speed | 600-750(r/min) | 600-700(r/min) |
Voltage(AC) | 380V/50HZ,220V/60HZ | 380V/50HZ,220V/60HZ |
Total power | 4.5KW | 4.5KW |
Gross weight | 2600KG | 3850KG |
Finished Product Display
Our Advantages
Independent research and development of the operating system, with the latest embedded operating system and self-researched motion control chips on the market, the main frame response quickly, with long life and good stability, easy drawing and useful.
Compatible with embroidery machine DST files pattern, and optional feature for proofing production.
Auto-return for patch-up embroidery function.
Can move an inch in front of the needle bar, and provide more combination of flowers form.
Saddling rack, roller and spindle are drive by servo motor.
The needle bar running adopt aluminum alloy needle bar frame structure, don't need to add extra lube, strong and durable.
Adopt separation structure of convey cloth rack and moving saddling rack, effectively reduce the load and jitter of saddling rack.
Adopt double clutch device, effectively solve the synchronization problems of (Front and back) rollers.
Advanced and practical testing bottom and upper thread broken techniques, the machine is auto-stop when thread is broken.
Infrared sensor makes the operation more secure
Unique design concept of three rollers, make the flower shape box line more beautiful, more stable running Super comfortable space for changing shuttle, easy to convey cloth.
Compatible with embroidery machine DST files pattern, and optional feature for proofing production.
Auto-return for patch-up embroidery function.
Can move an inch in front of the needle bar, and provide more combination of flowers form.
Saddling rack, roller and spindle are drive by servo motor.
The needle bar running adopt aluminum alloy needle bar frame structure, don't need to add extra lube, strong and durable.
Adopt separation structure of convey cloth rack and moving saddling rack, effectively reduce the load and jitter of saddling rack.
Adopt double clutch device, effectively solve the synchronization problems of (Front and back) rollers.
Advanced and practical testing bottom and upper thread broken techniques, the machine is auto-stop when thread is broken.
Infrared sensor makes the operation more secure
Unique design concept of three rollers, make the flower shape box line more beautiful, more stable running Super comfortable space for changing shuttle, easy to convey cloth.

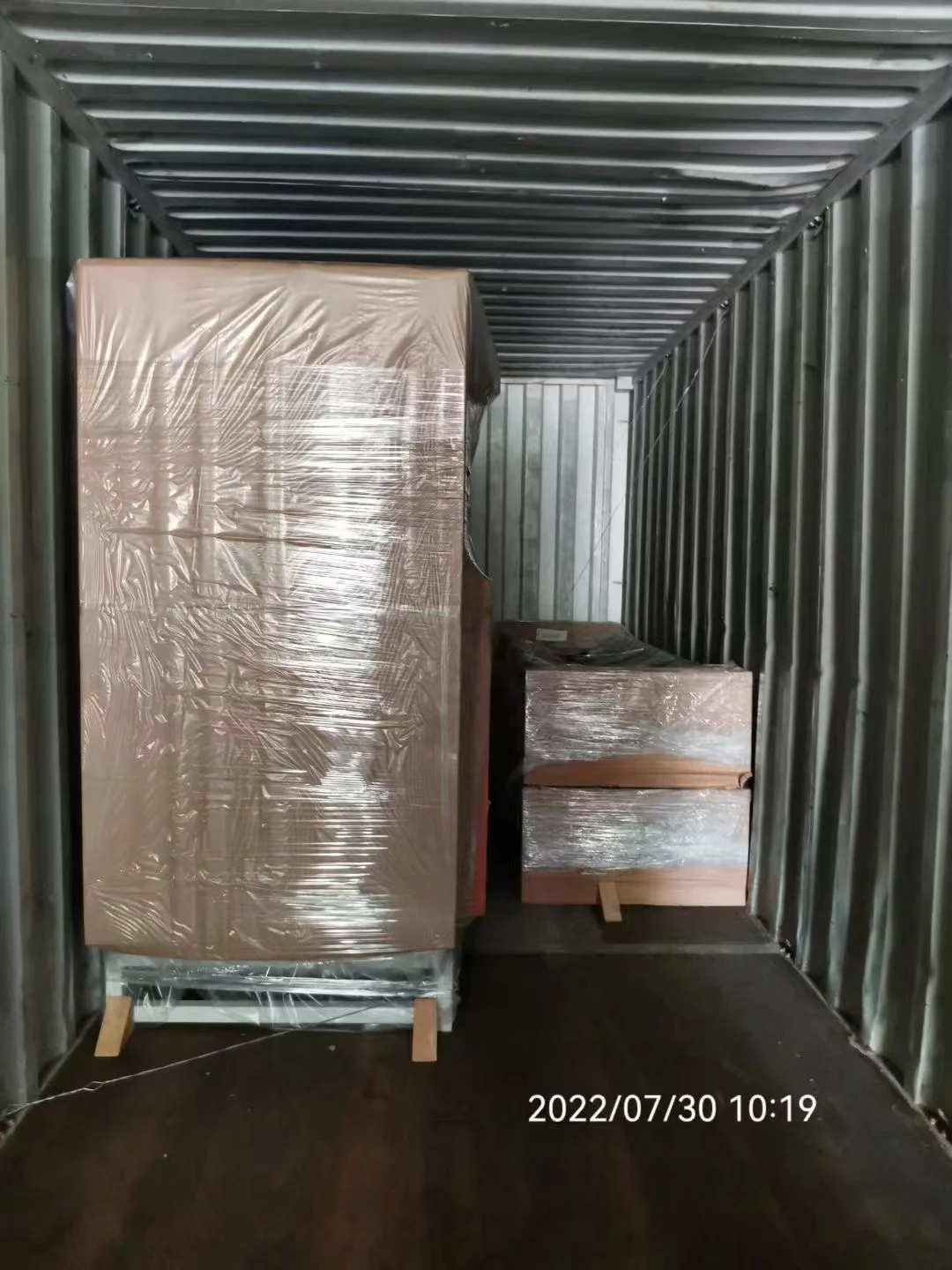

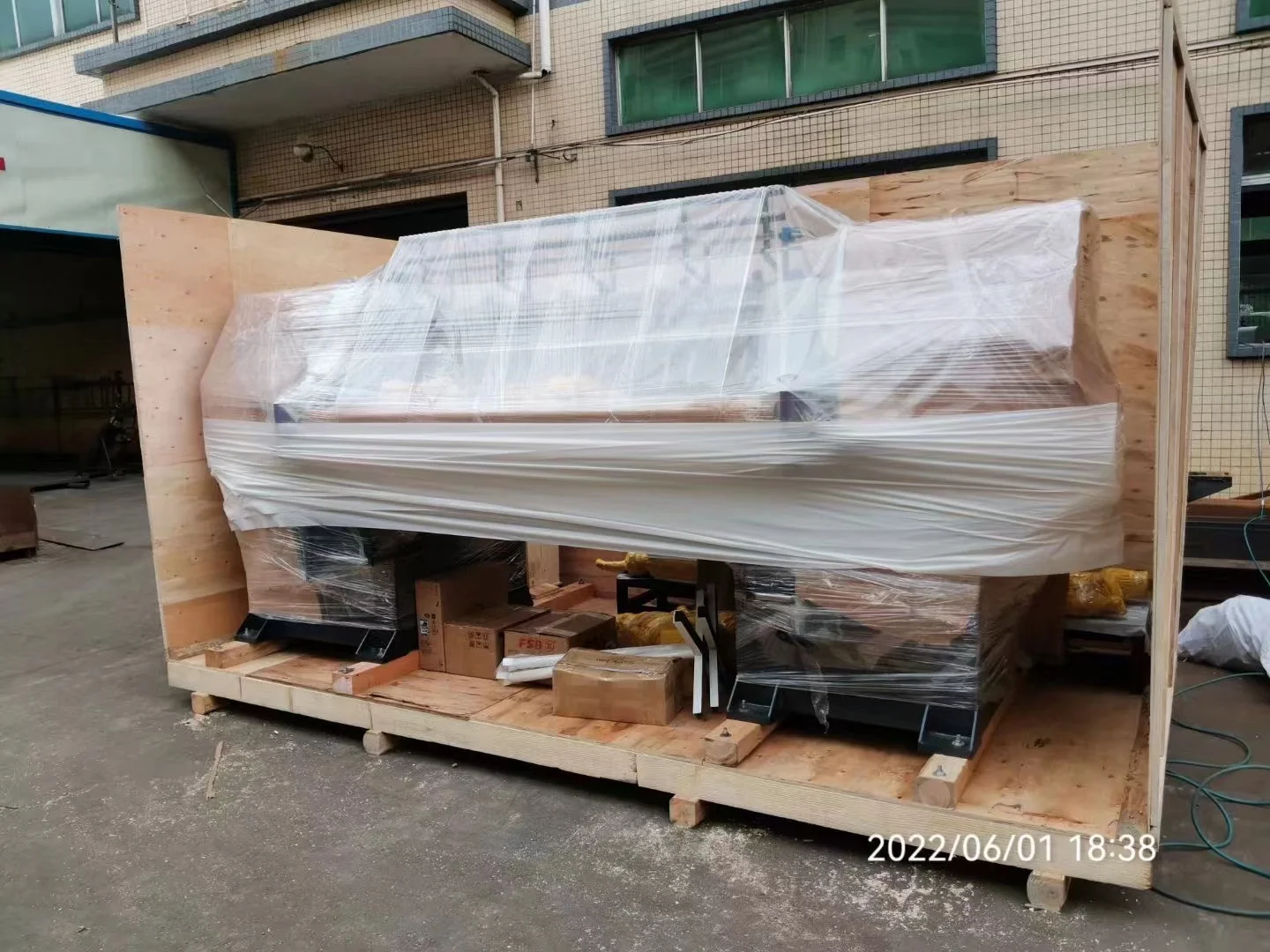

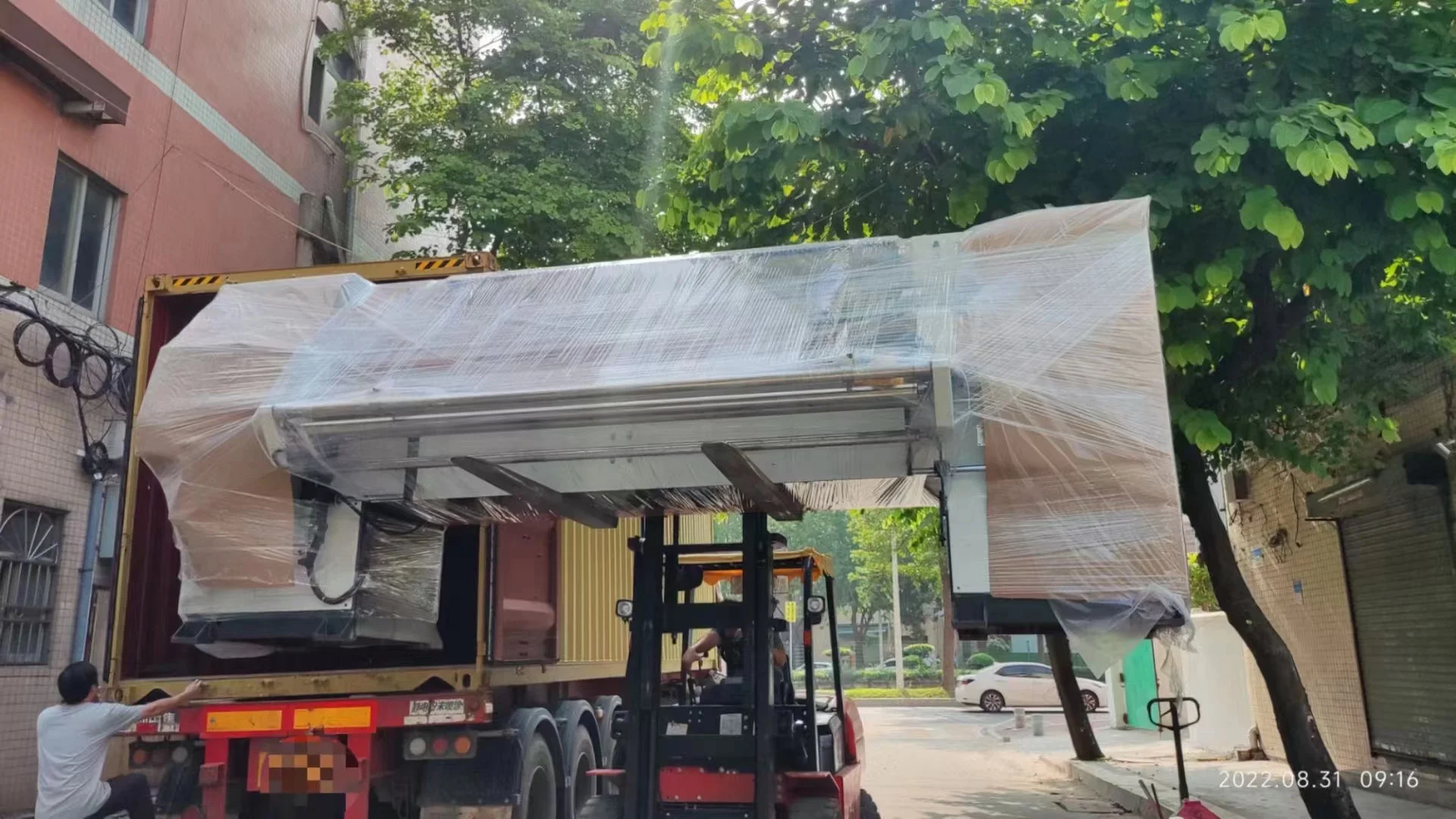

Packing
Company Profile
Company Profile
DongGuan YuTeng Machinery Technology Co., Ltd. Is a modernized, high-tech enterprise specializing in High-speed Computerized Shuttle (Lock Stitch) Multi-Needle Quilting Machine, Double Rows Computerized Quilting and Embroidery Machine ,Computerized Chain Stitch Multi-Needle Quilting Machine ,Computerized Panel Cutter Machine, Rolling machine .The products are widely used in garment, bedding, handbags and household ornament etc. With strong R&D both in machinery and software, our company focuses on the the profound development in production, sales, and Service.
The founder of YuTeng Machinery, Mr Xiaoke Hu, who engaged in quilting machinery Industry for over. 20 years, proficient in advanced manufacturing technology, unique designs and Innovation. He has won a good reputation in the Industry. With Innovative technology, stable quality and high quality after service, products in his brand sell very good at home and abroad . Leading an outstanding R&D team more than 20 professional engineering and technical personnel and customer service outlets throughout the country, YeTeng always provides clients with full technical support and perfect after service.
With integrity, profession, innovation, science and technology, YuTeng is looking forward to cooperating with companies from all over the world.
The founder of YuTeng Machinery, Mr Xiaoke Hu, who engaged in quilting machinery Industry for over. 20 years, proficient in advanced manufacturing technology, unique designs and Innovation. He has won a good reputation in the Industry. With Innovative technology, stable quality and high quality after service, products in his brand sell very good at home and abroad . Leading an outstanding R&D team more than 20 professional engineering and technical personnel and customer service outlets throughout the country, YeTeng always provides clients with full technical support and perfect after service.
With integrity, profession, innovation, science and technology, YuTeng is looking forward to cooperating with companies from all over the world.
