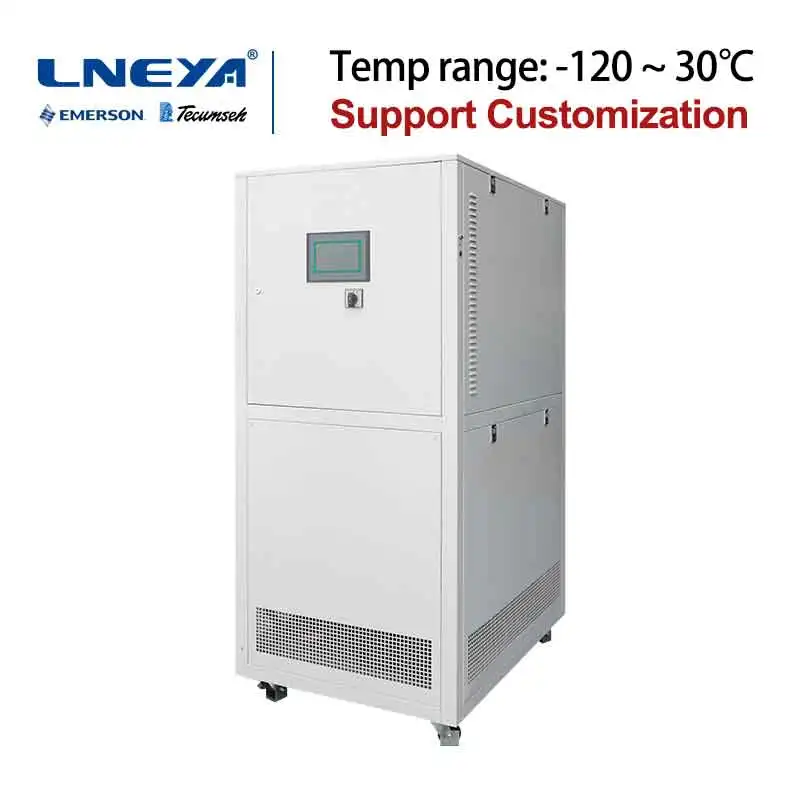

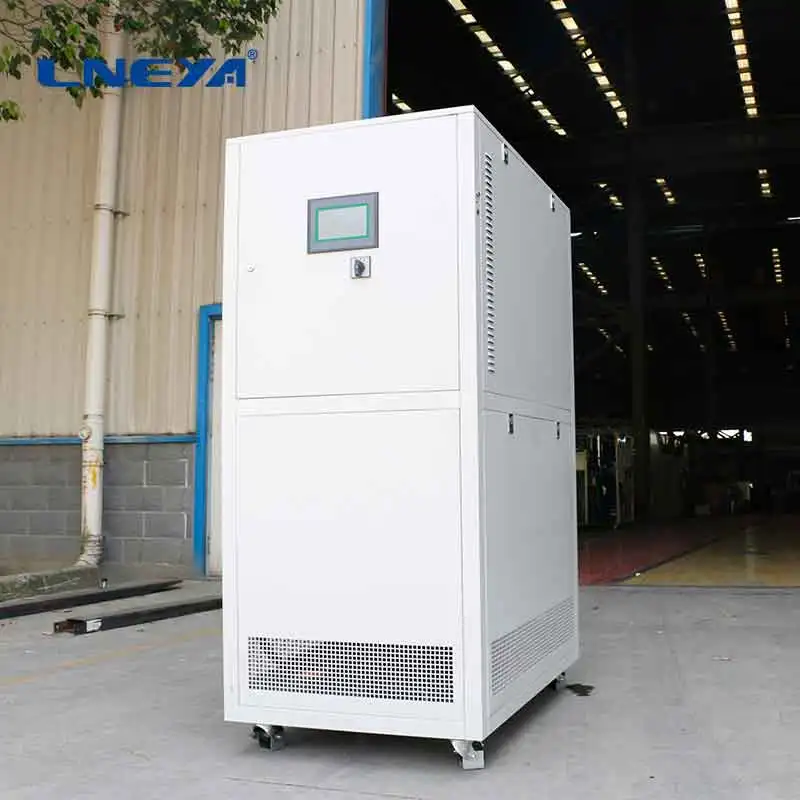

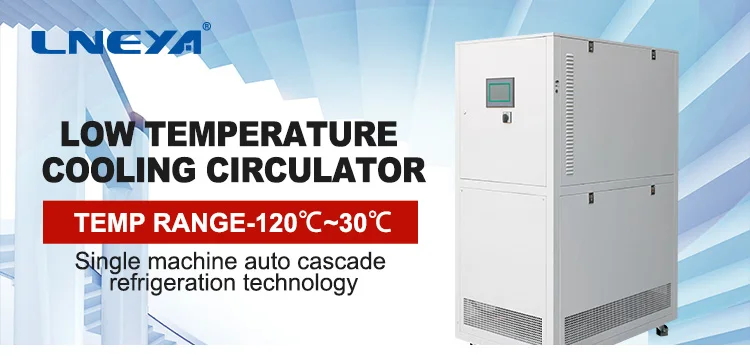

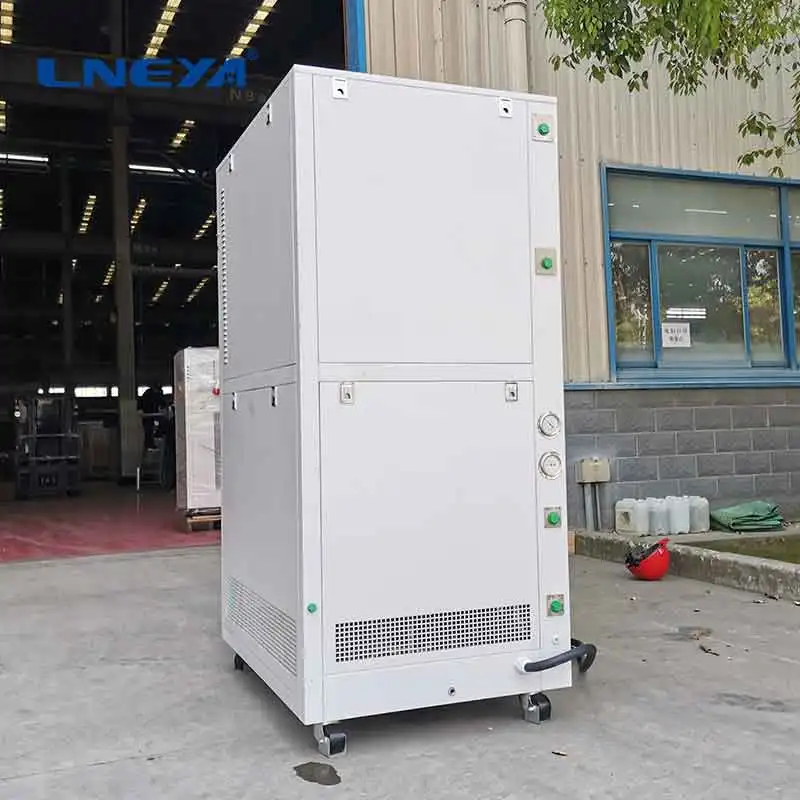

25c ~ 30c Low Temperature Refrigerated Circulators
- Category: >>>
- Supplier: Wuxi Guanya Refrigeration Technology Co. Ltd.
Share on (1600540269797):
Product Overview
Description
Products Description
Product Advantages:
* Saving resources. Closed cycle pipeline design highly prevent circulating water pollution and extend the lifetime of circulation liquid.
* Brand compressor, cascade refrigeration cooling technologies.Human design, more convenient and flexible.
* Computer-cascade temperature controller,temperature figures display, adjustable unit is 0.1°C,temperature. range is -120°℃~30°C,PT100 temperature sensor.
* A variety of fault alarm (over-temperature alarm, sensor alarm, high pressure alarm, compressor over heat alarm,liquid level alarm).
* Power on delay protection, three-level cascade system protectors.All parts are safety grounding.
* Adopt full closed circulation design, no water vapor at low temperature and ensure the purity of cooling medium, in case of ice crystals, provide a long time life of heat transfer liquid.
* High-performance circulating pump, can guarantee 24 hours continuously running a day.Use plate cool-heat-exchanger, heat transfer efficiency is provided.
* Brand compressor, cascade refrigeration cooling technologies.Human design, more convenient and flexible.
* Computer-cascade temperature controller,temperature figures display, adjustable unit is 0.1°C,temperature. range is -120°℃~30°C,PT100 temperature sensor.
* A variety of fault alarm (over-temperature alarm, sensor alarm, high pressure alarm, compressor over heat alarm,liquid level alarm).
* Power on delay protection, three-level cascade system protectors.All parts are safety grounding.
* Adopt full closed circulation design, no water vapor at low temperature and ensure the purity of cooling medium, in case of ice crystals, provide a long time life of heat transfer liquid.
* High-performance circulating pump, can guarantee 24 hours continuously running a day.Use plate cool-heat-exchanger, heat transfer efficiency is provided.

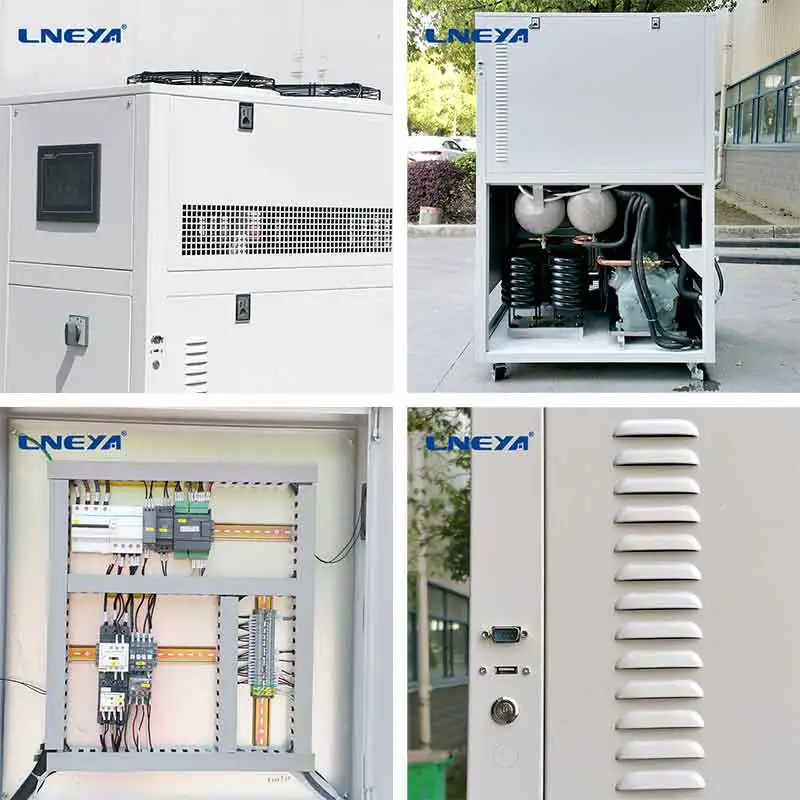

Compressor:
Multi-safety protection, more reliable operation. TECUMSEH compressor, DANFOSS compressor, EMERSON compressor, automatic cascade refrigeration technology.
Electrical Cabinet:
With self-diagnosis functions, freezer overload protection, overload relays, thermal protect device and other security functions, and fully guarantee the use of safety.
Communication Protocol:
Support USB data communication interface, convenient data export, optional with RS485 interface, Modbus RTU protocol.
Product Paramenters
Model | LX- 0400N | LX- 0700N | LX- 1000N | LX- 1450N | LX- 2000N | LX- 2600N | LX-3500N | LX-5000N | |||||||||
Temp range | -25 ~ 30 ℃ (optional: -120 ~ 30℃) | ||||||||||||||||
Temp. Control and Dispaly | ASET multifunctional controller, control outlet temperature of water tank | ||||||||||||||||
Temp. Control Optional | Temperature feedback PT100 (inlet temperature, outlet temperature) | ||||||||||||||||
Cooling capacity (KW) | 0℃ | 2.4KW | 4KW | 7.5KW | 10KW | 15.5KW | 20KW | 26.5KW | 38KW | ||||||||
-10℃ | 1.5KW | 2.7KW | 6.3KW | 8KW | 12KW | 15.5KW | 21KW | 30KW | |||||||||
-20℃ | 0.8KW | 1.5KW | 3.5KW | 5KW | 7.3KW | 10KW | 13.5KW | 20KW | |||||||||
Circulation pump info | 20L/min 1.5BAR | 35L/min 1.5BAR | 35L/min 1.5BAR | 50L/min 2.5BAR | 50L/min 2.5BAR | 110L/min 2.5BAR | 200L/min 2.5BAR | 250L/min 2.5BAR | |||||||||
Interface size | G3/4 | G3/4 | G3/4 | G1 | G1 | G1 1/4 | DN40 PN10 | DN40 PN10 | |||||||||
Liquid storage volume | 17L | 25L | 30L | 40L | 60L | 80L | 150L | 300L | |||||||||
Compressor | Tecumseh | Emerson Copeland | |||||||||||||||
Evaporator | Plate Heat Exchanger | ||||||||||||||||
Operation Panel | 7-inch color touch screen shows setting temperature and measuring temperature, temperature curve record, data export excel-format | ||||||||||||||||
Safety Protection | Self-diagnosis function; freezer overload protection; high pressure switch;overload relay, thermal protection device etc. security protection function. | ||||||||||||||||
Refrigerant | R-404A | ||||||||||||||||
Dimension cm | 45*65 *120 | 55*100 *175 | 55*100 *175 | 70*100 *175 | 70*100 *175 | 80*120 *185 | 95*170 *205 | 120*220 *220 | |||||||||
Power max 50HZ | AC220V 2.2KW | AC220V 3KW | AC380V 4KW | AC380V 5KW | AC380V 6KW | AC380V 8KW | AC380V 12KW | AC380V 17KW | |||||||||
Shell Material | Cold rolled steel painting | ||||||||||||||||
Optional | SUS304 Material | ||||||||||||||||
Optional Power | 220V 60HZ three-phases，460V 60HZ three-phases | ||||||||||||||||
Weight kg | 145 | 180 | 225 | 290 | 340 | 400 | 650 | 950 | |||||||||
Company Profile

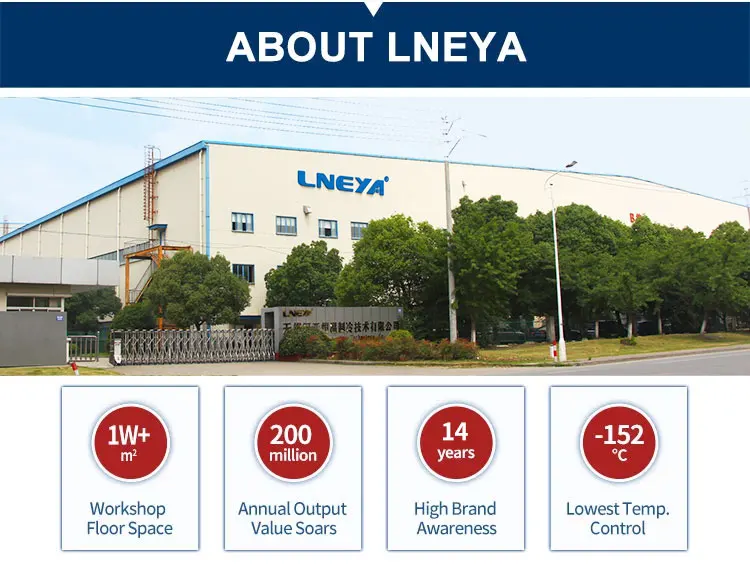

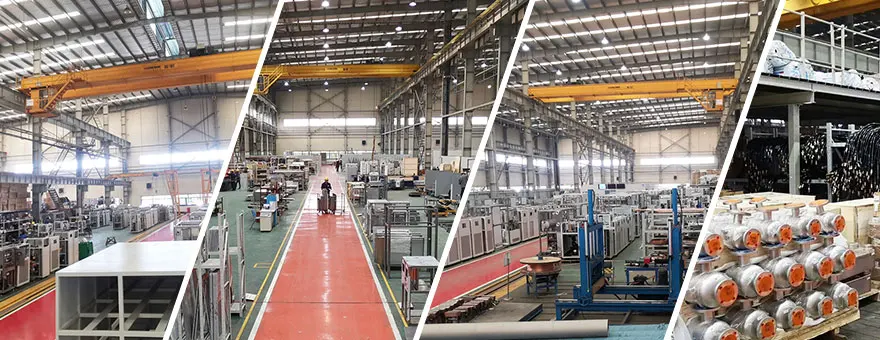

Wuxi Guanya Refrigeration Technology Co., Ltd. specialized in the industrial chiller, environmental chamber, industrial freezer, thermostatic bath, multi-reactor chiller (TCU), recirculating air control system and ultra-low temp. water-cooled chiller.We are the technology leader for high precision thermoregulation solutions in research and development industry. Our products ensureprecise temperature control throughout the whole world in the semiconductor industry, chemical/pharmaceutical industry, biotechnology industry, research/lab/university, food/medical/hospital(health)and laptop/Mobile Phone. Our products offer temperature control solutions for applications from -152 to +350℃.
Exhibition
LNEYA attends various exhibitions at home and abroad every year. At the exhibition, we show the latest research equipment of LNEYA. Every year, long-term cooperative customers will come to exhibitions and communicate with us. We are also actively developing new customers to provide them with high quality machines and services.
Certifications
So far, LNEYA has 11 patents of utility model authorized certificate.
As an enterprise certified by ISO9001, LNEYA has reached international standards in the integration of various management systems. The products of LNEYA, CE is used as a permit for the product to enter the European market.
FAQ
Q: How many years have your factory been established？
Our company was established in 2006, registered the LNEYA trademark in 2007 and began to develop industrial temperature control equipment.
Q: Are you a trader or a manufacturer？
We are a professional manufacturer of industrial temperature control equipment, and have agents in the United States, South Korea, Russia, Thailand and India.
Q: How long is the warranty?
One-year free warranty. During the warranty period, no maintenance fees and accessory fees will be charged (the cost of spare parts will be charged for instrument failure caused by human factors). After the warranty period, the equipment will be responsible for maintenance for life, and appropriate fees will be charged according to the actual maintenance costs.
Q: Do you provide customized services?
Of course, you only need to send your specific requirements, and we will provide you with the products you want.
Our company was established in 2006, registered the LNEYA trademark in 2007 and began to develop industrial temperature control equipment.
Q: Are you a trader or a manufacturer？
We are a professional manufacturer of industrial temperature control equipment, and have agents in the United States, South Korea, Russia, Thailand and India.
Q: How long is the warranty?
One-year free warranty. During the warranty period, no maintenance fees and accessory fees will be charged (the cost of spare parts will be charged for instrument failure caused by human factors). After the warranty period, the equipment will be responsible for maintenance for life, and appropriate fees will be charged according to the actual maintenance costs.
Q: Do you provide customized services?
Of course, you only need to send your specific requirements, and we will provide you with the products you want.
