Excellent Boiling Resistance 93/7 TGIC Polyester Resin Powder Coatings
- Category: >>>
- Supplier: Guangzhou Kinte Industrial Co. Ltd.
Share on (1600540277674):
Product Overview
Description
Products Description
Introduction
NH3408 is a saturated polyester resin designed for TGIC powder coating systems. It features outstanding leveling performance, excellent extinction, mechanical and boiling resistance, good storage stability, suitable for matte/high gloss powder coatings.
In today's market, powder coating is a widely used material. Unlike general solvent-based coatings and water-based coatings, powder coatings do not use a solvent as a dispersion medium but rely on air as a dispersion medium. Therefore, pollution is reduced, the environment is improved, and the health of operators is guaranteed.
According to the different gloss levels of powder coatings, there are high-gloss, flat, matte, and low-gloss types. The gloss of high-gloss powder coatings is generally greater than 75GU, while the flat type is between 45GU and 75GU. Between 10GU and 45GU is matte type, and the low-gloss powder coating is below 10GU. In addition, the powder coatings used in different environments are also different. For example, high-gloss powder coatings are mainly used outdoors, are relatively temperature-resistant, and are often used on air conditioners or street lamps; matte powder coatings are mainly used indoors, it’s not harmful to people's eyes.
In today's market, powder coating is a widely used material. Unlike general solvent-based coatings and water-based coatings, powder coatings do not use a solvent as a dispersion medium but rely on air as a dispersion medium. Therefore, pollution is reduced, the environment is improved, and the health of operators is guaranteed.
According to the different gloss levels of powder coatings, there are high-gloss, flat, matte, and low-gloss types. The gloss of high-gloss powder coatings is generally greater than 75GU, while the flat type is between 45GU and 75GU. Between 10GU and 45GU is matte type, and the low-gloss powder coating is below 10GU. In addition, the powder coatings used in different environments are also different. For example, high-gloss powder coatings are mainly used outdoors, are relatively temperature-resistant, and are often used on air conditioners or street lamps; matte powder coatings are mainly used indoors, it’s not harmful to people's eyes.
Basic Features
Outstanding leveling performance
Excellent extinction, mechanical and boiling resistance
Good storage stability
Suitable for matte/high gloss powder coatings
Recommend Formulation
NH3408—TGIC
NH3408 | TGIC | Filler ＆ pigment | Leveling agent | Benzoin | 701 |
564 | 36 | 383 | 8 | 4 | 5 |
Specifications I

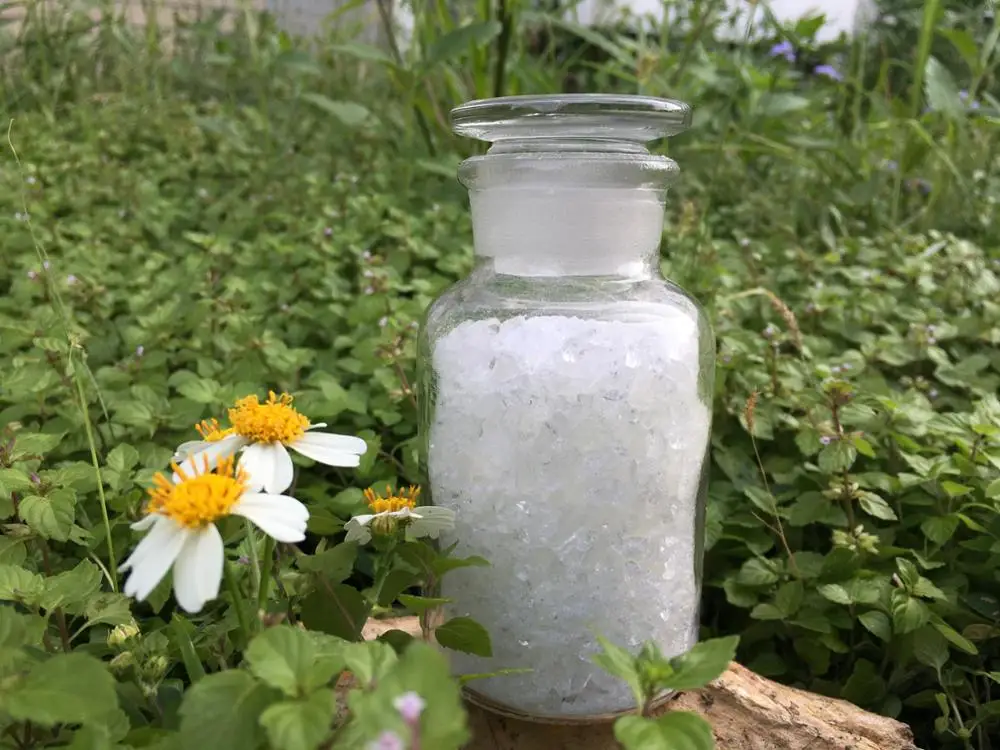

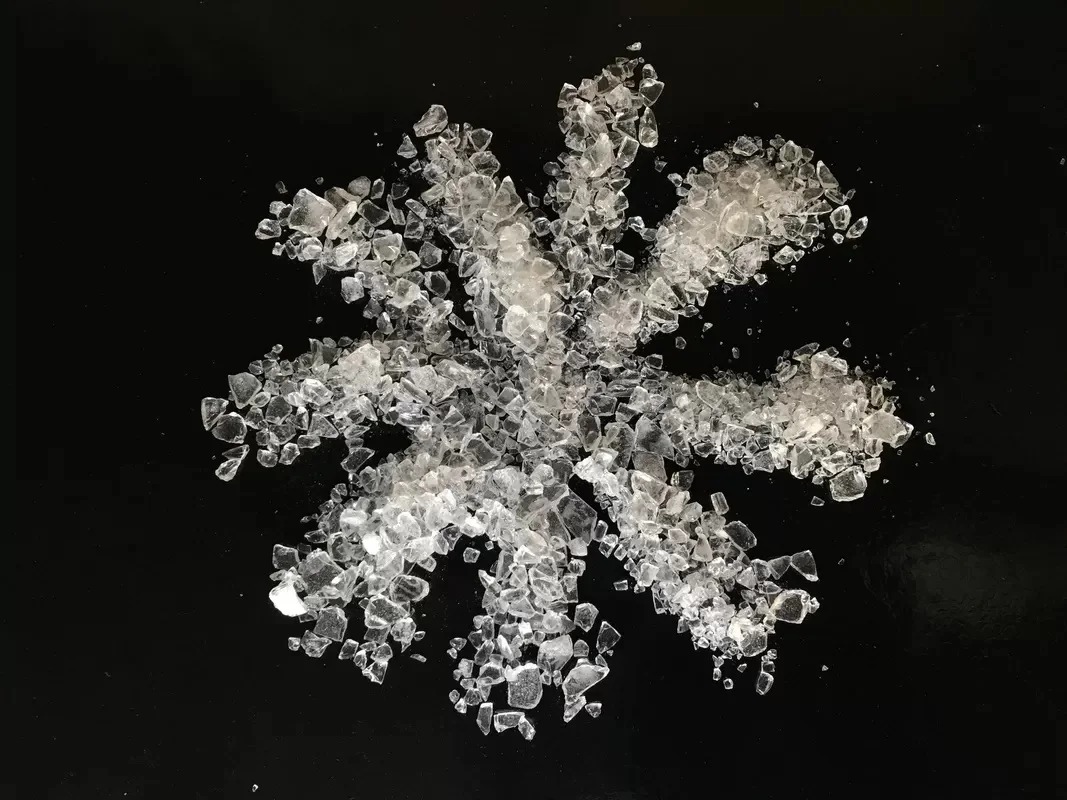

Appearance | White or light yellow transparent flakes |
2Acid Number (mgKOH/g) | 27～32 |
Softening Point (℃) | 101～115 |
Glass Transition Temp. (℃) | ～65 |
Melting Viscosity (ICI, mPa·s/200℃) | 6000±1000 |
Reactivity at 180℃ (s, 6% TGIC) | 260±80 |
Curing Requirement | 200℃×10~15min |

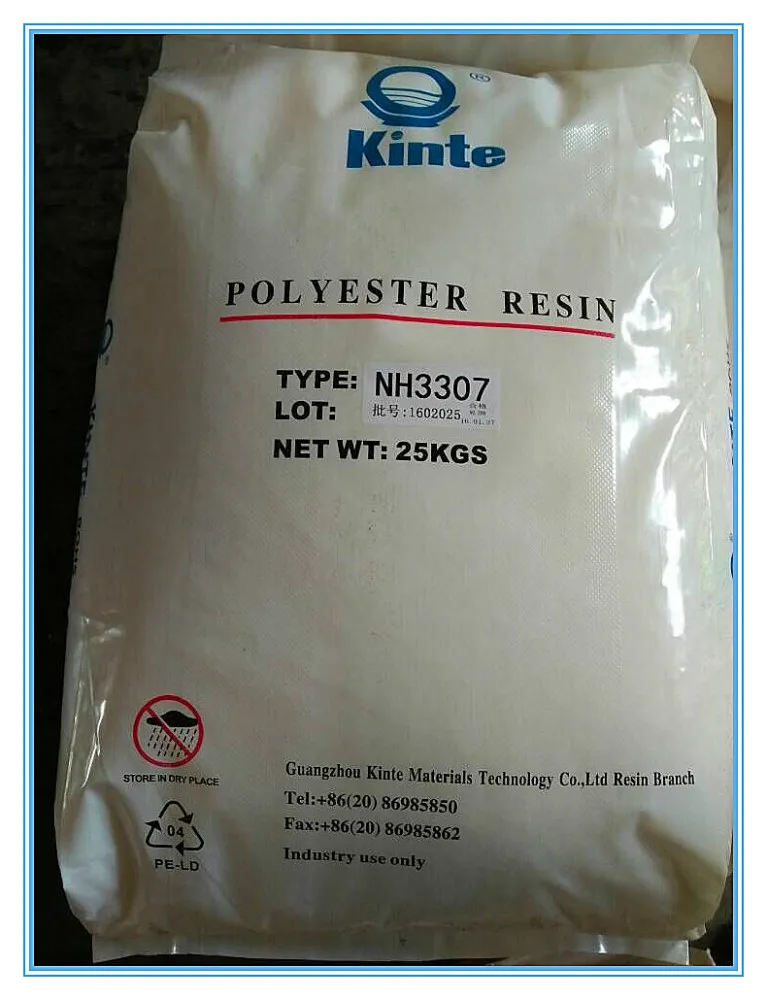

Packaging | PE Bags, Net Weight 25kg ± 0.1kg / bag |
Specifications II
Extrusion Condition | Two-screw Extruder | ||
Jacket temperature | 110～120℃ | ||
Speed of Revolution | 500～1200rpm | ||
Fineness of Powder | ＜100μm | ||
Application Condition | Electrostatic Spraying With | 40～70KV | |
Coating Film Thickness | 50～70μm | ||
Degreased Cold-rolled Steel | 0.5mm | ||
Film Properties | Gel Time (180℃, sec) | 260~420 | |
Horizontal Flow (180℃, mm) | 25~29 | ||
Gloss (60°) | ≥85% | ||
Bending (φ1mm) | Pass | ||
Adhesive (1mm, grade) | 0 | ||
Pencil Hardness | ≥1H | ||
Impact (50cm) | pass | ||
Remarks
All the polyester resins could be customized to Non-tin (A), anti gas burners (G), tribo gun (T) and anti-blooming (F).
Package and Transportation

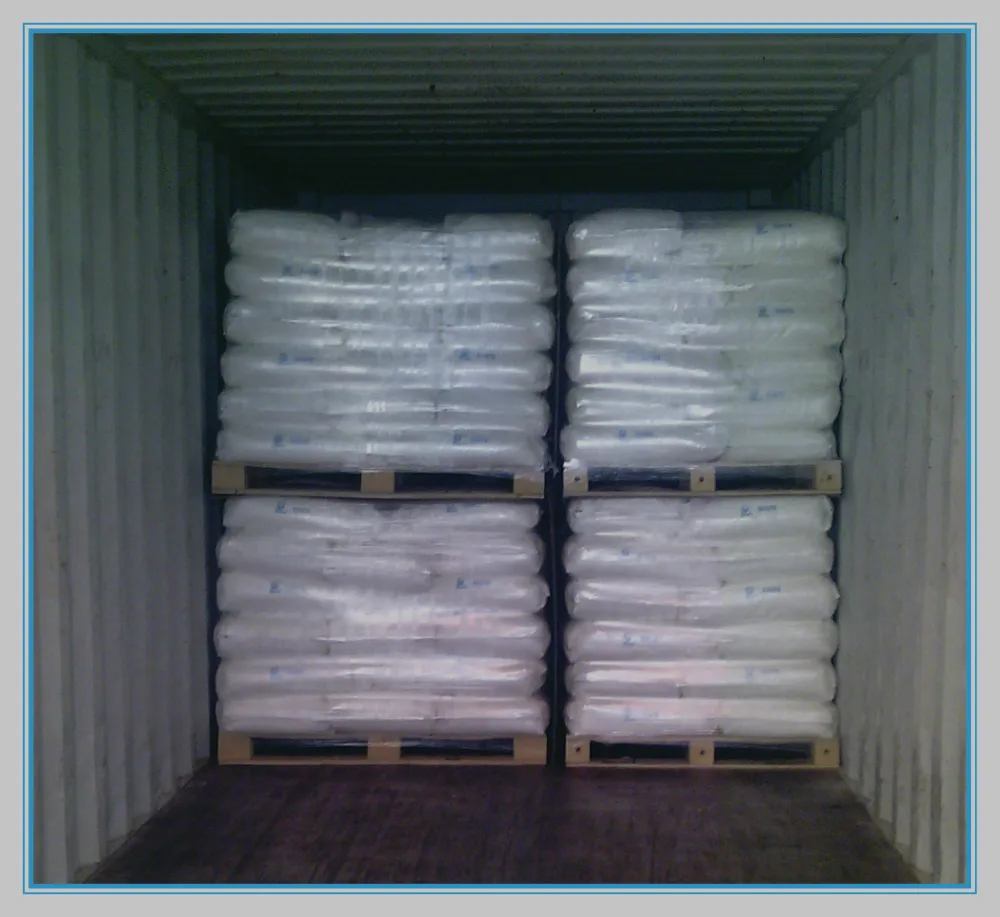

PE Bags, Net Weight 25kg ± 0.1kg / bag, 875Kg/Pallet, 17,500Kg/20GP
Non-dangerous goods, no special transportation requirements.
