Customizable 10.1 Inch IPS 800*1280 LCD Display Module High Quality LCD Panel for Project Development
- Category: >>>
- Supplier: Shenzhen Roof Electronics Co. Ltd.
Share on (1600540277953):
Product Overview
Description
Product Description

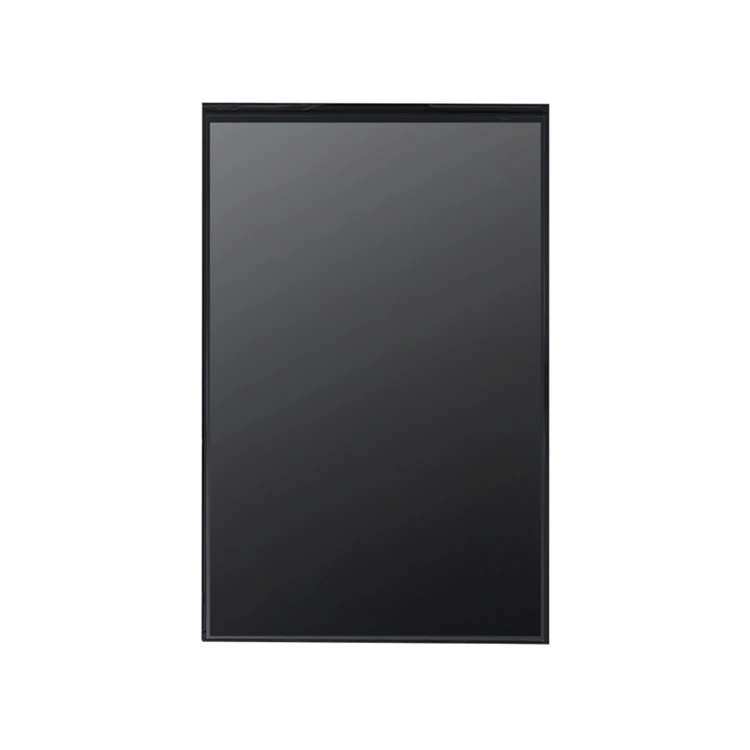

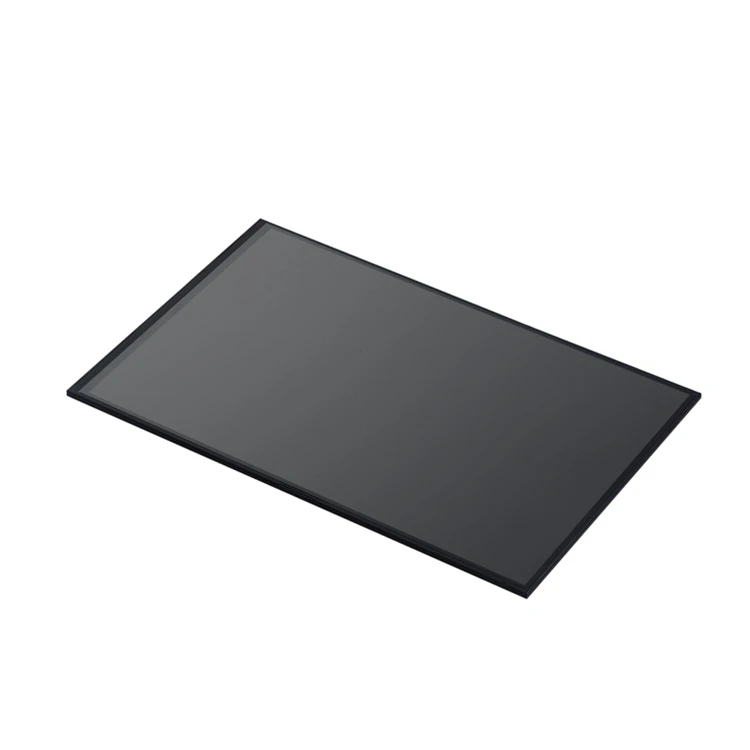

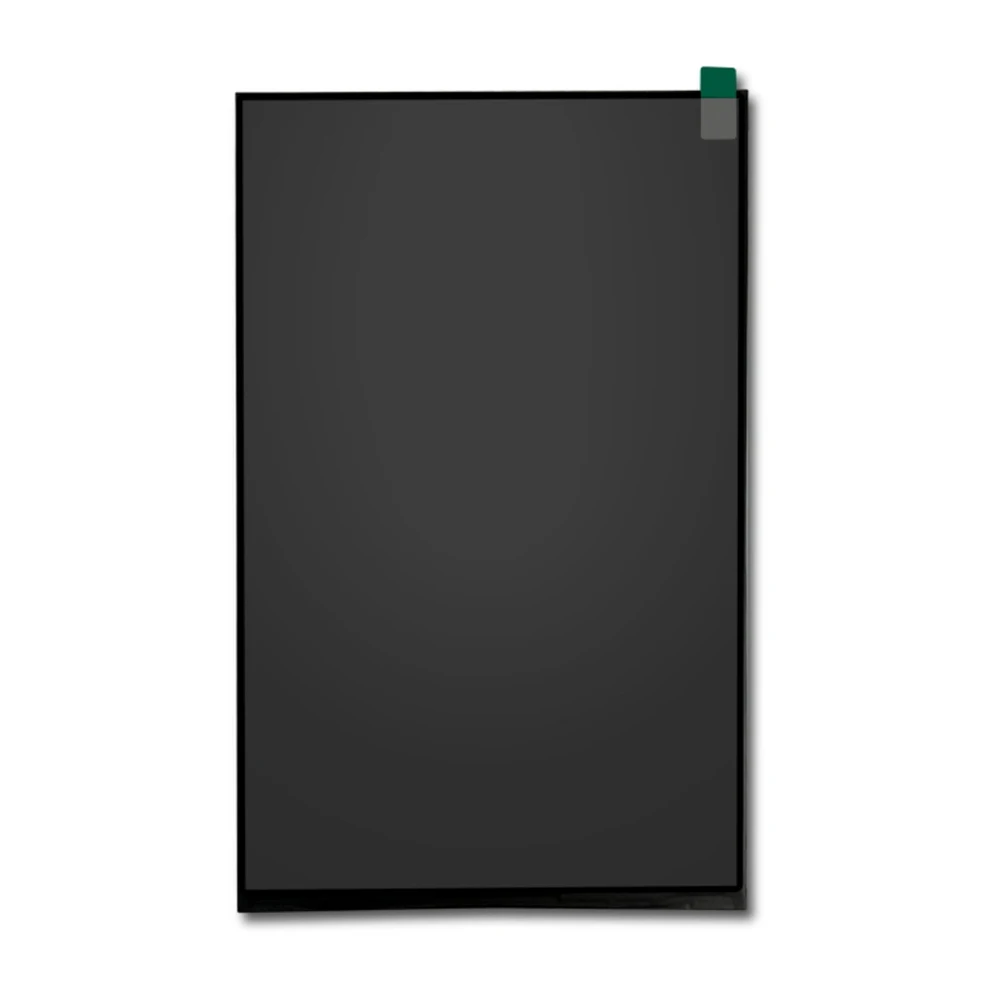

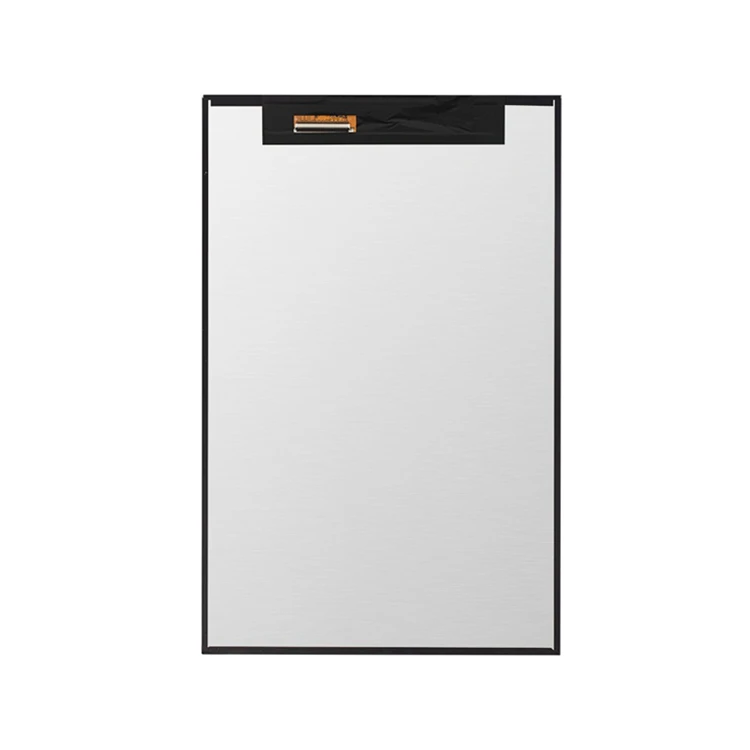

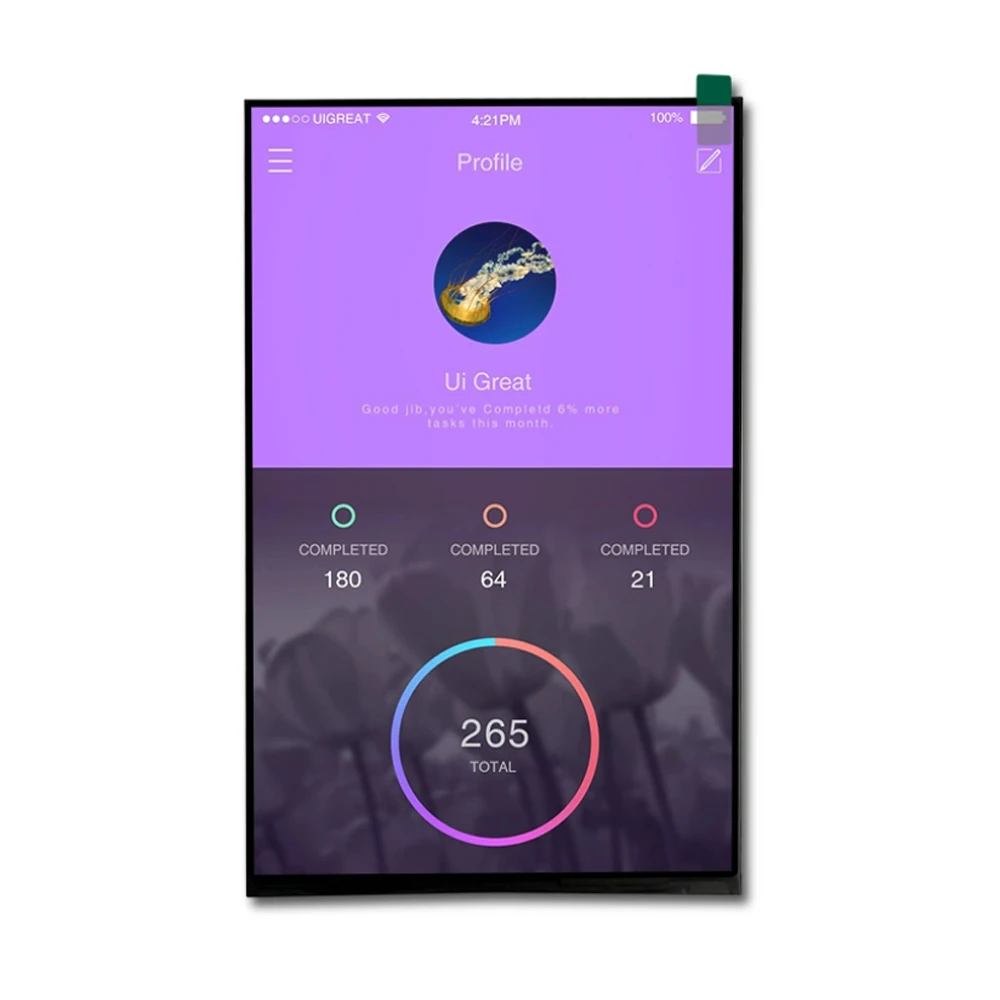

TV101WXU-N90 Display model 10.1” LCM is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This model is composed of a TFT LCD panel and a driving circuit.This TFT LCD has a 10.1(10:16) inch diagonally measured active display area with (800horizontal by1280 vertical pixel) resolution.
GENERAL SPECIFICATI0NS | ||
Item | Specification | Unit |
Screen Size | 10.1 diagonal | inch |
Driver Element | a-si TFT active matrix | - |
Pixel Number | 800 x R.G.B. x 1280 | pixel |
Pixel Arrangement | RGB vertical stripe | - |
Display Colors | 16,777,216 | color |
Interface | MIPI | - |
Transmissive Mode | Normally black | - |
Surface Treatment | Hard coating, Glare | - |
Luminance, White | 300 | Cd/m2 |
Operating temperature | -20~+70 | ℃ |
Storage temperature | -30~+80 | ℃ |
Detailed Images

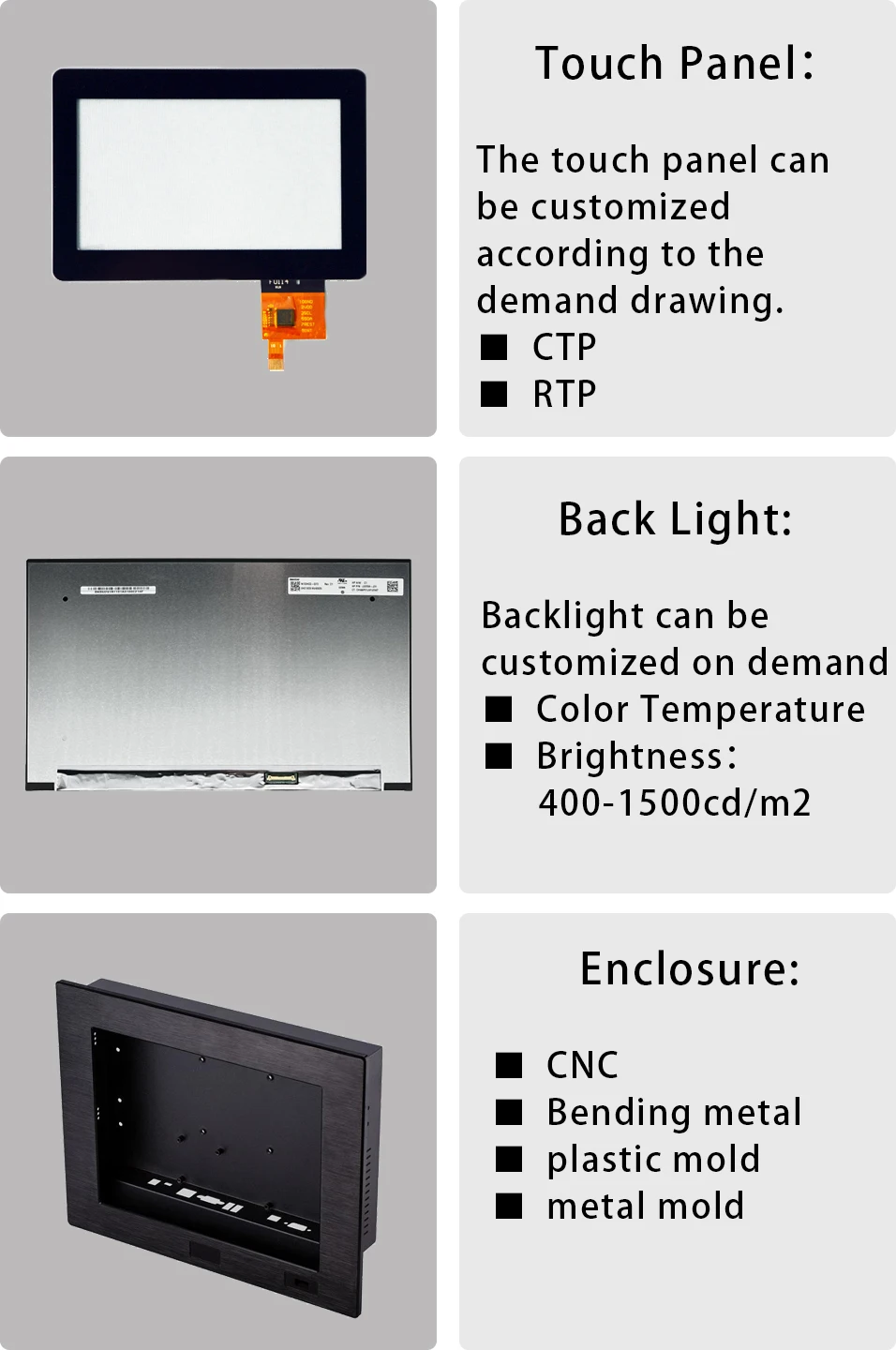

Customizable
We can provide customized service according to your requirements.
Such as customized the enclosure, backlight brightness, backlight shape, FPC shape and interface definition, silk-printing your Logo and so on.
| Custom Process | |
| process | detail |
| 1> Customer requirements: | Size, resolution, brightness, interface,CTP specification and other requirements, or to drawing, sample for evaluation. |
| 2> Supplier evaluation and offer solutions | Evaluate and propose solutions according to customer requirements. |
| 3> Communicate and confirm solutions | The customer confirm the solution |
| 4> Provide quotation and confirm payment | Provide reasonable and advantageous tooling cost quotation and confirm product unit price. Customer pays sample fee |
| 5> Confirm the drawing | Confirm the final version drawing according to the customer's request or the drawings provided. and sign back |
| 6> Production samples | Producing samples according to the drawings confirmed by both parties |
| 7> Sample confirmed | Deliver samples to customers for confirmation |
| 8> Sample debugging and modification | If necessary, technical support will be provided for debugging or modification of samples |
| 9> Production | Confirm the final order quantity and unit price of the customer, and then arrange production according to the confirmed samples within the agreed time. |
| 10> Deliver | Product delivery according to customer requirements or industry standards |
Company Information
Certifications
Packaging & Shipping
In order to ensure that the product will not be damaged during transportation, we have the default packaging and transportation method. Please contact us for details. If you have special requirements, please contact us.
FAQ
| ? FAQ |
Q: The price of the product? A: the price of the product will be adjusted according to the customer's order quantity and other specific requirement please contact us to confirm the specific price. Q: Mode of transport and shipping fee? A: Determine mode of transport and shipping fee based on custmer requirements and order quantity Q: Lead time(After the payment is confirmed)? A: Sample(1-20PCS): immediately Other quantity: please contact us to confirm te lead time Q: Payment? A: Generally we support T/T, Western union, Credit Card, Visa, Marter Card, etc. Q: After-sales Service? A: Please check the product for damage before picking up the goods. If the goods are damage, please contact us immediately, we will give you a replacement or refund. We will provide technical services online at anytime. |
