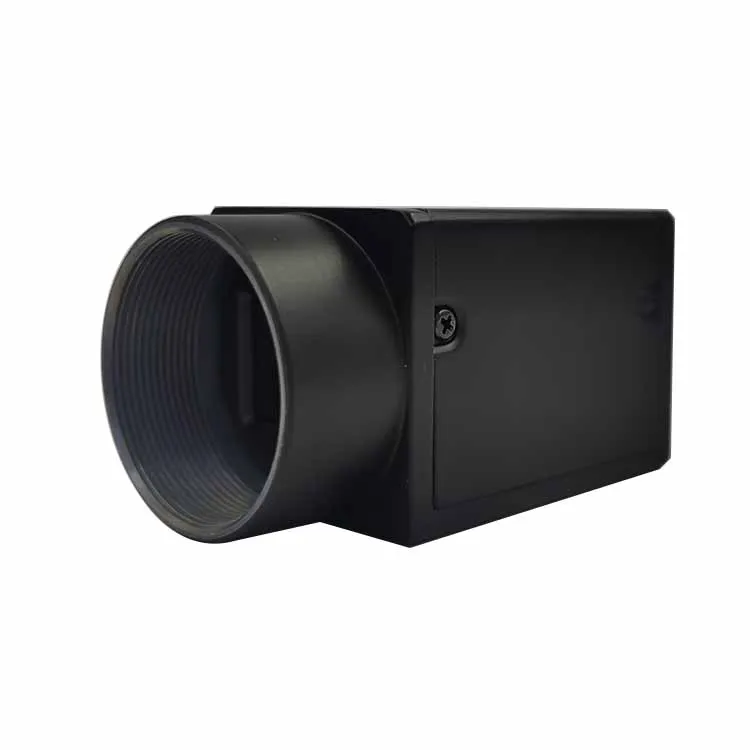

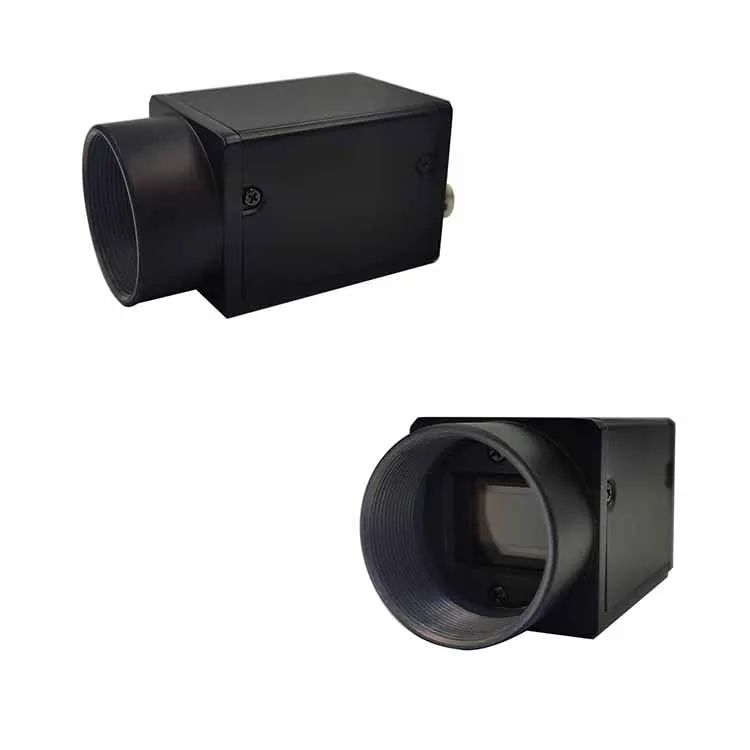

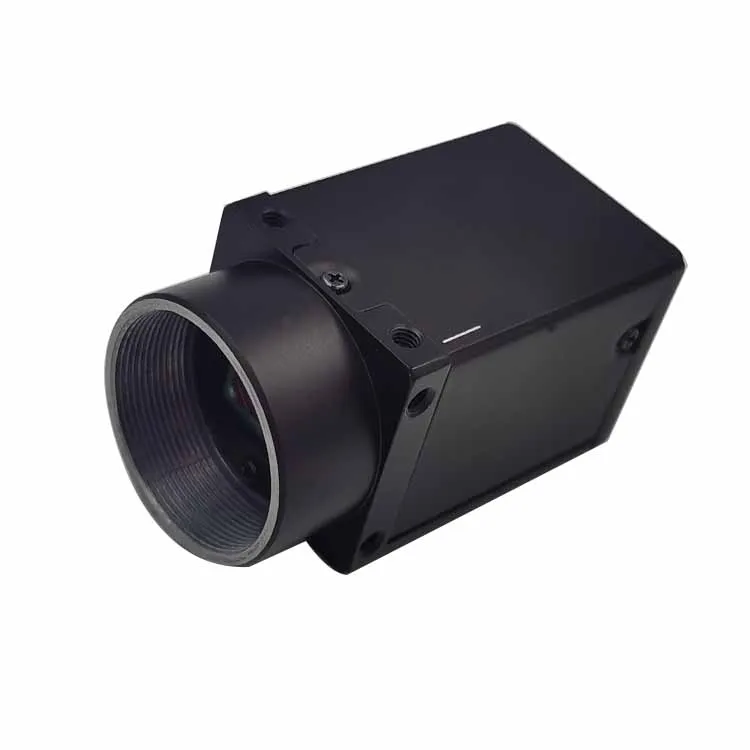

Industrial Vision camera high speed usb camera manufacture
- Category: >>>
- Supplier: Lano Photonics Co. Ltd.
Share on (1600540296025):
Product Overview
Description
Product Description
● Small size, suitable for more severe installation conditions
● Adopt Gigabit Ethernet interface, theoretically support 100 meters transmission distance
● Use large data packet transmission to reduce interrupt processing and more stable performance
● Using high-quality photosensitive devices, lower power consumption and excellent algorithms, make images clear, low noise, and good color reproduction
● Supports 1 external trigger input, which can obtain control signals from IO card / PLC and other equipment to improve image acquisition synchronization
● Support 1 signal output, which can be output with exposure time or customized, such as controlling strobe light
● CMOS camera supports AOI / ROI for partial exposure and improves the acquisition frame rate
● Supports the function of continuous transmission after the network is disconnected. When the network is disconnected and reconnected, it can continue to work automatically.
● The built-in buffer of the fuselage supports overlapping triggering, higher frame rate and lower packet loss rate
● Comes with VB / VB.NET / VC / C # / QT / OpenCV routines and provides source code for user reference and secondary development
● Compatible with Halcon, Labview, VisionPro, Matlab and other third-party image processing software
● Full support for Windows XP, Win7, Win8, Win10 operating systems
● Adopt Gigabit Ethernet interface, theoretically support 100 meters transmission distance
● Use large data packet transmission to reduce interrupt processing and more stable performance
● Using high-quality photosensitive devices, lower power consumption and excellent algorithms, make images clear, low noise, and good color reproduction
● Supports 1 external trigger input, which can obtain control signals from IO card / PLC and other equipment to improve image acquisition synchronization
● Support 1 signal output, which can be output with exposure time or customized, such as controlling strobe light
● CMOS camera supports AOI / ROI for partial exposure and improves the acquisition frame rate
● Supports the function of continuous transmission after the network is disconnected. When the network is disconnected and reconnected, it can continue to work automatically.
● The built-in buffer of the fuselage supports overlapping triggering, higher frame rate and lower packet loss rate
● Comes with VB / VB.NET / VC / C # / QT / OpenCV routines and provides source code for user reference and secondary development
● Compatible with Halcon, Labview, VisionPro, Matlab and other third-party image processing software
● Full support for Windows XP, Win7, Win8, Win10 operating systems
Product Advantage
LANO-AE series industrial camera is a small-size Ethernet industrial camera launched by Veishi.
This series of cameras covers 300,000 to 14 million pixels, and adopts a more stable and versatile Gigabit Ethernet network for transmission.
The camera has a compact design and low power consumption. It has the characteristics of clear and stable image quality, supporting a variety ofmainstream language development kits and routines, and supports third-party image processing software to call directly.
It supports external trigger input control acquisition and signal output. It has a very high cost performance and is widely used in
manufacturing.
Industry quality control, high-precision measurement, intelligent transportation systems, medical and life science imaging, education and scientific research, etc., It's ideal for your machine vision image acquisition and equipment integration.
This series of cameras covers 300,000 to 14 million pixels, and adopts a more stable and versatile Gigabit Ethernet network for transmission.
The camera has a compact design and low power consumption. It has the characteristics of clear and stable image quality, supporting a variety ofmainstream language development kits and routines, and supports third-party image processing software to call directly.
It supports external trigger input control acquisition and signal output. It has a very high cost performance and is widely used in
manufacturing.
Industry quality control, high-precision measurement, intelligent transportation systems, medical and life science imaging, education and scientific research, etc., It's ideal for your machine vision image acquisition and equipment integration.
Parameter | ||||
Model | LANO-AE2000-6GM | LANO-AE2000-6GC | ||
Sensor Type | CMOS,global shutter | |||
Sensor Model | IMX183 | |||
Piexl Size | 2.4μm x 2.4μm | |||
Sensor Size | 1" | |||
Resolution | 5480 x 3648 | |||
Max.frame Rate | 6 fps | |||
Bit Depth | 12 bit | |||
Dynamic Range | 70 dB | |||
SNR | 40 dB | |||
Gain | 0 dB to 20 dB | |||
Exposure Time | 34 μs to 10 sec | |||
Shutter Mode | off/ once/ continuous exposure mode | |||
Mono/Color | Mono | Color | ||
Piexl Format | Mono 8/10/10p/12/12p | Mono 8/10/12,Bayer RG 8/10/10p/12/12p YUV422Packed, YUV422 YUYV Packed,RGB 8, BGR 8 | ||
Binning | Supports 1x1,1x2,2×1,1×4,4×1,2×2,2×4,4×2,4×4 | |||
Decimation | Supports 1x1,1×2,2×1,1×4,4×1,2×2,2×4,4×2,4×4 | |||
Reverse lmage | Supports horizontal and vertical reverse image output | |||
Image buffer | 128 MB | |||
Fleetrical Features | ||||
Date Interface | Gigabit Ethemet, compatible with Fast Ethernet | |||

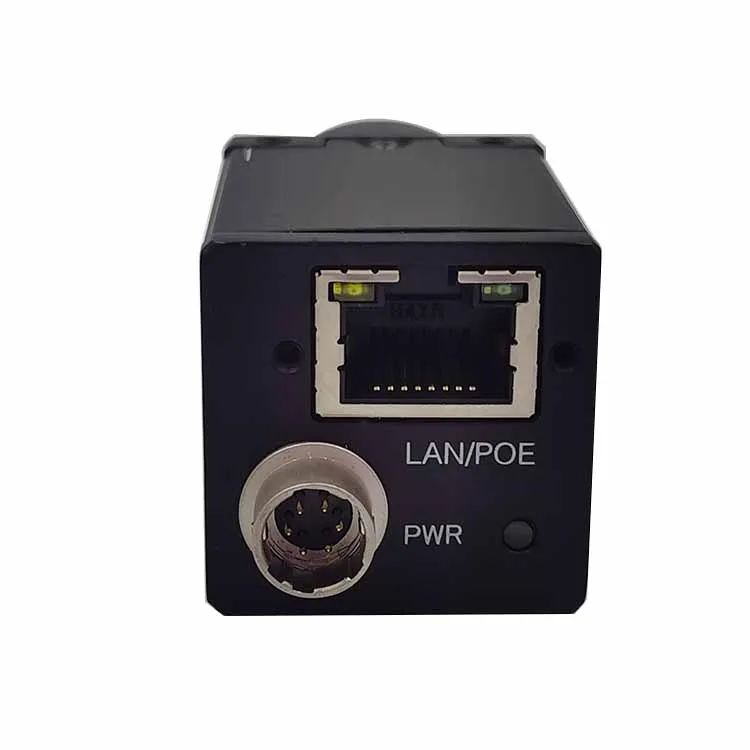

Digital l/0 | 6-pin Hirose connector provides power and V/O, including opto- isolated inputx 1 (Line 0),optoisolated outputx 1(Line 1), bi-directional non-isolated l/Ox 1(Line 2). | |||
Power Supply | 12 VDC,supports PoE | |||
Power Consumption | Typ. 2.9 W@12VDC | Typ. 3.1 W@12 VDC | ||
Structure | ||||

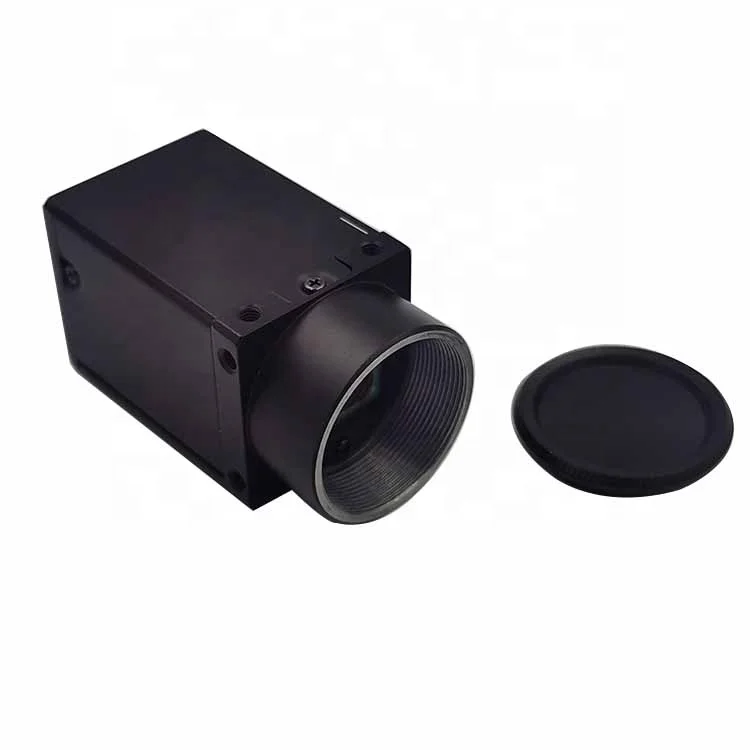

Lens Mount | C-Mount | |||
Dimension | 29 mm× 29 mm× 42 mm | |||
Weight | Approx.68 g | |||
Ingress Protection | IP 30(under proper lens installation and wiring) | |||
Temperature | Working temperature:0°C to 50°C Storage temperature:-30℃ to 70°℃ | |||
Humidity | 20% to 80% RH,non-condensing | |||
General | ||||
Client Software | LANO or third-party software meeting with GigE Vision Protocol | |||
Operating System | 32/64-bit Windows XP/7/10, 32/64-bit Linux and 64-bit MacOS | |||
Compatibility | GigE Vision V2.0,GenlCam | |||
Certification | Certification | |||
Size Information
Size Chart of This Design

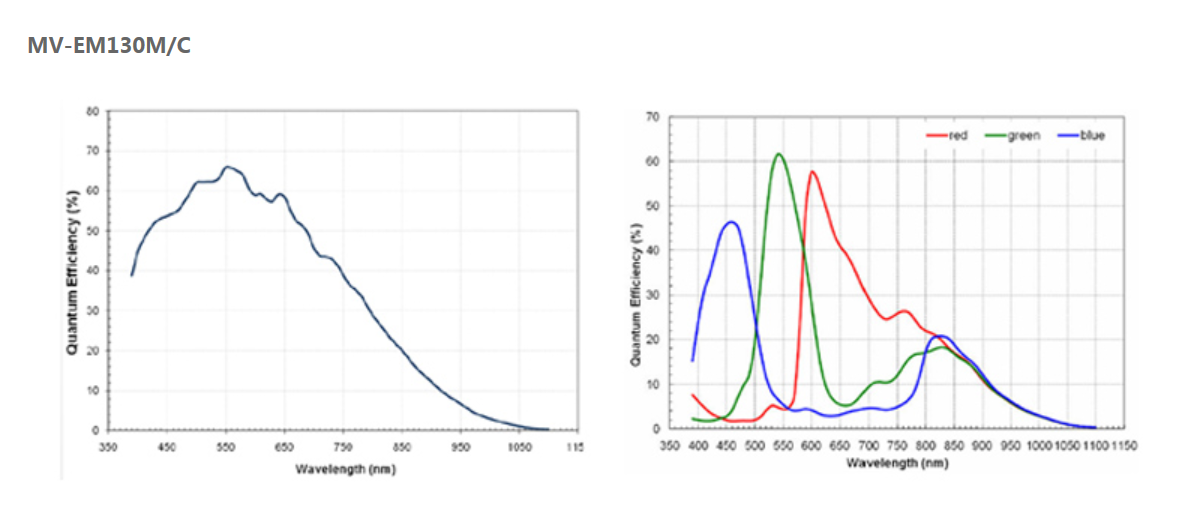

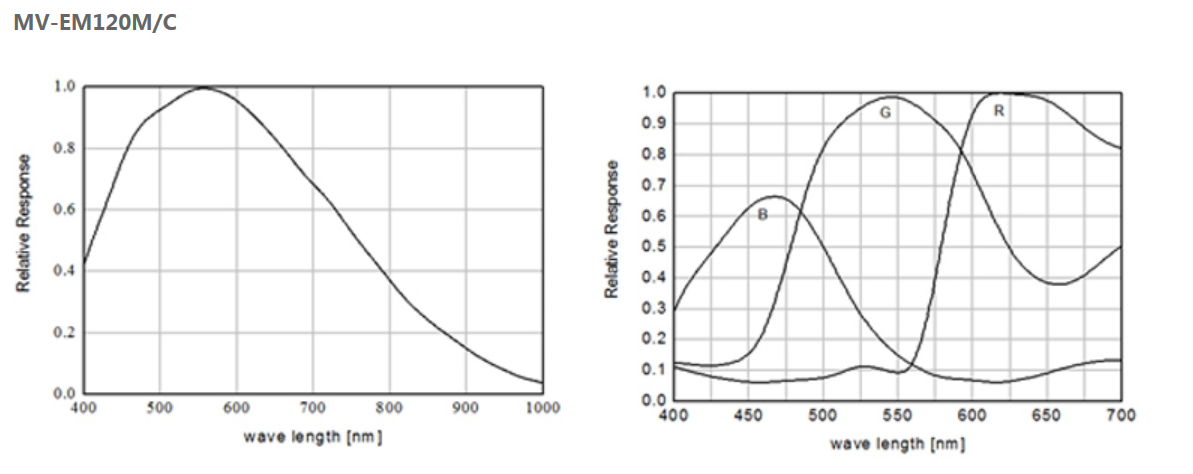

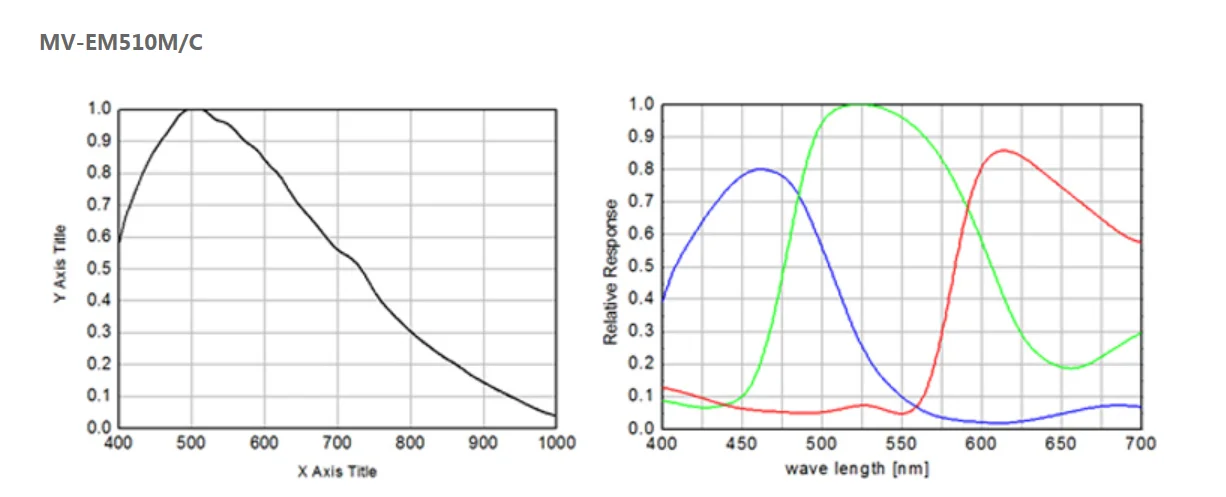

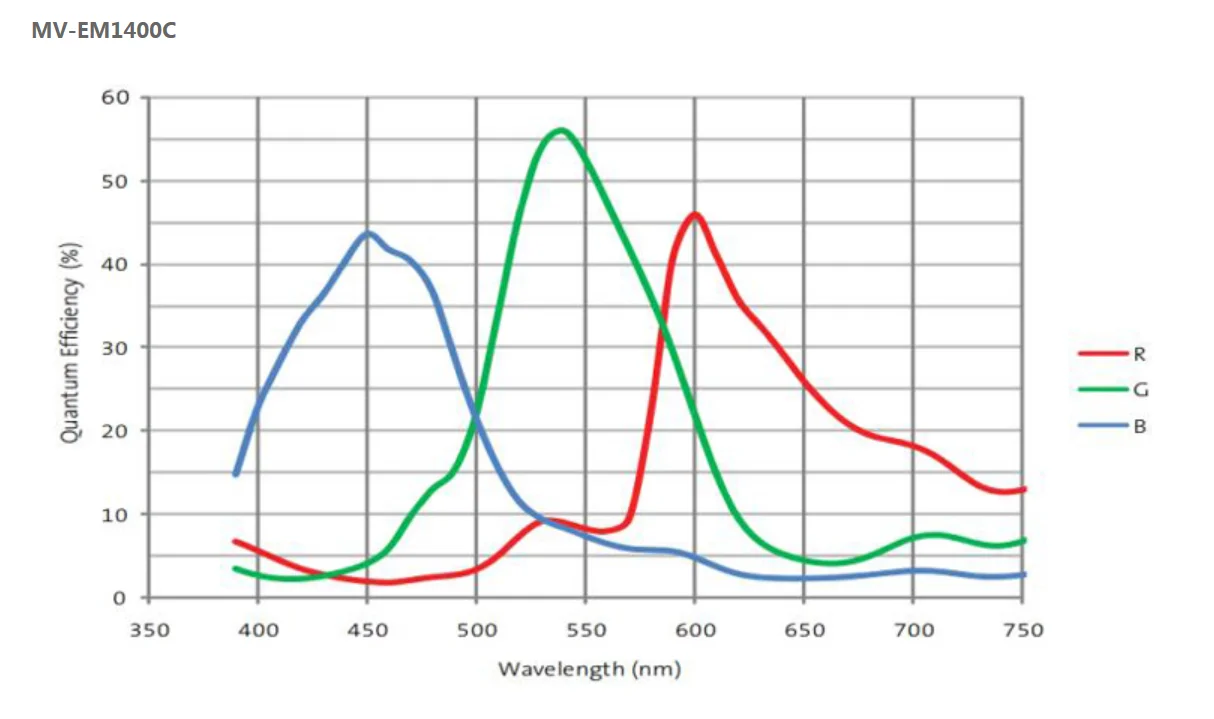

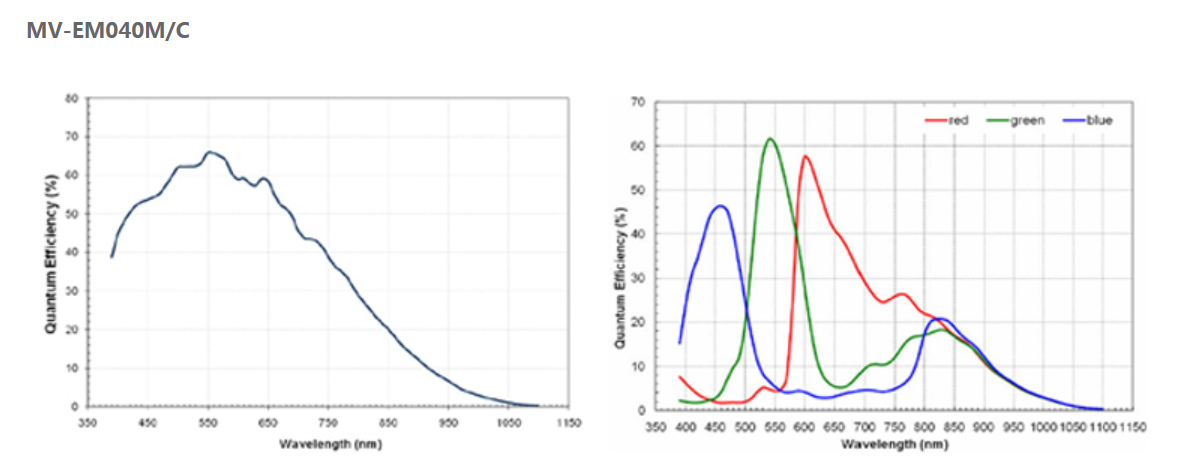

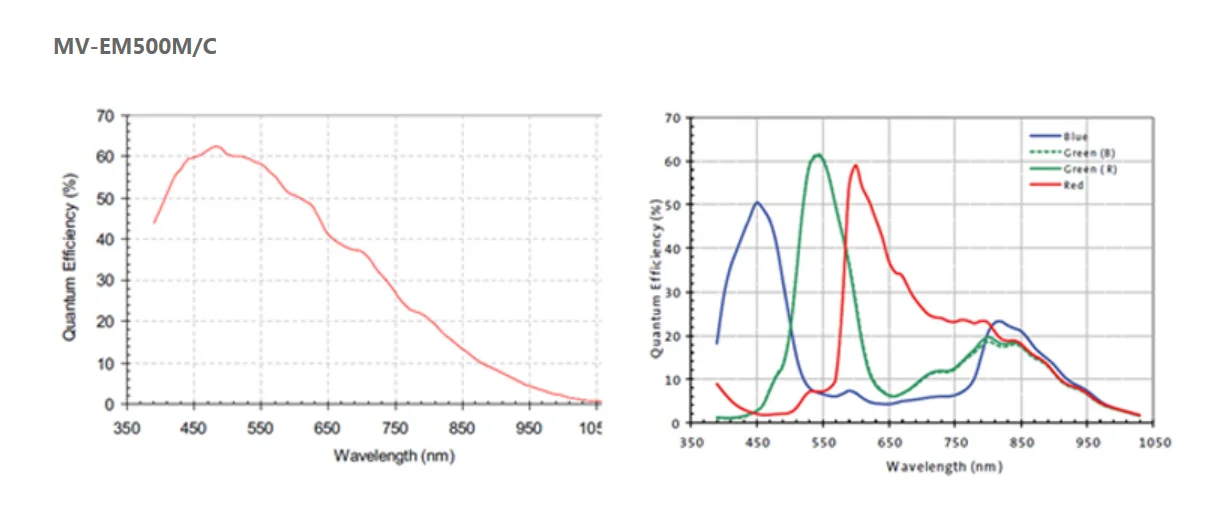

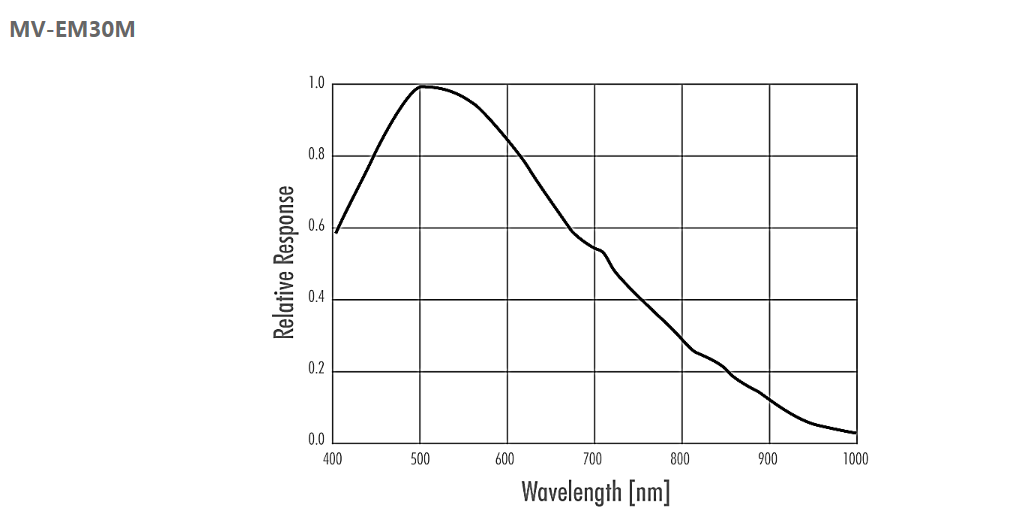

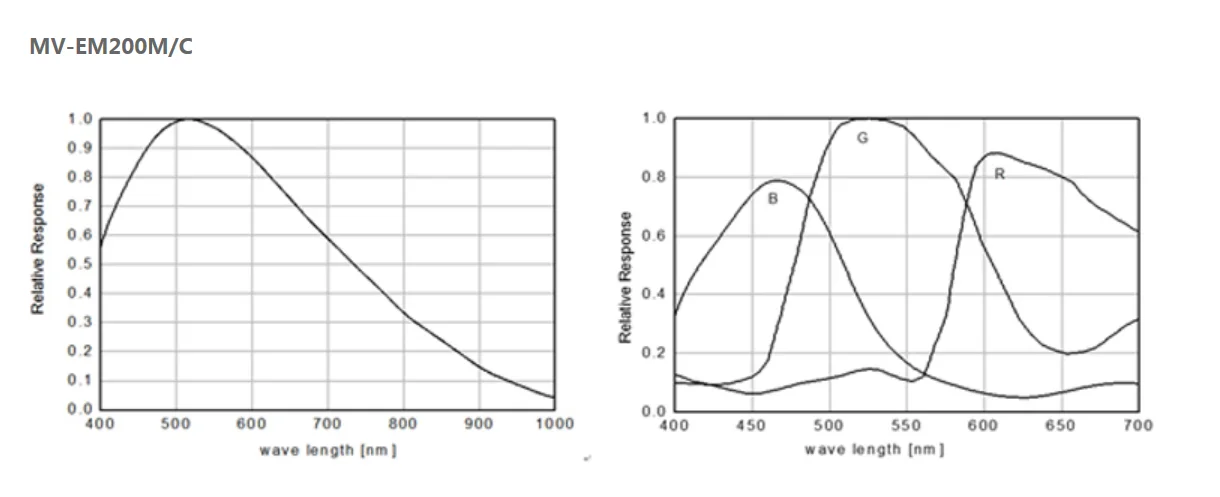

Photograph of Photosensitive Interval
