  • 110V/220V 750W Pneumatic Plunger Feeding Injection Molding Machine 20g per Shot
110V/220V 750W Pneumatic Plunger Feeding Injection Molding Machine 20g per Shot
110V/220V 750W Pneumatic Plunger Feeding Injection Molding Machine 20g per Shot

110V/220V 750W Pneumatic Plunger Feeding Injection Molding Machine 20g per Shot

Share on (1600540304662):


Price:

Quantity:


Product Overview

Description

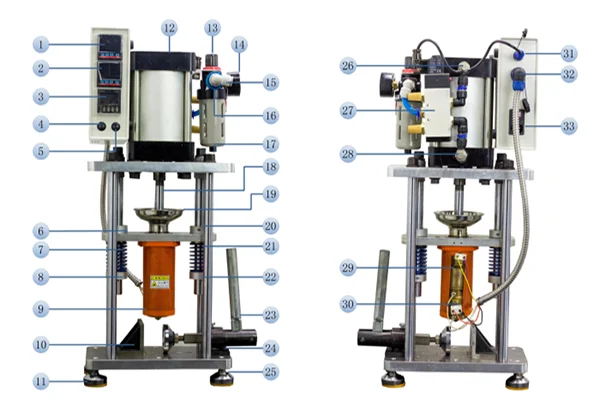

Product Description



1 First section temperature control PID
2 Second section temperature control PID
3 Control setting panel
4 Injection reset switch
5 Injection start switch
6 Stop ring
7 Cushion spring
8 Stop ring
9 Barrel
10 Clamping column
11 Supporting feet
12 Cylinder
13 Air pressure control switch
14 Barometric pressure indicator
15 Air input interface
16 Air switch
17 Air source-drain valve
18 Injection guide rod
19 hopper
20 Stop ring
21 Control buffer spring
22 Stop ring
23 Clamping handle
24 Clamping screw
25 Supporting feet
26 Rising speed control valve
27 The electromagnetic valve
28 Down speed control valve
29 The first section of the heating ring
30 The second stage heating coil
31 Solenoid valve voltage interface
32 Temperature control heating coil interface
33 110/220V voltage input port

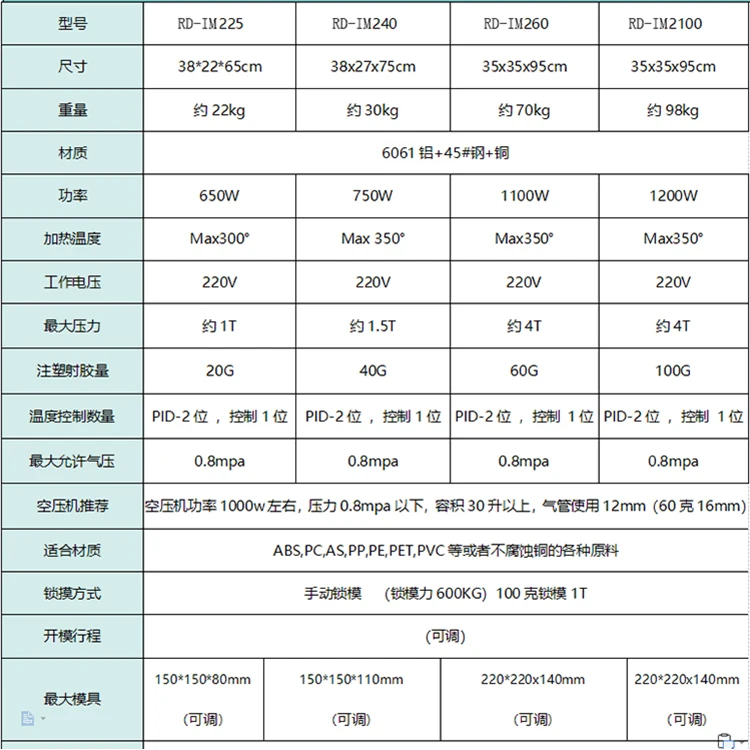

Specification


item
value
Plastic Processed
PC, ABS, PET, PVC, PE/PP
Condition
New
Style
VERTICAL
Mold Height(mm)
Injection Rate (g/s)
20g/s
Injection Weight (g)
0g
Screw diameter (mm)
0mm
Weight (KG)
30kg
Place of Origin
Shanghai
Open Stroke(mm)
0mm
Power (kW)
650kW
Applicable Industries
Other
Showroom Location
None
Marketing Type
Ordinary Product
Machinery Test Report
Not Available
Video outgoing-inspection
Not Available
Warranty of core components
1 Year
Core Components
Other




Packing & Delivery




To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

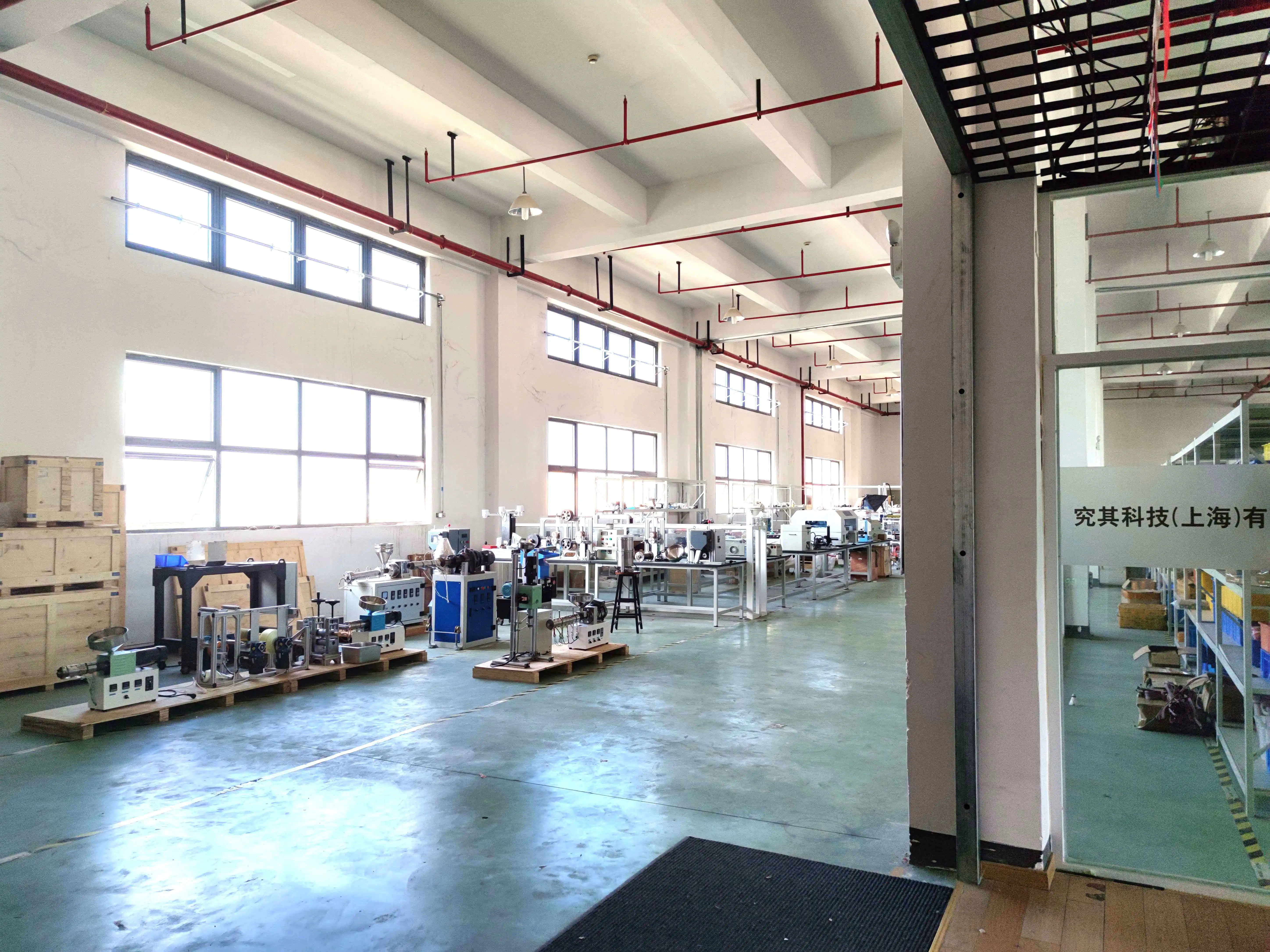

Company Profile




JUGETEK linear stepper motor manufacturer. Pulleys, belts, linear bearings RobotDigg's sole distributor and has professionals in industries for Bill of Materials.


FAQ


1. who are we?
We are based in Shanghai, China, start from 2014,sell to North America(30.00%),Domestic Market(10.00%),Eastern Europe(10.00%),Western Europe(10.00%),Oceania(8.00%),Northern Europe(8.00%),Eastern Asia(7.00%),Southeast Asia(7.00%),Mid East(3.00%),South America(3.00%),Central America(2.00%),Africa(1.00%),South Asia(1.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Linear Stepper,Pulley n Belt,Linear Rail,Stepper n Servo Motor,Linear Bearing

4. why should you buy from us not from other suppliers?
JUGETEK linear stepper motor manufacturer. Pulleys, belts, linear bearings RobotDigg's sole distributor and has professionals in industries for Bill of Materials.

5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW；
Accepted Payment Currency:USD;
Accepted Payment Type: T/T;
Language Spoken:English,Chinese
