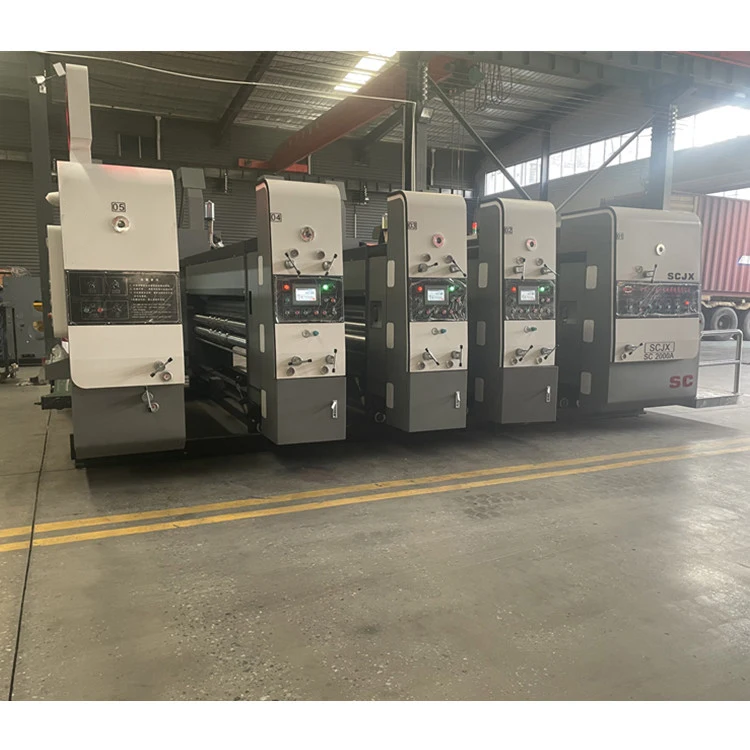

corrugated box single pass digital printing printer machine
- Category: >>>
- Supplier: Cangzhou Gerun Machinery Co. Ltd.
Share on (1600540341876):
Product Overview
Description
Flexo cardboard printer machine printing corrugated slotter machinery pizza box machine
Cangzhou Gerun Machinery Co.,Ltd-----Nina
Products Description

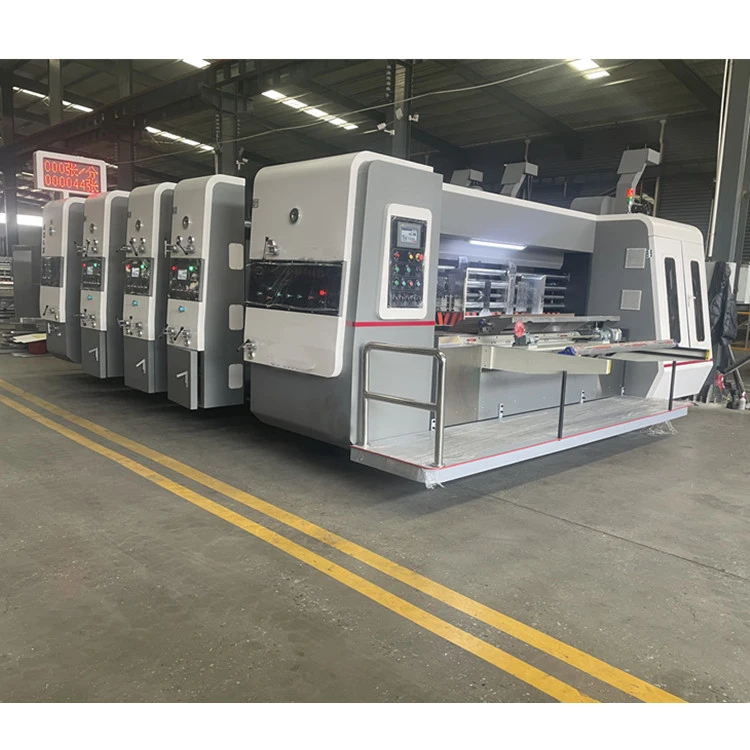

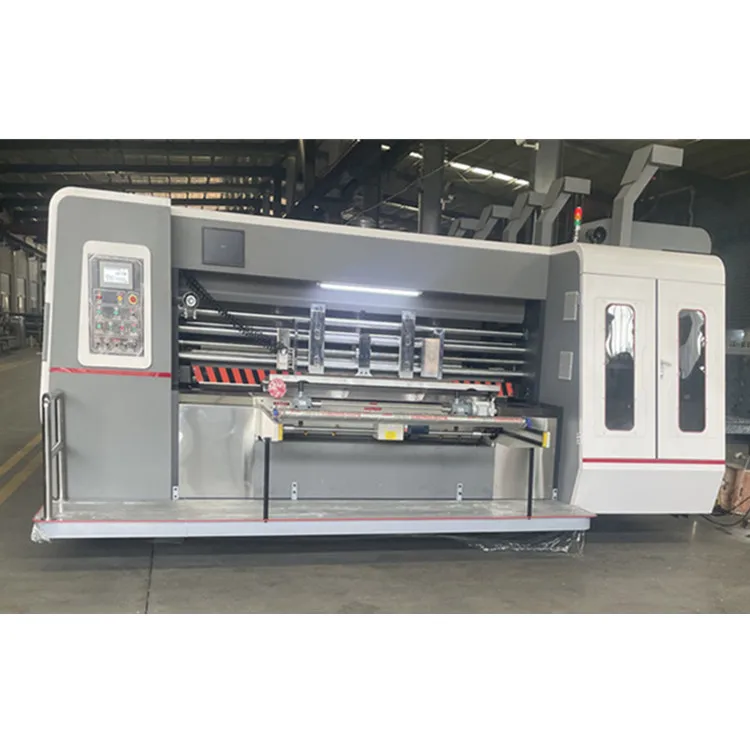

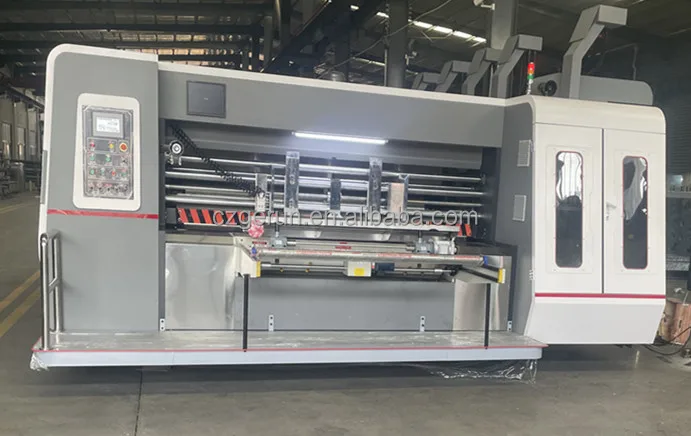

High speed automatic printer slotter and die cutter machine
1 The electric appliances of the whole machine adopt the product of SCHNEIDER made in FRANCE (optional).
2 Straight gear drive.The gears are after high frequency quenching and grinding
3 All the rollers are plated with chromium to encrease their hardness.
4 Spray circulated oil lubrication.
5 Return to zero and adjust printing plate automatically.
6 Module-designed. Multicolor printing sections can be combined as your requests.
7 The side baffle of feeder and slotter are all adjusted electrically.
8 PLC, touch screen and frequency-variable controller are adopt,accurate and reliable.
2 Straight gear drive.The gears are after high frequency quenching and grinding
3 All the rollers are plated with chromium to encrease their hardness.
4 Spray circulated oil lubrication.
5 Return to zero and adjust printing plate automatically.
6 Module-designed. Multicolor printing sections can be combined as your requests.
7 The side baffle of feeder and slotter are all adjusted electrically.
8 PLC, touch screen and frequency-variable controller are adopt,accurate and reliable.
Max feeding board size | 2800x1600mm |
Max printing board size | 2600x1600mm |
Min feeding board size | 370mm×600mm |
Working speed | 150-170 pcs/min |
Roller diameter | 530 mm |
Printing precision | ±0.5mm |
Slotting precision | ±0.5mm |

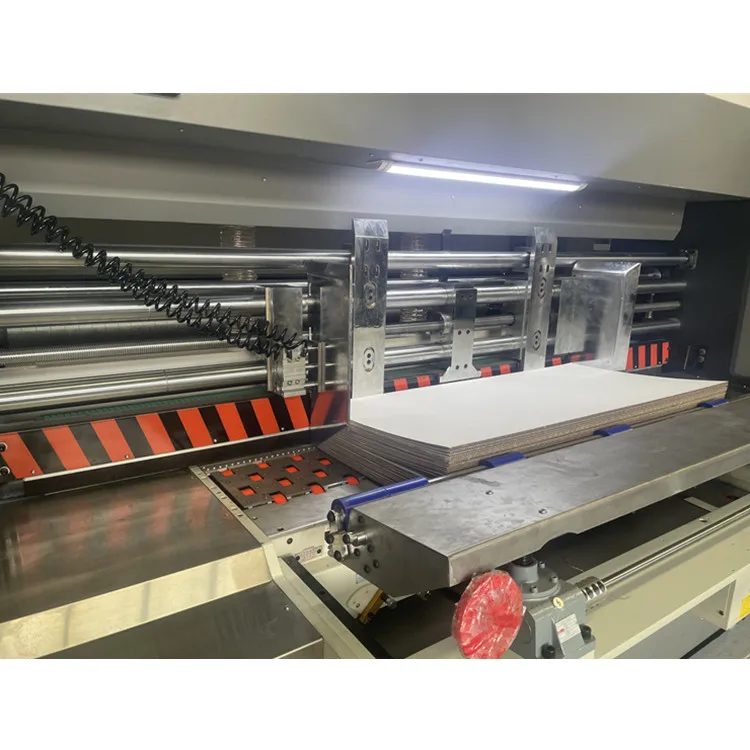

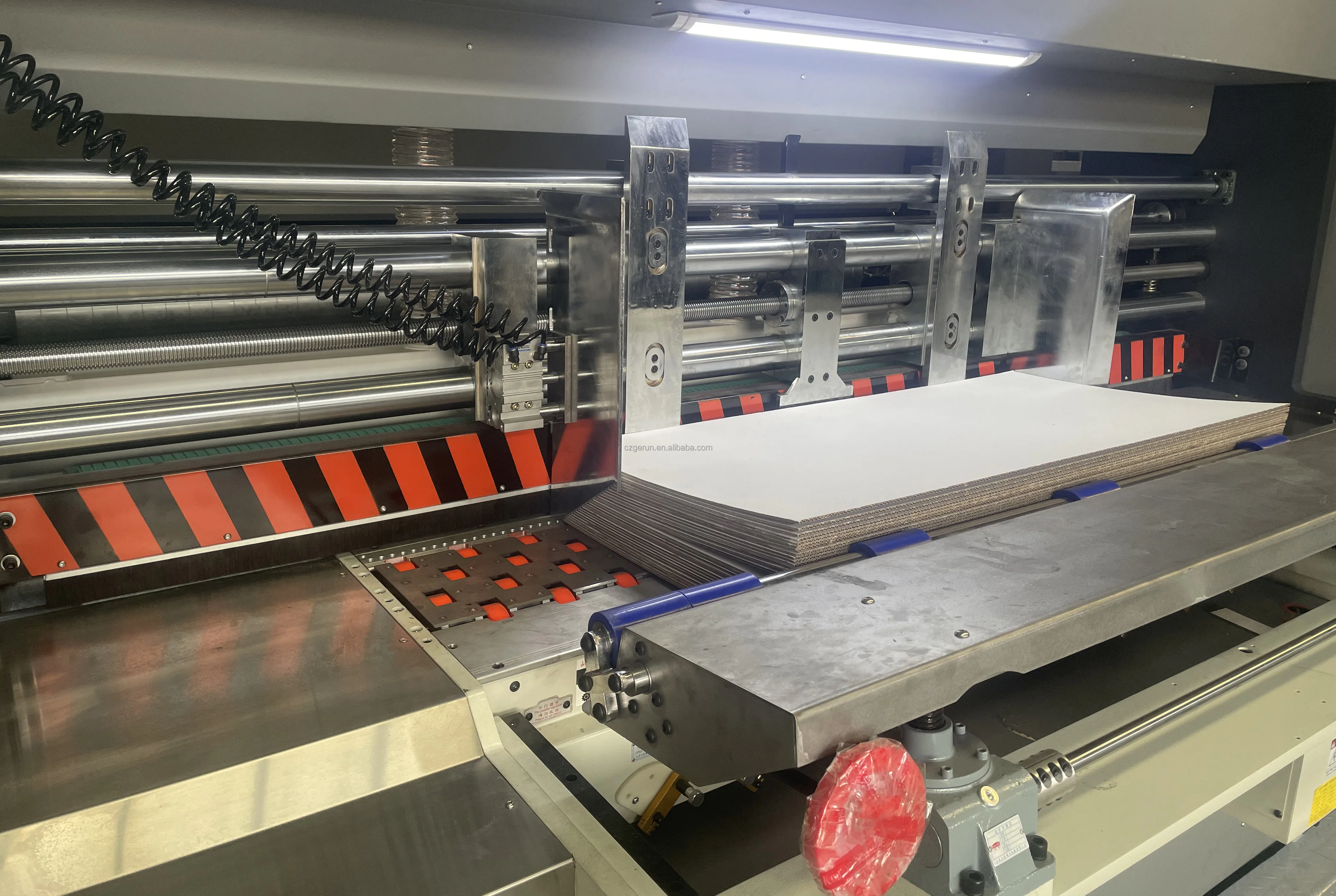

1.leading edge adsorption automatic paper feeding.
2.Double cots feed paper, main engine fan frequency control.
2.Double cots feed paper, main engine fan frequency control.
3.Clean the cardboard surface of the fan, assisted by multiple rows of brushes.
4.Keywords electric side baffle, pneumatic alignment, electric bracket,
Manual synchronous lifting of the paper feed baffle.
4.Keywords electric side baffle, pneumatic alignment, electric bracket,
Manual synchronous lifting of the paper feed baffle.

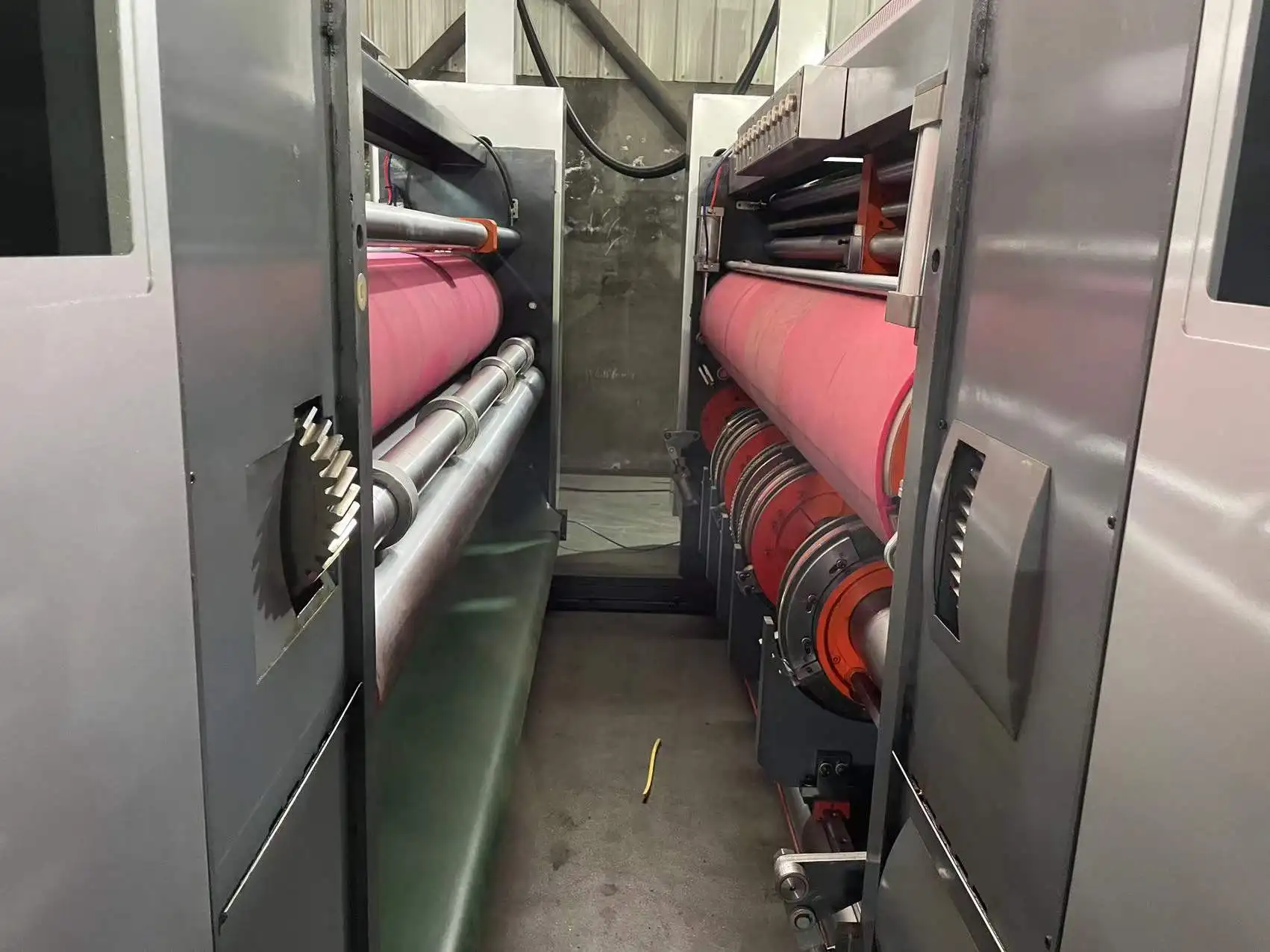

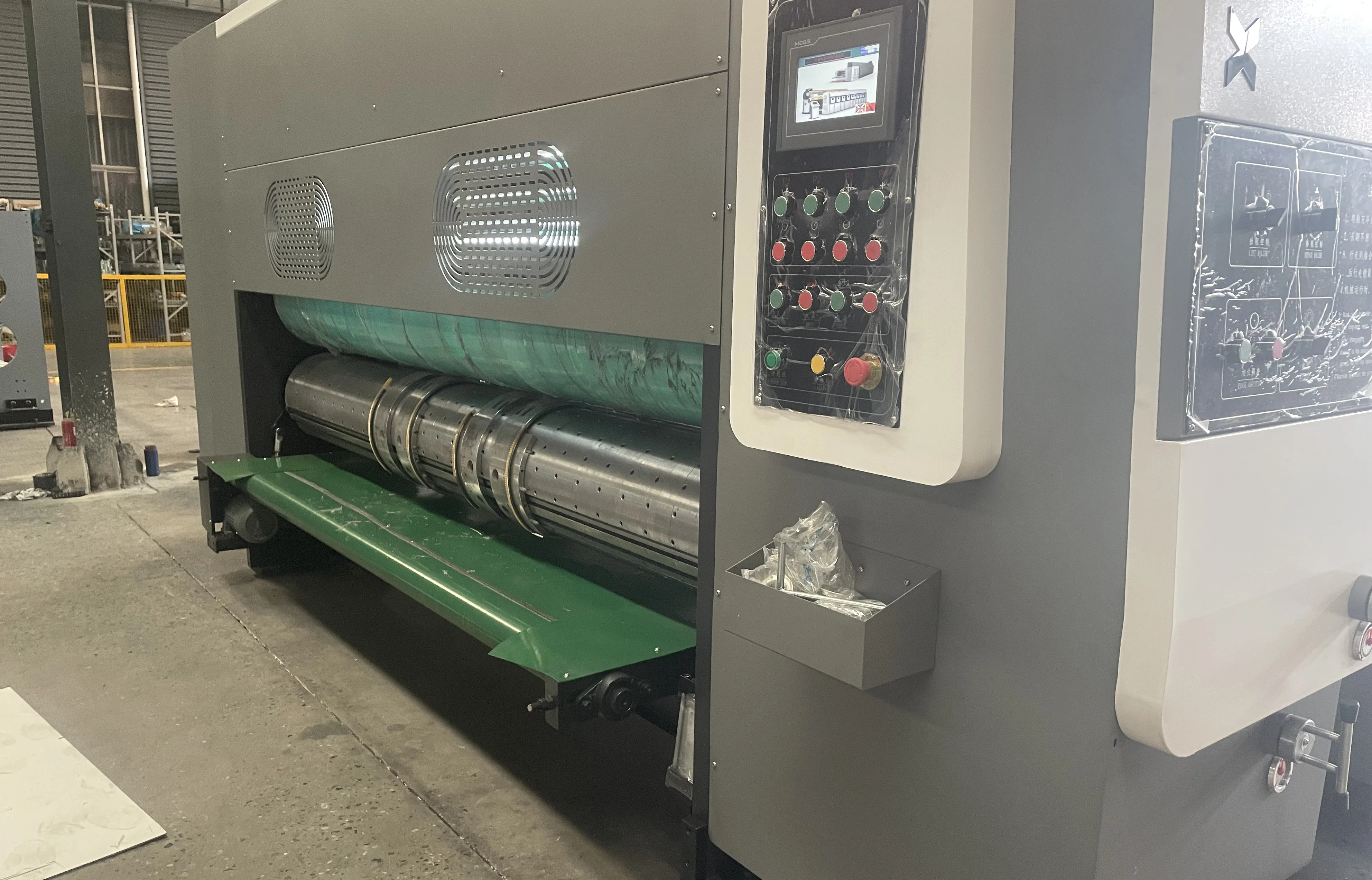

1 The printing roller and trace pressing roller: good quality SSTU, grinded and hard chrome-plated.
2 Hang printing plate system, it is easy to install and change printing plate. Foot switch operate.
3 International standard high-precision harmonic phasing device,PLC and touchscreen controlled 360 degree adjustment.
2 Hang printing plate system, it is easy to install and change printing plate. Foot switch operate.
3 International standard high-precision harmonic phasing device,PLC and touchscreen controlled 360 degree adjustment.

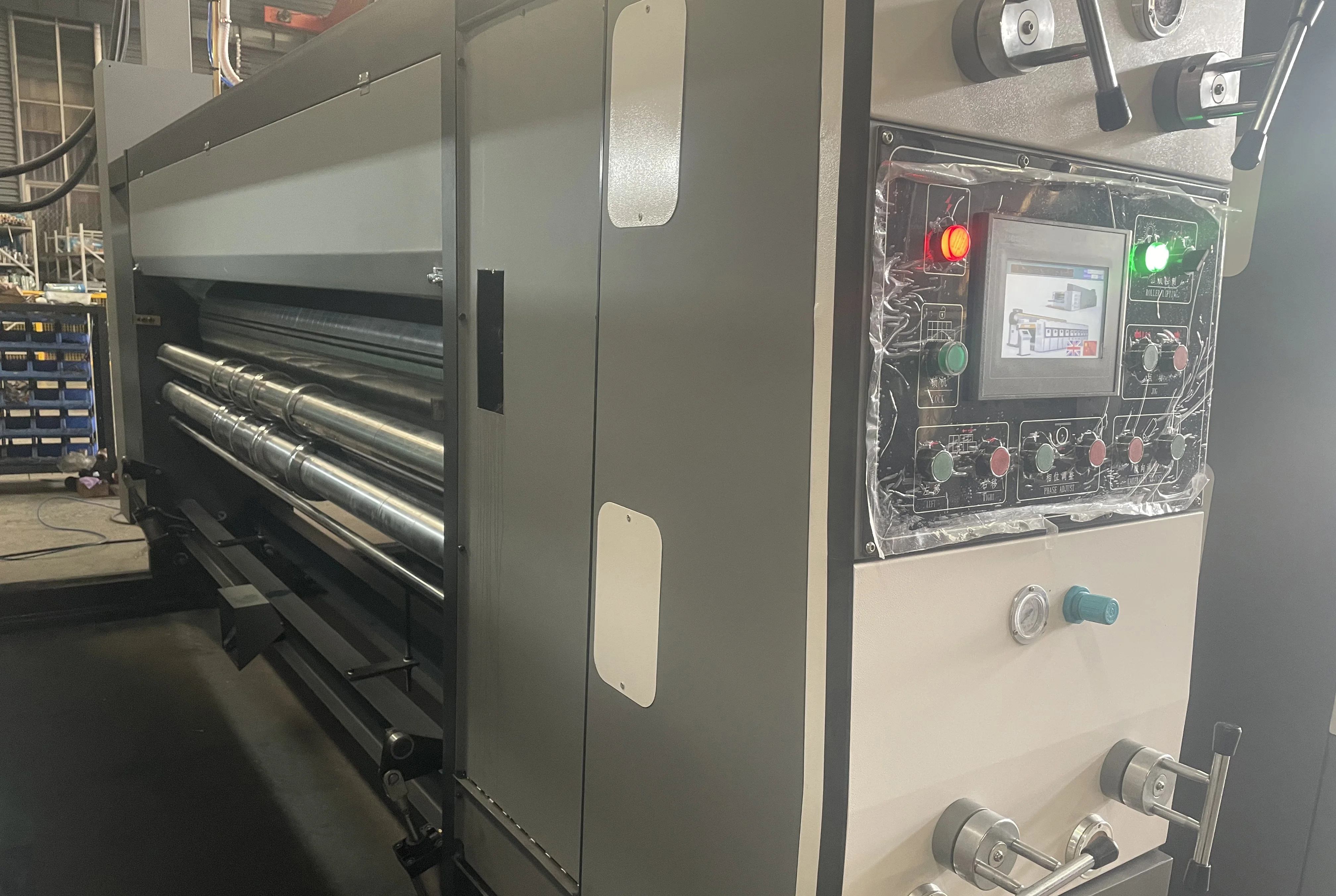

Slotting unit
1 The function of the double shaft slitting unit(Adopt units). Big size carton box or kicking paperboard slitting can save loading knife time.
2 Slitting phase and the height carton box adjusting, computer and the electrical number can be controlled.
3 Slitting knife a move transversely structure, screw with linear axis that moble more flexible and accurate.
2 Slitting phase and the height carton box adjusting, computer and the electrical number can be controlled.
3 Slitting knife a move transversely structure, screw with linear axis that moble more flexible and accurate.
Die-cutting unit
1 The rubber roller adopt mechanical control the position move left and right. The movement distance is 40mm.
2 The phase of the die-cutting unit adopt PLC and electric 360° adjust, accord the error to input the adjust data, can be adjusted while the machine running or stop. (PLC with touch screen adjustment as an option).
2 The phase of the die-cutting unit adopt PLC and electric 360° adjust, accord the error to input the adjust data, can be adjusted while the machine running or stop. (PLC with touch screen adjustment as an option).
