Portable 30~1200 c Dry Well/ Dry Block/ Dry Body Temperature Calibrator with temperature controller function
- Category: >>>
- Supplier: Hangzhou Zhongchuang Electron Co. Ltd.
Share on (1600540360509):
Product Overview
Description
Product Overview
Portable -30~1200 c Dry Well/ Dry Block/ Dry Body Temperature Calibrator with temperature controller function
Portable Dry Block Calibration Dry Type Temperature Calibrator from -30~ 1200c
The portable touch screen dry block temperature calibrator (Dry well furnace) is easy to carry, easy to use, fast and reliable temperature efficiency, widely used in machinery, chemical industry, food, medicine and other industries. The problem of slow temperature rise and slow temperature rise is common in the existing dry test furnace in China, which leads to a long time for users to calibrate each time. The latest generation of dry well furnace of our company adopts the most advanced heating principle design in the world. It has the characteristics of fast temperature rise, fast temperature rise and fast temperature drop, which greatly improves the existing calibration efficiency.
Through reliable high precision temperature control circuit and high precision sensor, the precision is higher than that of other domestic manufacturers, and the technology has reached international standards. The first worldwide touching operation, simple and fast to use.
Portable Dry Block Calibration Dry Type Temperature Calibrator from -30~ 1200c
FEATURES AT A GLANCE
Temperature Range: -30~1200c
Resolution Rate: 0.01c
Trademark: EAST TESTER

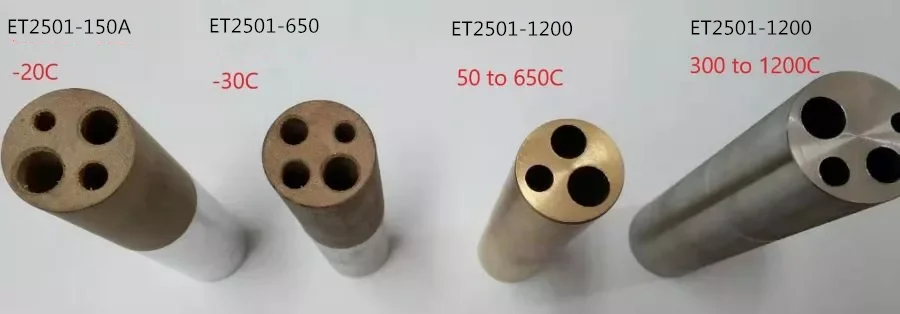

The heating block could be customized according to customer's requirement.
Dry Well Dry Block Temperature Calibrator

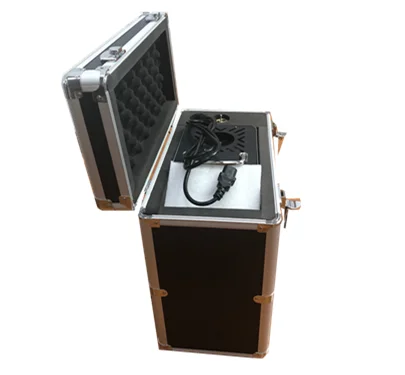

Packed With Aluminum Box

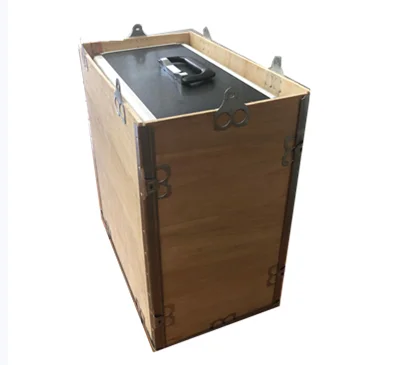

Wooden Box
PRODUCT SPECIFICATIONS
Model | ET2501-150A | ET2501-150B | ET2501-650 | ET2501-1200 | |||
temperature range | -20℃~150℃ | -30℃~150℃ | 50℃~650℃ | 300℃~1200℃ | |||
Heating Rate | 25℃~50℃6min 50℃~100℃15mins 100℃~150℃20mins 25℃~0℃15mins 0℃~-20℃15mins -20℃~-30℃ 22mins | 50℃~300℃：7mins 50℃~650℃：30mins | 25℃~100℃：10mins； 100℃~600℃：15mins； 600℃~800℃：20mins 800℃~1200℃：30mins； | ||||
Display accuracy | ≤±0.1℃ | ≤±0.1℃ | Below 400℃：≤±0.35℃ 400-650℃：≤±0.5℃ | ≤±1.2℃ | |||
Insertion depth | 160mm | 160mm | 150mm | 135mm | |||
Average heat block diameter | 36mm | 32mm | 32mm | 39mm | |||
Temperature field stability | ≤±0.02℃ | ≤±0.02℃ | ≤±0.05℃ | ≤±0.2℃ | |||
Horizontal temperature field | ≤±0.05℃ | ≤±0.05℃ | ≤±0.05℃ | ≤±0.25℃ | |||
Vertical temperature field | The deviation in the range of 50mm calculated from the bottom of the hole of the soaking block is 1 degree | ||||||
Temperature unit | ℃ or ℉ | ||||||
Temp Accuracy | 0.1% | ||||||
Display resolution | 0.01℃ / 0.001℃ | ||||||
maximum power | Negative temperature type: 3000W, medium temperature type: 1200W, high temperature type: 3000W | ||||||
weight(Net weight) | Negative temperature type: 10kg, medium temperature type: 10kg, high temperature type: 8kg | ||||||
weight (Containing packaging) | Negative temperature type: 19kg, medium temperature type: 19kg, high temperature type:16kg Packaging includes aluminium box and transport wooden box | ||||||
Demension | Negative temperature type and high temperature type: 310*190*340mm, medium temperature type: 250*150*310mm | ||||||
Use environment | Ambient temperature 0-50℃, relative humidity less than 95%(no condensation) | ||||||
Optional USB Communication | The standard dry block temperature calibrator is with no USB FUNCTION, please contact supplier for optional USB function. | ||||||
Can be customized according to customer's requiremnet

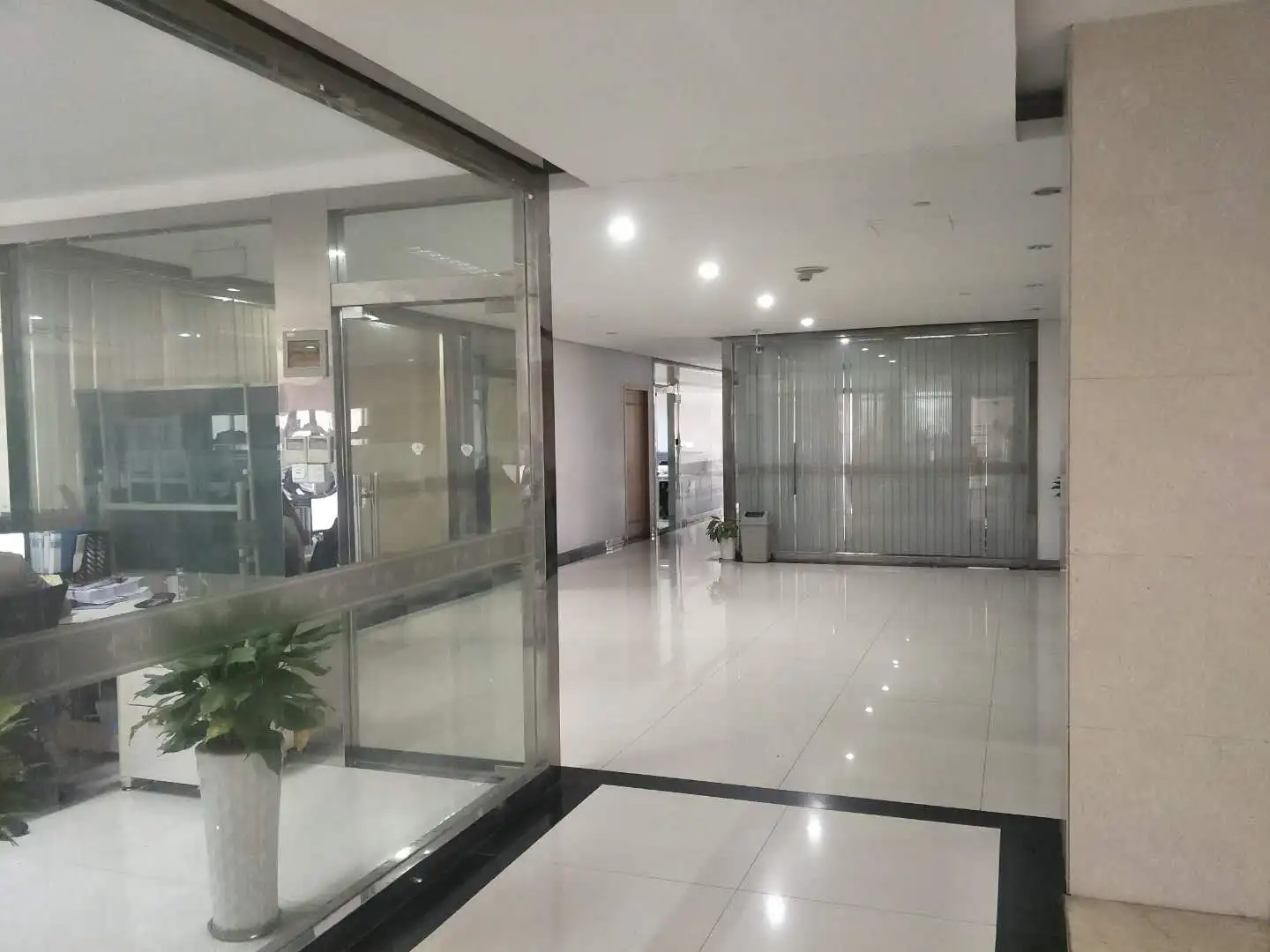

FACTORY TOUR
