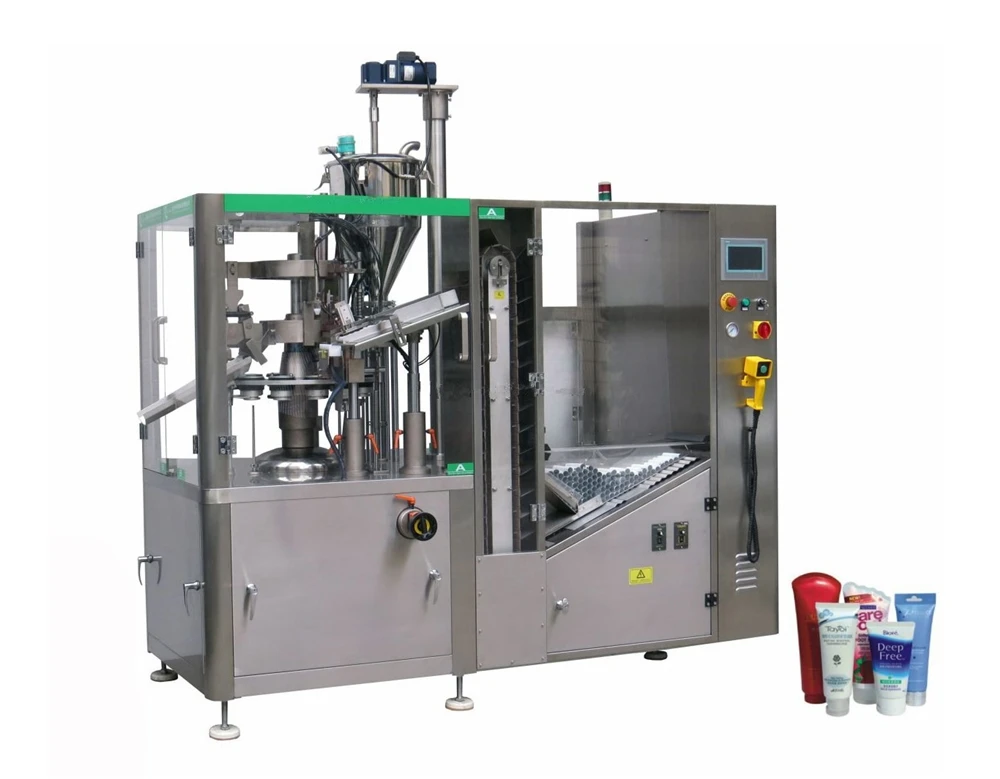

ZHNG 100A High Speed Automatic Cosmetic Tube Filling and Sealing Machine with High Accuracy

ZHNG-100A high speed automatic filling and sealing machine

Filling volume: 1-300ml/unit (Adjustable)

Filling accuracy: ±0.5%

Capacity: 1800-4800unit/hour, Adjustable

Tube diameter: Φ12-60 mm

Tube length: 50-240 mm

Hopper volume: 40L

Power: 380V/220V (Optional)

Air pressure: 0.4-0.6 MPa

Equipped motor: 1.1KW

Machine power: 5kw

Inner wind motor: 0.37kw

Convulsions motor: 0.37kw

Siemens PLC system

Siemens electric motor and electric appliance part

American photo electricity and sensor

PLChuman-machine interface

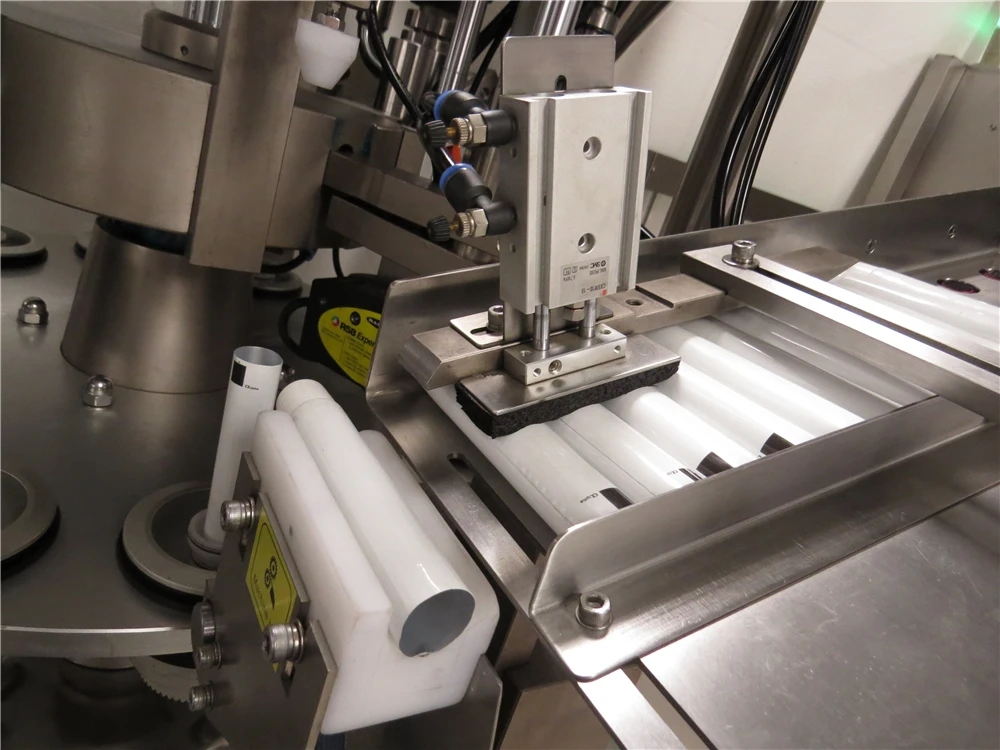

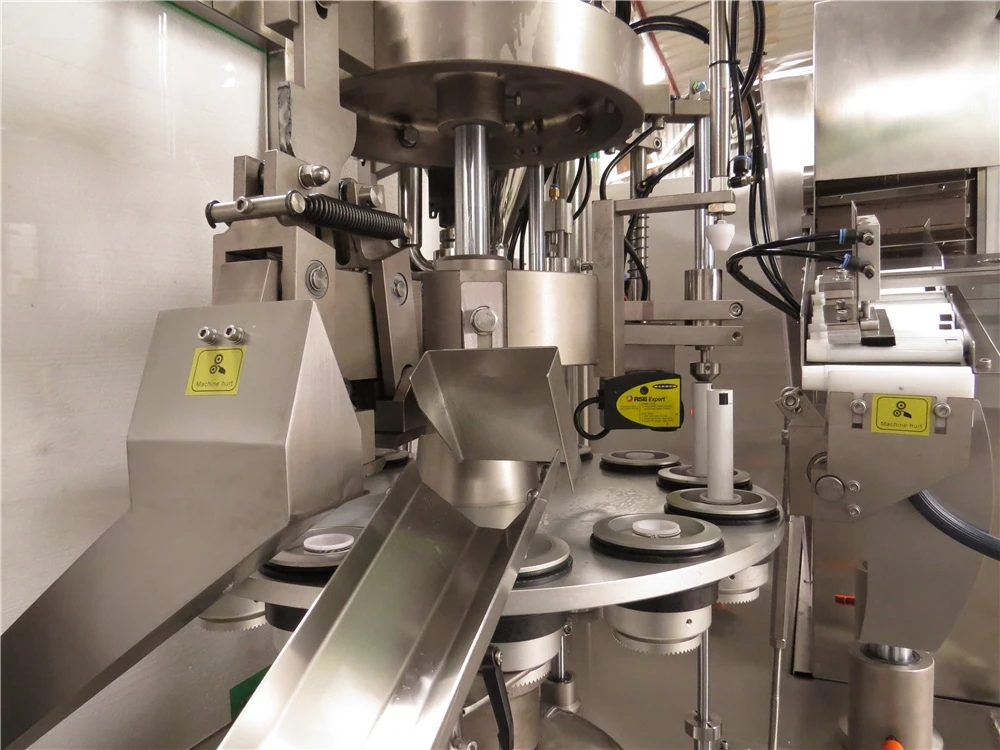

1,Tubes flippered into and pressed down into the tube pucks automatically

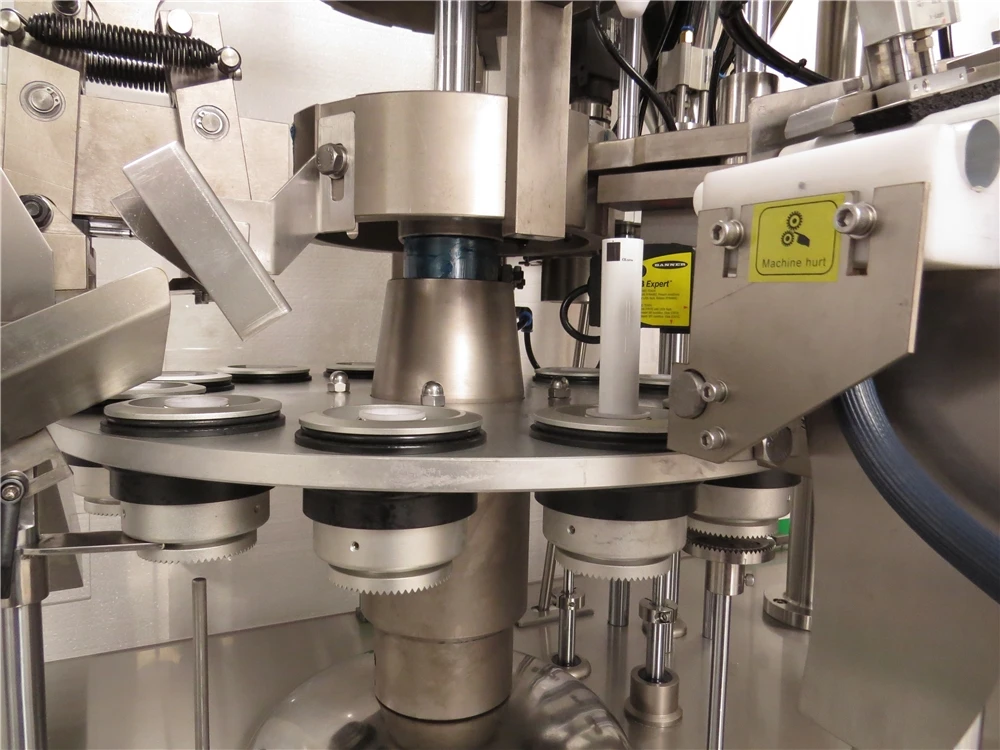

2,Adopt the spring tube pucks ensuring the same height of sealed tail.

3,Using automatic right color systems ensuring the automatic right superscript of oval or other special-shaped tubes..

4,Adopt mechanical drive mode filling system ensuring the stability of loading.

5,Rising puck style for filling stage.

6,Adopt original binding LEISTER air heater

7,Hot air inside sealed the tube, cold water circle-cooled the outer wall of the tubes. That ensured the effect of the sealing.

8,Exhaust the harmful gases outdoors by fan (made in Taiwan)

9,After sealing,equipped with air-cooled systems, to avoid heat transfer to the paste

10,PLC fully automatic control system

11,High-definition, visual stainless steel frame

12,The connection of emulsifier and filling machine can be easily achieved

13,The operation of different diameters can be easily changed

14,Filling,sealing and  code-printed can be finished in one machine

15,Have the tubes auto set down, tubes auto purge, the mark auto fund, and auto filling and sealing functions.

16,The speed can be  stepless frequency convert, the tube set down function can be finished by main machine matching with console model and big capacity tube store.

17,The product quantity can be controlled

18,The code mechanical hand print the code automatically in the request position

19,The data can be showed and controlled directly by human-machine interface

20,Console model and big capacity tube store.

21,FESTO original binding vacuum generator controlled the on tube adsorption positioning device

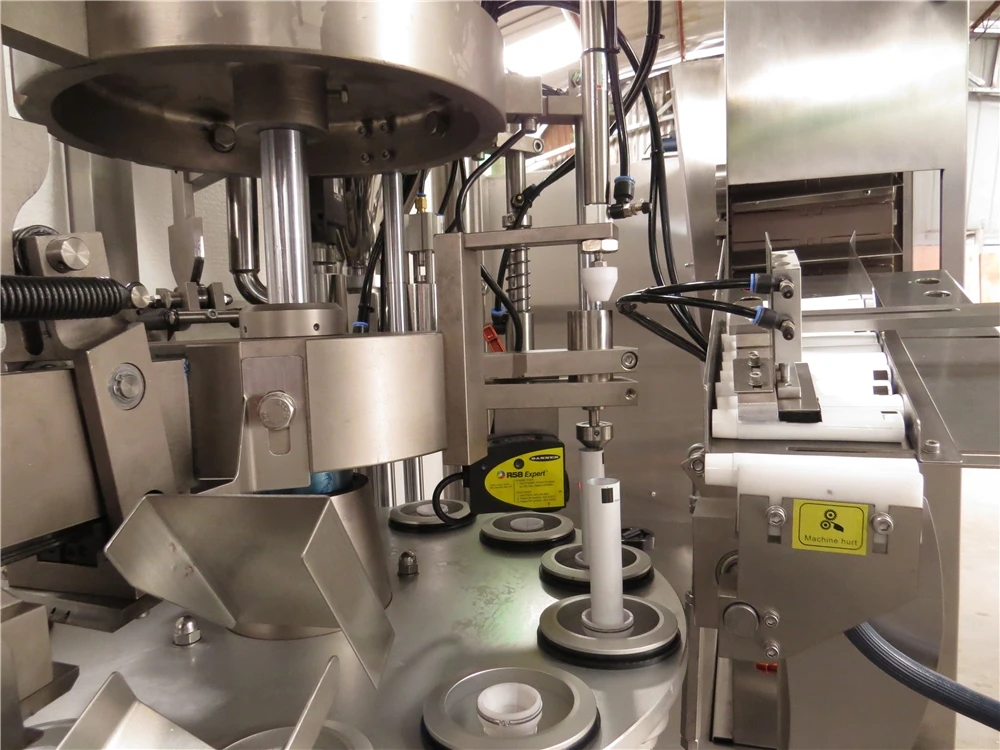

22,Adopt tube direction upside down examination system, Omron photoelectric cell can test the upside down tubes accurately

23,Cam indexing

24,Automatic cleaning and the dust accumulates recycling system

25,Have the malfunction alarming,the machine gate openning and over-loading stopping device

26,When filling is finished, the end is blown away by the air blower and cut off ensuring high viscosity materials filling.

27,Column model heat preservation agitation system.(optional).

28,Ultrasonic wave material position automatic detection system.

The material position can be accurately detected and can be showed derectly on the touch screen with the match of the BANNER ultrasonic wave position automatic detection system and Siemens module. (optional)

29,No tube no fill

Optional Devices

Change Parts For Different diameter tubes

Pneumatic plunger type barrel inserting pump

Heating and warm keeping function for hopper

Mixing function for hopper
