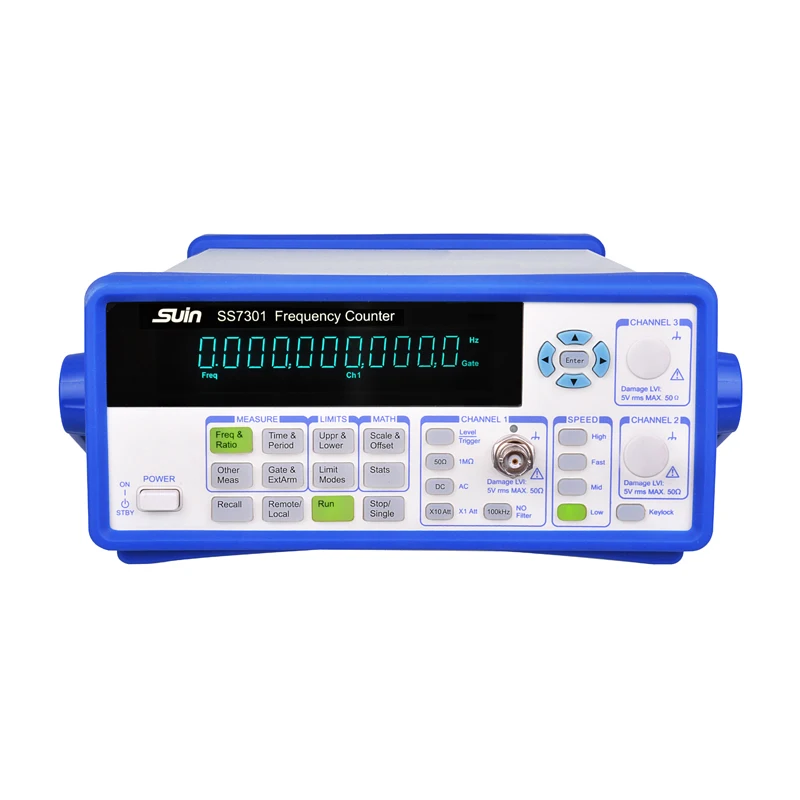

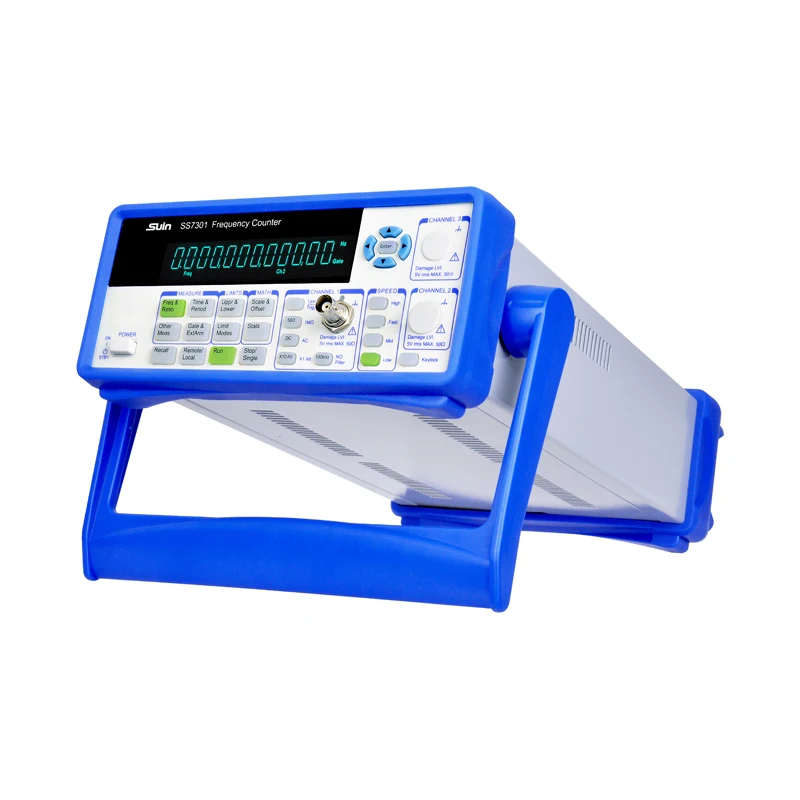

Suin SS7301 low price remote control digital rf frequency counter/timer/meter with 200MHz
Suin SS7301 low price remote control digital rf frequency counter/timer/meter with 200MHz
Suin SS7301 low price remote control digital rf frequency counter/timer/meter with 200MHz
Suin SS7301 low price remote control digital rf frequency counter/timer/meter with 200MHz
Suin SS7301 low price remote control digital rf frequency counter/timer/meter with 200MHz
Suin SS7301 low price remote control digital rf frequency counter/timer/meter with 200MHz
Suin SS7301 low price remote control digital rf frequency counter/timer/meter with 200MHz

Suin SS7301 low price remote control digital rf frequency counter/timer/meter with 200MHz

Share on (1600540372580):


Price:

Quantity:


Product Overview

Description



Product Description


Features
High accuracy with minimum measuring resolution 10 digits/s
16-bit microcontroller is used and the speed of data processing is fast.
Maximum frequency's measurement can reach to 40GHz (options)
Utility statistics functions of multi-average, maximum, minimum, PPM, standard deviation and Allan Variance for frequency measurement
High-stability crystal oscillator is optional




Specification


SS7301
Measuring Functions
Frequency
CH 1: 0.001Hz ~ 200MHz
CH 2: options 3GHz/6.5GHz/12.4GHz/
16GHz/20GHz/26.5GHz/40GHz
CH 3: options 3GHz/6.5GHz/12.4GHz/
16GHz/20GHz/26.5GHz/40GHz
Display Resolution
10 digits/s
Period
5ns ~ 1000s
Pulse Width
50ns ~ 1000s
Duty Cycle
5% ~ 95%
Totalize
0 ~ 1×1013
Input
Dynamic Range
50mVrms ~ 1.0Vrms (Sine), 150mVPP ~ 4.5VPP(Pulse)
Input Impedance
1MΩ//35pF or 50Ω
Coupling Mode
AC or DC
Trigger Mode
Rising edge or Falling edge
Input Attenuation
×1 or ×10
Low-pass Filter
stop frequency approx.100kHz
Trigger Level
-5.000V ~ +5.000V, step 5mV
Other Functions
Frequency Ratio
√
Frequency Self-test
√
Up/Low Limit
"Limit" light on shows the result out of range,
off shows within range
Statistics Calculation
Multi-average, Max.,Min., PPM, SD, Allan Variance
Standard Time Base
Accuracy
5×10-8
Daily Aging
1×10-8/day
Optional Time Base
Accuracy
5×10-8
Daily Aging
5×10-10/day
Channel Options
Frequency Range
Dynamic Range
3.0GHz
100MHz~3GHz
A. -27dBm~+19dBm (100MHz~2.6GHz)
-15dBm~+19dBm (2.6GHz~3GHz)
100MHz~3GHz
B. -27dBm~+19dBm
6.5GHz
200MHz~6.5GHz
-15dBm~+13dBm
12.4GHz
6.5GHz~12.4GHz
-15dBm~+10dBm
16.0GHz
6.5GHz~16GHz
-15dBm~+10dBm
20.0GHz
200MHz~20GHz
-10dBm~+10dBm (200MHz~350MHz)
-15dBm~+10dBm (350MHz~18GHz)
-10dBm~+10dBm (18GHz~20GHz)
26.5GHz
10GHz~26.5GHz
-20dBm~+10dBm (10GHz~20GHz)
-15dBm~+10dBm (20GHz~24GHz)
-10dBm~+10dBm (24GHz~26.5GHz)
40GHz
18GHz~40GHz
-29dBm~+15dBm (18GHz~20GHz)
-20dBm~+15dBm (20GHz~28GHz)
-29dBm~+10dBm (28GHz~37GHz)
-20dBm~+13dBm (37GHz~40GHz)
Damage Level
+20dBm
General Characteristics

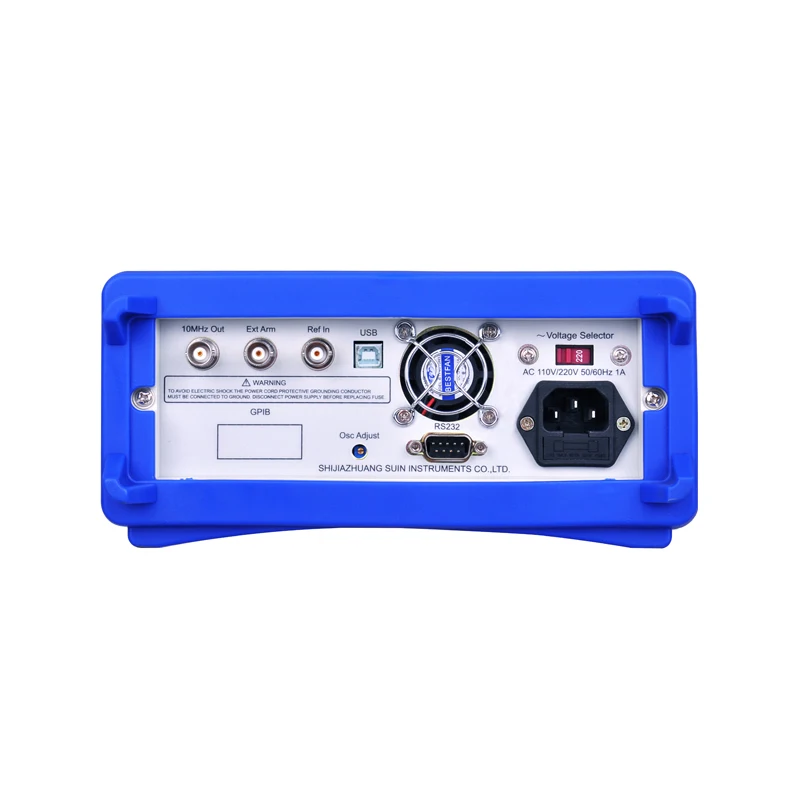

Interface
Standard: USB, RS-232
Optional: GPIB
Power
AC 220V(10%) or AC110V(10%), 50Hz(5%) OR 60Hz(5%)
Dimension & Weight
375×105×235mm, Approx. 3.5kg


Packing & Delivery
