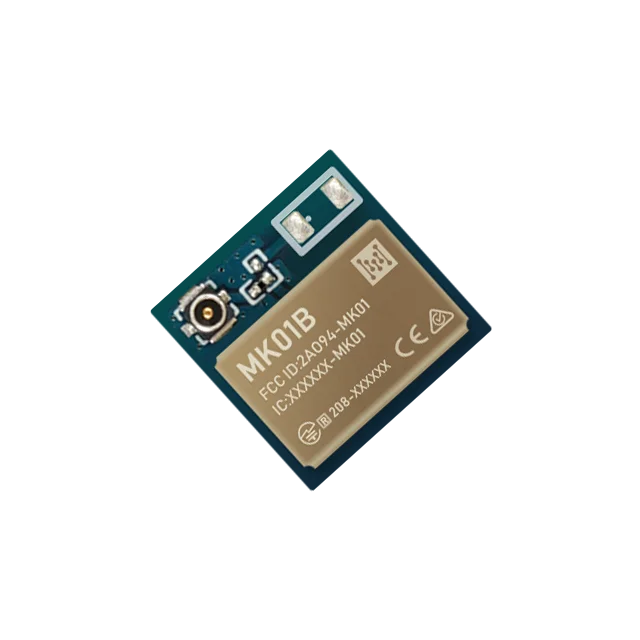

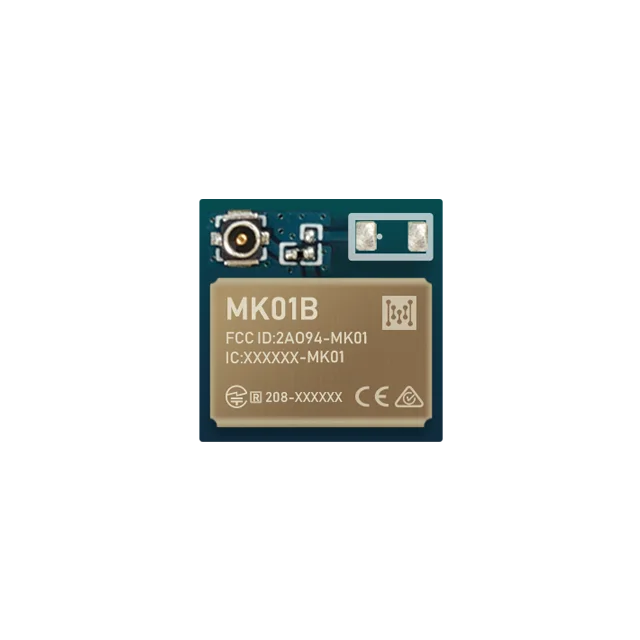

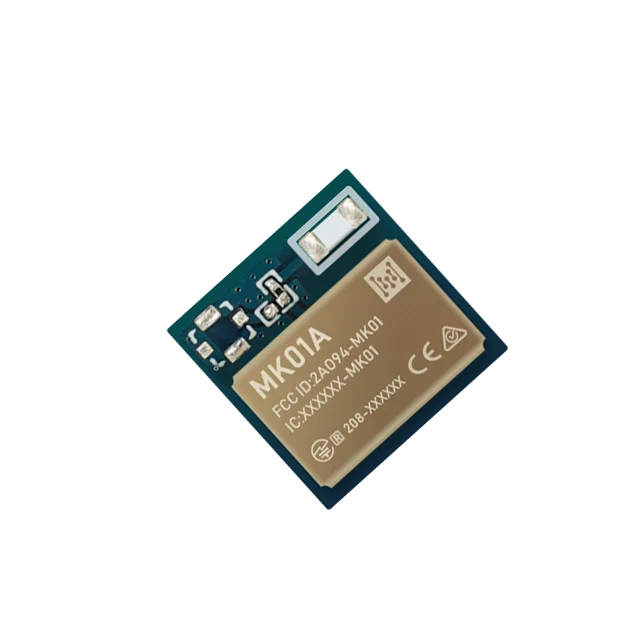

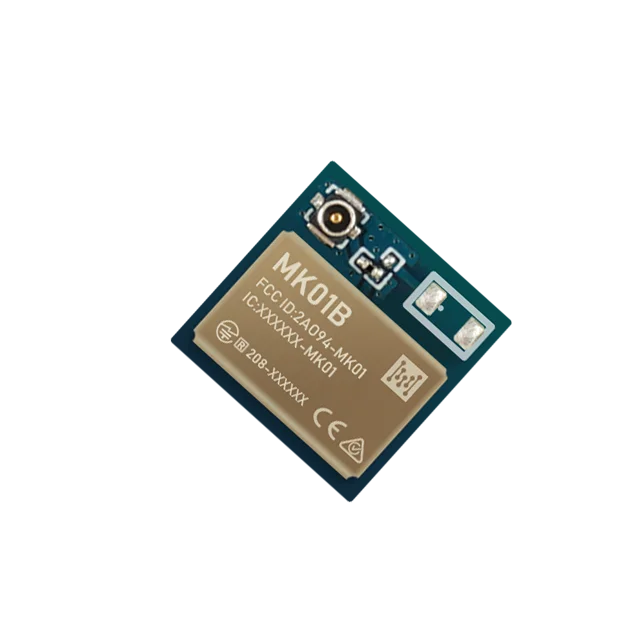

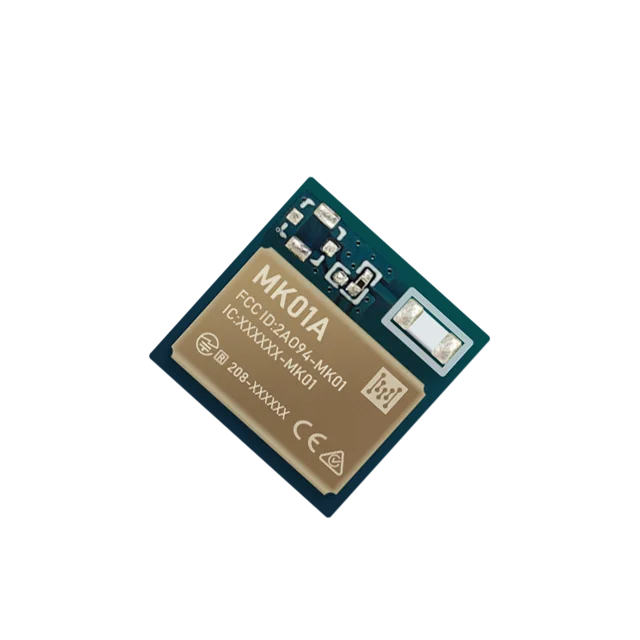

Small Bluetooth Module MK01 Nordic nRF52832 Chip ultra low power Bluetooth 5 modules
- Category: >>>
- Supplier: Shenzhen Moko Technology Ltd.
Share on (1600540374649):
Product Overview
Description

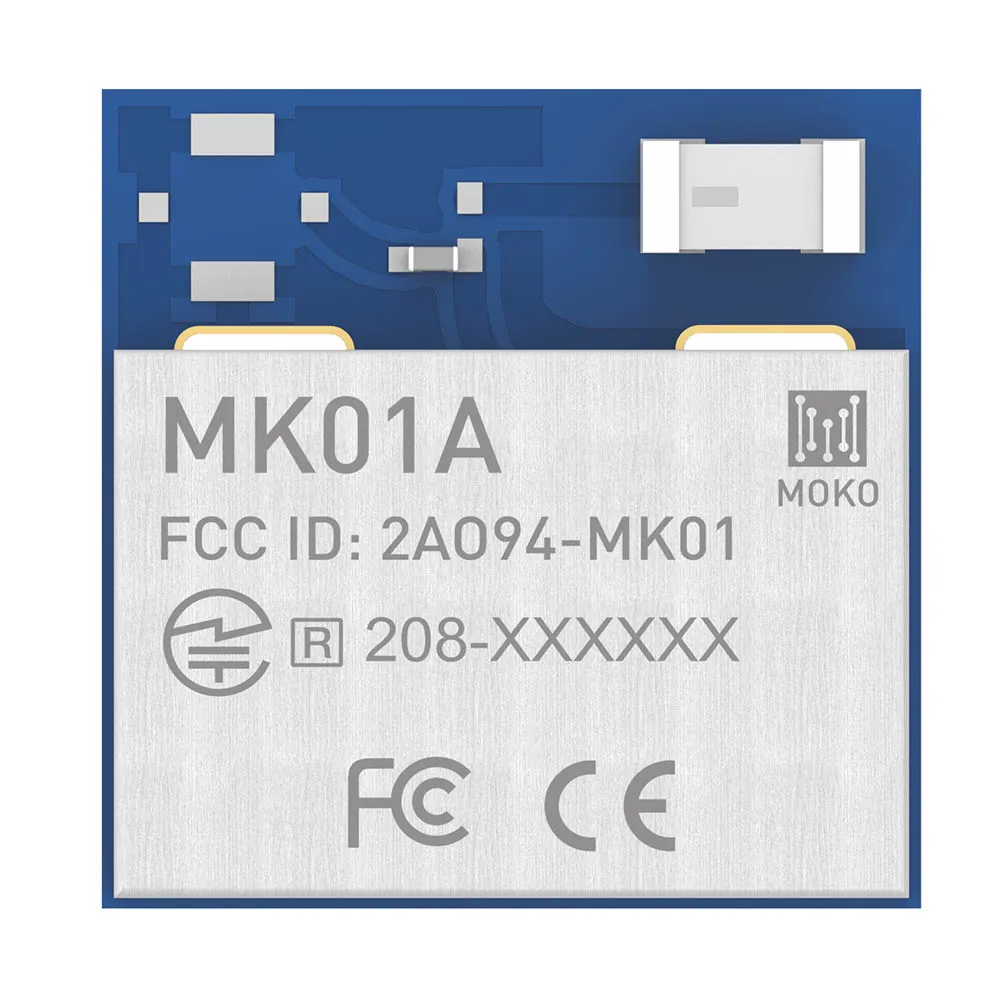

MK01A nRF52832 lower-higher Bluetooth 5.1 Module 2 Mbps. ANT+ BLE Bluetooth Module nordic CHIP
MK01 series is a powerful, highly flexible, ultra low power Bluetooth® 5 module based on Nordic® Semiconductor nRF52832 SoCsolution, which has a 32 bit Arm® Cortex™-M4 CPU with floating point unit running at 64MHz.
Product Description
MK01 module is multi-protocol capable with full protocol concurrency. It supports BLE® (Bluetooth Low Energy), including the
high-speed 2 Mbps feature. Bluetooth mesh can be run concurrently with BLE, enabling smartphones to provision, commission,
configure and control mesh nodes. NFC, ANT
and 2.4 GHz proprietary protocols are also supported.
MK01 has a ultra-small size of 10mm x 10mm with 36 LGA (Land Grid Array) 0.4mm x 0.4mm pads providing 22 GPIOs (including 32.768
kHz crystal and reset pins) of nRF52832CIAA (WLCSP package).
high-speed 2 Mbps feature. Bluetooth mesh can be run concurrently with BLE, enabling smartphones to provision, commission,
configure and control mesh nodes. NFC, ANT
and 2.4 GHz proprietary protocols are also supported.
MK01 has a ultra-small size of 10mm x 10mm with 36 LGA (Land Grid Array) 0.4mm x 0.4mm pads providing 22 GPIOs (including 32.768
kHz crystal and reset pins) of nRF52832CIAA (WLCSP package).
MK01 Series BLE module features | ||||||||
Dimension | 10.0x10.0x2.0mm(with shield) | |||||||
Flash/RAM | 512KB/64KB | |||||||
Interface | UART, SPI, TWI, PDM, I2S, QDEC, PWM, ADC, NFC | |||||||
Power Supply | 1.7-3.6 V | |||||||
Operating temp | -40 to +85°C | |||||||
BLE5.0/5.1 Specification | 2 Mbps, CSA #2, Advertising Extensions | |||||||
Cover | Metal shielding with marking | |||||||
BLE Standard | BLE 5.1 | |||||||
GPIOs | 22 | |||||||

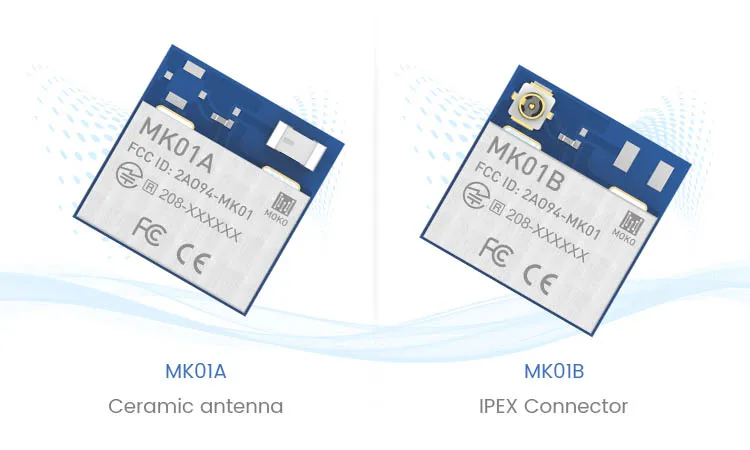

Antenna Type | Ceramic Chip/u.FL Connector | |||||||
32.768K Crystal Oscillator | Built inside | |||||||
Pad package | Land Grid Array (LGA) | |||||||
Other Feature | Bluetooth mesh, ANT+, 2.4GHz | |||||||

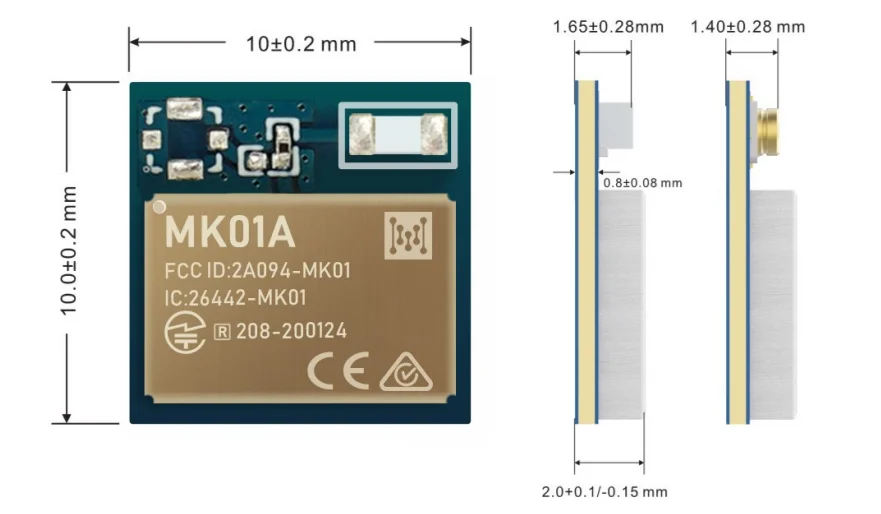

Module Size

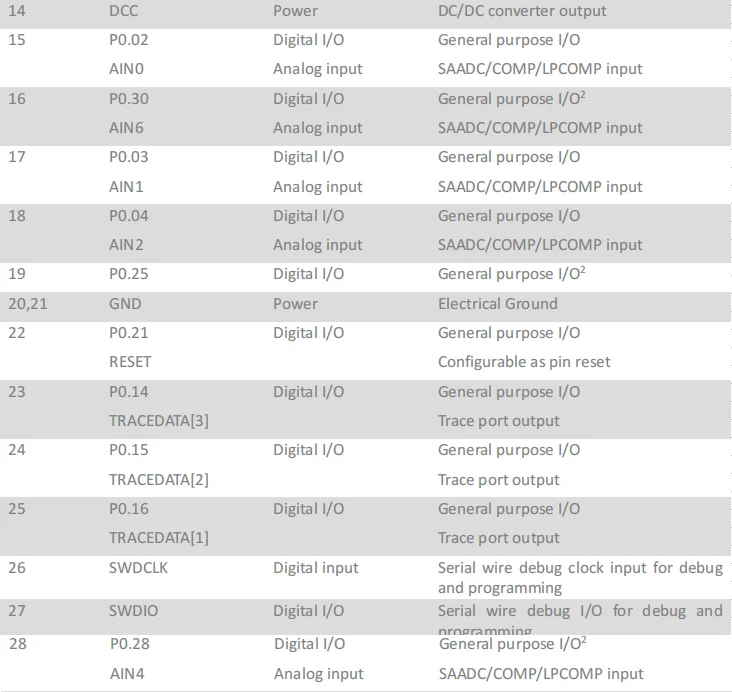

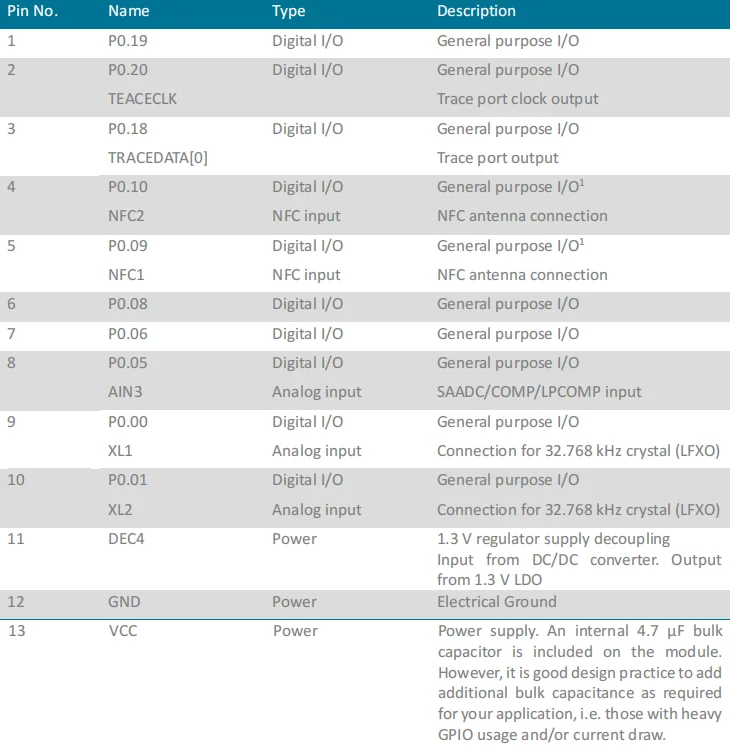

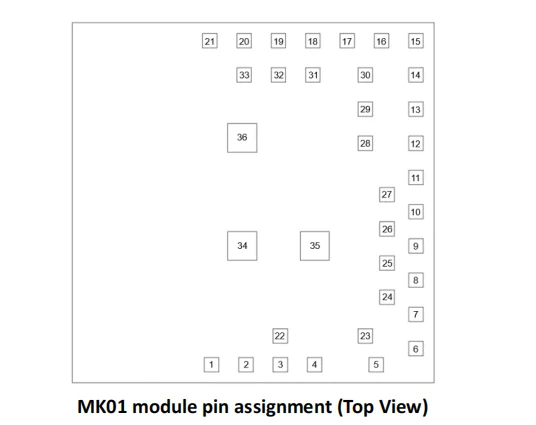

Pin Description

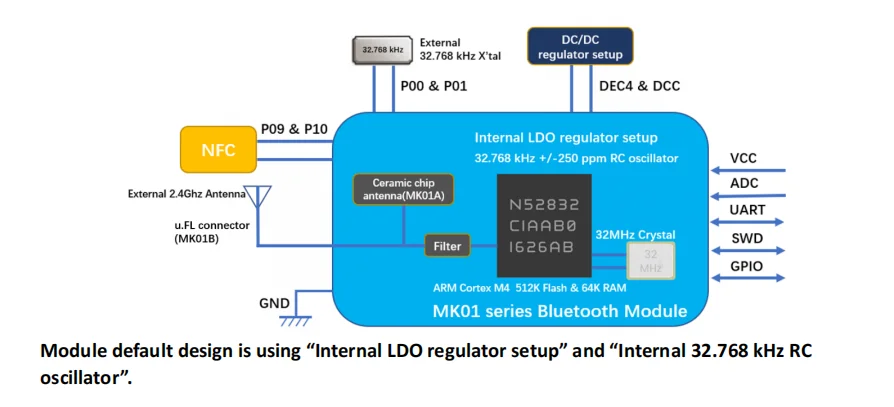

Block Diagram
Application and Solution
Packing & Delivery
Samples:
we would send samples via DHL Express within about 2 days after payment, then you would receive them in about 4 to 5 days.
Orders:
bulk orders usually take about 2 to 3 weeks after payment received
we would send samples via DHL Express within about 2 days after payment, then you would receive them in about 4 to 5 days.
Orders:
bulk orders usually take about 2 to 3 weeks after payment received

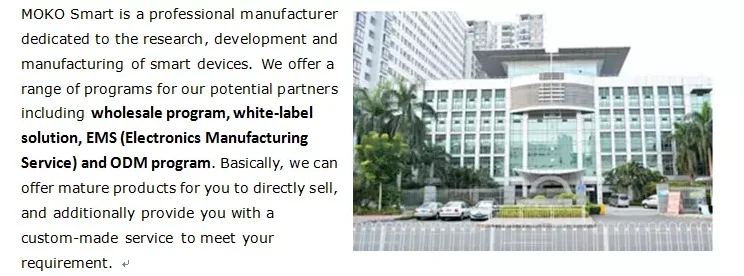

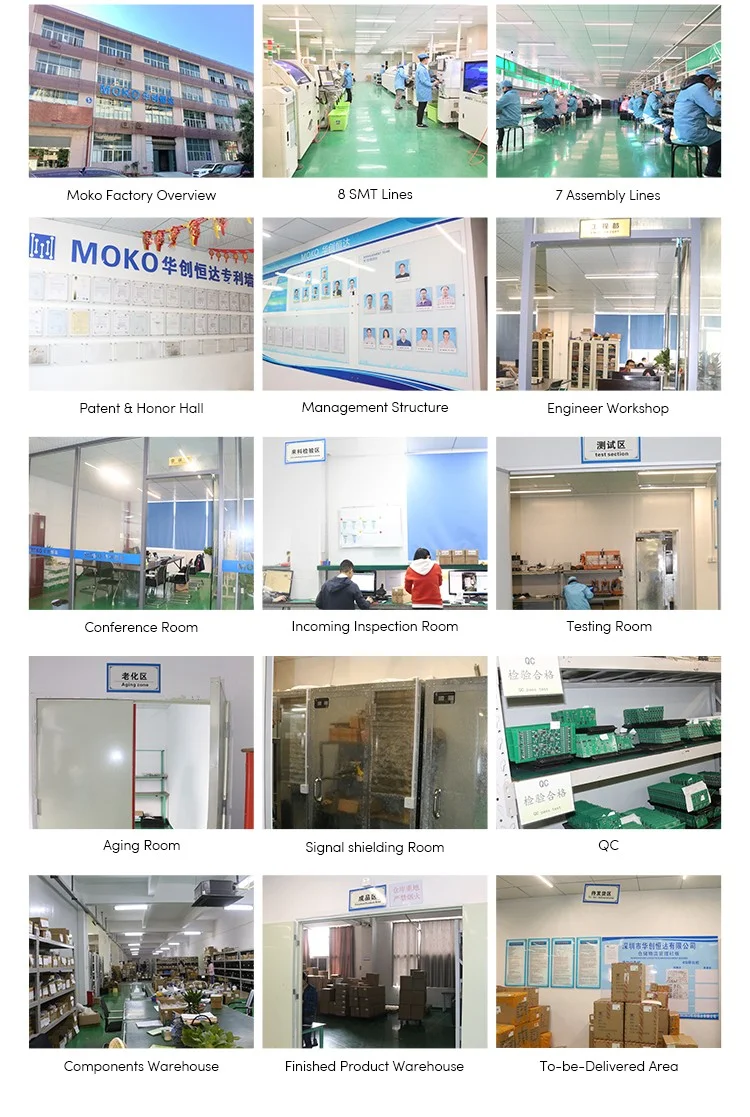

Company Profile
