long range border port surveillance alarm system perimeter security radar
- Category: >>>
- Supplier: Guangxi Sinso Lighting Co. Ltd.
Share on (1600540377935):
Product Overview
Description

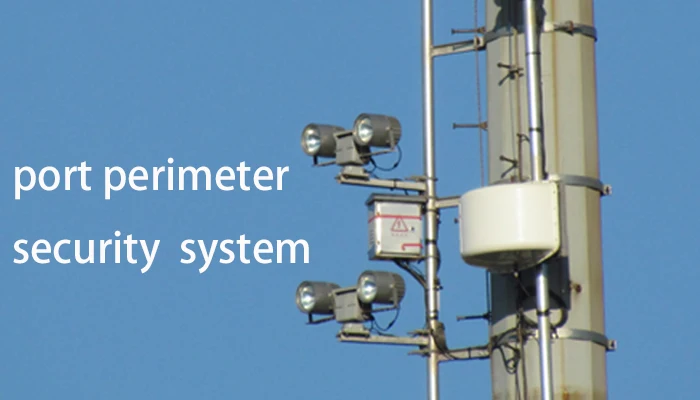

As a high-tech equipment which employs electromagnetic wave signal to detect the moving targets, Radar is a kind of active all-weather warning detection means. Radar Video Surveillance Alarm System, designed to send out alerts on target with position and track, record the real-time alarm video and prevent intrusion before the perimeter.
Radar locates the target with position by active detection, then triggers PTZ camera and searchlight for auto-tracking. With double identification of video analysis technology and AI algorithm, the system send out accurate alarm to the security monitor center and lower the false alarm greatly.
Radar locates the target with position by active detection, then triggers PTZ camera and searchlight for auto-tracking. With double identification of video analysis technology and AI algorithm, the system send out accurate alarm to the security monitor center and lower the false alarm greatly.
Product Paramenters
Guard Radar:
Feature:
1,Two lights,covering design,longger distance and brightness
2,Auto cruise,can be instead of human to patrol,2000M at least patrol distance
3,Can be work with Cameras and Surveillance,Radar and so no,real-time tracking and feedback
4,With Auto tracking,lighting and tracking the target,adjust the tracking speed depend on the distance
5,Supplementary light for camera to get full color HD picture quality,to see the target more clearly during tracking
6,Strong light blindness:make the target temporary blindness in short time in effective distance
7,Multiple communication:wireless remote control on site ；TCP/IP for remote communication
8,can work for 24h a day, no need to turn off for cooling
Detection range:
Human:≥1500m
Vehicles:≥2000m
Boat/Vessel:≥3000m
Detection Angle:
Horizontal angle: ±45° ;
Vertical angle:±20°
Horizontal angle: ±45° ;
Vertical angle:±20°
Angle Accuracy: ±1°(at S/N Ratio:40dB)
Velocity range:1m/s～60m/s（3.6km/h～216km/h）
Power consumption:≤30W
Outdoor Security Camera PTZ
Pixel:4MP
Resolution: 1920×1080
Focus Distance:0.021~0.775M
Optical zoom: 37/55
vision distance:>1500m at night;>3000m at day
Can be access various photoelectric equipment from major manufacturers
Support optical fog penetration, backlight adaptive, electronic image stabilization
2 TOPS,Support deep learning algorithm, behavior analysis, face, human body, vehicle, various event detection, human and vehicle classification detection

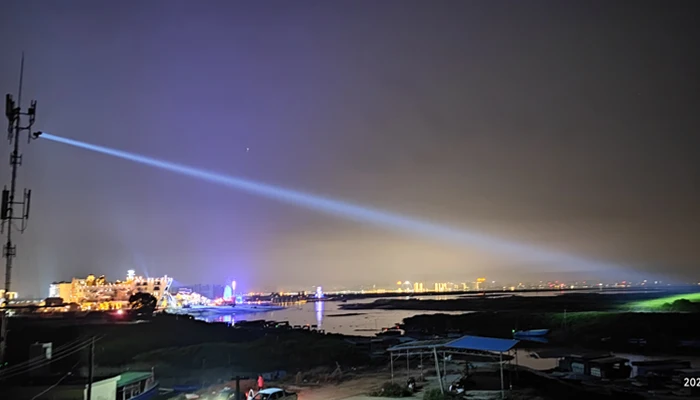

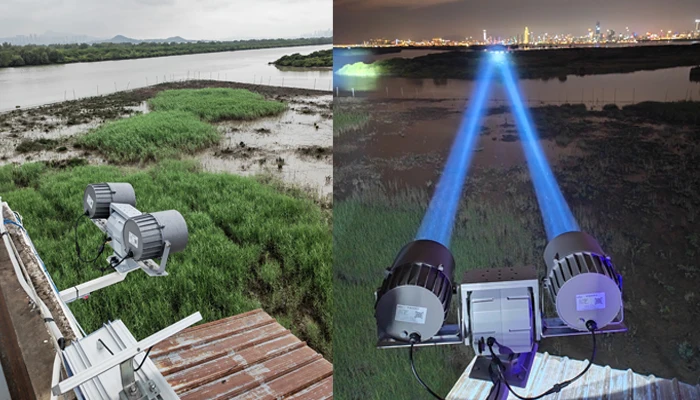

Intelligent searchlight
Power:350W
Luminous flux:35000lm
Input voltage:220VAC(12VDC,24VDC optional)
Effective distance:3000 meters
Tracking speed: Pan speed: 0-30°/s, Tilt speed: 0-15°/s
Rotation angle: Horizontal angle:360°continuous,Vertical angle:±45°
Waterproof:IP66
Sinso three generation HID light source
communication Port:RJ45 interface
1,Two lights,covering design,longger distance and brightness
2,Auto cruise,can be instead of human to patrol,2000M at least patrol distance
3,Can be work with Cameras and Surveillance,Radar and so no,real-time tracking and feedback
4,With Auto tracking,lighting and tracking the target,adjust the tracking speed depend on the distance
5,Supplementary light for camera to get full color HD picture quality,to see the target more clearly during tracking
6,Strong light blindness:make the target temporary blindness in short time in effective distance
7,Multiple communication:wireless remote control on site ；TCP/IP for remote communication
8,can work for 24h a day, no need to turn off for cooling
Radar adopts intelligent algorithm, can learn actively, has independent resolution ability and environmental adaptability to targets, and the system can access various comprehensive platforms.
It could automatically guide and control the infrared and photoelectric devices to compose a linkage system, which will not only provide 24-hour continuous warning and monitoring in the assigned area, and also fulfill the function of target recognition and management;
The system will automatically track,identify the threat level and give an alarm. It is also compatible with manual intervention mode;
High sensitivity and stable performance;High resolution and detection accuracy; Support detection of 32 targets at the same time and tracking on no less than 10 targets meanwhile.

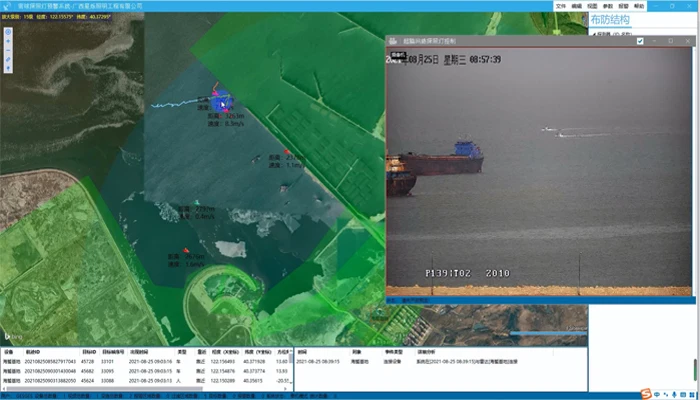

Deployment is convenient, simple configuration, easy to operate.System Compatibility: Support e-map, alarm zones definable, easy to set up
With corresponding data storage and playback functions at all levels, this system could store the targets’ movement track or state information for post review and verification;
