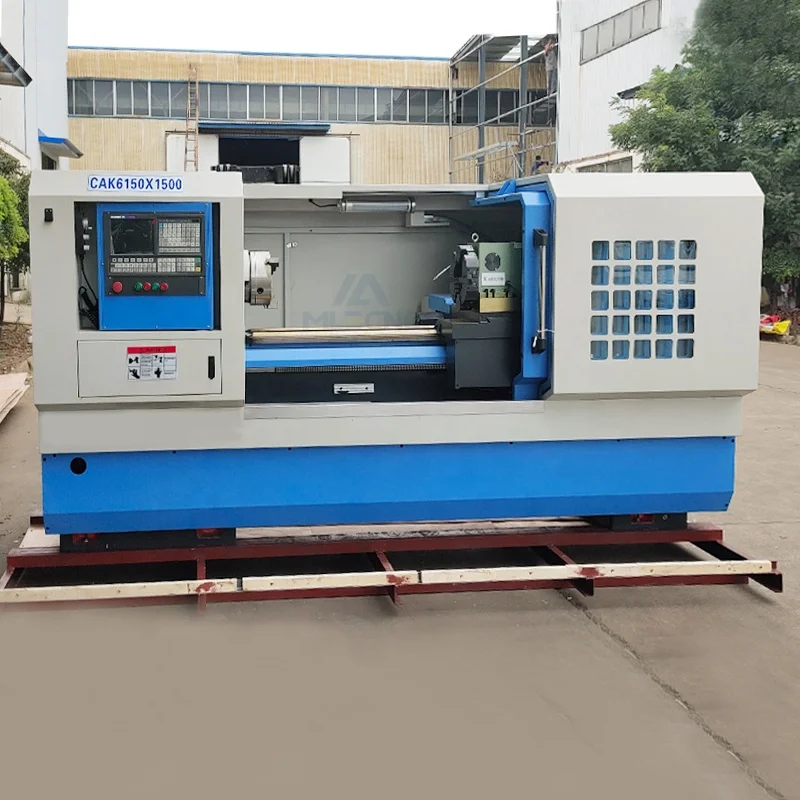

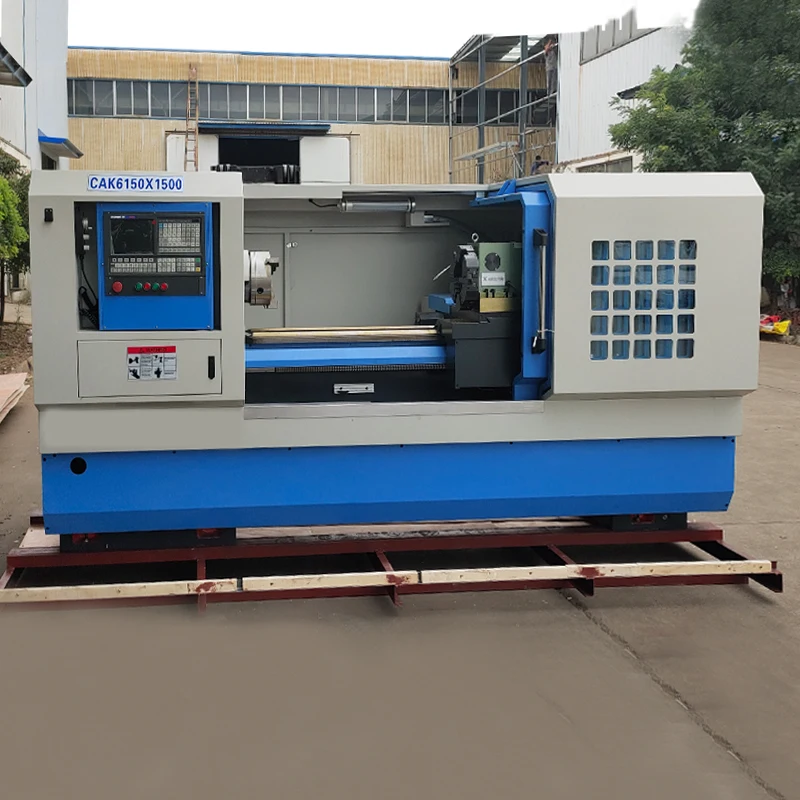

ce standard auto torno gsk control CK6150 metal cnc lathe machine manufacturers
- Category: >>>
- Supplier: Shandong Mainland Cnc Equipment Co. Ltd
Share on (1600540391498):
Product Overview
Description
* Spindle with Japan NSK bearing and high speed
* Best igidity and stability Lathe body and guide
* the guide is treated by super audio quenching with high hardness,
* Feed of X.Z axis are driven by all screw with servo-motor
* Electronic hand wheel equipped easy operation.
* Can be free to choose CNC system
* Three gears and stepless speed change with lower noise and high standard machining accuracy;
* Three kinds of spindle bore can be choose (52/80/105mm) while the diameter of chuck is φ250mm and 325mm
* Best igidity and stability Lathe body and guide
* the guide is treated by super audio quenching with high hardness,
* Feed of X.Z axis are driven by all screw with servo-motor
* Electronic hand wheel equipped easy operation.
* Can be free to choose CNC system
* Three gears and stepless speed change with lower noise and high standard machining accuracy;
* Three kinds of spindle bore can be choose (52/80/105mm) while the diameter of chuck is φ250mm and 325mm
Specifications | CAK6140 | CK6150 | CK6160 | ||||
Max .Swing over bed | 660mm | 500mm | 610mm | ||||
Max. Swing over carriage | 210mm | 300mm | 370mm | ||||
Max. Work piece Length | 750/1000/1500/2000mm | ||||||
Spindle taper | MT6(Φ90 1:20) | ||||||
Chuck size | C6 (D8) | ||||||
Spindle bore | 52/80/105mm | ||||||
Spindle speeds (12steps) | 21-1620rpm(I 162-1620 II 66-660 III 21-210) | ||||||
Tail stock center sleeve travel | 150mm | ||||||
Tail stock center sleeve taper | MT5 | ||||||
Positioning accuracy | ±0.015mm | ||||||
Repositioning accuracy | ±0.006mm | ||||||
X/Z rapid traverse | 4/6m/min | ||||||
Spindle motor | 7.5kw | ||||||
Packing dimensions (L×W×H mm) | Overall dimensions for 750 | 2250×1550×1700mm | |||||
Overall dimensions for 1000 | 2750×1550×1700mm | ||||||
Overall dimensions for 1500 | 3250×1550×1700mm | ||||||
Overall dimensions for 2000 | 3700×1550×1700mm | ||||||
Overall dimensions for 3000 | 4710×1550×1700mm | ||||||
Weight(KGS) | Length | N.W. / G.W. (kg) | |||||
Overall dimensions for 750 | 2100/2800 | ||||||
Overall dimensions for 1000 | 2200/2900 | ||||||
Overall dimensions for 1500 | 2300/3150 | ||||||
Overall dimensions for 2000 | 2700/3350 | ||||||
Overall dimensions for 3000 | 3500/4100 | ||||||
Standard Accessories:
Frequency Spindle;

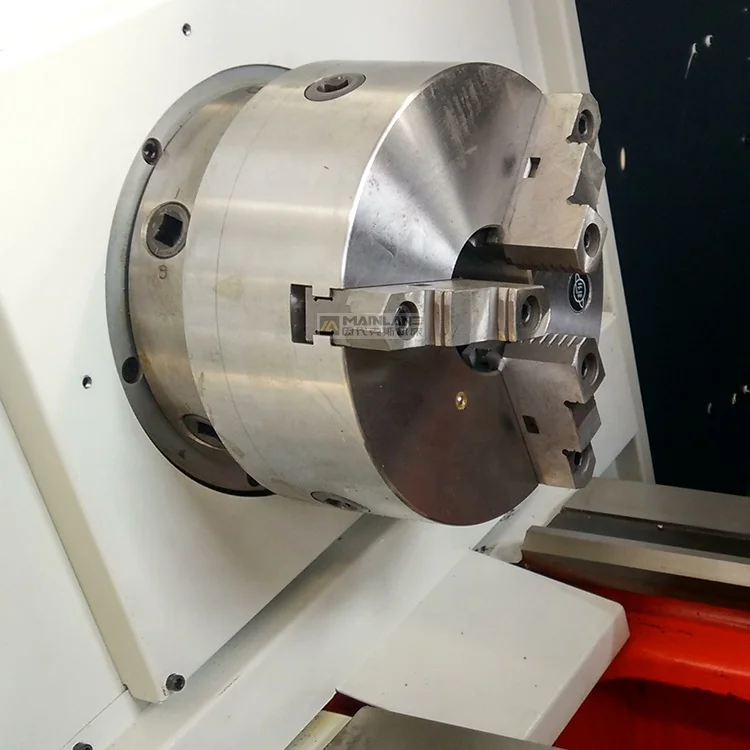

250mm 3-jaw Manual Chuck;

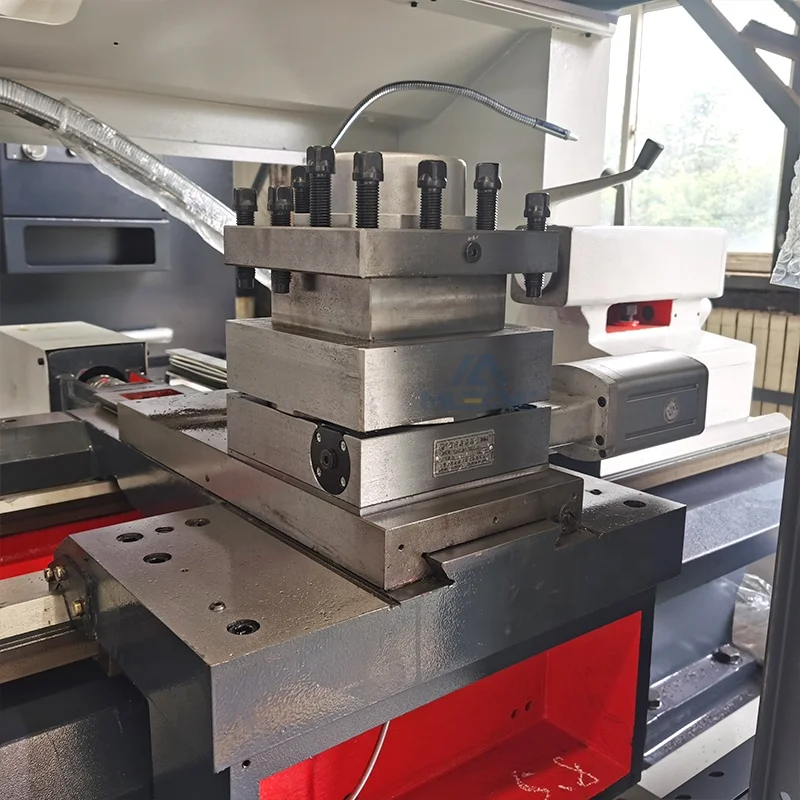

4 station turret;
Manual Tailstock;
Full-splash Guard
Stepless speed change.
250mm 3-jaw Manual Chuck;
4 station turret;
Manual Tailstock;
Full-splash Guard
Stepless speed change.
Optional Accessories:
Hydraulic Chuck;
Hydraulic tailstock;
step speed change by manual;
Auto 3-step speed change;
6/8/12-station turret;

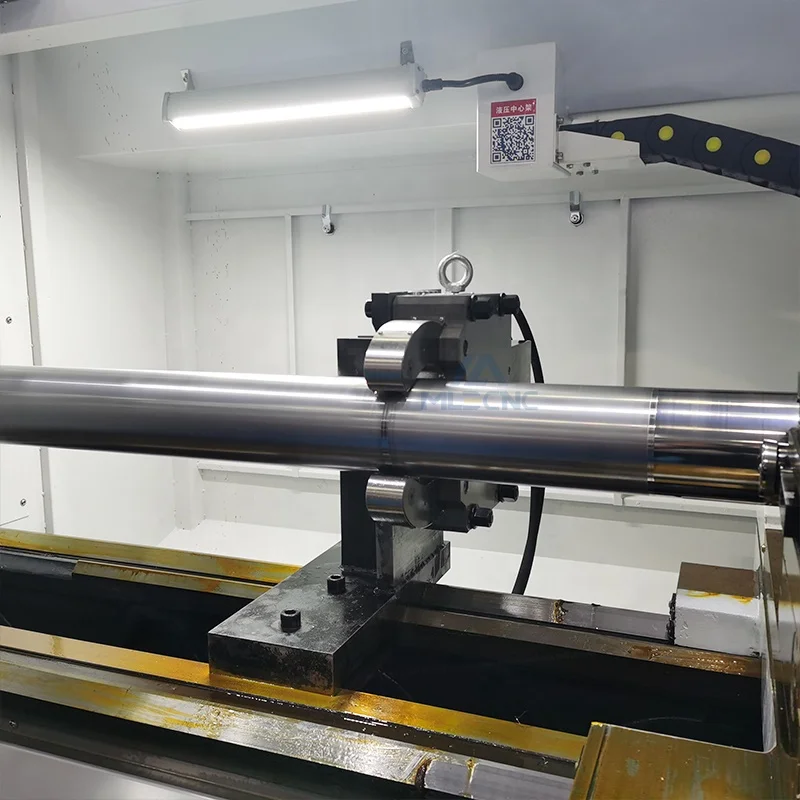

Center Rest and follow rest;
4-Jaw chuck.
Living tools
Hydraulic tailstock;
step speed change by manual;
Auto 3-step speed change;
6/8/12-station turret;
Center Rest and follow rest;
4-Jaw chuck.
Living tools

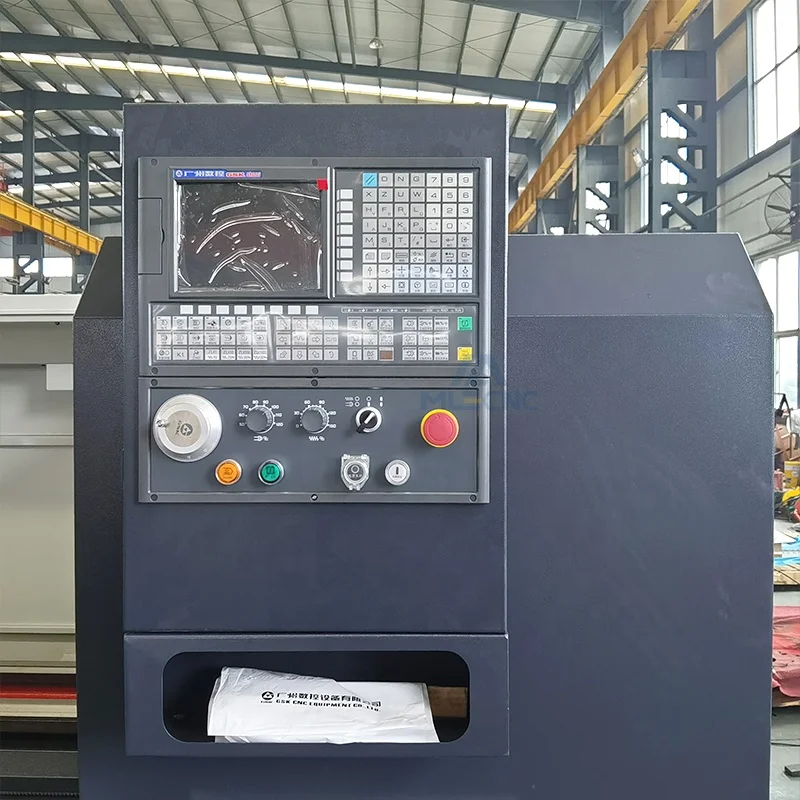

CNC Controller system:
GSK; FANUC; Siemens; KND
