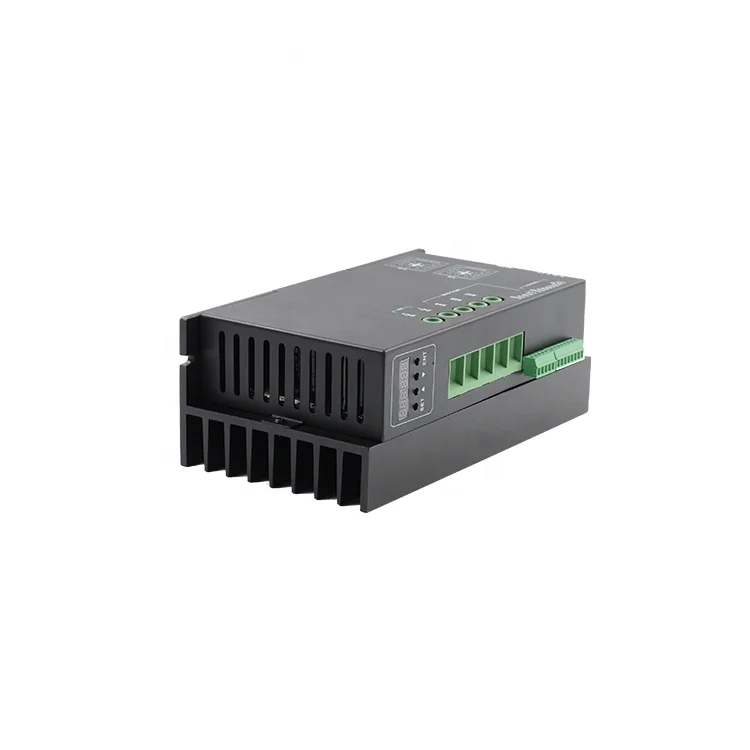

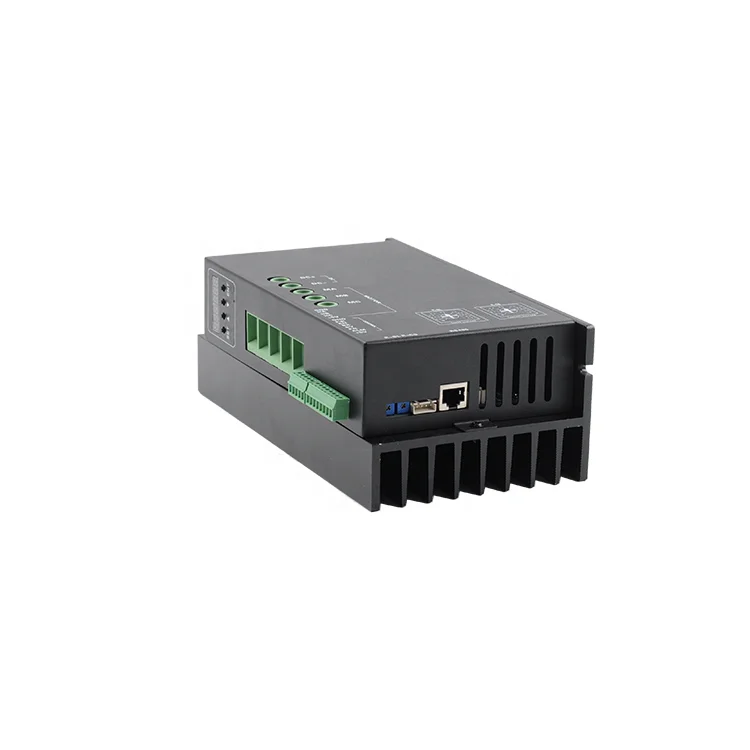

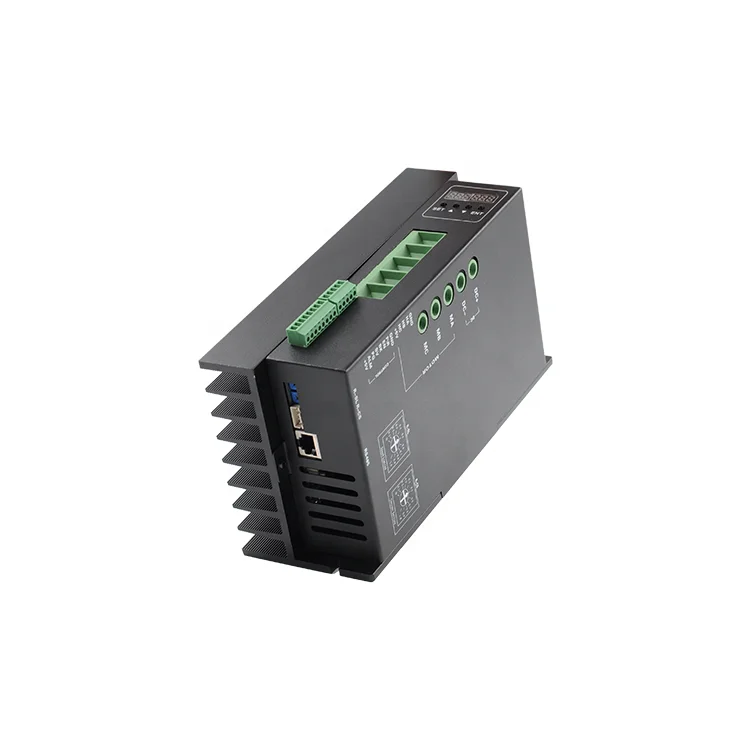

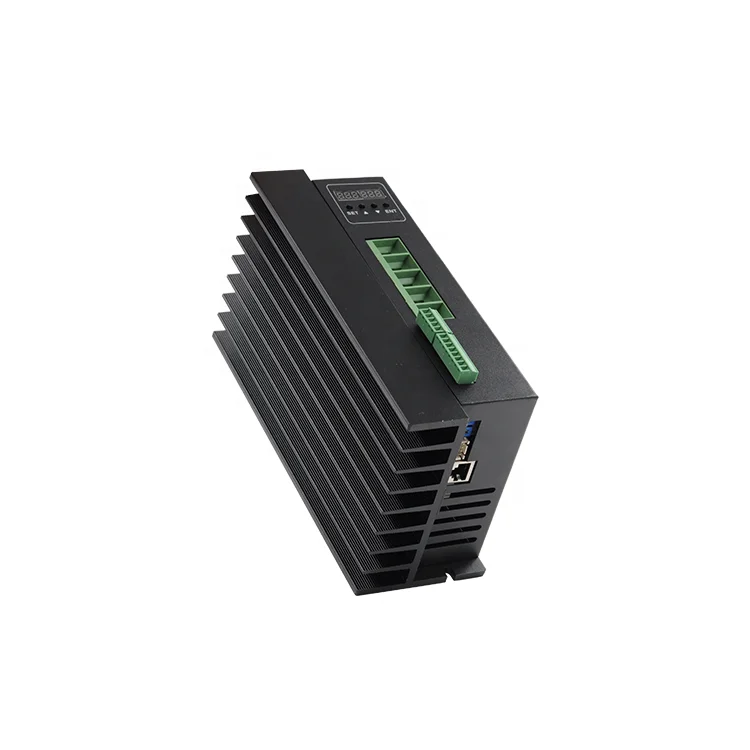

24V 48V 50A 2hp Brushless DC Motor Driver

48V DC Motor Driver

Summary

DBLS-02-H BLDC motor driver is a closed-loop speed controller, which uses IGBT and MOS power, uses the Hall signal of the DC brushless motor to perform double-loop speed control, and has a PID speed regulator in the control link. The system control is stable and reliable. It can always reach the maximum torque at low speed, and the speed control range is 150~10000rpm.

Features

48V Brushless DC Drivers are based on advanced control technology that features excellent performance and ease of use. The drives
are aimed at applications requiring high performance, high-speed stability, basic velocity control, simple setup, and low cost in
a compact design.
● Excellent velocity control
● Wide speed control range of 150-4500rpm
● Speed regulation:0.5%max(with respect to load )
● RS485 multi-axis control
● Easy operation with on-board potentiometer
● Speed setting via external analog or digital signals
● Strong protection
● compact size

System Characteristic
Input Voltage: 24VDC~48VDC
Continuous input over-load protection current: 50A
Accelerate time constant(default) : 0.2 seconds, other can be customized
Working temperature: 0~+45℃
Storage temperature: -20~+85℃
Working & storage humidity: <85% no frosting

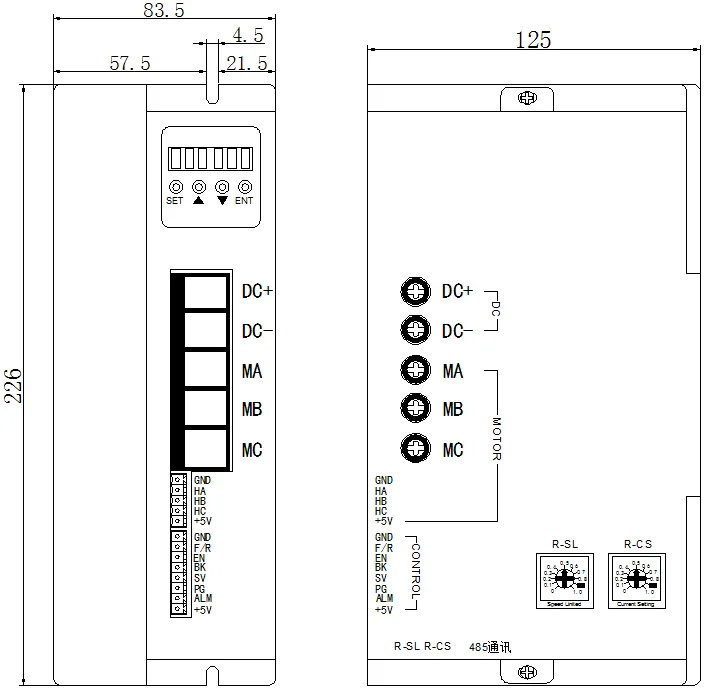

Dimension:

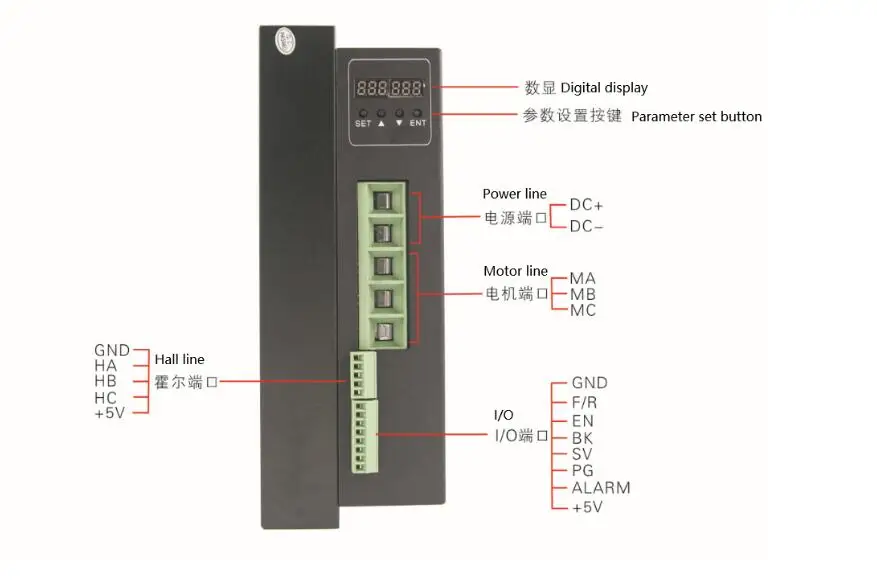

Interface and Control Signal

Control Terminal

Hall Signal Terminal

Motor Terminal

Power Terminal

Panel Operation

Display instruction: total 6 digital tube shows "888888", the light most is the first and the lowest.
