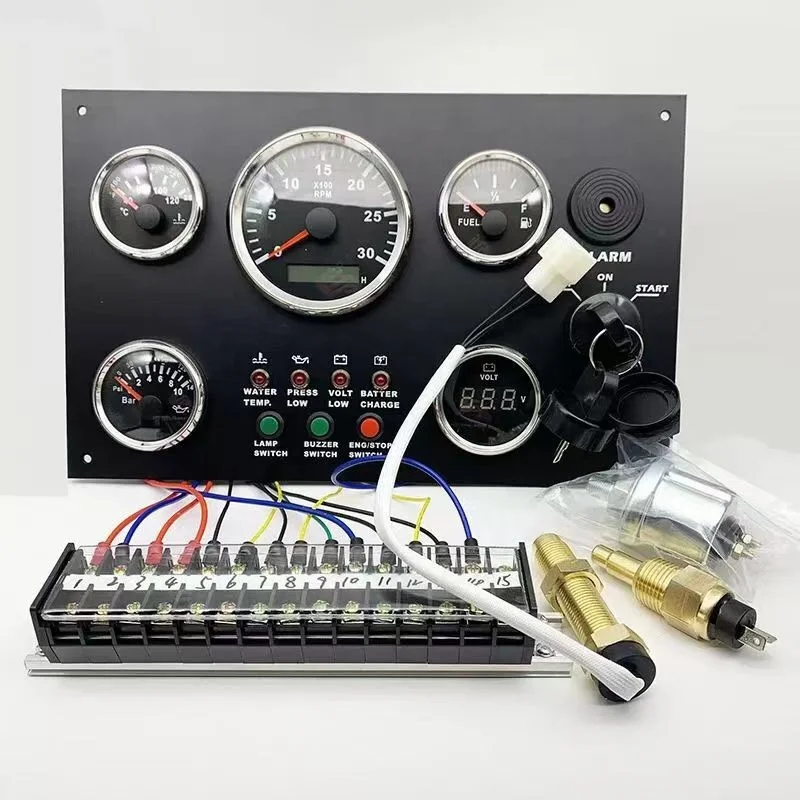

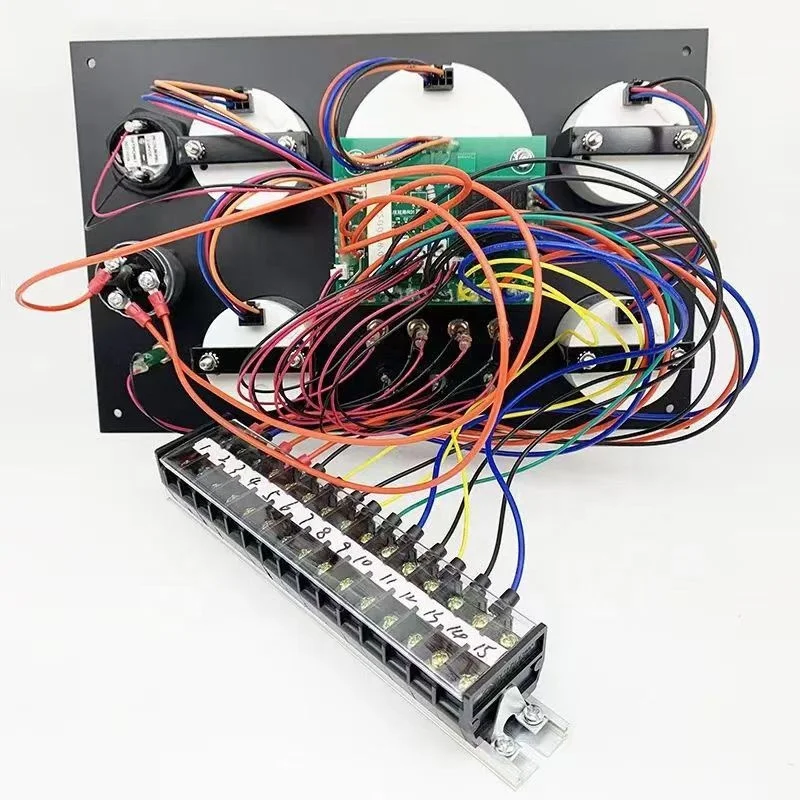

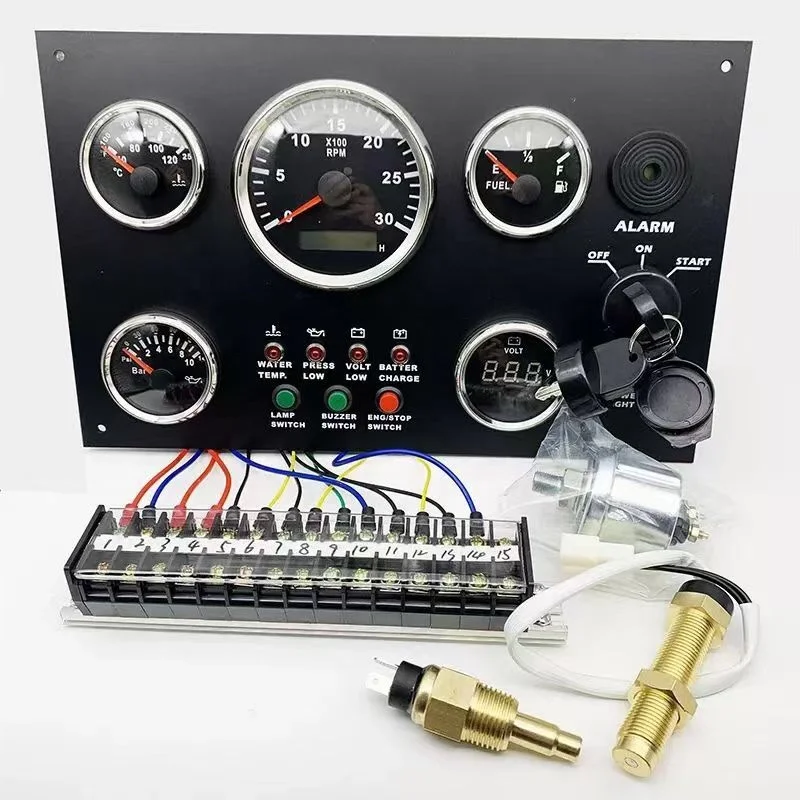

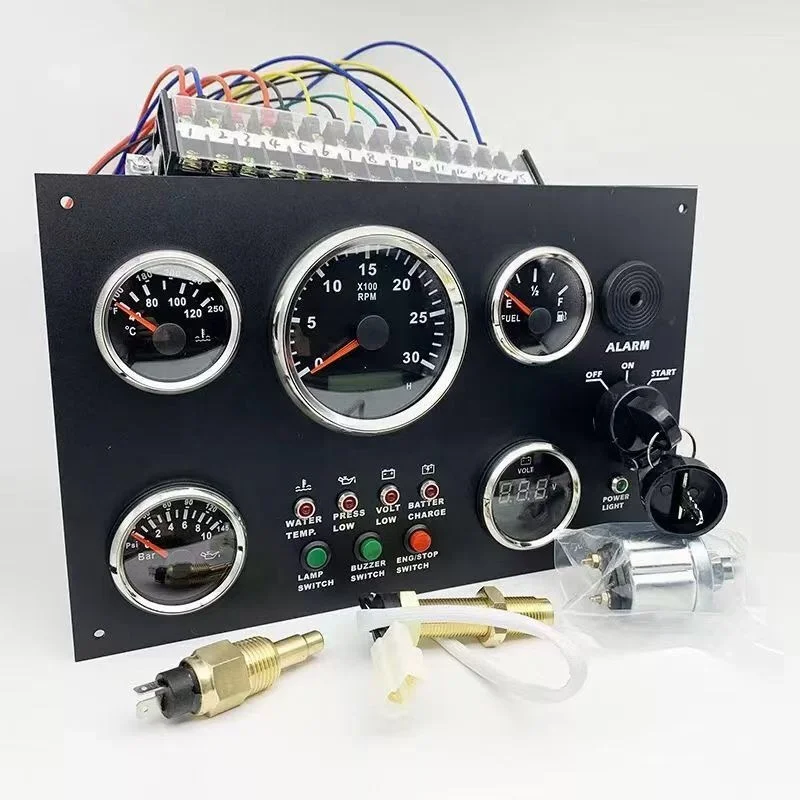

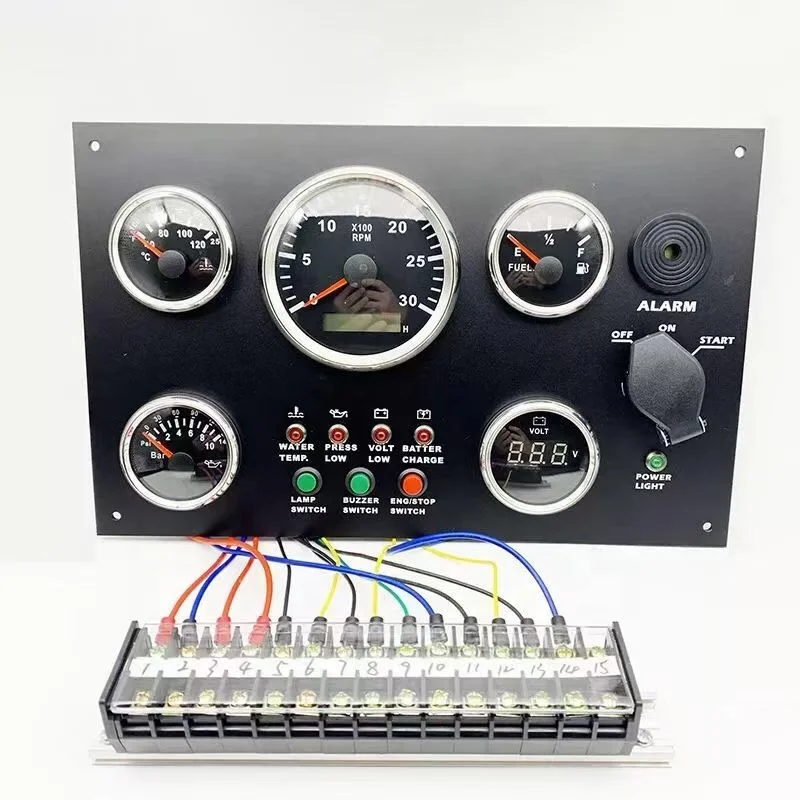

Boat Gauge Set Dashboard Instrument Panel

Item

Description:

-Use moving-magnet principle to drive the needle, featuring good endurance and anti-vibration.
-IP67 waterproof and dustproof grade
-Stepper motors used for full range of stepping gauges, great feature with its less power consumption, longer life, higher
precision, etc.
-With curved glass (with anti-fogging function)
-With ultra-wide working voltage design( long-term operating voltage: 9-32V, Maximum up to: 36V (≤ 1 min))

Features:

The gauge can be change:

Tachometer with Digital Hour Meter:0-3000/4000/6000/7000/8000RPM
Water Temperature gauge:40-120degree
Oil Pressure gauge:0-5bar/0-10bar
Volt meter:8-16V/16-32V
Fuel Level gauge:0-190ohm/240-330hm
Marine grade push button Switch (Engine Stop or Pre-heat)
Marine grade Ignition key
Sealed Key Switch, 4-position With Anti-restart
10A at 12V
Four positions: Accessory - Off - Ignition/Accessory - Start. Spring return to Off.
Key switch is constructed from engineering thermoplastic and is fully sealed using O-rings and ultrasonic welding to protect
switch to ip67 (with connector installed).
Plastic face nut and nickel-plated brass backing nut. Supplied with two matching keys, and with protective key boot.
2 tone Alarm Pizzo Siren
