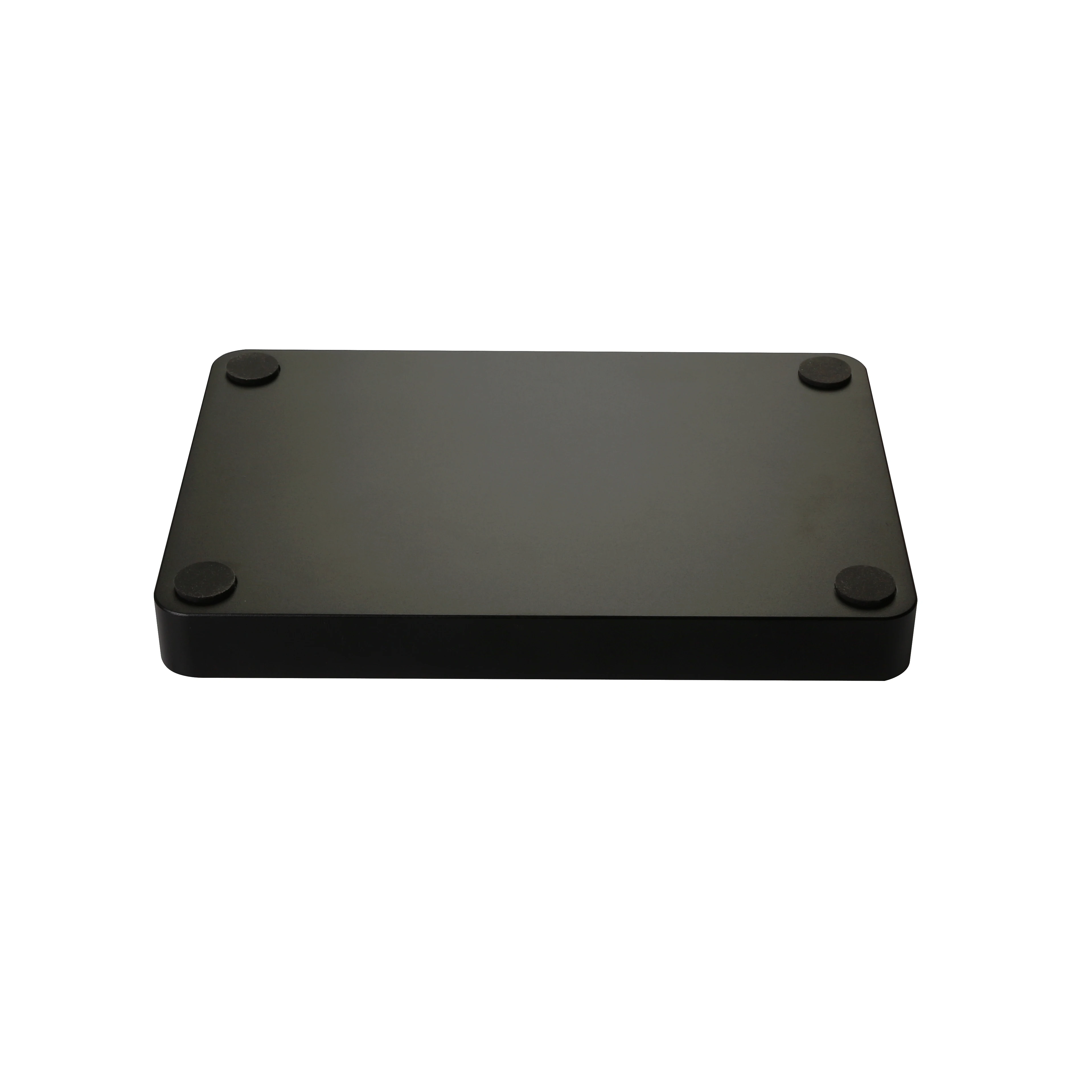

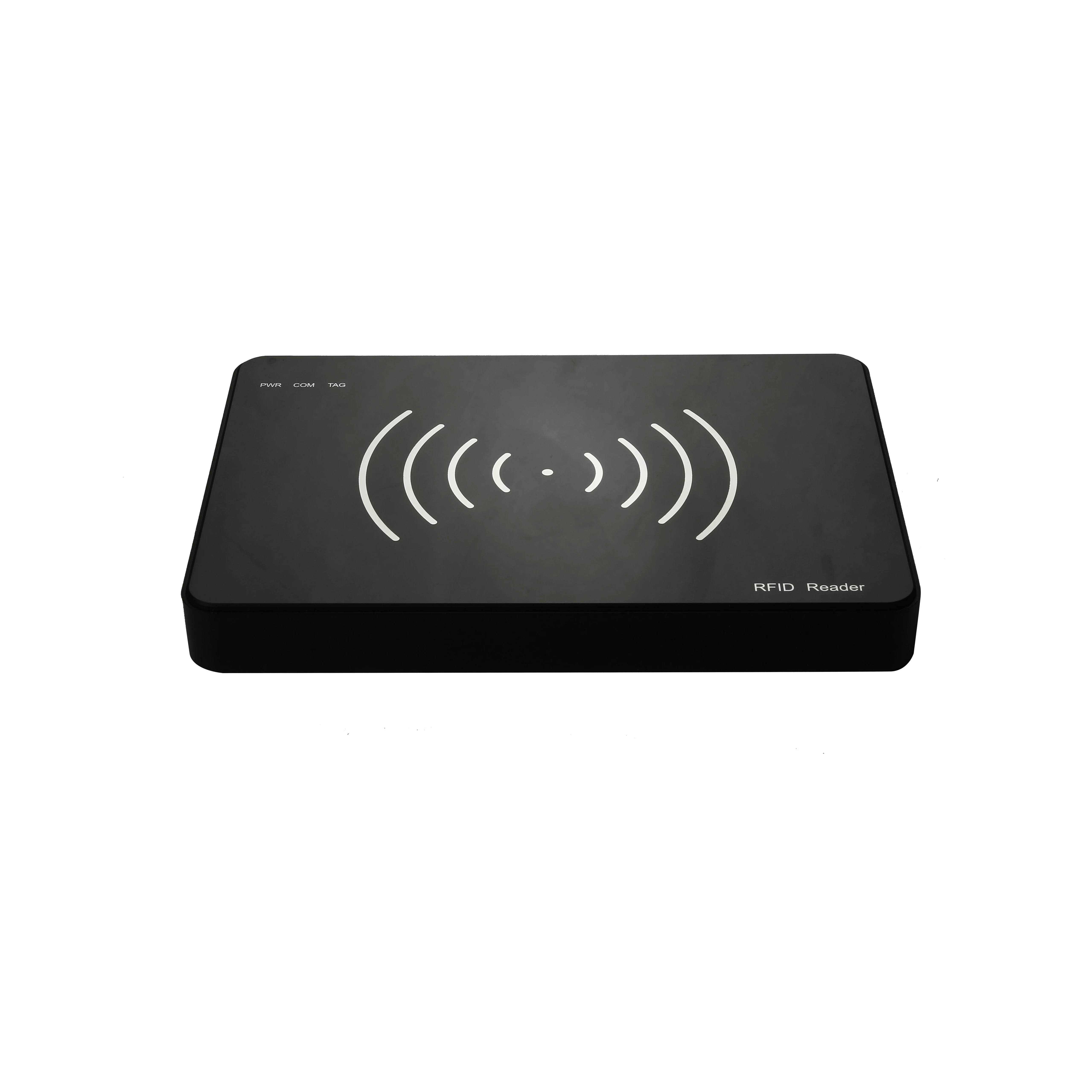

OPPD01 Wholesale Intergrated Long Distance RFID UHF Desktop Reader Writer for Access Control
- Category: Access Control Card Readers >>>
- Supplier: Xiamen OPP IOT Technologies Co. Ltd.
Share on (1600540417998):
Product Overview
Description
Product Description
OPPD01V2 Wholesale RFID UHF Desktop Integrated Reader for Access Control
OPPD01V2 is a high-performance UHF RFID desktop integrated machine.
Based on the design of a high-performance UHF chip, it fully supports the EPCglobal C1 Gen 2 ISO 18000-6c standard.
Combined with the proprietary high-efficiency collision processing algorithm, while maintaining a high reading rate.
It can realize the fast reading and writing processing of electronic labels, which can be widely used in various solutions such as personal identification, conference sign-in system, access control system, anti-counterfeiting system, and production process control.
Please contact us today for a free consultation and factory direct pricing!\\uD83D\\uDE01
OPPD01V2 is a high-performance UHF RFID desktop integrated machine.
Based on the design of a high-performance UHF chip, it fully supports the EPCglobal C1 Gen 2 ISO 18000-6c standard.
Combined with the proprietary high-efficiency collision processing algorithm, while maintaining a high reading rate.
It can realize the fast reading and writing processing of electronic labels, which can be widely used in various solutions such as personal identification, conference sign-in system, access control system, anti-counterfeiting system, and production process control.
Please contact us today for a free consultation and factory direct pricing!\\uD83D\\uDE01
Specification
Physical Specifications | ||

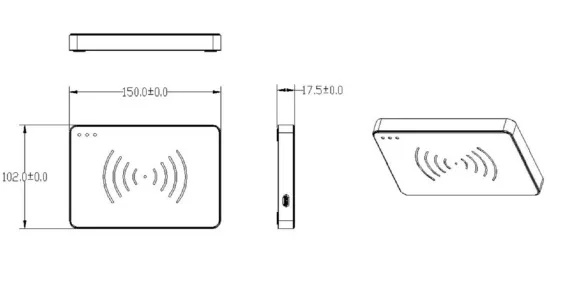

*Equipment Size | 150mm x102mm x 17.5mm | |
*Package Size | 195mm x130mm x 30mm | |
*Net Weight | 260g | |
*Gross Weight | 400g | |
*Antenna | Integrated Near field circularly polarized antenna | |
*Shell Material | Metal bottom shell + tempered glass panel | |
Performance Specifications | ||
*Protocols | EPC Global C1 Gen 2 ISO 18000-6C | |
*Frequency | 865~868MHz/902～928MHz | |
*Frequency modulation | FHSS or fixed-frequency, can be set by software | |
*RF output | from 0 dBm to 26dBm* with +/-1dBm | |
*Reading speed | >50 tags/sec | |
*Tag Buffer Size | 330 tags @ 96 bit EPC/100@ 96 bit EPC | |
*Tag RSSI | Supported | |
*Interface | Communication Interface USB drive free type-C interface, support USB HID simulation keyboard (optional) interface | |
*Indicator light | PWR: Red LED, Power indicator COM: Green LED , Communication indicator TAG: Blue LED ， Tags operation indicator | |
Color Camera | ||
*Resolution | Rear 20 megapixel, front 5.0 megapixel | |
*Lens | Auto-focus with LED flash | |
Environment | ||
*Operating Temp | -20 to +55℃ | |
*Storage Temp | -20 to +85℃ | |
*Humidity | 5%～95%RH，Non-condensing | |
